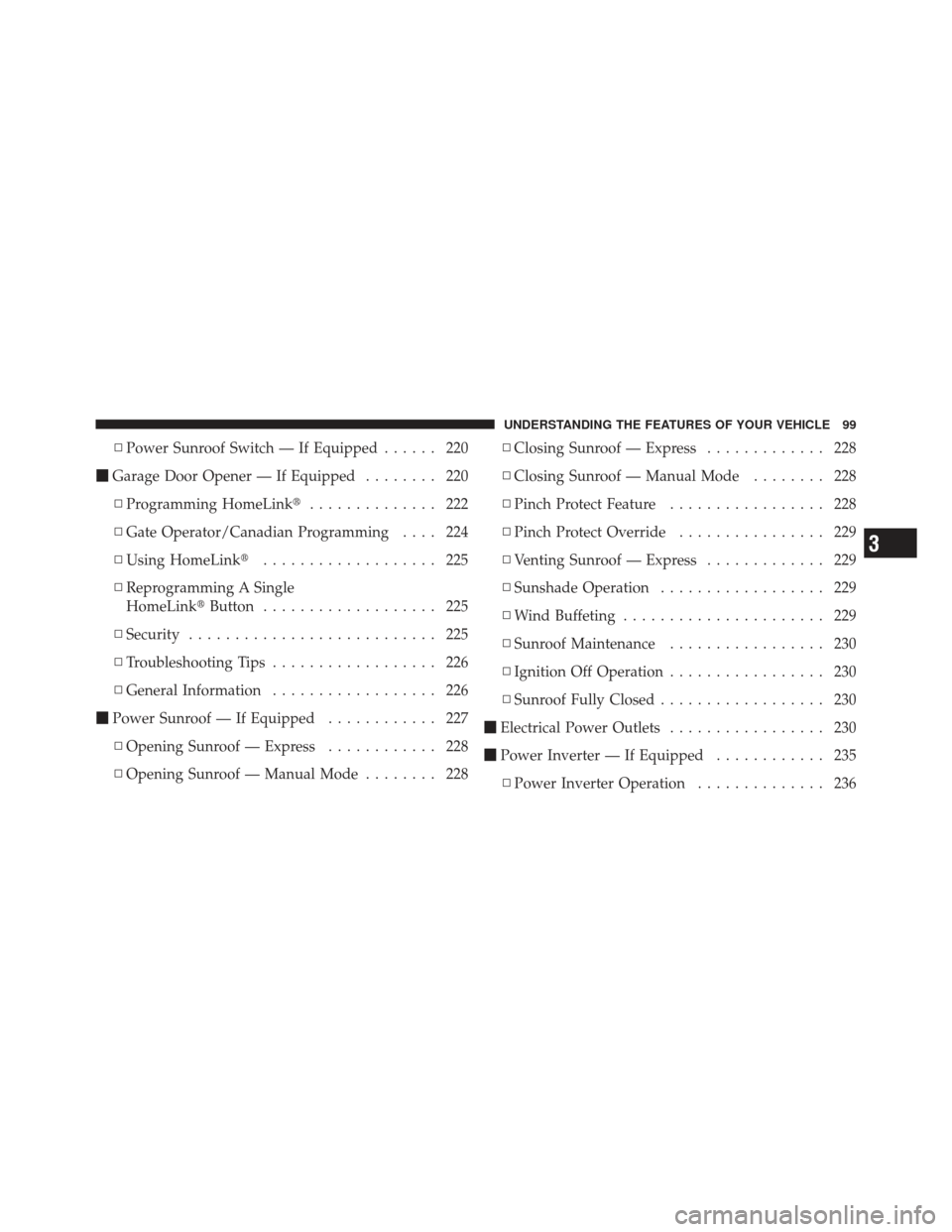

Page 101 of 557
▫Power Sunroof Switch — If Equipped ...... 220
Garage Door Opener — If Equipped ........ 220
▫ Programming HomeLink .............. 222
▫ Gate Operator/Canadian Programming .... 224
▫ Using HomeLink ................... 225
▫ Reprogramming A Single
HomeLink Button................... 225
▫ Security ........................... 225
▫ Troubleshooting Tips .................. 226
▫ General Information .................. 226
Power Sunroof — If Equipped ............ 227
▫ Opening Sunroof — Express ............ 228
▫ Opening Sunroof — Manual Mode ........ 228▫
Closing Sunroof — Express ............. 228
▫ Closing Sunroof — Manual Mode ........ 228
▫ Pinch Protect Feature ................. 228
▫ Pinch Protect Override ................ 229
▫ Venting Sunroof — Express ............. 229
▫ Sunshade Operation .................. 229
▫ Wind Buffeting ...................... 229
▫ Sunroof Maintenance ................. 230
▫ Ignition Off Operation ................. 230
▫ Sunroof Fully Closed .................. 230
Electrical Power Outlets ................. 230
Power Inverter — If Equipped ............ 235
▫ Power Inverter Operation .............. 236
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

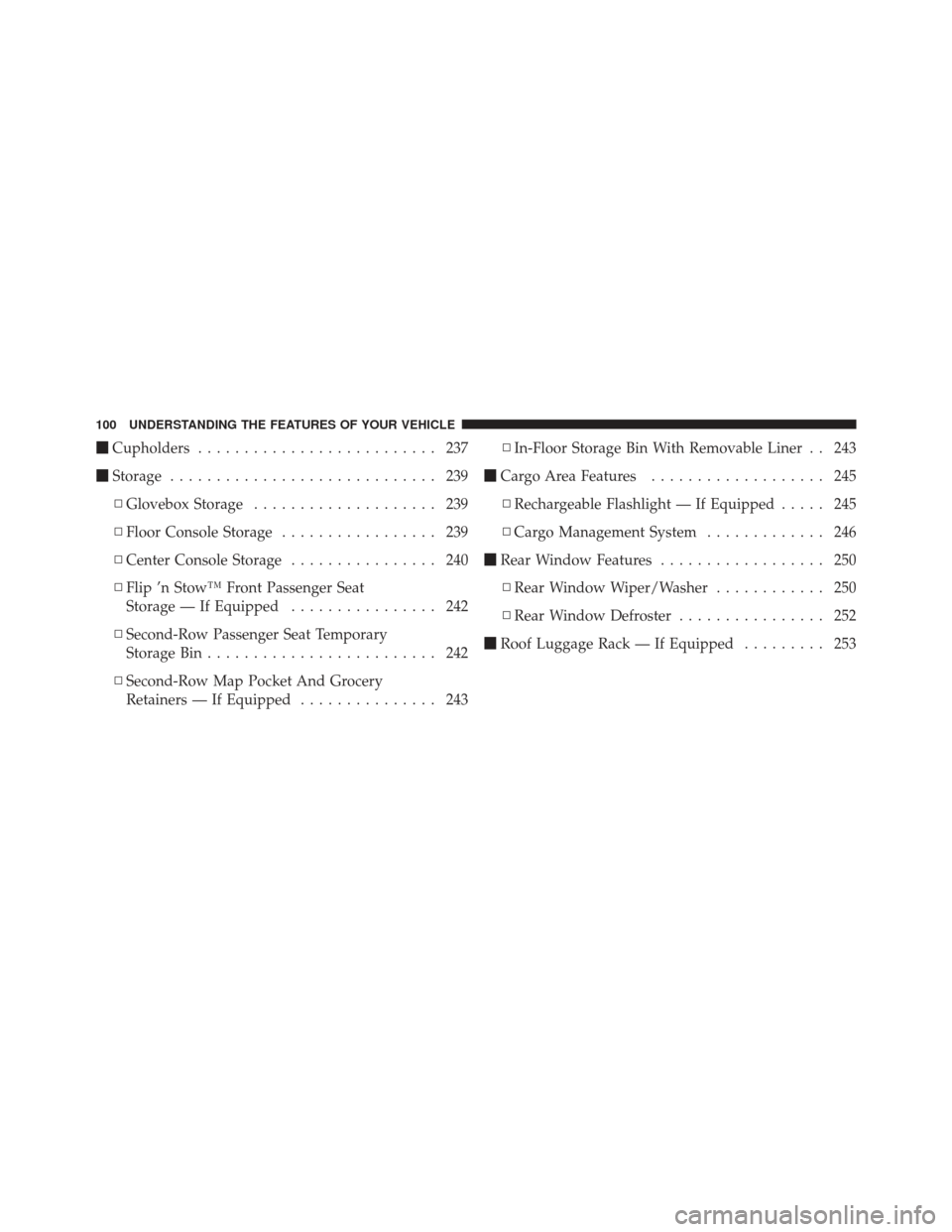

Page 102 of 557
Cupholders .......................... 237
Storage ............................. 239
▫ Glovebox Storage .................... 239
▫ Floor Console Storage ................. 239
▫ Center Console Storage ................ 240
▫ Flip ’n Stow™ Front Passenger Seat
Storage — If Equipped ................ 242
▫ Second-Row Passenger Seat Temporary
Storage Bin ......................... 242
▫ Second-Row Map Pocket And Grocery
Retainers — If Equipped ............... 243 ▫
In-Floor Storage Bin With Removable Liner . . 243
Cargo Area Features ................... 245
▫ Rechargeable Flashlight — If Equipped ..... 245
▫ Cargo Management System ............. 246
Rear Window Features .................. 250
▫ Rear Window Wiper/Washer ............ 250
▫ Rear Window Defroster ................ 252
Roof Luggage Rack — If Equipped ......... 253
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

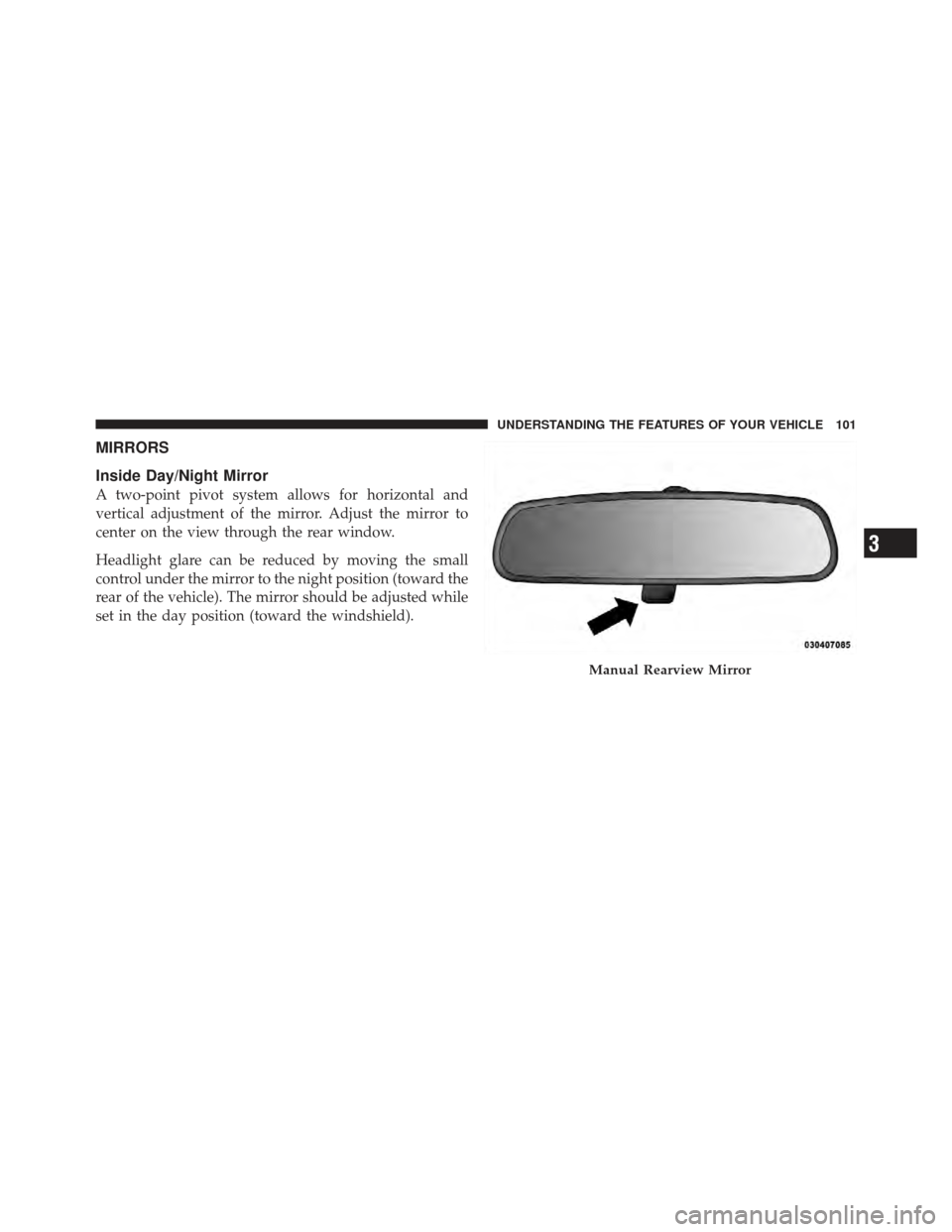

Page 103 of 557
MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. Adjust the mirror to
center on the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Manual Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101
Page 104 of 557
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. This feature will be defaulted
on, and only be disabled when the vehicle is moving in
reverse.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
Automatic Dimming Mirror
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

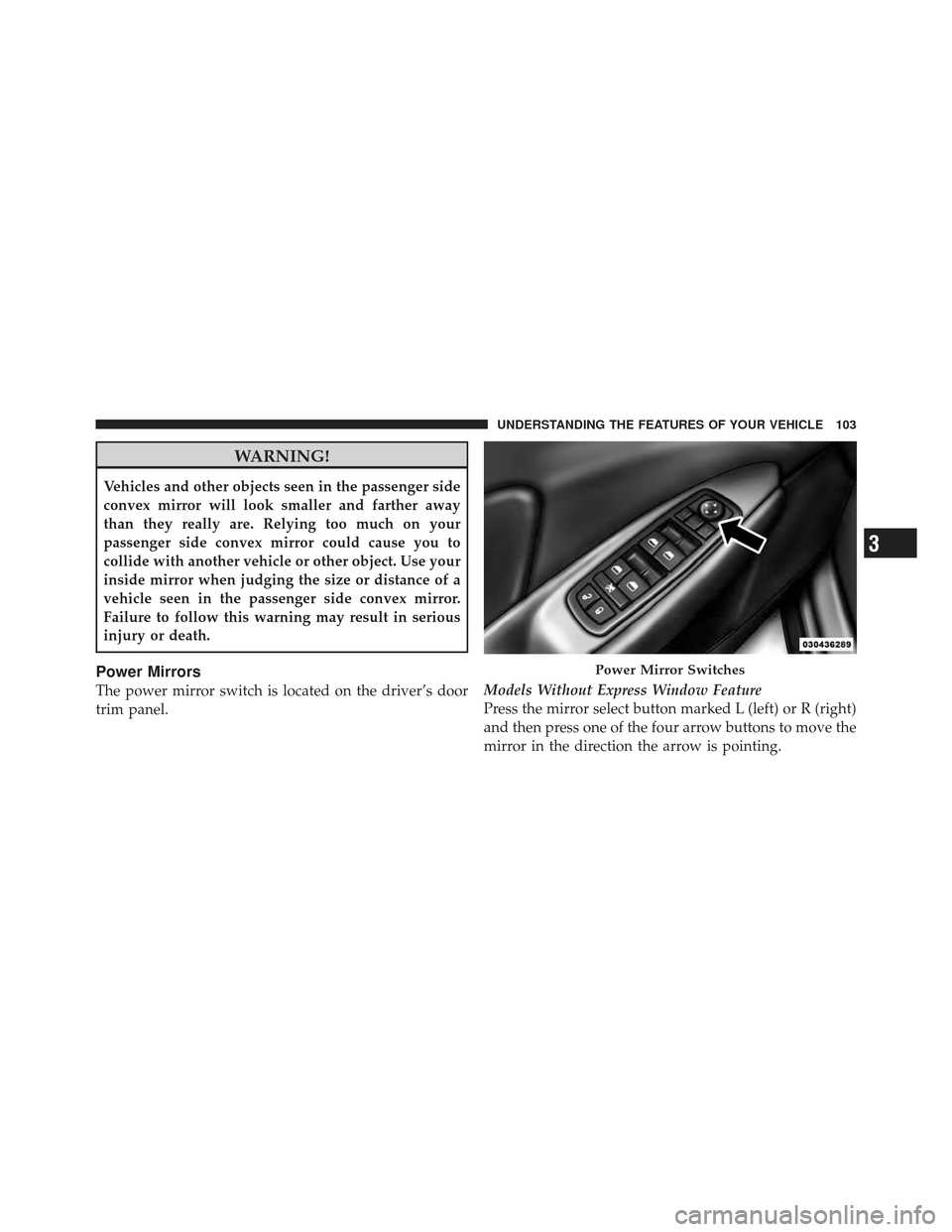

Page 105 of 557
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Failure to follow this warning may result in serious
injury or death.
Power Mirrors
The power mirror switch is located on the driver’s door
trim panel.Models Without Express Window Feature
Press the mirror select button marked L (left) or R (right)
and then press one of the four arrow buttons to move the
mirror in the direction the arrow is pointing.
Power Mirror Switches
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

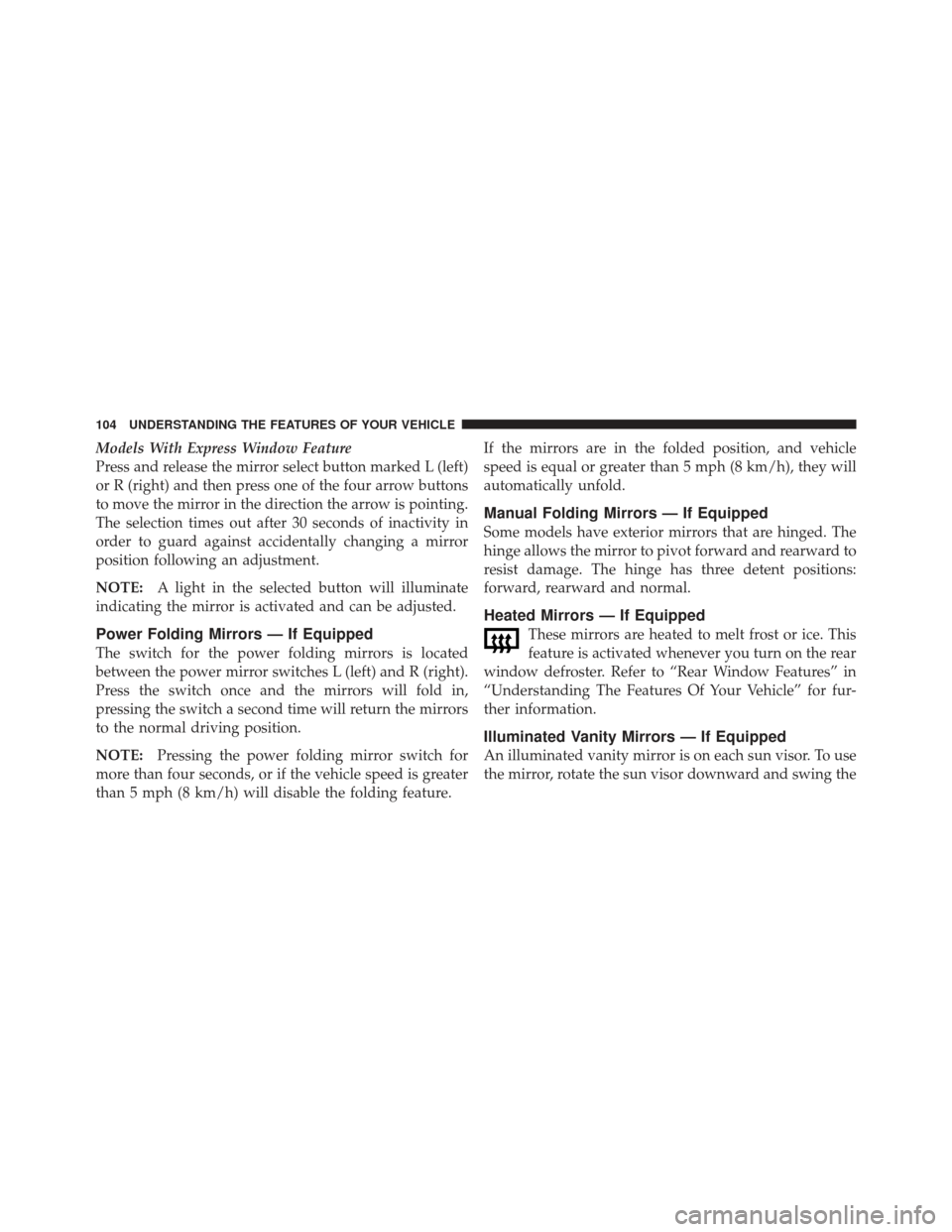

Page 106 of 557
Models With Express Window Feature
Press and release the mirror select button marked L (left)
or R (right) and then press one of the four arrow buttons
to move the mirror in the direction the arrow is pointing.
The selection times out after 30 seconds of inactivity in
order to guard against accidentally changing a mirror
position following an adjustment.
NOTE:A light in the selected button will illuminate
indicating the mirror is activated and can be adjusted.
Power Folding Mirrors — If Equipped
The switch for the power folding mirrors is located
between the power mirror switches L (left) and R (right).
Press the switch once and the mirrors will fold in,
pressing the switch a second time will return the mirrors
to the normal driving position.
NOTE: Pressing the power folding mirror switch for
more than four seconds, or if the vehicle speed is greater
than 5 mph (8 km/h) will disable the folding feature. If the mirrors are in the folded position, and vehicle
speed is equal or greater than 5 mph (8 km/h), they will
automatically unfold.
Manual Folding Mirrors — If Equipped
Some models have exterior mirrors that are hinged. The
hinge allows the mirror to pivot forward and rearward to
resist damage. The hinge has three detent positions:
forward, rearward and normal.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor downward and swing the
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 107 of 557
mirror cover upward. The light will turn on automati-
cally. Closing the mirror cover will turn off the light.
Sun Visor “Slide-On Rod” Feature — If Equipped
This feature allows for additional flexibility in position-
ing the visor to block out the sun.
1. Fold down the sun visor.2. Unclip the visor from the center clip.
3. Pull the sun visor toward the inside rearview mirror to
extend it.
Uconnect™ Phone
Uconnect Touch™ 4.3
Uconnect™ Phone is a voice-activated, hands-free, in-
vehicle communications system. Uconnect™ Phone al-
lows you to dial a phone number with your mobile
phone.
Uconnect Phone supports the following features:
Voice Activated features:
•
Hands Free dialing via Voice (“Call John Smiths Mo-
bile” or, “Dial 248 555-1212”),
•Redialing last dialed numbers (“Redial”),
Illuminated Vanity Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

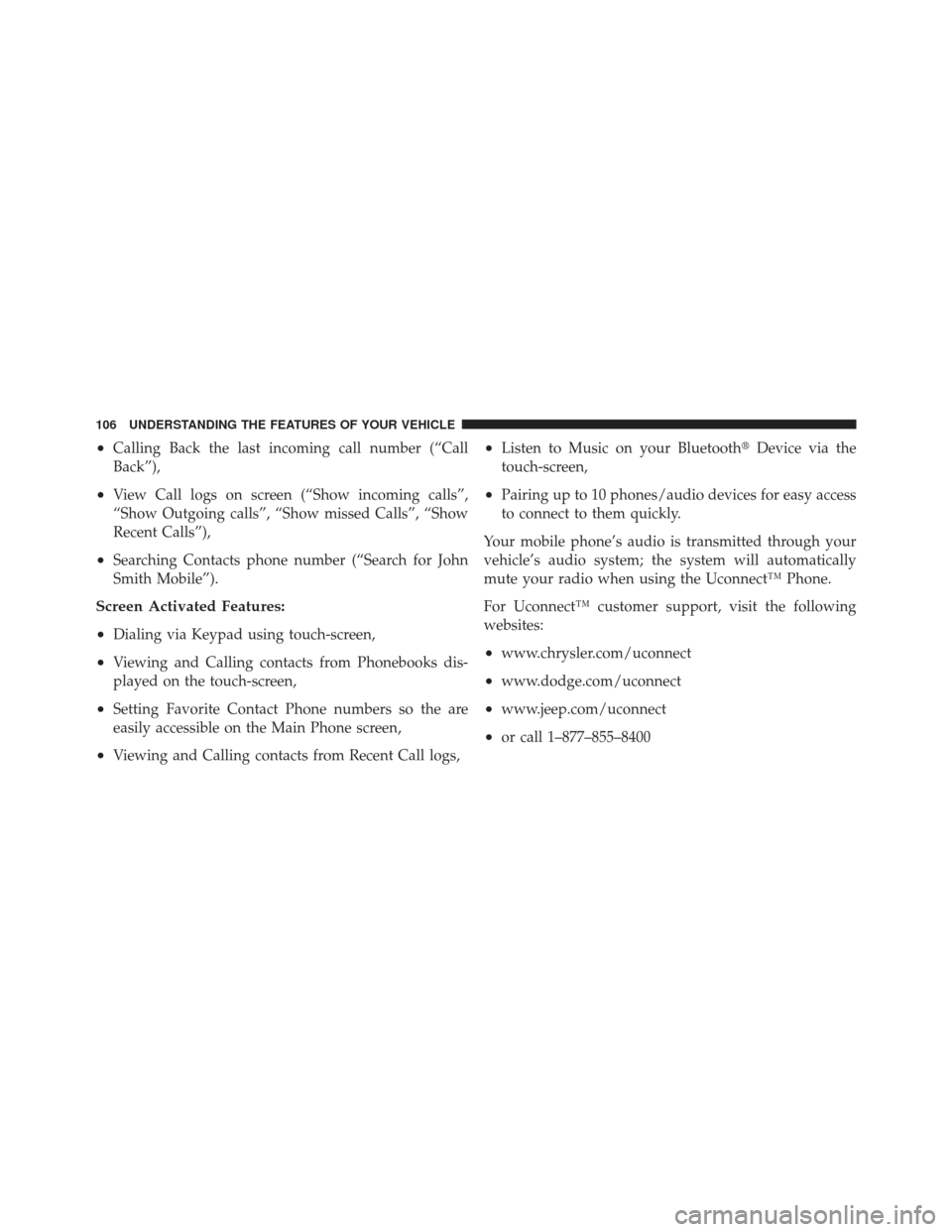

Page 108 of 557
•Calling Back the last incoming call number (“Call
Back”),
•View Call logs on screen (“Show incoming calls”,
“Show Outgoing calls”, “Show missed Calls”, “Show
Recent Calls”),
•Searching Contacts phone number (“Search for John
Smith Mobile”).
Screen Activated Features:
•
Dialing via Keypad using touch-screen,
•Viewing and Calling contacts from Phonebooks dis-
played on the touch-screen,
•Setting Favorite Contact Phone numbers so the are
easily accessible on the Main Phone screen,
•Viewing and Calling contacts from Recent Call logs,
•Listen to Music on your BluetoothDevice via the
touch-screen,
•Pairing up to 10 phones/audio devices for easy access
to connect to them quickly.
Your mobile phone’s audio is transmitted through your
vehicle’s audio system; the system will automatically
mute your radio when using the Uconnect™ Phone.
For Uconnect™ customer support, visit the following
websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

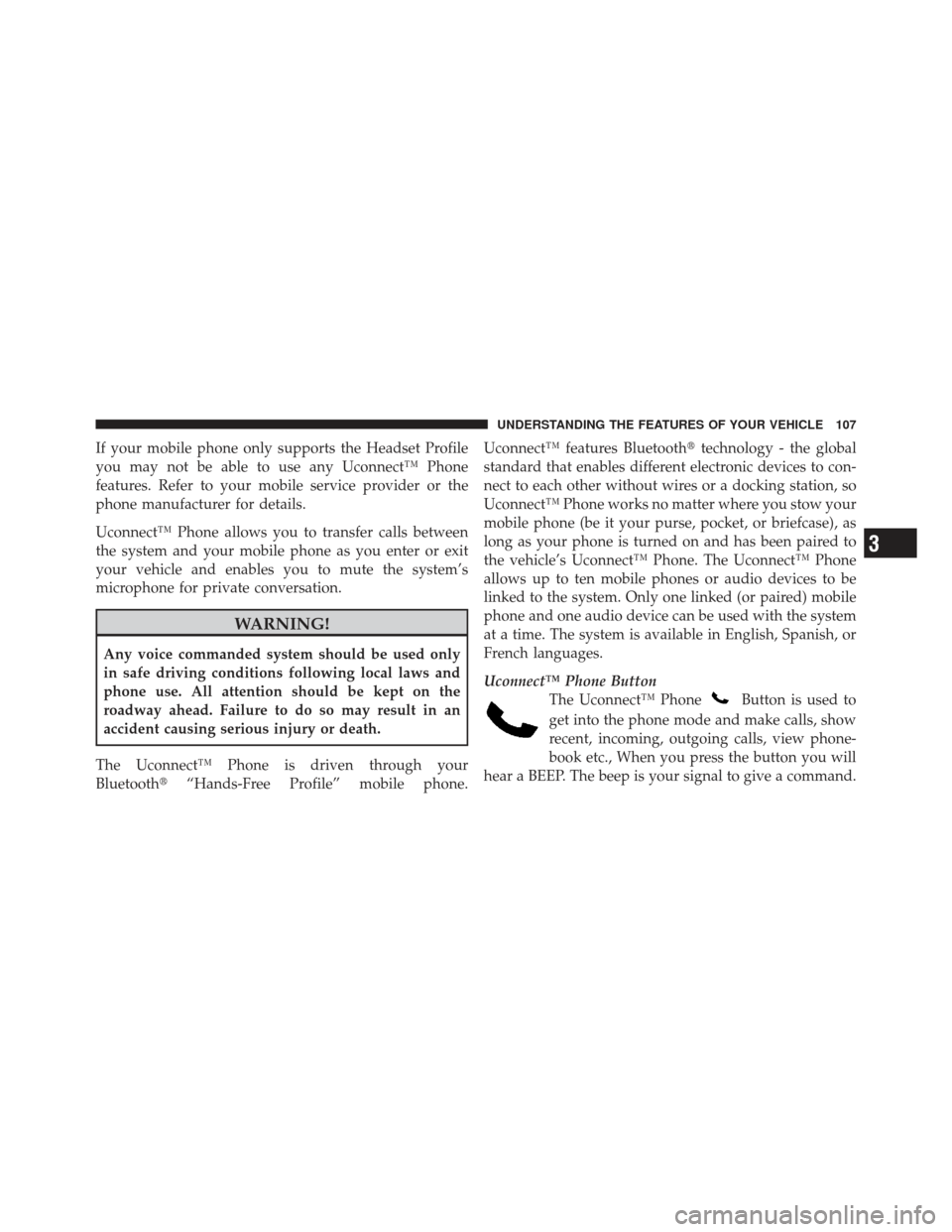

Page 109 of 557
If your mobile phone only supports the Headset Profile
you may not be able to use any Uconnect™ Phone
features. Refer to your mobile service provider or the
phone manufacturer for details.
Uconnect™ Phone allows you to transfer calls between
the system and your mobile phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.
WARNING!
Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in an
accident causing serious injury or death.
The Uconnect™ Phone is driven through your
Bluetooth “Hands-Free Profile” mobile phone. Uconnect™ features Bluetooth
technology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
Uconnect™ Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or briefcase), as
long as your phone is turned on and has been paired to
the vehicle’s Uconnect™ Phone. The Uconnect™ Phone
allows up to ten mobile phones or audio devices to be
linked to the system. Only one linked (or paired) mobile
phone and one audio device can be used with the system
at a time. The system is available in English, Spanish, or
French languages.
Uconnect™ Phone Button The Uconnect™ Phone
Button is used to
get into the phone mode and make calls, show
recent, incoming, outgoing calls, view phone-
book etc., When you press the button you will
hear a BEEP. The beep is your signal to give a command.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

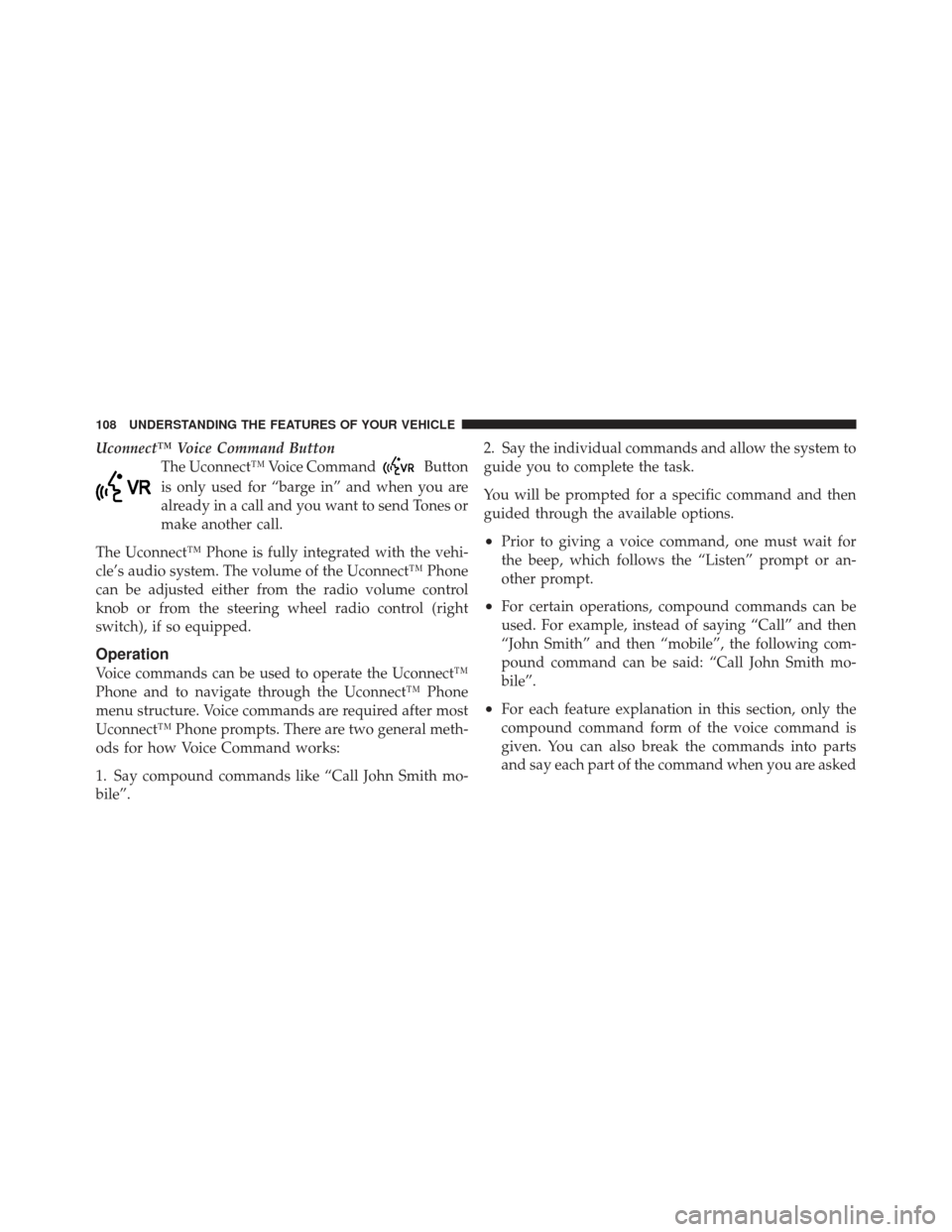

Page 110 of 557
Uconnect™ Voice Command ButtonThe Uconnect™ Voice Command
Button
is only used for “barge in” and when you are
already in a call and you want to send Tones or
make another call.
The Uconnect™ Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect™ Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
Operation
Voice commands can be used to operate the Uconnect™
Phone and to navigate through the Uconnect™ Phone
menu structure. Voice commands are required after most
Uconnect™ Phone prompts. There are two general meth-
ods for how Voice Command works:
1. Say compound commands like “Call John Smith mo-
bile”. 2. Say the individual commands and allow the system to
guide you to complete the task.
You will be prompted for a specific command and then
guided through the available options.
•Prior to giving a voice command, one must wait for
the beep, which follows the “Listen” prompt or an-
other prompt.
•For certain operations, compound commands can be
used. For example, instead of saying “Call” and then
“John Smith” and then “mobile”, the following com-
pound command can be said: “Call John Smith mo-
bile”.
•For each feature explanation in this section, only the
compound command form of the voice command is
given. You can also break the commands into parts
and say each part of the command when you are asked
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
