Page 12 of 557
▫Remote Open Window Feature ............ 23
▫ Using The Panic Alarm ................. 23
▫ Programming Additional Transmitters ...... 24
▫ Transmitter Battery Replacement .......... 24
▫ General Information ................... 25
Remote Starting System — If Equipped ....... 25
▫ How To Use Remote Start ............... 26
Door Locks ........................... 29
▫ Manual Door Locks ................... 29
▫ Power Door Locks .................... 30
▫ Child-Protection Door Lock System — Rear
Doors ............................. 31
Keyless Enter-N-Go ..................... 34
Windows ............................ 38
▫ Power Windows ...................... 38
▫ Wind Buffeting ....................... 41
Liftgate ............................. 41
Occupant Restraints ..................... 42
▫ Lap/Shoulder Belts .................... 46
▫ Lap/Shoulder Belt Untwisting Procedure .... 51
▫ Seat Belts In Passenger Seating Positions ..... 52
▫ Automatic Locking Retractor Mode (ALR) —
If Equipped ......................... 52
▫ Energy Management Feature ............. 53
▫ Seat Belt Pretensioners ................. 54
▫ Supplemental Active Head Restraints
(AHR) — If Equipped .................. 54
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 26 of 557
Programming Additional Transmitters
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
Transmitter Battery Replacement
The recommended replacement battery is one CR2032
battery.
NOTE:
•Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
•Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Remove the emergency key by sliding the mechanical
latch on the back of the RKE transmitter sideways with
your thumb and then pull the key out with your other
hand. 2. Insert the tip of the emergency key or a #2 flat blade
screwdriver into the slot and gently pry the two halves of
the RKE transmitter apart. Make sure not to damage the
seal during removal.
3. Remove the battery by turning the back cover over
(battery facing downward) and tapping it lightly on a
Separating RKE Transmitter Case
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 451 of 557
MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.4L ............. 451
Engine Compartment — 3.6L ............. 452
Onboard Diagnostic System — OBD II ...... 453
▫ Loose Fuel Filler Cap Message ........... 453
Emissions Inspection And Maintenance
Programs ............................ 454
Replacement Parts ..................... 455
Dealer Service ........................ 455
Maintenance Procedures ................. 456
▫ Engine Oil ......................... 457
▫ Engine Oil Filter ..................... 460
▫ Engine Air Cleaner Filter ............... 460
▫ Maintenance-Free Battery .............. 461
▫ Air Conditioner Maintenance ............ 463
▫ A/C Air Filter – If Equipped ............ 464
▫ Body Lubrication .................... 466
▫ Wiper Blades ....................... 466
7
Page 457 of 557
the ignition or start the engine. This means that your
vehicle’s OBD II system isnot readyand you should
not proceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is ready and you can proceed to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready.
Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
REPLACEMENT PARTS
Use of genuine MOPAR
parts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR parts for maintenance
and repairs will not be covered by the manufacturer’s
warranty.
DEALER SERVICE
Your authorized dealer has the qualified service person-
nel, special tools, and equipment to perform all service
operations in an expert manner. Service Manuals are
available which include detailed service information for
your vehicle. Refer to these Service Manuals before
attempting any procedure yourself.7
MAINTAINING YOUR VEHICLE 455
Page 463 of 557
WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPARengine air
cleaner filters are a high quality filter and are
recommended.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
NOTE: The battery is stored in a compartment that is
located behind the left front fender and is accessible
through the wheel well. The wheel and tire assemble do
not need to be removed to access the compartment.
Remote battery terminals are located in the engine com-
partment for jump-starting. Refer to “Jump-Starting Pro-
cedures” in “What To Do In Emergencies” for further
information.
To access the battery, turn the steering wheel fully to the
right and remove the access panel from the inner fender
shield.
7
MAINTAINING YOUR VEHICLE 461
Page 497 of 557
CavityCartridge
Fuse Mini-
Fuse Description
F175 30 Amp
Green Spare
F176 10 Amp
Red Powertrain Control
Modules
F177 20 Amp
Yellow All Wheel Drive Mod-
ule – If Equipped
F178 25 Amp
Natural Sunroof – If Equipped
F179 10 Amp
Red Battery Sensor
F181 100 Amp
Blue Electrohydraulic Steer-
ing (EHPS) – If
Equipped
F182 50 Amp
Red Cabin Heater #3 – If
Equipped
F184 30 Amp
Pink Front Wiper MotorVEHICLE STORAGE
If you will not be using your vehicle for more than
21 days you may want to take steps to preserve your
battery. You may:
•Remove the IOD (Ignition Off-Draw) mini-fuses from
the Totally Integrated Power Module located in the
engine compartment.
•Or, disconnect the battery negative cable.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
7
MAINTAINING YOUR VEHICLE 495

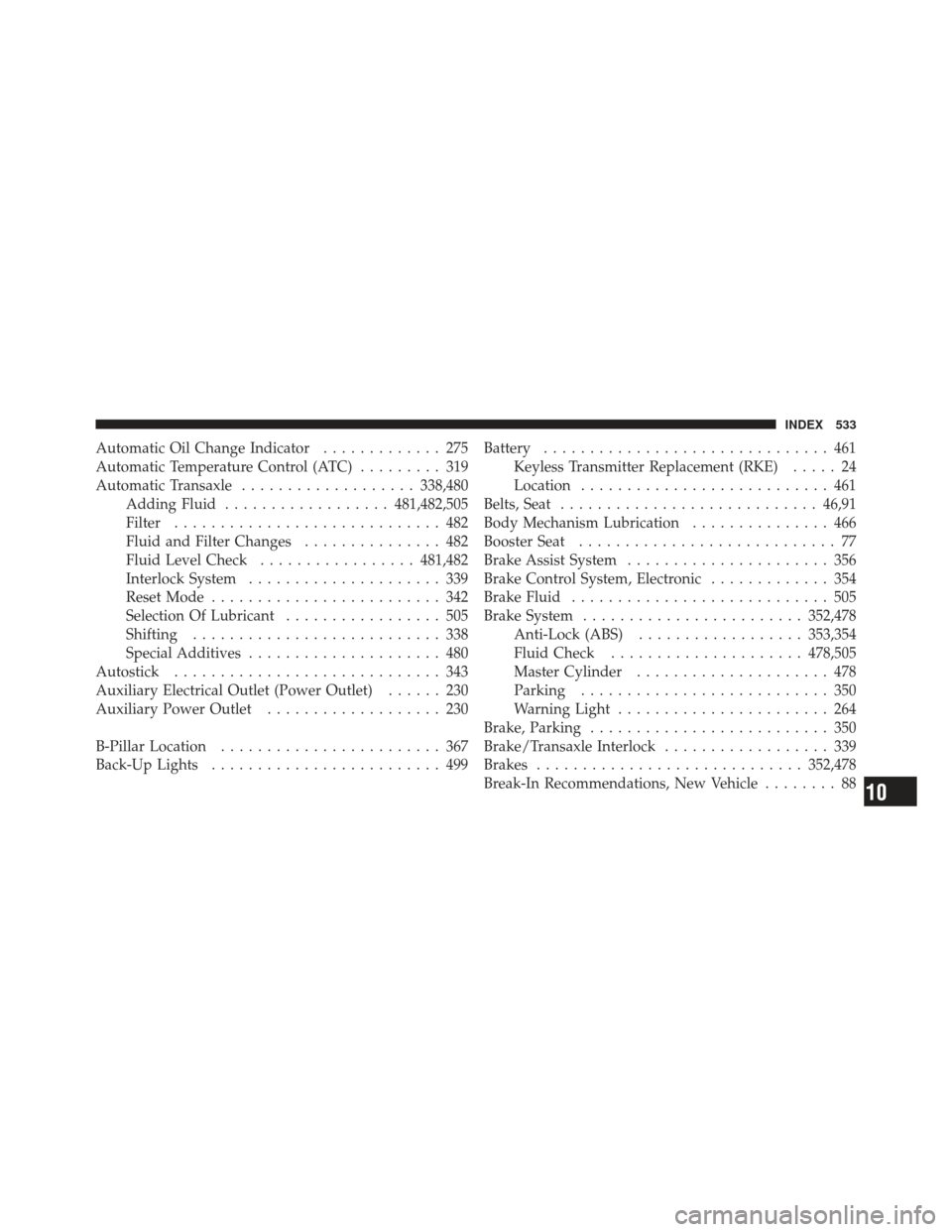

Page 535 of 557
Automatic Oil Change Indicator............. 275
Automatic Temperature Control (ATC) ......... 319
Automatic Transaxle ................... 338,480
Adding Fluid .................. 481,482,505
Filter ............................. 482
Fluid and Filter Changes ............... 482
Fluid Level Check ................. 481,482
Interlock System ..................... 339
Reset Mode ......................... 342
Selection Of Lubricant ................. 505
Shifting ........................... 338
Special Additives ..................... 480
Autostick ............................. 343
Auxiliary Electrical Outlet (Power Outlet) ...... 230
Auxiliary Power Outlet ................... 230
B-Pillar Location ........................ 367
Back-Up Lights ......................... 499 Battery
............................... 461
Keyless Transmitter Replacement (RKE) ..... 24
Location ........................... 461
Belts, Seat ............................ 46,91
Body Mechanism Lubrication ............... 466
Booster Seat ............................ 77
Brake Assist System ...................... 356
Brake Control System, Electronic ............. 354
Brake Fluid ............................ 505
Brake System ........................ 352,478
Anti-Lock (ABS) .................. 353,354
Fluid Check ..................... 478,505
Master Cylinder ..................... 478
Parking ........................... 350
Warning Light ....................... 264
Brake, Parking .......................... 350
Brake/Transaxle Interlock .................. 339
Brakes ............................. 352,478
Break-In Recommendations, New Vehicle ........ 88
10
INDEX 533
