headlamp DODGE JOURNEY 2011 1.G Owners Manual

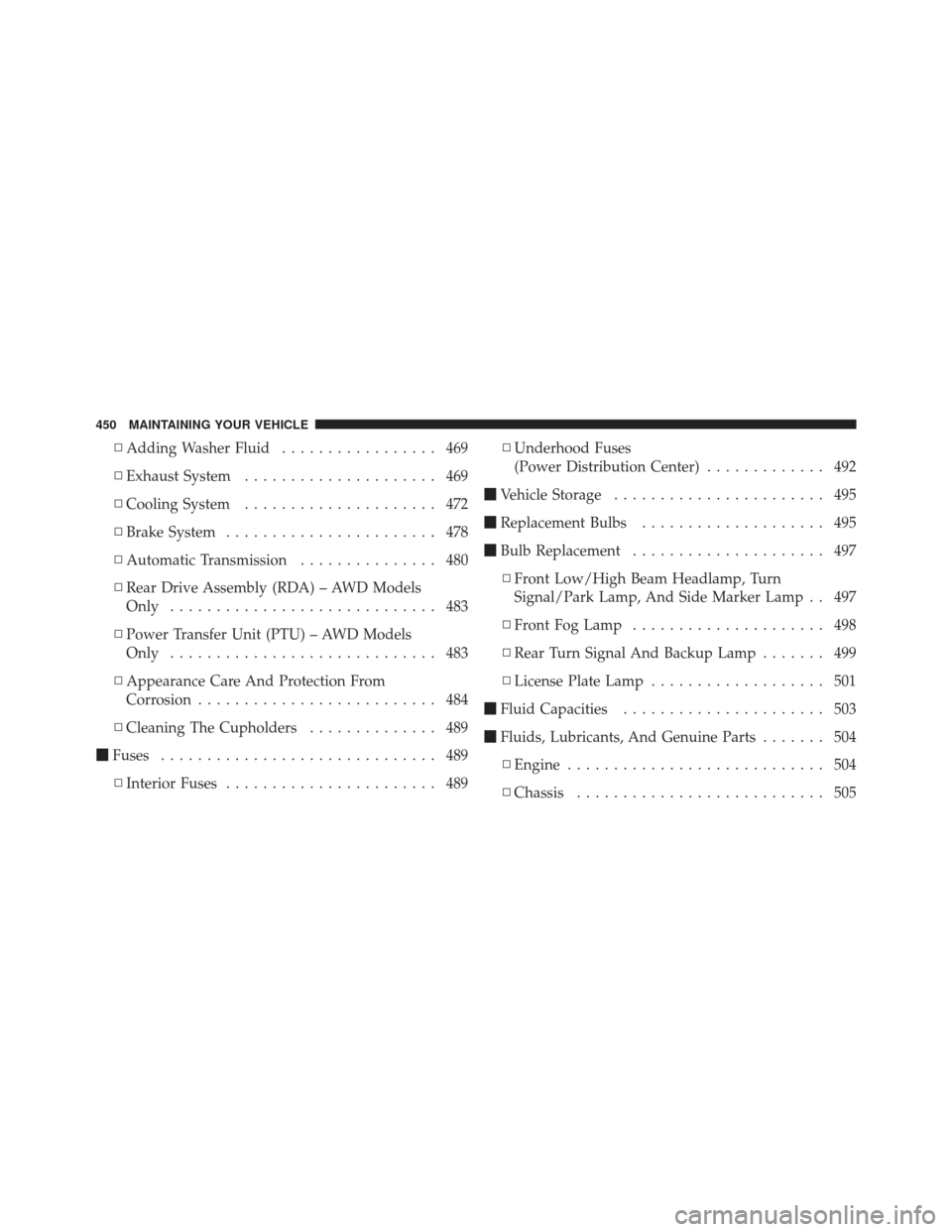

▫Adding Washer Fluid ................. 469
▫ Exhaust System ..................... 469
▫ Cooling System ..................... 472
▫ Brake System ....................... 478
▫ Automatic Transmission ............... 480
▫ Rear Drive Assembly (RDA) – AWD Models
Only ............................. 483
▫ Power Transfer Unit (PTU) – AWD Models
Only ............................. 483
▫ Appearance Care And Protection From
Corrosion .......................... 484
▫ Cleaning The Cupholders .............. 489
 Fuses .............................. 489
▫ Interior Fuses ....................... 489 ▫
Underhood Fuses
(Power Distribution Center) ............. 492
 Vehicle Storage ....................... 495
 Replacement Bulbs .................... 495
 Bulb Replacement ..................... 497
▫ Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp . . 497
▫ Front Fog Lamp ..................... 498
▫ Rear Turn Signal And Backup Lamp ....... 499
▫ License Plate Lamp ................... 501
 Fluid Capacities ...................... 503
 Fluids, Lubricants, And Genuine Parts ....... 504
▫ Engine ............................ 504
▫ Chassis ........................... 505
450 MAINTAINING YOUR VEHICLE

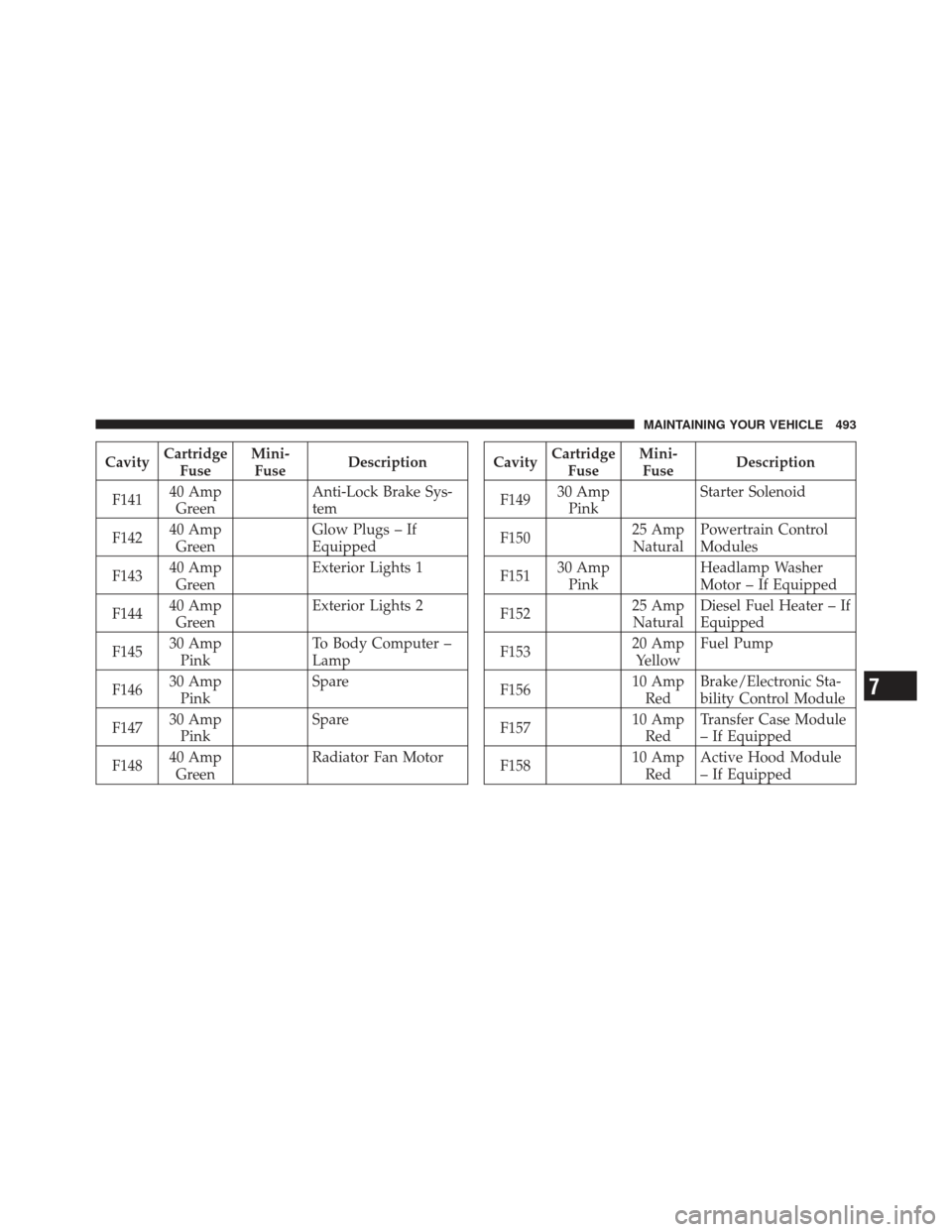

CavityCartridge
Fuse Mini-
Fuse Description
F141 40 Amp
Green Anti-Lock Brake Sys-
tem
F142 40 Amp
Green Glow Plugs – If
Equipped
F143 40 Amp
Green Exterior Lights 1
F144 40 Amp
Green Exterior Lights 2
F145 30 Amp
Pink To Body Computer –
Lamp
F146 30 Amp
Pink Spare
F147 30 Amp
Pink Spare
F148 40 Amp
Green Radiator Fan MotorCavity
Cartridge
Fuse Mini-
Fuse Description
F149 30 Amp
Pink Starter Solenoid
F150 25 Amp
Natural Powertrain Control
Modules
F151 30 Amp
Pink Headlamp Washer
Motor – If Equipped
F152 25 Amp
Natural Diesel Fuel Heater – If
Equipped
F153 20 Amp
Yellow Fuel Pump
F156 10 Amp
Red Brake/Electronic Sta-
bility Control Module
F157 10 Amp
Red Transfer Case Module
– If Equipped
F158 10 Amp
Red Active Hood Module
– If Equipped
7
MAINTAINING YOUR VEHICLE 493

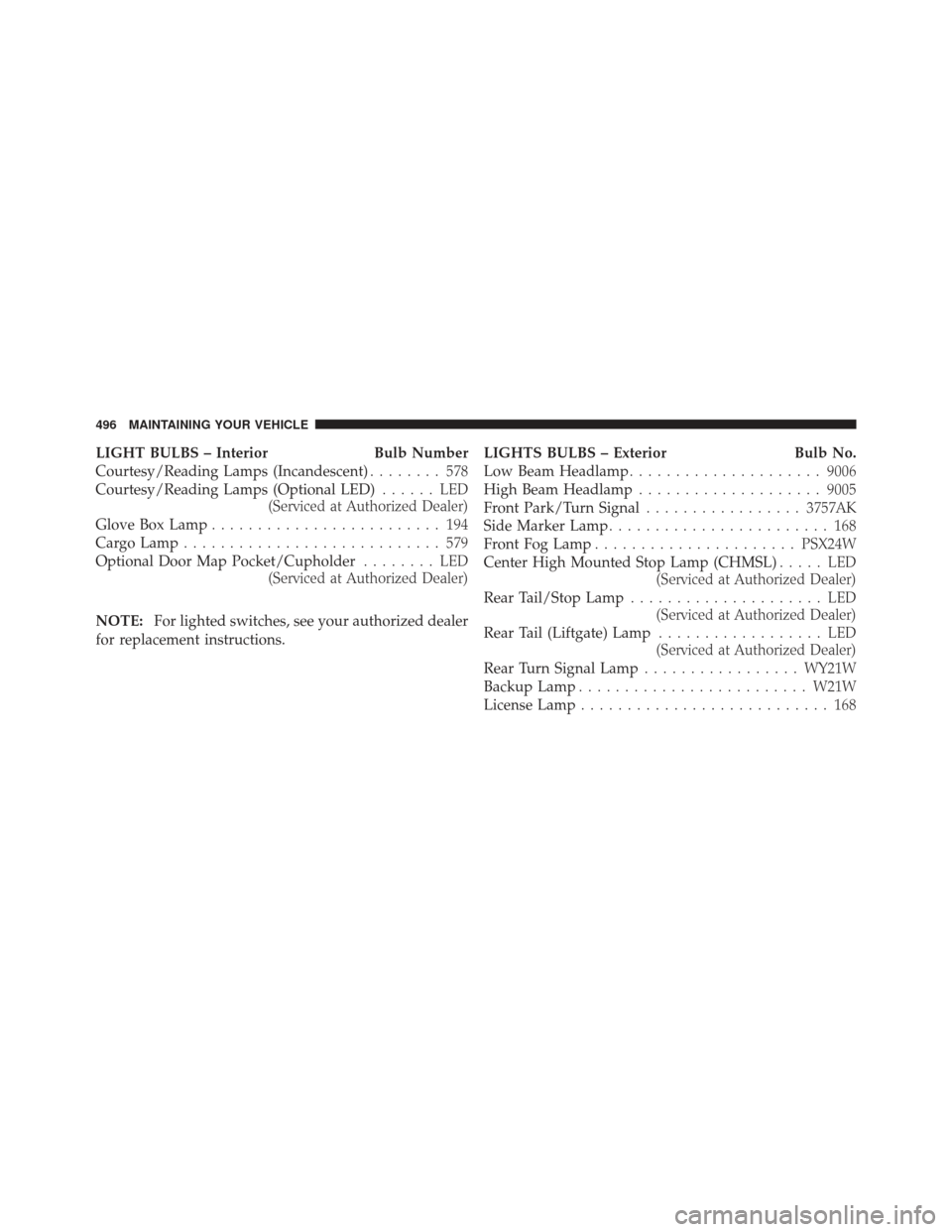

LIGHT BULBS – InteriorBulb Number
Courtesy/Reading Lamps (Incandescent) ........ 578
Courtesy/Reading Lamps (Optional LED) ...... LED
(Serviced at Authorized Dealer)
Glove Box Lamp ......................... 194
Cargo Lamp ............................ 579
Optional Door Map Pocket/Cupholder ........ LED
(Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions. LIGHTS BULBS – Exterior
Bulb No.
Low Beam Headlamp ..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Signal .................3757AK
Side Marker Lamp ........................ 168
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop Lamp (CHMSL) ..... LED
(Serviced at Authorized Dealer)
Rear Tail/Stop Lamp ..................... LED
(Serviced at Authorized Dealer)
Rear Tail (Liftgate) Lamp .................. LED
(Serviced at Authorized Dealer)
Rear Turn Signal Lamp .................WY21W
Backup Lamp ......................... W21W
License Lamp ........................... 168
496 MAINTAINING YOUR VEHICLE

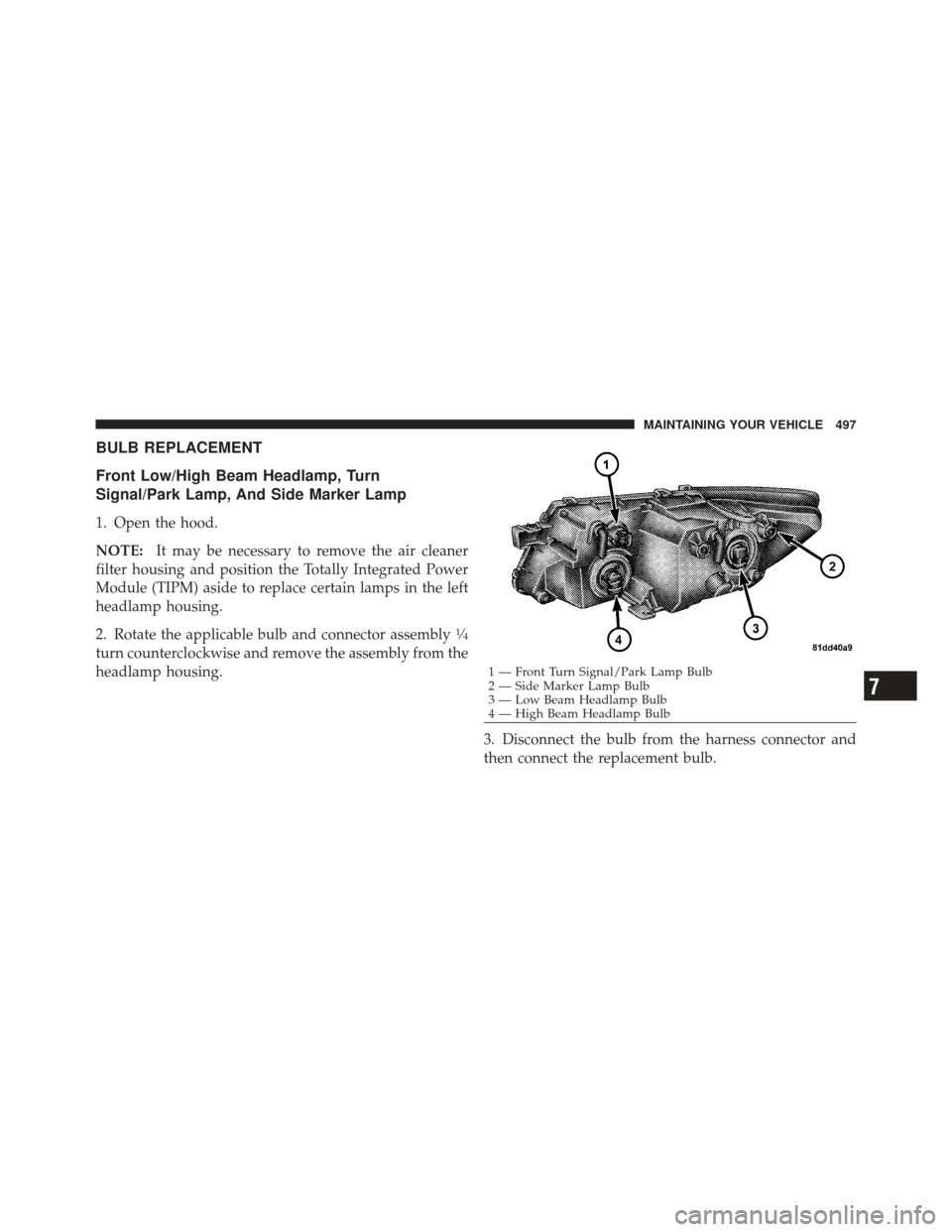

BULB REPLACEMENT
Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp
1. Open the hood.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the Totally Integrated Power
Module (TIPM) aside to replace certain lamps in the left
headlamp housing.
2. Rotate the applicable bulb and connector assembly
14
turn counterclockwise and remove the assembly from the
headlamp housing.
3. Disconnect the bulb from the harness connector and
then connect the replacement bulb.
1 — Front Turn Signal/Park Lamp Bulb
2 — Side Marker Lamp Bulb
3 — Low Beam Headlamp Bulb
4 — High Beam Headlamp Bulb
7
MAINTAINING YOUR VEHICLE 497

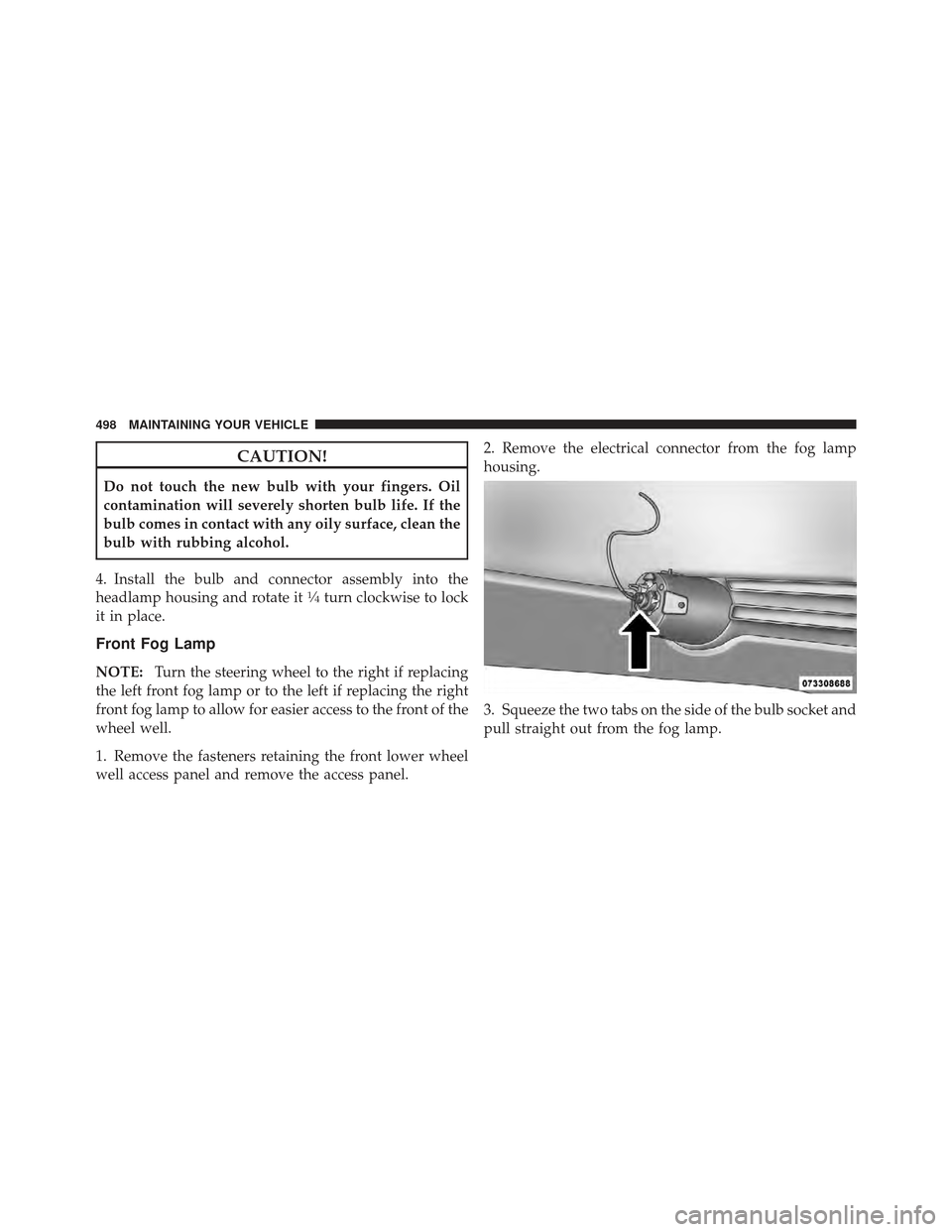

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
4. Install the bulb and connector assembly into the
headlamp housing and rotate it
14turn clockwise to lock
it in place.
Front Fog Lamp
NOTE: Turn the steering wheel to the right if replacing
the left front fog lamp or to the left if replacing the right
front fog lamp to allow for easier access to the front of the
wheel well.
1. Remove the fasteners retaining the front lower wheel
well access panel and remove the access panel. 2. Remove the electrical connector from the fog lamp
housing.
3. Squeeze the two tabs on the side of the bulb socket and
pull straight out from the fog lamp.
498 MAINTAINING YOUR VEHICLE
