Page 203 of 557
CAUTION! (Continued)
•Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
“park” position. If the windshield wiper control is
turned OFF, and the blades cannot return to the
“park” position, damage to the wiper motor may
occur.
Windshield Washers
To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to
the second detent.
If you activate the washer while the wiper control is in
the delay range, the wipers will operate in low-speed for
two or three wipe cycles after releasing the lever and then
resume the intermittent interval previously selected.If you activate the washer while the wiper control is in
the OFF position, the wipers will operate for two or three
wipe cycles and then turn OFF.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist Feature
Push the washer knob, located on the end of the multi-
function lever, inward to the first detent to activate a
single wipe cycle to clear the windshield of road mist or
spray from a passing vehicle. The wipers will continue to
operate until you release the lever.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 201

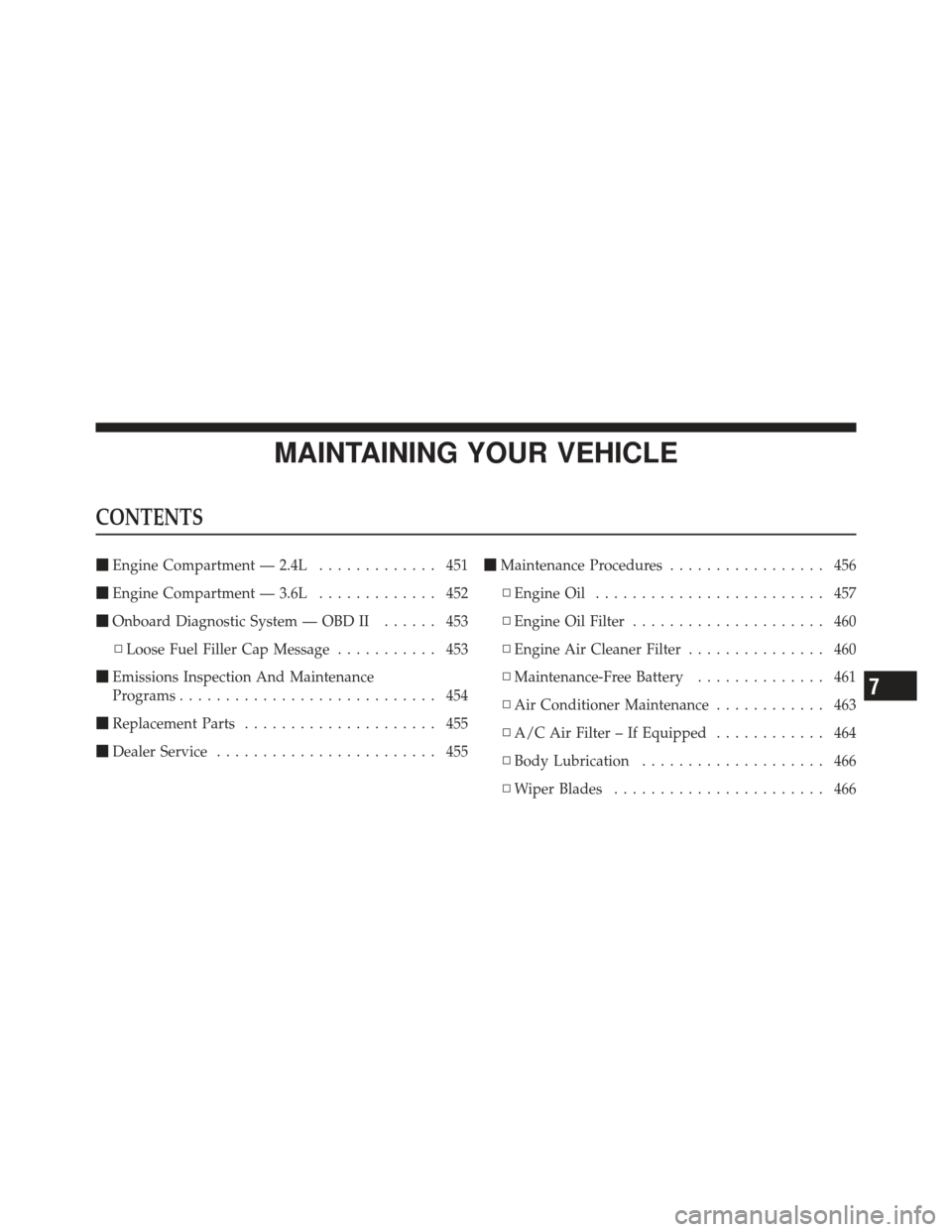

Page 451 of 557
MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.4L ............. 451
Engine Compartment — 3.6L ............. 452
Onboard Diagnostic System — OBD II ...... 453
▫ Loose Fuel Filler Cap Message ........... 453
Emissions Inspection And Maintenance
Programs ............................ 454
Replacement Parts ..................... 455
Dealer Service ........................ 455
Maintenance Procedures ................. 456
▫ Engine Oil ......................... 457
▫ Engine Oil Filter ..................... 460
▫ Engine Air Cleaner Filter ............... 460
▫ Maintenance-Free Battery .............. 461
▫ Air Conditioner Maintenance ............ 463
▫ A/C Air Filter – If Equipped ............ 464
▫ Body Lubrication .................... 466
▫ Wiper Blades ....................... 466
7

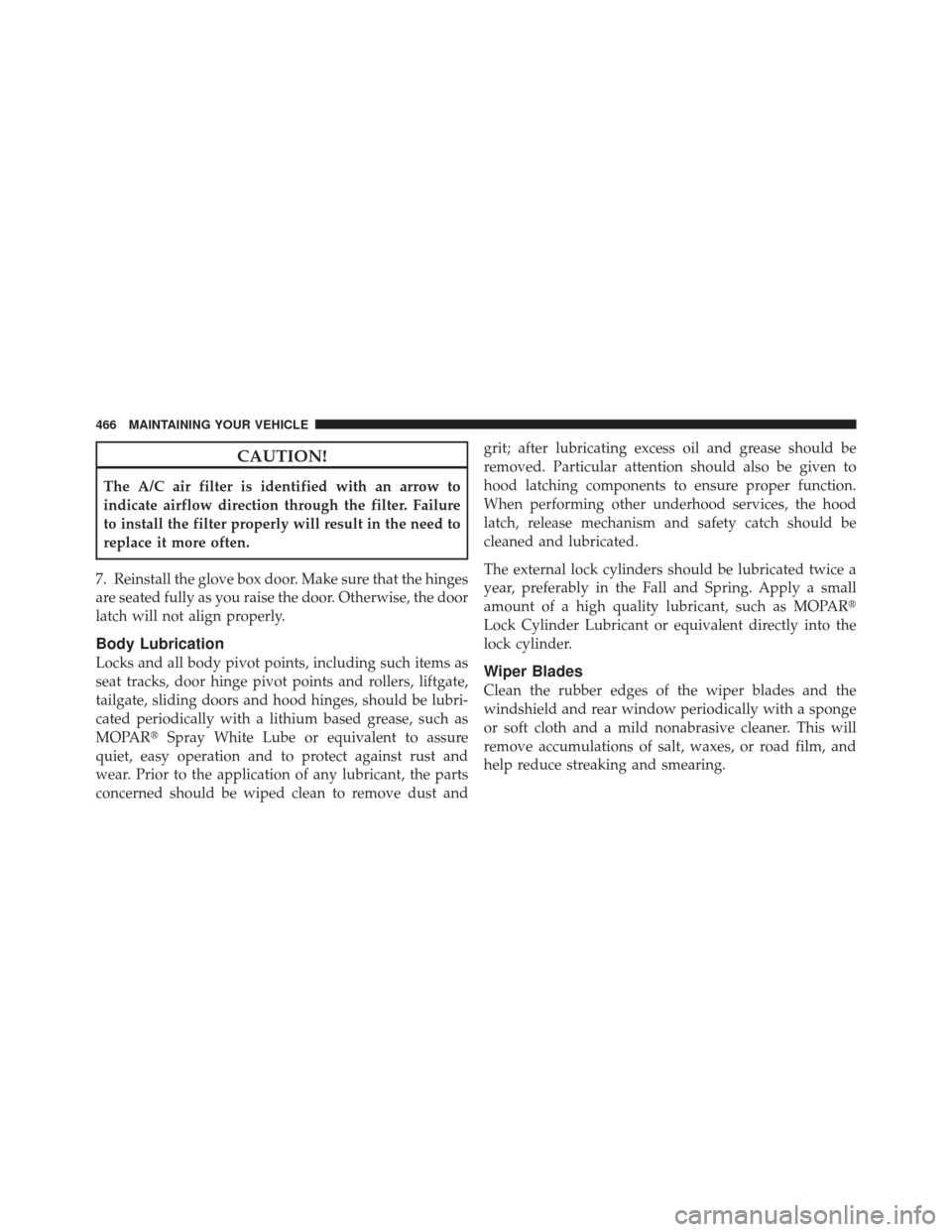

Page 468 of 557
CAUTION!
The A/C air filter is identified with an arrow to
indicate airflow direction through the filter. Failure
to install the filter properly will result in the need to
replace it more often.
7. Reinstall the glove box door. Make sure that the hinges
are seated fully as you raise the door. Otherwise, the door
latch will not align properly.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease, such as
MOPAR Spray White Lube or equivalent to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and grit; after lubricating excess oil and grease should be
removed. Particular attention should also be given to
hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield and rear window periodically with a sponge
or soft cloth and a mild nonabrasive cleaner. This will
remove accumulations of salt, waxes, or road film, and
help reduce streaking and smearing.
466 MAINTAINING YOUR VEHICLE

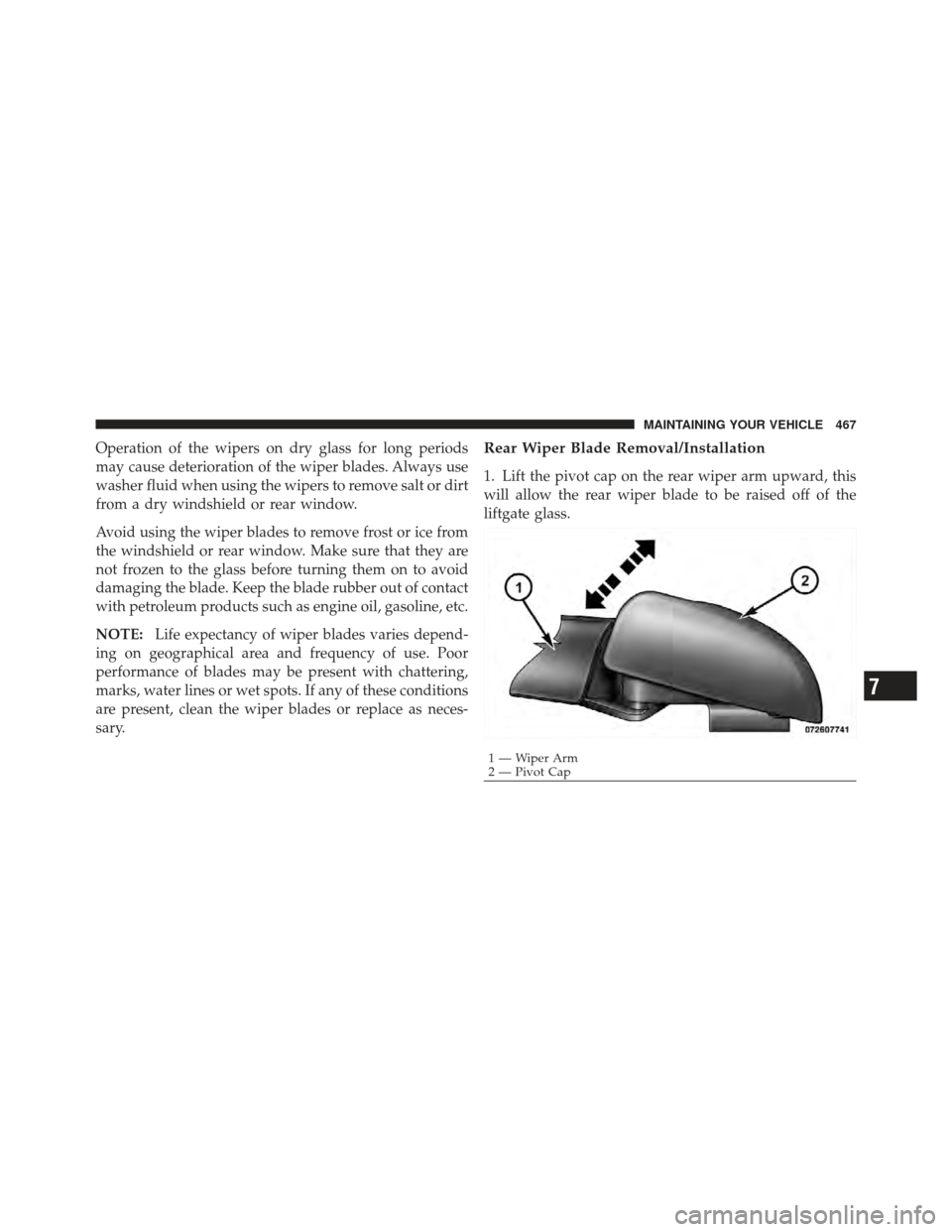

Page 469 of 557
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield or rear window.
Avoid using the wiper blades to remove frost or ice from
the windshield or rear window. Make sure that they are
not frozen to the glass before turning them on to avoid
damaging the blade. Keep the blade rubber out of contact
with petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.Rear Wiper Blade Removal/Installation
1. Lift the pivot cap on the rear wiper arm upward, this
will allow the rear wiper blade to be raised off of the
liftgate glass.
1—WiperArm
2 — Pivot Cap
7
MAINTAINING YOUR VEHICLE 467

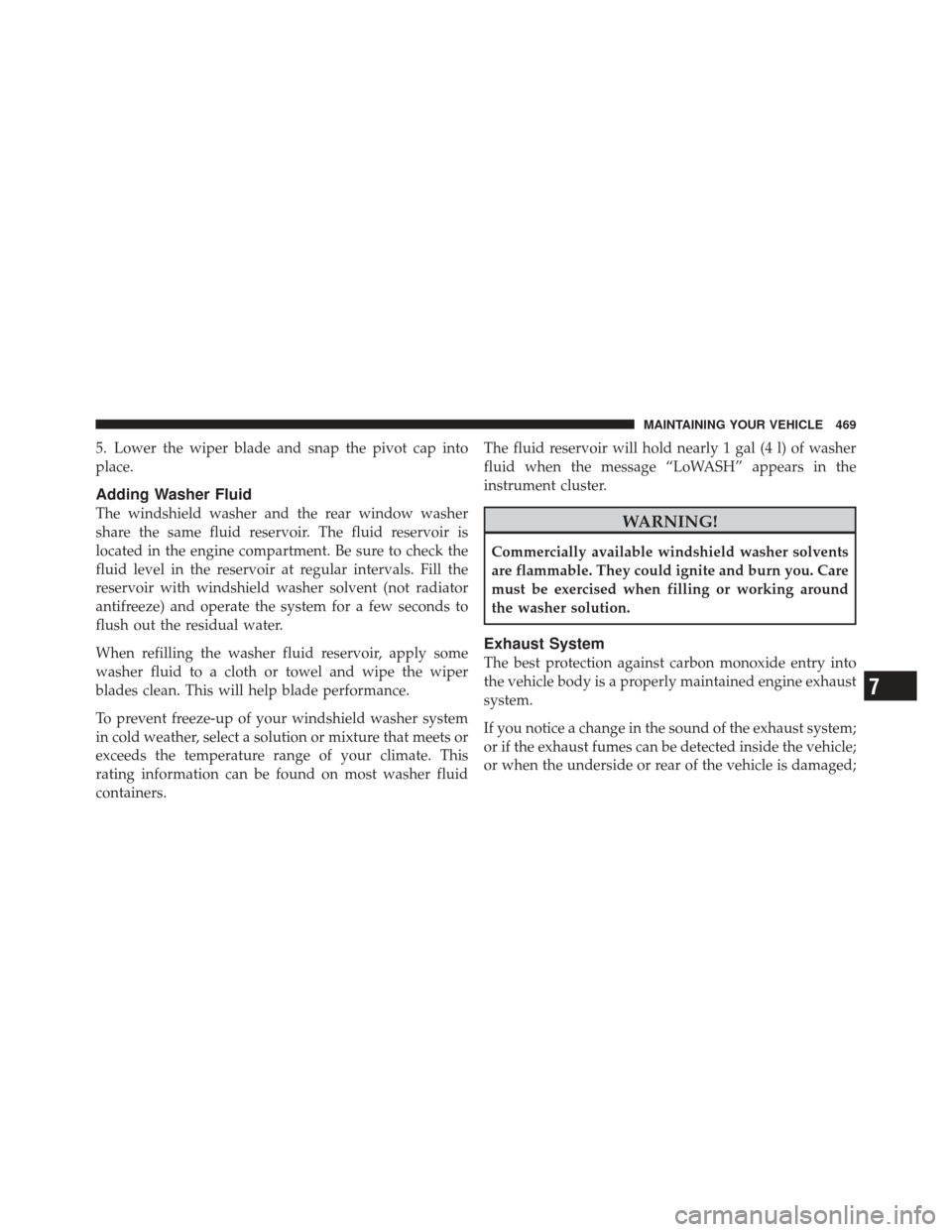

Page 471 of 557
5. Lower the wiper blade and snap the pivot cap into
place.
Adding Washer Fluid
The windshield washer and the rear window washer
share the same fluid reservoir. The fluid reservoir is
located in the engine compartment. Be sure to check the
fluid level in the reservoir at regular intervals. Fill the
reservoir with windshield washer solvent (not radiator
antifreeze) and operate the system for a few seconds to
flush out the residual water.
When refilling the washer fluid reservoir, apply some
washer fluid to a cloth or towel and wipe the wiper
blades clean. This will help blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.The fluid reservoir will hold nearly 1 gal (4 l) of washer
fluid when the message “LoWASH” appears in the
instrument cluster.WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
Exhaust System
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
If you notice a change in the sound of the exhaust system;
or if the exhaust fumes can be detected inside the vehicle;
or when the underside or rear of the vehicle is damaged;
7
MAINTAINING YOUR VEHICLE 469
Page 537 of 557
CleaningWheels ............................ 486
Windshield Wiper Blades ............... 466
Climate Control ......................... 311
Coin Holder ........................... 239
Cold Weather Operation ................... 336
Compact Disc (CD) Maintenance ............. 310
Compact Spare Tire ...................... 375
Computer, Trip/Travel .................... 278
Connector UCI .............................. 308
Universal Consumer Interface (UCI) ....... 308
Conserving Fuel ........................ 276
Console, Floor .......................... 239
Console, Overhead ....................... 218
Contract, Service ........................ 525
Coolant Pressure Cap (Radiator Cap) .......... 475
Cooling System ......................... 472
Adding Coolant (Antifreeze) ............. 474Coolant Capacity
..................... 503
Coolant Level .................... 472,476
Disposal of Used Coolant ............... 476
Drain, Flush, and Refill ................ 472
Inspection .......................... 476
Points to Remember .................. 476
Pressure Cap ........................ 475
Radiator Cap ....................... 475
Selection of Coolant (Antifreeze) ....473,503,504
Corrosion Protection ..................... 484
Cupholders ......................... 237,489
Customer Assistance ..................... 523
Data Recorder, Event ...................... 74
Daytime Brightness, Interior Lights ........... 197
Daytime Running Lights ................... 194
Dealer Service .......................... 455
Defroster, Rear Window ................... 252
Defroster, Windshield ................... 91,317
10
INDEX 535

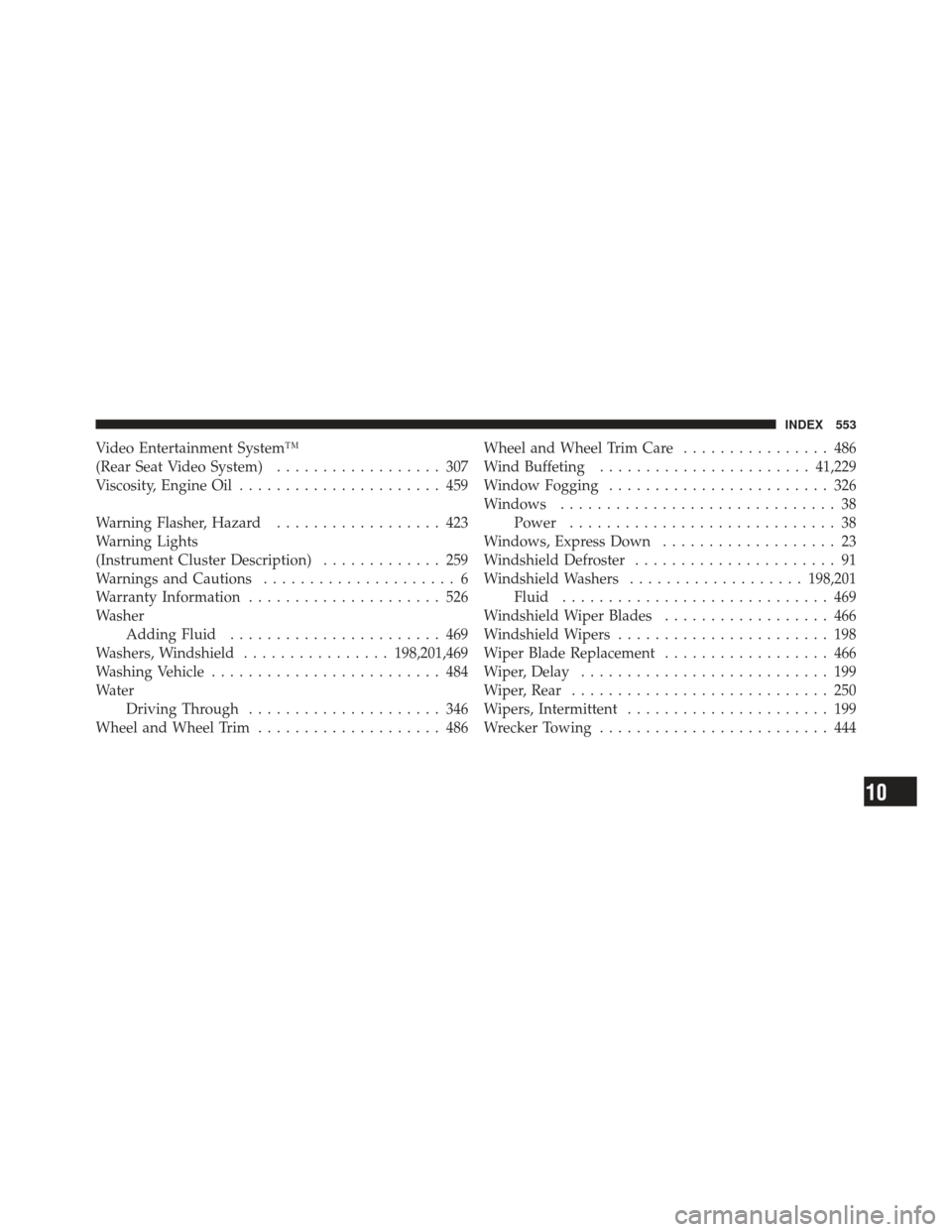

Page 555 of 557
Video Entertainment System™
(Rear Seat Video System).................. 307
Viscosity, Engine Oil ...................... 459
Warning Flasher, Hazard .................. 423
Warning Lights
(Instrument Cluster Description) ............. 259
Warnings and Cautions ..................... 6
Warranty Information ..................... 526
Washer Adding Fluid ....................... 469
Washers, Windshield ................ 198,201,469
Washing Vehicle ......................... 484
Water Driving Through ..................... 346
Wheel and Wheel Trim .................... 486 Wheel and Wheel Trim Care
................ 486
Wind Buffeting ....................... 41,229
Window Fogging ........................ 326
Windows .............................. 38
Power ............................. 38
Windows, Express Down ................... 23
Windshield Defroster ...................... 91
Windshield Washers ................... 198,201
Fluid ............................. 469
Windshield Wiper Blades .................. 466
Windshield Wipers ....................... 198
Wiper Blade Replacement .................. 466
Wiper, Delay ........................... 199
Wiper, Rear ............................ 250
Wipers, Intermittent ...................... 199
Wrecker Towing ......................... 444
10
INDEX 553
