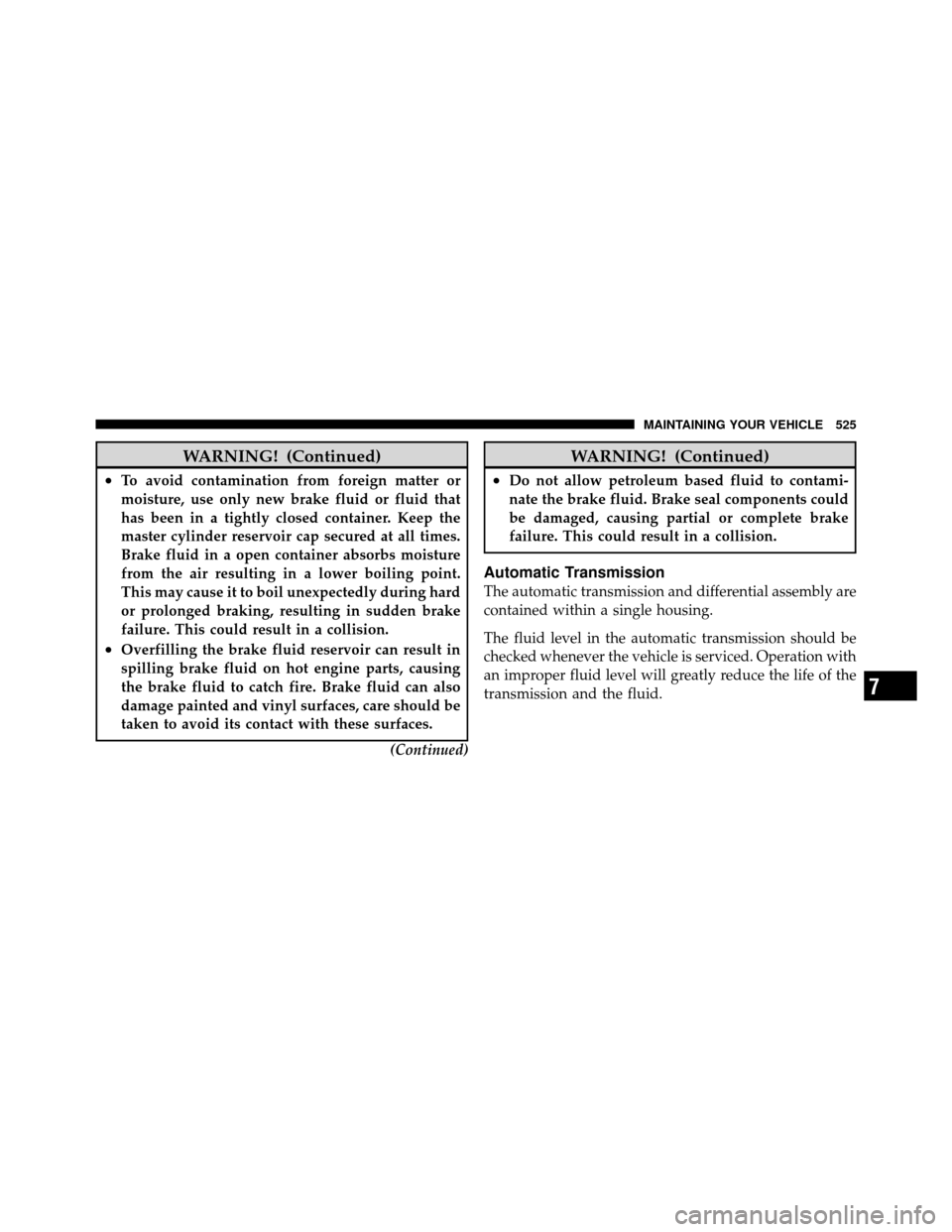

WARNING! (Continued)
•To avoid contamination from foreign matter or
moisture, use only new brake fluid or fluid that
has been in a tightly closed container. Keep the
master cylinder reservoir cap secured at all times.
Brake fluid in a open container absorbs moisture
from the air resulting in a lower boiling point.
This may cause it to boil unexpectedly during hard
or prolonged braking, resulting in sudden brake
failure. This could result in a collision.
•Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts, causing
the brake fluid to catch fire. Brake fluid can also
damage painted and vinyl surfaces, care should be
taken to avoid its contact with these surfaces.(Continued)
WARNING! (Continued)
•Do not allow petroleum based fluid to contami-
nate the brake fluid. Brake seal components could
be damaged, causing partial or complete brake
failure. This could result in a collision.
Automatic Transmission
The automatic transmission and differential assembly are
contained within a single housing.
The fluid level in the automatic transmission should be
checked whenever the vehicle is serviced. Operation with
an improper fluid level will greatly reduce the life of the
transmission and the fluid.
7
MAINTAINING YOUR VEHICLE 525

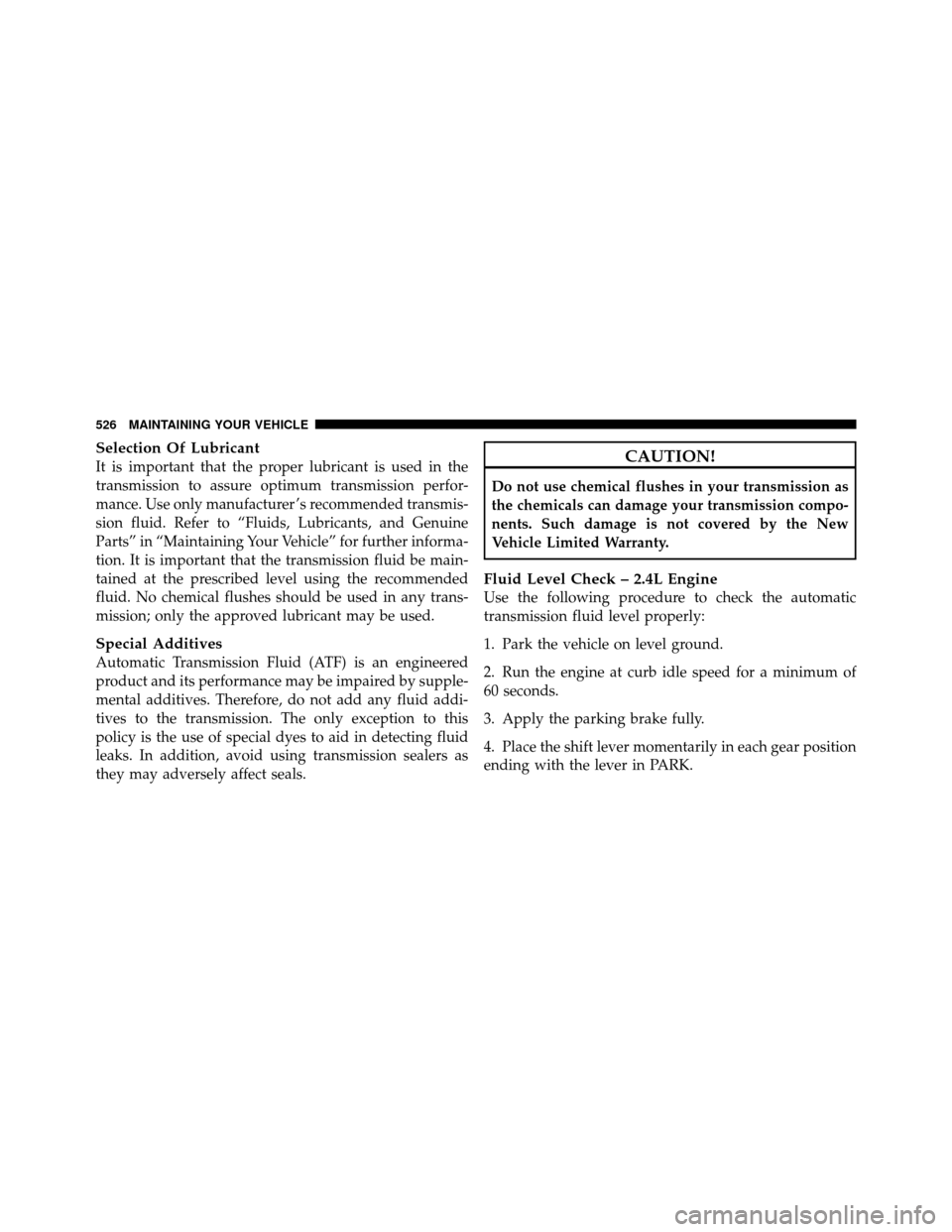

Selection Of Lubricant
It is important that the proper lubricant is used in the
transmission to assure optimum transmission perfor-
mance. Use only manufacturer ’s recommended transmis-
sion fluid. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further informa-
tion. It is important that the transmission fluid be main-
tained at the prescribed level using the recommended
fluid. No chemical flushes should be used in any trans-
mission; only the approved lubricant may be used.
Special Additives
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid addi-
tives to the transmission. The only exception to this
policy is the use of special dyes to aid in detecting fluid
leaks. In addition, avoid using transmission sealers as
they may adversely affect seals.
CAUTION!
Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New
Vehicle Limited Warranty.
Fluid Level Check – 2.4L Engine
Use the following procedure to check the automatic
transmission fluid level properly:
1. Park the vehicle on level ground.
2. Run the engine at curb idle speed for a minimum of
60 seconds.
3. Apply the parking brake fully.
4. Place the shift lever momentarily in each gear position
ending with the lever in PARK.
526 MAINTAINING YOUR VEHICLE

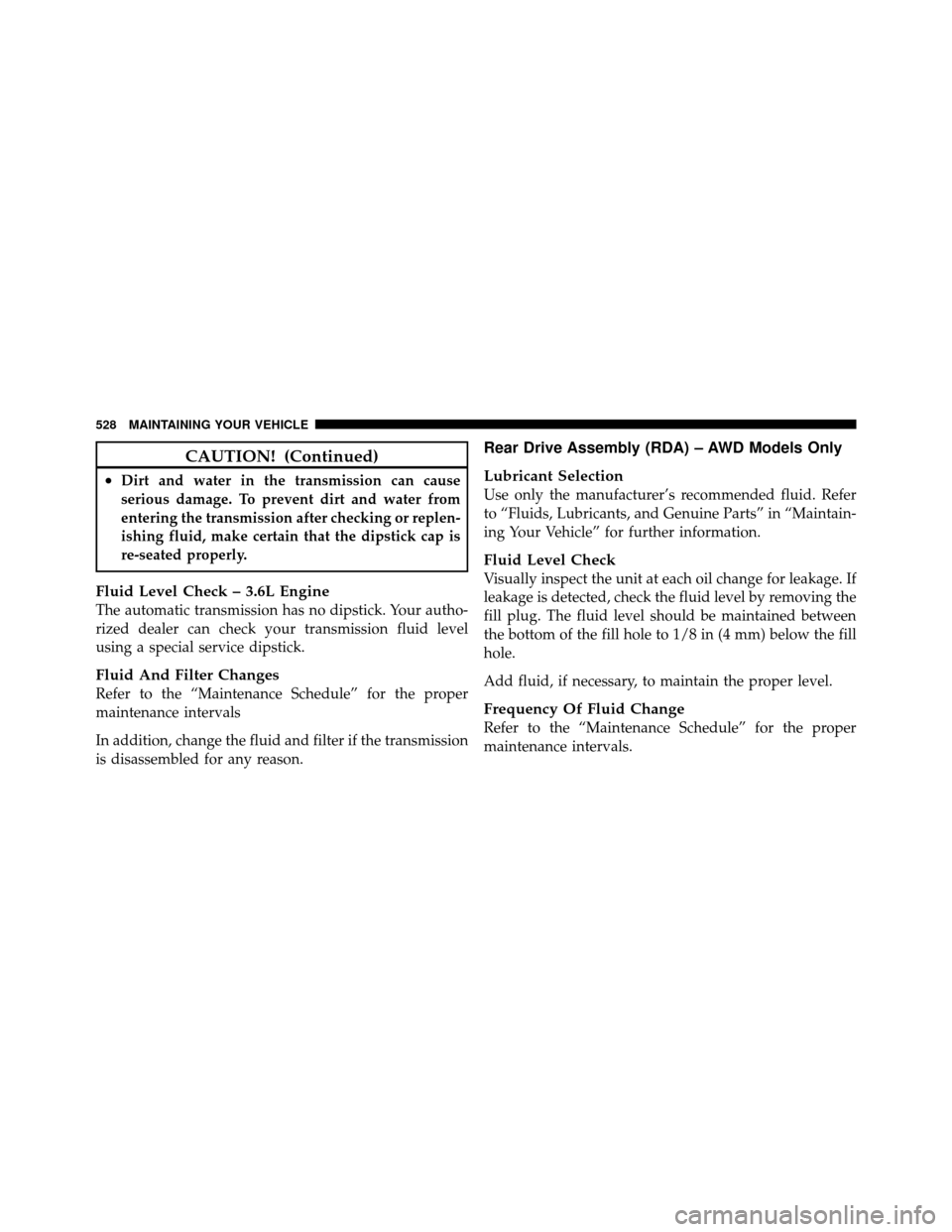

CAUTION! (Continued)
•Dirt and water in the transmission can cause
serious damage. To prevent dirt and water from
entering the transmission after checking or replen-
ishing fluid, make certain that the dipstick cap is
re-seated properly.
Fluid Level Check – 3.6L Engine
The automatic transmission has no dipstick. Your autho-
rized dealer can check your transmission fluid level
using a special service dipstick.
Fluid And Filter Changes
Refer to the “Maintenance Schedule” for the proper
maintenance intervals
In addition, change the fluid and filter if the transmission
is disassembled for any reason.
Rear Drive Assembly (RDA) – AWD Models Only
Lubricant Selection
Use only the manufacturer’s recommended fluid. Refer
to “Fluids, Lubricants, and Genuine Parts” in “Maintain-
ing Your Vehicle” for further information.
Fluid Level Check
Visually inspect the unit at each oil change for leakage. If
leakage is detected, check the fluid level by removing the
fill plug. The fluid level should be maintained between
the bottom of the fill hole to 1/8 in (4 mm) below the fill
hole.
Add fluid, if necessary, to maintain the proper level.
Frequency Of Fluid Change
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
528 MAINTAINING YOUR VEHICLE

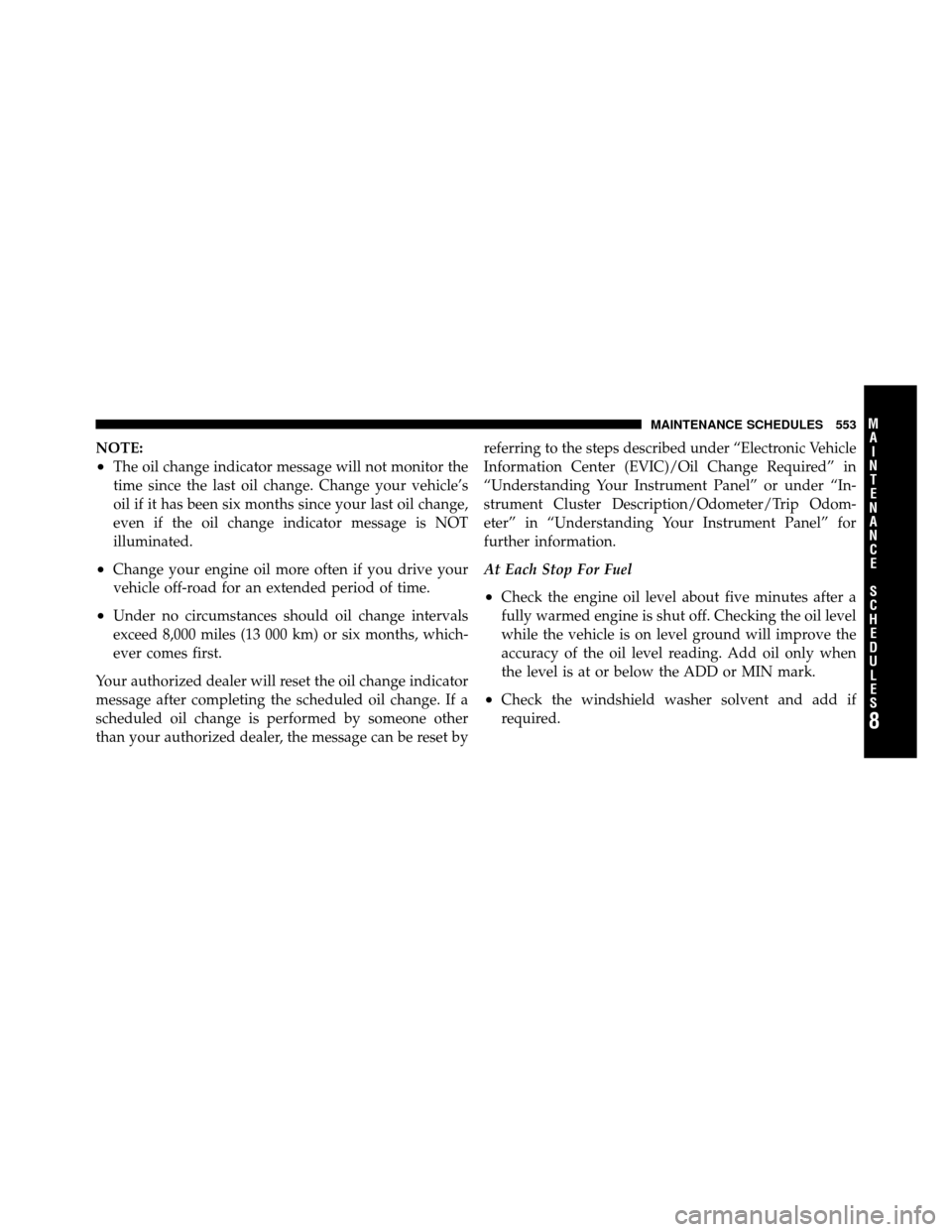

NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s
oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 8,000 miles (13 000 km) or six months, which-
ever comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” or under “In-
strument Cluster Description/Odometer/Trip Odom-
eter” in “Understanding Your Instrument Panel” for
further information.
At Each Stop For Fuel
•Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 553

Once A Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, and transmission and add as needed.
•Check all lights and other electrical items for correct
operation.At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S554 MAINTENANCE SCHEDULES

Brightness, Interior Lights.................. 207
Bulb Replacement ..................... 541,542
Bulbs, Light .......................... 94,541
Camera, Rear ........................... 225
Capacities, Fluid ........................ 548
Caps, Filler Fuel .............................. 447
Oil (Engine) ..................... 497,505
Power Steering ...................... 395
Radiator (Coolant Pressure) ............. 521
Car Washes ............................ 530
Carbon Monoxide Warning ...............91,443
Cargo (Vehicle Loading) ................258,449
Cargo Area Cover ....................... 260
Cargo Area Features ...................... 257
Cargo Compartment ...................... 257
Light ............................. 257
Luggage Carrier ..................... 265 Cargo Load Floor
........................ 258
Cargo Management System ................. 258
Rollaway Tonneau Cover ............... 260
Tri-Fold Load Floor ................... 258
Cargo Tie-Downs ........................ 259
Cellular Phone .......................... 344
Certification Label ....................... 449
Chains, Tire ............................ 427
Changing A Flat Tire ..................... 471
Chart, Tire Sizing ........................ 410
Check Engine Light
(Malfunction Indicator Light) .............274,500
Checking Your Vehicle For Safety ............. 90
Checks, Safety ........................... 90
Child Booster Seat ........................ 78
Child Restraint .................. 76,77,80,84,86
Child Restraint Tether Anchors .............82,84
Child Safety Locks ........................ 32
Clean Air Gasoline ....................... 439
580 INDEX

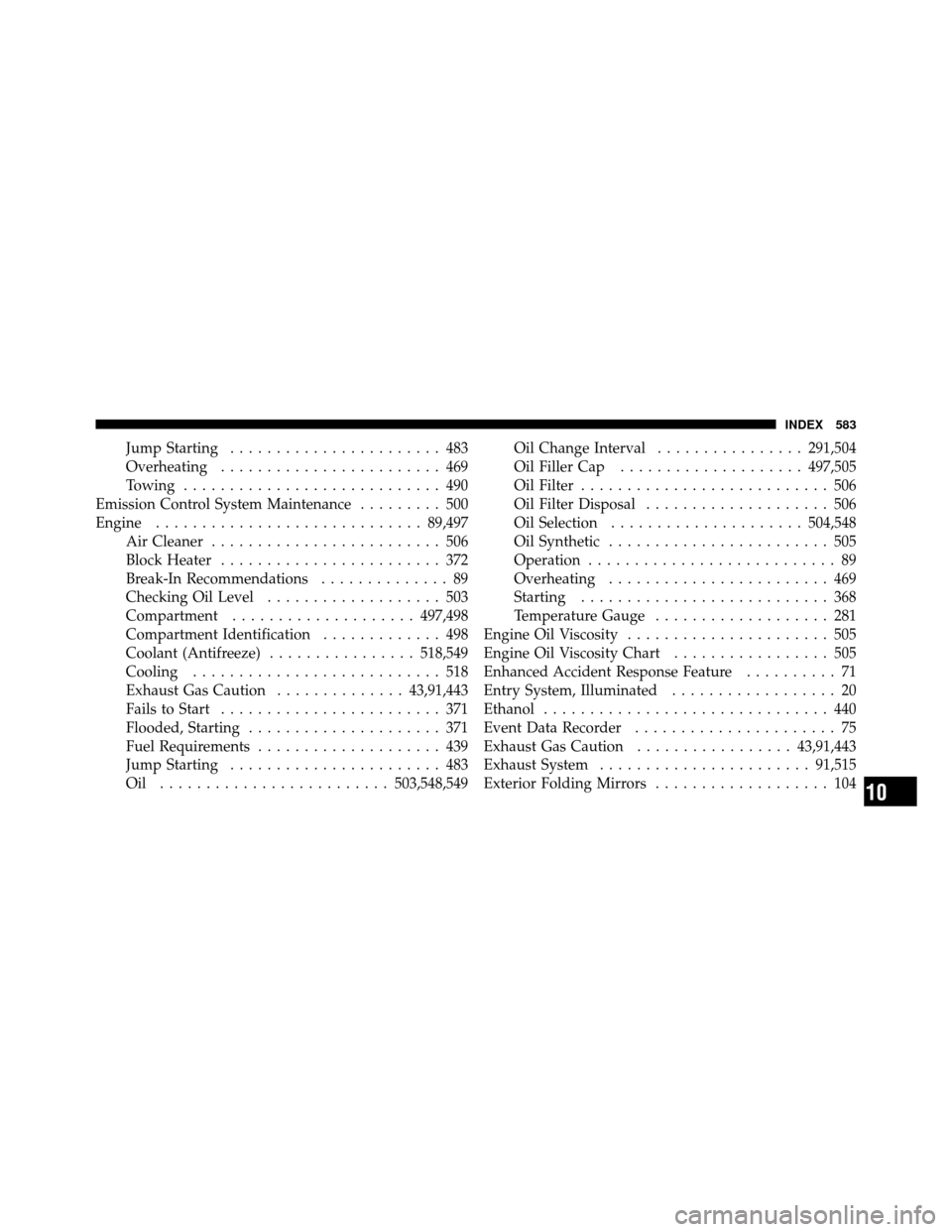

Jump Starting....................... 483
Overheating ........................ 469
Towing ............................ 490
Emission Control System Maintenance ......... 500
Engine ............................. 89,497
Air Cleaner ......................... 506
Block Heater ........................ 372
Break-In Recommendations .............. 89
Checking Oil Level ................... 503
Compartment .................... 497,498
Compartment Identification ............. 498
Coolant (Antifreeze) ................ 518,549
Cooling ........................... 518
Exhaust Gas Caution ..............43,91,443
Fails to Start ........................ 371
Flooded, Starting ..................... 371
Fuel Requirements .................... 439
Jump Starting ....................... 483
Oil ......................... 503,548,549Oil Change Interval
................ 291,504
Oil Filler Cap .................... 497,505
Oil Filter ........................... 506
Oil Filter Disposal .................... 506
Oil Selection ..................... 504,548
Oil Synthetic ........................ 505
Operation ........................... 89
Overheating ........................ 469
Starting ........................... 368
Temperature Gauge ................... 281
Engine Oil Viscosity ...................... 505
Engine Oil Viscosity Chart ................. 505
Enhanced Accident Response Feature .......... 71
Entry System, Illuminated .................. 20
Ethanol ............................... 440
Event Data Recorder ...................... 75
Exhaust Gas Caution ................. 43,91,443
Exhaust System ....................... 91,515
Exterior Folding Mirrors ................... 104
10
INDEX 583

Exterior Light Service..................... 542
Exterior Lighting ........................ 202
Exterior Lights ........................ 94,542
Fabric Care ............................ 532
Filler Location Fuel .................... 281,447
Filters Air Cleaner ......................... 506
Air Conditioning .................. 360,510
Engine Oil ....................... 506,549
Engine Oil Disposal ................... 506
Flash-To-Pass ........................... 206
Flashers Hazard Warning ..................... 469
Turn Signal .................... 94,205,276
Flexible Fuel Vehicles Cruising Range ...................... 446
Engine Oil ......................... 446
Fuel Requirements ................. 443,445Maintenance
........................ 447
Replacement Parts .................... 447
Starting ........................... 446
Flooded Engine Starting ................... 371
Floor Console .......................... 251
Fluid Capacities ......................... 548
Fluid Leaks ............................. 94
Fluid Level Checks Automatic Transmission .............526,528
Brake .......................... 524,550
Cooling System ...................... 518
Engine Oil ......................... 503
Power Steering ................... 395,550
Fluid, Brake ........................... 550
Fluids ................................ 549
Fluids, Lubricants and Genuine Parts .......... 549
Fog Light Service ........................ 543
Fog Lights ....................... 204,276,543
Folding Rear Seat ..................... 190,197
584 INDEX

Intensity Control..................... 207
Interior ............................ 206
License ............................ 546
Lights On Reminder .................. 204
Low Fuel .......................... 288
Malfunction Indicator (Check Engine) ...... 274
Map Reading ....................... 208
Parade Mode (Daytime Brightness) ........ 208
Park .............................. 542
Passing ............................ 206
Reading ........................... 208
Rear Servicing .................... 542,544
Rear Tail ........................... 544
Seat Belt Reminder ................... 278
Security Alarm (Theft Alarm) ............ 281
Service ......................... 541,542
Service Engine Soon
(Malfunction Indicator) ................ 274
Side Marker ........................ 542 Theft Alarm (Security Alarm)
............ 281
Tire Pressure Monitoring (TPMS) .......277,431
Traction Control ..................... 406
Turn Signal ................. 94,205,542,544
Vanity Mirror ....................... 105
Warning (Instrument Cluster Description) . . . 274
Load Floor, Cargo ....................... 258
Loading Vehicle ...................... 449,451
Capacities .......................... 451
Tires .............................. 414
Locks ................................. 29
Auto Unlock ......................... 31
Automatic Door ...................... 31
Child Protection ...................... 32
Door .............................. 29
Power Door ......................... 30
Low Tire Pressure System .................. 431
Lower Anchors and Tether for CHildren
(LATCH) ............................ 82,84
10
INDEX 589

Lubrication, Body....................... 512
Luggage Rack (Roof Rack) ................. 265
Maintenance Free Battery .................. 507
Maintenance Procedures ................... 502
Maintenance Schedule .................... 552
Maintenance, General ..................... 502
Maintenance, Sunroof ..................... 242
Malfunction Indicator Light (Check Engine) . . 274,500
Manual Transaxle Fluid Level Check ................. 528,529
Frequency of Fluid Change ...........528,529
Lubricant Selection ................. 528,529
Manual, Service ......................... 573
Map/Reading Lights ..................... 208
Marker Lights, Side ...................... 542
Master Cylinder (Brakes) .................. 524
Methanol ............................. 440
Mini-Trip Computer ...................... 293 Mirrors
............................ 101,229
Automatic Dimming .................. 101
Electric Powered ..................... 103
Electric Remote ...................... 103
Exterior Folding ..................... 104
Heated ............................ 104
Outside ........................... 102
Rearview .......................... 101
Vanity ............................ 105
Mode Fuel Saver ......................... 292
Modifications/Alterations, Vehicle ............. 7
Monitor, Tire Pressure System ............... 431
Mopar Parts ......................... 501,572
MTBE/ETBE ........................... 440
Multi-Function Control Lever ............... 205
Navigation System (Uconnect™ gps) .......... 225
New Vehicle Break-In Period ................ 89
590 INDEX
