DODGE JOURNEY 2012 1.G Owners Manual

3. Turn the ignition switch to the ON/RUN position
without starting the engine.
4. Press and maintain firm pressure on the brake pedal.5. Insert a screwdriver or similar small tool into the hole
at the front of the center console and push the manual
override release lever.
6. Move the shift lever into the NEUTRAL position.
7. The vehicle may then be started in NEUTRAL.
8. Reinstall the shift lever override access cover in the
center console.
With Keyless Enter-N-Go — If Equipped
If the engine is running, press the START/STOP button to
turn it off. Release the brake pedal and press the START/
STOP button once or twice to go to the ON/RUN
position. Do not start the engine. Then, follow the in-
structions shown above to activate the override.
Shift Lever Override Access Cover6
WHAT TO DO IN EMERGENCIES 489

TOWING A DISABLED VEHICLE
Towing Condition Wheel OFF the Ground FWD MODELSAWD MODELS
Flat Tow NONEIF transmission is operable:
•Transmission in
NEUTRAL
•25 mph (40 km/h)
maxspeed
•15 miles (24 km)
maxdistance NOT ALLOWED
Wheel Lift Or Dolly Tow Rear
NOT ALLOWED
Front OKNOT ALLOWED
Flatbed ALLBEST METHOD OK
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for the purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws applying to
vehicles under tow must be observed.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
490 WHAT TO DO IN EMERGENCIES

If the vehicle’s battery is discharged, see “Shift Lever
Override” in “What To Do In Emergencies” for instruc-
tions on shifting the automatic transmission out of the
PARK position for towing.
CAUTION!
•Do not attempt to use sling type equipment when
towing. When securing the vehicle to a flat bed
truck, do not attach to front or rear suspension
components. Damage to your vehicle may result
from improper towing.
•Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
mission may result.
•If the vehicle being towed requires steering, the
ignition switch must be in the ON/RUN position,
not the LOCK/OFF or ACC positions.
All-Wheel Drive (AWD)
The manufacturer requires towing with all four wheels
OFF the ground. Acceptable methods are to tow the
vehicle on a flatbed, or with one end of vehicle raised and
the opposite end on a towing dolly.
CAUTION!
Failure to follow these towing methods could result
in damage to the transmission and/or transfer case.
Such damage is not covered by the New Vehicle
Limited Warranty.
6
WHAT TO DO IN EMERGENCIES 491

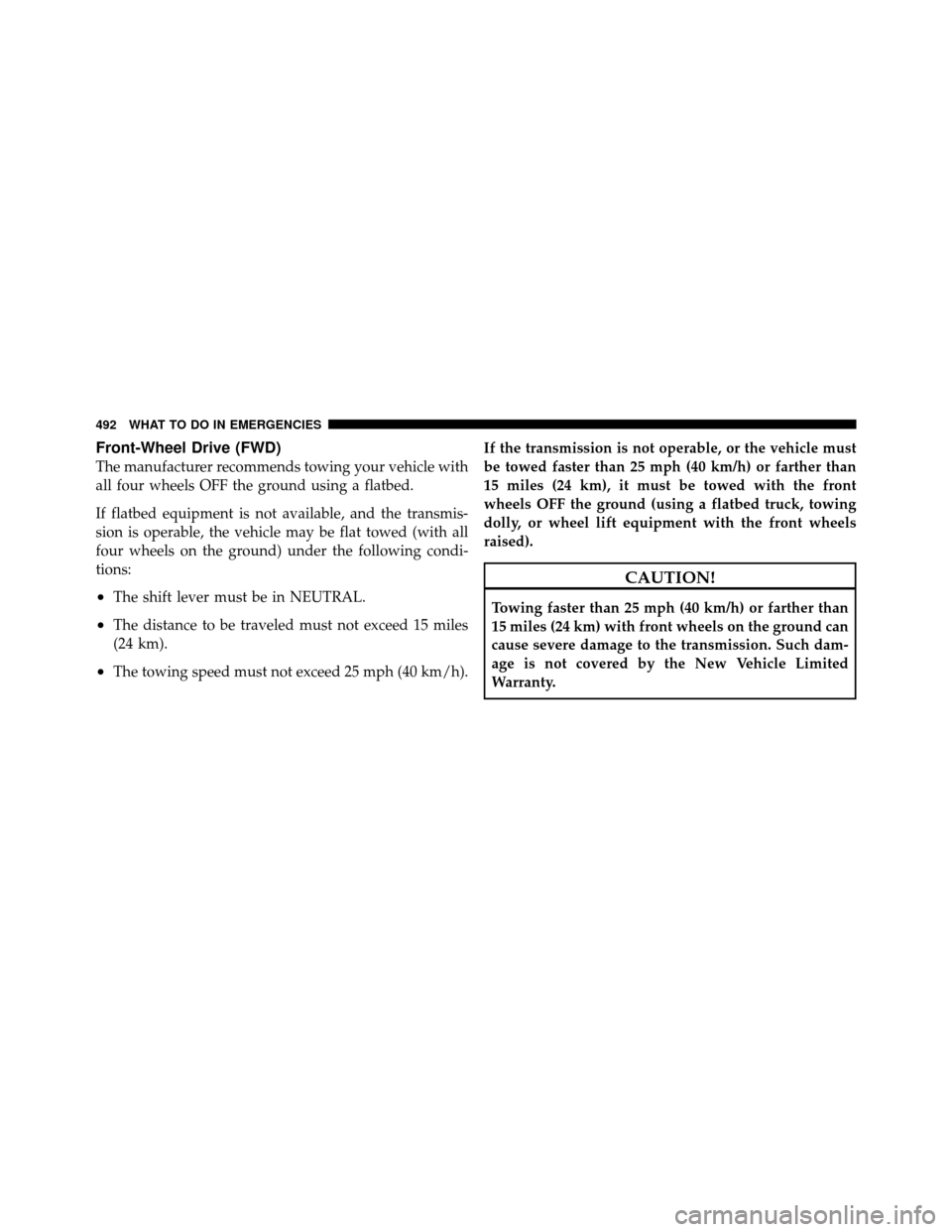

Front-Wheel Drive (FWD)
The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed.
If flatbed equipment is not available, and the transmis-
sion is operable, the vehicle may be flat towed (with all
four wheels on the ground) under the following condi-
tions:
•The shift lever must be in NEUTRAL.
•The distance to be traveled must not exceed 15 miles
(24 km).
•The towing speed must not exceed 25 mph (40 km/h).If the transmission is not operable, or the vehicle must
be towed faster than 25 mph (40 km/h) or farther than
15 miles (24 km), it must be towed with the front
wheels OFF the ground (using a flatbed truck, towing
dolly, or wheel lift equipment with the front wheels
raised).
CAUTION!
Towing faster than 25 mph (40 km/h) or farther than
15 miles (24 km) with front wheels on the ground can
cause severe damage to the transmission. Such dam-
age is not covered by the New Vehicle Limited
Warranty.
492 WHAT TO DO IN EMERGENCIES

Without The Ignition Key
Front-Wheel Drive (FWD)
Special care must be taken when the vehicle is towed
with the ignition in the LOCK/OFF position. Flatbed
towing is the preferred towing method. However, if a
flatbed towing vehicle is not available, wheel lift towing
equipment may be used. Rear towing (with the front
wheels on the ground) is not allowed, as transmission
damage will occur. If rear towing is the only alternative,
the front wheels must be placed on a towing dolly. Proper
towing equipment is necessary to prevent damage to the
vehicle.
All-Wheel Drive (AWD)
The manufacturer requires towing your vehicle with all
four wheels OFF the ground using a flatbed.
CAUTION!
Failure to follow these towing methods can cause
severe damage to the transmission and/or transfer
case. Such damage is not covered by the New Vehicle
Limited Warranty.
6
WHAT TO DO IN EMERGENCIES 493

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.4L ............. 497
 Engine Compartment — 3.6L ............. 498
 Onboard Diagnostic System — OBD II ...... 499
▫ Loose Fuel Filler Cap Message ........... 499
 Emissions Inspection And Maintenance
Programs ............................ 500
 Replacement Parts ..................... 501
 Dealer Service ........................ 501
Maintenance Procedures ................. 502
▫ Engine Oil ......................... 503
▫ Engine Oil Filter ..................... 506
▫ Engine Air Cleaner Filter ............... 506
▫ Maintenance-Free Battery .............. 507
▫ Air Conditioner Maintenance ............ 509
▫ A/C Air Filter – If Equipped ............ 510
▫ Body Lubrication .................... 512
▫ Wiper Blades ....................... 512
7

▫Adding Washer Fluid ................. 515
▫ Exhaust System ..................... 515
▫ Cooling System ..................... 518
▫ Brake System ....................... 523
▫ Automatic Transmission ............... 525
▫ Rear Drive Assembly (RDA) – AWD Models
Only ............................. 528
▫ Power Transfer Unit (PTU) – AWD Models
Only ............................. 529
▫ Appearance Care And Protection From
Corrosion .......................... 529
▫ Cleaning The Cupholders .............. 534
 Fuses .............................. 535
▫ Interior Fuses ....................... 535 ▫
Underhood Fuses
(Power Distribution Center) ............. 537
 Replacement Bulbs .................... 541
 Bulb Replacement ..................... 542
▫ Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp . . 542
▫ Front Fog Lamp ..................... 543
▫ Rear Turn Signal And Backup Lamp ....... 544
▫ License Plate Lamp ................... 546
 Fluid Capacities ...................... 548
 Fluids, Lubricants, And Genuine Parts ....... 549
▫ Engine ............................ 549
▫ Chassis ........................... 550
496 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 2.4L
1 — Engine Coolant Reservoir7 — Totally Integrated Power Module (Fuses)
2 — Power Steering Fluid Reservoir 8 — Automatic Transmission Dipstick
3 — Engine Oil Fill 9 — Washer Fluid Reservoir
4 — Brake Fluid Reservoir 10 — Coolant Pressure Cap
5 — Remote Jump Start (Positive Battery Post) 11 — Engine Oil Dipstick
6 — Remote Jump Start (Negative Battery Post)
7
MAINTAINING YOUR VEHICLE 497

ENGINE COMPARTMENT — 3.6L
1 — Engine Coolant Reservoir5 — Air Cleaner Filter
2 — Power Steering Fluid Reservoir 6 — Washer Fluid Reservoir
3 — Brake Fluid Reservoir 7 — Engine Oil Dipstick
4 — Totally Integrated Power Module (Fuses) 8 — Engine Oil Fill
498 MAINTAINING YOUR VEHICLE
