CavityCartridge
Fuse Mini-
Fuse Description
F151 30 Amp
Pink Headlamp Washer
Motor – If Equipped
F152 25 Amp
Natural Diesel Fuel Heater –
If Equipped
F153 20 Amp
Yellow Fuel Pump
F156 10 Amp
Red Brake/Electronic
Stability Control
Module
F157 10 Amp
Red Transfer Case Mod-
ule – If Equipped
F158 10 Amp
Red Active Hood Mod-
ule – If Equipped
F159 10 Amp
Red Spare
F160 20 Amp
Yellow Interior LightsCavity
Cartridge
Fuse Mini-
Fuse Description
F161 20 Amp
Yellow Horn
F162 50 Amp
Red Cabin Heater #1/
Vacuum Pump – If
Equipped
F163 50 Amp
Red Cabin Heater #2 – If
Equipped
F164 25 Amp
Natural Powertrain Auto
Shutdown
F165 20 Amp
Yellow Powertrain
Shutdown
F166 20 Amp
Yellow Spare
F167 30 Amp
Green Powertrain
Shutdown
F168 10 Amp
Red Air Conditioner
Clutch
7
MAINTAINING YOUR VEHICLE 539
Page 542 of 603
CavityCartridge
Fuse Mini-
Fuse Description
F169 40 Amp
Green Emissions – Partial
Zero Emissions Ve-
hicle Motor
F170 15 Amp
Blue Emissions – Partial
Zero Emissions Ve-
hicle Actuators
F172 20 Amp
Yellow Spare
F173 25 Amp
Natural Anti Lock Brake
Valves
F174 20 Amp
Yellow Siren – If Equipped
F175 30 Amp
Green Spare
F176 10 Amp
Red Powertrain Control
ModulesCavity
Cartridge
Fuse Mini-
Fuse Description
F177 20 Amp
Yellow All Wheel Drive
Module – If
Equipped
F178 25 Amp
Natural Sunroof – If
Equipped
F179 10 Amp
Red Battery Sensor
F181 100 Amp
Blue Electrohydraulic
Steering (EHPS) – If
Equipped
F182 50 Amp
Red Cabin Heater #3 – If
Equipped
F184 30 Amp
Pink Front Wiper Motor
540 MAINTAINING YOUR VEHICLE
Page 543 of 603
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb Number
Courtesy/Reading Lamps (Incandescent)........ 578
Courtesy/Reading Lamps (Optional LED) ...... LED
(Serviced at Authorized Dealer)
Glove Box Lamp ......................... 194
Cargo Lamp ............................ 579
Optional Door Map Pocket/Cupholder ........ LED
(Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions. LIGHTS BULBS – Exterior
Bulb No.
Low Beam Headlamp ..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Signal .................3757AK
Side Marker Lamp ........................ 168
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop Lamp (CHMSL) ..... LED
(Serviced at Authorized Dealer)
License Lamp ........................... 168
LIGHTS BULBS – Rear (LED Version) Bulb No.
Rear Tail/Stop Lamp ..................... LED
(Serviced at Authorized Dealer)
Rear Tail (Liftgate) Lamp .................. LED
(Serviced at Authorized Dealer)
Rear Turn Signal Lamp .................WY21W
Backup Lamp ......................... W21W
7
MAINTAINING YOUR VEHICLE 541
Page 544 of 603
LIGHTS BULBS – Rear (Bulb Version) Bulb No.
Rear Tail/Stop Lamp................... P27/7W
Rear Tail (Liftgate) Lamp ................P27/7W
Rear Turn Signal Lamp ................PY27/7W
Backup Lamp ........................ P27/7W
BULB REPLACEMENT
Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp
1. Open the hood.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the Totally Integrated Power
Module (TIPM) aside to replace certain lamps in the left
headlamp housing.
2. Rotate the applicable bulb and connector assembly
1 4
turn counterclockwise and remove the assembly from the
headlamp housing. 3. Disconnect the bulb from the harness connector and
then connect the replacement bulb.
1 — Front Turn Signal/Park Lamp Bulb
2 — Side Marker Lamp Bulb
3 — Low Beam Headlamp Bulb
4 — High Beam Headlamp Bulb
542 MAINTAINING YOUR VEHICLE
Page 545 of 603
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
4. Install the bulb and connector assembly into the
headlamp housing and rotate it
1 4turn clockwise to lock
it in place.
Front Fog Lamp
NOTE: Turn the steering wheel to the right if replacing
the left front fog lamp or to the left if replacing the right
front fog lamp to allow for easier access to the front of the
wheel well.
1. Remove the fasteners retaining the front lower wheel
well access panel and remove the access panel. 2. Remove the electrical connector from the fog lamp
housing.
3. Squeeze the two tabs on the side of the bulb socket and
pull straight out from the fog lamp.
7
MAINTAINING YOUR VEHICLE 543
Page 546 of 603
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
4. Install the replacement bulb and connector assembly
straight into the fog lamp until it locks into place.
5. Reinstall the front lower wheel well access panel and
fasteners.
Rear Turn Signal And Backup Lamp
The taillamps are a two-piece design. The tail/stop/rear
turn signal lamps are located in the rear corner body
panels. The tail and backup lamps are located in the
liftgate.

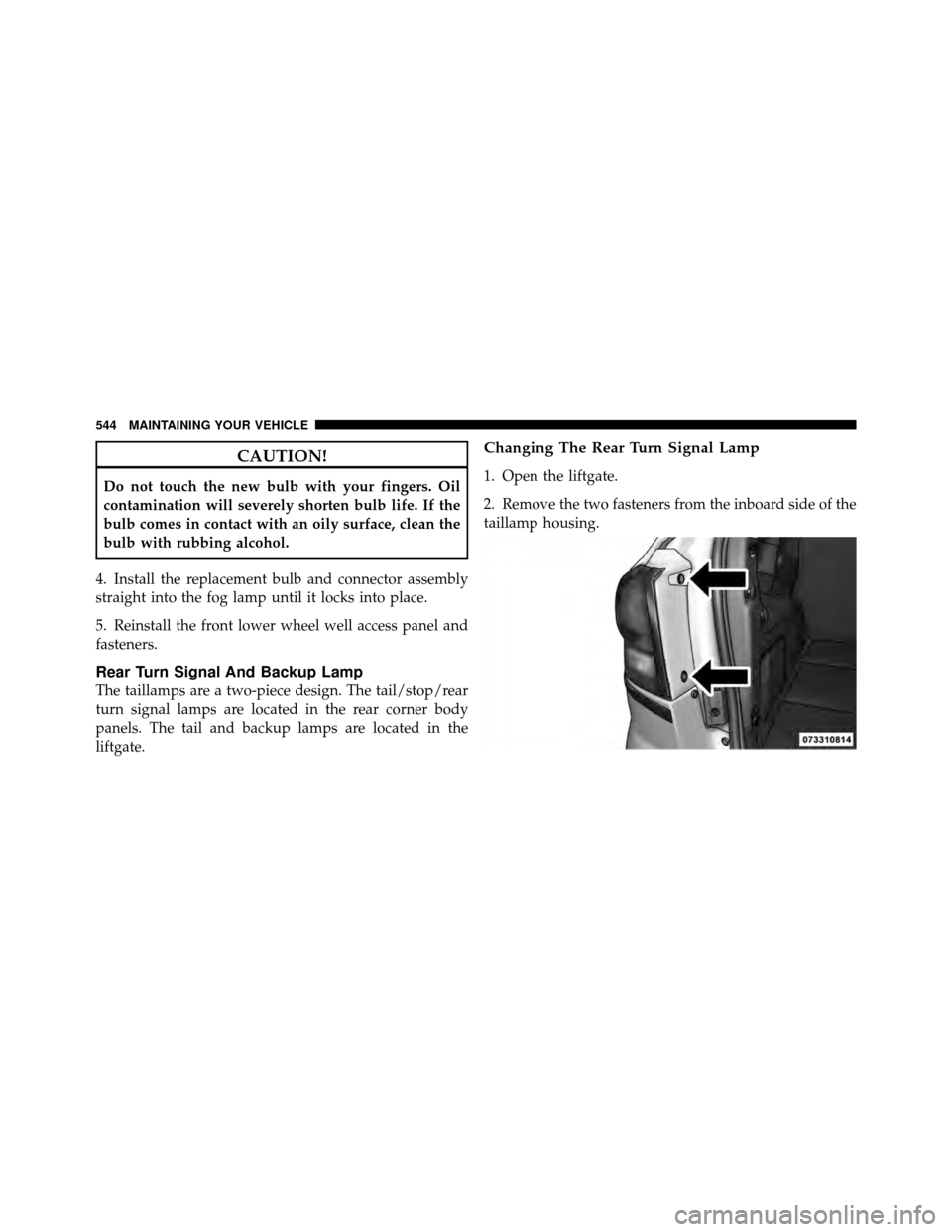

Changing The Rear Turn Signal Lamp
1. Open the liftgate.
2. Remove the two fasteners from the inboard side of the
taillamp housing.
544 MAINTAINING YOUR VEHICLE
Page 547 of 603
3. Carefully insert a trim stick (plastic flat-blade tool)
between the body panel and the outboard side of the
taillamp housing with one hand and grasp the flange on
the inboard side of the taillamp housing with the other
hand. Use the trim stick and hand pressure together to
disengage the taillamp housing from the vehicle.
4. Rotate the applicable bulb’s electrical connector
1 4
turn counterclockwise and remove it from the taillamp
housing.
5. Remove the bulb from the connector socket and install
the replacement bulb.
6. Install the bulb and connector assembly into the
taillamp housing and rotate the connector
1 4turn clock-
wise to lock it in place.
7. Reinstall the taillamp housing and fasteners.

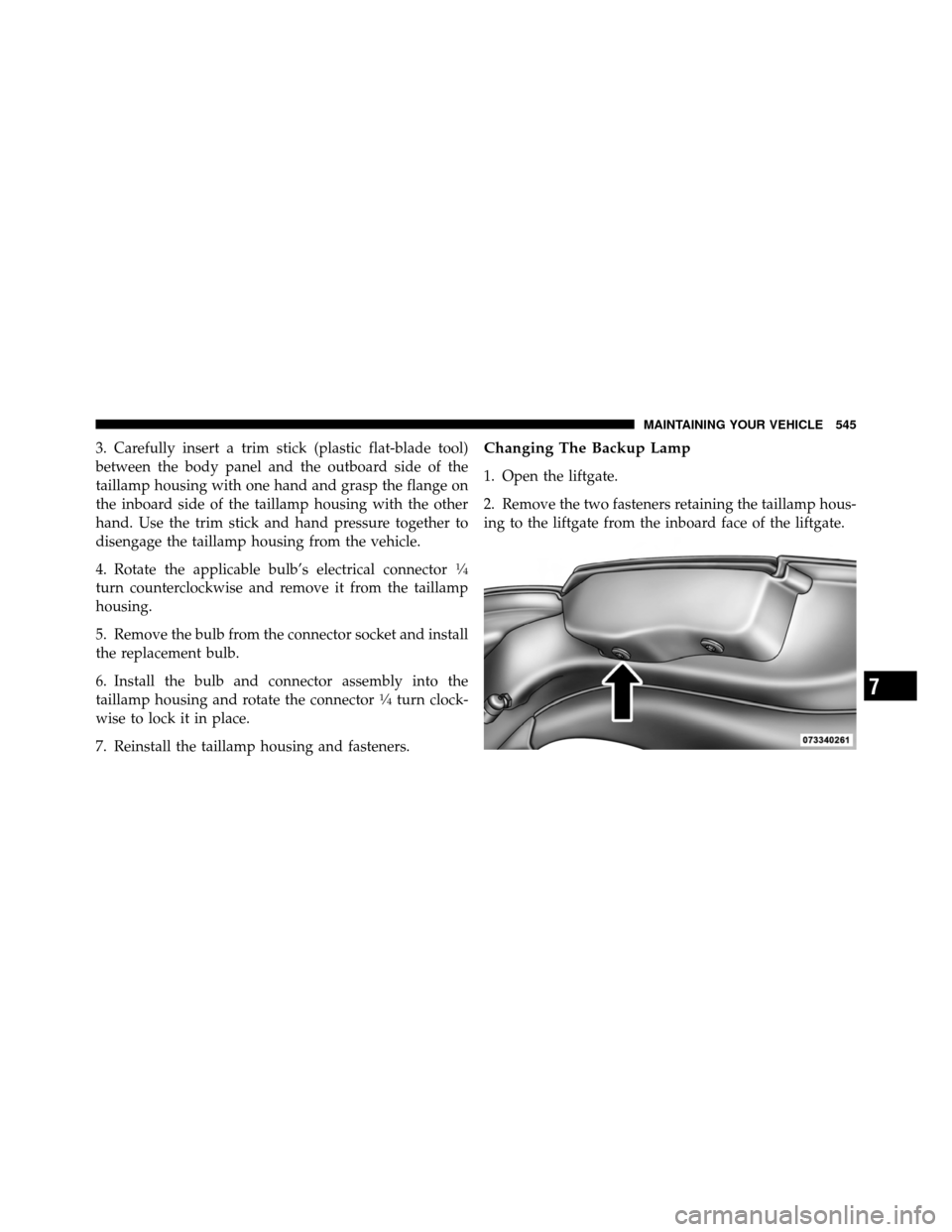

Changing The Backup Lamp
1. Open the liftgate.
2. Remove the two fasteners retaining the taillamp hous-
ing to the liftgate from the inboard face of the liftgate.
7
MAINTAINING YOUR VEHICLE 545
Page 548 of 603

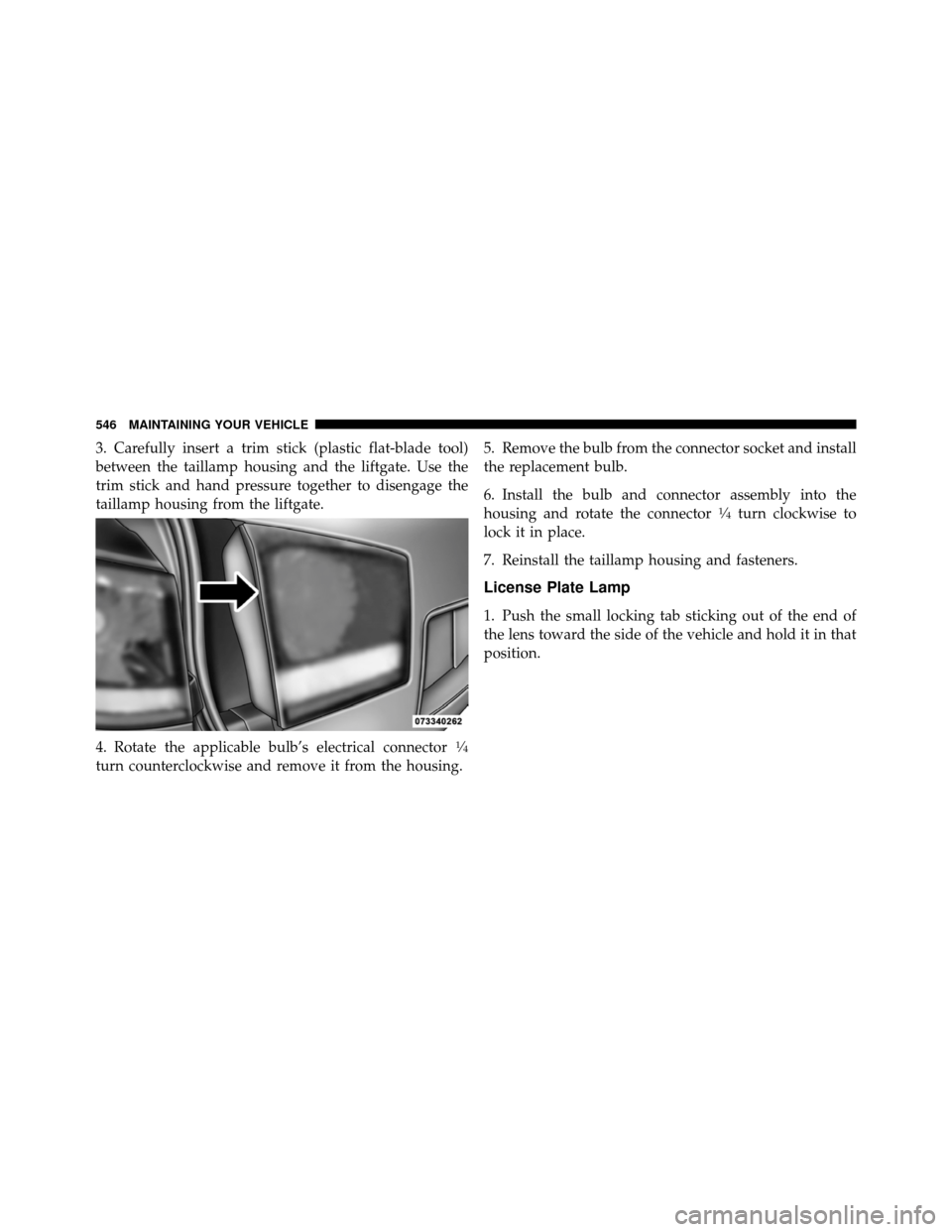

3. Carefully insert a trim stick (plastic flat-blade tool)
between the taillamp housing and the liftgate. Use the
trim stick and hand pressure together to disengage the
taillamp housing from the liftgate.
4. Rotate the applicable bulb’s electrical connector
1 4
turn counterclockwise and remove it from the housing.5. Remove the bulb from the connector socket and install
the replacement bulb.
6. Install the bulb and connector assembly into the
housing and rotate the connector
1 4turn clockwise to
lock it in place.
7. Reinstall the taillamp housing and fasteners.
License Plate Lamp
1. Push the small locking tab sticking out of the end of
the lens toward the side of the vehicle and hold it in that
position.
546 MAINTAINING YOUR VEHICLE
Page 549 of 603

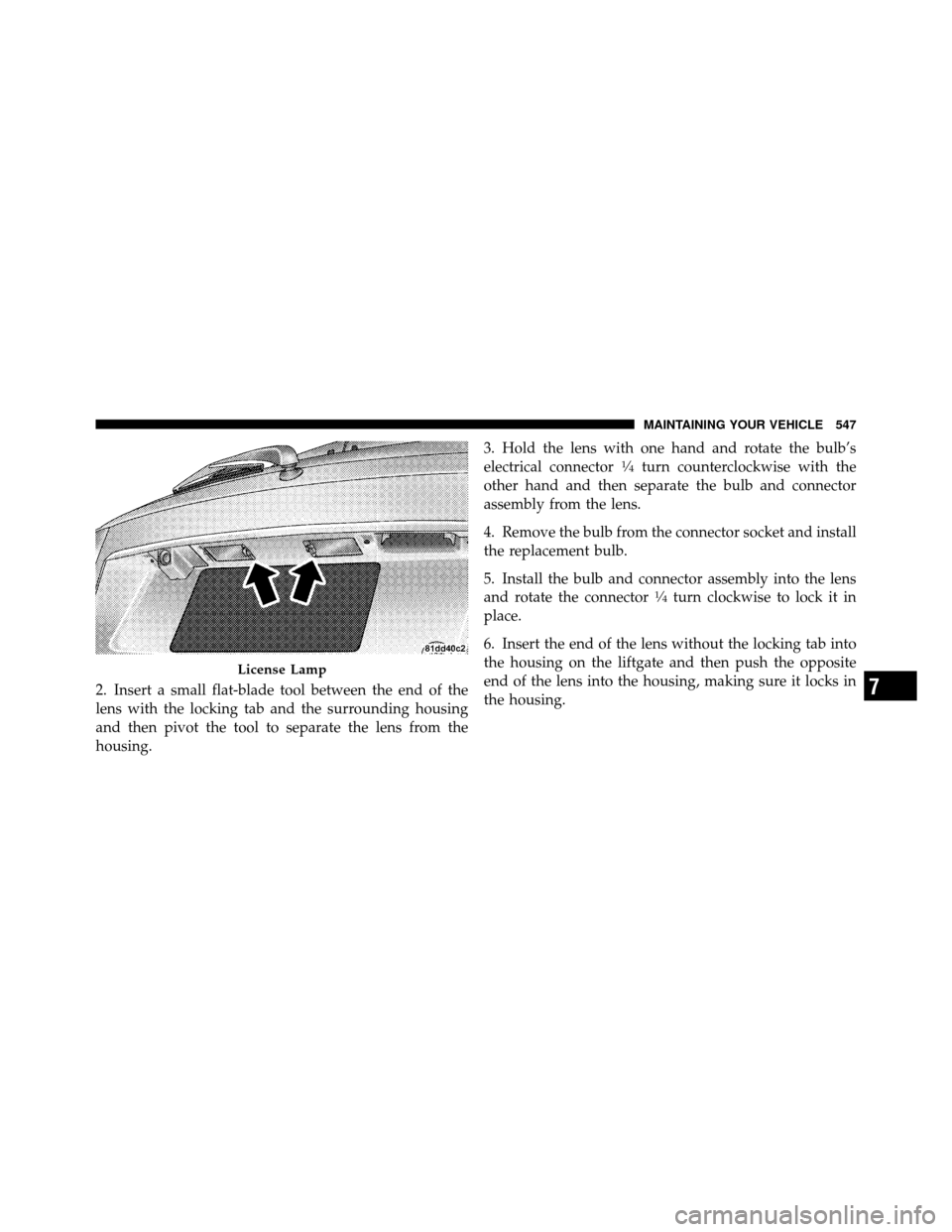

2. Insert a small flat-blade tool between the end of the
lens with the locking tab and the surrounding housing
and then pivot the tool to separate the lens from the
housing.3. Hold the lens with one hand and rotate the bulb’s
electrical connector
1 4turn counterclockwise with the
other hand and then separate the bulb and connector
assembly from the lens.
4. Remove the bulb from the connector socket and install
the replacement bulb.
5. Install the bulb and connector assembly into the lens
and rotate the connector
1 4turn clockwise to lock it in
place.
6. Insert the end of the lens without the locking tab into
the housing on the liftgate and then push the opposite
end of the lens into the housing, making sure it locks in
the housing.
License Lamp
7
MAINTAINING YOUR VEHICLE 547
Page 550 of 603
FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
Front Wheel Drive (FWD) Models 20.5 Gallons 77.6 Liters
All-Wheel Drive Models 21 Gallons 79.8 Liters
Engine Oil with Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts 4.26 Liters
3.6L Engine (SAE 5W-30, API Certified) 6 Quarts 5.6 Liters
Cooling System *
2.4L Engine and Single- or Dual-Zone Climate Control System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula or equivalent) 10.7 Quarts 10.1 Liters
2.4L Engine and Three-Zone Climate Control System (MOPAR Antifreeze/
Coolant 5 Year/100,000 Mile Formula or equivalent) 11.6 Quarts 11.0 Liters
3.6L Engine and Single- or Dual-Zone Climate Control System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula or equivalent) 13.1 Quarts 12.4 Liters
3.6L Engine and Three-Zone Climate Control System (MOPAR Antifreeze/
Coolant 5 Year/100,000 Mile Formula or equivalent) 14.5 Quarts 13.7 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
