DODGE JOURNEY 2013 1.G User Guide

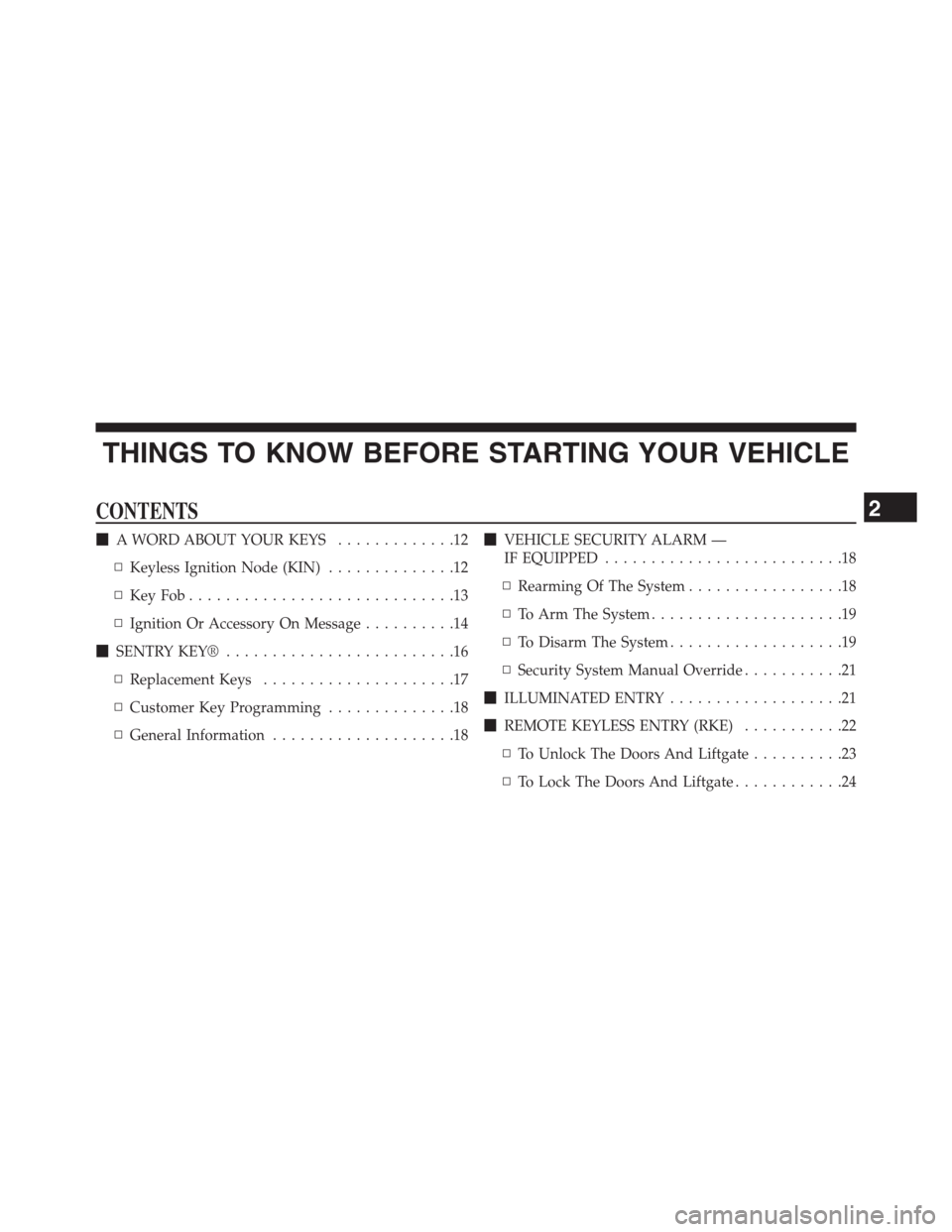

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS.............12
▫Keyless Ignition Node (KIN)..............12
▫KeyFob.............................13
▫Ignition Or Accessory On Message..........14
SENTRY KEY®.........................16
▫Replacement Keys.....................17
▫Customer Key Programming..............18
▫General Information....................18VEHICLE SECURITY ALARM —
IF EQUIPPED..........................18
▫Rearming Of The System.................18
▫To Arm The System.....................19
▫To Disarm The System...................19
▫Security System Manual Override...........21
ILLUMINATED ENTRY...................21
REMOTE KEYLESS ENTRY (RKE)...........22
▫To Unlock The Doors And Liftgate..........23
▫To Lock The Doors And Liftgate............24

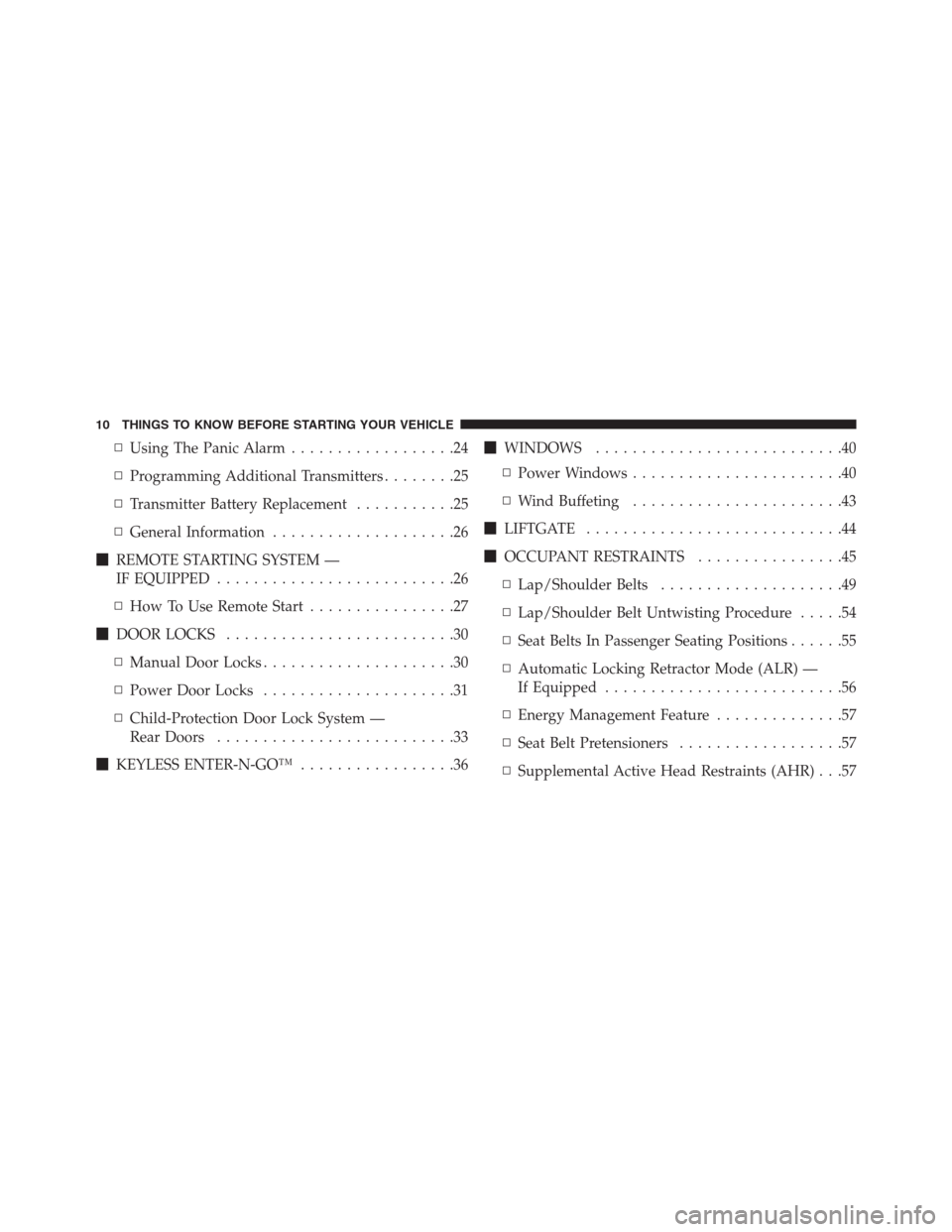

2

▫Using The Panic Alarm..................24
▫Programming Additional Transmitters........25
▫Transmitter Battery Replacement...........25
▫General Information....................26
REMOTE STARTING SYSTEM —
IF EQUIPPED..........................26
▫How To Use Remote Start................27
DOOR LOCKS.........................30
▫Manual Door Locks.....................30
▫Power Door Locks.....................31
▫Child-Protection Door Lock System —
Rear Doors..........................33
KEYLESS ENTER-N-GO™.................36WINDOWS...........................40
▫Power Windows.......................40
▫Wind Buffeting.......................43
LIFTGATE............................44
OCCUPANT RESTRAINTS................45
▫Lap/Shoulder Belts....................49
▫Lap/Shoulder Belt Untwisting Procedure.....54
▫Seat Belts In Passenger Seating Positions......55
▫Automatic Locking Retractor Mode (ALR) —
If Equipped..........................56
▫Energy Management Feature..............57
▫Seat Belt Pretensioners..................57
▫Supplemental Active Head Restraints (AHR) . . .57

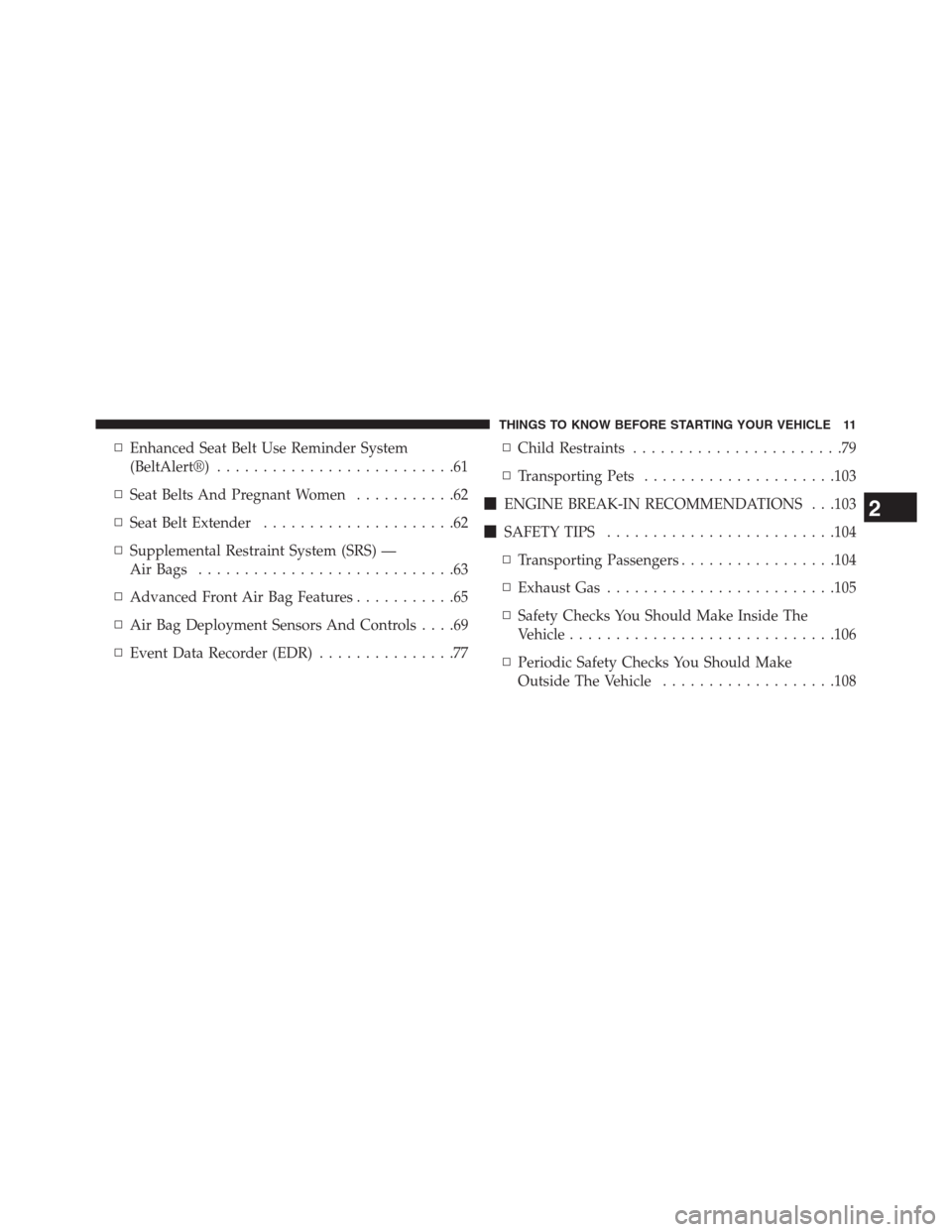

10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Enhanced Seat Belt Use Reminder System
(BeltAlert®)..........................61
▫Seat Belts And Pregnant Women...........62
▫Seat Belt Extender.....................62
▫Supplemental Restraint System (SRS) —
Air Bags............................63
▫Advanced Front Air Bag Features...........65
▫Air Bag Deployment Sensors And Controls....69
▫Event Data Recorder (EDR)...............77▫Child Restraints.......................79
▫Transporting Pets.....................103
ENGINE BREAK-IN RECOMMENDATIONS . . .103
SAFETY TIPS.........................104
▫Transporting Passengers.................104
▫Exhaust Gas.........................105
▫Safety Checks You Should Make Inside The
Vehicle.............................106
▫Periodic Safety Checks You Should Make
Outside The Vehicle...................108
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

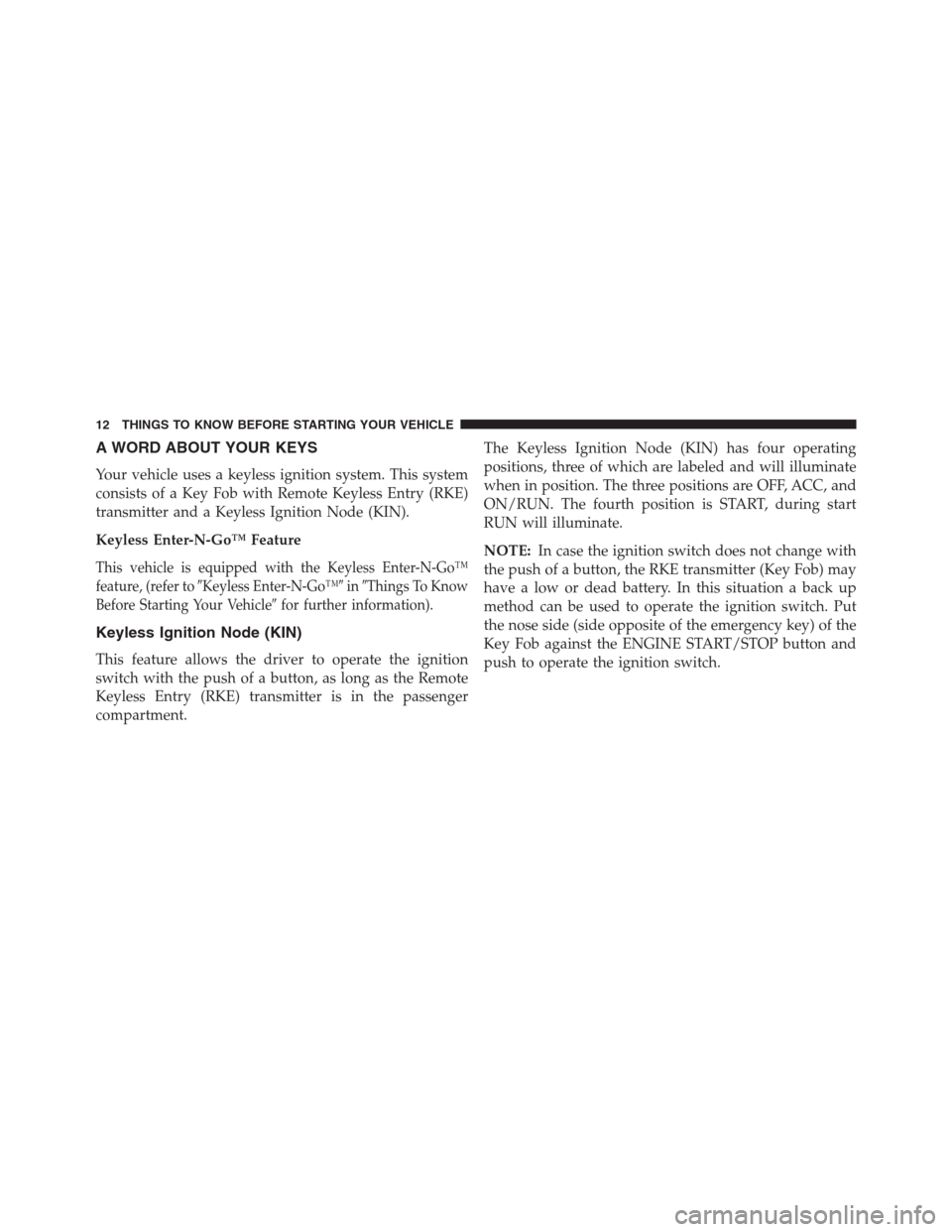

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Keyless Ignition Node (KIN).
Keyless Enter-N-Go™ Feature
This vehicle is equipped with the Keyless Enter-N-Go™
feature, (refer toKeyless Enter-N-Go™inThings To Know
Before Starting Your Vehiclefor further information).
Keyless Ignition Node (KIN)
This feature allows the driver to operate the ignition
switch with the push of a button, as long as the Remote
Keyless Entry (RKE) transmitter is in the passenger
compartment.The Keyless Ignition Node (KIN) has four operating
positions, three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start
RUN will illuminate.
NOTE:In case the ignition switch does not change with
the push of a button, the RKE transmitter (Key Fob) may
have a low or dead battery. In this situation a back up
method can be used to operate the ignition switch. Put
the nose side (side opposite of the emergency key) of the
Key Fob against the ENGINE START/STOP button and
push to operate the ignition switch.
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Key Fob
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle should
the battery in the vehicle or the Key Fob go dead. The
emergency key is also for locking the glove box. You can
keep the emergency key with you when valet parking.
Keyless Ignition Node (KIN)
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

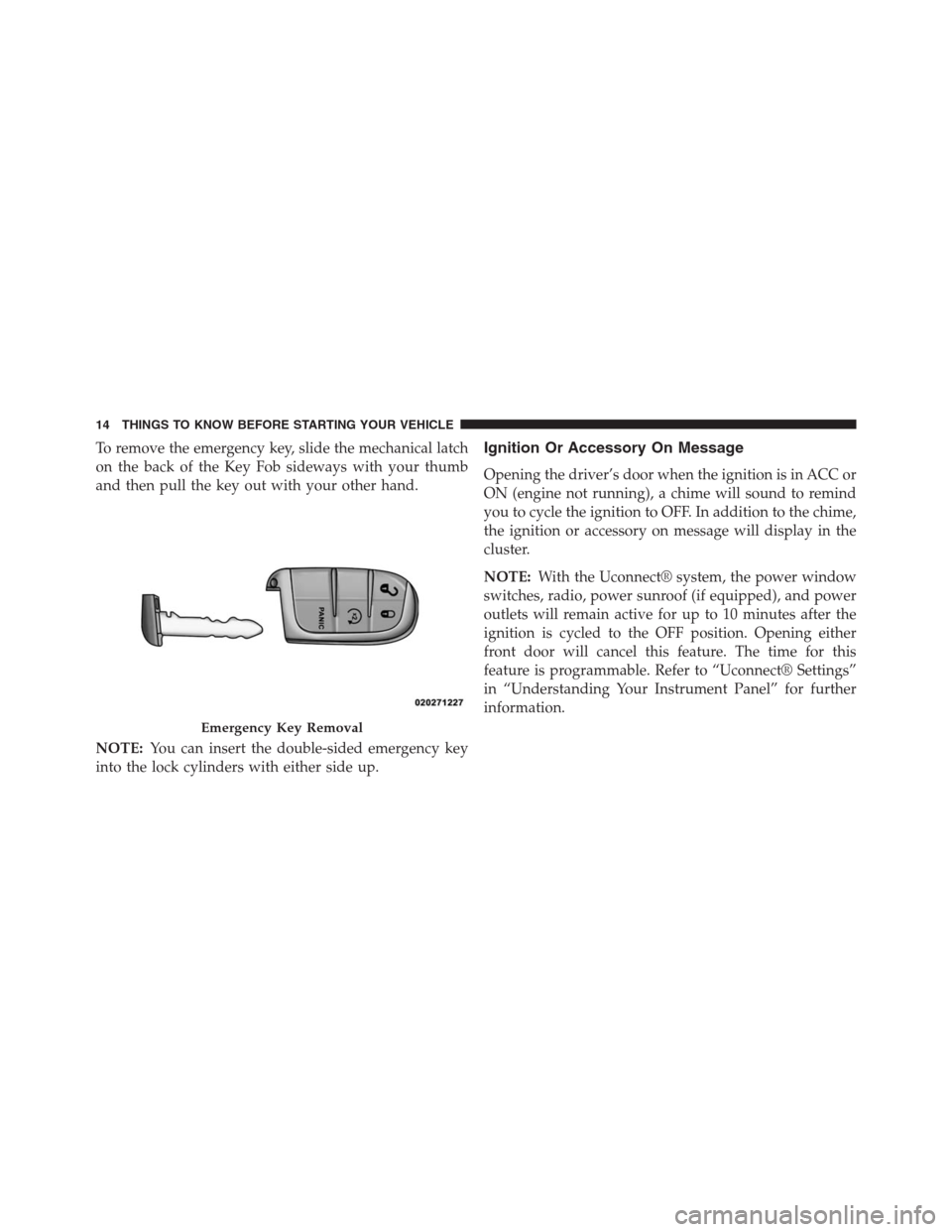

To remove the emergency key, slide the mechanical latch
on the back of the Key Fob sideways with your thumb
and then pull the key out with your other hand.
NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.Ignition Or Accessory On Message
Opening the driver’s door when the ignition is in ACC or
ON (engine not running), a chime will sound to remind
you to cycle the ignition to OFF. In addition to the chime,
the ignition or accessory on message will display in the
cluster.
NOTE:With the Uconnect® system, the power window
switches, radio, power sunroof (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition is cycled to the OFF position. Opening either
front door will cancel this feature. The time for this
feature is programmable. Refer to “Uconnect® Settings”
in “Understanding Your Instrument Panel” for further
information.
Emergency Key Removal
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

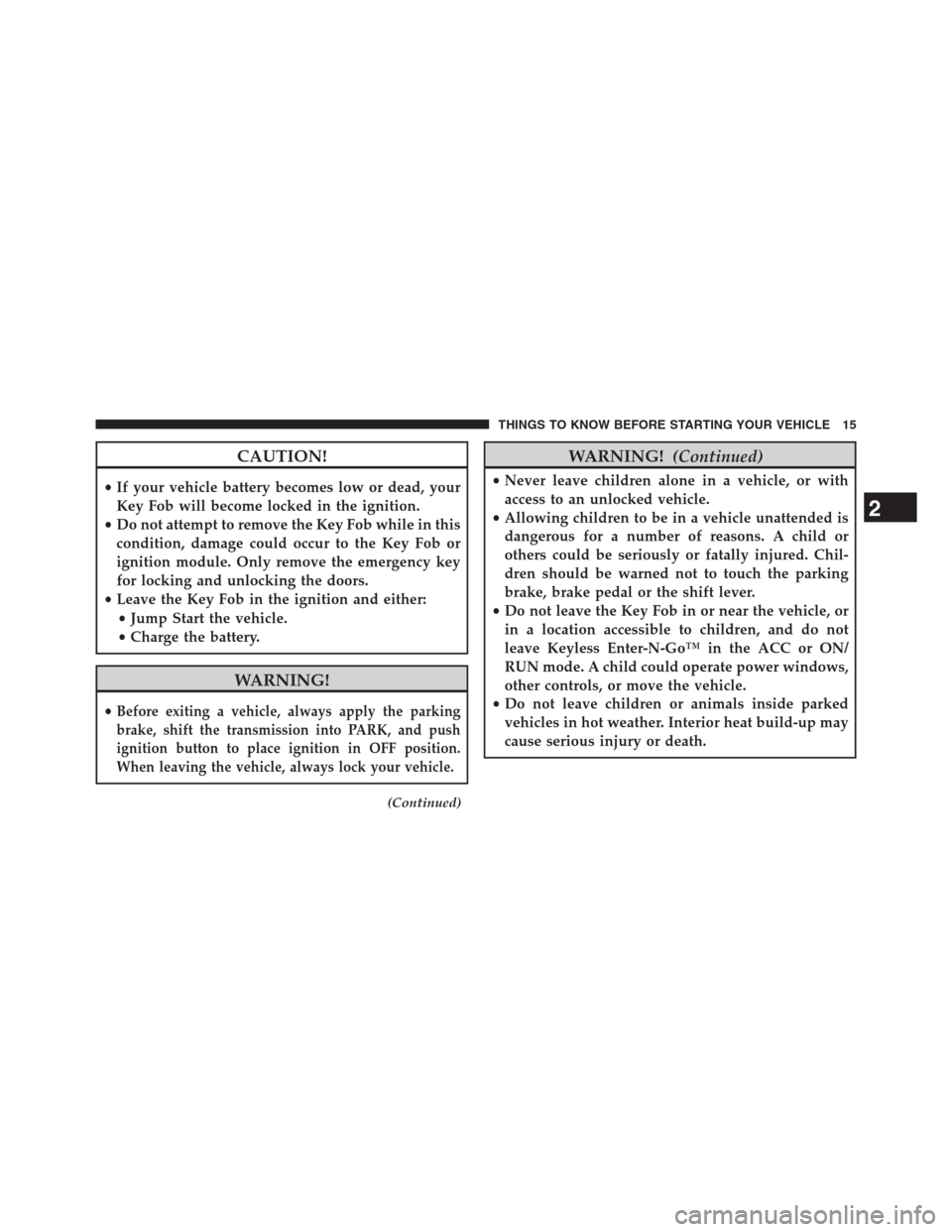

CAUTION!
•If your vehicle battery becomes low or dead, your
Key Fob will become locked in the ignition.
•Do not attempt to remove the Key Fob while in this
condition, damage could occur to the Key Fob or
ignition module. Only remove the emergency key
for locking and unlocking the doors.
•Leave the Key Fob in the ignition and either:
•Jump Start the vehicle.
•Charge the battery.
WARNING!
•Before exiting a vehicle, always apply the parking
brake, shift the transmission into PARK, and push
ignition button to place ignition in OFF position.
When leaving the vehicle, always lock your vehicle.
(Continued)
WARNING!(Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave Keyless Enter-N-Go™ in the ACC or ON/
RUN mode. A child could operate power windows,
other controls, or move the vehicle.
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

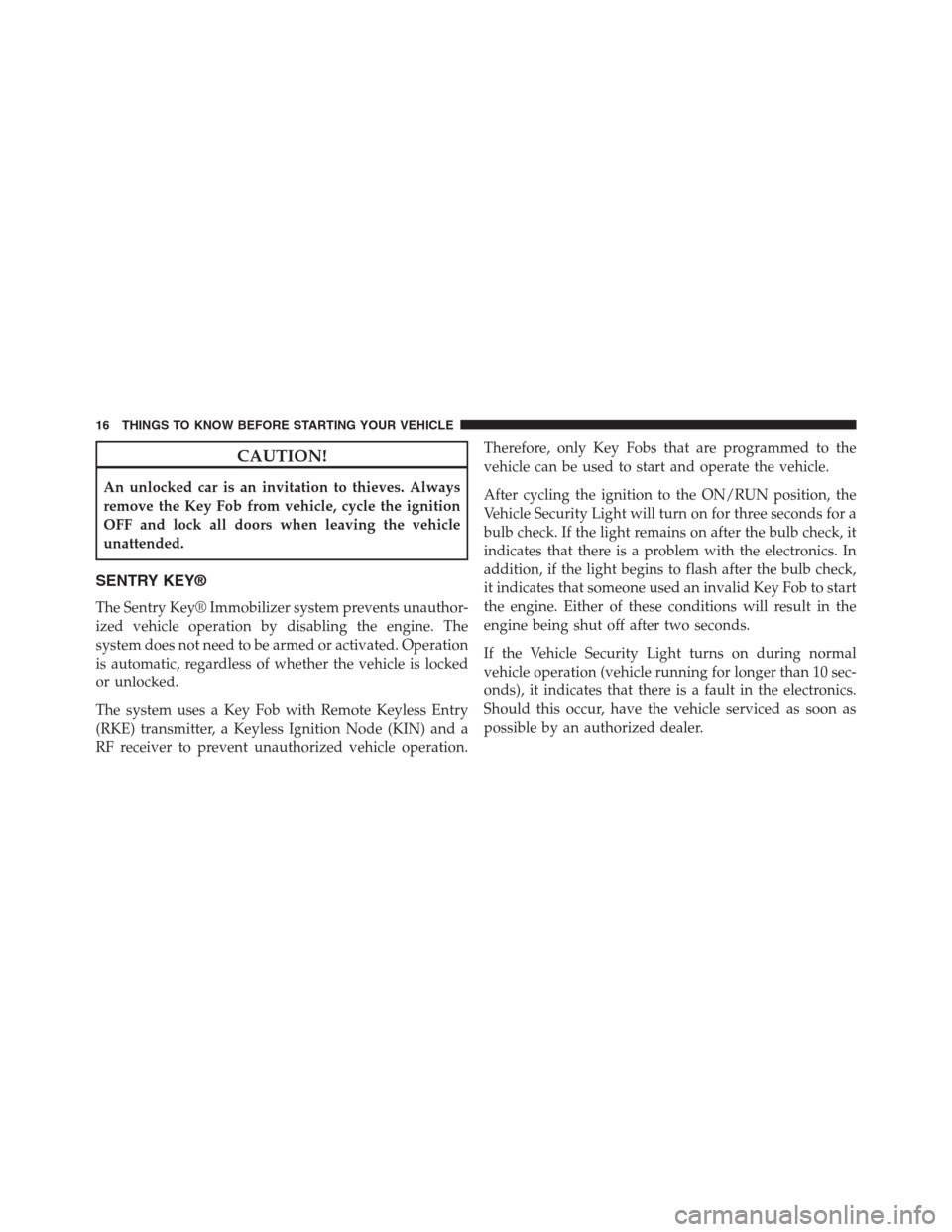

CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key Fob from vehicle, cycle the ignition
OFF and lock all doors when leaving the vehicle
unattended.
SENTRY KEY®
The Sentry Key® Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key Fob with Remote Keyless Entry
(RKE) transmitter, a Keyless Ignition Node (KIN) and a
RF receiver to prevent unauthorized vehicle operation.Therefore, only Key Fobs that are programmed to the
vehicle can be used to start and operate the vehicle.
After cycling the ignition to the ON/RUN position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid Key Fob to start
the engine. Either of these conditions will result in the
engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

CAUTION!
The Sentry Key® Immobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
•Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unattended.
•For vehicles equipped with Keyless Enter-N-Go™,
always remember to place the ignition in the OFF
position.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
Duplication of Key Fobs may be performed at an autho-
rized dealer, this procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

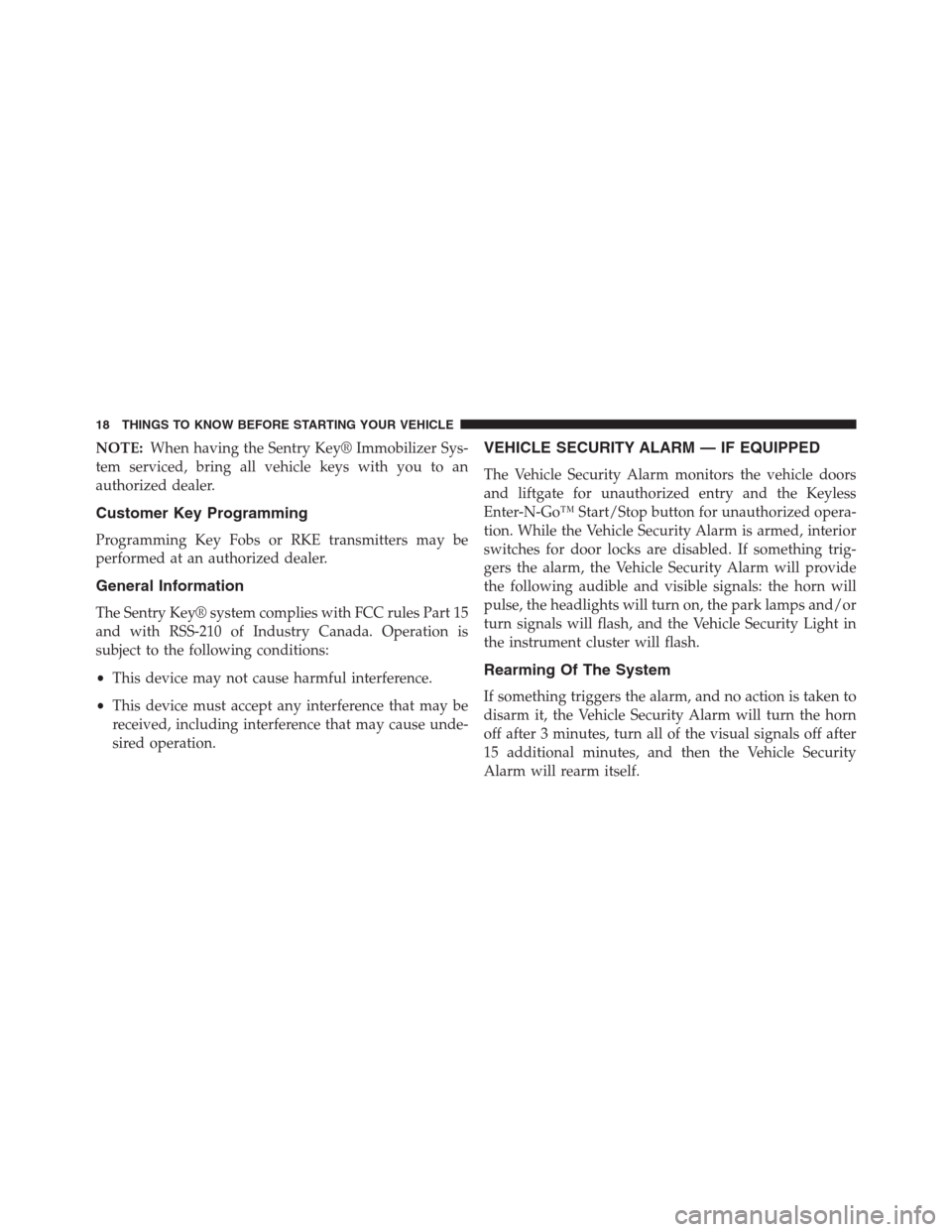

NOTE:When having the Sentry Key® Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer.
Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The Sentry Key® system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
and liftgate for unauthorized entry and the Keyless
Enter-N-Go™ Start/Stop button for unauthorized opera-
tion. While the Vehicle Security Alarm is armed, interior
switches for door locks are disabled. If something trig-
gers the alarm, the Vehicle Security Alarm will provide
the following audible and visible signals: the horn will
pulse, the headlights will turn on, the park lamps and/or
turn signals will flash, and the Vehicle Security Light in
the instrument cluster will flash.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after 3 minutes, turn all of the visual signals off after
15 additional minutes, and then the Vehicle Security
Alarm will rearm itself.
