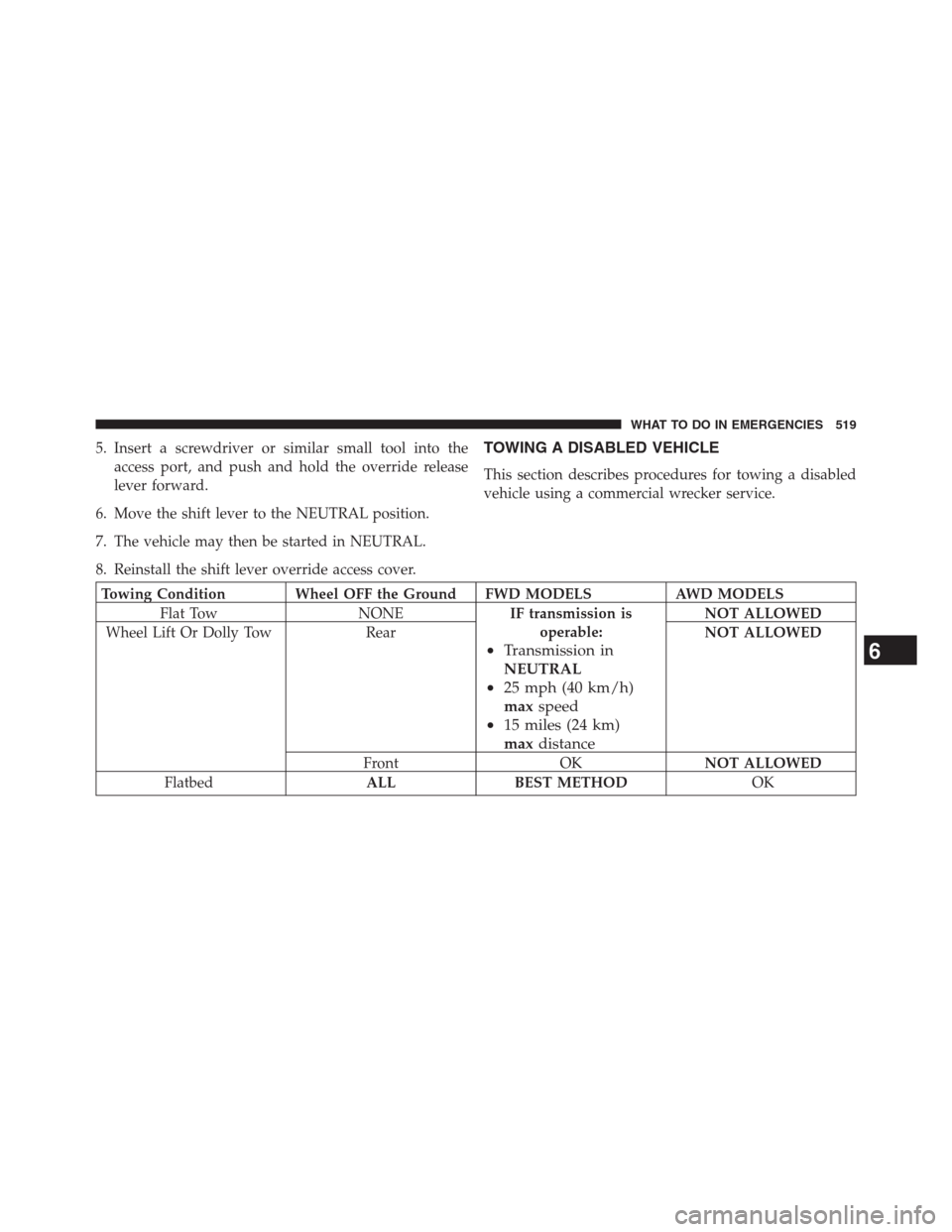

5. Insert a screwdriver or similar small tool into the
access port, and push and hold the override release
lever forward.
6. Move the shift lever to the NEUTRAL position.
7. The vehicle may then be started in NEUTRAL.
8. Reinstall the shift lever override access cover.TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial wrecker service.
Towing Condition Wheel OFF the Ground FWD MODELS AWD MODELS
Flat Tow NONEIF transmission is
operable:
•Transmission in
NEUTRAL
•25 mph (40 km/h)
maxspeed
•15 miles (24 km)
maxdistance
NOT ALLOWED
Wheel Lift Or Dolly Tow RearNOT ALLOWED
Front OKNOT ALLOWED
FlatbedALL BEST METHODOK
6
WHAT TO DO IN EMERGENCIES 519

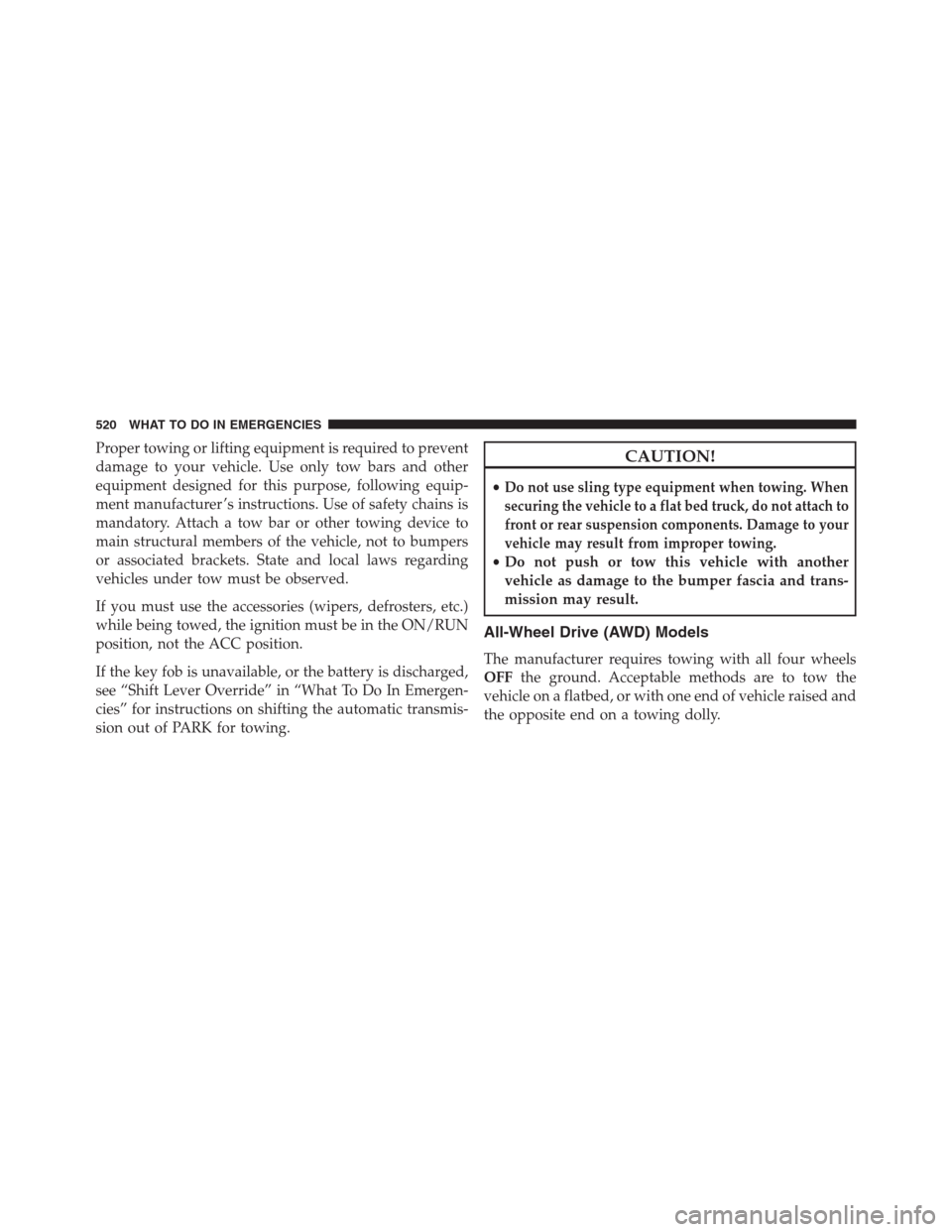

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the key fob is unavailable, or the battery is discharged,
see “Shift Lever Override” in “What To Do In Emergen-
cies” for instructions on shifting the automatic transmis-
sion out of PARK for towing.CAUTION!
•Do not use sling type equipment when towing. When
securing the vehicle to a flat bed truck, do not attach to
front or rear suspension components. Damage to your
vehicle may result from improper towing.
•Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
mission may result.
All-Wheel Drive (AWD) Models
The manufacturer requires towing with all four wheels
OFFthe ground. Acceptable methods are to tow the
vehicle on a flatbed, or with one end of vehicle raised and
the opposite end on a towing dolly.
520 WHAT TO DO IN EMERGENCIES

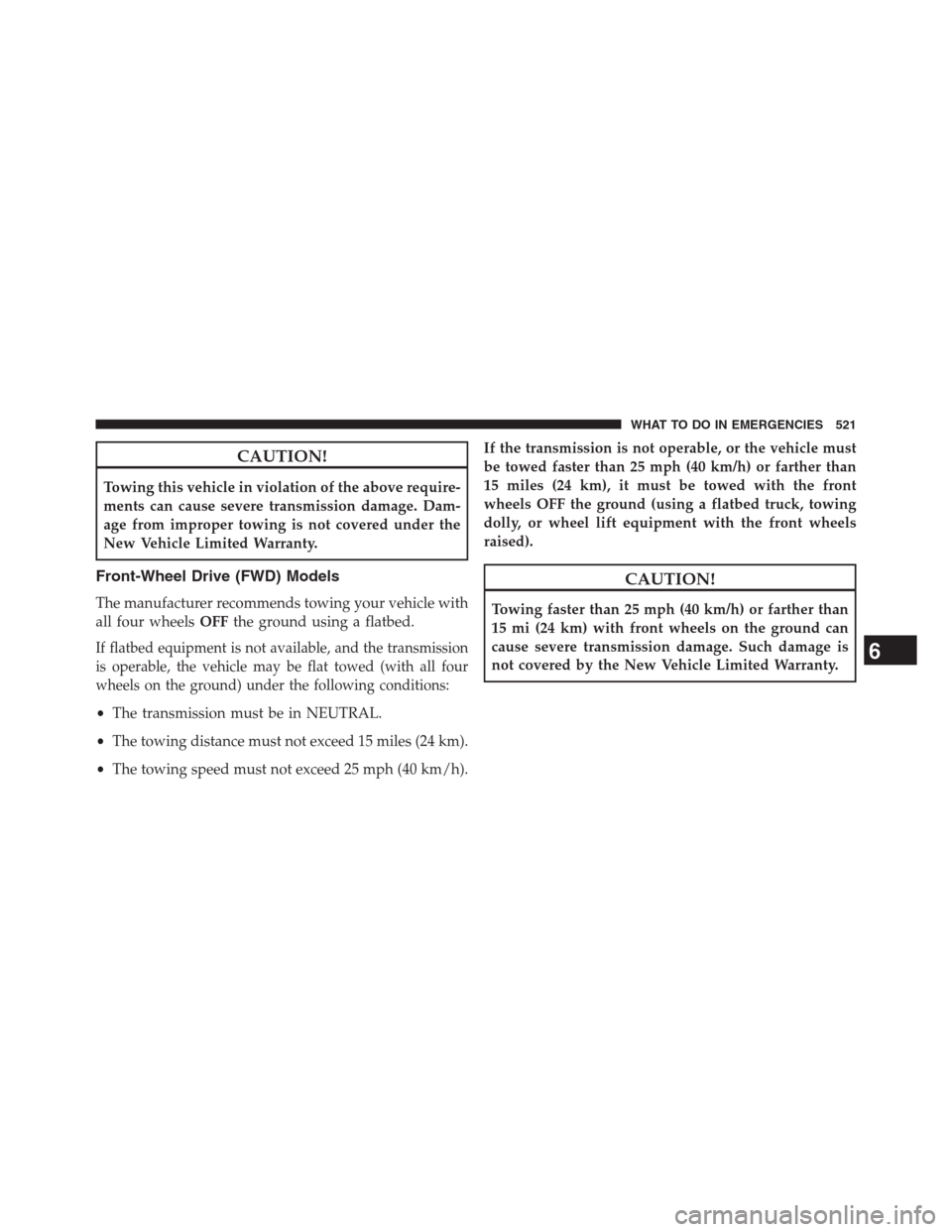

CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.
Front-Wheel Drive (FWD) Models
The manufacturer recommends towing your vehicle with
all four wheelsOFFthe ground using a flatbed.
If flatbed equipment is not available, and the transmission
is operable, the vehicle may be flat towed (with all four
wheels on the ground) under the following conditions:
•The transmission must be in NEUTRAL.
•The towing distance must not exceed 15 miles (24 km).
•The towing speed must not exceed 25 mph (40 km/h).If the transmission is not operable, or the vehicle must
be towed faster than 25 mph (40 km/h) or farther than
15 miles (24 km), it must be towed with the front
wheels OFF the ground (using a flatbed truck, towing
dolly, or wheel lift equipment with the front wheels
raised).
CAUTION!
Towing faster than 25 mph (40 km/h) or farther than
15 mi (24 km) with front wheels on the ground can
cause severe transmission damage. Such damage is
not covered by the New Vehicle Limited Warranty.
6
WHAT TO DO IN EMERGENCIES 521

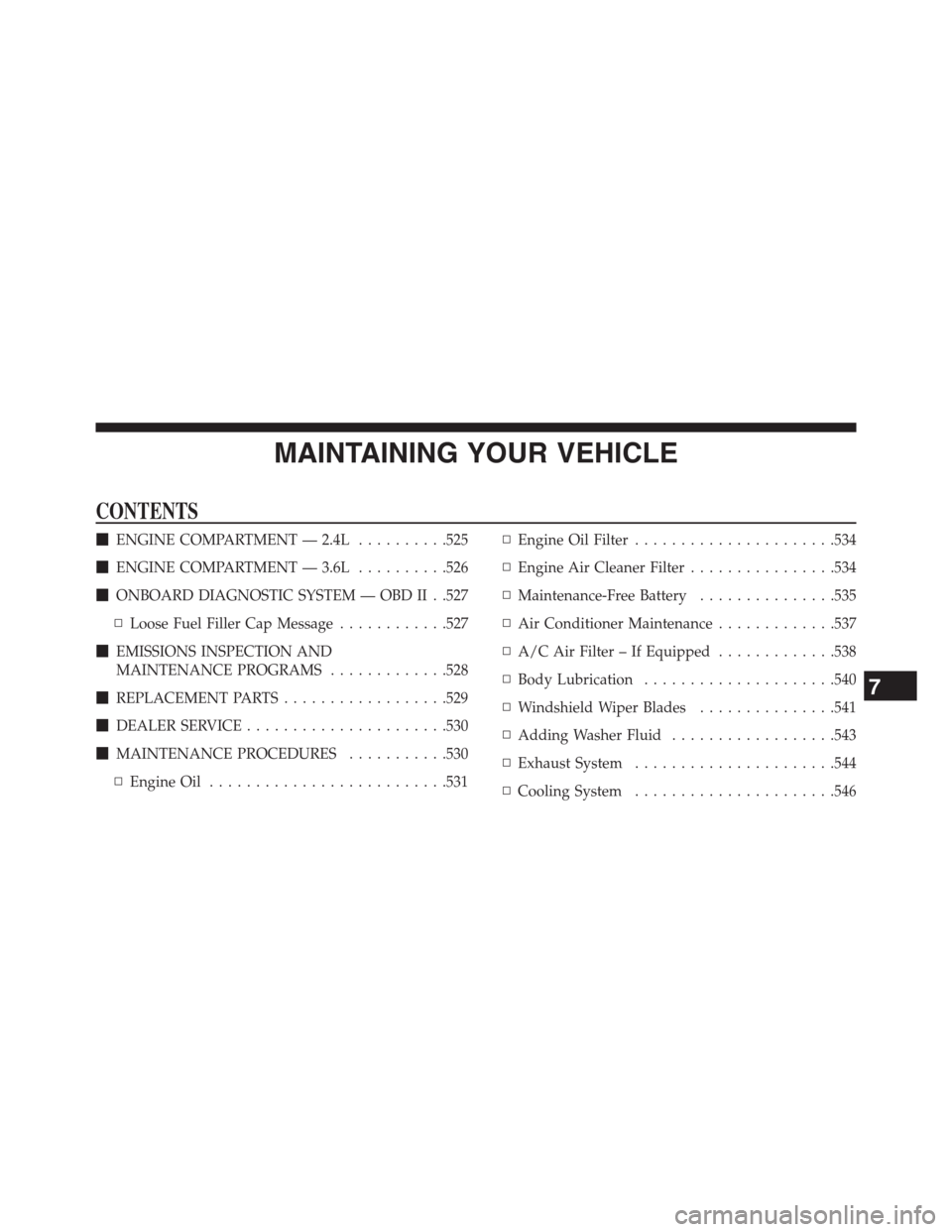

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 2.4L..........525
ENGINE COMPARTMENT — 3.6L..........526
ONBOARD DIAGNOSTIC SYSTEM — OBD II . .527
▫Loose Fuel Filler Cap Message............527
EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS.............528
REPLACEMENT PARTS..................529
DEALER SERVICE......................530
MAINTENANCE PROCEDURES...........530
▫Engine Oil..........................531▫Engine Oil Filter......................534
▫Engine Air Cleaner Filter................534
▫Maintenance-Free Battery...............535
▫Air Conditioner Maintenance.............537
▫A/C Air Filter – If Equipped.............538
▫Body Lubrication.....................540
▫Windshield Wiper Blades...............541
▫Adding Washer Fluid..................543
▫Exhaust System......................544
▫Cooling System......................546
7

▫Brake System........................552
▫Automatic Transmission................554
▫Rear Drive Assembly (RDA) –
AWD Models Only....................558
▫Power Transfer Unit (PTU) –
AWD Models Only....................558
▫Appearance Care And Protection From
Corrosion...........................559
▫Cleaning The Cupholders...............565
FUSES..............................565
▫Interior Fuses........................565
▫Underhood Fuses (Power Distribution
Center)............................568REPLACEMENT BULBS.................572
BULB REPLACEMENT..................574
▫Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp . .574
▫Front Fog Lamp......................575
▫Rear Turn Signal And Backup Lamp........576
▫License Plate Lamp....................579
FLUID CAPACITIES....................580
FLUIDS, LUBRICANTS AND
GENUINE PARTS......................582
▫Engine.............................582
▫Chassis............................583
524 MAINTAINING YOUR VEHICLE

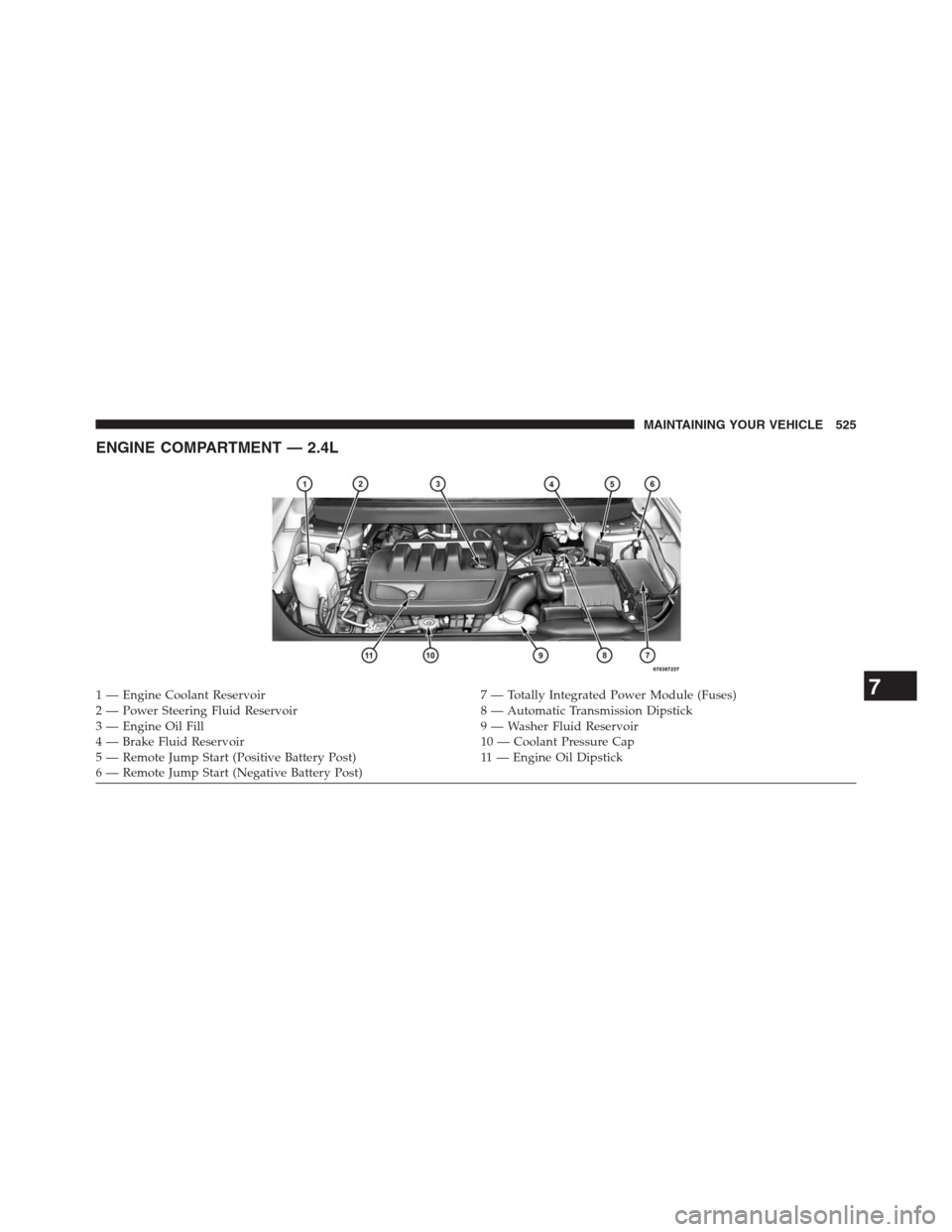

ENGINE COMPARTMENT — 2.4L
1 — Engine Coolant Reservoir 7 — Totally Integrated Power Module (Fuses)
2 — Power Steering Fluid Reservoir 8 — Automatic Transmission Dipstick
3 — Engine Oil Fill 9 — Washer Fluid Reservoir
4 — Brake Fluid Reservoir 10 — Coolant Pressure Cap
5 — Remote Jump Start (Positive Battery Post) 11 — Engine Oil Dipstick
6 — Remote Jump Start (Negative Battery Post)7
MAINTAINING YOUR VEHICLE 525

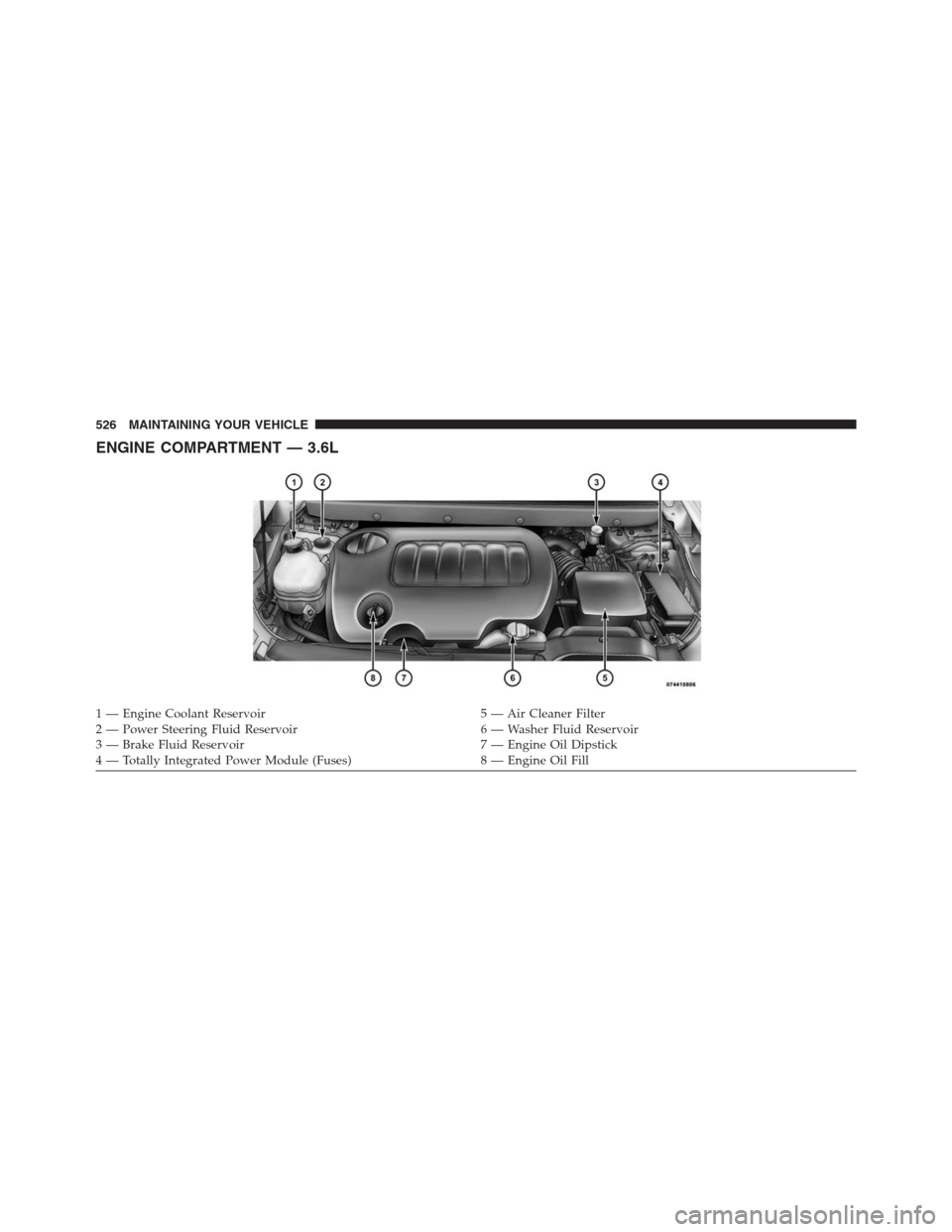

ENGINE COMPARTMENT — 3.6L
1 — Engine Coolant Reservoir 5 — Air Cleaner Filter
2 — Power Steering Fluid Reservoir 6 — Washer Fluid Reservoir
3 — Brake Fluid Reservoir 7 — Engine Oil Dipstick
4 — Totally Integrated Power Module (Fuses) 8 — Engine Oil Fill 526 MAINTAINING YOUR VEHICLE

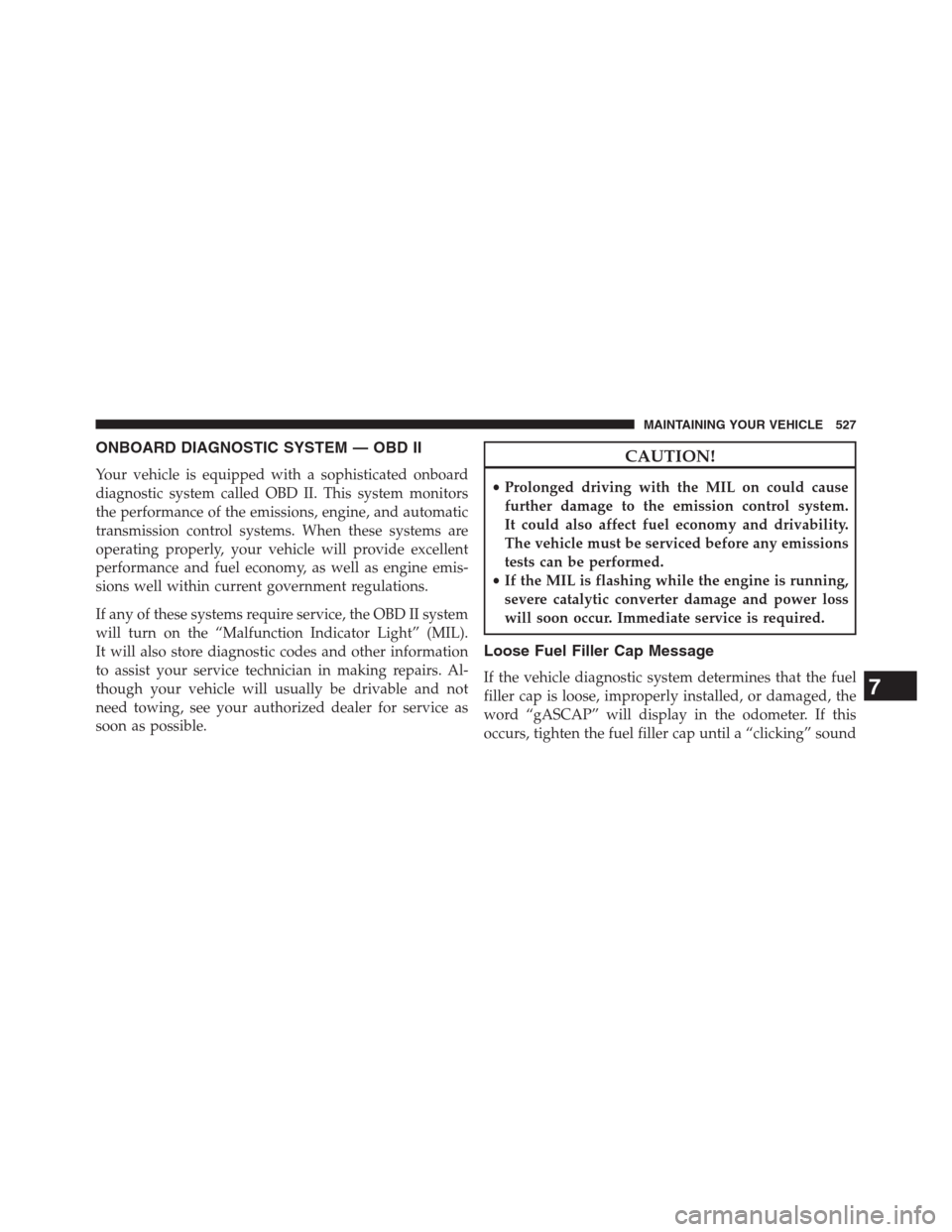

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL).
It will also store diagnostic codes and other information
to assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.
CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system.
It could also affect fuel economy and drivability.
The vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, the
word “gASCAP” will display in the odometer. If this
occurs, tighten the fuel filler cap until a “clicking” sound7
MAINTAINING YOUR VEHICLE 527

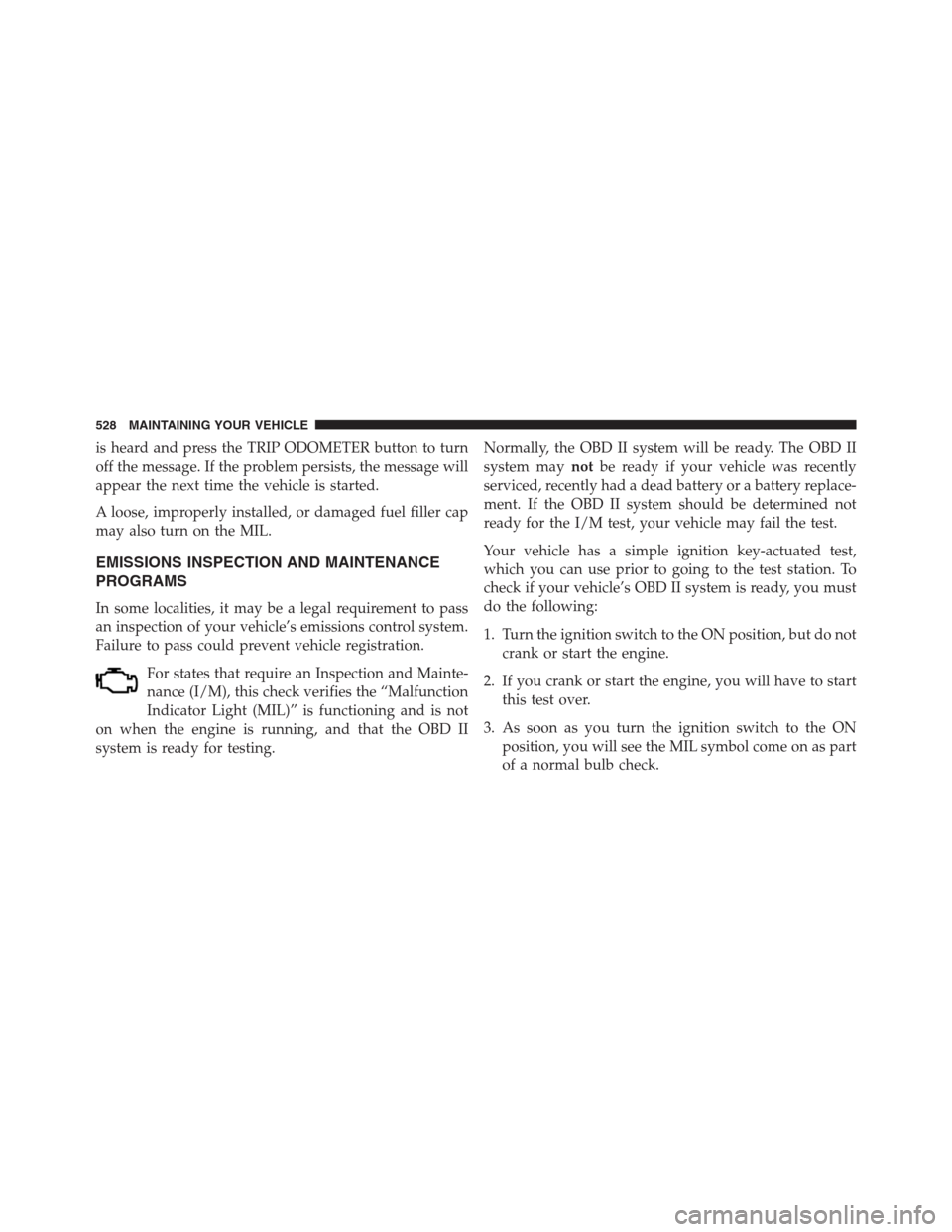

is heard and press the TRIP ODOMETER button to turn
off the message. If the problem persists, the message will
appear the next time the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
crank or start the engine.
2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part
of a normal bulb check.
