 REPLACEMENT BULBS .................594
 BULB REPLACEMENT ..................596
▫ Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp . .596
▫ Front Fog Lamp ..................... .597
▫ Rear Turn Signal And Backup Lamp ........598
▫ License Plate Lamp ....................601
 FLUID CAPACITIES ....................602

FLUIDS, LUBRICANTS AND GENUINE PARTS . .603
▫ Engine ............................ .603
▫ Chassis ............................605
544 MAINTAINING YOUR VEHICLE

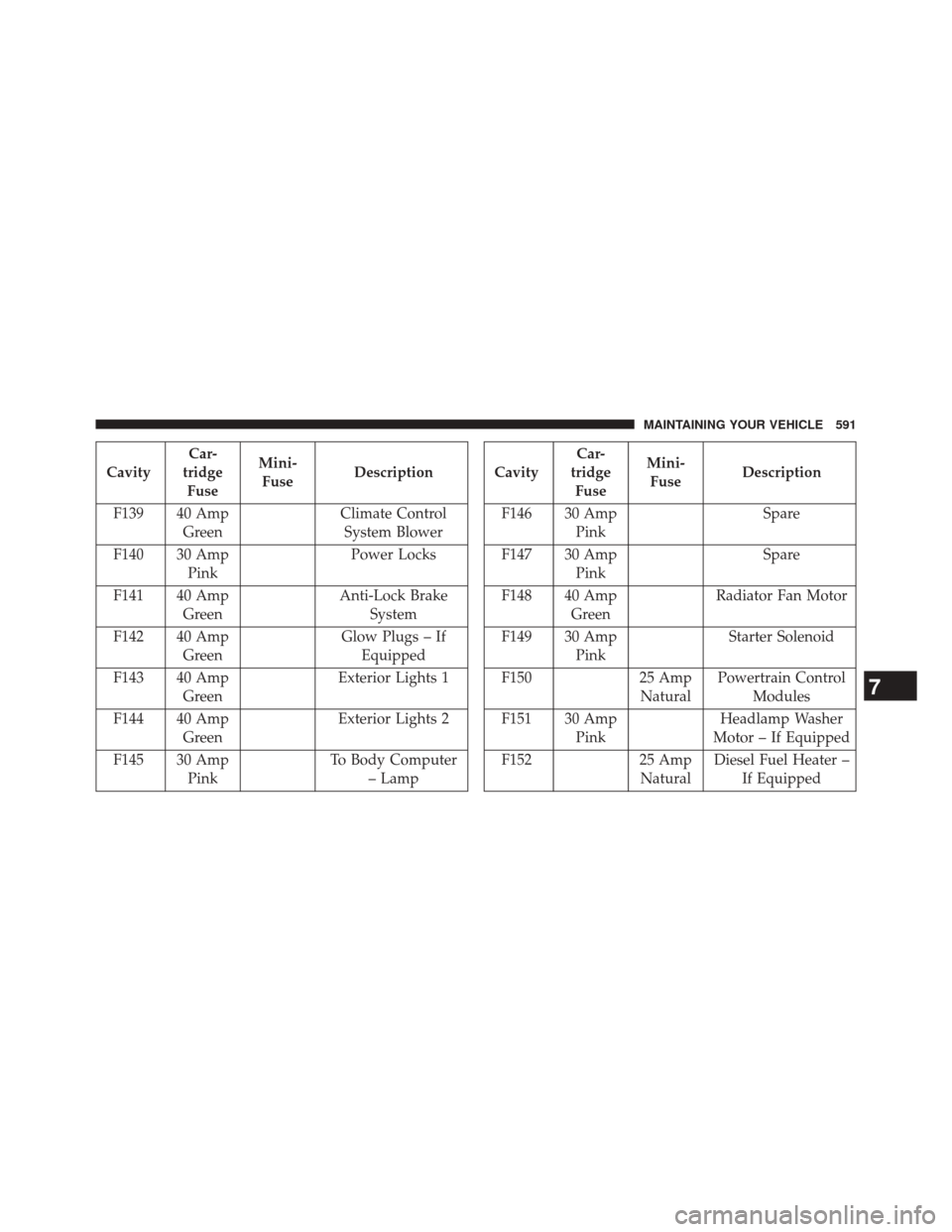

CavityCar-
tridge Fuse Mini-
Fuse Description
F139 40 Amp Green Climate Control
System Blower
F140 30 Amp Pink Power Locks
F141 40 Amp Green Anti-Lock Brake
System
F142 40 Amp Green Glow Plugs – If
Equipped
F143 40 Amp Green Exterior Lights 1
F144 40 Amp Green Exterior Lights 2
F145 30 Amp Pink To Body Computer
– LampCavity Car-
tridge Fuse Mini-
Fuse Description
F146 30 Amp Pink Spare
F147 30 Amp Pink Spare
F148 40 Amp Green Radiator Fan Motor
F149 30 Amp Pink Starter Solenoid
F150 25 Amp
Natural Powertrain Control
Modules
F151 30 Amp Pink Headlamp Washer
Motor – If Equipped
F152 25 Amp
Natural Diesel Fuel Heater –
If Equipped
7
MAINTAINING YOUR VEHICLE 591

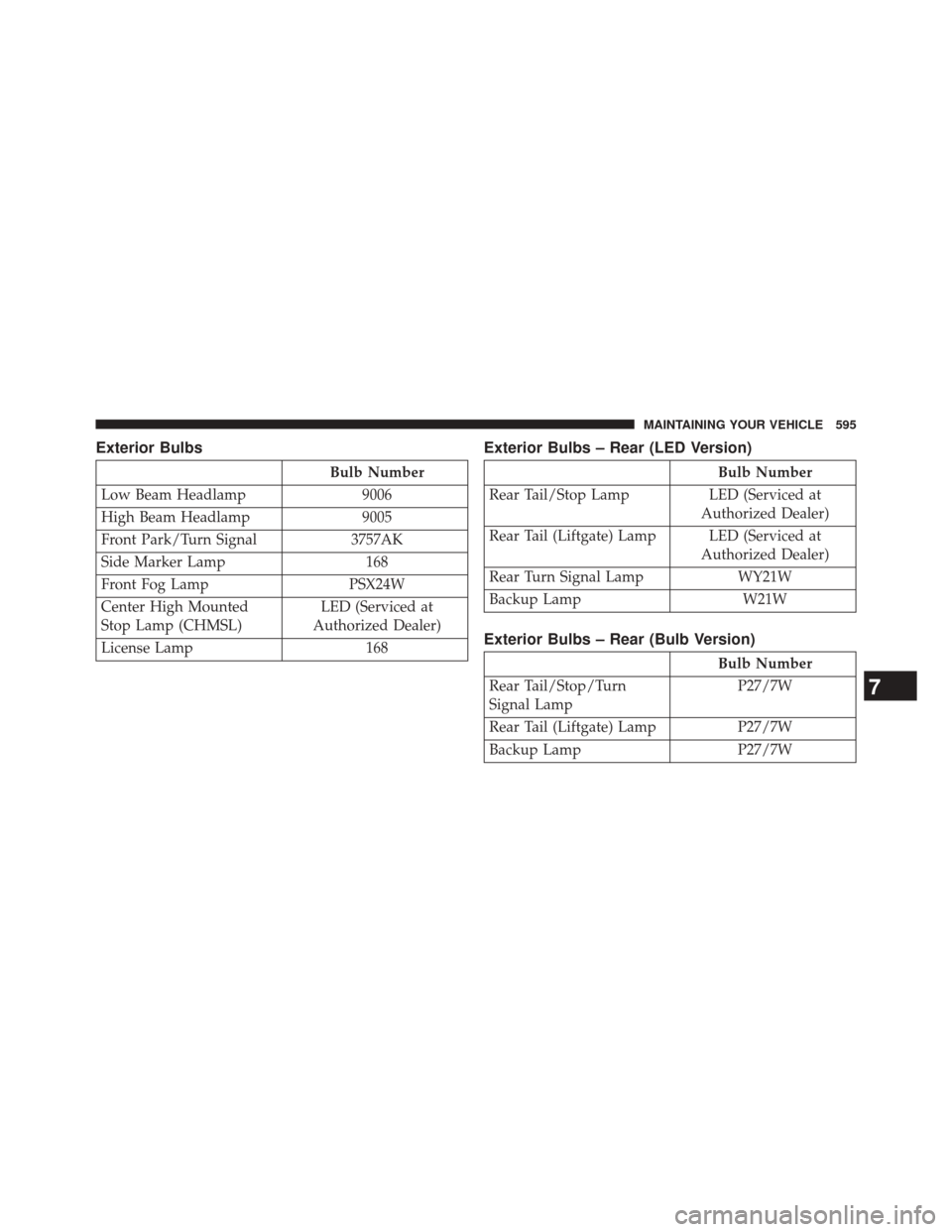

Exterior Bulbs
Bulb Number
Low Beam Headlamp 9006
High Beam Headlamp 9005
Front Park/Turn Signal 3757AK
Side Marker Lamp 168
Front Fog Lamp PSX24W
Center High Mounted
Stop Lamp (CHMSL) LED (Serviced at
Authorized Dealer)
License Lamp 168
Exterior Bulbs – Rear (LED Version)
Bulb Number
Rear Tail/Stop Lamp LED (Serviced at
Authorized Dealer)
Rear Tail (Liftgate) Lamp LED (Serviced at Authorized Dealer)
Rear Turn Signal Lamp WY21W
Backup Lamp W21W
Exterior Bulbs – Rear (Bulb Version)
Bulb Number
Rear Tail/Stop/Turn
Signal Lamp P27/7W
Rear Tail (Liftgate) Lamp P27/7W
Backup Lamp P27/7W
7
MAINTAINING YOUR VEHICLE 595

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp
1. Open the hood.
NOTE: It may be necessary to remove the air cleaner
filter housing and position the Totally Integrated Power
Module (TIPM) aside to replace certain lamps in the left
headlamp housing.
2. Rotate the applicable bulb and connector assembly ¼ turn counterclockwise and remove the assembly from
the headlamp housing. 3. Disconnect the bulb from the harness connector and
then connect the replacement bulb.
1 — Front Turn Signal/Park Lamp Bulb
2 — Side Marker Lamp Bulb
3 — Low Beam Headlamp Bulb
4 — High Beam Headlamp Bulb
596 MAINTAINING YOUR VEHICLE

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
4. Install the bulb and connector assembly into the headlamp housing and rotate it ¼ turn clockwise to
lock it in place.
Front Fog Lamp
NOTE: Turn the steering wheel to the right if replacing
the left front fog lamp or to the left if replacing the right
front fog lamp to allow for easier access to the front of the
wheel well.
1. Remove the fasteners retaining the front lower wheel well access panel and remove the access panel. 2. Remove the electrical connector from the fog lamp
housing.
3. Squeeze the two tabs on the side of the bulb socket and pull straight out from the fog lamp.
Front Fog Lamp Electrical Connector
7
