snow chains DODGE JOURNEY 2014 1.G Owners Manual

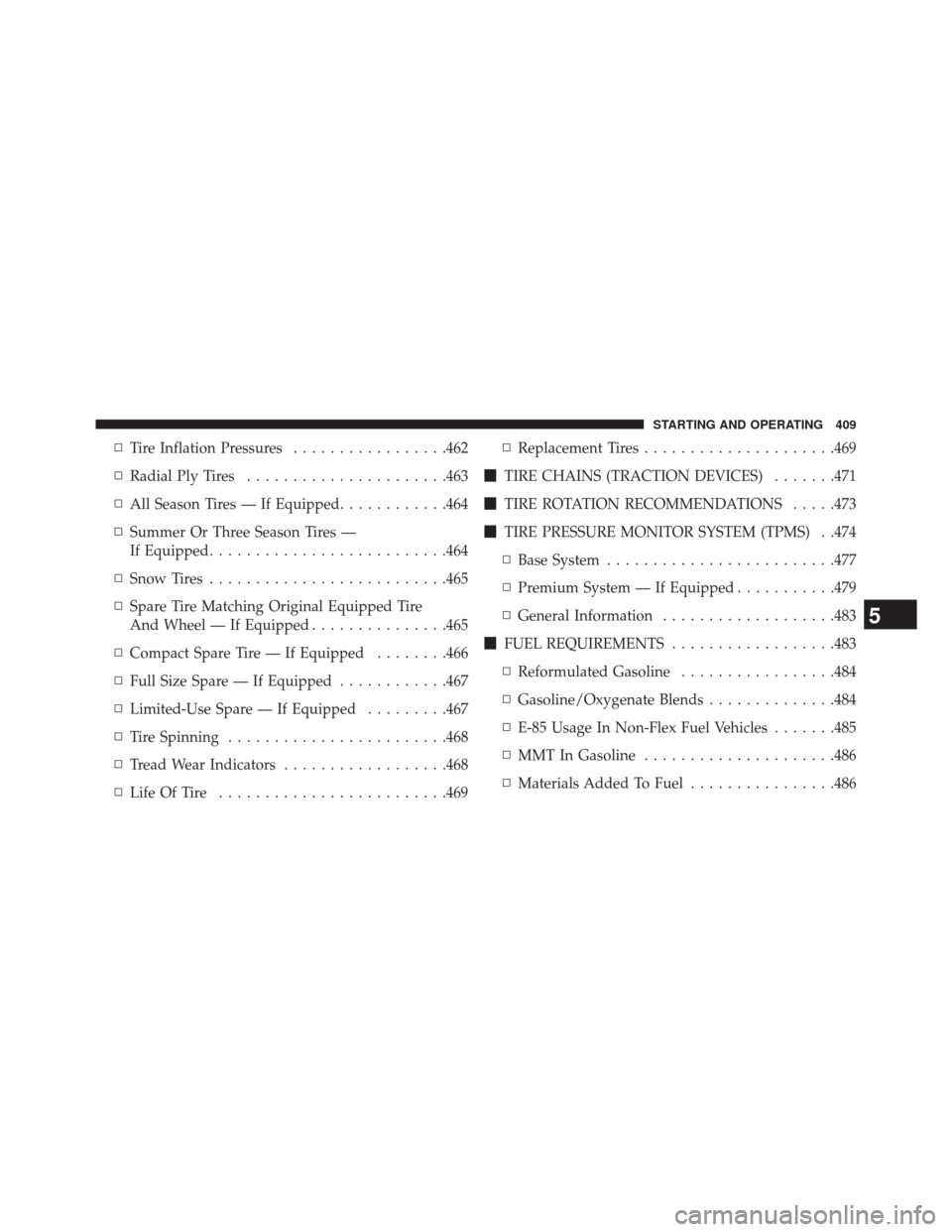

▫Tire Inflation Pressures .................462
▫ Radial Ply Tires ..................... .463
▫ All Season Tires — If Equipped ............464
▫ Summer Or Three Season Tires —
If Equipped ..........................464
▫ Snow Tires ..........................465
▫ Spare Tire Matching Original Equipped Tire
And Wheel — If Equipped ...............465
▫ Compact Spare Tire — If Equipped ........466
▫ Full Size Spare — If Equipped ............467
▫ Limited-Use Spare — If Equipped .........467
▫ Tire Spinning ........................468
▫ Tread Wear Indicators ..................468
▫ Life Of Tire ........................ .469▫
Replacement Tires .....................469
 TIRE CHAINS (TRACTION DEVICES) .......471
 TIRE ROTATION RECOMMENDATIONS .....473
 TIRE PRESSURE MONITOR SYSTEM (TPMS) . .474
▫ Base System ........................ .477
▫ Premium System — If Equipped ...........479
▫ General Information ...................483
 FUEL REQUIREMENTS ..................483
▫ Reformulated Gasoline .................484
▫ Gasoline/Oxygenate Blends ..............484
▫ E-85 Usage In Non-Flex Fuel Vehicles .......485
▫ MMT In Gasoline .....................486
▫ Materials Added To Fuel ................486
5
STARTING AND OPERATING 409

NOTE:To improve the vehicle’s traction when driving
with snow chains, or when starting off in deep snow,
sand, or gravel, it may be desirable to switch to the
“Partial Off” mode by momentarily pressing the “ESC OFF” button. Once the situation requiring “Partial Off”
mode is overcome, turn ESC back on by momentarily
pressing the “ESC OFF” button. This may be done while
the vehicle is in motion.
WARNING!
•
When in “Partial Off ” mode, the TCS functionality
of ESC (except for the limited slip feature de-
scribed in the TCS section) has been disabled and
the “ESC Off Indicator Light” will be illuminated.
When in “Partial Off ”mode, the engine power
reduction of TCS is disabled, and the enhanced
vehicle stability offered by the ESC system is
reduced.
• Trailer Sway Control (TSC) is disabled when the
ESC system is in the “Partial Off” mode.
ESC OFF Button
5
STARTING AND OPERATING 445

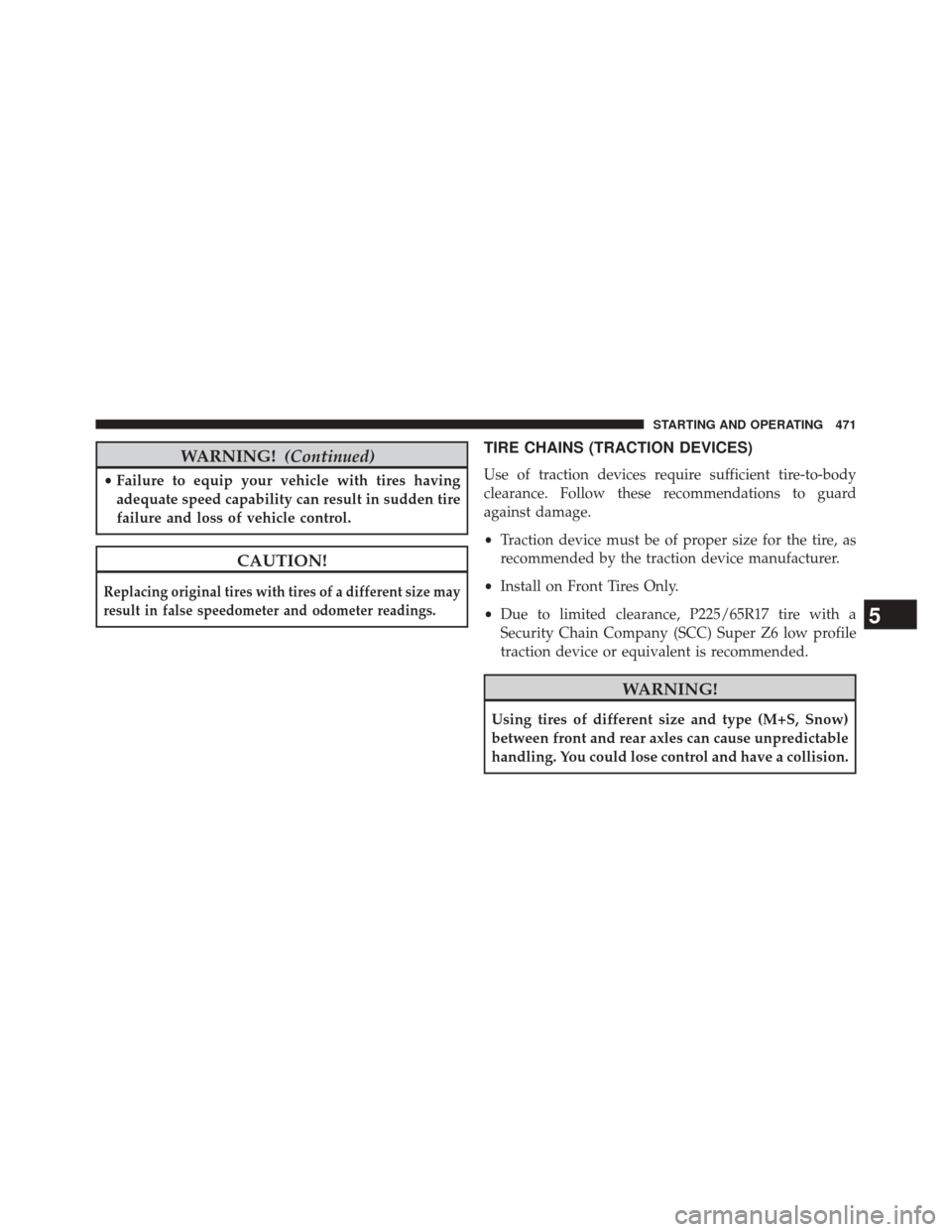

WARNING!(Continued)
•Failure to equip your vehicle with tires having
adequate speed capability can result in sudden tire
failure and loss of vehicle control.
CAUTION!
Replacing original tires with tires of a different size may
result in false speedometer and odometer readings.
TIRE CHAINS (TRACTION DEVICES)
Use of traction devices require sufficient tire-to-body
clearance. Follow these recommendations to guard
against damage.
• Traction device must be of proper size for the tire, as
recommended by the traction device manufacturer.
• Install on Front Tires Only.
• Due to limited clearance, P225/65R17 tire with a
Security Chain Company (SCC) Super Z6 low profile
traction device or equivalent is recommended.
WARNING!
Using tires of different size and type (M+S, Snow)
between front and rear axles can cause unpredictable
handling. You could lose control and have a collision.
5
STARTING AND OPERATING 471

Service TPMS Warning
When a system fault is detected, the “Tire Pressure
Monitoring Telltale Light” will flash on and off for 75
seconds and then remain on solid. The system fault will
also sound a chime. If the ignition switch is cycled, this
sequence will repeat, providing the system fault still
exists. The “Tire Pressure Monitoring Telltale Light” will
turn off when the fault condition no longer exists. A
system fault can occur due to any of the following:
1. Jamming due to electronic devices or driving next tofacilities emitting the same Radio Frequencies as the
TPMS sensors.
2. Installing some form of aftermarket window tinting that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel housings. 4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.
NOTE:
•
The compact spare tire does not have a tire pressure
monitoring sensor. Therefore, the TPMS will not moni-
tor the pressure in the compact spare tire.
• If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warn-
ing limit, a chime will sound and the “Tire Pressure
Monitoring Telltale Light” will turn on and a “LOW
TIRE” message will be displayed for a minimum of
five seconds upon the next ignition switch cycle. An
Inflate to XX message will also be displayed.
• After driving the vehicle for up to 20 minutes above
15 mph (24 km/h), the “Tire Pressure Monitoring
Telltale Light” will flash on and off for 75 seconds and
then remain on solid.
478 STARTING AND OPERATING

update, the graphic display in the EVIC will change color
back to the original color, and the “Tire Pressure Moni-
toring Telltale Light” will turn off. The vehicle may need
to be driven for up to 20 minutes above 15 mph
(24 km/h) in order for the TPMS to receive this informa-
tion.
Service TPMS Warning
When a system fault is detected, the “Tire Pressure
Monitoring Telltale Light” will flash on and off for 75
seconds and then remain on solid. The system fault will
also sound a chime. In addition, the EVIC will display a
SERVICE TPM SYSTEMmessage for a minimum of five
seconds and then display dashes (- -) in place of the
pressure value to indicate which sensor is not being
received.
If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no longer flash, and the
SERVICE TPM
SYSTEM message will no longer display, and a pressure
value will display in place of the dashes. A system fault
can occur due to any of the following:
1. Jamming due to electronic devices or driving next to facilities emitting the same radio frequencies as the
TPMS sensors.
2. Installing some form of aftermarket window tinting that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.
5
STARTING AND OPERATING 481

Shift Lever Override.......................538
Shoulder Belts ............................51
Shoulder Belt Upper Anchorage ................56
Side Airbag ..............................74
Side View Mirror Adjustment .................120
Signals, Turn .............................111
Snow Chains (Tire Chains) ...................471
Snow Tires ............................. .465
Spare Tire ...............................466
Spark Plugs ............................ .603
Specifications Fuel (Gasoline) ........................ .603
Oil..................................603
Speed Control (Cruise Control) ................239
Speedometer ............................ .309
Starting .................................27
Automatic Transmission ..................412
Cold Weather ..........................415
Engine Fails to Start .....................415 Remote
...............................27
Starting and Operating .....................412
Starting Procedures ........................412
Steering Column Controls .......................228
Column Lock ..........................236
Power ...............................433
Tilt Column .......................... .236
Wheel, Heated ........................ .237
Wheel, Tilt ............................236
Steering Wheel Audio Controls ...............373
Steering Wheel Mounted Sound System Controls . . .373
Storage, Vehicle .......................... .403
Stuck, Freeing ............................537
Sunglasses Storage ........................254
Sun Roof ...............................265
Sun Visor Extension .......................124
Supplemental Restraint System - Airbag ..........65
Sway Control, Trailer .......................447
10
INDEX 643

Synthetic Engine Oil.......................554
System, Remote Starting .....................27
Tachometer ............................. .302
Taillights ...............................598
Telescoping Steering Column .................236
Temperature Gauge, Engine Coolant ............310
Tie Down Hooks, Cargo ....................286
Tilt Steering Column .......................236
Time Delay, Headlight ..................... .227
Tire and Loading Information Placard ...........456
Tire Markings ............................450
Tires...................................111 Aging (Life of Tires) .....................469
Air Pressure .......................... .460
Chains ...............................471
Changing ............................ .518
Compact Spare ........................ .466
General Information .....................460 High Speed
.......................... .463
Inflation Pressures .......................462
Jacking ...............................518
Life of Tires .......................... .469
Load Capacity ........................ .456
Pressure Monitor System (TPMS) ............474
Pressure Warning Light ...................305
Quality Grading ........................623
Radial ...............................463
Replacement .......................... .469
Rotation ............................. .473
Safety ...............................450
Sizes ............................... .451
Snow Tires ............................465
Spare Tire ............................ .520
Spinning ............................ .468
Trailer Towing ........................ .505
T r

ead Wear Indicators ....................468
Tire Safety Information .....................450
644 INDEX
