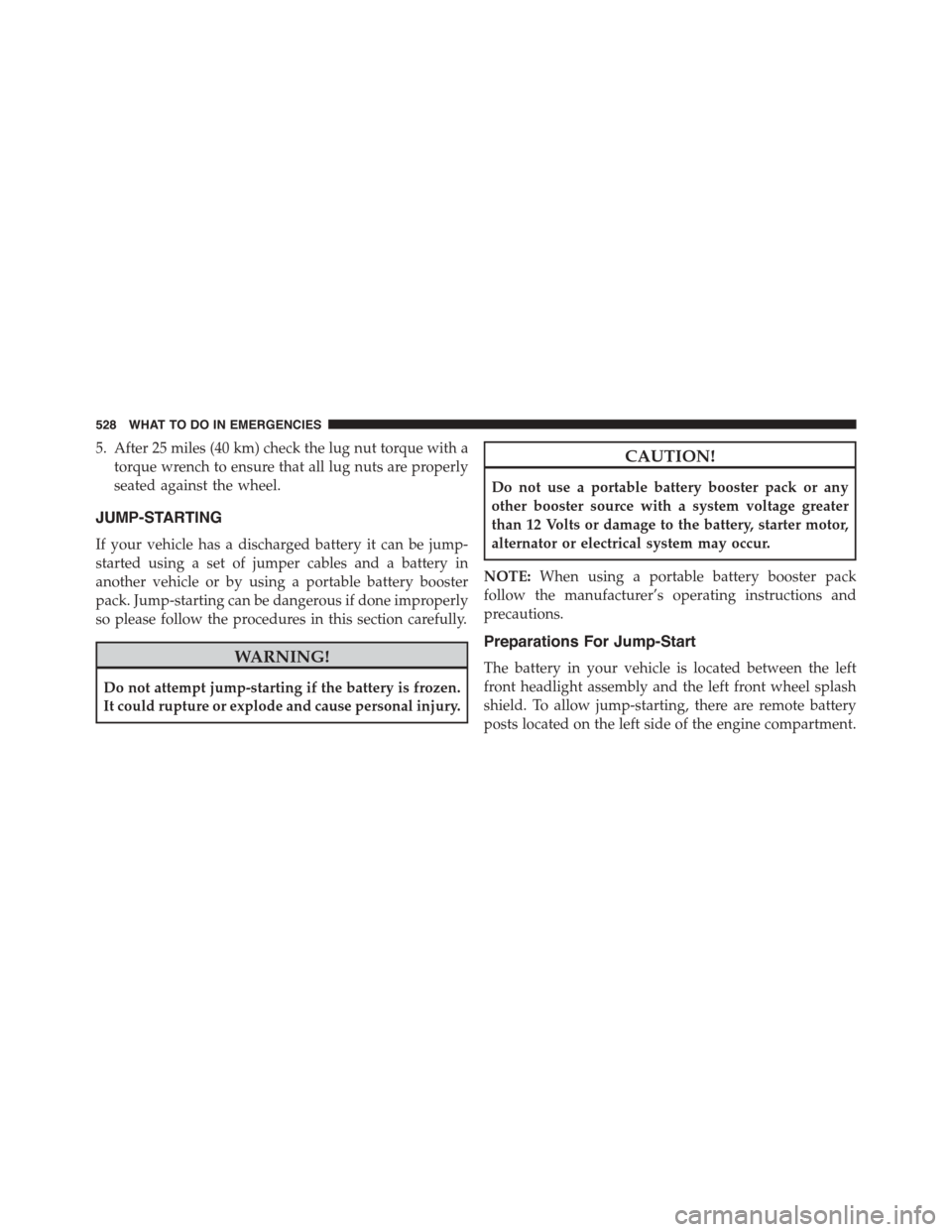

5. After 25 miles (40 km) check the lug nut torque with a
torque wrench to ensure that all lug nuts are properly
seated against the wheel.
JUMP-STARTING
If your vehicle has a discharged battery it can be jump-
started using a set of jumper cables and a battery in
another vehicle or by using a portable battery booster
pack. Jump-starting can be dangerous if done improperly
so please follow the procedures in this section carefully.
WARNING!
Do not attempt jump-starting if the battery is frozen.
It could rupture or explode and cause personal injury.
CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
NOTE:When using a portable battery booster pack
follow the manufacturer’s operating instructions and
precautions.
Preparations For Jump-Start
The battery in your vehicle is located between the left
front headlight assembly and the left front wheel splash
shield. To allow jump-starting, there are remote battery
posts located on the left side of the engine compartment.
528 WHAT TO DO IN EMERGENCIES

A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition actuated test, which
you can use prior to going to the test station. To check if
your vehicle’s OBD II system is ready, you must do the
following:
1. Cycle the ignition switch to the ON position, but do
not crank or start the engine.
NOTE:If you crank or start the engine, you will have to
start this test over.
2. As soon as you cycle the ignition switch to the ON
position, you will see the MIL symbol come on as part
of a normal bulb check.
3. Approximately 15 seconds later, one of two things will
happen:
•The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
544 MAINTAINING YOUR VEHICLE

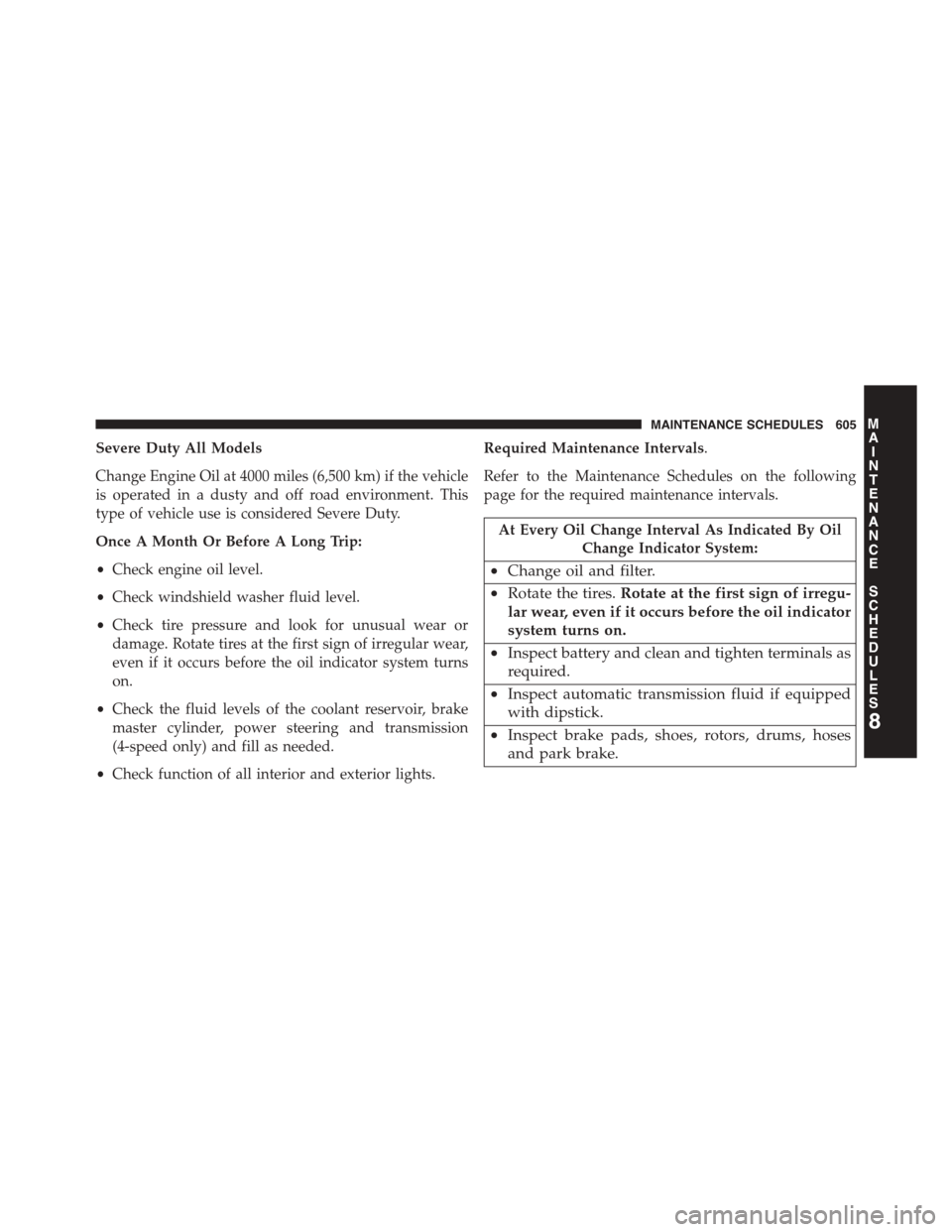

Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
•Check engine oil level.
•Check windshield washer fluid level.
•Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before the oil indicator system turns
on.
•Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and transmission
(4-speed only) and fill as needed.
•Check function of all interior and exterior lights.
Required Maintenance Intervals.
Refer to the Maintenance Schedules on the following
page for the required maintenance intervals.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Change oil and filter.
•Rotate the tires.Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
•Inspect battery and clean and tighten terminals as
required.
•Inspect automatic transmission fluid if equipped
with dipstick.
•Inspect brake pads, shoes, rotors, drums, hoses
and park brake.
8
MAINTENANCE
SCHEDULES
MAINTENANCE SCHEDULES 605

Brake Control System, Electronic..............434
Brake Fluid.............................601
Brake, Parking...........................431
Brakes.................................433
Brake System............................433
Anti-Lock (ABS)........................434
Fluid Check...........................568
Master Cylinder........................568
Parking..............................431
Warning Light.........................303
Brake/Transmission Interlock.................415
Break-In Recommendations, New Vehicle........102
Brightness, Interior Lights...................228
Bulb Replacement.........................589
Bulbs, Light.............................107
Camera, Rear............................248
Capacities, Fluid..........................597
Caps, Filler
Fuel.................................489
Oil (Engine)...........................541
Power Steering.........................430
Radiator (Coolant Pressure)................565
Carbon Monoxide Warning..................104
Cargo Area Cover.........................284
Cargo Area Features.......................280
Cargo Compartment.......................280
Light................................280
Luggage Carrier........................289
Cargo Load Floor.........................282
Cargo Management System..................282
Rollaway Tonneau Cover..................284
Tri-Fold Load Floor......................282
Cargo Tie-Downs.........................283
Cargo (Vehicle Loading)....................282
Car Washes.............................576
CellularPhone...........................372
624 INDEX

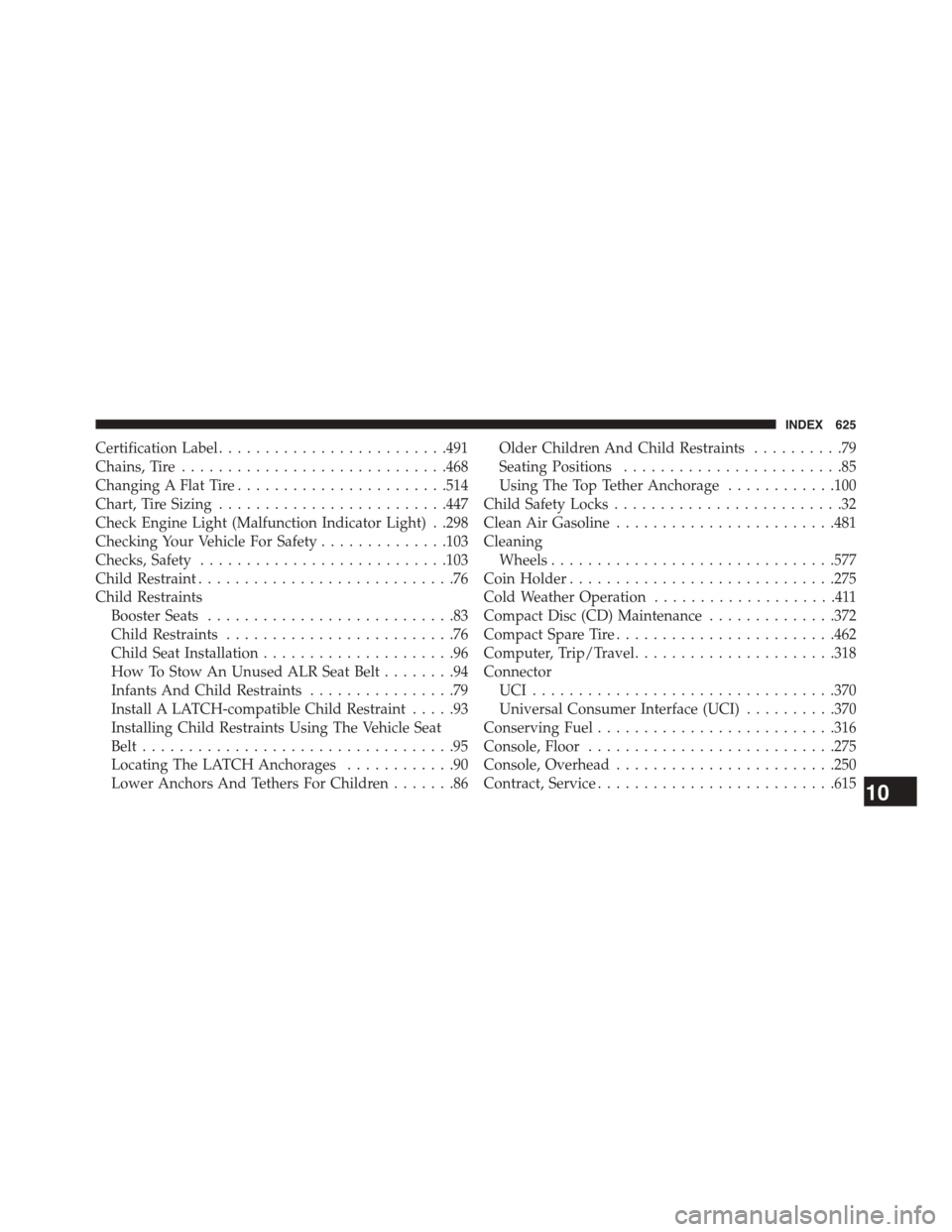

Certification Label.........................491
Chains, Tire.............................468
Changing A Flat Tire.......................514
Chart, Tire Sizing.........................447
Check Engine Light (Malfunction Indicator Light) . .298
Checking Your Vehicle For Safety..............103
Checks, Safety...........................103
Child Restraint............................76
Child Restraints
Booster Seats...........................83
Child Restraints.........................76
Child Seat Installation.....................96
How To Stow An Unused ALR Seat Belt........94
Infants And Child Restraints................79
Install A LATCH-compatible Child Restraint.....93
Installing Child Restraints Using The Vehicle Seat
Belt..................................95
Locating The LATCH Anchorages............90
Lower Anchors And Tethers For Children.......86
Older Children And Child Restraints..........79
Seating Positions........................85
Using The Top Tether Anchorage............100
Child Safety Locks.........................32
Clean Air Gasoline........................481
Cleaning
Wheels...............................577
Coin Holder.............................275
Cold Weather Operation....................411
Compact Disc (CD) Maintenance..............372
Compact Spare Tire........................462
Computer, Trip/Travel......................318
Connector
UCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..370
Universal Consumer Interface (UCI)..........370
Conserving Fuel..........................316
Console, Floor...........................275
Console, Overhead........................250
Contract, Service..........................61510
INDEX 625

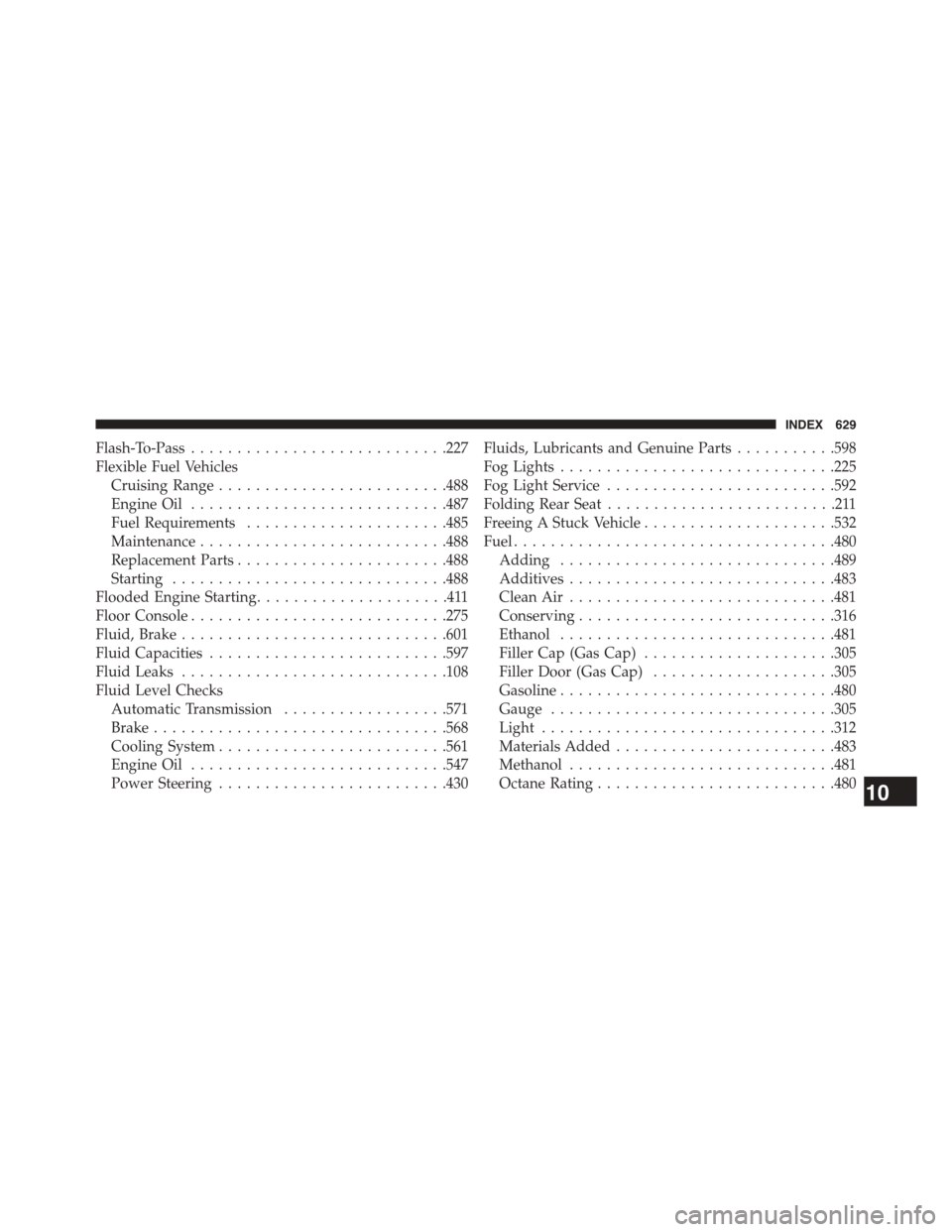

Flash-To-Pass............................227
Flexible Fuel Vehicles
Cruising Range.........................488
Engine Oil............................487
Fuel Requirements......................485
Maintenance...........................488
Replacement Parts.......................488
Starting..............................488
Flooded Engine Starting.....................411
Floor Console............................275
Fluid, Brake.............................601
Fluid Capacities..........................597
Fluid Leaks.............................108
Fluid Level Checks
Automatic Transmission..................571
Brake................................568
Cooling System.........................561
Engine Oil............................547
Power Steering.........................430
Fluids, Lubricants and Genuine Parts...........598
Fog Lights..............................225
Fog Light Service.........................592
Folding Rear Seat.........................211
Freeing A Stuck Vehicle.....................532
Fuel...................................480
Adding..............................489
Additives.............................483
Clean Air.............................481
Conserving............................316
Ethanol..............................481
Filler Cap (Gas Cap).....................305
Filler Door (Gas Cap)....................305
Gasoline..............................480
Gauge...............................305
Light................................312
Materials Added........................483
Methanol.............................481
OctaneRating..........................48010
INDEX 629

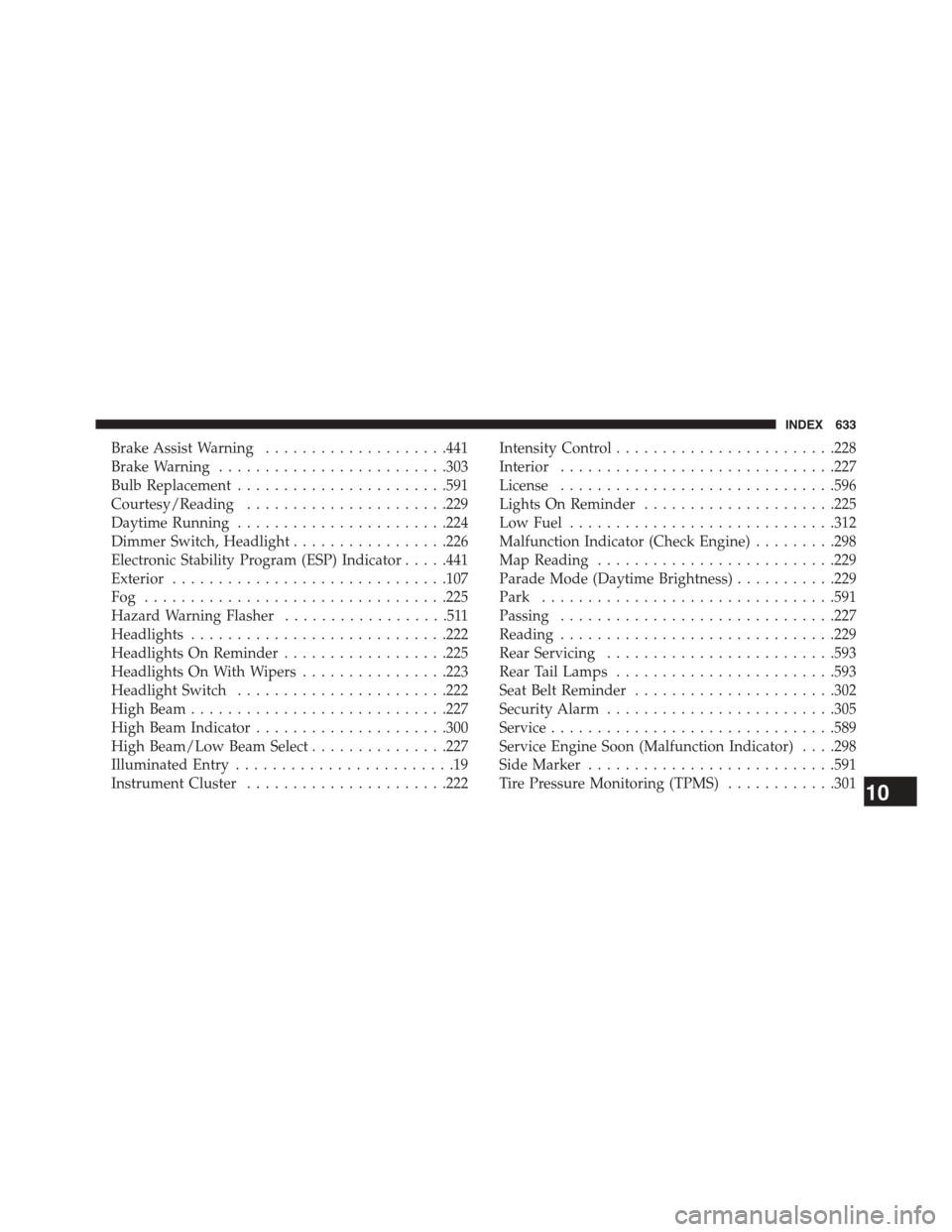

Brake Assist Warning....................441
Brake Warning.........................303
Bulb Replacement.......................591
Courtesy/Reading......................229
Daytime Running.......................224
Dimmer Switch, Headlight.................226
Electronic Stability Program (ESP) Indicator.....441
Exterior..............................107
Fog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..225
Hazard Warning Flasher..................511
Headlights............................222
Headlights On Reminder..................225
Headlights On With Wipers................223
Headlight Switch.......................222
High Beam............................227
High Beam Indicator.....................300
High Beam/Low Beam Select...............227
Illuminated Entry........................19
Instrument Cluster......................222
Intensity Control........................228
Interior..............................227
License..............................596
Lights On Reminder.....................225
Low Fuel.............................312
Malfunction Indicator (Check Engine).........298
Map Reading..........................229
Parade Mode (Daytime Brightness)...........229
Park................................591
Passing..............................227
Reading..............................229
Rear Servicing.........................593
Rear Tail Lamps........................593
Seat Belt Reminder......................302
Security Alarm.........................305
Service...............................589
ServiceEngine Soon (Malfunction Indicator) . . . .298
Side Marker...........................591
Tire Pressure Monitoring (TPMS)............30110
INDEX 633

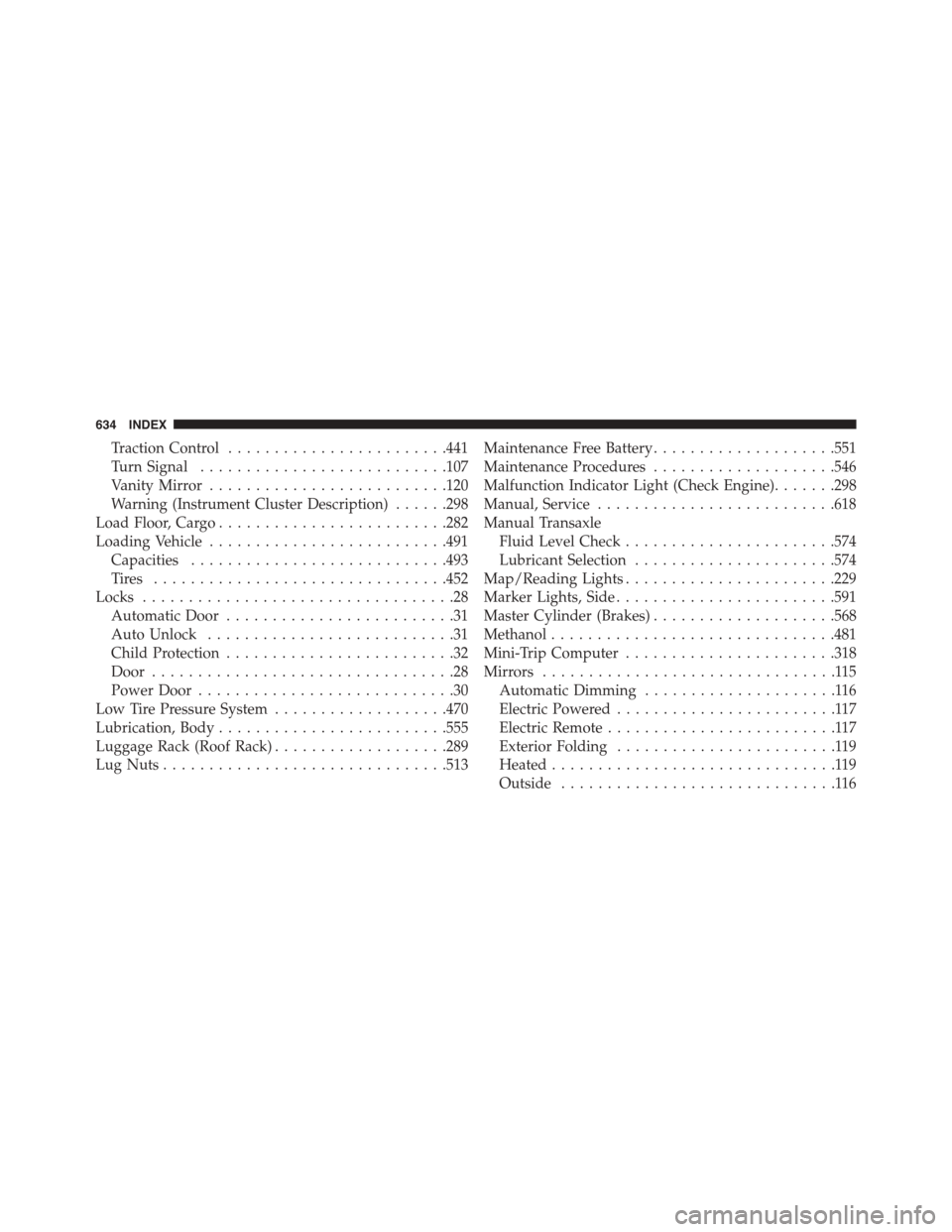

Traction Control........................441
Turn Signal...........................107
Vanity Mirror..........................120
Warning (Instrument Cluster Description)......298
Load Floor, Cargo.........................282
Loading Vehicle..........................491
Capacities............................493
Ti re s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..452
Locks..................................28
Automatic Door.........................31
Auto Unlock...........................31
Child Protection.........................32
Door.................................28
Power Door............................30
Low Tire Pressure System...................470
Lubrication, Body.........................555
Luggage Rack (Roof Rack)...................289
Lug Nuts...............................513
Maintenance Free Battery....................551
Maintenance Procedures....................546
Malfunction Indicator Light (Check Engine).......298
Manual, Service..........................618
Manual Transaxle
Fluid Level Check.......................574
Lubricant Selection......................574
Map/Reading Lights.......................229
Marker Lights, Side........................591
Master Cylinder (Brakes)....................568
Methanol...............................481
Mini-Trip Computer.......................318
Mirrors................................115
Automatic Dimming.....................116
Electric Powered........................117
Electric Remote.........................117
Exterior Folding........................119
Heated...............................119
Outside..............................116
634 INDEX
