Page 271 of 648
NOTE:To ensure proper operation a MOPAR® knob
and element must be used.
CAUTION!
•Do not exceed the maximum power of 160 Watts
(13 Amps) at 12 Volts. If the 160 Watt (13 Amp)
power rating is exceeded the fuse protecting the
system will need to be replaced.
•The power outlet on the bottom of the center
console shares the fuse with the power outlet on
the back of the console. The combined usage must
not exceed 160 Watts (13 Amps) at 12 Volts.
•Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your New Vehicle Limited
Warranty.

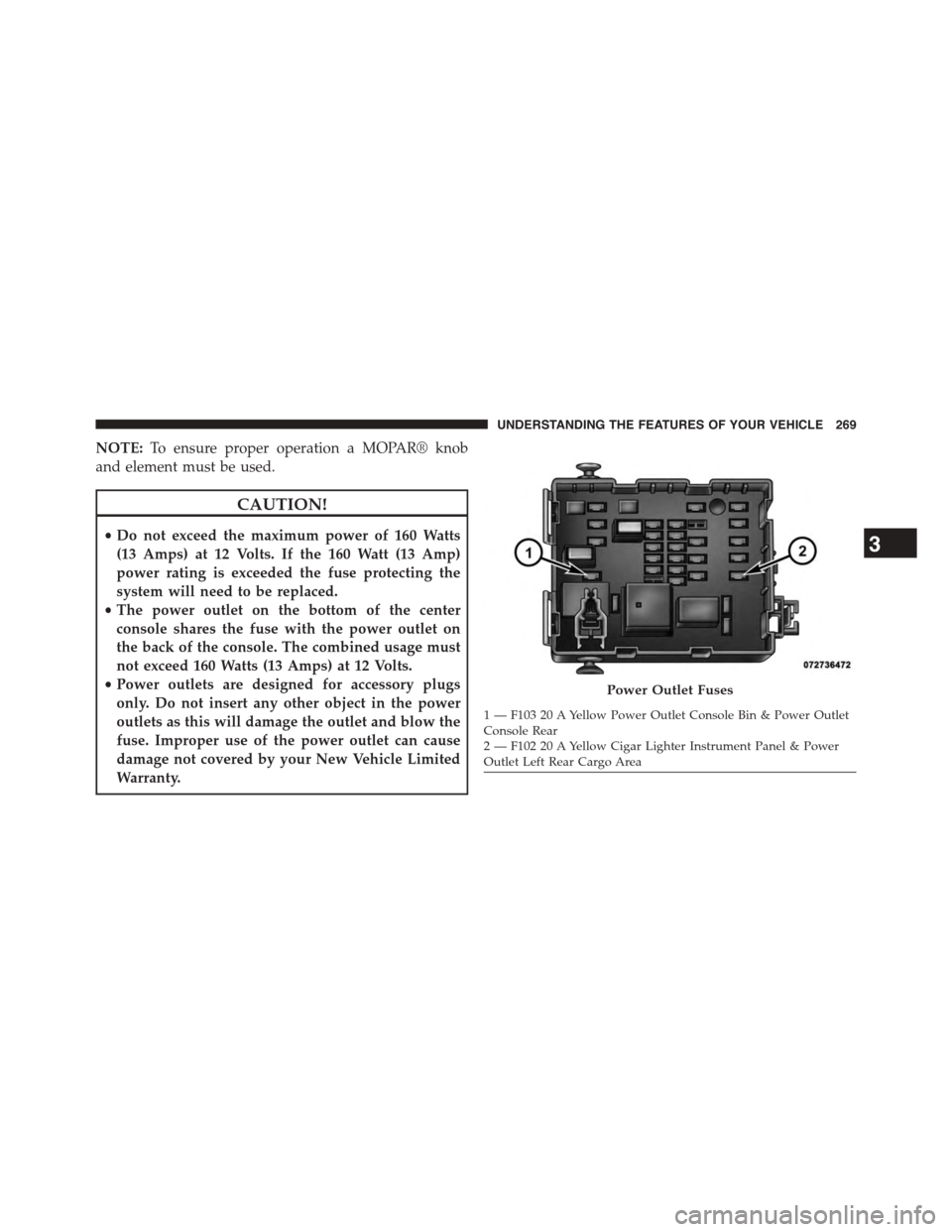

Power Outlet Fuses
1 — F103 20 A Yellow Power Outlet Console Bin & Power OutletConsole Rear2 — F102 20 A Yellow Cigar Lighter Instrument Panel & PowerOutlet Left Rear Cargo Area
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 269
Page 272 of 648

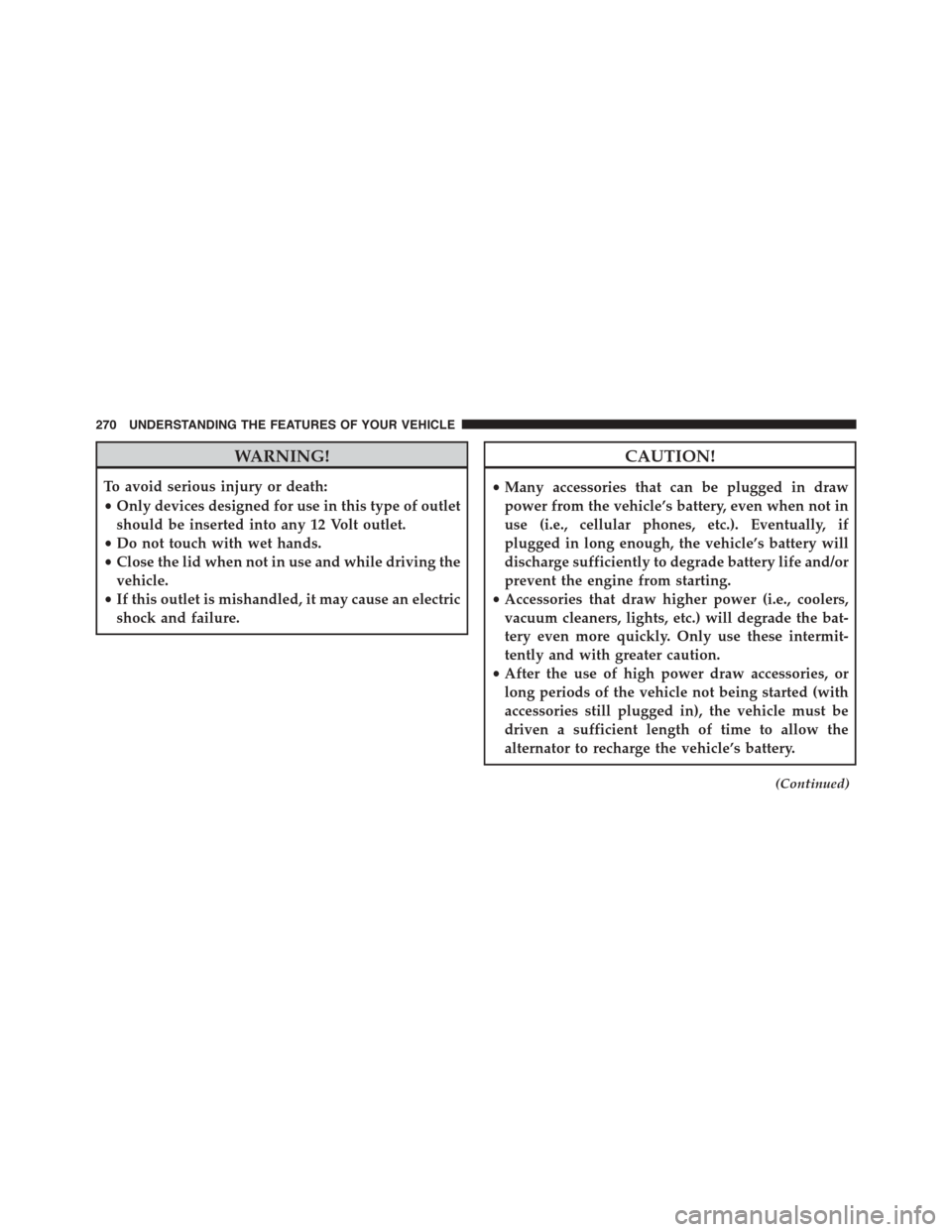

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving the
vehicle.
•If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
alternator to recharge the vehicle’s battery.
(Continued)
270 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 273 of 648
CAUTION!(Continued)
•Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or acces-
sory bracket from the plug.
POWER INVERTER — IF EQUIPPED
Your vehicle may be equipped with a 115 Volt AC (150
Watt maximum) power outlet located on the back of the
center console. This outlet can power mobile phones,
electronics and other low power devices requiring power
up to 150 Watts. Certain high-end video games, such as
Playstation3 and XBox360 will exceed this power limit, as
will most power tools.The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset. If the power rating
exceeds approximately 170 Watts, the power inverter
Power Inverter
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 271
Page 274 of 648

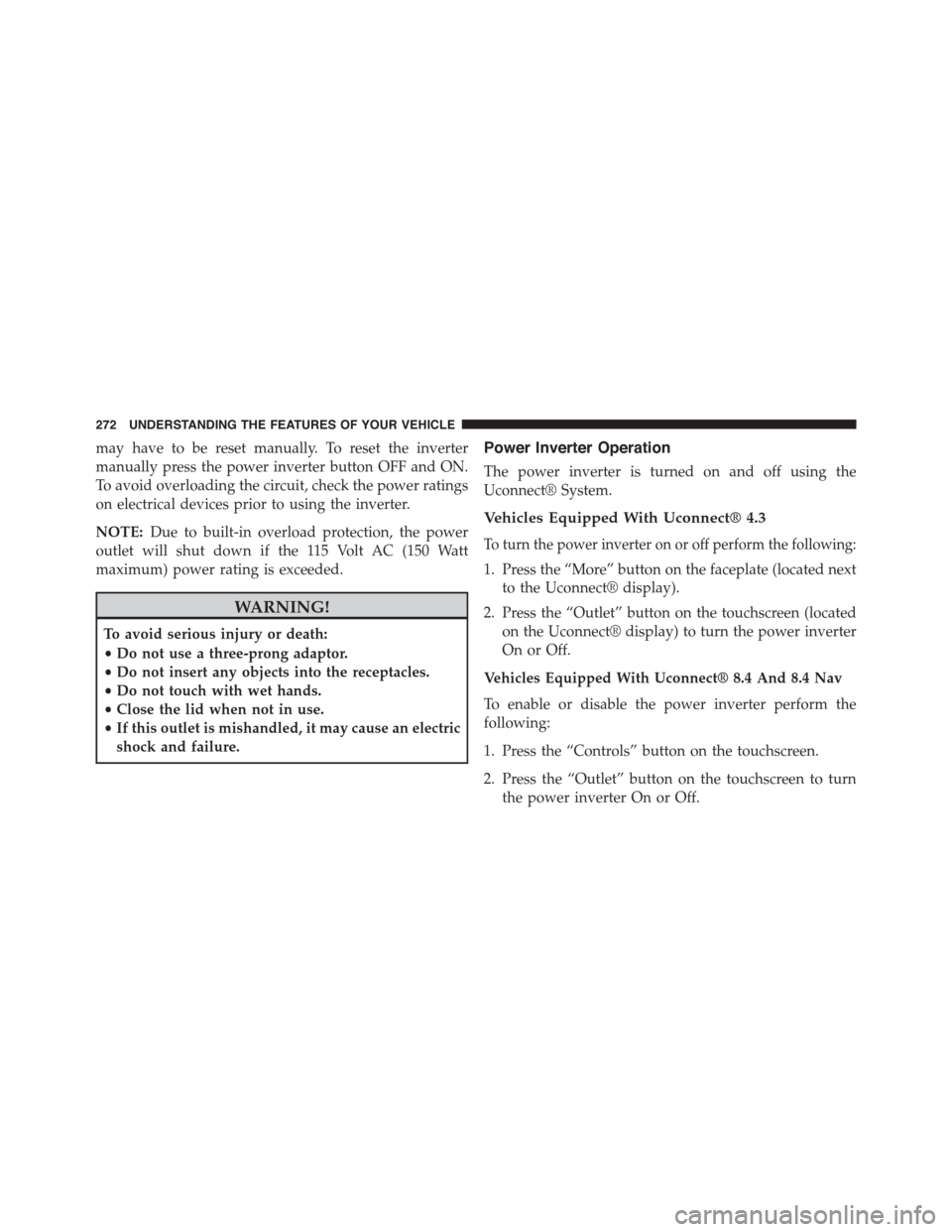

may have to be reset manually. To reset the inverter
manually press the power inverter button OFF and ON.
To avoid overloading the circuit, check the power ratings
on electrical devices prior to using the inverter.
NOTE:Due to built-in overload protection, the power
outlet will shut down if the 115 Volt AC (150 Watt
maximum) power rating is exceeded.
WARNING!
To avoid serious injury or death:
•Do not use a three-prong adaptor.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled, it may cause an electric
shock and failure.
Power Inverter Operation
The power inverter is turned on and off using the
Uconnect® System.
Vehicles Equipped With Uconnect® 4.3
To turn the power inverter on or off perform the following:
1. Press the “More” button on the faceplate (located next
to the Uconnect® display).
2. Press the “Outlet” button on the touchscreen (located
on the Uconnect® display) to turn the power inverter
On or Off.
Vehicles Equipped With Uconnect® 8.4 And 8.4 Nav
To enable or disable the power inverter perform the
following:
1. Press the “Controls” button on the touchscreen.
2. Press the “Outlet” button on the touchscreen to turn
the power inverter On or Off.
272 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 275 of 648

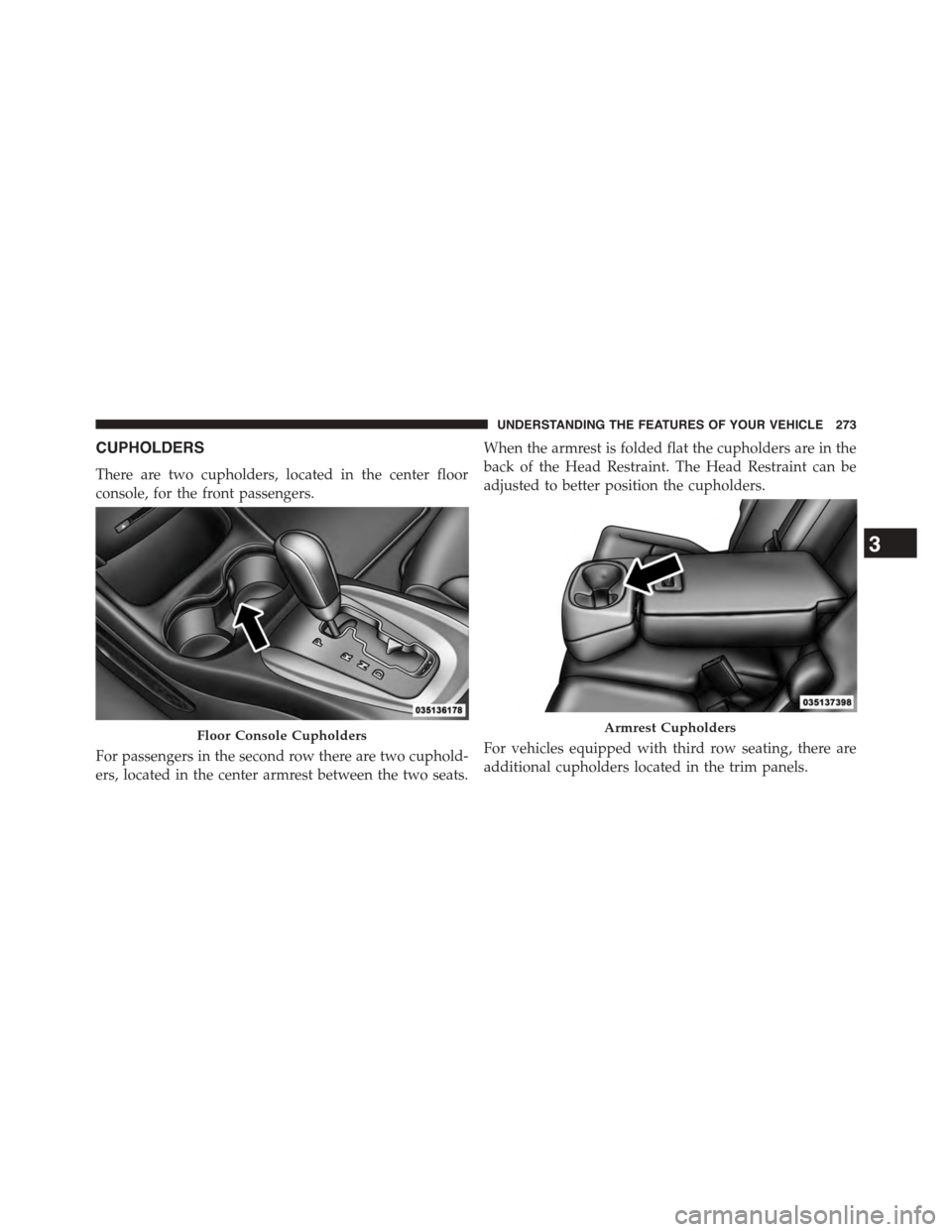

CUPHOLDERS
There are two cupholders, located in the center floor
console, for the front passengers.
For passengers in the second row there are two cuphold-
ers, located in the center armrest between the two seats.
When the armrest is folded flat the cupholders are in the
back of the Head Restraint. The Head Restraint can be
adjusted to better position the cupholders.
For vehicles equipped with third row seating, there are
additional cupholders located in the trim panels.
Floor Console CupholdersArmrest Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 273
Page 276 of 648

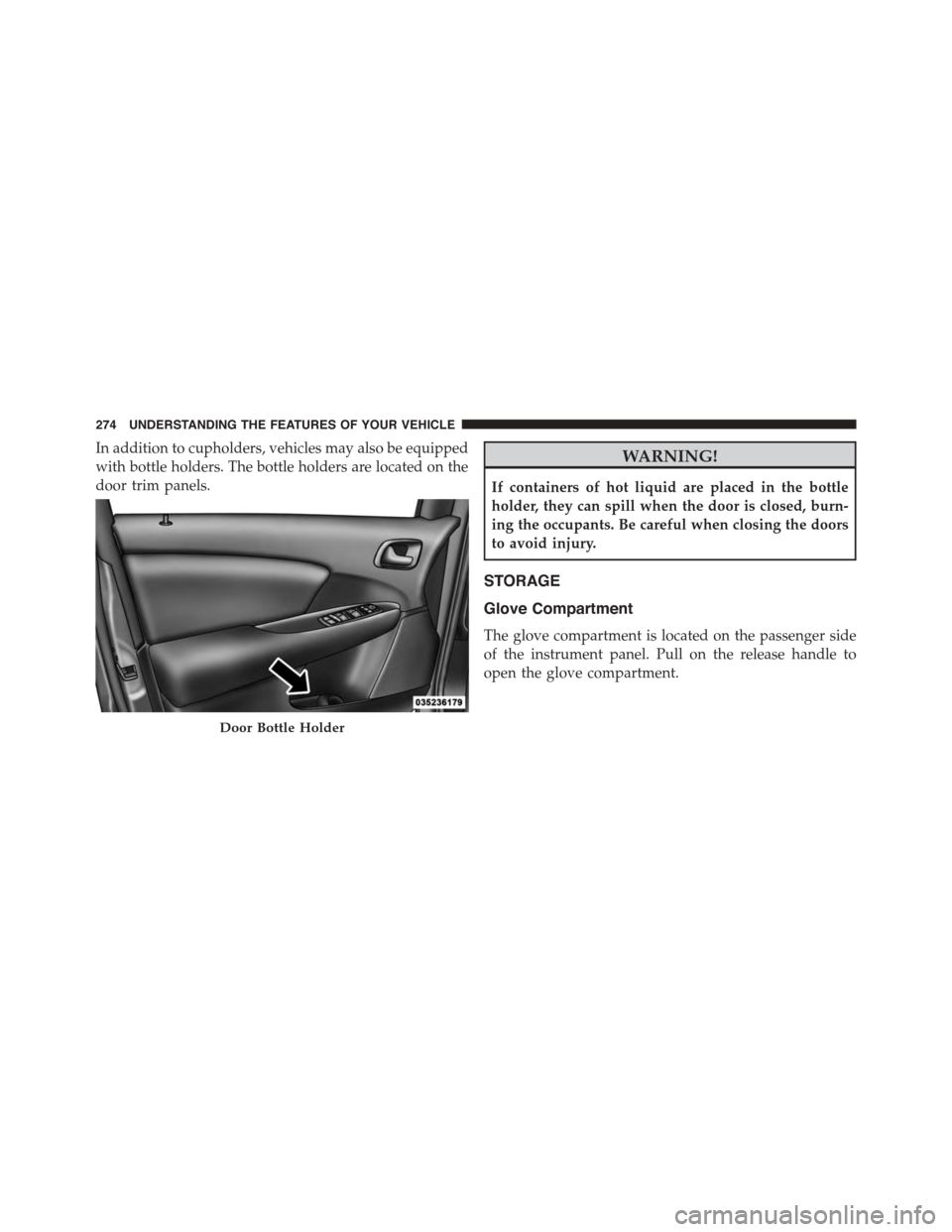

In addition to cupholders, vehicles may also be equipped
with bottle holders. The bottle holders are located on the
door trim panels.
WARNING!
If containers of hot liquid are placed in the bottle
holder, they can spill when the door is closed, burn-
ing the occupants. Be careful when closing the doors
to avoid injury.
STORAGE
Glove Compartment
The glove compartment is located on the passenger side
of the instrument panel. Pull on the release handle to
open the glove compartment.
Door Bottle Holder
274 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 277 of 648

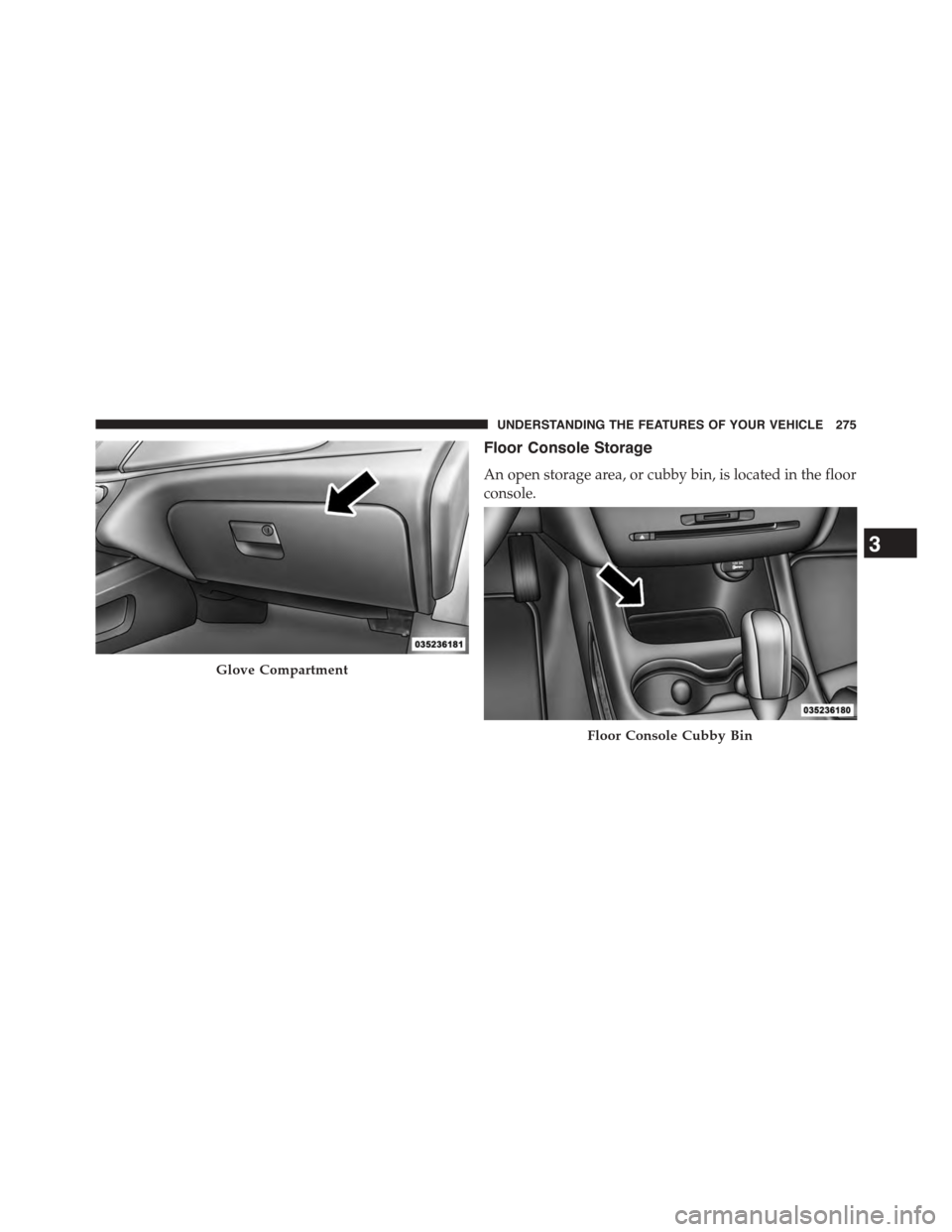

Floor Console Storage
An open storage area, or cubby bin, is located in the floor
console.
Glove Compartment
Floor Console Cubby Bin
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 275
Page 278 of 648

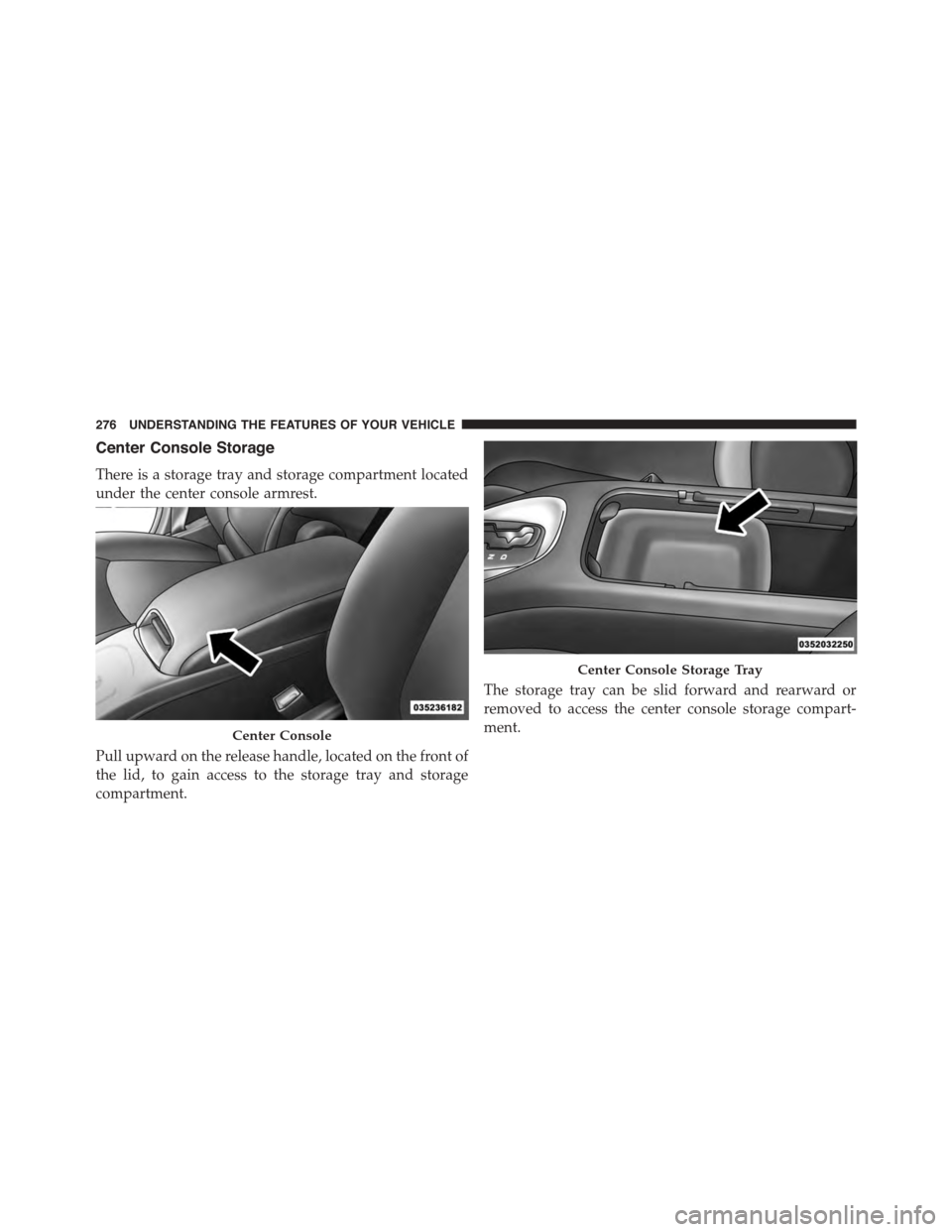

Center Console Storage
There is a storage tray and storage compartment located
under the center console armrest.
Pull upward on the release handle, located on the front of
the lid, to gain access to the storage tray and storage
compartment.
The storage tray can be slid forward and rearward or
removed to access the center console storage compart-
ment.Center Console
Center Console Storage Tray
276 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 279 of 648
WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.

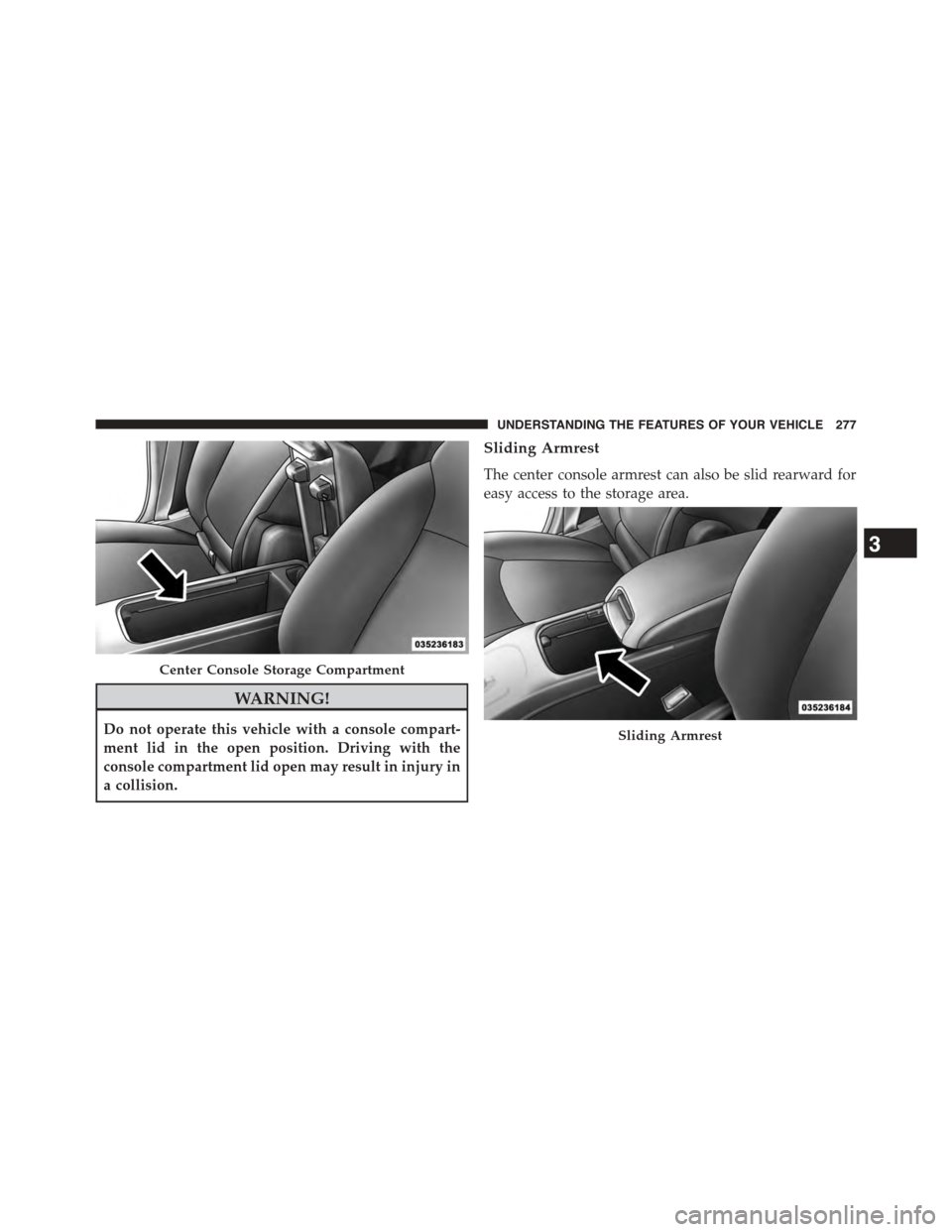

Sliding Armrest
The center console armrest can also be slid rearward for
easy access to the storage area.
Center Console Storage Compartment
Sliding Armrest
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 277
Page 280 of 648
WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.

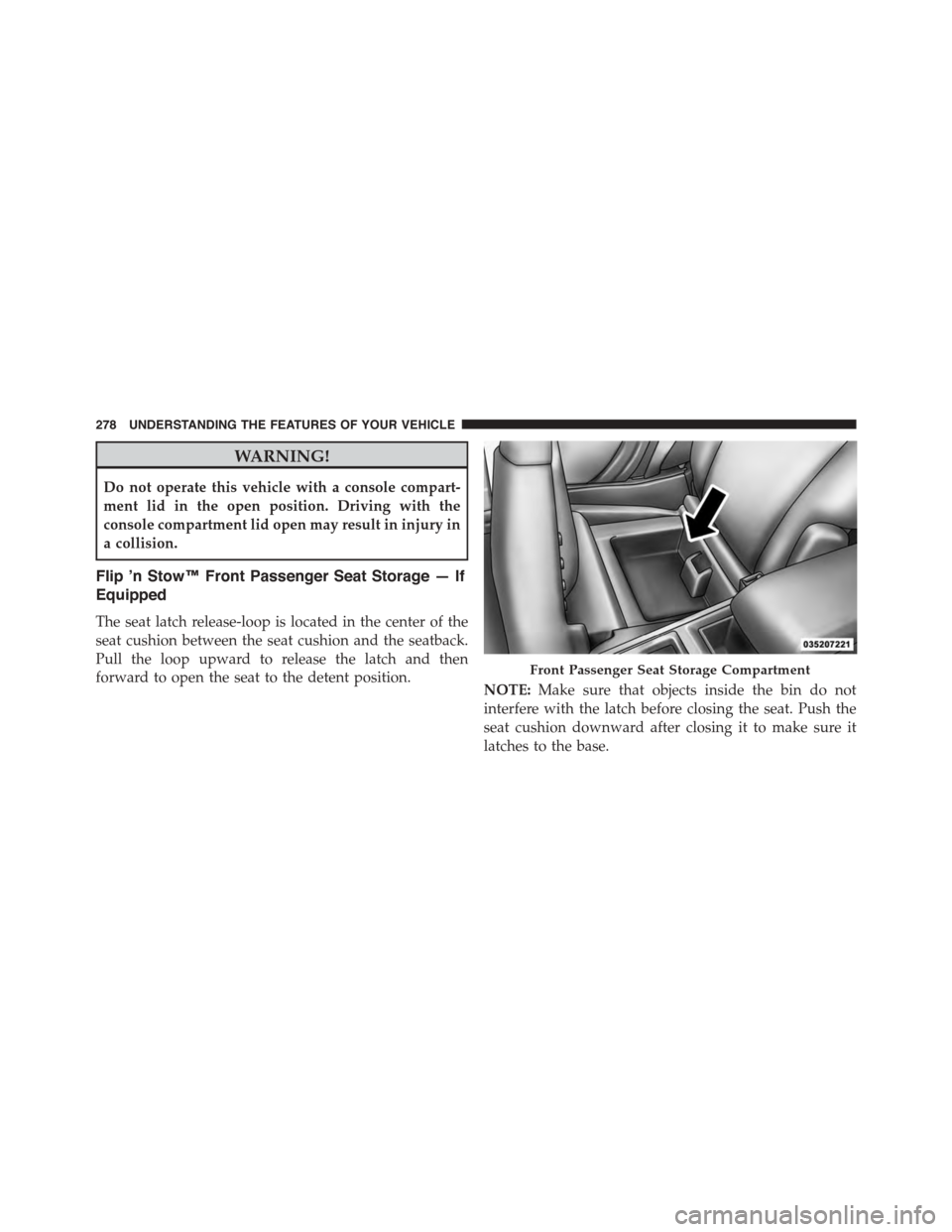

Flip ’n Stow™ Front Passenger Seat Storage — If
Equipped
The seat latch release-loop is located in the center of the
seat cushion between the seat cushion and the seatback.
Pull the loop upward to release the latch and then
forward to open the seat to the detent position.NOTE:Make sure that objects inside the bin do not
interfere with the latch before closing the seat. Push the
seat cushion downward after closing it to make sure it
latches to the base.
Front Passenger Seat Storage Compartment
278 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
