Cleaning Interior Trim
Interior Trim should be cleaned starting with a damp
cloth, a damp cloth with MOPAR® Total Clean or equiva-
lent, then MOPAR® Spot & Stain Remover or equivalent
if absolutely necessary. Do not use harsh cleaners or
Armor All®. Use MOPAR® Total Clean or equivalent to
clean vinyl upholstery.
Cleaning Leather Upholstery
MOPAR® Total Clean or equivalent is specifically recom-
mended for leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPAR® Total Clean or equivalent. Care should be
taken to avoid soaking your leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean
your leather upholstery. Application of a leather condi-
tioner is not required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle is equipped with plastic headlights and fog
lights that are lighter and less susceptible to stone break-
age than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
7
MAINTAINING YOUR VEHICLE 579

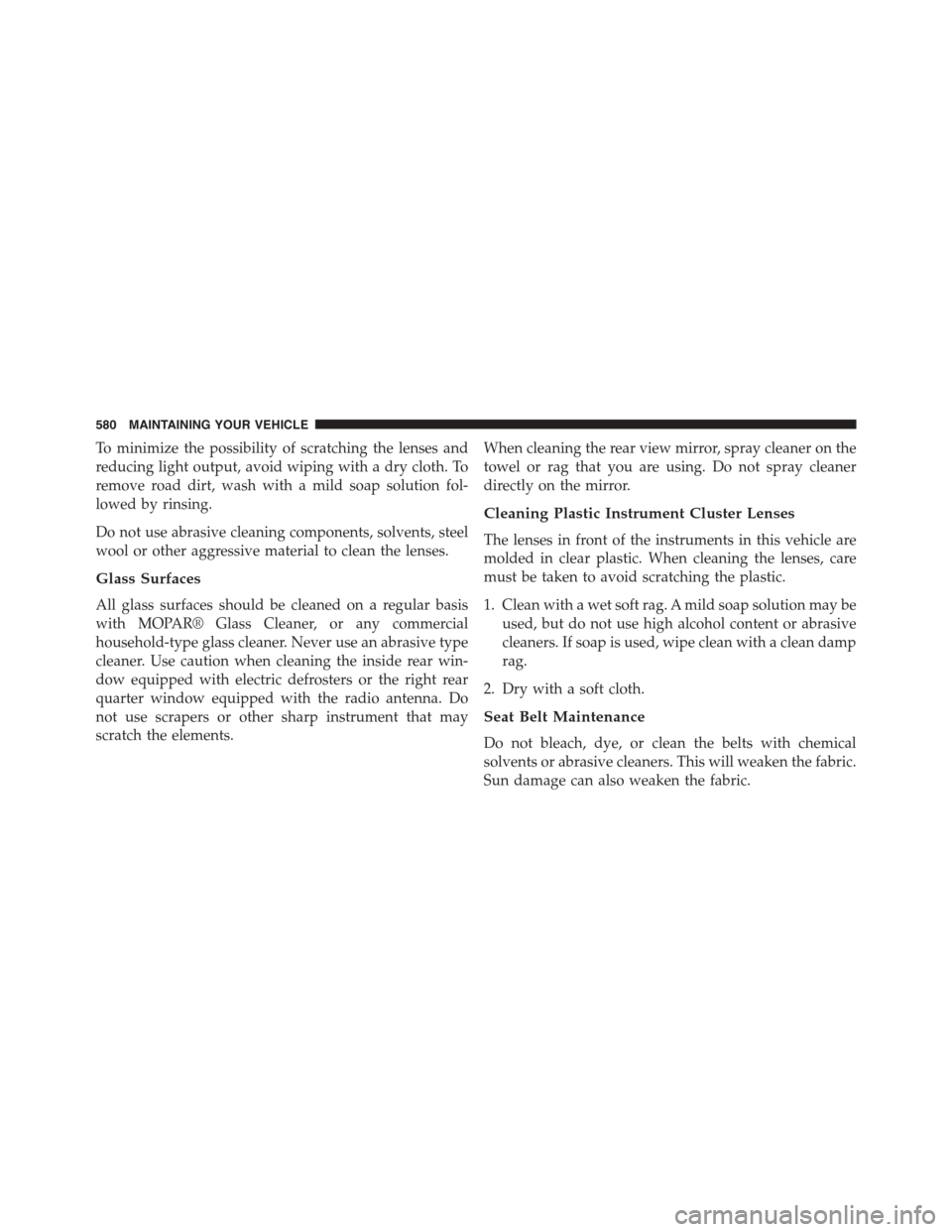

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR® Glass Cleaner, or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instrument that may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
580 MAINTAINING YOUR VEHICLE

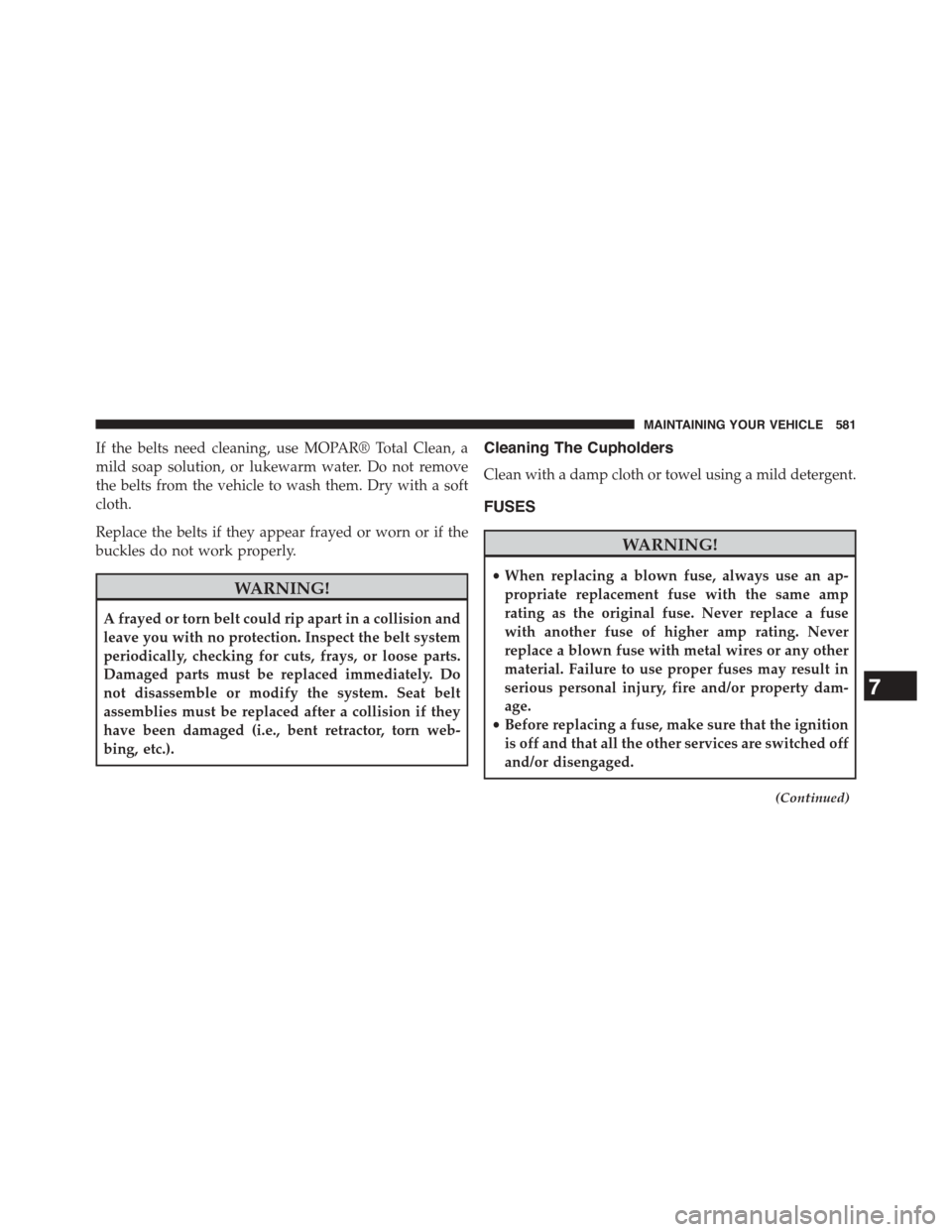

If the belts need cleaning, use MOPAR® Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them. Dry with a soft
cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).
Cleaning The Cupholders
Clean with a damp cloth or towel using a mild detergent.
FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
(Continued)
7
MAINTAINING YOUR VEHICLE 581

WARNING!(Continued)
•If the replaced fuse blows again, contact an autho-
rized dealer.
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
Interior Fuses
The interior fuse panel is located on the passenger side
under the instrument panel.
Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F100 30 Amp
Pink
– 110V AC Inverter –
If Equipped
Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F101 – 10 Amp
Red
Interior Lights
F102 – 20 Amp
Yellow
Cigar Lighter in
Instrument Panel/
Left Rear Power
Outlet
F103 – 20 Amp
Yellow
Power Outlet in
Console Bin/Power
Outlet in Rear of
Console
F105 – 20 Amp
Yellow
Heated Seats – If
Equipped
F106 – 20 Amp
Yellow
Rear Power Outlet
582 MAINTAINING YOUR VEHICLE

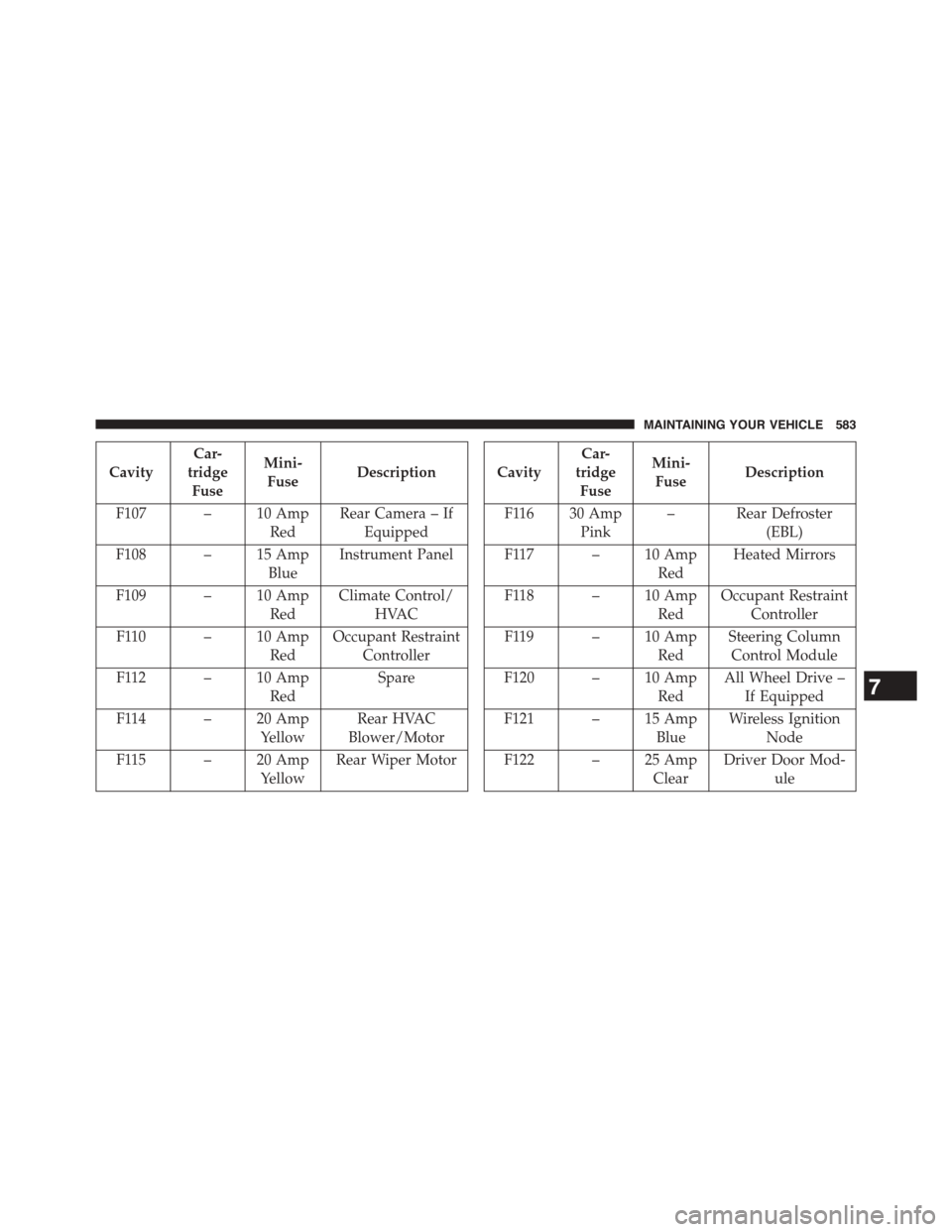

Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F107 – 10 Amp
Red
Rear Camera – If
Equipped
F108 – 15 Amp
Blue
Instrument Panel
F109 – 10 Amp
Red
Climate Control/
HVAC
F110 – 10 Amp
Red
Occupant Restraint
Controller
F112 – 10 Amp
Red
Spare
F114 – 20 Amp
Yellow
Rear HVAC
Blower/Motor
F115 – 20 Amp
Yellow
Rear Wiper Motor
Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F116 30 Amp
Pink
– Rear Defroster
(EBL)
F117 – 10 Amp
Red
Heated Mirrors
F118 – 10 Amp
Red
Occupant Restraint
Controller
F119 – 10 Amp
Red
Steering Column
Control Module
F120 – 10 Amp
Red
All Wheel Drive –
If Equipped
F121 – 15 Amp
Blue
Wireless Ignition
Node
F122 – 25 Amp
Clear
Driver Door Mod-
ule
7
MAINTAINING YOUR VEHICLE 583

Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F123 – 25 Amp
Clear
Passenger Door
Module
F124 – 10 Amp
Red
Mirrors
F125 – 10 Amp
Red
Steering Column
Control Module
F126 – 25 Amp
Clear
Audio Amplifier
F127 – 20 Amp
Yellow
Trailer Tow – If
Equipped
F128 – 15 Amp
Blue
Radio
F129 – 15 Amp
Blue
Video/DVD – If
Equipped

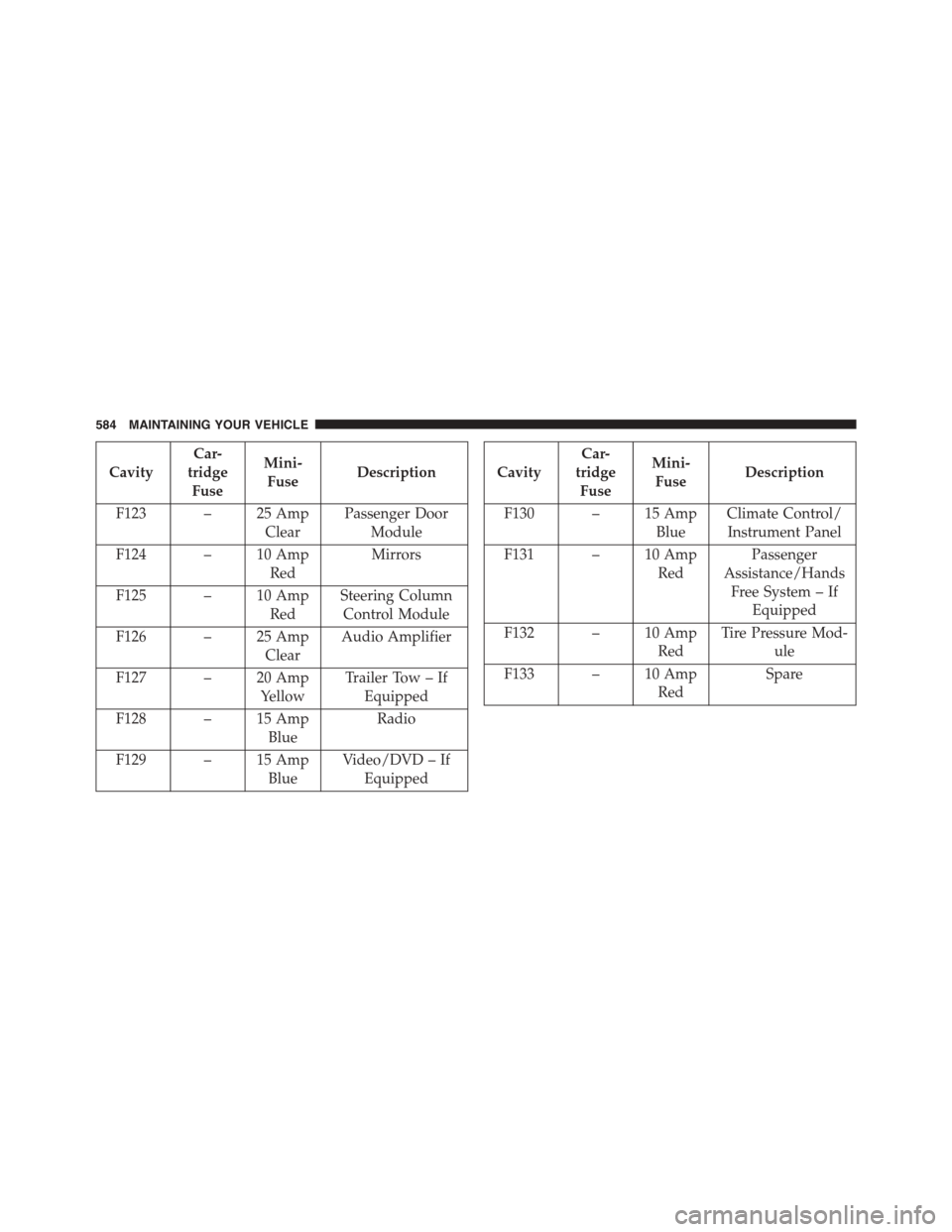

Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F130 – 15 Amp
Blue
Climate Control/
Instrument Panel
F131 – 10 Amp
Red
Passenger
Assistance/Hands
Free System – If
Equipped
F132 – 10 Amp
Red
Tire Pressure Mod-
ule
F133 – 10 Amp
Red
Spare
584 MAINTAINING YOUR VEHICLE

Underhood Fuses (Power Distribution Center)
The power distribution center is located in the engine
compartment.
Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F101 60 Amp
Yellow
– Interior Power Dis-
tribution Center
Rail
F102 60 Amp
Yellow
– Interior Power Dis-
tribution Center
Rail
F103 60 Amp
Yellow
– Interior Power Dis-
tribution Center
Rail
F105 60 Amp
Yellow
– Interior Power Dis-
tribution Center
Rail Ignition Run
RelayPower Distribution Center
7
MAINTAINING YOUR VEHICLE 585

Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F106 60 Amp
Yellow
– Interior Power Dis-
tribution Center
Rail Run/Accessory
Relays
F139 40 Amp
Green
– Climate Control
System Blower
F140 30 Amp
Pink
– Power Locks
F141 40 Amp
Green
– Anti-Lock Brake
System
F142 40 Amp
Green
– Glow Plugs – If
Equipped
F143 40 Amp
Green
– Exterior Lights 1
Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F144 40 Amp
Green
– Exterior Lights 2
F145 30 Amp
Pink
– To Body Computer
– Lamp
F146 30 Amp
Pink
– Spare
F147 30 Amp
Pink
– Spare
F148 40 Amp
Green
– Radiator Fan Motor
F149 30 Amp
Pink
– Starter Solenoid
F150 – 25 Amp
Clear
Powertrain Control
Modules
586 MAINTAINING YOUR VEHICLE

Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F151 30 Amp
Pink
– Headlamp Washer
Motor – If
Equipped
F152 – 25 Amp
Clear
Diesel Fuel Heater
– If Equipped
F153 – 20 Amp
Yellow
Fuel Pump
F156 – 10 Amp
Red
Brake/Electronic
Stability Control
Module
F157 – 10 Amp
Red
Power Transfer
Unit Module – If
Equipped
Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F158 – 10 Amp
Red
Active Hood Mod-
ule – If Equipped
F159 – 10 Amp
Red
Spare
F160 – 20 Amp
Yellow
Interior Lights
F161 – 20 Amp
Yellow
Horn
F162 40 Amp
Red/20
Amp Lt.
Blue
– Cabin Heater #1/
Vacuum Pump – If
Equipped
F163 50 Amp
Red
– Cabin Heater #2 –
If Equipped
7
MAINTAINING YOUR VEHICLE 587

Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F164 – 25 Amp
Clear
Powertrain Auto
Shutdown
F165 – 20 Amp
Yellow
Powertrain Shut-
down
F166 – 20 Amp
Yellow
Spare
F167 – 30 Amp
Green
Powertrain Shut-
down
F168 – 10 Amp
Red
Air Conditioner
Clutch
F169 40 Amp
Green
– Emissions – Partial
Zero Emissions Ve-
hicle Motor

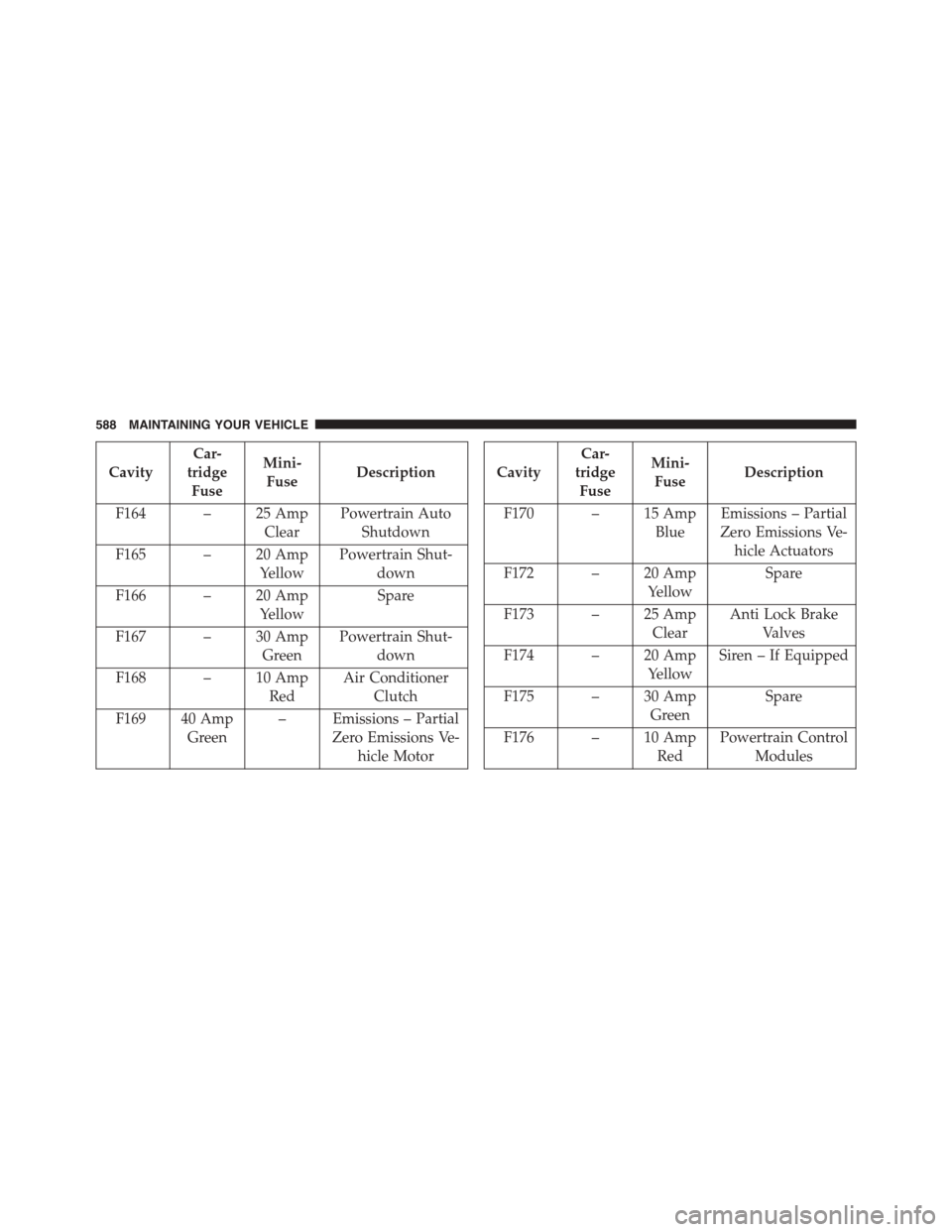

Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F170 – 15 Amp
Blue
Emissions – Partial
Zero Emissions Ve-
hicle Actuators
F172 – 20 Amp
Yellow
Spare
F173 – 25 Amp
Clear
Anti Lock Brake
Valves
F174 – 20 Amp
Yellow
Siren – If Equipped
F175 – 30 Amp
Green
Spare
F176 – 10 Amp
Red
Powertrain Control
Modules
