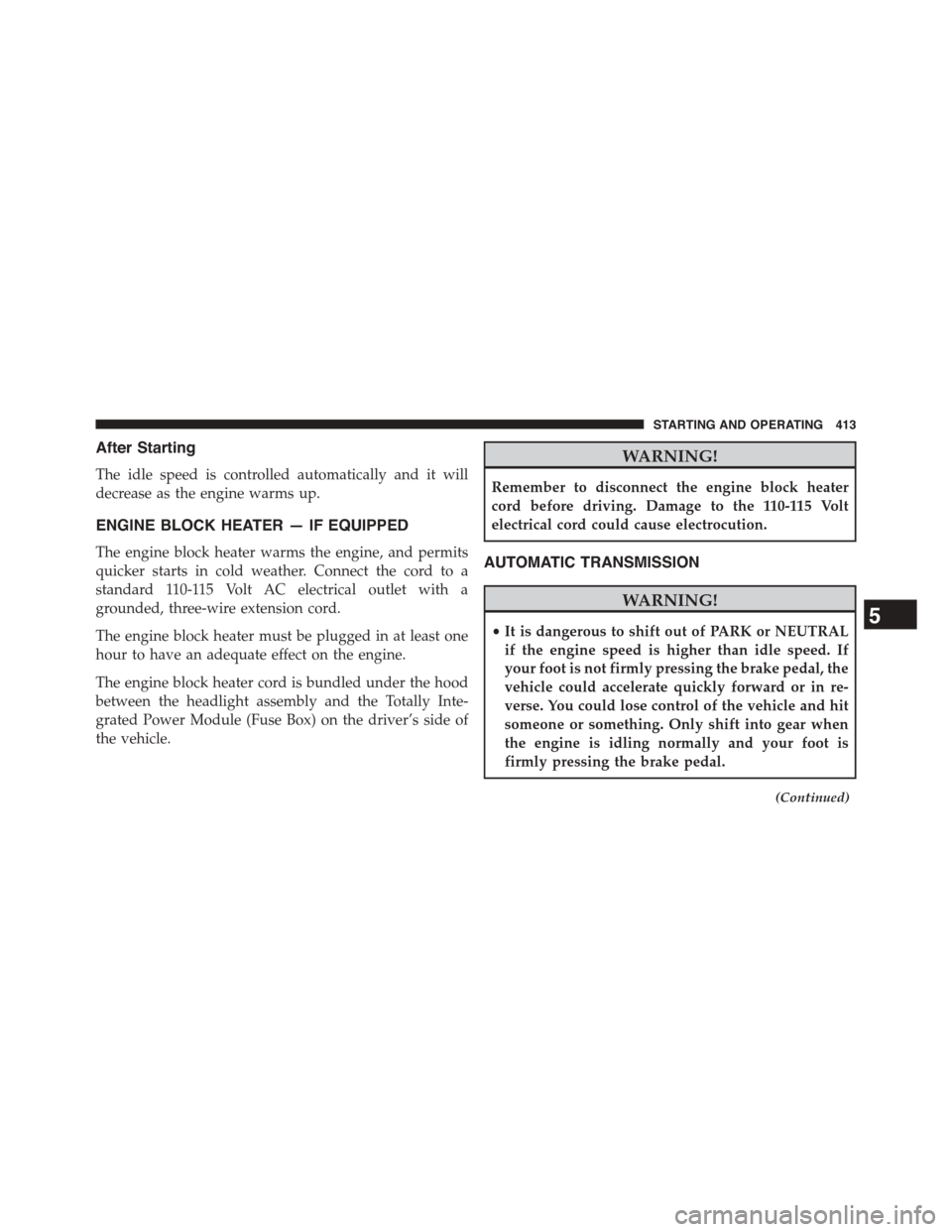

After Starting
The idle speed is controlled automatically and it will
decrease as the engine warms up.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a
grounded, three-wire extension cord.
The engine block heater must be plugged in at least one
hour to have an adequate effect on the engine.
The engine block heater cord is bundled under the hood
between the headlight assembly and the Totally Inte-
grated Power Module (Fuse Box) on the driver’s side of
the vehicle.
WARNING!
Remember to disconnect the engine block heater
cord before driving. Damage to the 110-115 Volt
electrical cord could cause electrocution.
AUTOMATIC TRANSMISSION
WARNING!
•It is dangerous to shift out of PARK or NEUTRAL
if the engine speed is higher than idle speed. If
your foot is not firmly pressing the brake pedal, the
vehicle could accelerate quickly forward or in re-
verse. You could lose control of the vehicle and hit
someone or something. Only shift into gear when
the engine is idling normally and your foot is
firmly pressing the brake pedal.
(Continued)
5
STARTING AND OPERATING 413

WARNING!(Continued)
•If the replaced fuse blows again, contact an autho-
rized dealer.
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.

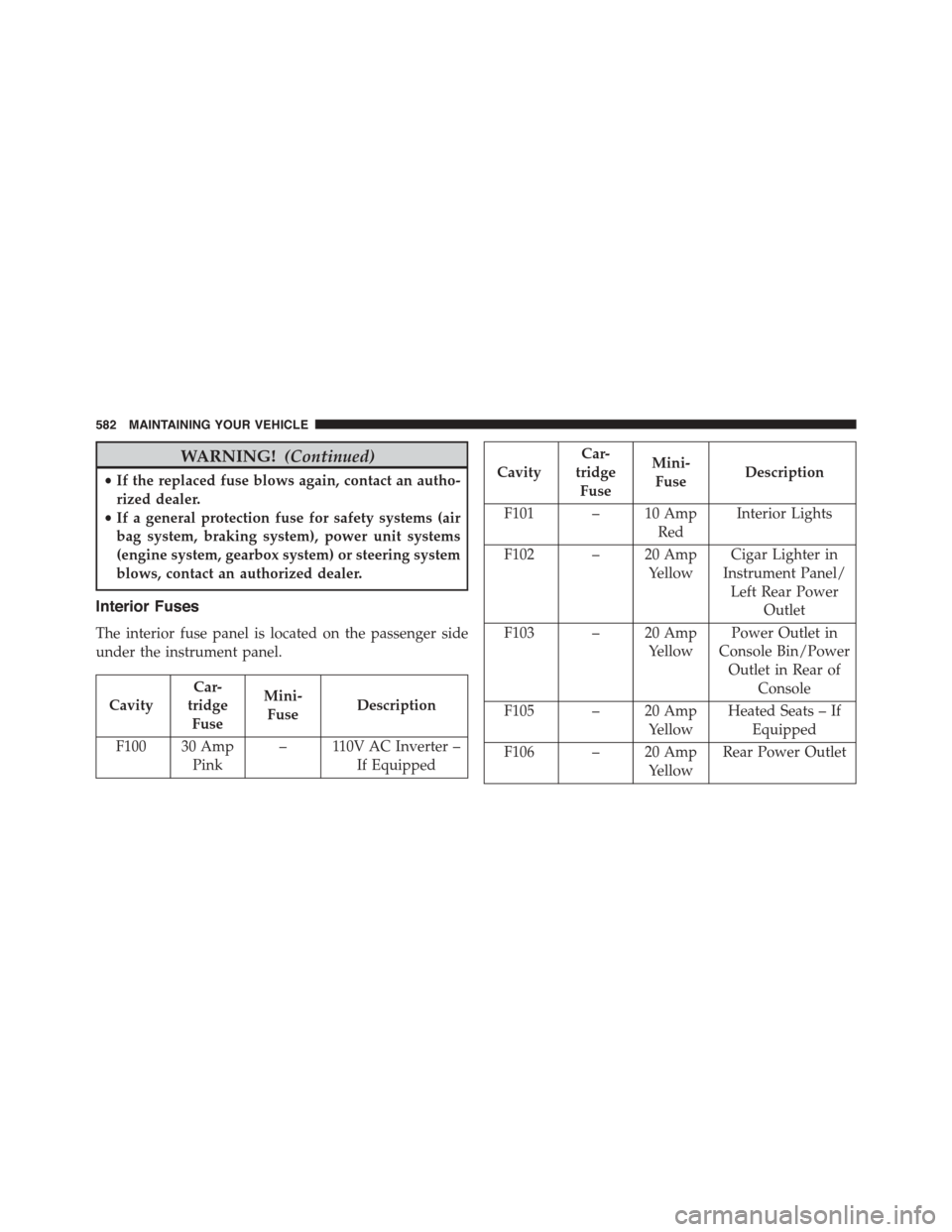

Interior Fuses
The interior fuse panel is located on the passenger side
under the instrument panel.
Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F100 30 Amp
Pink
– 110V AC Inverter –
If Equipped
Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F101 – 10 Amp
Red
Interior Lights
F102 – 20 Amp
Yellow
Cigar Lighter in
Instrument Panel/
Left Rear Power
Outlet
F103 – 20 Amp
Yellow
Power Outlet in
Console Bin/Power
Outlet in Rear of
Console
F105 – 20 Amp
Yellow
Heated Seats – If
Equipped
F106 – 20 Amp
Yellow
Rear Power Outlet
582 MAINTAINING YOUR VEHICLE

Cavity
Car-
tridge
Fuse
Mini-
FuseDescription
F177 – 20 Amp
Yellow
All Wheel Drive
Module – If
Equipped
F178 – 25 Amp
Clear
Sunroof – If
Equipped
F179 – 10 Amp
Red
Battery Sensor
F181 100
Amp
Blue
– Electrohydraulic
Steering (EHPS) – If
Equipped
F182 50 Amp
Red
– Cabin Heater #3 –
If Equipped
F184 30 Amp
Pink
– Front Wiper Motor
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Courtesy/Reading
Lamps (Incandescent)
578
Courtesy/Reading
Lamps (Optional LED)
LED (Serviced at Autho-
rized Dealer)
Glove Box Lamp 194
Cargo Lamp 579
Optional Door Map
Pocket/Cupholder
LED (Serviced at Autho-
rized Dealer)
For lighted switches, see your authorized dealer for
replacement instructions.
