Page 358 of 664

to the previous menu. Refer to “Automatic Headlights —
If Equipped” in “Understanding The Features Of Your
Vehicle” for further information.
•Daytime Running Lights — If Equipped
When this feature is selected, the headlights will turn on
whenever the engine is running. To make your selection,
press the “Daytime Running Lights” button on the touch-
screen, until a check-mark appears next to setting, show-
ing that setting has been selected. Press the back arrow
button on the touchscreen to return to the previous
menu.
• Steering Directed Headlights — If Equipped
When this feature is selected, the headlights turn relative
to a change in direction of the steering wheel. To make
your selection, press the “Steering Directed Lights” but-
ton on the touchscreen, until a check-mark appears next to setting, showing that setting has been selected. Press
the back arrow button on the touchscreen to return to the
previous menu.
•
Flash Lamps With Lock
When this feature is selected, the exterior lights will flash
when the doors are locked with the Remote Keyless
Entry (RKE) transmitter. This feature may be selected
with or without the sound horn on lock feature selected.
To make your selection, press the “Flash Lamps with
Lock” button on the touchscreen, until a check-mark
appears next to setting, showing that setting has been
selected. Press the back arrow button on the touchscreen
to return to the previous menu.
Doors & Locks
After pressing the Doors & Locks button on the touch-
screen the following settings will be available.
356 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 451 of 664

BRAKE SYSTEM
Your vehicle is equipped with dual hydraulic
brake systems. If either of the two hydraulic
systems loses normal capability, the remaining
system will still function. However, there will
be some loss of overall braking effectiveness. This will be
evident by increased pedal travel during application and
greater pedal force required to slow or stop the vehicle. In
addition, if the malfunction is caused by a leak in the
hydraulic system, the “Brake Warning Light” will turn on
as the brake fluid level drops in the master cylinder.
In the event power assist is lost for any reason (i.e.,
repeated brake applications with the engine OFF) the
brakes will still function. However, the effort required to
brake the vehicle will be much greater than that required
with the power system operating.
WARNING!
• Riding the brakes can lead to brake failure and
possibly a collision. Driving with your foot resting
or riding on the brake pedal can result in abnor-
mally high brake temperatures, excessive lining
wear, and possible brake damage. You would not
have your full braking capacity in an emergency.
• Driving a vehicle with the “Brake Warning Light”
on is dangerous. A significant decrease in braking
performance or vehicle stability during braking
may occur. It will take you longer to stop the
vehicle or will make your vehicle harder to control.
You could have a collision. Have the vehicle
checked immediately.
5
STARTING AND OPERATING 449

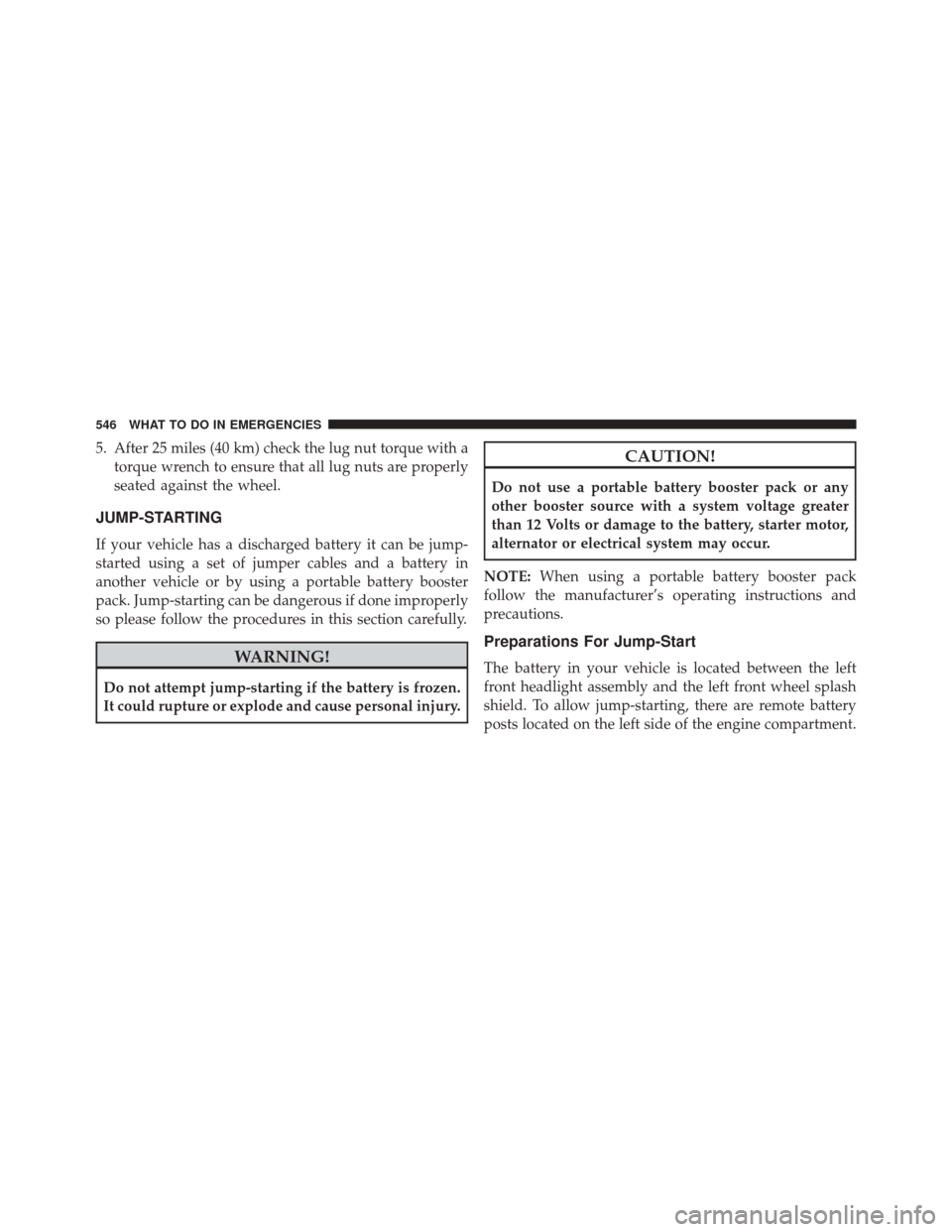

Page 548 of 664

5. After 25 miles (40 km) check the lug nut torque with atorque wrench to ensure that all lug nuts are properly
seated against the wheel.
JUMP-STARTING
If your vehicle has a discharged battery it can be jump-
started using a set of jumper cables and a battery in
another vehicle or by using a portable battery booster
pack. Jump-starting can be dangerous if done improperly
so please follow the procedures in this section carefully.
WARNING!
Do not attempt jump-starting if the battery is frozen.
It could rupture or explode and cause personal injury.
CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
NOTE: When using a portable battery booster pack
follow the manufacturer’s operating instructions and
precautions.
Preparations For Jump-Start
The battery in your vehicle is located between the left
front headlight assembly and the left front wheel splash
shield. To allow jump-starting, there are remote battery
posts located on the left side of the engine compartment.
546 WHAT TO DO IN EMERGENCIES

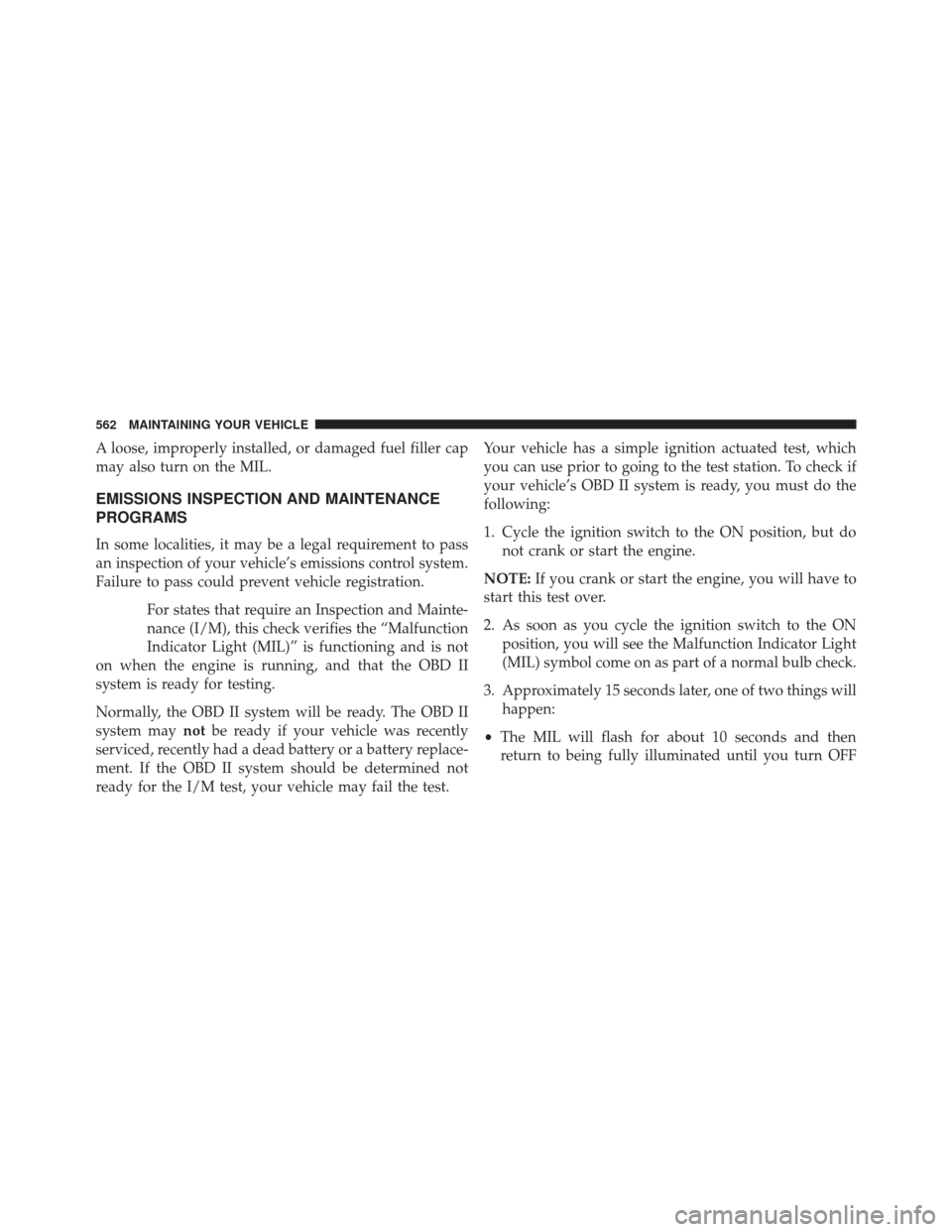

Page 564 of 664

A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test. Your vehicle has a simple ignition actuated test, which
you can use prior to going to the test station. To check if
your vehicle’s OBD II system is ready, you must do the
following:
1. Cycle the ignition switch to the ON position, but do
not crank or start the engine.
NOTE: If you crank or start the engine, you will have to
start this test over.
2. As soon as you cycle the ignition switch to the ON position, you will see the Malfunction Indicator Light
(MIL) symbol come on as part of a normal bulb check.
3. Approximately 15 seconds later, one of two things will happen:
• The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
562 MAINTAINING YOUR VEHICLE

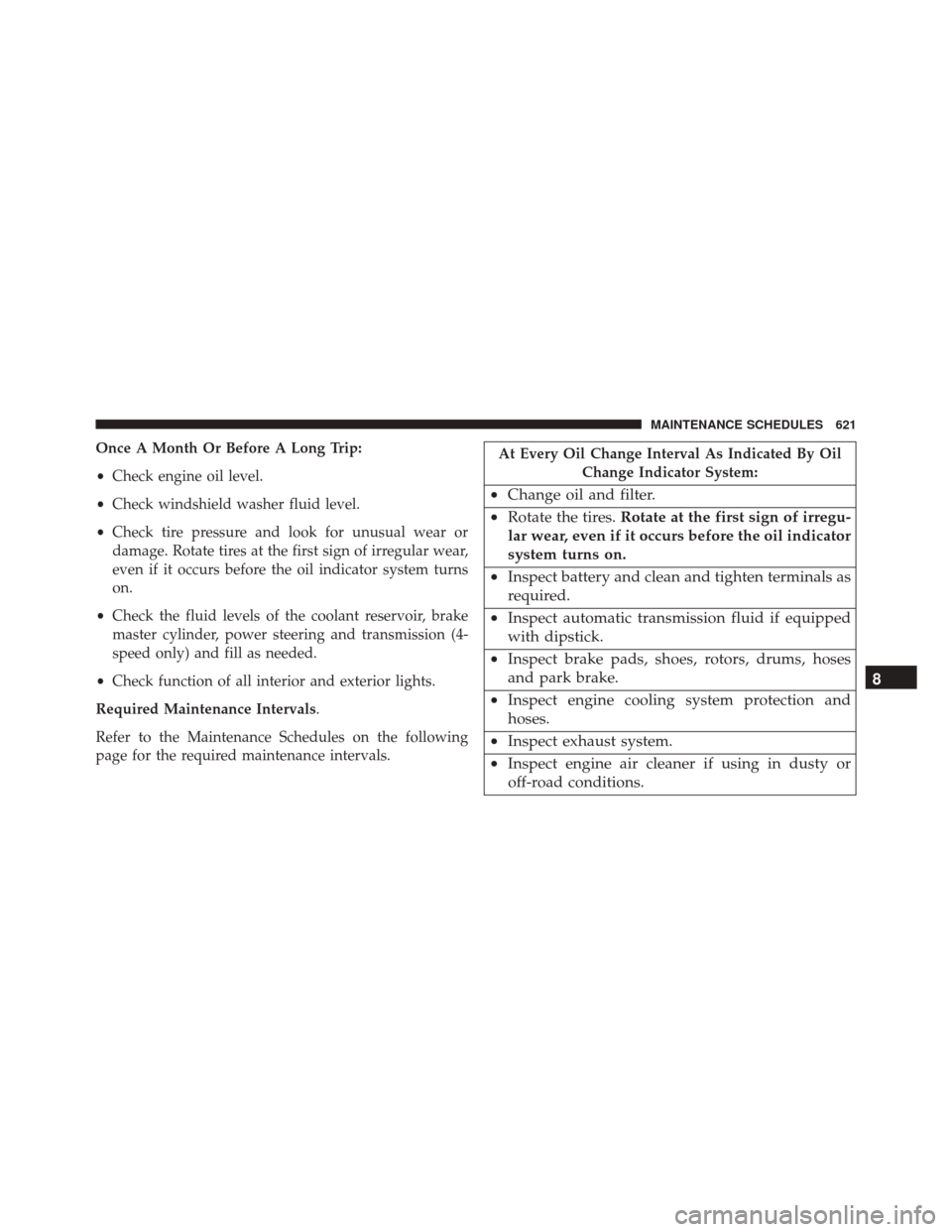

Page 623 of 664

Once A Month Or Before A Long Trip:
•Check engine oil level.
• Check windshield washer fluid level.
• Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before the oil indicator system turns
on.
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and transmission (4-
speed only) and fill as needed.
• Check function of all interior and exterior lights.
Required Maintenance Intervals.
Refer to the Maintenance Schedules on the following
page for the required maintenance intervals.At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change oil and filter.
• Rotate the tires. Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required.
• Inspect automatic transmission fluid if equipped
with dipstick.
• Inspect brake pads, shoes, rotors, drums, hoses
and park brake.
• Inspect engine cooling system protection and
hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or
off-road conditions. 8
MAINTENANCE SCHEDULES 621

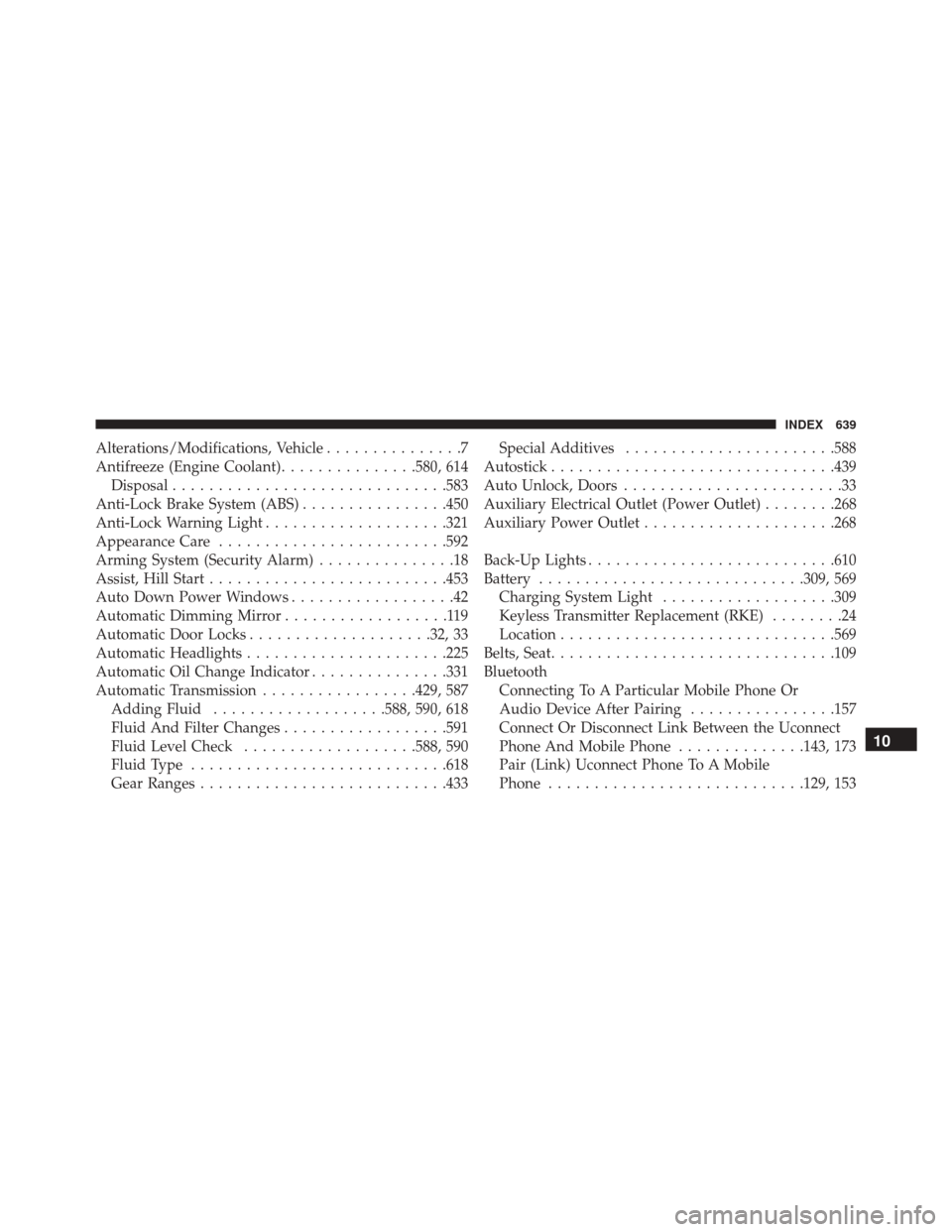

Page 641 of 664

Alterations/Modifications, Vehicle...............7
Antifreeze (Engine Coolant) ...............580, 614
Disposal ............................. .583
Anti-Lock Brake System (ABS) ................450
Anti-Lock Warning Light ....................321
Appearance Care ........................ .592
Arming System (Security Alarm) ...............18
Assist, Hill Start ......................... .453
Auto Down Power Windows ..................42
Automatic Dimming Mirror ..................119
Automatic Door Locks ....................32, 33
Automatic Headlights ..................... .225
Automatic Oil Change Indicator ...............331
Automatic Transmission .................429, 587
Adding Fluid ...................588, 590, 618
Fluid And Filter Changes ..................591
Fluid Level Check ...................588, 590
Fluid Type ........................... .618
Gear Ranges .......................... .433Special Additives
...................... .588
Autostick .............................. .439
Auto Unlock, Doors ........................33
Auxiliary Electrical Outlet (Power Outlet) ........268
Auxiliary Power Outlet .....................268
Back-Up Lights .......................... .610
Battery ............................ .309, 569
Charging System Light ...................309
Keyless Transmitter Replacement (RKE) ........24
Location ............................. .569
Belts, Seat .............................. .109
Bluetooth Connecting To A Particular Mobile Phone Or
Audio Device After Pairing ................157
Connect Or Disconnect Link Between the Uconnect
Phone And Mobile Phone ..............143, 173
Pair (Link) Uconnect Phone To A Mobile
Phone ........................... .129, 153
10
INDEX 639

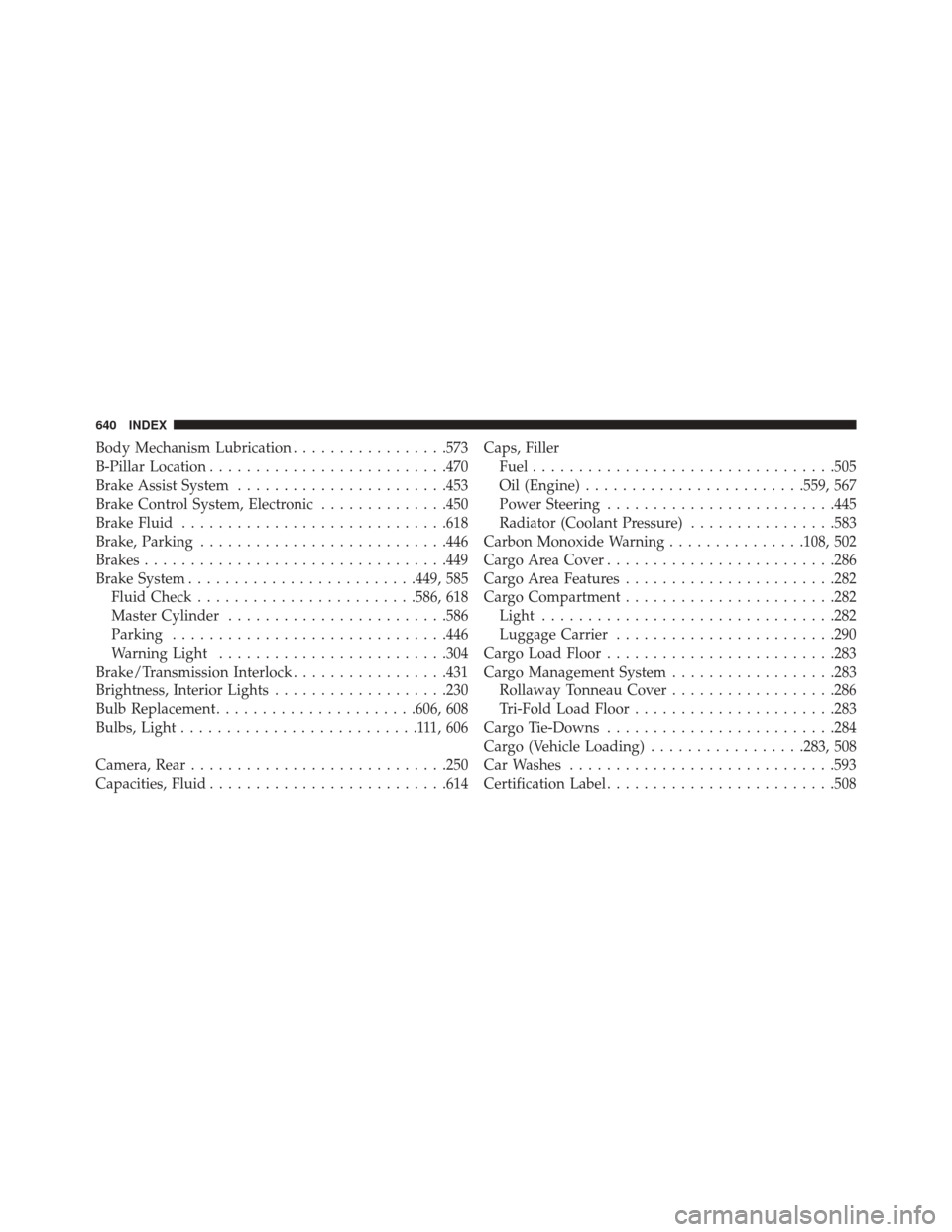

Page 642 of 664

Body Mechanism Lubrication.................573
B-Pillar Location ......................... .470
Brake Assist System ...................... .453
Brake Control System, Electronic ..............450
Brake Fluid ............................ .618
Brake, Parking .......................... .446
Brakes ................................ .449
Brake System ........................ .449, 585
Fluid Check ....................... .586, 618
Master Cylinder ....................... .586
Parking ............................. .446
Warning Light ........................ .304
Brake/Transmission Interlock .................431
Brightness, Interior Lights ...................230
Bulb Replacement ..................... .606, 608
Bulbs, Light ..........................111,606
Camera, Rear ........................... .250
Capacities, Fluid ......................... .614Caps, Filler
Fuel ................................ .505
Oil (Engine) ....................... .559, 567
Power Steering ........................ .445
Radiator (Coolant Pressure) ................583
Carbon Monoxide Warning ...............108, 502
Cargo Area Cover ........................ .286
Cargo Area Features ...................... .282
Cargo Compartment ...................... .282
Light ............................... .282
Luggage Carrier ....................... .290
Cargo Load Floor ........................ .283
Cargo Management System ..................283
Rollaway Tonneau Cover ..................286
Tri-Fold Load Floor ..................... .283
Cargo Tie-Downs ........................ .284
Cargo (Vehicle Loading) .................283, 508
Car
Washes ............................ .593
Certification Label ........................ .508
640 INDEX

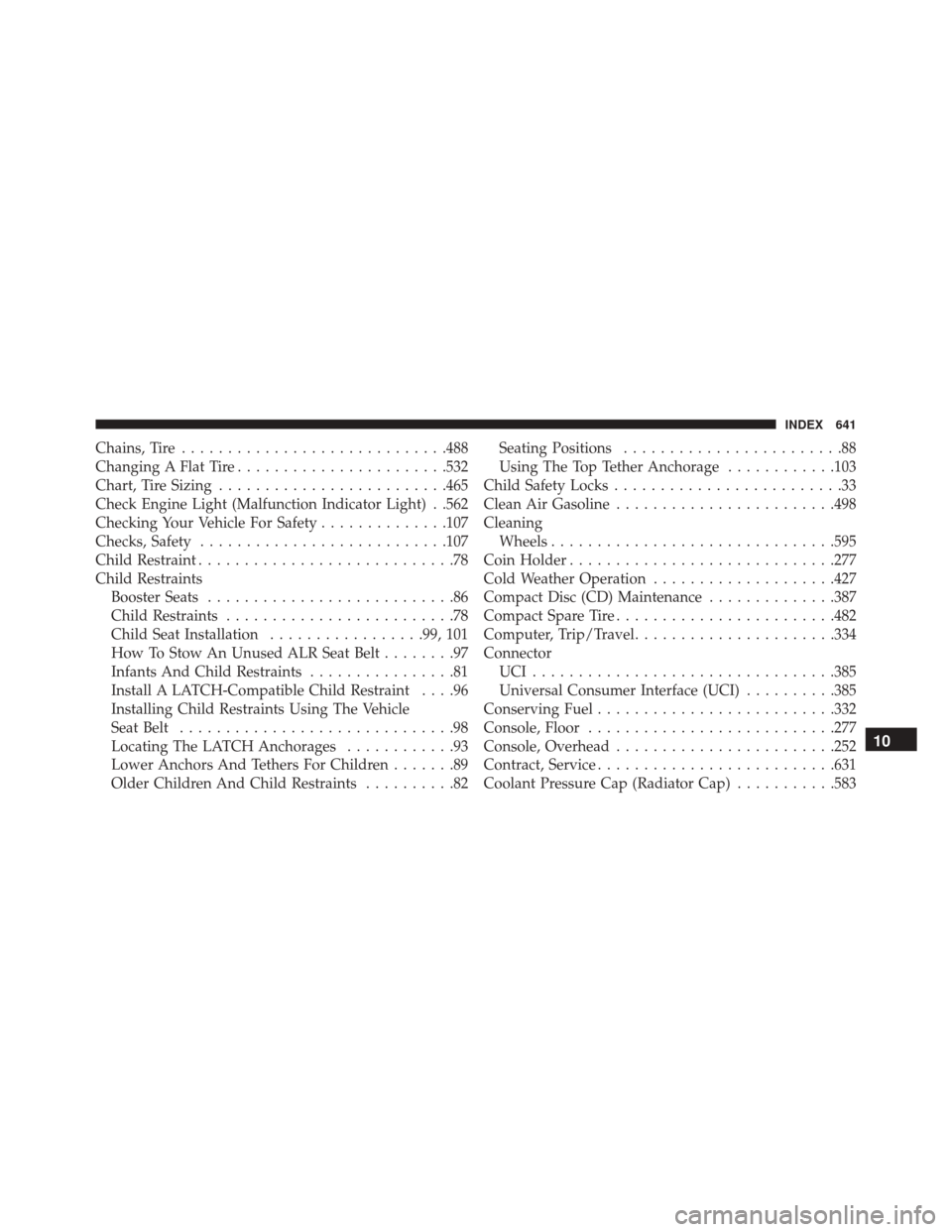

Page 643 of 664

Chains, Tire............................ .488
Changing A Flat Tire ...................... .532
Chart, Tire Sizing ........................ .465
Check Engine Light (Malfunction Indicator Light) . .562
Checking Your Vehicle For Safety ..............107
Checks, Safety .......................... .107
Child Restraint ............................78
Child Restraints Booster Seats ...........................86
Child Restraints .........................78
Child Seat Installation .................99, 101
How To Stow An Unused ALR Seat Belt ........97
Infants And Child Restraints ................81
Install A LATCH-Compatible Child Restraint ....96
Installing Child Restraints Using The Vehicle
Seat Belt ..............................98
Locating The LATCH Anchorages ............93
Lower Anchors And Tethers For Children .......89
Older Children And Child Restraints ..........82Seating Positions
........................88
Using The Top Tether Anchorage ............103
Child Safety Locks .........................33
Clean Air Gasoline ....................... .498
Cleaning Wheels .............................. .595
Coin Holder ............................ .277
Cold Weather Operation ....................427
Compact Disc (CD) Maintenance ..............387
Compact Spare Tire ....................... .482
Computer, Trip/Travel ..................... .334
Connector UCI................................ .385
Universal Consumer Interface (UCI) ..........385
Conserving Fuel ......................... .332
Console, Floor .......................... .277
Console, Overhead ....................... .252
Contract, Service ......................... .631
Coolant Pressure Cap (Radiator Cap) ...........583
10
INDEX 641
Page 645 of 664

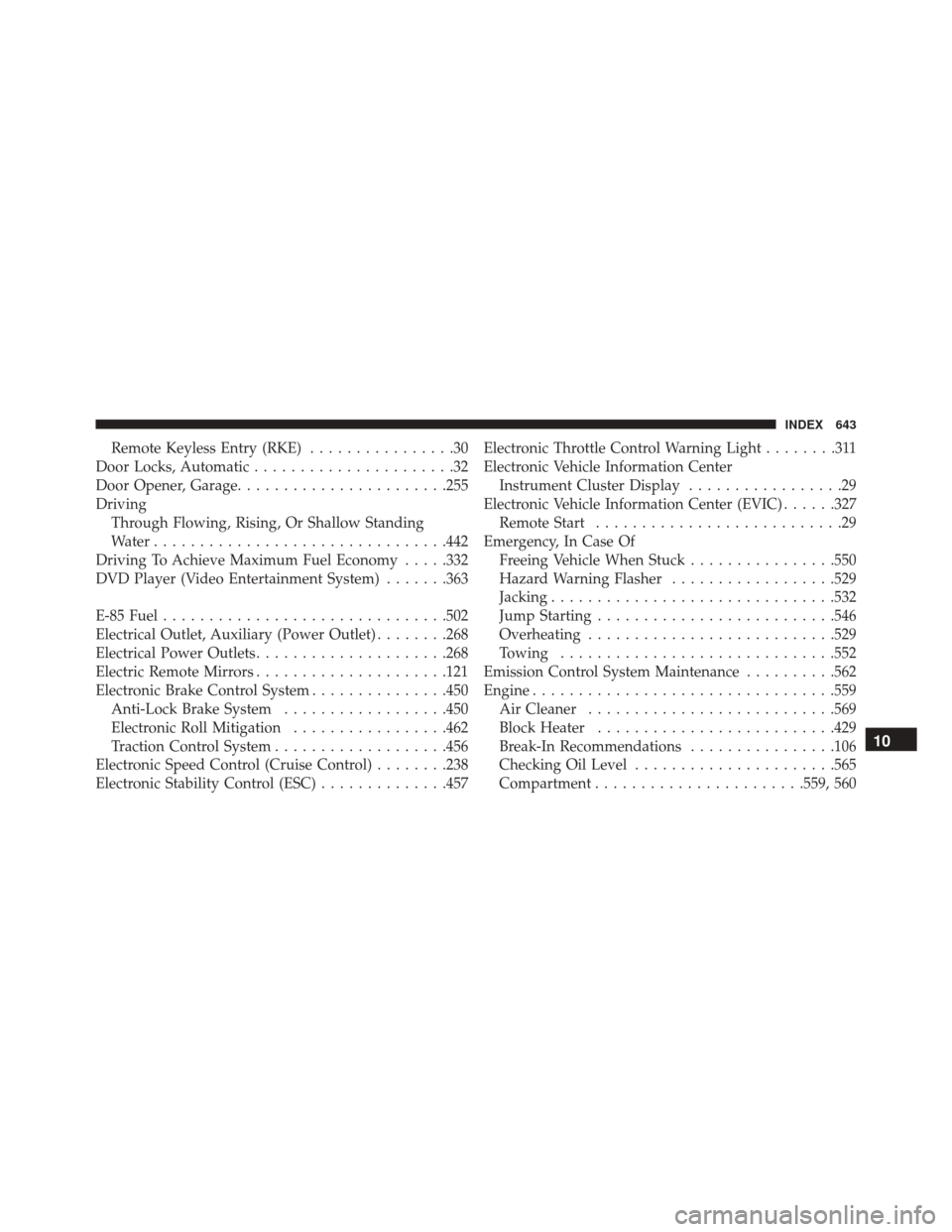

Remote Keyless Entry (RKE)................30
Door Locks, Automatic ......................32
Door Opener, Garage ...................... .255
Driving Through Flowing, Rising, Or Shallow Standing
Water ............................... .442
Driving To Achieve Maximum Fuel Economy .....332
DVD Player (Video Entertainment System) .......363
E-85 Fuel .............................. .502
Electrical Outlet, Auxiliary (Power Outlet) ........268
Electrical Power Outlets .....................268
Electric Remote Mirrors .....................121
Electronic Brake Control System ...............450
Anti-Lock Brake System ..................450
Electronic Roll Mitigation .................462
Traction Control System ...................456
Electronic Speed Control (Cruise Control) ........238
Electronic Stability Control (ESC) ..............457Electronic Throttle Control Warning Light
........311
Electronic Vehicle Information Center Instrument Cluster Display .................29
Electronic Vehicle Information Center (EVIC) ......327
Remote Start ...........................29
Emergency, In Case Of Freeing Vehicle When Stuck ................550
Hazard Warning Flasher ..................529
Jacking .............................. .532
Jump Starting ......................... .546
Overheating .......................... .529
Towing ............................. .552
Emission Control System Maintenance ..........562
Engine ................................ .559
Air Cleaner .......................... .569
Block Heater ......................... .429
Break-In Recommendations ................106
Checking Oil Level ..................... .565
Compartment ...................... .559, 560
10
INDEX 643
Page 647 of 664

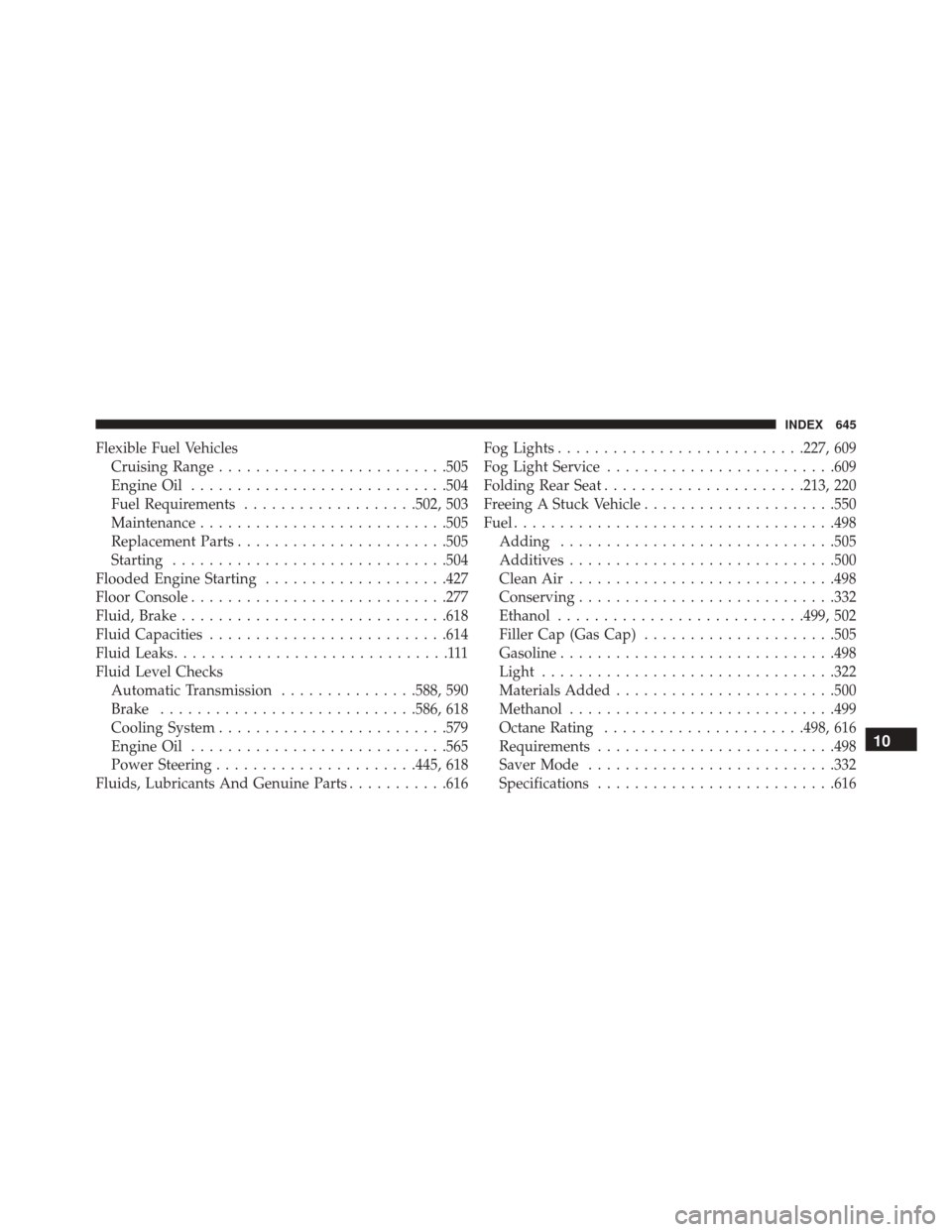

Flexible Fuel VehiclesCruising Range ........................ .505
Engine Oil ........................... .504
Fuel Requirements ...................502, 503
Maintenance .......................... .505
Replacement Parts ...................... .505
Starting ............................. .504
Flooded Engine Starting ....................427
Floor Console ........................... .277
Fluid, Brake ............................ .618
Fluid Capacities ......................... .614
Fluid Leaks ..............................111
Fluid Level Checks Automatic Transmission ...............588, 590
Brake ........................... .586, 618
Cooling System ........................ .579
Engine Oil ........................... .565
Power Steering ..................... .445, 618
Fluids, Lubricants And Genuine Parts ...........616Fog Lights
.......................... .227, 609
Fog Light Service ........................ .609
Folding Rear Seat ..................... .213, 220
Freeing A Stuck Vehicle .....................550
Fuel .................................. .498
Adding ............................. .505
Additives ............................ .500
Clean Air ............................ .498
Conserving ........................... .332
Ethanol .......................... .499, 502
Filler Cap (Gas Cap) .....................505
Gasoline ............................. .498
Light ............................... .322
Materials Added ....................... .500
Methanol ............................ .499
Octane Rating ..................... .498, 616
Requirements ......................... .498
Saver
Mode .......................... .332
Specifications ......................... .61610
INDEX 645
