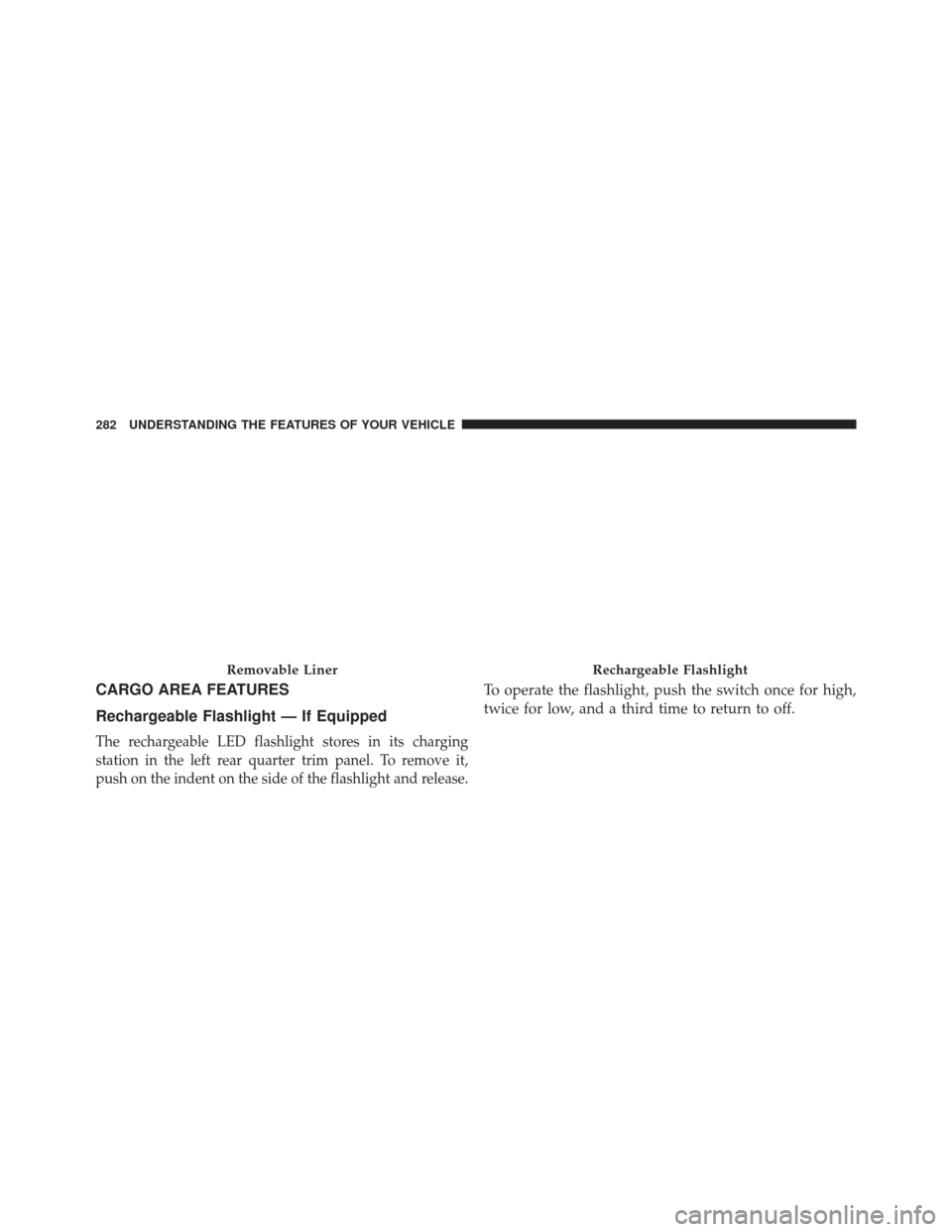

CARGO AREA FEATURES
Rechargeable Flashlight — If Equipped
The rechargeable LED flashlight stores in its charging
station in the left rear quarter trim panel. To remove it,
push on the indent on the side of the flashlight and release.
To operate the flashlight, push the switch once for high,
twice for low, and a third time to return to off.
Removable LinerRechargeable Flashlight
282 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

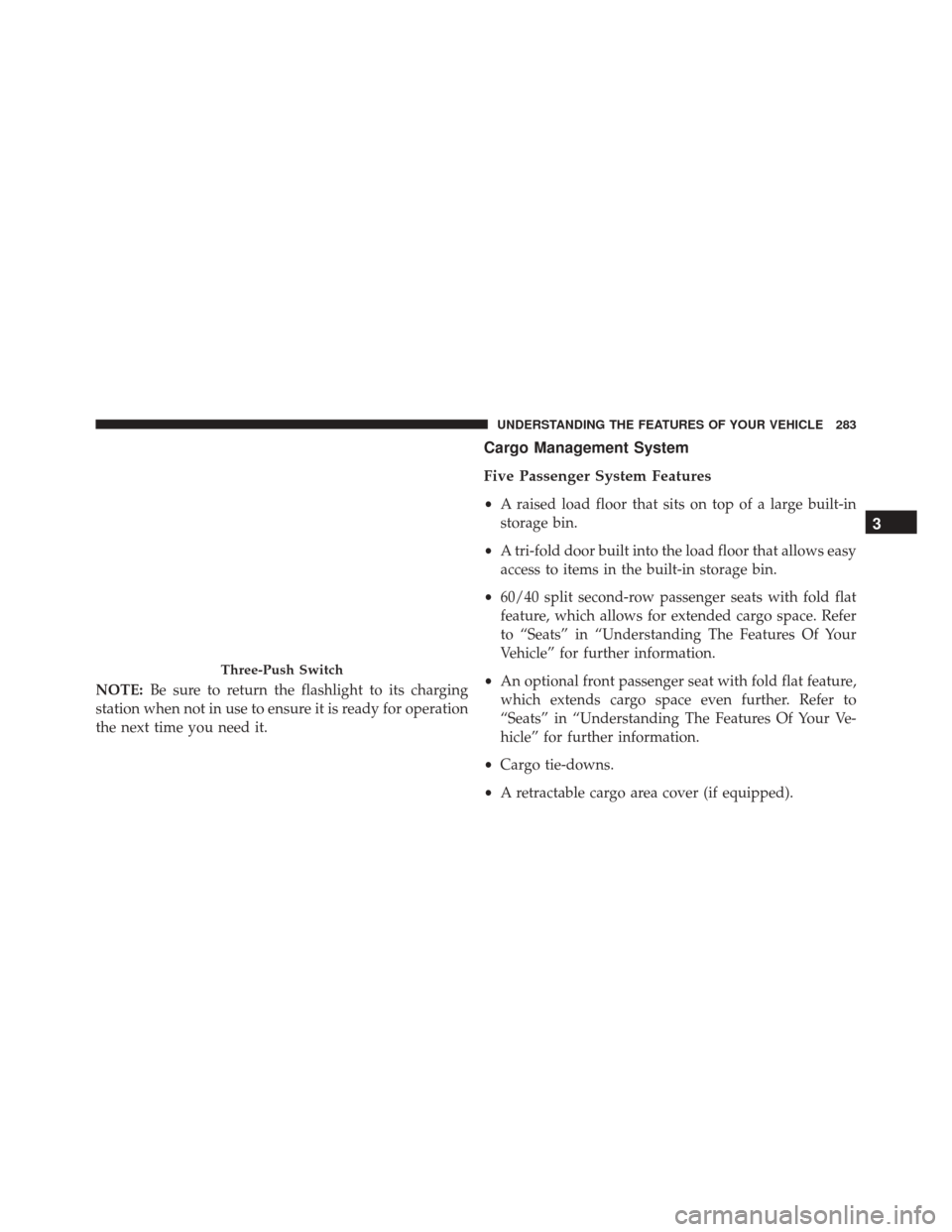

NOTE:Be sure to return the flashlight to its charging
station when not in use to ensure it is ready for operation
the next time you need it.
Cargo Management System
Five Passenger System Features
• A raised load floor that sits on top of a large built-in
storage bin.
• A tri-fold door built into the load floor that allows easy
access to items in the built-in storage bin.
• 60/40 split second-row passenger seats with fold flat
feature, which allows for extended cargo space. Refer
to “Seats” in “Understanding The Features Of Your
Vehicle” for further information.
• An optional front passenger seat with fold flat feature,
which extends cargo space even further. Refer to
“Seats” in “Understanding The Features Of Your Ve-
hicle” for further information.
• Cargo tie-downs.
• A retractable cargo area cover (if equipped).
Three-Push Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 283

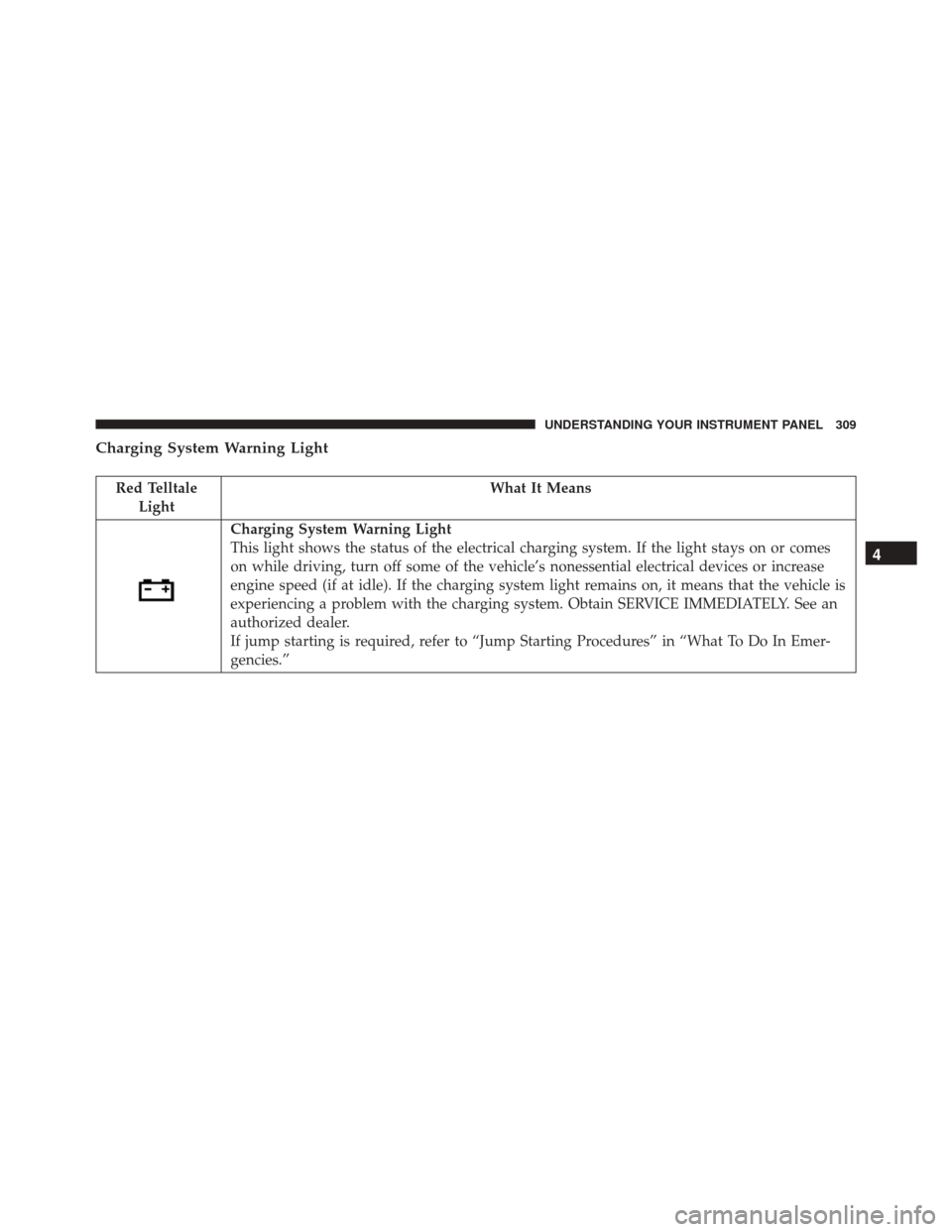

Charging System Warning Light
Red TelltaleLight What It Means
Charging System Warning Light
This light shows the status of the electrical charging system. If the light stays on or comes
on while driving, turn off some of the vehicle’s nonessential electrical devices or increase
engine speed (if at idle). If the charging system light remains on, it means that the vehicle is
experiencing a problem with the charging system. Obtain SERVICE IMMEDIATELY. See an
authorized dealer.
If jump starting is required, refer to “Jump Starting Procedures” in “What To Do In Emer-
gencies.”
4
UNDERSTANDING YOUR INSTRUMENT PANEL 309

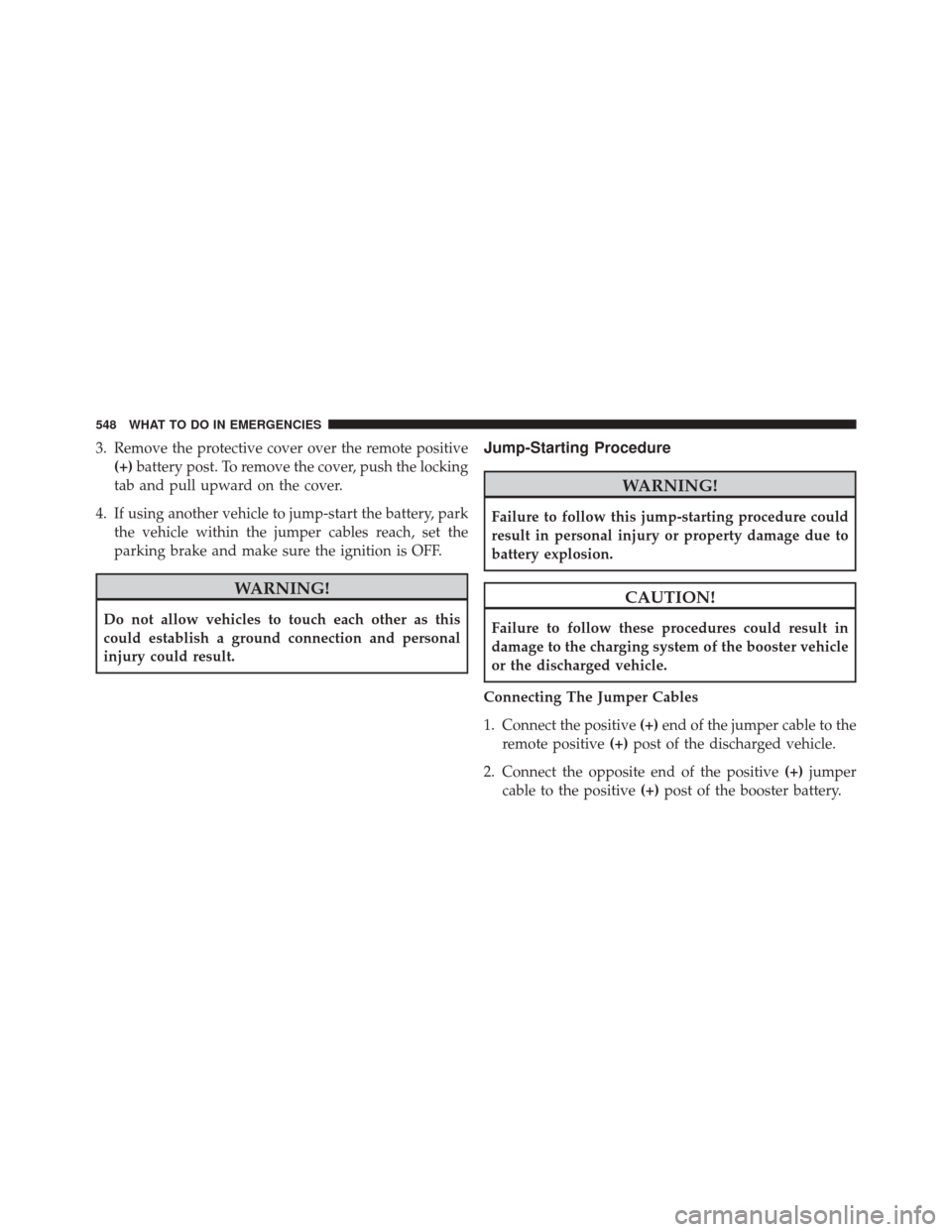

3. Remove the protective cover over the remote positive(+) battery post. To remove the cover, push the locking
tab and pull upward on the cover.
4. If using another vehicle to jump-start the battery, park the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this jump-starting procedure could
result in personal injury or property damage due to
battery explosion.
CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
Connecting The Jumper Cables
1. Connect the positive (+)end of the jumper cable to the
remote positive (+)post of the discharged vehicle.
2. Connect the opposite end of the positive (+)jumper
cable to the positive (+)post of the booster battery.
548 WHAT TO DO IN EMERGENCIES

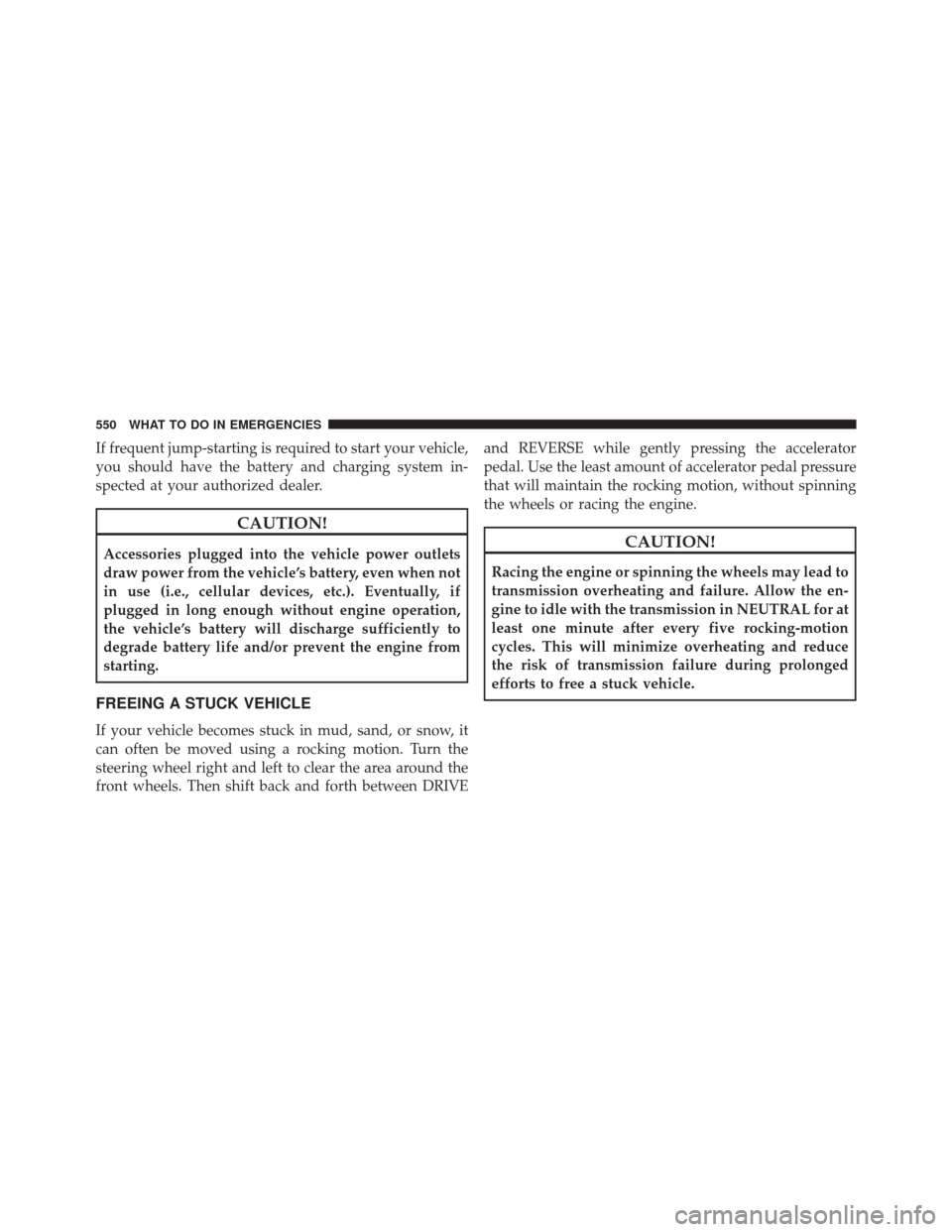

If frequent jump-starting is required to start your vehicle,
you should have the battery and charging system in-
spected at your authorized dealer.
CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular devices, etc.). Eventually, if
plugged in long enough without engine operation,
the vehicle’s battery will discharge sufficiently to
degrade battery life and/or prevent the engine from
starting.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it
can often be moved using a rocking motion. Turn the
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between DRIVEand REVERSE while gently pressing the accelerator
pedal. Use the least amount of accelerator pedal pressure
that will maintain the rocking motion, without spinning
the wheels or racing the engine.
CAUTION!
Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the en-
gine to idle with the transmission in NEUTRAL for at
least one minute after every five rocking-motion
cycles. This will minimize overheating and reduce
the risk of transmission failure during prolonged
efforts to free a stuck vehicle.
550 WHAT TO DO IN EMERGENCIES
