wiper fluid DODGE JOURNEY 2016 1.G Owners Manual
[x] Cancel search | Manufacturer: DODGE, Model Year: 2016, Model line: JOURNEY, Model: DODGE JOURNEY 2016 1.GPages: 664
Page 237 of 664
WARNING!(Continued)
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist Feature
Push the washer knob, located on the end of the multi-
function lever, inward to the first detent to activate a
single wipe cycle to clear the windshield of road mist or
spray from a passing vehicle. The wipers will continue to
operate until you release the lever.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Headlights On With Wipers (Available With
Automatic Headlights Only)
When this feature is active, the headlights will turn on
after the wipers are turned on if the headlight switch is
placed in the AUTO position and programmable feature
is set to ON. In addition, the headlights will turn off
when the wipers are turned off if they were turned on by
this feature.
NOTE: The Headlights On with Wipers feature can be
turned on or off using the Uconnect System. Refer to
“Uconnect Settings/Customer Programmable Features”
in “Understanding Your Instrument Panel” for further
information.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 235

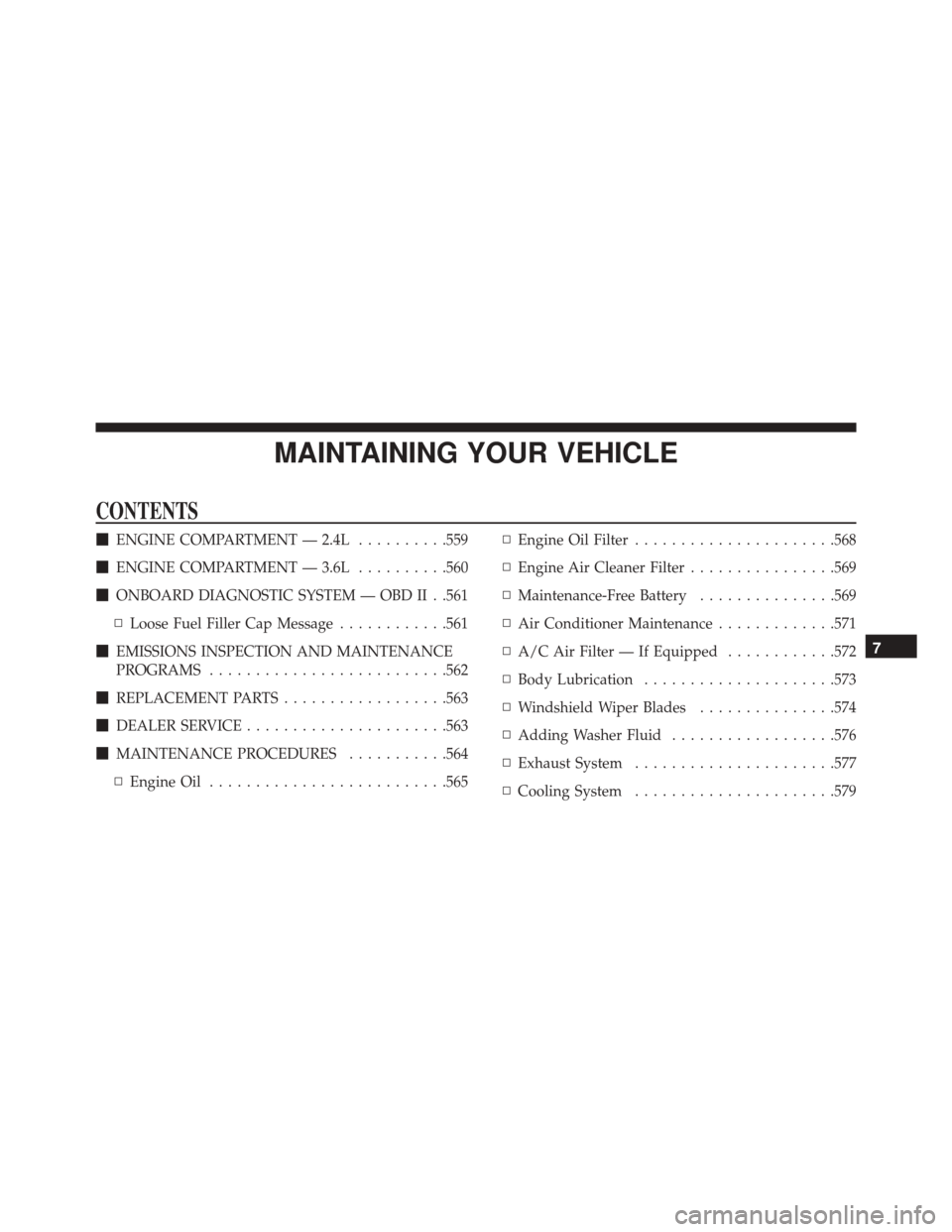

Page 559 of 664
MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 2.4L ..........559
ENGINE COMPARTMENT — 3.6L ..........560
ONBOARD DIAGNOSTIC SYSTEM — OBD II . .561
▫ Loose Fuel Filler Cap Message ............561
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .562
REPLACEMENT PARTS ..................563
DEALER SERVICE ..................... .563
MAINTENANCE PROCEDURES ...........564
▫ Engine Oil ......................... .565▫
Engine Oil Filter ..................... .568
▫ Engine Air Cleaner Filter ................569
▫ Maintenance-Free Battery ...............569
▫ Air Conditioner Maintenance .............571
▫ A/C Air Filter — If Equipped ............572
▫ Body Lubrication .....................573
▫ Windshield Wiper Blades ...............574
▫ Adding Washer Fluid ..................576
▫ Exhaust System ..................... .577
▫ Cooling System ..................... .579
7
Page 576 of 664
such as MOPAR Spray White Lube to assure quiet, easy
operation and to protect against rust and wear. Prior to
the application of any lubricant, the parts concerned
should be wiped clean to remove dust and grit; after
lubricating excess oil and grease should be removed.
Particular attention should also be given to hood latching
components to ensure proper function. When performing
other underhood services, the hood latch, release mecha-
nism and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Rear Wiper Blade Removal/Installation
1. Lift the pivot cap on the rear wiper arm upward, this will allow the rear wiper blade to be raised off of the
liftgate glass.
574 MAINTAINING YOUR VEHICLE

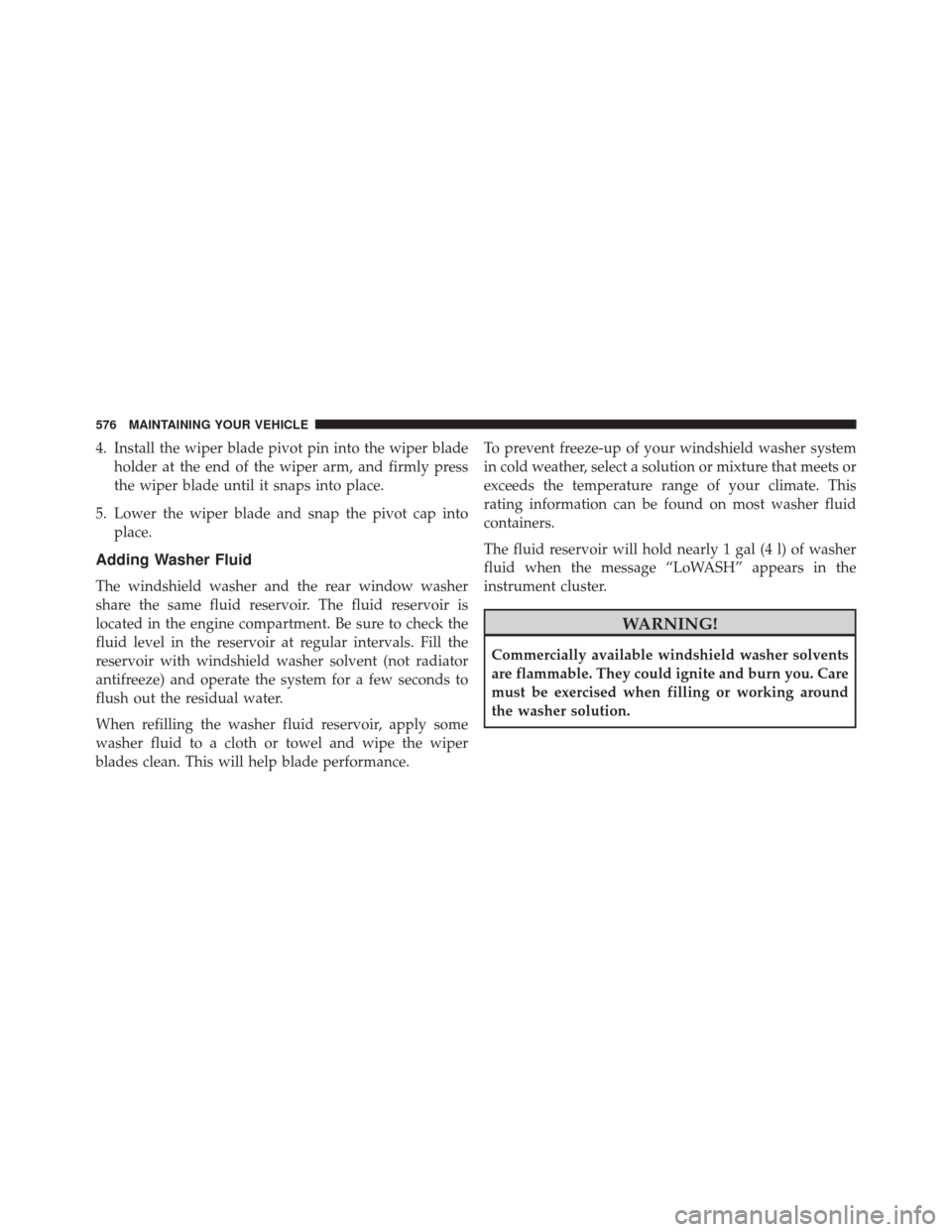

Page 578 of 664
4. Install the wiper blade pivot pin into the wiper bladeholder at the end of the wiper arm, and firmly press
the wiper blade until it snaps into place.
5. Lower the wiper blade and snap the pivot cap into place.
Adding Washer Fluid
The windshield washer and the rear window washer
share the same fluid reservoir. The fluid reservoir is
located in the engine compartment. Be sure to check the
fluid level in the reservoir at regular intervals. Fill the
reservoir with windshield washer solvent (not radiator
antifreeze) and operate the system for a few seconds to
flush out the residual water.
When refilling the washer fluid reservoir, apply some
washer fluid to a cloth or towel and wipe the wiper
blades clean. This will help blade performance. To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
The fluid reservoir will hold nearly 1 gal (4 l) of washer
fluid when the message “LoWASH” appears in the
instrument cluster.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
576 MAINTAINING YOUR VEHICLE

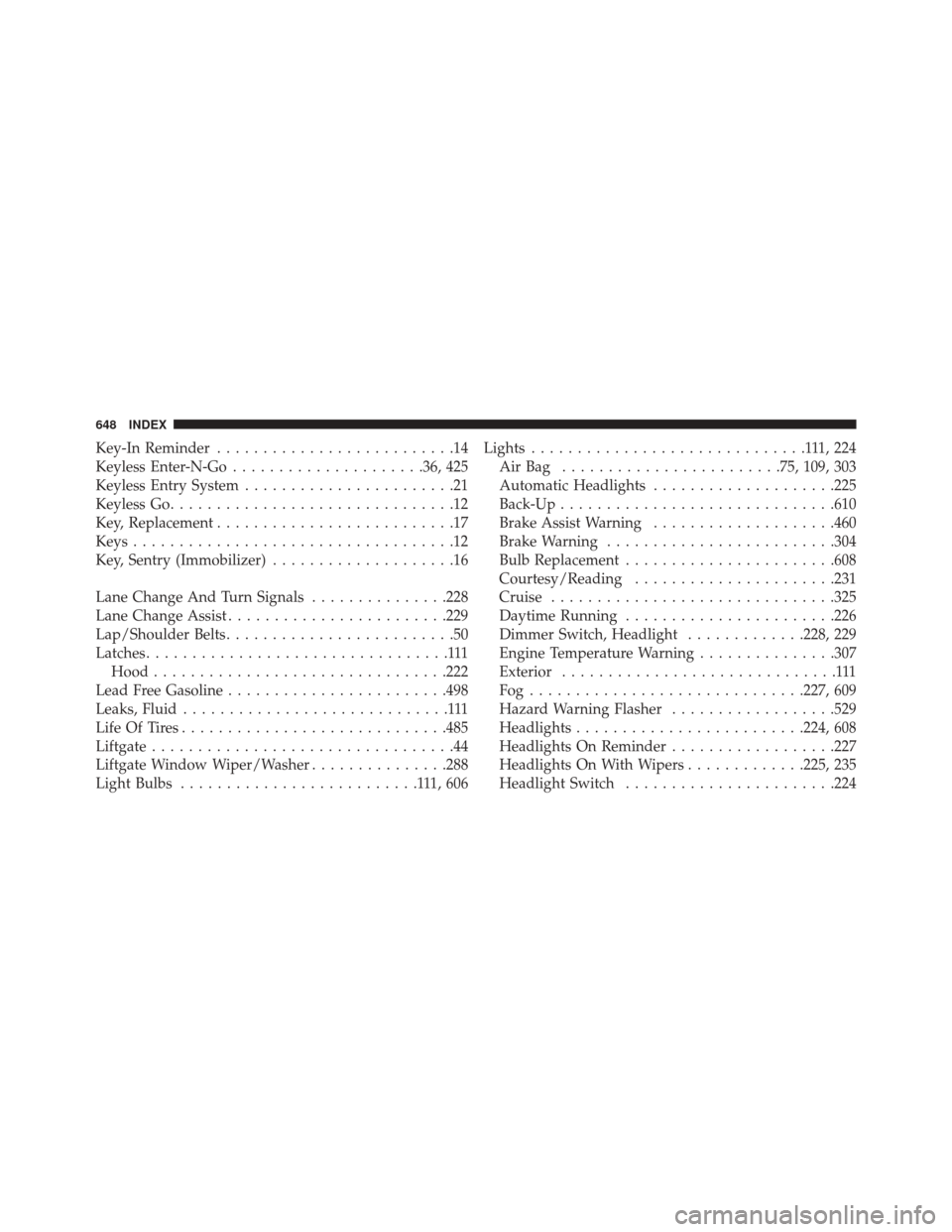

Page 650 of 664
Key-In Reminder..........................14
Keyless Enter-N-Go .....................36, 425
Keyless Entry System .......................21
Keyless Go ...............................12
Key, Replacement ..........................17
Keys ...................................12
Key, Sentry (Immobilizer) ....................16
Lane Change And Turn Signals ...............228
Lane Change Assist ....................... .229
Lap/Shoulder Belts .........................50
Latches .................................111
Hood ............................... .222
Lead Free Gasoline ....................... .498
Leaks, Fluid .............................111
Life Of Tires ............................ .485
Liftgate .................................44
Liftgate Window Wiper/Washer ...............288
Light Bulbs ..........................111,606 Lights
..............................111,224
AirBag ........................75, 109, 303
Automatic Headlights ....................225
Back-Up ............................. .610
Brake Assist Warning ....................460
Brake Warning ........................ .304
Bulb Replacement ...................... .608
Courtesy/Reading ..................... .231
Cruise .............................. .325
Daytime Running ...................... .226
Dimmer Switch, Headlight .............228, 229
Engine Temperature Warning ...............307
Exterior ..............................111
Fog............................. .227, 609
Hazard Warning Flasher ..................529
Headlights ........................ .224, 608
Headlights On Reminder ..................227
Headlights On With Wipers .............225, 235
Headlight Switch ...................... .224
648 INDEX
Page 662 of 664
WaterDriving Through ....................... .442
Wheel And Wheel Trim .....................595
Wheel And Wheel Trim Care .................595
Wind Buffeting ....................... .44, 267
Window Fogging ........................ .417
Windows ................................41
Power ................................41
Wind Buffeting ..........................44
Windshield Defroster ...................... .109Windshield Washers
....................231, 234
Fluid ............................... .576
Windshield Wiper Blades ....................574
Windshield Wipers ....................... .231
Wiper Blade Replacement ...................574
Wiper, Delay ............................ .232
Wiper, Rear ............................ .288
Wipers, Intermittent ...................... .232
Wrecker Towing ......................... .552
660 INDEX
