DODGE JOURNEY 2017 1.G Owners Manual

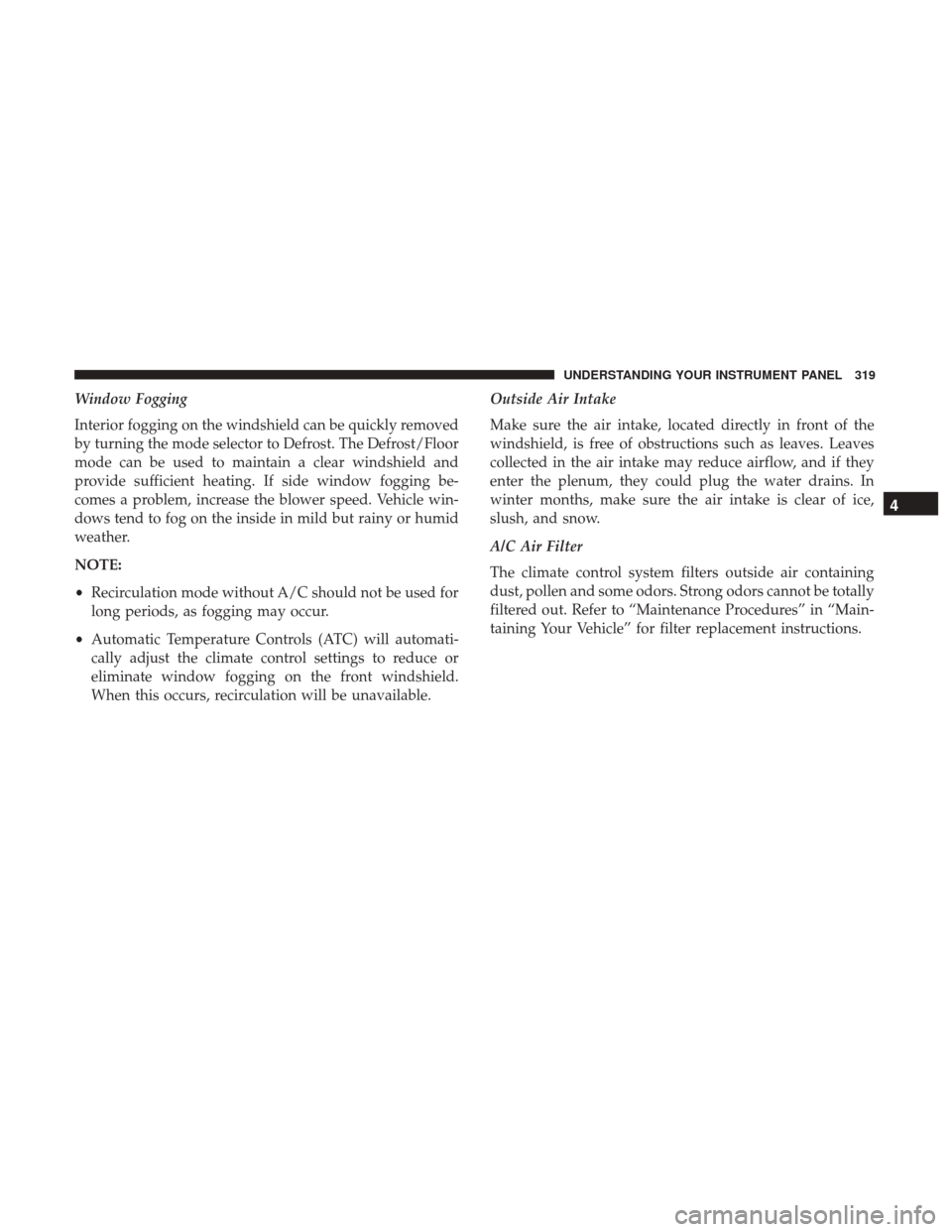

Window Fogging
Interior fogging on the windshield can be quickly removed
by turning the mode selector to Defrost. The Defrost/Floor
mode can be used to maintain a clear windshield and
provide sufficient heating. If side window fogging be-
comes a problem, increase the blower speed. Vehicle win-
dows tend to fog on the inside in mild but rainy or humid
weather.
NOTE:
•Recirculation mode without A/C should not be used for
long periods, as fogging may occur.
• Automatic Temperature Controls (ATC) will automati-
cally adjust the climate control settings to reduce or
eliminate window fogging on the front windshield.
When this occurs, recirculation will be unavailable. Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter
The climate control system filters outside air containing
dust, pollen and some odors. Strong odors cannot be totally
filtered out. Refer to “Maintenance Procedures” in “Main-
taining Your Vehicle” for filter replacement instructions.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 319

Manual Control Setting Suggestions For Various Weather Conditions
320 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES .................325
▫ Automatic Transmission ..................325
▫ Keyless Enter-N-Go — Ignition .............326
▫ Normal Starting ....................... .326
▫ Extreme Cold Weather (Below –22°F Or 30°C) .327
▫ If Engine Fails To Start ..................327
▫ After Starting ......................... .328
 ENGINE BLOCK HEATER — IF EQUIPPED . . . .328
 AUTOMATIC TRANSMISSION ..............329
▫ Ignition Park Interlock ...................330
▫ Brake/Transmission Shift Interlock System . . . .330
▫ Four-Speed Or Six-Speed Automatic
Transmission ......................... .330
▫ Gear Ranges ......................... .331
AUTOSTICK .......................... .336
▫ Operation ........................... .336
 ALL WHEEL DRIVE (AWD) — IF EQUIPPED . . .337
 DRIVING ON SLIPPERY SURFACES ..........337
▫ Acceleration .......................... .337
▫ Traction ............................ .338
 DRIVING THROUGH WATER ..............338
▫ Flowing/Rising Water ...................338
▫ Shallow Standing Water ..................339
 POWER STEERING ..................... .340
▫ Power Steering Fluid Check ...............340
 PARKING BRAKE ...................... .341
 BRAKE SYSTEM ....................... .343
 ELECTRONIC BRAKE CONTROL SYSTEM .....343
5

▫Electronic Brake Force Distribution (EBD) ......344
▫ Brake System Warning Light ...............344
▫ Anti-Lock Brake System (ABS) .............344
▫ Brake Assist System (BAS) ................345
▫ Hill Start Assist (HSA) ...................346
▫ Traction Control System (TCS) .............348
▫ Electronic Stability Control (ESC) ...........348
▫ Electronic Roll Mitigation (ERM) ............352
▫ Trailer Sway Control (TSC) ................352
 TIRE SAFETY INFORMATION ..............353
▫ Tire Markings ........................ .353
▫ Tire Identification Number (TIN) ............356
▫ Tire Terminology And Definitions ...........357
▫ Tire Loading And Tire Pressure ............358
 TIRES — GENERAL INFORMATION .........362
▫ Tire Pressure ......................... .362
▫ Tire Inflation Pressures ..................363 ▫
Tire Pressures For High Speed Operation .....364
▫ Radial Ply Tires ....................... .364
▫ Tire Types ........................... .365
▫ Run Flat Tires — If Equipped ..............366
▫ Spare Tires — If Equipped ................366
▫ Tire Spinning ........................ .369
▫ Tread Wear Indicators ...................369
▫ Life Of Tire .......................... .370
▫ Replacement Tires ..................... .370
 TIRE

CHAINS (TRACTION DEVICES) .........371
 TIRE ROTATION RECOMMENDATIONS ......372
 DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES ..................373
▫ Treadwear ........................... .373
▫ Traction Grades ....................... .373
▫ Temperature Grades .....................374
 TIRE PRESSURE MONITOR SYSTEM (TPMS) . . .374
322 STARTING AND OPERATING

▫Premium System ...................... .376
▫ General Information .....................380
 FUEL REQUIREMENTS ...................380
▫ Reformulated Gasoline ..................380
▫ Gasoline/Oxygenate Blends ...............381
▫ E-85 Usage In Non-Flex Fuel Vehicles .........381
▫ CNG And LP Fuel System Modifications ......382
▫ MMT In Gasoline ...................... .382
▫ Materials Added To Fuel .................382
▫ Fuel System Cautions ....................383
▫ Carbon Monoxide Warnings ...............383
 FLEXIBLE FUEL (3.6L ENGINE ONLY) — IF
EQUIPPED ........................... .384
▫ E-85 General Information .................384
▫ Ethanol Fuel (E-85) ..................... .384
▫ Fuel Requirements .....................384
▫ Selection Of Engine Oil For Flexible Fuel Vehicles
(E-85) And Gasoline Vehicles ..............385▫
Starting ............................ .385
▫ Cruising Range ....................... .385
▫ Replacement Parts ..................... .385
▫ Maintenance ......................... .386
 ADDING FUEL ........................ .386
▫ Fuel Filler Cap (Gas Cap) .................386
▫ Loose Fuel Filler Cap Message .............387
 VEHICLE LOADING .....................387
▫ Vehicle Certification Label ................388
▫ Gr

oss Vehicle Weight Rating (GVWR) ........388
▫ Gross Axle Weight Rating (GAWR) ..........388
▫ Overloading ......................... .388
▫ Loading ............................ .389
 TRAILER TOWING ..................... .389
▫ Common Towing Definitions ...............389
▫ Trailer Hitch Classification ................392
5
STARTING AND OPERATING 323

▫Trailer Towing Weights (Maximum Trailer Weight
Ratings) ............................ .393
▫ Trailer And Tongue Weight ...............394
▫ Towing Requirements ...................395 ▫
Towing Tips ......................... .399
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ....................400
▫ Towing This Vehicle Behind Another Vehicle. . . .400
324 STARTING AND OPERATING

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•Before exiting a vehicle, always shift the automatic
transmission into PARK and apply the parking
brake. Always make sure the keyless ignition node is
in the “OFF” mode, remove the key fob from the
vehicle and lock the vehicle.
•
Never leave children alone in a vehicle, or with access
to an unlocked vehicle. Leaving children in a vehicle
unattended is dangerous for a number of reasons. A
child or others could be seriously or fatally injured.
Children should be warned not to touch the parking
brake, brake pedal or the gear selector.
•Do not leave the key fob in or near the vehicle, or in a
location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-N-Go
in the ACC or ON/RUN mode. A child could operate
power windows, other controls, or move the vehicle.
(Continued)
WARNING! (Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
Automatic Transmission
The gear selector must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.
CAUTION!
Damage to the transmission may occur if the following
precautions are not observed:
• Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above idle
speed.
• Shift into PARK only after the vehicle has come to a
complete stop.
• Shift into or out of REVERSE only after the vehicle
has come to a complete stop and the engine is at idle
speed.
• Before shifting into any gear, make sure your foot is
firmly on the brake pedal.
5
STARTING AND OPERATING 325

Keyless Enter-N-Go — Ignition
This feature allows the driver to operate
the ignition switch with the push of a
button, as long as the Remote Start/
Keyless Enter-N-Go key fob is in the
passenger compartment.
Normal Starting
To Turn On The Engine Using The ENGINE
START/STOP Button
1. The transmission must be in PARK or NEUTRAL.
2. Press and hold the brake pedal while pushing theENGINE START/STOP button once.
3. The system takes over and attempts to start the vehicle. If the vehicle fails to start, the starter will disengage
automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to the engine starting, push the button again.
NOTE: Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
To Turn Off The Engine Using ENGINE
START/STOP Button
1. Place the gear selector in PARK, then push and release the ENGINE START/STOP button.
2. The ignition will return to the OFF position.
3. If the gear selector is not in PARK, the ENGINE START/ STOP button must be held for two seconds or three short
pushes in a row with the vehicle speed above 5 mph
(8 km/h) before the engine will shut off. The ignition
switch position will remain in the ACC position until the
gear selector is in PARK and the button is pushed twice
to the OFF position. If the gear selector is not in PARK
and the ENGINE START/STOP button is pushed once,
the instrument cluster display will display a “Vehicle
Not In Park” message and the engine will remain
running. Never leave a vehicle out of the PARK position,
or it could roll.
4. If the gear selector is in Neutral, push and release the ENGINE START/STOP button with the vehicle speed
below 5 mph (8 km/h) before the engine will shut off.
The ignition will remain in the ACC position.
326 STARTING AND OPERATING

NOTE:If the ignition is left in the ACC or RUN (engine not
running) position and the transmission is in PARK, the
system will automatically time out after 30 minutes of
inactivity and the ignition will switch to the OFF position.
ENGINE START/STOP Button Functions — With
Driver ’s Foot OFF The Brake Pedal (In PARK Or
NEUTRAL Position)
The ENGINE START/STOP button operates similar to an
ignition switch. It has four positions, OFF, ACC, RUN and
START. To change the ignition positions without starting
the vehicle and use the accessories, follow these steps:
• Starting with the ignition in the OFF position.
• Push the ENGINE START/STOP button once to place
the ignition to the ACC position (instrument cluster
display will display “ACC”).
• Push the ENGINE START/STOP button a second time to
place the ignition to the RUN position (instrument
cluster display will display “ON/RUN”).
• Push the ENGINE START/STOP button a third time to
return the ignition to the OFF position (instrument
cluster display will display “OFF”).
Extreme Cold Weather (Below –22°F Or 30°C)
To ensure reliable starting at these temperatures, use of an
externally powered electric engine block heater (available
from your authorized dealer) is recommended.
If Engine Fails To Start
WARNING!
• Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.
• Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle.
• If the vehicle has a discharged battery, booster cables
may be used to obtain a start from a booster battery
or the battery in another vehicle. This type of start
can be dangerous if done improperly. Refer to
“Jump-Starting” in “What To Do In Emergencies” for
further information.
5
STARTING AND OPERATING 327

Clearing A Flooded Engine (Using ENGINE
START/STOP Button)
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weatherprocedures,
it may be flooded. To clear any excess fuel:
1. Press and hold the brake pedal.
2. Press the accelerator pedal all the way to the floor and hold it.
3. Push and release the ENGINE START/STOP button once.
The starter motor will engage automatically, run for 10
seconds, and then disengage. Once this occurs, release the
accelerator pedal and the brake pedal, wait 10 to 15
seconds, then repeat the “Normal Starting” procedure.
After Starting
The idle speed is controlled automatically, and it will
decrease as the engine warms up.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a grounded,
three-wire extension cord.
The engine block heater must be plugged in at least one
hour to have an adequate effect on the engine.
The engine block heater cord is bundled under the hood
between the headlight assembly and the Totally Integrated
Power Module (Fuse Box) on the driver’s side of the
vehicle.
WARNING!
Remember to disconnect the engine block heater cord
before driving. Damage to the 110-115 Volt electrical
cord could cause electrocution.
328 STARTING AND OPERATING
