Buttons On The Touchscreen
Buttons On The Touchscreen are accessible on the
Uconnect system screen.
Automatic Temperature Controls — Buttons On TheFaceplate
Radio 4.3 Automatic 3 — Zone Temperature Controls —Buttons On The Touchscreen
308 UNDERSTANDING YOUR INSTRUMENT PANEL

Button Descriptions (Applies To Both Buttons On The
Faceplate And Buttons On The Touchscreen)
1. MAX A/C Button
Press and release to change the current setting, the indica-
tor illuminates when MAX A/C is ON. Performing this
function again will cause the MAX A/C operation to
switch into manual mode and the MAX A/C indicator will
turn off.2. A/C Button
Press and release to change the current setting, the indica-
tor illuminates when A/C is ON. Performing this function
again will cause the A/C operation to switch into manual
mode and the A/C indicator will turn off.
3. Recirculation Button
Press and release to change the current setting, the indica-
tor illuminates when ON.
4. AUTO Operation Button
Automatically controls the interior cabin temperature by
adjusting airflow distribution and amount. Performing this
function will cause the ATC to switch between manual
mode and automatic modes. Refer to “Automatic Opera-
tion” for more information.
5. Front Defrost Button
Press and release to change the current airflow setting to
Defrost mode. The indicator illuminates when this feature
is ON. Air comes from the windshield and side window
demist outlets. When the defrost button is selected, the
blower level will increase. Use Defrost mode with maxi-
mum temperature settings for best windshield and side
Radio 8.4 Automatic 3 — Zone Temperature Controls —
Buttons On The Touchscreen
4
UNDERSTANDING YOUR INSTRUMENT PANEL 309

setting. Changing the passenger temperature setting while
in Sync will automatically exit this feature. Sync will also
function with the rear climate controls. Changing the rear
climate control temperature setting will automatically exit
this feature.
11. Blower Control
Blower control is used to regulate the amount of air forced
through the climate system. There are seven blower speeds
available. Adjusting the blower will cause automatic mode
to switch to manual operation. The speeds can be selected
using either the blower control knob on the faceplate or the
buttons on the touchscreen as follows:
Blower Control Knob On The Faceplate
The blower speed increases as you turn the blower control
knob clockwise from the lowest blower setting. The blower
speed decreases as you turn the blower control knob
counterclockwise.
Buttons On The Touchscreen
Use the small blower icon to reduce the blower setting and
the large blower icon to increase the blower setting. Blower
can also be selected by pressing the blower bar area
between the icons.12. Modes
The airflow distribution mode can be adjusted so air comes
from the instrument panel outlets, floor outlets and demist
outlets. The Mode settings are as follows:
•Panel Mode
Air comes from the outlets in the instrument
panel. Each of these outlets can be individually
adjusted to direct the flow of air. The air vanes
of the center outlets and outboard outlets can be moved
up and down or side to side to regulate airflow
direction. There is a shut off wheel located below the
air vanes to shut off or adjust the amount of airflow
from these outlets.
• Bi-Level Mode
Air comes from the instrument panel outlets
and floor outlets. A slight amount of air is
directed through the defrost and side window
demister outlets.
NOTE: BI-LEVEL mode is designed under comfort condi-
tions to provide cooler air out of the panel outlets and
warmer air from the floor outlets.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 311

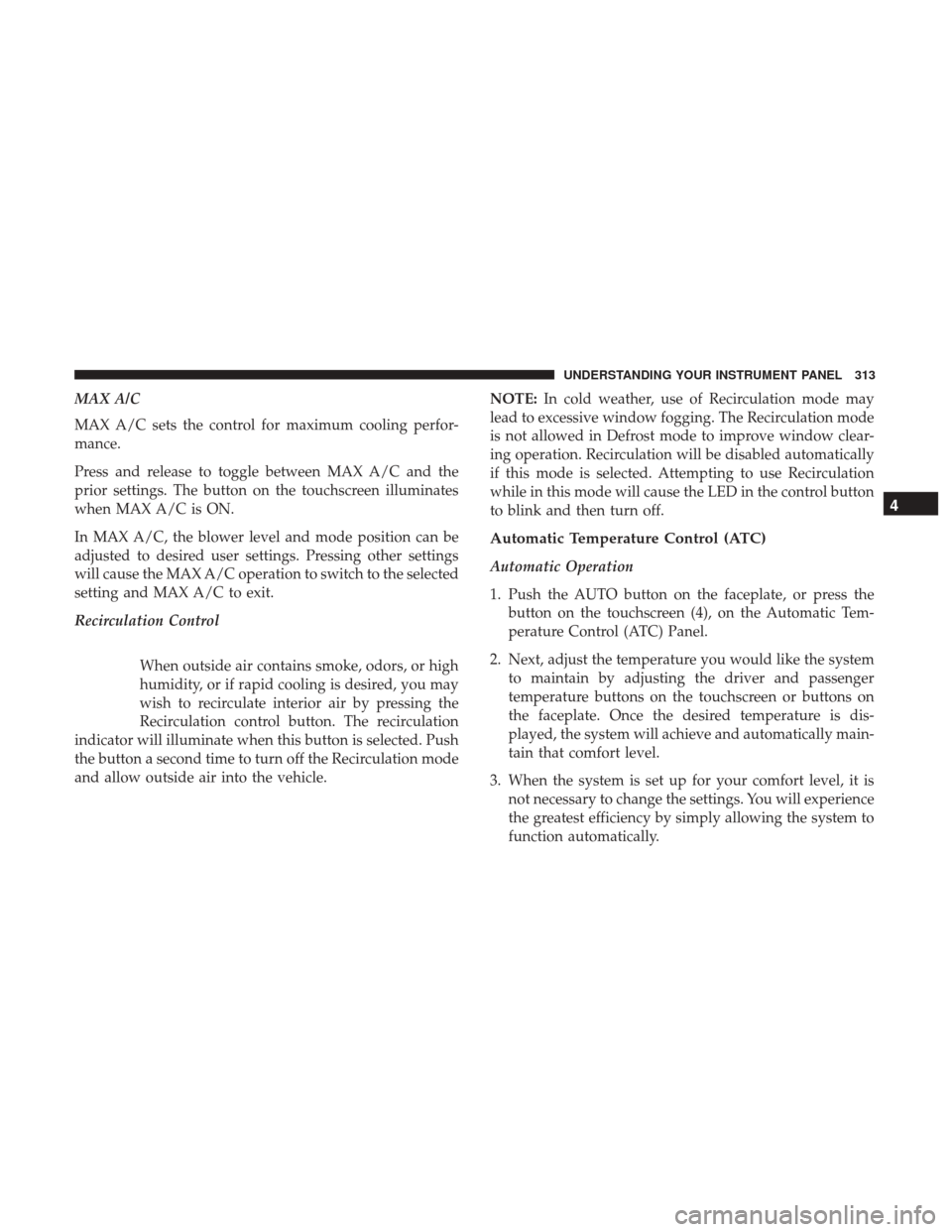

MAX A/C
MAX A/C sets the control for maximum cooling perfor-
mance.
Press and release to toggle between MAX A/C and the
prior settings. The button on the touchscreen illuminates
when MAX A/C is ON.
In MAX A/C, the blower level and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the selected
setting and MAX A/C to exit.
Recirculation ControlWhen outside air contains smoke, odors, or high
humidity, or if rapid cooling is desired, you may
wish to recirculate interior air by pressing the
Recirculation control button. The recirculation
indicator will illuminate when this button is selected. Push
the button a second time to turn off the Recirculation mode
and allow outside air into the vehicle. NOTE:
In cold weather, use of Recirculation mode may
lead to excessive window fogging. The Recirculation mode
is not allowed in Defrost mode to improve window clear-
ing operation. Recirculation will be disabled automatically
if this mode is selected. Attempting to use Recirculation
while in this mode will cause the LED in the control button
to blink and then turn off.
Automatic Temperature Control (ATC)
Automatic Operation
1. Push the AUTO button on the faceplate, or press the button on the touchscreen (4), on the Automatic Tem-
perature Control (ATC) Panel.
2. Next, adjust the temperature you would like the system to maintain by adjusting the driver and passenger
temperature buttons on the touchscreen or buttons on
the faceplate. Once the desired temperature is dis-
played, the system will achieve and automatically main-
tain that comfort level.
3. When the system is set up for your comfort level, it is not necessary to change the settings. You will experience
the greatest efficiency by simply allowing the system to
function automatically.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 313

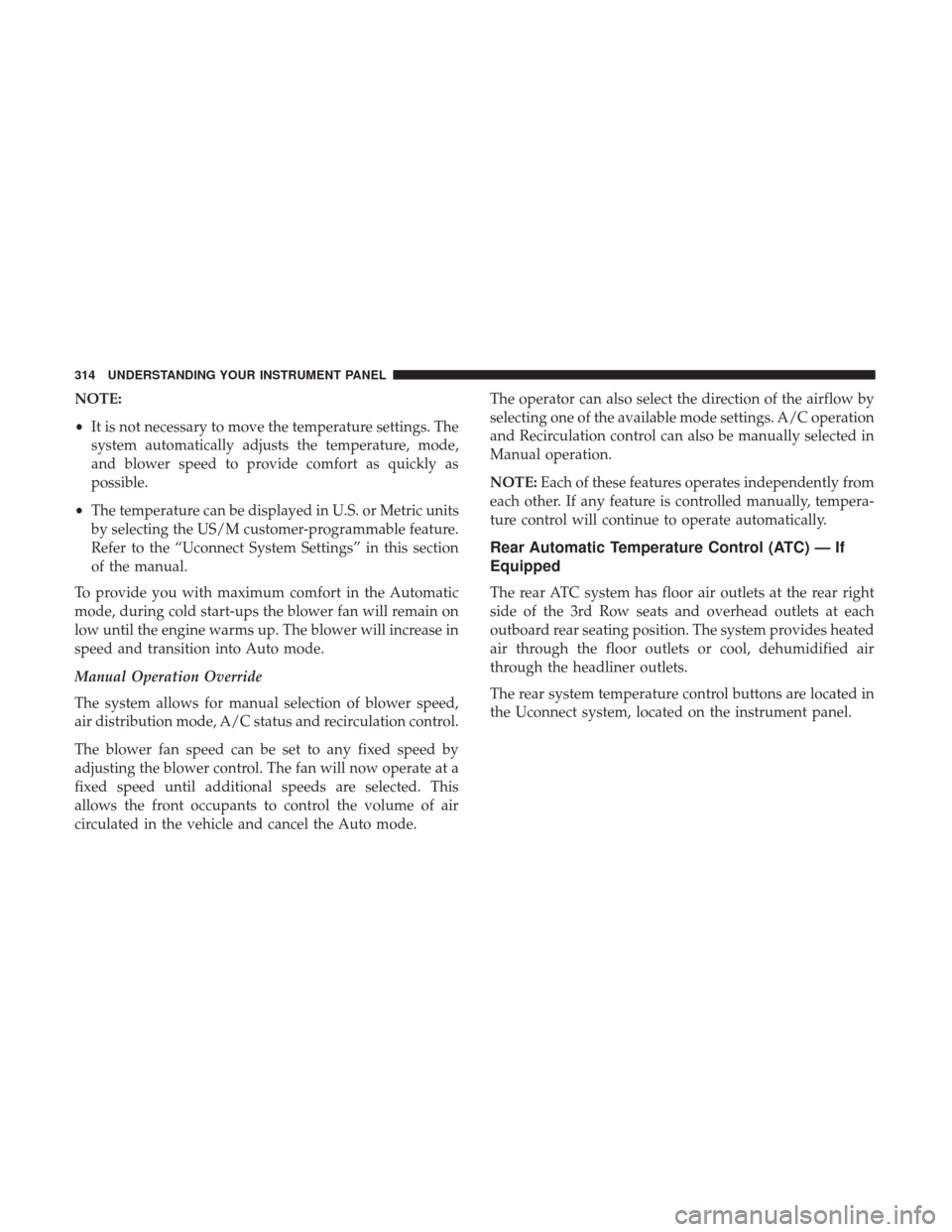

NOTE:
•It is not necessary to move the temperature settings. The
system automatically adjusts the temperature, mode,
and blower speed to provide comfort as quickly as
possible.
• The temperature can be displayed in U.S. or Metric units
by selecting the US/M customer-programmable feature.
Refer to the “Uconnect System Settings” in this section
of the manual.
To provide you with maximum comfort in the Automatic
mode, during cold start-ups the blower fan will remain on
low until the engine warms up. The blower will increase in
speed and transition into Auto mode.
Manual Operation Override
The system allows for manual selection of blower speed,
air distribution mode, A/C status and recirculation control.
The blower fan speed can be set to any fixed speed by
adjusting the blower control. The fan will now operate at a
fixed speed until additional speeds are selected. This
allows the front occupants to control the volume of air
circulated in the vehicle and cancel the Auto mode. The operator can also select the direction of the airflow by
selecting one of the available mode settings. A/C operation
and Recirculation control can also be manually selected in
Manual operation.
NOTE:
Each of these features operates independently from
each other. If any feature is controlled manually, tempera-
ture control will continue to operate automatically.
Rear Automatic Temperature Control (ATC) — If
Equipped
The rear ATC system has floor air outlets at the rear right
side of the 3rd Row seats and overhead outlets at each
outboard rear seating position. The system provides heated
air through the floor outlets or cool, dehumidified air
through the headliner outlets.
The rear system temperature control buttons are located in
the Uconnect system, located on the instrument panel.
314 UNDERSTANDING YOUR INSTRUMENT PANEL

Uconnect 4.3 Automatic Rear Climate Buttons On TheTouchscreen
1 — Blower Up Button 5 — Done Button
2 — Mode Button 6 — Rear Lock Button
3 — Temperature Button 7 — Rear Auto Button
4 — Blower Down Button 8 — Rear Off Button
Uconnect 8.4 Automatic Rear Climate Buttons On The Touchscreen
1 — Rear Auto Button 6 — Blower Up Button
2 — Rear Lock Button 7 — Mode Button
3 — Front Climate Button 8 — Blower Down Button
4 — Temperature Up Button 9 — Rear Off Button
5 — Temperature Down Button
