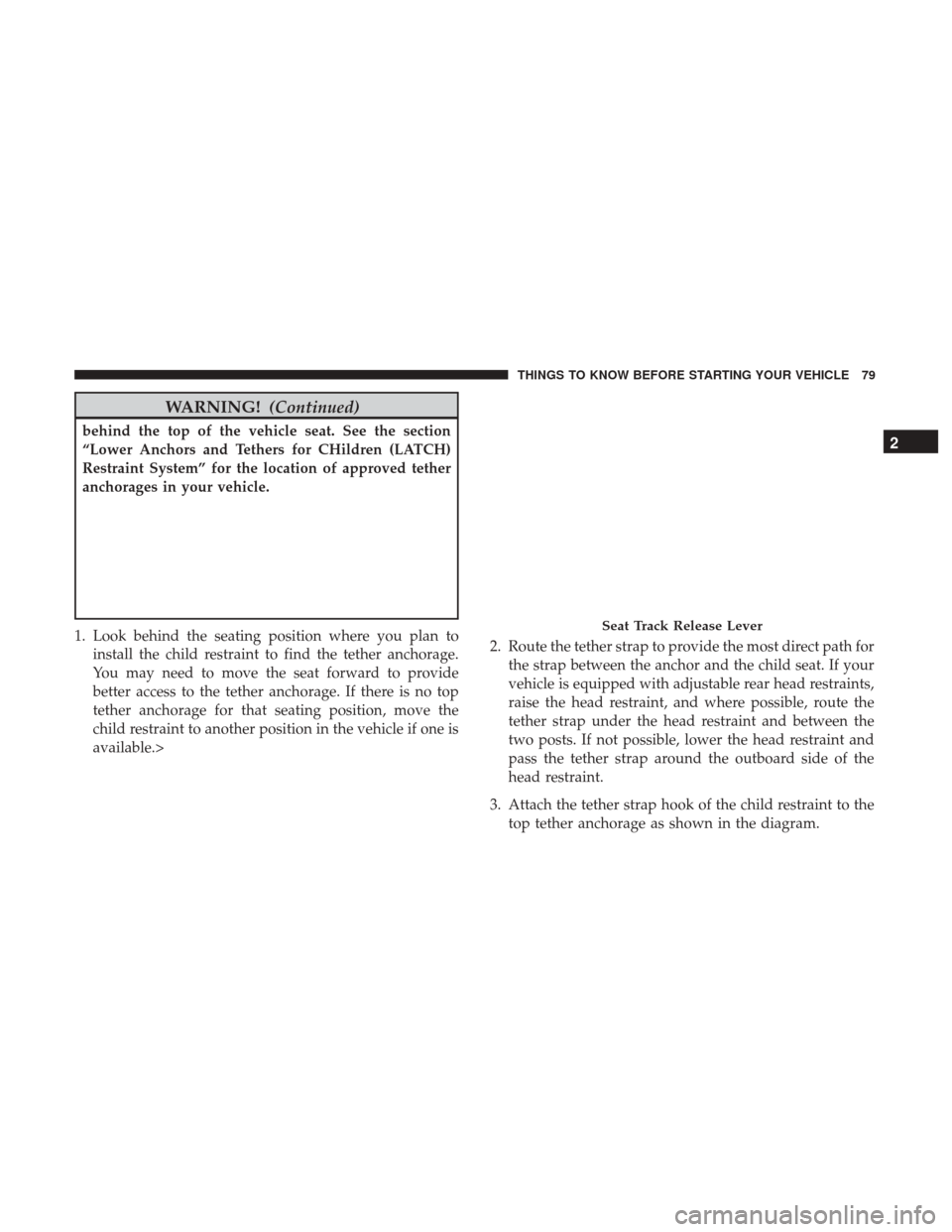

WARNING!(Continued)
behind the top of the vehicle seat. See the section
“Lower Anchors and Tethers for CHildren (LATCH)
Restraint System” for the location of approved tether
anchorages in your vehicle.
1. Look behind the seating position where you plan to
install the child restraint to find the tether anchorage.
You may need to move the seat forward to provide
better access to the tether anchorage. If there is no top
tether anchorage for that seating position, move the
child restraint to another position in the vehicle if one is
available.> 2. Route the tether strap to provide the most direct path for
the strap between the anchor and the child seat. If your
vehicle is equipped with adjustable rear head restraints,
raise the head restraint, and where possible, route the
tether strap under the head restraint and between the
two posts. If not possible, lower the head restraint and
pass the tether strap around the outboard side of the
head restraint.
3. Attach the tether strap hook of the child restraint to the top tether anchorage as shown in the diagram.Seat Track Release Lever
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79

4. Remove slack in the tether strap according to the childrestraint manufacturer ’s instructions.
WARNING!
•An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchorage position directly be-
hind the child seat to secure a child restraint top
tether strap.
(Continued)
WARNING! (Continued)
•If your vehicle is equipped with a split rear seat,
make sure the tether strap does not slip into the
opening between the seatbacks as you remove slack
in the strap.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine and
drivetrain (transmission and axle) in your vehicle.
Drive moderately during the first 300 miles (500 km). After
the initial 60 miles (100 km), speeds up to 50 or 55 mph (80
or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the
limits of local traffic laws contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil changes
should be consistent with anticipated climate conditions
under which vehicle operations will occur. For the recom-
mended viscosity and quality grades, refer to “Mainte-
nance Procedures” in “Maintaining Your Vehicle.”
Rear Seat Tether Strap Mounting (Second Row Captains
Chair Anchorage Shown)
80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

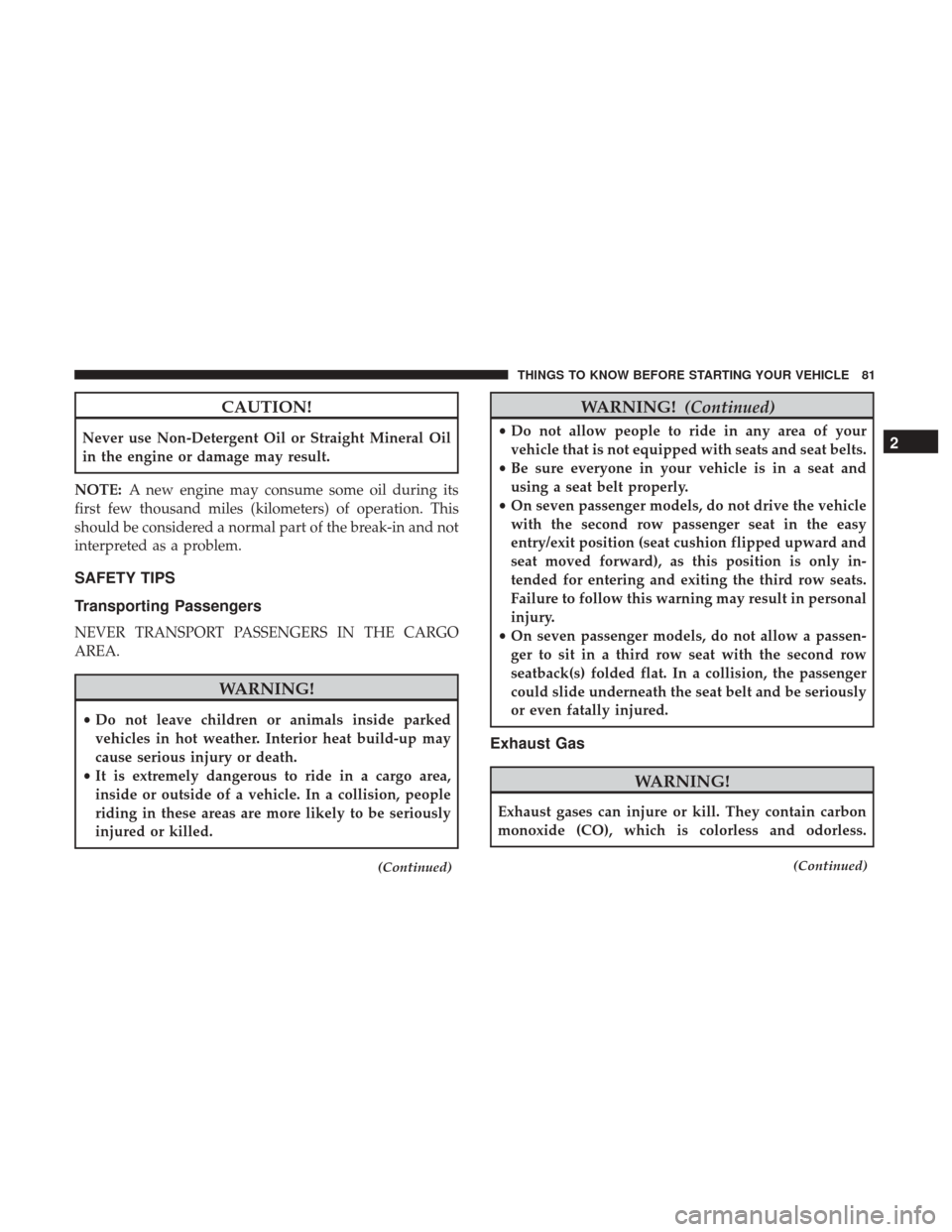

CAUTION!
Never use Non-Detergent Oil or Straight Mineral Oil
in the engine or damage may result.
NOTE: A new engine may consume some oil during its
first few thousand miles (kilometers) of operation. This
should be considered a normal part of the break-in and not
interpreted as a problem.
SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
• It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
(Continued)
WARNING! (Continued)
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
• On seven passenger models, do not drive the vehicle
with the second row passenger seat in the easy
entry/exit position (seat cushion flipped upward and
seat moved forward), as this position is only in-
tended for entering and exiting the third row seats.
Failure to follow this warning may result in personal
injury.
• On seven passenger models, do not allow a passen-
ger to sit in a third row seat with the second row
seatback(s) folded flat. In a collision, the passenger
could slide underneath the seat belt and be seriously
or even fatally injured.
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81

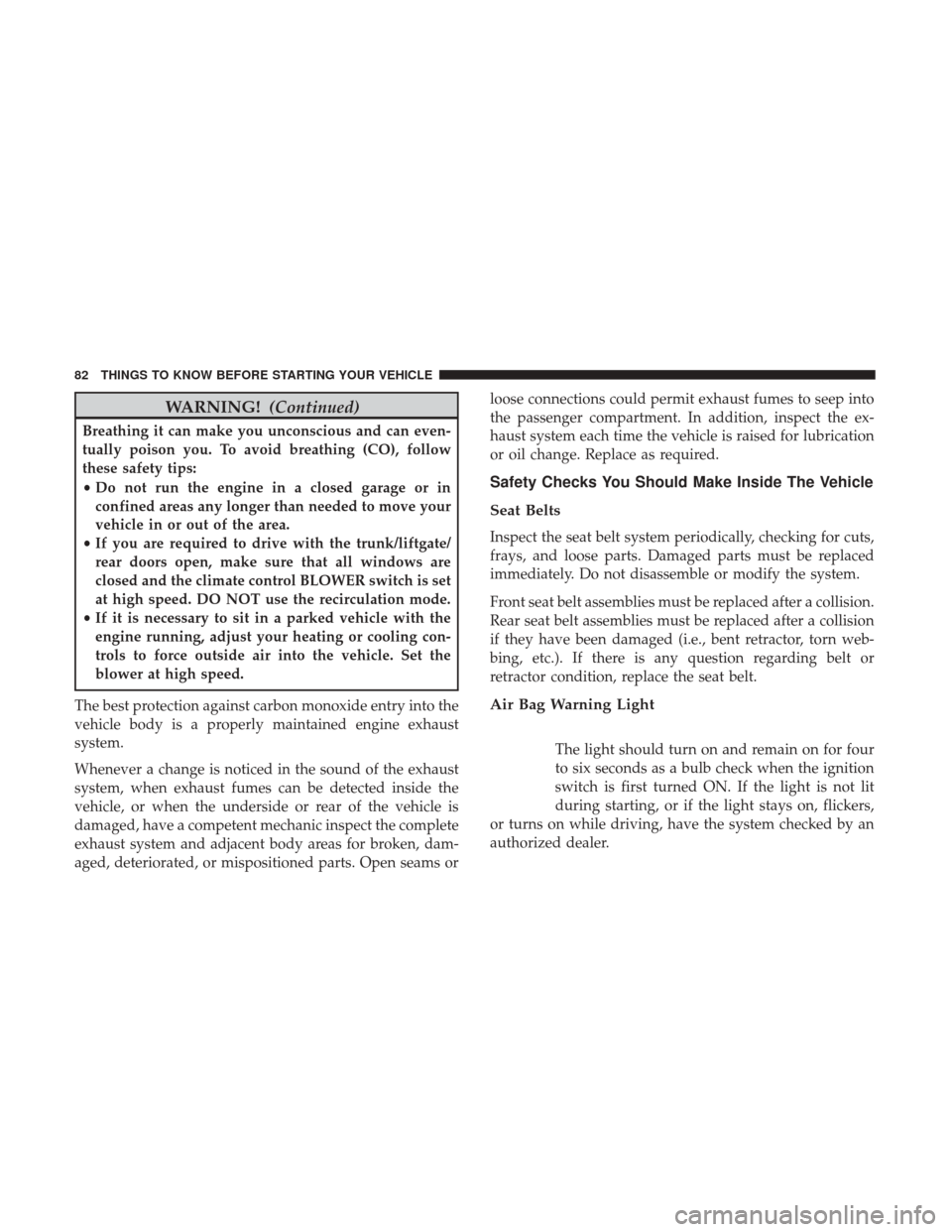

WARNING!(Continued)
Breathing it can make you unconscious and can even-
tually poison you. To avoid breathing (CO), follow
these safety tips:
•Do not run the engine in a closed garage or in
confined areas any longer than needed to move your
vehicle in or out of the area.
• If you are required to drive with the trunk/liftgate/
rear doors open, make sure that all windows are
closed and the climate control BLOWER switch is set
at high speed. DO NOT use the recirculation mode.
• If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling con-
trols to force outside air into the vehicle. Set the
blower at high speed.
The best protection against carbon monoxide entry into the
vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the complete
exhaust system and adjacent body areas for broken, dam-
aged, deteriorated, or mispositioned parts. Open seams or loose connections could permit exhaust fumes to seep into
the passenger compartment. In addition, inspect the ex-
haust system each time the vehicle is raised for lubrication
or oil change. Replace as required.
Safety Checks You Should Make Inside The Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a collision.
Rear seat belt assemblies must be replaced after a collision
if they have been damaged (i.e., bent retractor, torn web-
bing, etc.). If there is any question regarding belt or
retractor condition, replace the seat belt.
Air Bag Warning Light
The light should turn on and remain on for four
to six seconds as a bulb check when the ignition
switch is first turned ON. If the light is not lit
during starting, or if the light stays on, flickers,
or turns on while driving, have the system checked by an
authorized dealer.
82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is inoper-
able.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals or
impair safe operation of your vehicle in other ways.
WARNING!
An improperly attached, damaged, folded, or stacked
floor mat, or damaged floor mat fasteners may cause
your floor mat to interfere with the accelerator, brake,
or clutch pedals and cause a loss of vehicle control. To
prevent SERIOUS INJURY or DEATH:
•ALWAYS securely attach
your floor mat using
the floor mat fasteners. DO NOT install your floor
mat upside down or turn your floor mat over.
(Continued)
WARNING! (Continued)
Lightly pull to confirm mat is secured using the
floor mat fasteners on a regular basis.
•ALWAYS REMOVE THE EXISTING FLOOR MAT
FROM THE VEHICLE
before installing any
other floor mat. NEVER install or stack an addi-
tional floor mat on top of an existing floor mat.
• ONLY install floor mats designed to fit your vehicle.
NEVER install a floor mat that cannot be properly
attached and secured to your vehicle. If a floor mat
needs to be replaced, only use a FCA approved floor
mat for the specific make, model, and year of your
vehicle.
• ONLY use the driver ’s side floor mat on the driver ’s
side floor area. To check for interference, with the
vehicle properly parked with the engine off, fully
depress the accelerator, the brake, and the clutch
pedal (if present) to check for interference. If your
floor mat interferes with the operation of any pedal,
or is not secure to the floor, remove the floor mat
from the vehicle and place the floor mat in your
trunk.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 83

WARNING!(Continued)
•ONLY use the passenger ’s side floor mat on the
passenger ’s side floor area.
• ALWAYS make sure objects cannot fall or slide into
the driver ’s side floor area when the vehicle is
moving. Objects can become trapped under accelera-
tor, brake, or clutch pedals and could cause a loss of
vehicle control.
• NEVER place any objects under the floor mat (e.g.,
towels, keys, etc.). These objects could change the
position of the floor mat and may cause interference
with the accelerator, brake, or clutch pedals.
• If the vehicle carpet has been removed and re-
installed, always properly attach carpet to the floor
and check the floor mat fasteners are secure to the
vehicle carpet. Fully depress each pedal to check for
interference with the accelerator, brake, or clutch
pedals then re-install the floor mats.
• It is recommended to only use mild soap and water
to clean your floor mats. After cleaning, always check
your floor mat has been properly installed and is
secured to your vehicle using the floor mat fasteners
by lightly pulling mat.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires (includ-
ing spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected. The cause
should be located and corrected immediately.
84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

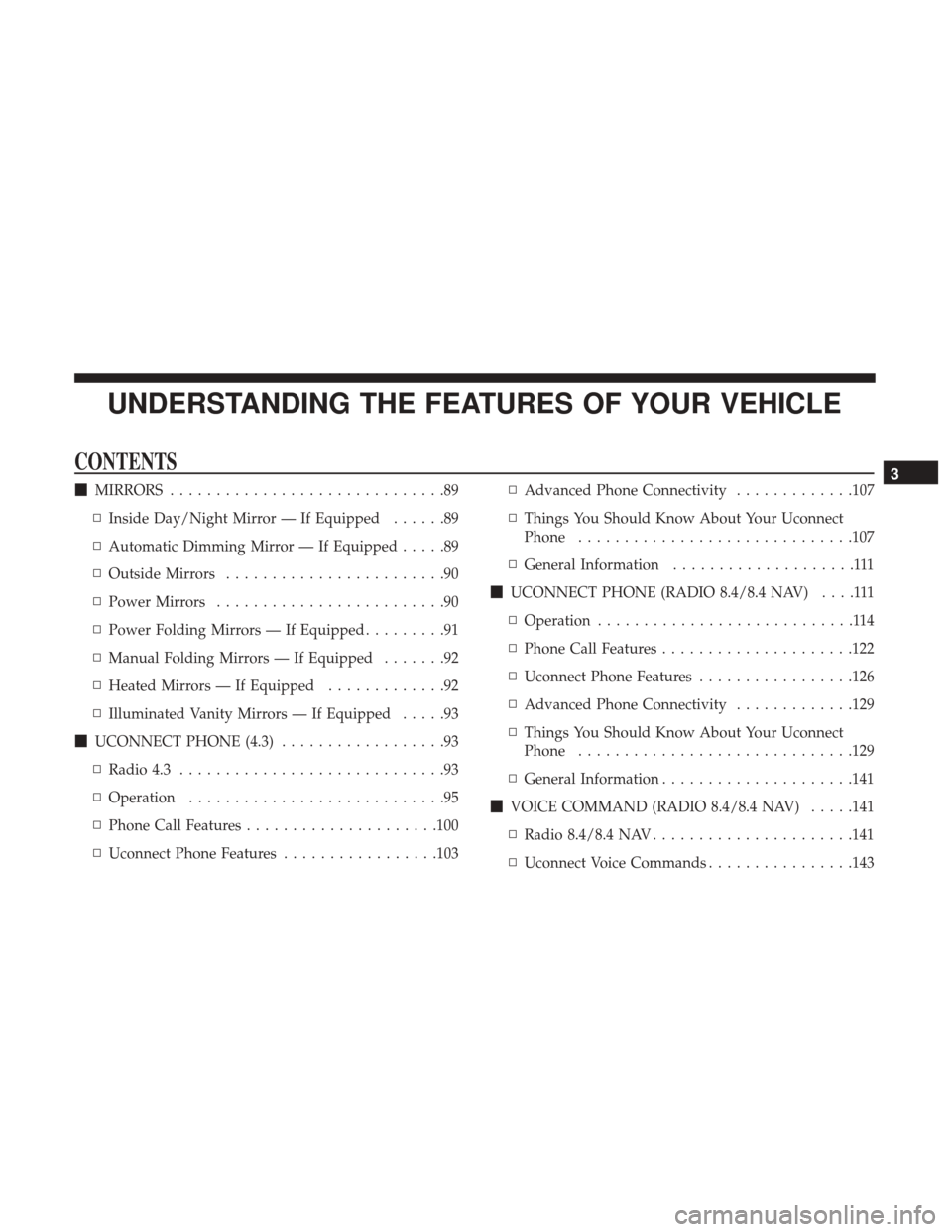

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ..............................89
▫ Inside Day/Night Mirror — If Equipped ......89
▫ Automatic Dimming Mirror — If Equipped .....89
▫ Outside Mirrors ........................90
▫ Power Mirrors .........................90
▫ Power Folding Mirrors — If Equipped .........91
▫ Manual Folding Mirrors — If Equipped .......92
▫ Heated Mirrors — If Equipped .............92
▫ Illuminated Vanity Mirrors — If Equipped .....93
 UCONNECT PHONE (4.3) ..................93
▫ Radio 4.3 .............................93
▫ Operation ............................95
▫ Phone Call Features .....................100
▫ Uconnect Phone Features .................103 ▫
Advanced Phone Connectivity .............107
▫ Things You Should Know About Your Uconnect
Phone ............................. .107
▫ General Information ....................111
 UCONNECT PHONE (RADIO 8.4/8.4 NAV) ....111
▫ Operation ............................114
▫ Phone Call Features .....................122
▫ Uconnect Phone Features .................126
▫ Advanced Phone Connectivity .............129
▫ Things You Should Know About Your Uconnect
Phone ............................. .129
▫ General Information .....................141
 VOICE COMMAND (RADIO 8.4/8.4 NAV) .....141
▫ Radio 8.4/8.4 NAV ..................... .141
▫ Uconnect Voice Commands ................1433

SEATS............................... .149
▫ Driver’s Power Seat — If Equipped .........149
▫ Power Lumbar — If Equipped ..............150
▫ Front Heated Seats — If Equipped ..........151
▫ Manual Front Seat Adjustments .............152
▫ Recliner Adjustment ....................153
▫ Driver’s Seat Height Adjustment — If
Equipped ........................... .154
▫ Fold-Flat Front Passenger Seat — If Equipped . .154
▫ Head Restraints ...................... .155
▫ Third Row Passenger Seats — Seven Passenger
Models ............................. .159
▫ 60/40 Split Second-Row Passenger Seats ......159
▫ 50/50 Split Third-Row Passenger Seats With
Fold-Flat Feature — Seven Passenger Models . . .164
 TO OPEN AND CLOSE THE HOOD ..........166
 LIGHTS ............................. .168
▫ Headlight Switch ..................... .168▫
Automatic Headlights ...................168
▫ Headlights On With Wipers ...............169
▫ Headlight Time Delay ...................169
▫ Daytime Running Lights (DRL) ............170
▫ Lights-On Reminder ....................170
▫ Fog Lights — If Equipped ................170
▫ Multifunction Lever ....................171
▫ Turn Signals ......................... .171
▫ Lane Change Assist .....................171
▫ High/Low Beam Switch .................171
▫ Flash-To-Pass ........................ .172
▫ Interior

Lights ........................ .172
▫ Map/Reading Lights ....................172
 WINDSHIELD WIPERS AND WASHERS .......172
▫ Intermittent Wiper System ................172
▫ Windshield Wiper Operation ...............173
▫ Windshield Washers ....................174
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Mist Feature ......................... .175
▫ Headlights On With Wipers ...............175
 TILT/TELESCOPING STEERING COLUMN .....175
 HEATED STEERING WHEEL — IF EQUIPPED . .176
 ELECTRONIC SPEED CONTROL — IF
EQUIPPED ........................... .177
▫ To Activate .......................... .178
▫ To Set A Desired Speed ...................178
▫ To Deactivate ........................ .178
▫ To Resume Speed ..................... .178
▫ To Vary The Speed Setting ................178
▫ To Accelerate For Passing .................180
 PARKSENSE REAR PARK ASSIST — IF
EQUIPPED ........................... .180
▫ ParkSense Sensors ..................... .181
▫ ParkSense Warning Display ................181
▫ ParkSense Display ..................... .181
▫ Enabling And Disabling ParkSense ..........184▫
Service The ParkSense Rear Park Assist System. .184
▫ Cleaning The ParkSense System .............185
▫ ParkSense System Usage Precautions .........185
 PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED ........................... .187
 OVERHEAD CONSOLE ...................188
▫ Courtesy/Reading Lights .................188
▫ Sunglasses Storage .....................189
▫ Interior Observation Mirror ...............189
▫ Power Sunroof Switch — If Equipped ........190
 GARAGE DOOR OPENER — IF EQUIPPED . . . .190
▫ Befor

e You Begin Programming HomeLink .....191
▫ Programming A Rolling Code ..............191
▫ Programming A Non-Rolling Code ..........193
▫ Canadian/Gate Operator Programming .......194
▫ Using HomeLink ...................... .195
▫ Security ............................. .195
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

▫Troubleshooting Tips ....................195
▫ General Information .....................196
 POWER SUNROOF — IF EQUIPPED .........197
▫ Opening Sunroof — Express ...............197
▫ Opening Sunroof — Manual Mode ..........198
▫ Closing Sunroof — Express ................198
▫ Closing Sunroof — Manual Mode ...........198
▫ Pinch Protect Feature ....................198
▫ Venting Sunroof — Express ................198
▫ Sunshade Operation .....................198
▫ Wind Buffeting ....................... .199
▫ Sunroof Maintenance ....................199
▫ Ignition Off Operation ...................199
 POWER OUTLETS ...................... .199
 POWER INVERTER — IF EQUIPPED .........203
▫ Power Inverter Operation .................204
 CUPHOLDERS ........................ .204
STORAGE ............................ .206
▫ Glove Compartment .....................206
▫ Floor Console Storage ...................206
▫ Center Console Storage ...................207
▫ Flip ’n Stow Front Passenger Seat Storage — If
Equipped ........................... .209
▫ Second-Row Map Pocket And Grocery Retainers —
If Equipped .......................... .209
▫ In-Floor Storage Bin With Removable Liner . . . .210
 CARGO AREA FEATURES .................210
▫ Car
go Management System ...............210
 REAR WINDOW FEATURES ...............214
▫ Rear Window Wiper/Washer ..............214
▫ Rear Window Defroster ..................215
 ROOF LUGGAGE RACK — IF EQUIPPED ......216
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
