USB port DODGE JOURNEY 2017 1.G Owners Manual

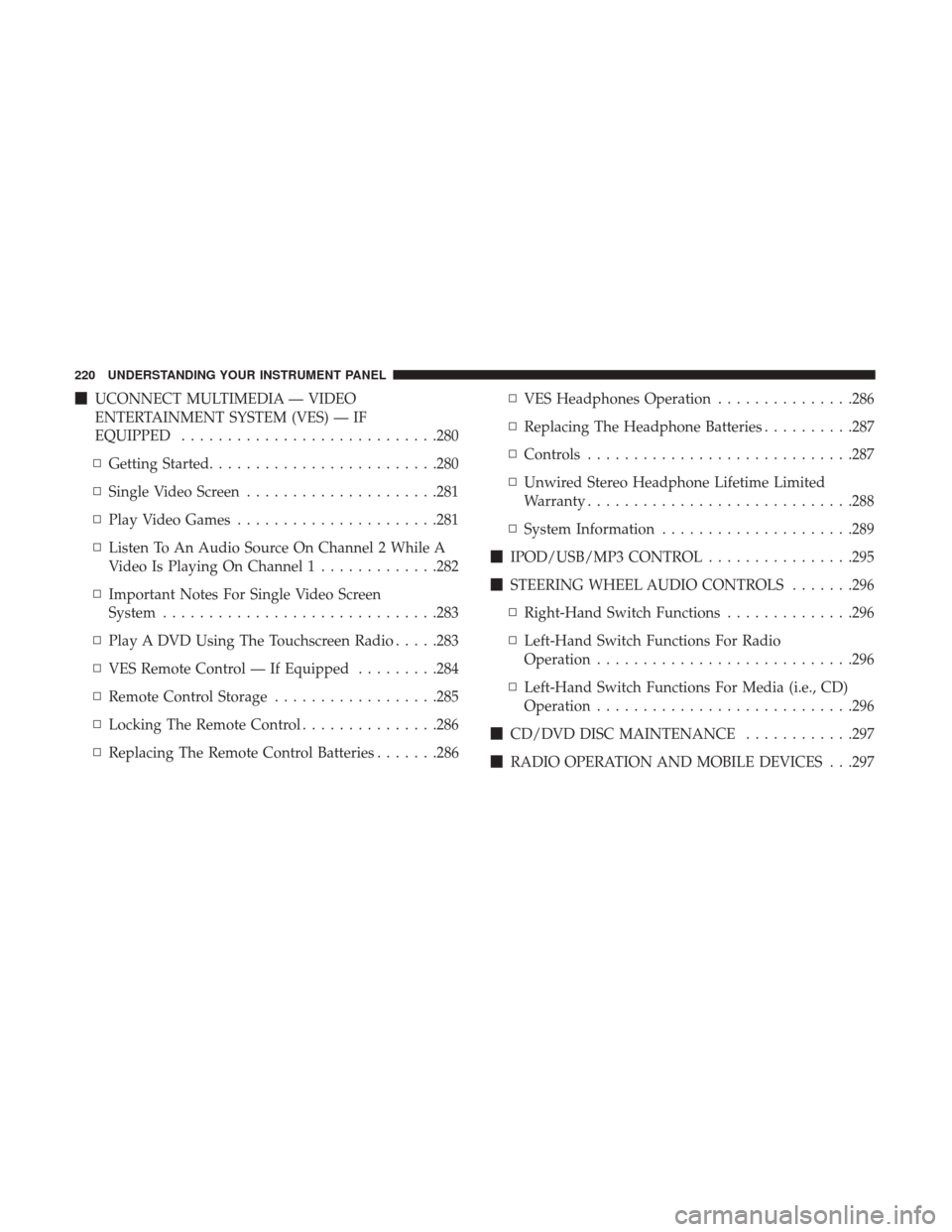

UCONNECT MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES) — IF
EQUIPPED ........................... .280
▫ Getting Started ........................ .280
▫ Single Video Screen .....................281
▫ Play Video Games ..................... .281
▫ Listen To An Audio Source On Channel 2 While A
Video Is Playing On Channel 1 .............282
▫ Important Notes For Single Video Screen
System ............................. .283
▫ Play A DVD Using The Touchscreen Radio .....283
▫ VES Remote Control — If Equipped .........284
▫ Remote Control Storage ..................285
▫ Locking The Remote Control ...............286
▫ Replacing The Remote Control Batteries .......286▫
VES Headphones Operation ...............286
▫ Replacing The Headphone Batteries ..........287
▫ Controls ............................ .287
▫ Unwired Stereo Headphone Lifetime Limited
Warranty ............................ .288
▫ System Information .....................289
 IPOD/USB/MP3 CONTROL ................295
 STEERING WHEEL AUDIO CONTROLS .......296
▫ Right-Hand Switch Functions ..............296
▫ Left-Hand Switch Functions For Radio
Operation ........................... .296
▫ Left-Hand Switch Functions For Media (i.e., CD)
Operation ........................... .296
 CD/DVD DISC MAINTENANCE ............297
 RADIO OPERATION AND MOBILE DEVICES . . .297
220 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 — Side Window Demist Outlet6 — Switch Bank11 — Engine Start/Stop Button
2 — Air Outlet 7 — Uconnect Hard Controls12 — Hood Release Lever
3 — Instrument Cluster 8 — SD Memory Card Slot13 — Dimmer Controls
4 — Uconnect System 9 — Power Outlet14 — Headlight Switch
5 — Glove Compartment 10 — CD/DVD Slot15 — USB/AUX Port
222 UNDERSTANDING YOUR INSTRUMENT PANEL

•Turning on all possible vehicle electrical loads (e.g.
HVAC to max settings, exterior and interior lights,
overloaded power outlets +12V, 115V AC, USB ports)
during certain driving conditions (city driving, towing,
frequent stopping).
• Installing options like additional lights, upfitter electri-
cal accessories, audio systems, alarms and similar de-
vices.
• Unusual driving cycles (short trips separated by long
parking periods).
• The vehicle was parked for an extended period of time
(weeks, months).
• The battery was recently replaced and was not charged
completely.
• The battery was discharged by an electrical load left on
when the vehicle was parked.
• The battery was used for an extended period with the
engine not running to supply radio, lights, chargers,
+12V portable appliances like vacuum cleaner ’s, game
consoles and similar devices. What to do when an electrical load reduction action
message is present (“Battery Saver On” or “Battery Saver
Mode”)
During a trip:
•
Reduce power to unnecessary loads if possible:
– Turn off redundant lights (interior or exterior)
– Check what may be plugged in to power outlets +12V, 115V AC, USB ports
– Check HVAC settings (blower, temperature)
– Check the audio settings (volume)
After a trip:
• Check if any aftermarket equipment was installed (ad-
ditional lights, upfitter electrical accessories, audio sys-
tems, alarms) and review specifications if any (load and
Ignition Off Draw currents).
• Evaluate the latest driving cycles (distance, driving time
and parking time).
• The vehicle should have service performed if the mes-
sage is still present during consecutive trips and the
evaluation of the vehicle and driving pattern did not
help to identify the cause.
250 UNDERSTANDING YOUR INSTRUMENT PANEL

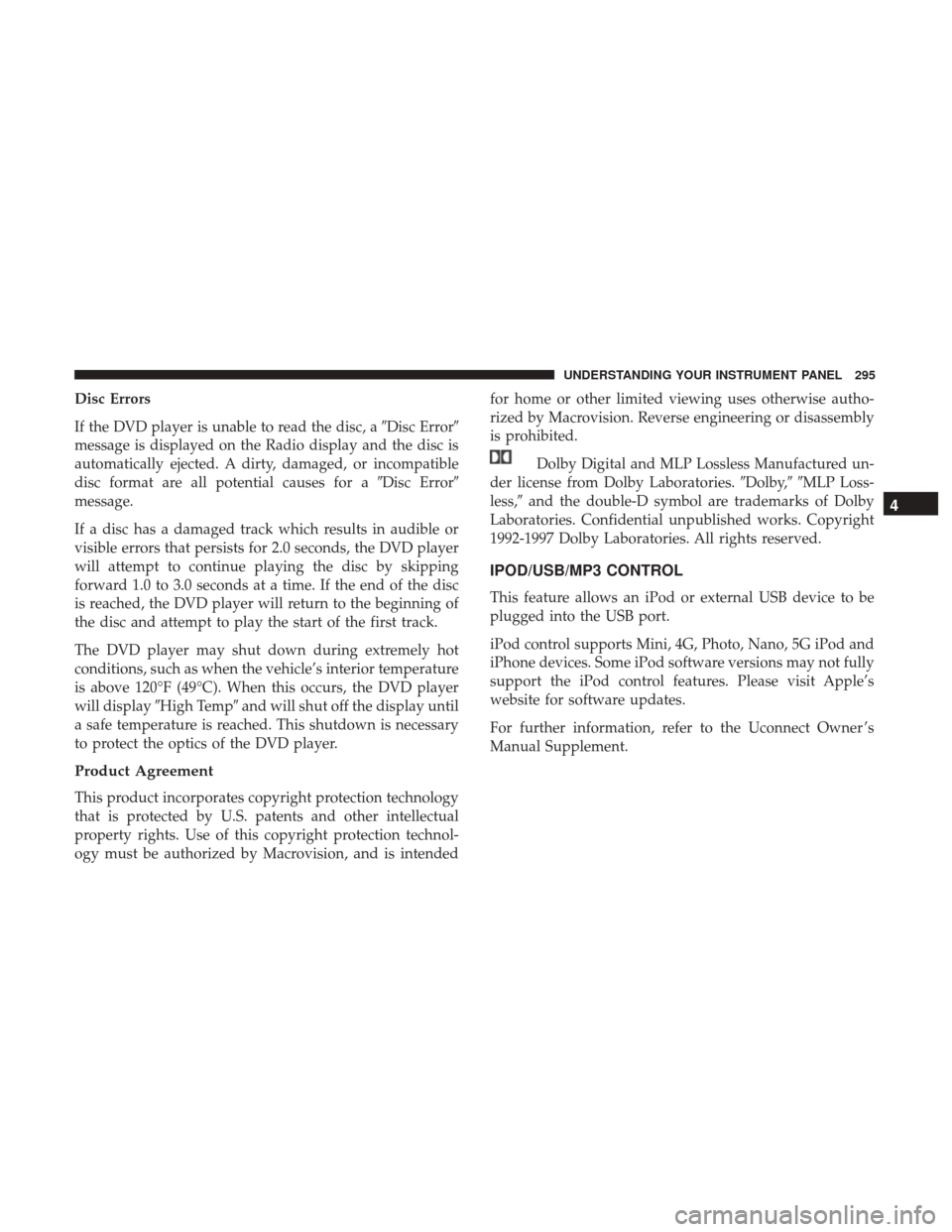

Disc Errors
If the DVD player is unable to read the disc, aDisc Error
message is displayed on the Radio display and the disc is
automatically ejected. A dirty, damaged, or incompatible
disc format are all potential causes for a Disc Error
message.
If a disc has a damaged track which results in audible or
visible errors that persists for 2.0 seconds, the DVD player
will attempt to continue playing the disc by skipping
forward 1.0 to 3.0 seconds at a time. If the end of the disc
is reached, the DVD player will return to the beginning of
the disc and attempt to play the start of the first track.
The DVD player may shut down during extremely hot
conditions, such as when the vehicle’s interior temperature
is above 120°F (49°C). When this occurs, the DVD player
will display High Temp and will shut off the display until
a safe temperature is reached. This shutdown is necessary
to protect the optics of the DVD player.
Product Agreement
This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual
property rights. Use of this copyright protection technol-
ogy must be authorized by Macrovision, and is intended for home or other limited viewing uses otherwise autho-
rized by Macrovision. Reverse engineering or disassembly
is prohibited.
Dolby Digital and MLP Lossless Manufactured un-
der license from Dolby Laboratories. Dolby,MLP Loss-
less, and the double-D symbol are trademarks of Dolby
Laboratories. Confidential unpublished works. Copyright
1992-1997 Dolby Laboratories. All rights reserved.
IPOD/USB/MP3 CONTROL
This feature allows an iPod or external USB device to be
plugged into the USB port.
iPod control supports Mini, 4G, Photo, Nano, 5G iPod and
iPhone devices. Some iPod software versions may not fully
support the iPod control features. Please visit Apple’s
website for software updates.
For further information, refer to the Uconnect Owner ’s
Manual Supplement.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 295
