Page 88 of 510
SEATS............................... .149
▫ Driver’s Power Seat — If Equipped .........149
▫ Power Lumbar — If Equipped ..............150
▫ Front Heated Seats — If Equipped ..........151
▫ Manual Front Seat Adjustments .............152
▫ Recliner Adjustment ....................153
▫ Driver’s Seat Height Adjustment — If
Equipped ........................... .154
▫ Fold-Flat Front Passenger Seat — If Equipped . .154
▫ Head Restraints ...................... .155
▫ Third Row Passenger Seats — Seven Passenger
Models ............................. .159
▫ 60/40 Split Second-Row Passenger Seats ......159
▫ 50/50 Split Third-Row Passenger Seats With
Fold-Flat Feature — Seven Passenger Models . . .164
TO OPEN AND CLOSE THE HOOD ..........166
LIGHTS ............................. .168
▫ Headlight Switch ..................... .168▫
Automatic Headlights ...................168
▫ Headlights On With Wipers ...............169
▫ Headlight Time Delay ...................169
▫ Daytime Running Lights (DRL) ............170
▫ Lights-On Reminder ....................170
▫ Fog Lights — If Equipped ................170
▫ Multifunction Lever ....................171
▫ Turn Signals ......................... .171
▫ Lane Change Assist .....................171
▫ High/Low Beam Switch .................171
▫ Flash-To-Pass ........................ .172
▫ Interior
Lights ........................ .172
▫ Map/Reading Lights ....................172
WINDSHIELD WIPERS AND WASHERS .......172
▫ Intermittent Wiper System ................172
▫ Windshield Wiper Operation ...............173
▫ Windshield Washers ....................174
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 170 of 510
CAUTION!
To prevent possible damage:
•Before closing hood, make sure the hood prop rod is
fully seated into its storage retaining clips.
• Do not slam the hood to close it. Use a firm down-
ward push at the center front edge of the hood to
ensure that both latches engage. Never drive your
vehicle unless the hood is fully closed, with both
latches engaged.
LIGHTS
Headlight Switch
The headlight switch is located on the left side of the
instrument panel. This switch controls the operation of the
headlights, parking lights, instrument panel lights, instru-
ment panel light dimming, interior lights and fog lights. Rotate the headlight switch clockwise to the first detent for
parking lights and instrument panel light operation. Rotate
the headlight switch to the second detent for headlight,
parking light and instrument panel light operation.
Automatic Headlights
This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch counterclockwise to the AUTO
position. When the system is on, the headlight time delay
feature is also on. This means the headlights will stay on
for up to 90 seconds after you place the ignition into the
Headlight Switch
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 172 of 510
Daytime Running Lights (DRL)
The Daytime Running Lights will turn ON the first time
the vehicle is shifted out of PARK, and remain ON unless
the parking brake is applied. Upon returning to the PARK
position, the DRLs will turn OFF. DRLs will turn OFF when
the ignition is switched OFF.
NOTE:The daytime running lights can be turned on and
off using the Uconnect System, refer to “Uconnect Settings
— Customer Programmable Features” in “Understanding
Your Instrument Panel” for further information.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is placed in the OFF position, a chime will sound to alert
the driver when the driver’s door is opened.
Fog Lights — If Equipped
The front fog light switch is built into the headlight switch. To activate the front fog lights, turn on the parking
lights or the low beam headlights and push the
headlight switch. To turn off the front fog lights, either
push the headlight switch a second time or turn off the
headlight switch.
An indicator light in the instrument cluster illuminates
when the fog lights are turned on.
NOTE: The fog lights will operate when the low beam
headlights or parking lights are on. However, selecting the
high beam headlights will turn off the fog lights.
Fog Light Switch
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 242 of 510
Green Telltale Indicator Lights
Park/Headlight ON Indicator Light
Green TelltaleLight What It Means
Park/Headlight ON Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
Front Fog Indicator Light — If Equipped
Green Telltale
Light What It Means
Front Fog Indicator Light — If Equipped
This indicator will illuminate when the front fog lights are on.
240 UNDERSTANDING YOUR INSTRUMENT PANEL

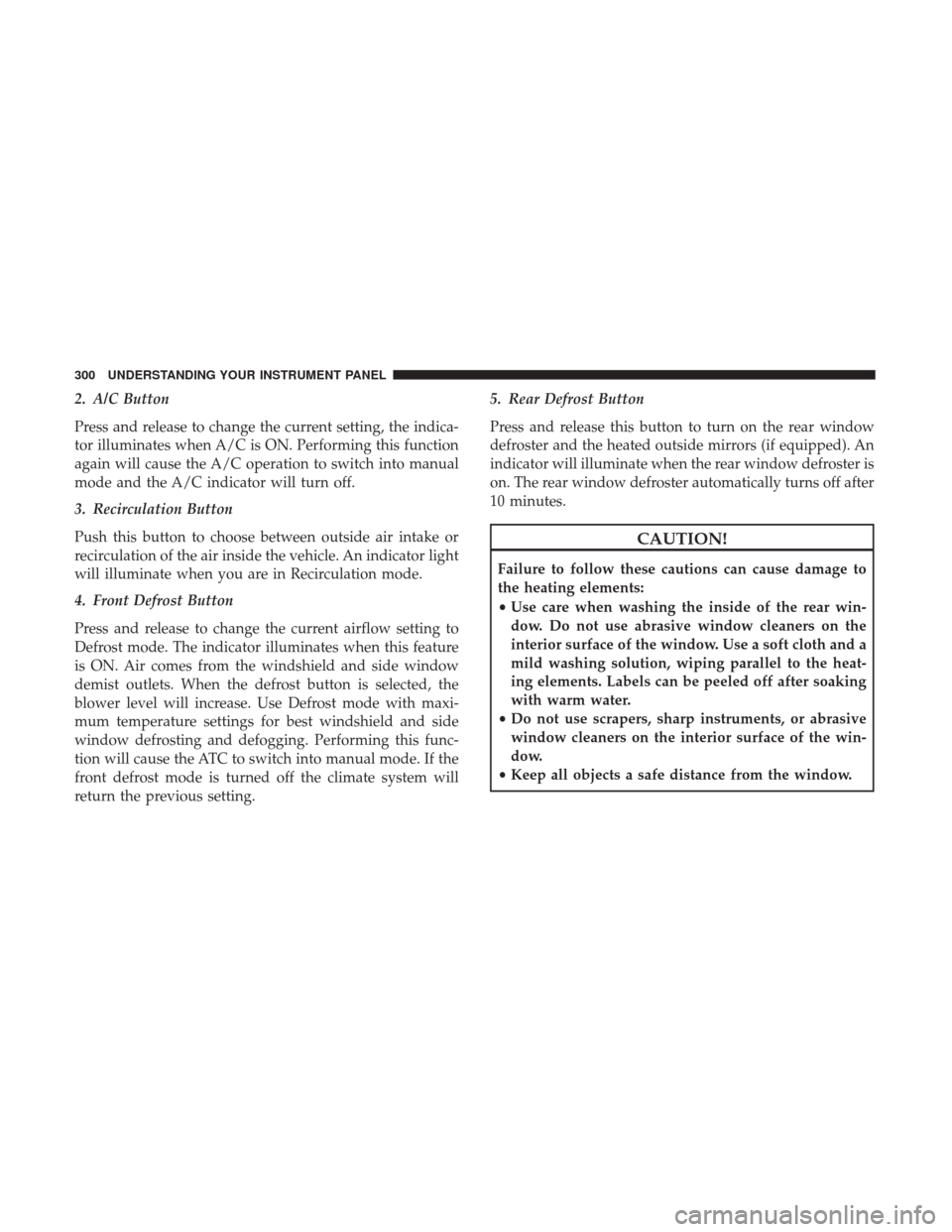

Page 302 of 510
2. A/C Button
Press and release to change the current setting, the indica-
tor illuminates when A/C is ON. Performing this function
again will cause the A/C operation to switch into manual
mode and the A/C indicator will turn off.
3. Recirculation Button
Push this button to choose between outside air intake or
recirculation of the air inside the vehicle. An indicator light
will illuminate when you are in Recirculation mode.
4. Front Defrost Button
Press and release to change the current airflow setting to
Defrost mode. The indicator illuminates when this feature
is ON. Air comes from the windshield and side window
demist outlets. When the defrost button is selected, the
blower level will increase. Use Defrost mode with maxi-
mum temperature settings for best windshield and side
window defrosting and defogging. Performing this func-
tion will cause the ATC to switch into manual mode. If the
front defrost mode is turned off the climate system will
return the previous setting.5. Rear Defrost Button
Press and release this button to turn on the rear window
defroster and the heated outside mirrors (if equipped). An
indicator will illuminate when the rear window defroster is
on. The rear window defroster automatically turns off after
10 minutes.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•
Use care when washing the inside of the rear win-
dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and a
mild washing solution, wiping parallel to the heat-
ing elements. Labels can be peeled off after soaking
with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the win-
dow.
• Keep all objects a safe distance from the window.
300 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 314 of 510
•Floor Mode
Air comes from the floor outlets. A slight
amount of air is directed through the defrost
and side window demister outlets.
• Mix Mode
Air comes from the floor, defrost and side
window demist outlets. This mode works best
in cold or snowy conditions.
13. Climate Control OFF Button
Press and release this button to turn the Climate Control
ON/OFF.
14. Driver Temperature Control Down Button (Radio 8.4)
Provides the driver with independent temperature control.
Push the button for cooler temperature settings.
NOTE: In Sync mode, this button will also automatically
adjust the passenger temperature setting at the same time.
15. Driver Temperature Control Up Button (Radio 8.4)
Provides the driver with independent temperature control.
Push the button for warmer temperature settings.
NOTE: In Sync mode, this button will also automatically
adjust the passenger temperature setting at the same time. 16. Temperature Control (Radio 4.3)
Press the driver or passenger temperature button on the
touchscreen to regulate the temperature of the air inside
the passenger compartment. Moving the temperature bar
into the red area, indicates warmer temperatures. Moving
the temperature bar into the blue area indicates cooler
temperatures. Driver and passenger have independent
temperature control if Sync mode is not illuminated.
Climate Control Functions
A/C (Air Conditioning)
The Air Conditioning (A/C) button allows the operator to
manually activate or deactivate the air conditioning sys-
tem. When the air conditioning system is turned on, cool
dehumidified air will flow through the outlets into the
cabin. For improved fuel economy, press the A/C button to
turn off the air conditioning and manually adjust the
blower and airflow mode settings. Also, make sure to select
only Panel, Bi-Level or Floor modes.
NOTE:
If fog or mist appears on the windshield or side
glass, select Defrost mode and adjust blower speed if
needed.
312 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 460 of 510
CAUTION!
Damage caused by these type of products may not be
covered by your New Vehicle Limited Warranty.
CAUTION!
Do not use Alcohol and Alcohol-based and/or Keton
based cleaning products to clean leather seats, as
damage to the seat may result.
Cleaning Headlights
Your vehicle is equipped with plastic headlights and fog
lights that are lighter and less susceptible to stone breakage
than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution followed
by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis with
MOPAR Glass Cleaner, or any commercial household-type
glass cleaner. Never use an abrasive type cleaner. Use
caution when cleaning the inside rear window equipped
with electric defrosters or windows equipped with radio
antennas. Do not use scrapers or other sharp instrument
that may scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or cloth that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft cloth. A mild soap solution may beused, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
cloth.
2. Dry with a soft cloth.
458 MAINTAINING YOUR VEHICLE
Page 497 of 510
Cruising Range......................... .385
Engine Oil ............................ .385
Fuel Requirements ....................... .384
Maintenance ........................... .386
Replacement Parts ....................... .385
Starting .............................. .385
Flooded Engine Starting ..................... .327
Floor Console ............................ .206
Fluid, Brake ............................. .475
Fluid Capacities ........................... .472
Fluid Leaks ...............................84
Fluid Level Checks Automatic Transmission ................452, 453
Brake ............................. .450, 475
Cooling System ......................... .445
Engine Oil ............................ .434
Power Steering ...................... .340, 475
Fluids, Lubricants And Genuine Parts ............473
Fog Lights ........................... .170, 468
Fog Light Service .......................... .468
Folding Rear Seat ...................... .159, 164
Freeing A Stuck Vehicle ..................... .420
Fuel ................................... .380
Adding .............................. .386
Additives ............................. .382Clean Air
............................. .380
Conserving ............................ .245
Ethanol ........................... .381, 384
Filler Cap (Gas Cap) ..................... .386
Gasoline .............................. .380
Light ................................ .238
Materials Added ........................ .382
Methanol ............................. .381
Octane Rating ....................... .380, 473
Requirements .......................... .380
Saver
Mode ........................... .245
Specifications .......................... .473
Tank Capacity .......................... .472
Fuel, Flexible ............................. .384
Fueling ................................. .386
Fuel Optimizer ........................... .245
Fuel Saver............................... .245
Fuses .................................. .459
Garage Door Opener (HomeLink) ............190, 195
Gas Cap (Fuel Filler Cap) .................386, 431
Gasoline, Clean Air ........................ .380
Gasoline (Fuel) Conserving ............................ .245
Gasoline, Reformulated ..................... .380
10
INDEX 495
Page 500 of 510
Exterior................................84
Fog .............................. .170, 468
Hazard Warning Flasher ...................404
Headlights ......................... .168, 467
Headlights On Reminder ...................170
Headlights On With Wipers ..............169, 175
Headlight Switch ........................ .168
High Beam ......................... .171, 467
High Beam/Low Beam Select ................171
Illuminated Entry .........................15
Instrument Cluster ...................... .168
Interior ............................... .172
License ............................... .471
Lights On Reminder ..................... .170
Low Fuel ............................. .238
Malfunction Indicator (Check Engine) ..........233
Map Reading .......................... .172
Park ............................. .240, 467
Passing ............................... .172
Reading .............................. .172
Rear Servicing .......................... .469
Rear Tail Lamps ........................ .469
Seat Belt Reminder ...................... .225
Security Alarm ......................... .228
Service ............................ .465, 467Side Marker
........................... .467
Tire Pressure Monitoring (TPMS) ..........235, 374
Traction Control ........................ .351
Turn Signal ................84, 171, 241, 467, 469
Vanity Mirror ............................93
Warning (Instrument Cluster Description) . . . .228, 241
Load Floor, Cargo ......................... .210
Loading Vehicle ....................... .387, 389
Capacities ............................. .389
Tires................................. .358
Load Shed Battery Saver Mode ...................... .248
Battery
Saver On ........................ .248
Electrical Load Reduction ...................248
Intelligent Battery Sensor ...................248
Locks ....................................22
Automatic Door ..........................24
Auto Unlock .............................24
Child Protection ..........................25
Door ..................................22
Power Door .............................23
Low Tire Pressure System .....................374
Lubrication, Body ......................... .441
Luggage Rack (Roof Rack) ....................216
498 INDEX
