Towing Tips
Before setting out on a trip, practice turning, stopping, and
backing up the trailer in an area located away from heavy
traffic.
Automatic Transmission
The DRIVE range can be selected when towing. However,
if frequent shifting occurs while in DRIVE, use the
AutoStick shift control to manually select a lower gear.
NOTE:Using a lower gear while operating the vehicle
under heavy loading conditions will improve performance
and extend transmission life by reducing excessive shifting
and heat build up. This action will also provide better
engine braking.
If you REGULARLY tow a trailer for more than 45 minutes
of continuous operation, then change the transmission
fluid and filter as specified for “police, taxi, fleet, or
frequent trailer towing”. Refer to the “Maintenance Sched-
ule” for the proper maintenance intervals.
NOTE: Check the four-speed automatic transmission fluid
level before towing. The six-speed transmission does not
require a fluid level check before towing. If, however, you
notice fluid leakage or transmission malfunction, see your
authorized dealer immediately for assistance.
Electronic Speed Control — If Equipped
• Do not use in hilly terrain or with heavy loads.
• When using the speed control, if you experience speed
drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.
• Use speed control in flat terrain and with light loads to
maximize fuel efficiency.
AutoStick
• When using the AutoStick shift control, select the high-
est gear that allows for adequate performance and
avoids frequent downshifts. For example, choose “4” if
the desired speed can be maintained. Choose “3” or “2”
if needed to maintain the desired speed.
• To prevent excess heat generation, avoid continuous
driving at high RPM. Reduce vehicle speed as necessary
to avoid extended driving at high RPM. Return to a
higher gear or vehicle speed when grade and road
conditions allow.
5
STARTING AND OPERATING 399

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 2.4L ...........429
 ENGINE COMPARTMENT — 3.6L ...........430
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .430
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................ .431
▫ Loose Fuel Filler Cap Message .............431
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS .......................... .432
 REPLACEMENT PARTS ...................433
 DEALER SERVICE ...................... .433
 MAINTENANCE PROCEDURES .............434
▫ Engine Oil .......................... .434
▫ Engine Oil Filter ...................... .437
▫ Engine Air Cleaner Filter .................437
▫ Maintenance-Free Battery .................437 ▫
Air Conditioner Maintenance ..............438
▫ A/C Air Filter — If Equipped .............439
▫ Body Lubrication ..................... .441
▫ Windshield Wiper Blades .................441
▫ Adding Washer Fluid ...................443
▫ Exhaust System ....................... .443
▫ Cooling System ....................... .445
▫ Brake System ........................ .449
▫ Automatic Transmission ..................451
▫ Rear Drive Assembly (RDA) – AWD Models
Only .............................. .454
▫ Power Transfer Unit (PTU) – AWD Models
Only .............................. .454
▫ Appearance Care And Protection From
Corrosion ........................... .454
7

ENGINE COMPARTMENT — 3.6L
ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors the
performance of the emissions, engine, and automatic trans-
mission control systems. When these systems are operatingproperly, your vehicle will provide excellent performance
and fuel economy, as well as engine emissions well within
current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
1 — Engine Coolant Reservoir
5 — Air Cleaner Filter
2 — Power Steering Fluid Reservoir 6 — Washer Fluid Reservoir
3 — Brake Fluid Reservoir 7 — Engine Oil Dipstick
4 — Power Distribution Center (Fuses) 8 — Engine Oil Fill
430 MAINTAINING YOUR VEHICLE

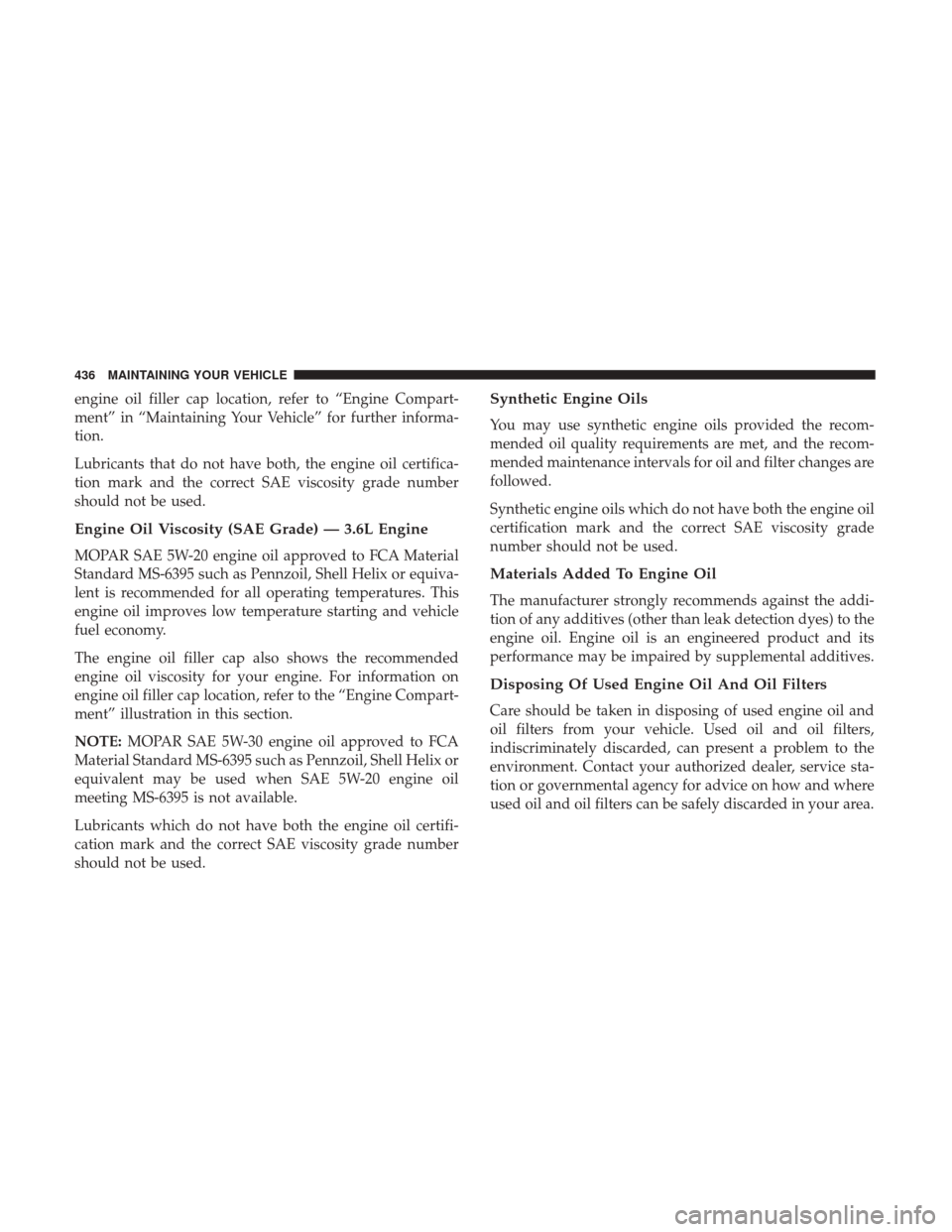

engine oil filler cap location, refer to “Engine Compart-
ment” in “Maintaining Your Vehicle” for further informa-
tion.
Lubricants that do not have both, the engine oil certifica-
tion mark and the correct SAE viscosity grade number
should not be used.
Engine Oil Viscosity (SAE Grade) — 3.6L Engine
MOPAR SAE 5W-20 engine oil approved to FCA Material
Standard MS-6395 such as Pennzoil, Shell Helix or equiva-
lent is recommended for all operating temperatures. This
engine oil improves low temperature starting and vehicle
fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Compart-
ment” illustration in this section.
NOTE:MOPAR SAE 5W-30 engine oil approved to FCA
Material Standard MS-6395 such as Pennzoil, Shell Helix or
equivalent may be used when SAE 5W-20 engine oil
meeting MS-6395 is not available.
Lubricants which do not have both the engine oil certifi-
cation mark and the correct SAE viscosity grade number
should not be used.
Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes are
followed.
Synthetic engine oils which do not have both the engine oil
certification mark and the correct SAE viscosity grade
number should not be used.
Materials Added To Engine Oil
The manufacturer strongly recommends against the addi-
tion of any additives (other than leak detection dyes) to the
engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental additives.
Disposing Of Used Engine Oil And Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact your authorized dealer, service sta-
tion or governmental agency for advice on how and where
used oil and oil filters can be safely discarded in your area.
436 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
Front Wheel Drive (FWD) Models 20.5 Gallons77.6 Liters
All-Wheel Drive Models 21 Gallons79.8 Liters
Engine Oil With Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.26 Liters
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
Cooling System*
2.4L Engine and Single or Dual-Zone Climate Control System
(MOPAR Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 8 Quarts
7.5 Liters
2.4L Engine and Three-Zone Climate Control System (MOPAR
Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 10 Quarts
9.5 Liters
3.6L Engine and Single or Dual-Zone Climate Control System
(MOPAR Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 13.1 Quarts
12.4 Liters
3.6L Engine and Three-Zone Climate Control System (MOPAR
Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula) 14.5 Quarts
13.7 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
472 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology).
Engine Oil We recommend you use API Certified SAE 5W-20 Engine
Oil, meeting the requirements of FCA Material Standard
MS-6395 such as MOPAR, Pennzoil, and Shell Helix. Re-
fer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use MOPAR Engine Oil Filter.
Spark Plugs We recommend you use MOPAR Spark Plugs.
Fuel Selection 87 Octane, 0-15% Ethanol.
Fuel Selection – 3.6L Flex Fuel (E-85) Engine – If
Equipped 87 Octane, Up To 85% Ethanol.
7
MAINTAINING YOUR VEHICLE 473

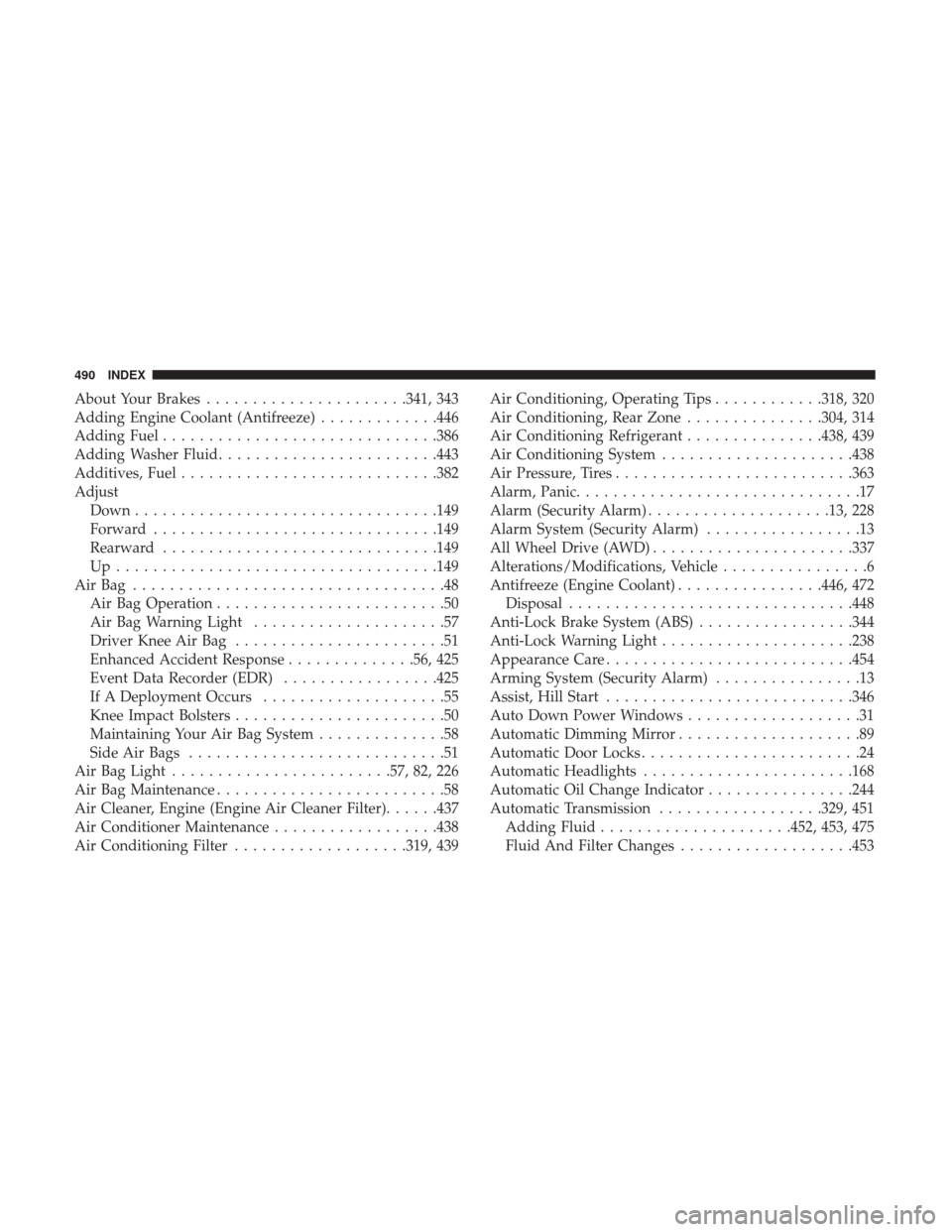

About Your Brakes..................... .341, 343
Adding Engine Coolant (Antifreeze) .............446
Adding Fuel ............................. .386
Adding Washer Fluid ....................... .443
Additives, Fuel ........................... .382
Adjust Down ................................ .149
Forward .............................. .149
Rearward ............................. .149
Up.................................. .149
AirBag ..................................48 Air Bag Operation .........................50
Air Bag Warning Light .....................57
Driver Knee Air Bag .......................51
Enhanced Accident Response ..............56, 425
Event Data Recorder (EDR) .................425
If A Deployment Occurs ....................55
Knee Impact Bolsters .......................50
Maintaining Your Air Bag System ..............58
Side Air Bags ............................51
Air Bag Light ....................... .57, 82, 226
Air Bag Maintenance .........................58
Air Cleaner, Engine (Engine Air Cleaner Filter) ......437
Air Conditioner Maintenance ..................438
Air Conditioning Filter ...................319, 439 Air Conditioning, Operating Tips
............318, 320
Air Conditioning, Rear Zone ...............304, 314
Air Conditioning Refrigerant ...............438, 439
Air Conditioning System .....................438
Air Pressure, Tires ......................... .363
Alarm, Panic ...............................17
Alarm (Security Alarm) ....................13, 228
Alarm System (Security Alarm) .................13
All Wheel Drive (AWD) ..................... .337
Alterations/Modifications, Vehicle ................6
Antifreeze (Engine Coolant) ................446, 472
Disposal .............................. .448
Anti-Lock Brake System (ABS) .................344
Anti-Lock Warning Light .....................238
Appearance Care .......................... .454
Arming
System (Security Alarm) ................13
Assist, Hill Start .......................... .346
Auto Down Power Windows ...................31
Automatic Dimming Mirror ....................89
Automatic Door Locks ........................24
Automatic Headlights ...................... .168
Automatic Oil Change Indicator ................244
Automatic Transmission ..................329, 451
Adding Fluid .....................452, 453, 475
Fluid And Filter Changes ...................453
490 INDEX

Hazard Warning Flasher...................404
Jacking ............................... .407
Jump Starting .......................... .417
Overheating ........................... .404
Towing ............................... .423
Emission Control System Maintenance ............432
Engine ................................. .429
Air Cleaner ............................ .437
Block Heater ........................... .328
Break-In Recommendations ..................80
Checking Oil Level ...................... .434
Compartment ....................... .429, 430
Compartment Identification .................430
Coolant (Antifreeze) ...................445, 473
Cooling .............................. .445
Exhaust Gas Caution ...................81, 383
Fails To Start ........................... .327
Flooded, Starting ........................ .327
Fuel Requirements ....................... .380
Jump Starting .......................... .417
Oil ........................... .434, 472, 473
Oil Change Interval ...................... .244
Oil Filler Cap ....................... .429, 435
Oil Filter .............................. .437
Oil Selection ........................ .435, 472Oil Synthetic
........................... .436
Overheating ........................... .404
Starting .............................. .325
Engine Oil Viscosity .....................435, 436
Engine Oil Viscosity Chart ....................436
Enhanced Accident Response Feature ..........56, 425
Entry System, Illuminated .....................15
Ethanol ............................. .381, 384
Exhaust Gas Caution .....................81, 383
Exhaust System ........................ .81, 443
Exterior

Folding Mirrors ......................92
Exterior Lighting .......................... .168
Exterior Lights .............................84
Filler Location Fuel ........................ .386
Filters Air Cleaner ............................ .437
Air Conditioning .....................319, 439
Engine Oil ......................... .437, 473
Engine Oil Disposal ...................... .436
Flashers Hazard Warning ........................ .404
Turn Signal ...................... .84, 171, 241
Flash-To-Pass ............................ .172
Flexible Fuel Vehicles
494 INDEX

Lug Nuts............................... .405
Maintenance Free Battery .....................437
Maintenance Procedures ..................... .434
Malfunction Indicator Light (Check Engine) . . . .233, 432
Manual, Service ........................... .488
Manual Transaxle Fluid Level Check ....................... .454
Lubricant Selection ...................... .454
Map/Reading Lights ....................... .172
Marker Lights, Side ........................ .467
Master Cylinder (Brakes) .....................450
Methanol ............................... .381
Mini-Trip Computer ........................ .247
Mirrors .............................. .89, 189
Automatic Dimming .......................89
Electric Powered ..........................90
Electric Remote ...........................90
Exterior Folding ..........................92
Heated .................................92
Outside ................................90
Rearview ...............................89
Vanity .................................93
Mode Fuel Saver ............................ .245Modifications/Alterations, Vehicle
................6
Monitor, Tire Pressure System ..................374
MOPAR Parts ......................... .433, 487
MTBE/ETBE ............................. .381
Multi-Function Control Lever ..................171
New Vehicle Break-In Period ...................80
Occupant Restraints .........................34
Octane Rating, Gasoline (Fuel) ..............380, 473
Oil Change Indicator ....................... .244
Oil Change Indicator, Reset ...................244
Oil, Engine ........................... .434, 473
Capacity .............................. .472
Change Interval ..................... .244, 435
Checking ............................. .434
Dipstick .............................. .434
Disposal .............................. .436
Filter ............................. .437,

473
Filter Disposal .......................... .436
Identification Logo ...................... .435
Materials Added To ...................... .436
Pressure Warning Light ....................230
Recommendation .....................435, 472
Synthetic ............................. .436
10
INDEX 499
