DODGE JOURNEY 2019 User Guide
Manufacturer: DODGE, Model Year: 2019, Model line: JOURNEY, Model: DODGE JOURNEY 2019Pages: 524, PDF Size: 5.29 MB
Page 11 of 524
REAR VIEW
Rear View
1 — Rear Lights
2 — Rear Windshield Wiper
3 — Liftgate
2
GRAPHICAL TABLE OF CONTENTS 9
Page 12 of 524
INSTRUMENT PANEL
Instrument Panel
1 — Instrument Cluster Display Controls6 — Switch Panel
2 — Multifunction Lever (Behind Steering Wheel) 7 — Uconnect System
3 — Instrument Cluster 8 — Climate Controls
4 — Speed Controls 9 — Glove Compartment
5 — Ignition 10 GRAPHICAL TABLE OF CONTENTS
Page 13 of 524
INTERIOR
Interior
1 — Door Locks3 — Seats
2 — Window Switches 4 — Gear Selector
2
GRAPHICAL TABLE OF CONTENTS 11
Page 14 of 524
Page 15 of 524

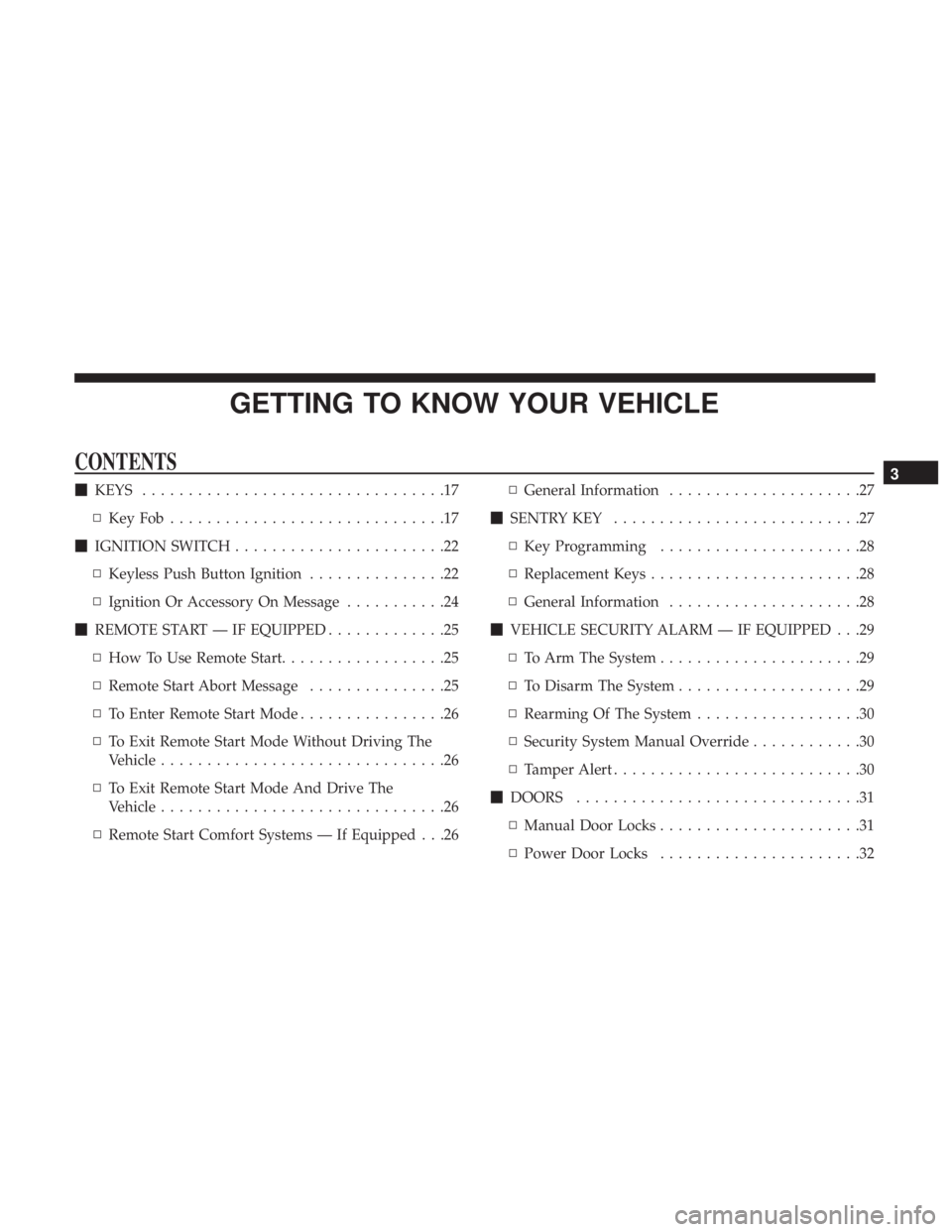

GETTING TO KNOW YOUR VEHICLE
CONTENTS
KEYS .................................17
▫ KeyFob..............................17
IGNITION SWITCH .......................22
▫ Keyless Push Button Ignition ...............22
▫ Ignition Or Accessory On Message ...........24
REMOTE START — IF EQUIPPED .............25
▫ How To Use Remote Start ..................25
▫ Remote Start Abort Message ...............25
▫ To Enter Remote Start Mode ................26
▫ To Exit Remote Start Mode Without Driving The
Vehicle ...............................26
▫ To Exit Remote Start Mode And Drive The
Vehicle ...............................26
▫ Remote Start Comfort Systems — If Equipped . . .26 ▫
General Information .....................27
SENTRY KEY ...........................27
▫ Key Programming ......................28
▫ Replacement Keys .......................28
▫ General Information .....................28
VEHICLE SECURITY ALARM — IF EQUIPPED . . .29
▫ To Arm The System ......................29
▫ To Disarm The System ....................29
▫ Rearming Of The System ..................30
▫ Security System Manual Override ............30
▫ Tamper Alert ...........................30
DOORS ...............................31
▫ Manual Door Locks ......................31
▫ Power Door Locks ......................323

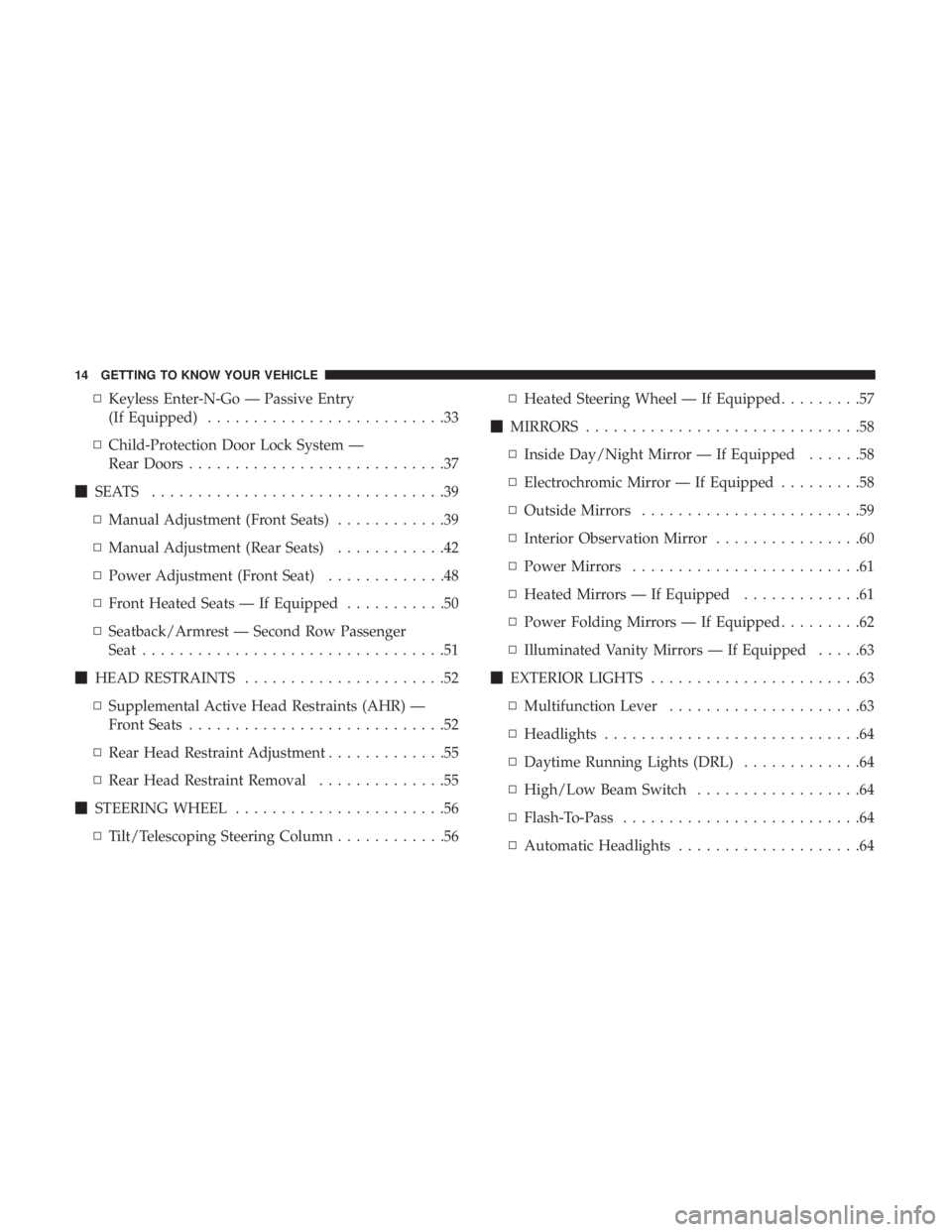

Page 16 of 524
▫Keyless Enter-N-Go — Passive Entry
(If Equipped) ..........................33
▫ Child-Protection Door Lock System —
Rear Doors ............................37
SEATS ................................39
▫ Manual Adjustment (Front Seats) ............39
▫ Manual Adjustment (Rear Seats) ............42
▫ Power Adjustment (Front Seat) .............48
▫ Front Heated Seats — If Equipped ...........50
▫ Seatback/Armrest — Second Row Passenger
Seat .................................51
HEAD RESTRAINTS ......................52
▫ Supplemental Active Head Restraints (AHR) —
Front Seats ............................52
▫ Rear Head Restraint Adjustment .............55
▫ Rear Head Restraint Removal ..............55
STEERING WHEEL .......................56
▫ Tilt/Telescoping Steering Column ............56▫
Heated Steering Wheel — If Equipped .........57
MIRRORS ..............................58
▫ Inside Day/Night Mirror — If Equipped ......58
▫ Electrochromic Mirror — If Equipped .........58
▫ Outside Mirrors ........................59
▫ Interior Observation Mirror ................60
▫ Power Mirrors .........................61
▫ Heated Mirrors — If Equipped .............61
▫ Power Folding Mirrors — If Equipped .........62
▫ Illuminated Vanity Mirrors — If Equipped .....63
EXTERIOR LIGHTS .......................63
▫ Multifunction Lever .....................63
▫ Headlights ............................64
▫ Daytime Running Lights (DRL) .............64
▫ High/Low Beam Switch ..................64
▫ Flash-To-Pass ..........................64
▫ Automatic Headlights ....................64
14 GETTING TO KNOW YOUR VEHICLE
Page 17 of 524
▫Headlights On With Wipers (Available With
Automatic Headlights Only) ...............65
▫ Headlight Time Delay ....................65
▫ Lights-On Reminder ......................65
▫ Fog Lights — If Equipped .................66
▫ Turn Signals ...........................66
▫ Lane Change Assist — If Equipped ..........66
INTERIOR LIGHTS .......................67
▫ Courtesy/Interior Lighting ................67
WIPERS AND WASHERS ...................68
▫ Windshield Wiper Operation ................69
▫ Rear Window Wiper/Washer ...............71
CLIMATE CONTROLS .....................73
▫ Manual Climate Control Overview ...........73
▫ Automatic Climate Controls Overview ........86
▫ Climate Control Functions .................98
▫ Automatic Temperature Control (ATC) — If
Equipped .............................99 ▫
Operating Tips .........................99
WINDOWS ........................... .102
▫ Power Windows ...................... .102
▫ Wind Buffeting ....................... .104
POWER SUNROOF — IF EQUIPPED .........105
▫ Opening Sunroof ...................... .106
▫ Closing Sunroof ....................... .106
▫ Wind Buffeting ....................... .106
▫ Sunshade Operation .....................106
▫ Anti Pinch Protect Feature ................107
▫ Sunroof Maintenance ....................107
▫ Ignition Off Operation ...................107
HOOD .............................. .107
▫ Opening ............................ .107
▫ Closing ............................. .108
LIFTGA
TE............................ .109
▫ Opening ............................ .109
3
GETTING TO KNOW YOUR VEHICLE 15

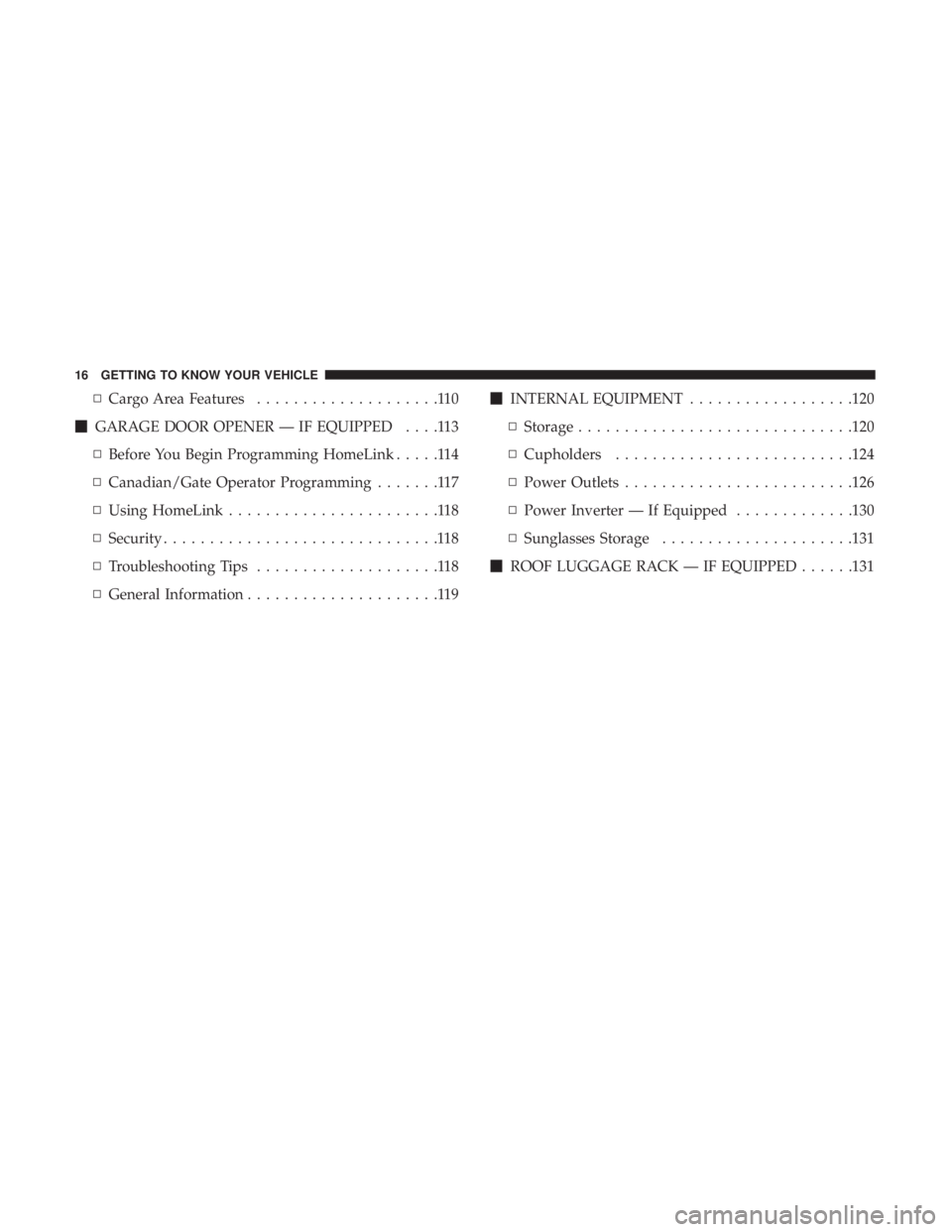

Page 18 of 524
▫Cargo Area Features ....................110
GARAGE DOOR OPENER — IF EQUIPPED ....113
▫ Before You Begin Programming HomeLink .....114
▫ Canadian/Gate Operator Programming .......117
▫ Using HomeLink .......................118
▫ Security ..............................118
▫ Troubleshooting Tips ....................118
▫ General Information .....................119
INTERNAL EQUIPMENT ..................120
▫ Storage ............................. .120
▫ Cupholders ......................... .124
▫ Power Outlets ........................ .126
▫ Power Inverter — If Equipped .............130
▫ Sunglasses Storage .....................131
ROOF LUGGAGE RACK — IF EQUIPPED ......131
16 GETTING TO KNOW YOUR VEHICLE
Page 19 of 524
KEYS
Key Fob
Your vehicle uses a keyless ignition system. The ignition
system consists of a key fob with Remote Keyless Entry
(RKE) and a START/STOP push button ignition system.
The Remote Keyless Entry system consists of a key fob and
Keyless Enter-N-Go feature if equipped.
NOTE:The key fob may not be found if it is located next to
a mobile phone, laptop or other electronic device; these
devices may block the key fob’s wireless signal.
The Remote Keyless Entry (RKE) key fob and an emer-
gency key, which stores in the rear of the key fob.
The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. The
emergency key is also for locking the glove compartment.
You can keep the emergency key with you when valet
parking.
To remove the emergency key, slide the mechanical latch
on the back of the key fob sideways with your thumb and
then pull the key out with your other hand. NOTE:
You can insert the double-sided emergency key
into the lock cylinders with either side up.
The Remote Keyless Entry system allows you to lock or
unlock the doors, open the liftgate, or activate the Panic
Alarm from distances up to approximately 66 ft (20 m)
using a hand-held key fob with key fob. The key fob does
not need to be pointed at the vehicle to activate the system.
NOTE: Driving at speeds 5 MPH (8 km/h) and above
disables the system from responding to all key fob buttons
for all key fobs.
Emergency Key Removal
3
GETTING TO KNOW YOUR VEHICLE 17
Page 20 of 524
Backup Starting Method
In case the ignition switch does not change with the push
of a button, the key fob may have a low or fully depleted
battery.
In a situation of a low or fully depleted battery, a backup
method can be used to operate the ignition switch. Put the
nose side of the key fob (side opposite of the Emergency
Key) against the ENGINE START/STOP button and push
to operate the ignition switch.
To Unlock The Doors And Liftgate
Push and release the unlock button on the key fob once to
unlock the driver’s door or twice within five seconds to
unlock all doors and the liftgate.
All doors can be programmed to unlock on the first push of
the unlock button. Refer to “Uconnect Settings” in “Multi-
media” for further information.
NOTE:If the vehicle is unlocked by a key fob, and no door
is opened within 60 seconds, the vehicle will re-lock and if
equipped, the security alarm will arm.
The turn signal lights will flash twice to acknowledge the
unlock signal. The illuminated entry system will be acti-
vated.
1st Push Of Key Fob Unlock Button
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the unlock
button on the key fob. To change the current setting, refer
to “Uconnect Settings” in “Multimedia” for further infor-
mation.
Key Fob
18 GETTING TO KNOW YOUR VEHICLE
