DODGE JOURNEY 2019 Service Manual
Manufacturer: DODGE, Model Year: 2019, Model line: JOURNEY, Model: DODGE JOURNEY 2019Pages: 524, PDF Size: 5.29 MB
Page 41 of 524

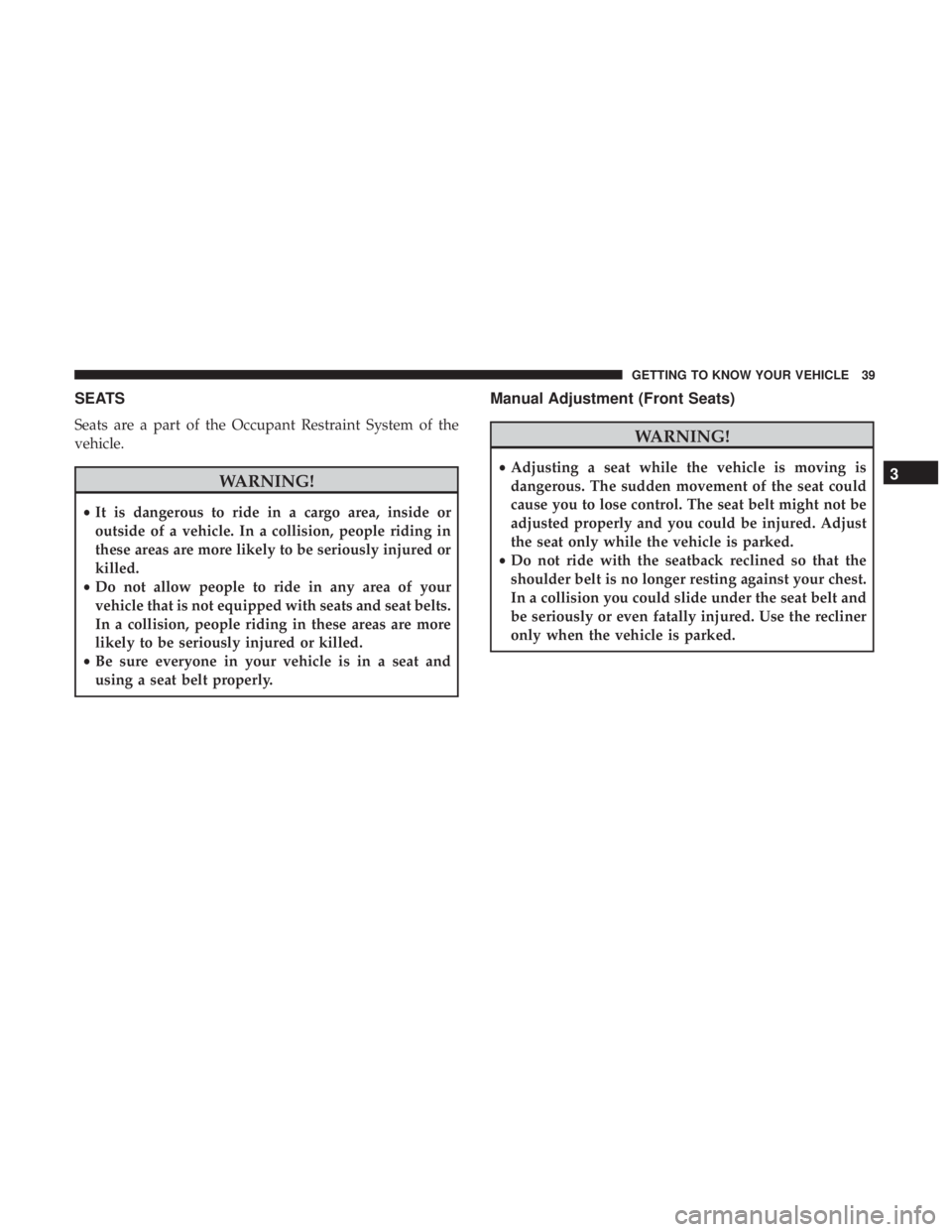

SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
WARNING!
•It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or
killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
In a collision, people riding in these areas are more
likely to be seriously injured or killed.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Manual Adjustment (Front Seats)
WARNING!
• Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.3
GETTING TO KNOW YOUR VEHICLE 39

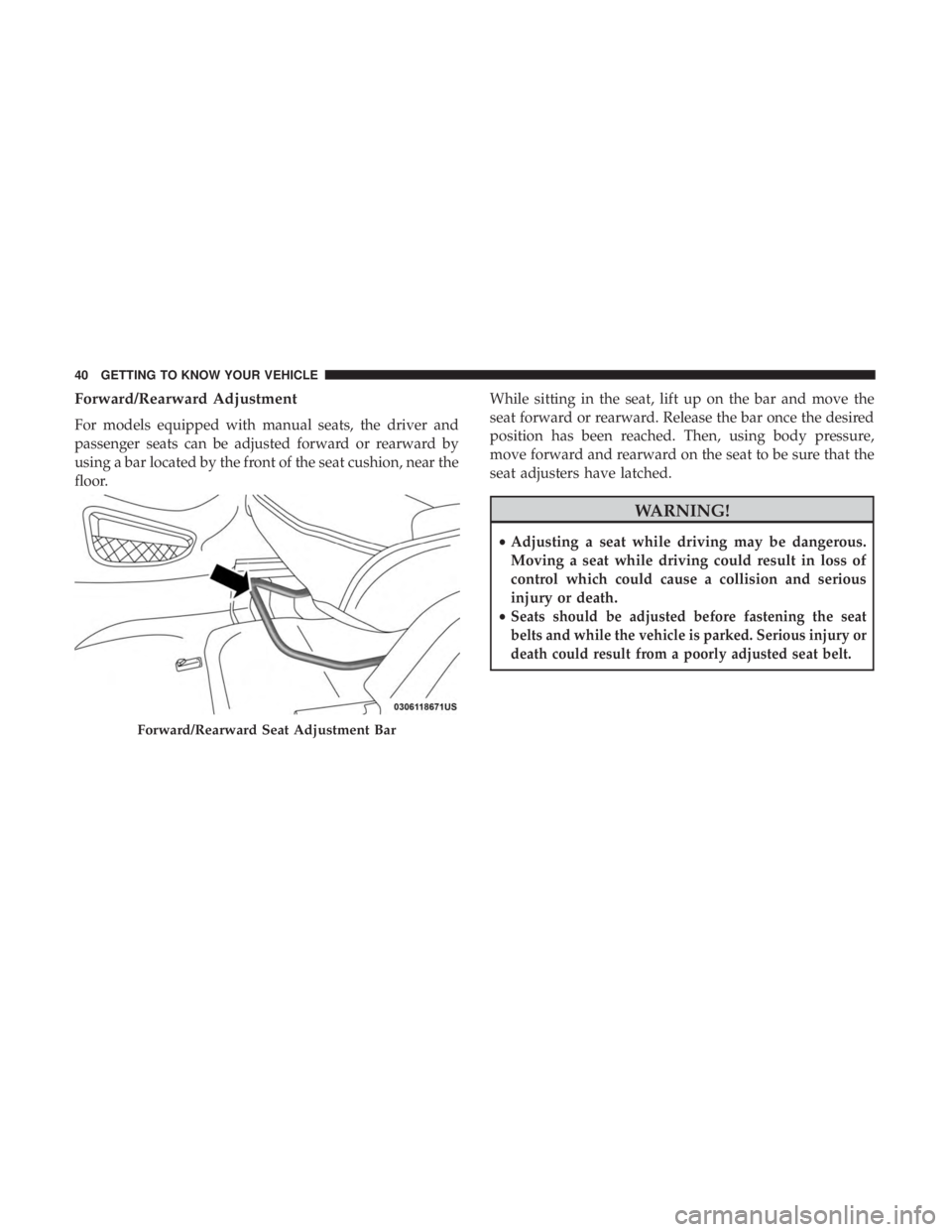

Page 42 of 524
Forward/Rearward Adjustment
For models equipped with manual seats, the driver and
passenger seats can be adjusted forward or rearward by
using a bar located by the front of the seat cushion, near the
floor.While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once the desired
position has been reached. Then, using body pressure,
move forward and rearward on the seat to be sure that the
seat adjusters have latched.
WARNING!
•
Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
•
Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious injury or
death could result from a poorly adjusted seat belt.
Forward/Rearward Seat Adjustment Bar
40 GETTING TO KNOW YOUR VEHICLE
Page 43 of 524

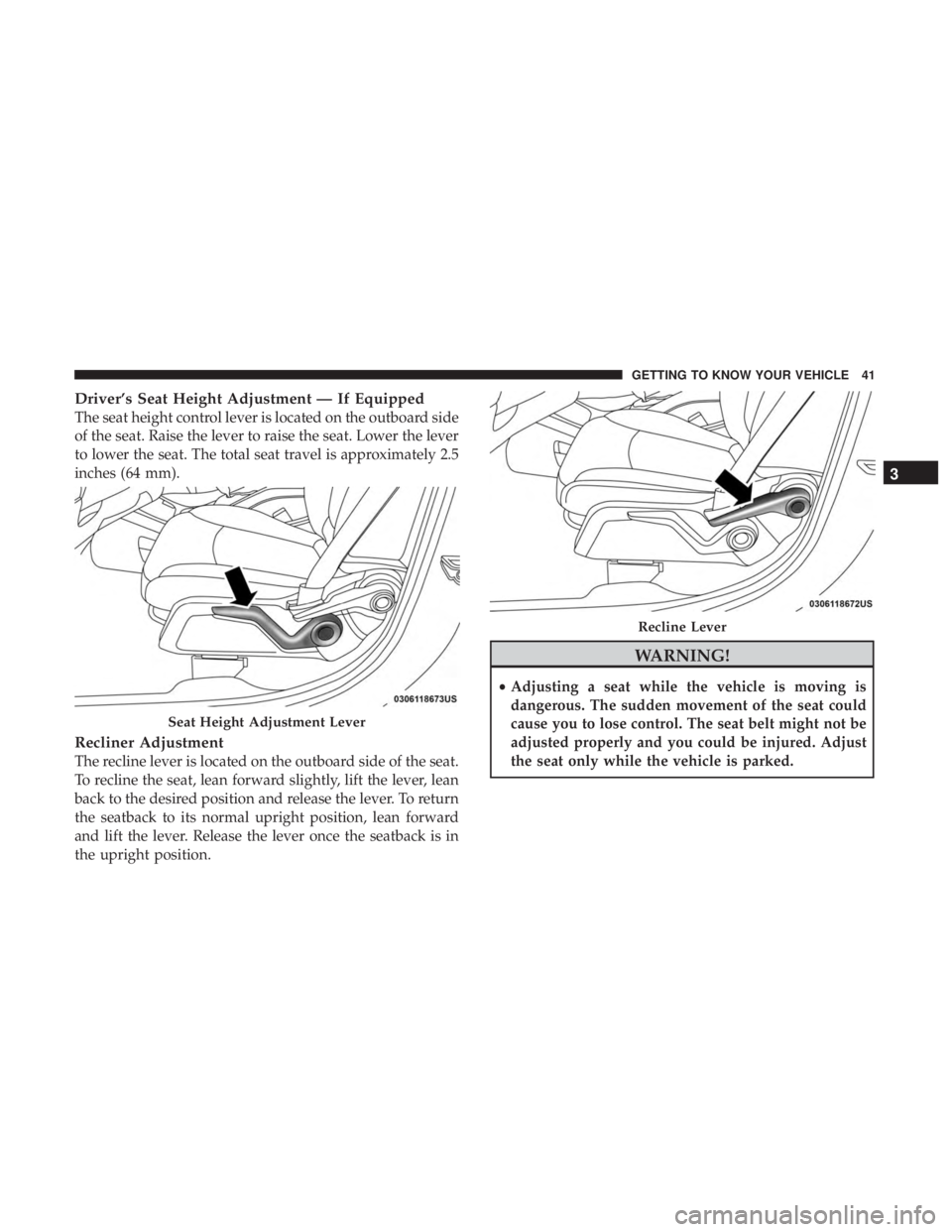

Driver’s Seat Height Adjustment — If Equipped
The seat height control lever is located on the outboard side
of the seat. Raise the lever to raise the seat. Lower the lever
to lower the seat. The total seat travel is approximately 2.5
inches (64 mm).
Recliner Adjustment
The recline lever is located on the outboard side of the seat.
To recline the seat, lean forward slightly, lift the lever, lean
back to the desired position and release the lever. To return
the seatback to its normal upright position, lean forward
and lift the lever. Release the lever once the seatback is in
the upright position.
WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
Seat Height Adjustment Lever
Recline Lever
3
GETTING TO KNOW YOUR VEHICLE 41

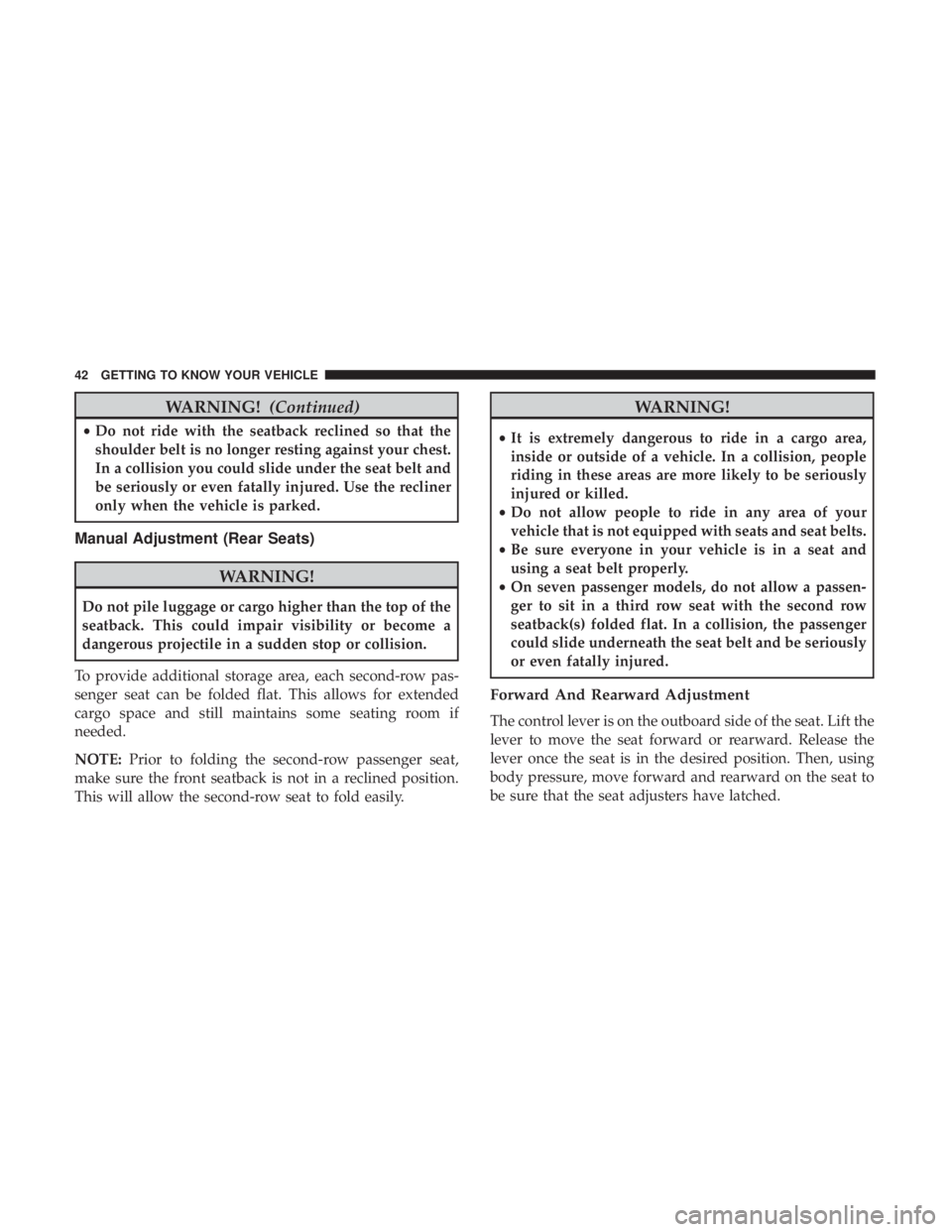

Page 44 of 524
WARNING!(Continued)
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
Manual Adjustment (Rear Seats)
WARNING!
Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or collision.
To provide additional storage area, each second-row pas-
senger seat can be folded flat. This allows for extended
cargo space and still maintains some seating room if
needed.
NOTE: Prior to folding the second-row passenger seat,
make sure the front seatback is not in a reclined position.
This will allow the second-row seat to fold easily.
WARNING!
• It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
• On seven passenger models, do not allow a passen-
ger to sit in a third row seat with the second row
seatback(s) folded flat. In a collision, the passenger
could slide underneath the seat belt and be seriously
or even fatally injured.
Forward And Rearward Adjustment
The control lever is on the outboard side of the seat. Lift the
lever to move the seat forward or rearward. Release the
lever once the seat is in the desired position. Then, using
body pressure, move forward and rearward on the seat to
be sure that the seat adjusters have latched.
42 GETTING TO KNOW YOUR VEHICLE

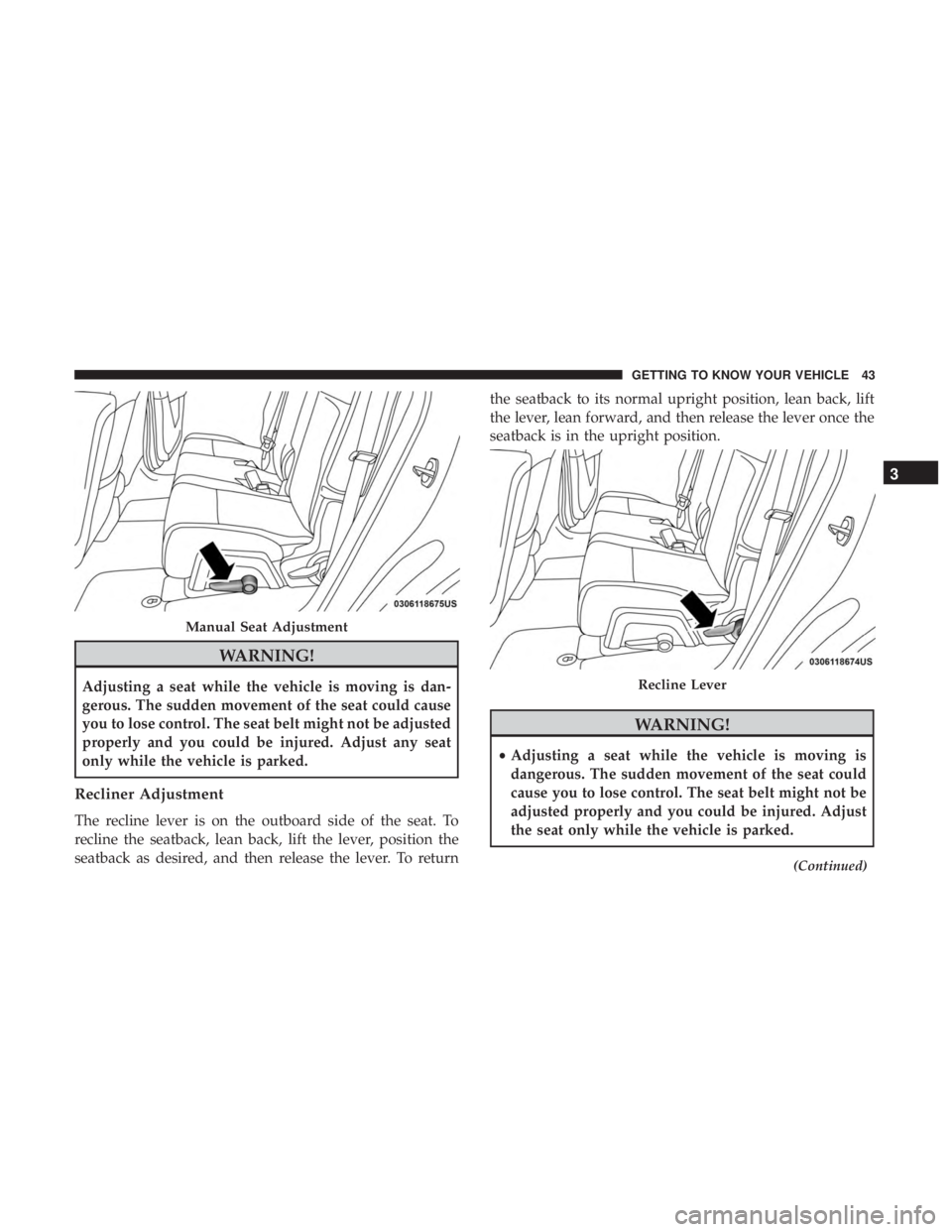

Page 45 of 524
WARNING!
Adjusting a seat while the vehicle is moving is dan-
gerous. The sudden movement of the seat could cause
you to lose control. The seat belt might not be adjusted
properly and you could be injured. Adjust any seat
only while the vehicle is parked.
Recliner Adjustment
The recline lever is on the outboard side of the seat. To
recline the seatback, lean back, lift the lever, position the
seatback as desired, and then release the lever. To returnthe seatback to its normal upright position, lean back, lift
the lever, lean forward, and then release the lever once the
seatback is in the upright position.
WARNING!
•
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
(Continued)
Manual Seat Adjustment
Recline Lever
3
GETTING TO KNOW YOUR VEHICLE 43
Page 46 of 524
WARNING!(Continued)
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
Stadium Tip ’n Slide (Easy Entry/Exit Seat) — Seven
Passenger Models
This feature allows passengers to easily enter or exit the
third-row passenger seats from either side of the vehicle.
To Move The Second-Row Passenger Seat Forward
NOTE: Raise the seatback/armrest before moving the seat
to allow for full seat travel.
Move the control lever on the upper outboard side of the
seatback forward. Then, in one fluid motion, the seat
cushion flips upward and the seat moves forward on its
tracks.
Tip ’n Slide Control Lever
44 GETTING TO KNOW YOUR VEHICLE

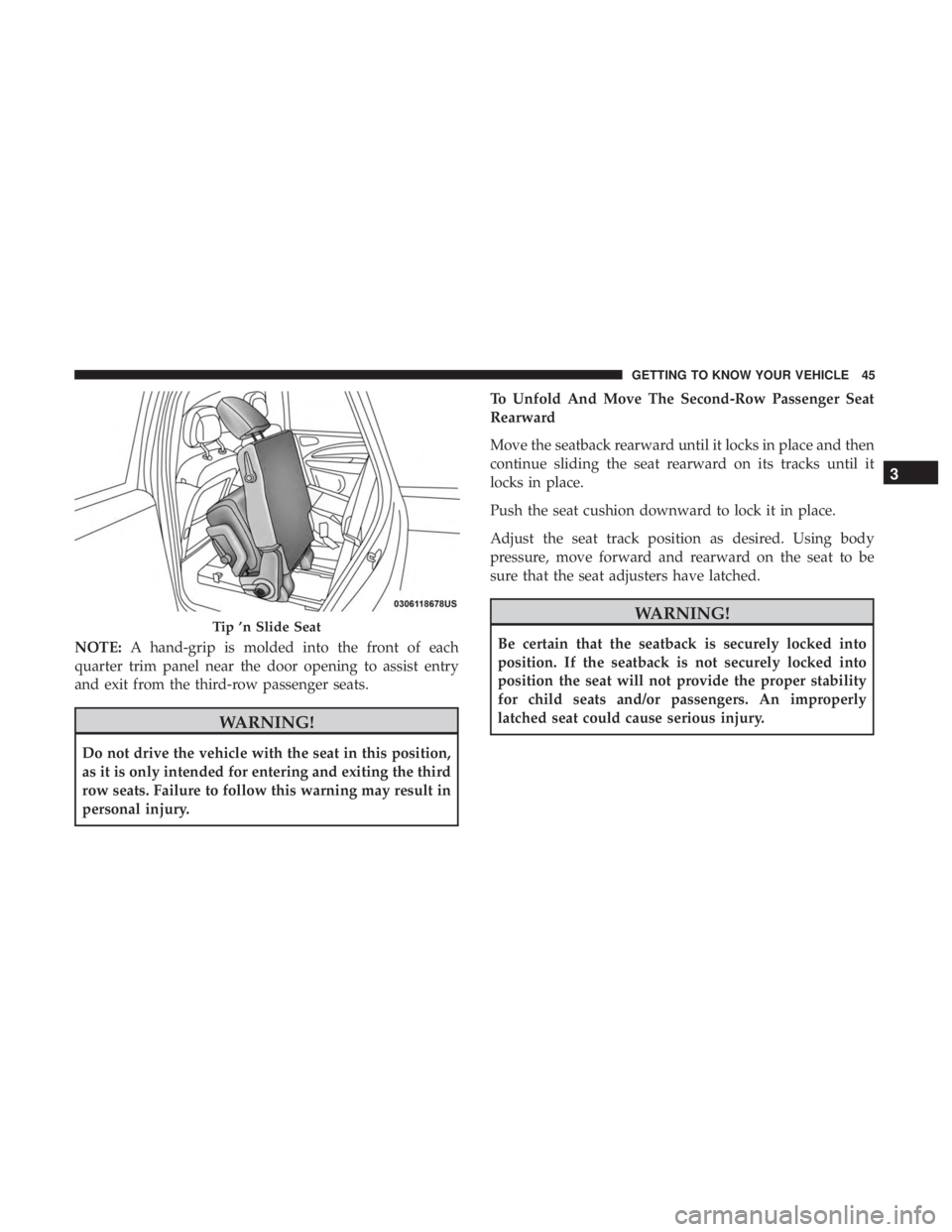

Page 47 of 524
NOTE:A hand-grip is molded into the front of each
quarter trim panel near the door opening to assist entry
and exit from the third-row passenger seats.
WARNING!
Do not drive the vehicle with the seat in this position,
as it is only intended for entering and exiting the third
row seats. Failure to follow this warning may result in
personal injury. To Unfold And Move The Second-Row Passenger Seat
Rearward
Move the seatback rearward until it locks in place and then
continue sliding the seat rearward on its tracks until it
locks in place.
Push the seat cushion downward to lock it in place.
Adjust the seat track position as desired. Using body
pressure, move forward and rearward on the seat to be
sure that the seat adjusters have latched.
WARNING!
Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.
Tip ’n Slide Seat
3
GETTING TO KNOW YOUR VEHICLE 45
Page 48 of 524

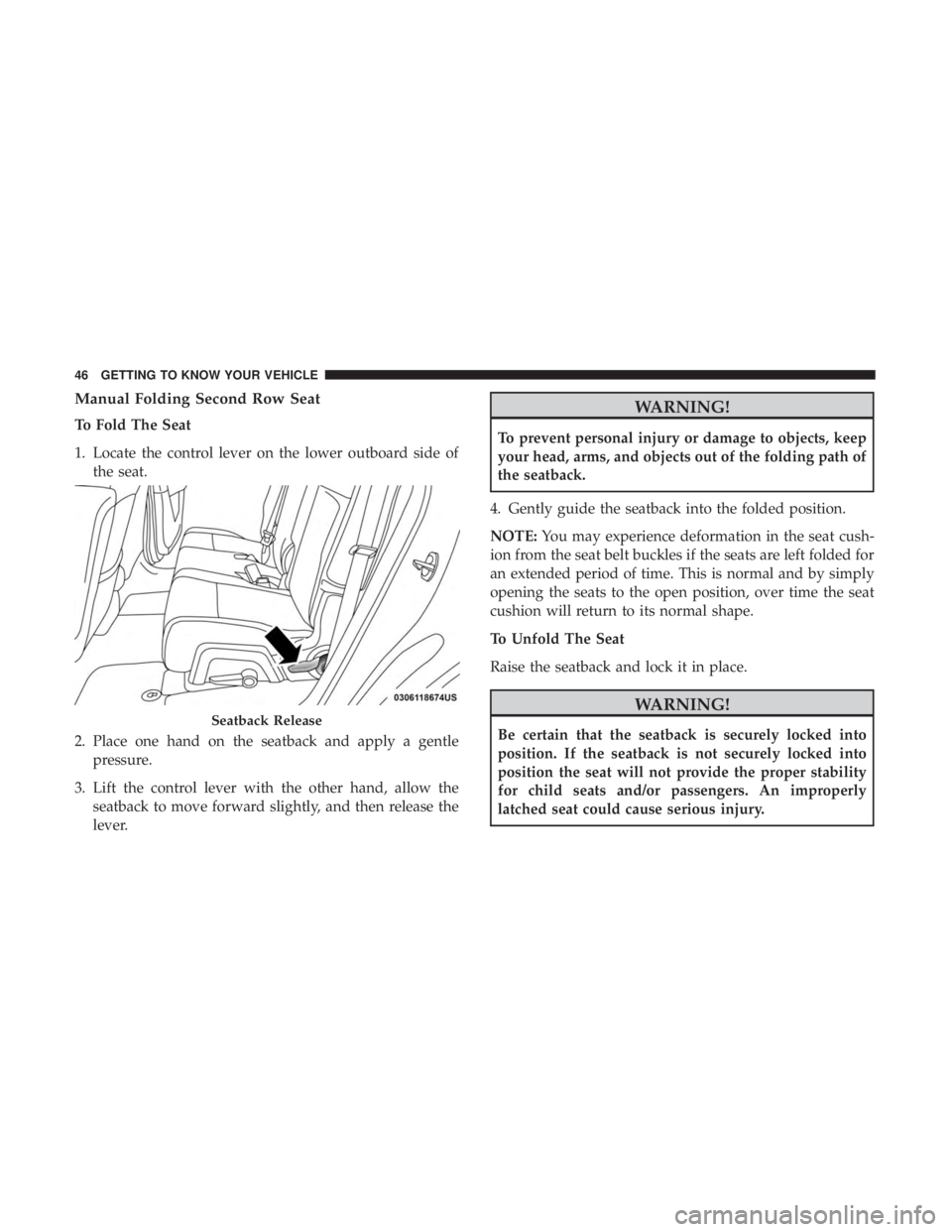

Manual Folding Second Row Seat
To Fold The Seat
1. Locate the control lever on the lower outboard side ofthe seat.
2. Place one hand on the seatback and apply a gentle pressure.
3. Lift the control lever with the other hand, allow the seatback to move forward slightly, and then release the
lever.
WARNING!
To prevent personal injury or damage to objects, keep
your head, arms, and objects out of the folding path of
the seatback.
4. Gently guide the seatback into the folded position.
NOTE: You may experience deformation in the seat cush-
ion from the seat belt buckles if the seats are left folded for
an extended period of time. This is normal and by simply
opening the seats to the open position, over time the seat
cushion will return to its normal shape.
To Unfold The Seat
Raise the seatback and lock it in place.
WARNING!
Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.Seatback Release
46 GETTING TO KNOW YOUR VEHICLE
Page 49 of 524
Manual Folding Third Row Seats
To provide additional storage area, each third-row passen-
ger seatback can be folded flat. This allows for extended
cargo space and still maintains some rear seating room if
needed.
NOTE:Prior to folding the third-row passenger seatback,
make sure the second-row passenger seatback is not in a
reclined position. This will allow the seatback to fold easily.
To Fold The Seatback
Pull the latch release-loop located at the top of the seatback
upward, push the seatback forward slightly, and release
the release-loop. Then, continue to push the seatback
forward. The head restraints will fold automatically as the
seatback moves forward. NOTE:
You may experience deformation in the seat cush-
ion from the seat belt buckles if the seats are left folded for
an extended period of time. This is normal and by simply
opening the seats to the open position, over time the seat
cushion will return to its normal shape.
Seatback Release
3
GETTING TO KNOW YOUR VEHICLE 47
Page 50 of 524

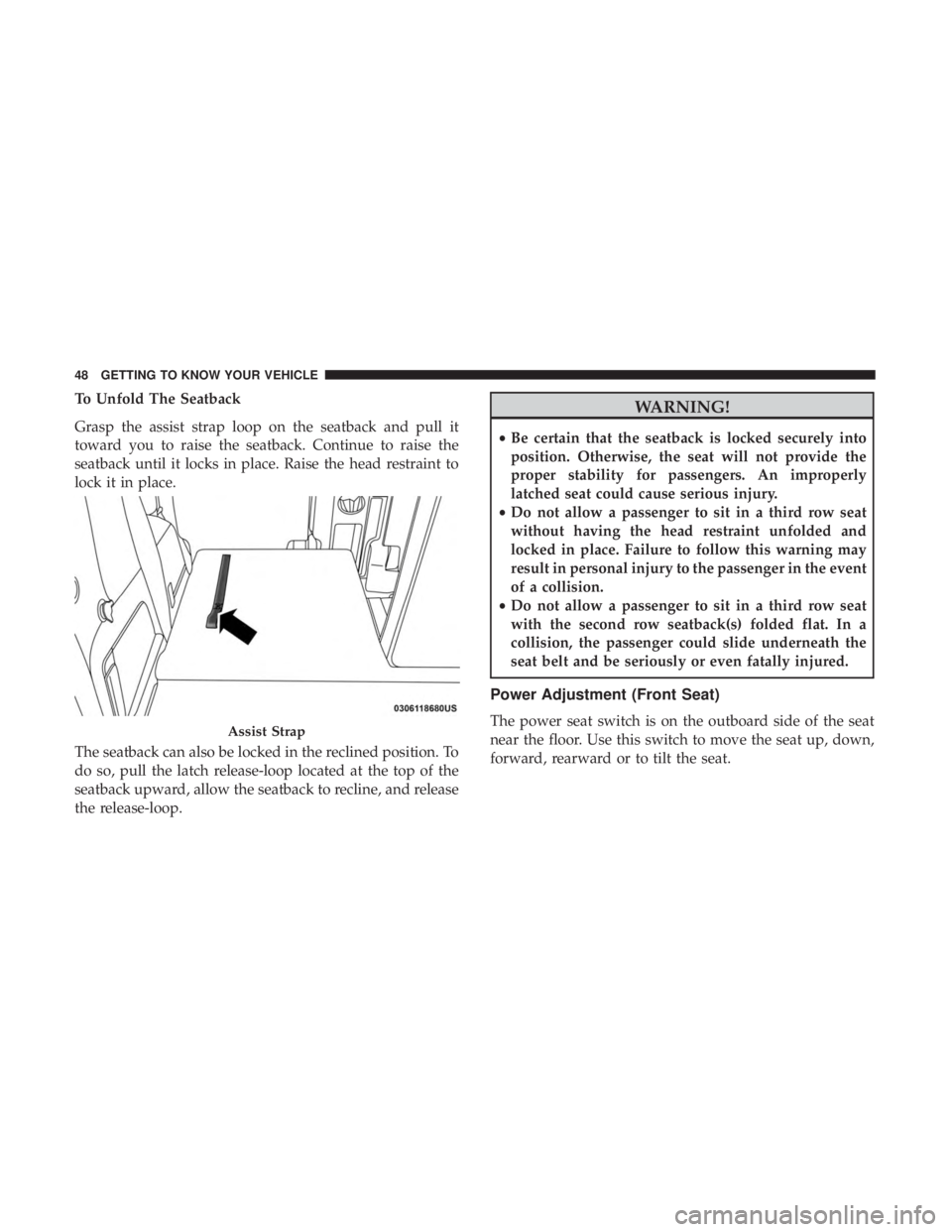

To Unfold The Seatback
Grasp the assist strap loop on the seatback and pull it
toward you to raise the seatback. Continue to raise the
seatback until it locks in place. Raise the head restraint to
lock it in place.
The seatback can also be locked in the reclined position. To
do so, pull the latch release-loop located at the top of the
seatback upward, allow the seatback to recline, and release
the release-loop.WARNING!
•Be certain that the seatback is locked securely into
position. Otherwise, the seat will not provide the
proper stability for passengers. An improperly
latched seat could cause serious injury.
• Do not allow a passenger to sit in a third row seat
without having the head restraint unfolded and
locked in place. Failure to follow this warning may
result in personal injury to the passenger in the event
of a collision.
• Do not allow a passenger to sit in a third row seat
with the second row seatback(s) folded flat. In a
collision, the passenger could slide underneath the
seat belt and be seriously or even fatally injured.
Power Adjustment (Front Seat)
The power seat switch is on the outboard side of the seat
near the floor. Use this switch to move the seat up, down,
forward, rearward or to tilt the seat.Assist Strap
