DODGE JOURNEY 2019 Owners Manual

To Resume Speed
To resume a previously set speed, push the RES (+) button
and release. Resume can be used at any speed above
20 mph (32 km/h).
To Deactivate
A soft tap on the brake pedal, pushing the CANCEL
button, or normal brake pressure while slowing the vehicle
will deactivate the Speed Control without erasing the set
speed from memory.
Pushing the ON/OFF button, or returning the ignition to
OFF, erases the set speed from memory.
PARKSENSE REAR PARK ASSIST — IF EQUIPPED
The ParkSense Rear Park Assist system provides visual and
audible indications of the distance between the rear fascia
and a detected obstacle when backing up, e.g. during a
parking maneuver.
Refer to “ParkSense System Usage Precautions” in this
section for limitations of this system and recommenda-
tions.ParkSense will retain the last system state (enabled or
disabled) from the last ignition cycle when the ignition is
changed to the ON/RUN position.
ParkSense can be active only when the gear selector is in
REVERSE. If ParkSense is enabled at this gear selector
position, the system will remain active until the vehicle
speed is increased to approximately 7 mph (11 km/h) or
above. The system will become active again if the vehicle
speed is decreased to speeds less than approximately
6 mph (9 km/h).
ParkSense Sensors
The four ParkSense sensors, located in the rear fascia/
bumper, monitor the area behind the vehicle that is within
the sensors’ field of view. The sensors can detect obstacles
from approximately 12 inches (30 cm) up to 79 inches
(200 cm) from the rear fascia/bumper in the horizontal
direction, depending on the location, type and orientation
of the obstacle.
6
STARTING AND OPERATING 249

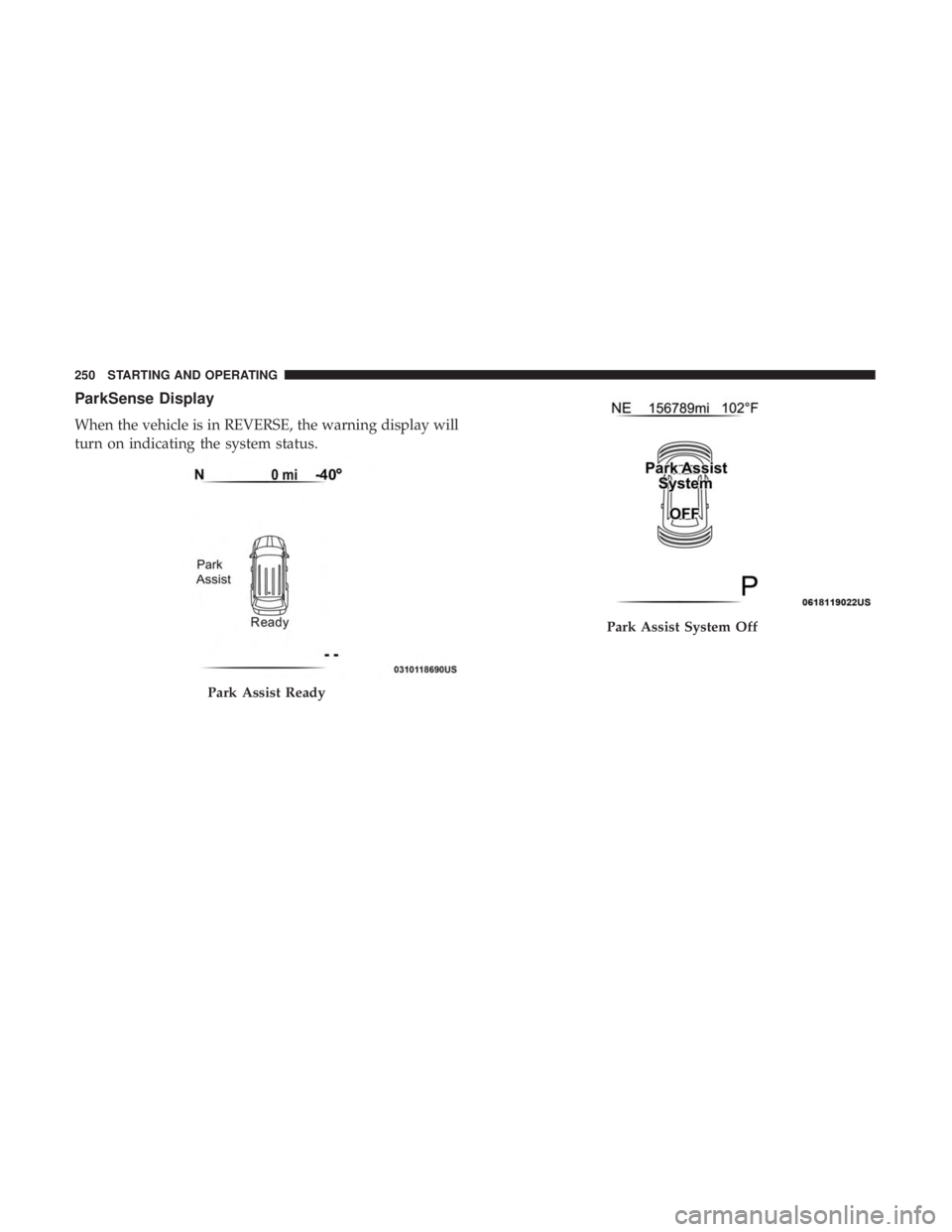

ParkSense Display
When the vehicle is in REVERSE, the warning display will
turn on indicating the system status.
Park Assist Ready
Park Assist System Off
250 STARTING AND OPERATING

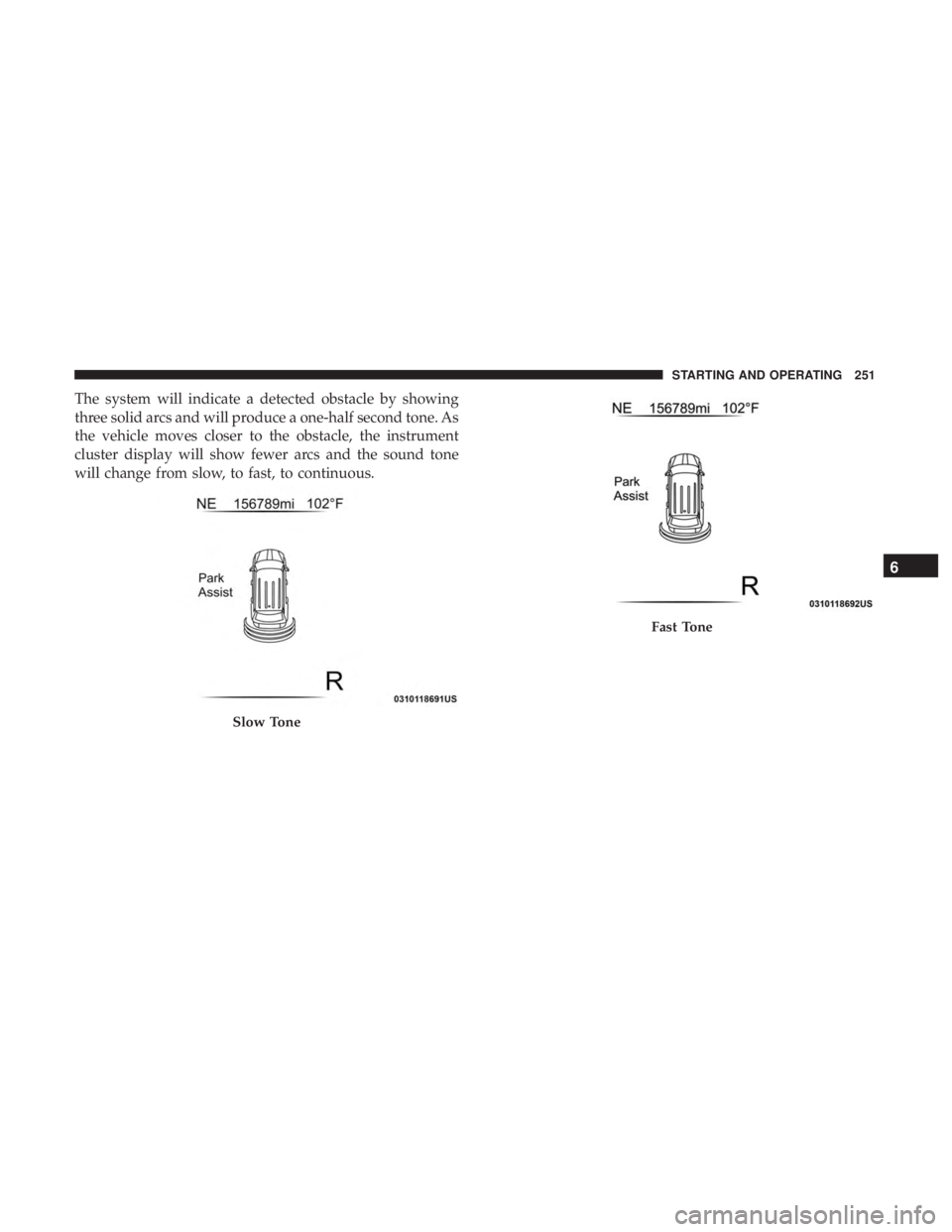

The system will indicate a detected obstacle by showing
three solid arcs and will produce a one-half second tone. As
the vehicle moves closer to the obstacle, the instrument
cluster display will show fewer arcs and the sound tone
will change from slow, to fast, to continuous.
Slow Tone
Fast Tone
6
STARTING AND OPERATING 251

The vehicle is close to the obstacle when the warning
display shows one flashing arc and sounds a continuous
tone. The following chart shows the warning alert opera-
tion when the system is detecting an obstacle:
WARNING ALERTS
Rear Distance (inches/cm) Greater than
79 inches(200 cm) 79-39 inches
(200-100 cm) 39-25 inches
(100-65 cm) 25-12 inches
(65-30 cm) Less than
12 inches (30 cm)
Audible Alert Chime None
Single 1/2-
Second Tone Slow
FastContinuous
Arcs None3 Solid
(Continuous) 3 Slow
Flashing 2 Slow
Flashing 1 Slow
Flashing
Continuous Tone
252 STARTING AND OPERATING

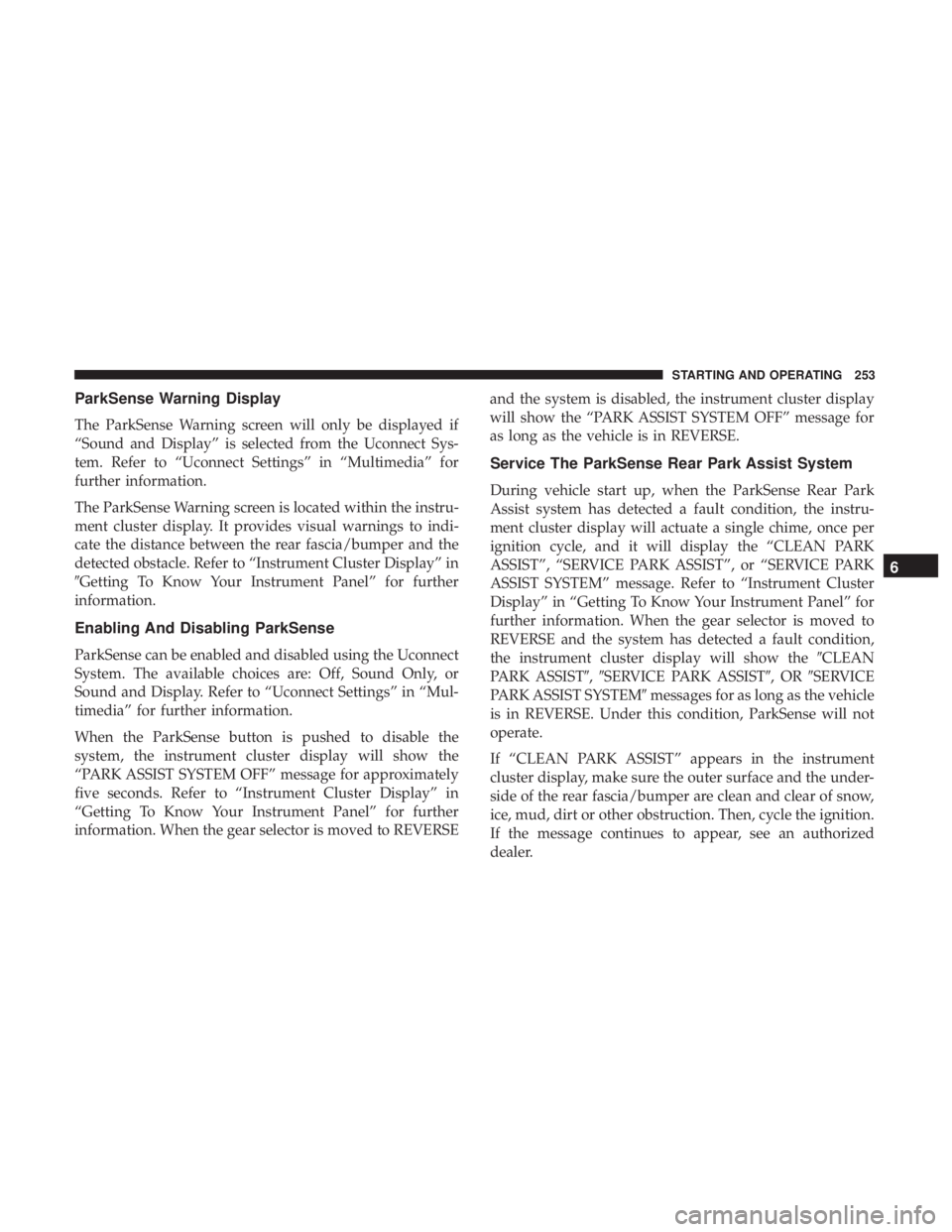

ParkSense Warning Display
The ParkSense Warning screen will only be displayed if
“Sound and Display” is selected from the Uconnect Sys-
tem. Refer to “Uconnect Settings” in “Multimedia” for
further information.
The ParkSense Warning screen is located within the instru-
ment cluster display. It provides visual warnings to indi-
cate the distance between the rear fascia/bumper and the
detected obstacle. Refer to “Instrument Cluster Display” in
Getting To Know Your Instrument Panel” for further
information.
Enabling And Disabling ParkSense
ParkSense can be enabled and disabled using the Uconnect
System. The available choices are: Off, Sound Only, or
Sound and Display. Refer to “Uconnect Settings” in “Mul-
timedia” for further information.
When the ParkSense button is pushed to disable the
system, the instrument cluster display will show the
“PARK ASSIST SYSTEM OFF” message for approximately
five seconds. Refer to “Instrument Cluster Display” in
“Getting To Know Your Instrument Panel” for further
information. When the gear selector is moved to REVERSEand the system is disabled, the instrument cluster display
will show the “PARK ASSIST SYSTEM OFF” message for
as long as the vehicle is in REVERSE.
Service The ParkSense Rear Park Assist System
During vehicle start up, when the ParkSense Rear Park
Assist system has detected a fault condition, the instru-
ment cluster display will actuate a single chime, once per
ignition cycle, and it will display the “CLEAN PARK
ASSIST”, “SERVICE PARK ASSIST”, or “SERVICE PARK
ASSIST SYSTEM” message. Refer to “Instrument Cluster
Display” in “Getting To Know Your Instrument Panel” for
further information. When the gear selector is moved to
REVERSE and the system has detected a fault condition,
the instrument cluster display will show the
CLEAN
PARK ASSIST, SERVICE PARK ASSIST,ORSERVICE
PARK ASSIST SYSTEM messages for as long as the vehicle
is in REVERSE. Under this condition, ParkSense will not
operate.
If “CLEAN PARK ASSIST” appears in the instrument
cluster display, make sure the outer surface and the under-
side of the rear fascia/bumper are clean and clear of snow,
ice, mud, dirt or other obstruction. Then, cycle the ignition.
If the message continues to appear, see an authorized
dealer.
6
STARTING AND OPERATING 253

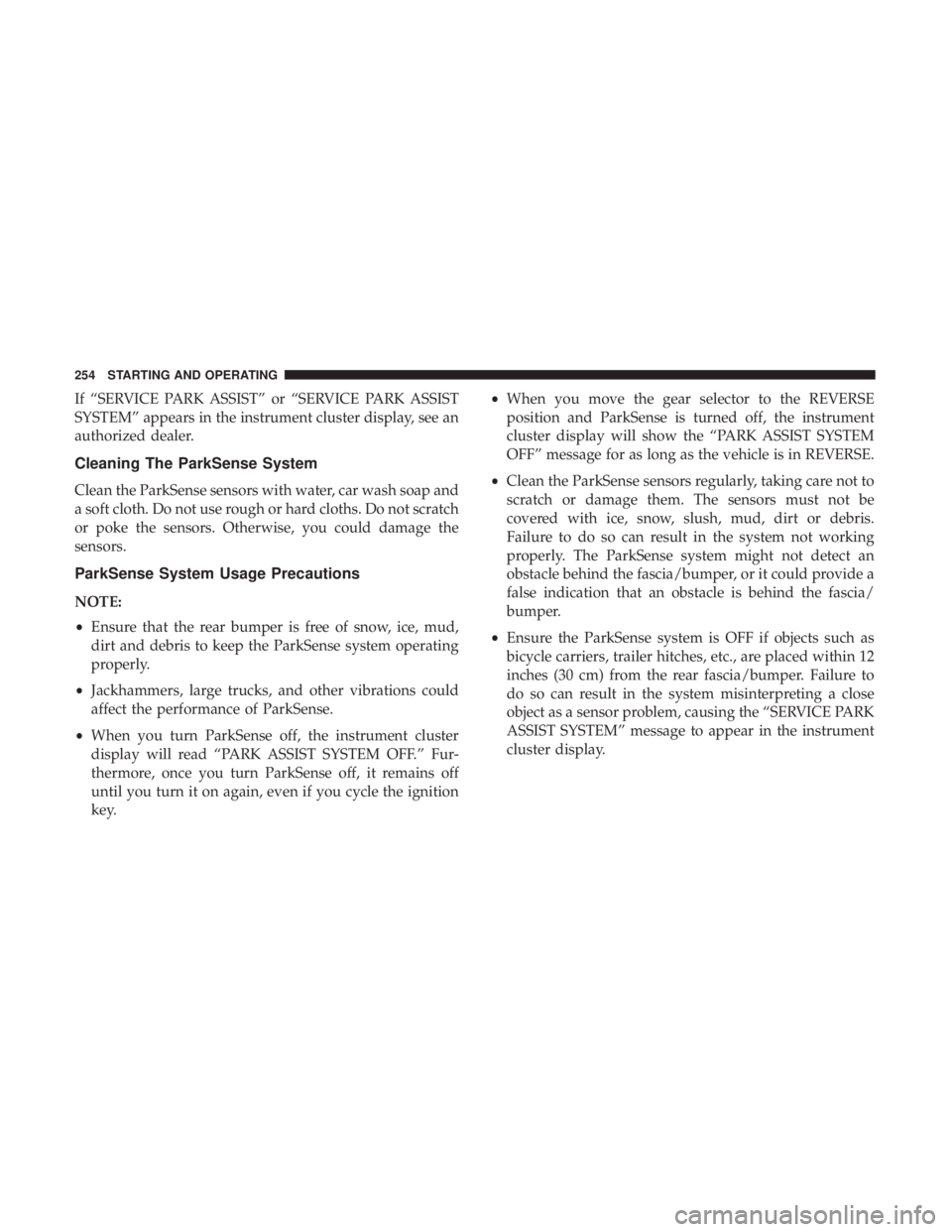

If “SERVICE PARK ASSIST” or “SERVICE PARK ASSIST
SYSTEM” appears in the instrument cluster display, see an
authorized dealer.
Cleaning The ParkSense System
Clean the ParkSense sensors with water, car wash soap and
a soft cloth. Do not use rough or hard cloths. Do not scratch
or poke the sensors. Otherwise, you could damage the
sensors.
ParkSense System Usage Precautions
NOTE:
•Ensure that the rear bumper is free of snow, ice, mud,
dirt and debris to keep the ParkSense system operating
properly.
• Jackhammers, large trucks, and other vibrations could
affect the performance of ParkSense.
• When you turn ParkSense off, the instrument cluster
display will read “PARK ASSIST SYSTEM OFF.” Fur-
thermore, once you turn ParkSense off, it remains off
until you turn it on again, even if you cycle the ignition
key. •
When you move the gear selector to the REVERSE
position and ParkSense is turned off, the instrument
cluster display will show the “PARK ASSIST SYSTEM
OFF” message for as long as the vehicle is in REVERSE.
• Clean the ParkSense sensors regularly, taking care not to
scratch or damage them. The sensors must not be
covered with ice, snow, slush, mud, dirt or debris.
Failure to do so can result in the system not working
properly. The ParkSense system might not detect an
obstacle behind the fascia/bumper, or it could provide a
false indication that an obstacle is behind the fascia/
bumper.
• Ensure the ParkSense system is OFF if objects such as
bicycle carriers, trailer hitches, etc., are placed within 12
inches (30 cm) from the rear fascia/bumper. Failure to
do so can result in the system misinterpreting a close
object as a sensor problem, causing the “SERVICE PARK
ASSIST SYSTEM” message to appear in the instrument
cluster display.
254 STARTING AND OPERATING

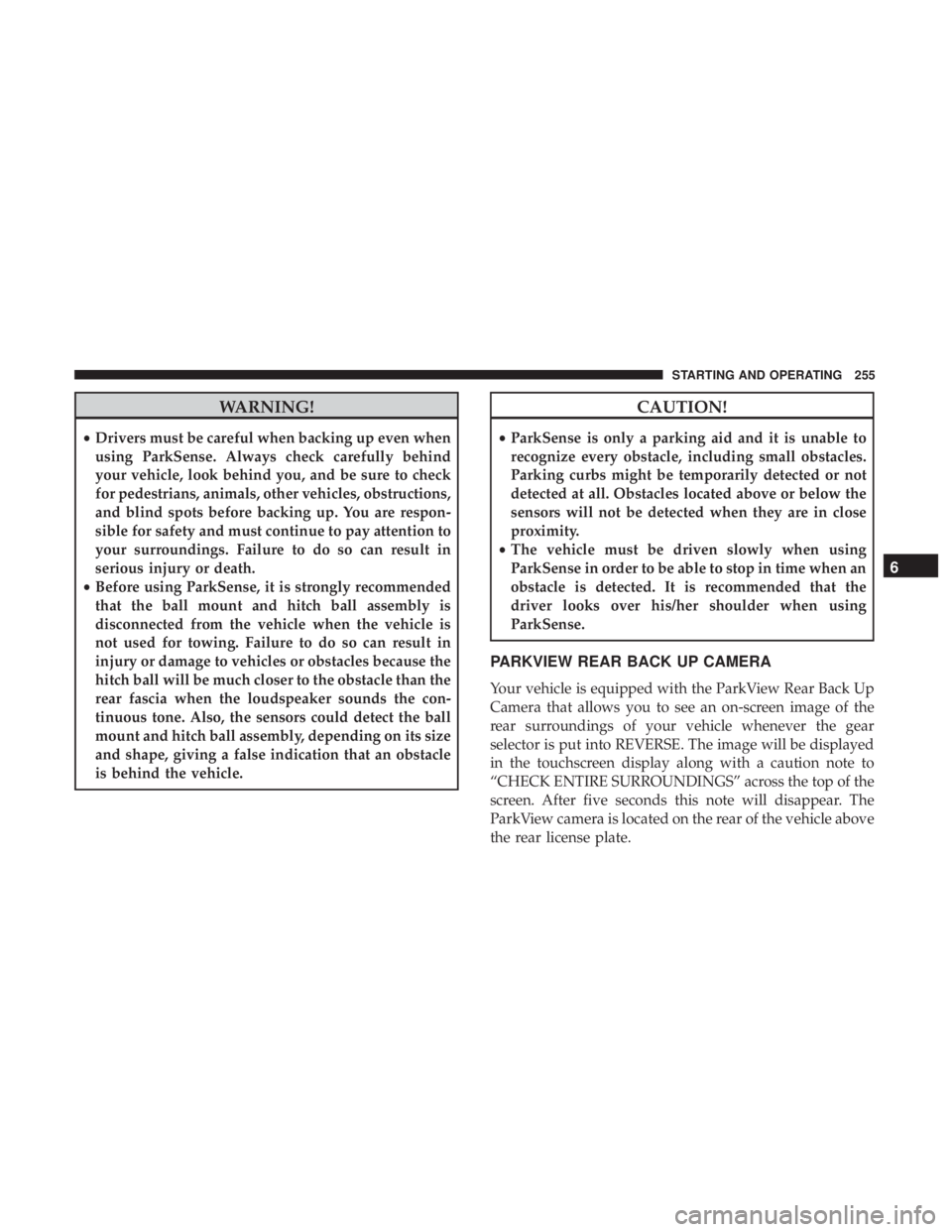

WARNING!
•Drivers must be careful when backing up even when
using ParkSense. Always check carefully behind
your vehicle, look behind you, and be sure to check
for pedestrians, animals, other vehicles, obstructions,
and blind spots before backing up. You are respon-
sible for safety and must continue to pay attention to
your surroundings. Failure to do so can result in
serious injury or death.
• Before using ParkSense, it is strongly recommended
that the ball mount and hitch ball assembly is
disconnected from the vehicle when the vehicle is
not used for towing. Failure to do so can result in
injury or damage to vehicles or obstacles because the
hitch ball will be much closer to the obstacle than the
rear fascia when the loudspeaker sounds the con-
tinuous tone. Also, the sensors could detect the ball
mount and hitch ball assembly, depending on its size
and shape, giving a false indication that an obstacle
is behind the vehicle.
CAUTION!
• ParkSense is only a parking aid and it is unable to
recognize every obstacle, including small obstacles.
Parking curbs might be temporarily detected or not
detected at all. Obstacles located above or below the
sensors will not be detected when they are in close
proximity.
• The vehicle must be driven slowly when using
ParkSense in order to be able to stop in time when an
obstacle is detected. It is recommended that the
driver looks over his/her shoulder when using
ParkSense.
PARKVIEW REAR BACK UP CAMERA
Your vehicle is equipped with the ParkView Rear Back Up
Camera that allows you to see an on-screen image of the
rear surroundings of your vehicle whenever the gear
selector is put into REVERSE. The image will be displayed
in the touchscreen display along with a caution note to
“CHECK ENTIRE SURROUNDINGS” across the top of the
screen. After five seconds this note will disappear. The
ParkView camera is located on the rear of the vehicle above
the rear license plate.
6
STARTING AND OPERATING 255

When the vehicle is shifted out of REVERSE, the rear
camera mode is exited and the last selected touchscreen
appears again.
The camera image is also available in the rearview mirror
if the touchscreen display is unavailable.
If your vehicle is equipped with the Camera Delay feature
and it is turned on, the rear camera image will be displayed
for up to 10 seconds when the vehicle is shifted out of
REVERSE unless the forward vehicle speed exceeds 8 mph
(13 km/h), the transmission is shifted into PARK, the X
button on the camera display screen is pressed, or the
vehicle’s ignition is cycled to the OFF position.Static grid lines will illustrate the width of the vehicle.
These lines will show separate zones that will help indicate
the distance to the rear of the vehicle.
NOTE:
The ParkView Rear Back Up Camera has program-
mable modes of operation that may be selected through the
Uconnect System. Refer to “Uconnect Settings” in “Multi-
media” for further information.
Different colored zones indicate the distance to the rear of
the vehicle.
The following table shows the approximate distances for
each zone:
Zone Distance To The Rear Of The Vehicle
Red 0 - 1 ft (0 - 30 cm)
Yellow 1 ft - 3 ft (30 cm - 1 m)
Green 3 ft or greater (1 m or greater)
256 STARTING AND OPERATING

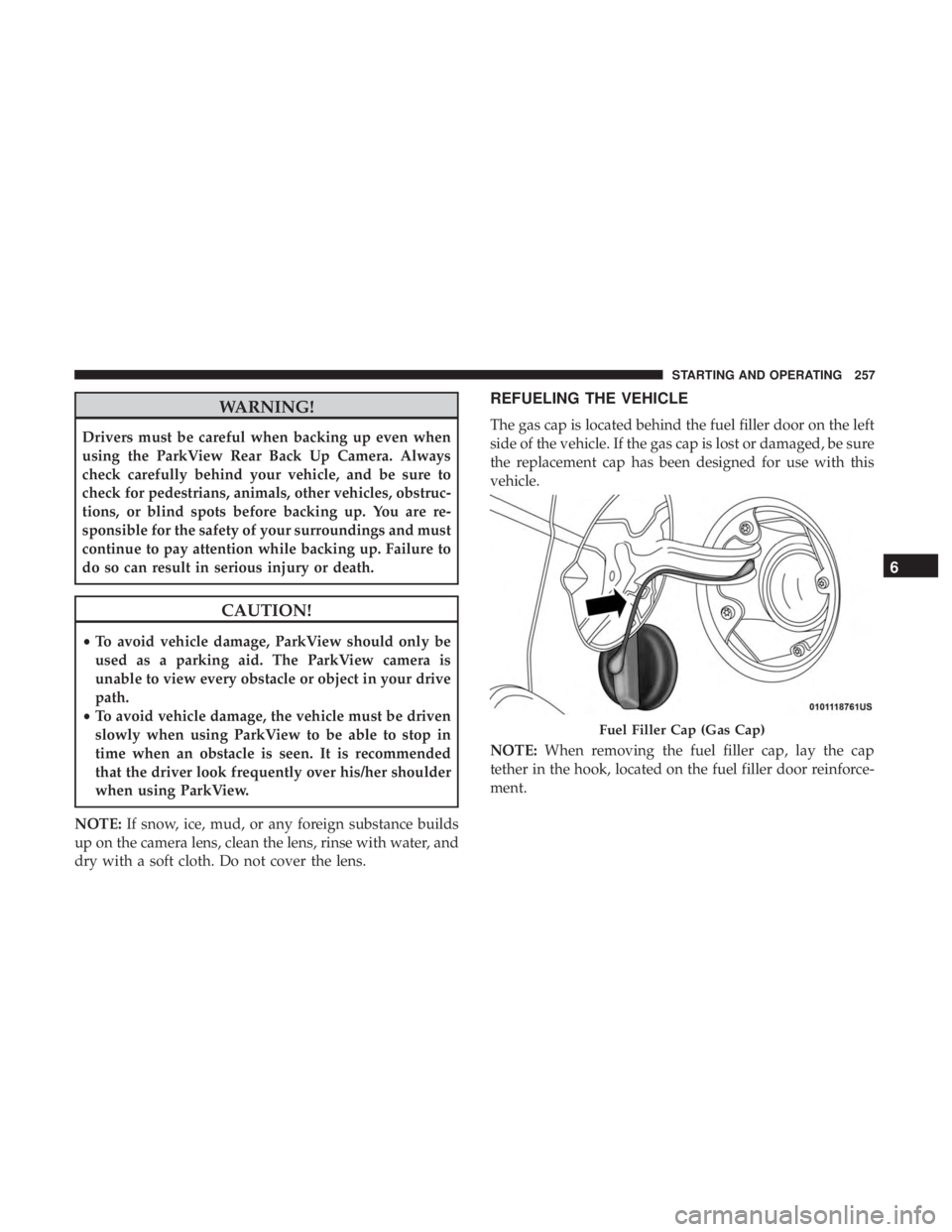

WARNING!
Drivers must be careful when backing up even when
using the ParkView Rear Back Up Camera. Always
check carefully behind your vehicle, and be sure to
check for pedestrians, animals, other vehicles, obstruc-
tions, or blind spots before backing up. You are re-
sponsible for the safety of your surroundings and must
continue to pay attention while backing up. Failure to
do so can result in serious injury or death.
CAUTION!
•To avoid vehicle damage, ParkView should only be
used as a parking aid. The ParkView camera is
unable to view every obstacle or object in your drive
path.
• To avoid vehicle damage, the vehicle must be driven
slowly when using ParkView to be able to stop in
time when an obstacle is seen. It is recommended
that the driver look frequently over his/her shoulder
when using ParkView.
NOTE: If snow, ice, mud, or any foreign substance builds
up on the camera lens, clean the lens, rinse with water, and
dry with a soft cloth. Do not cover the lens.
REFUELING THE VEHICLE
The gas cap is located behind the fuel filler door on the left
side of the vehicle. If the gas cap is lost or damaged, be sure
the replacement cap has been designed for use with this
vehicle.
NOTE: When removing the fuel filler cap, lay the cap
tether in the hook, located on the fuel filler door reinforce-
ment.
Fuel Filler Cap (Gas Cap)
6
STARTING AND OPERATING 257

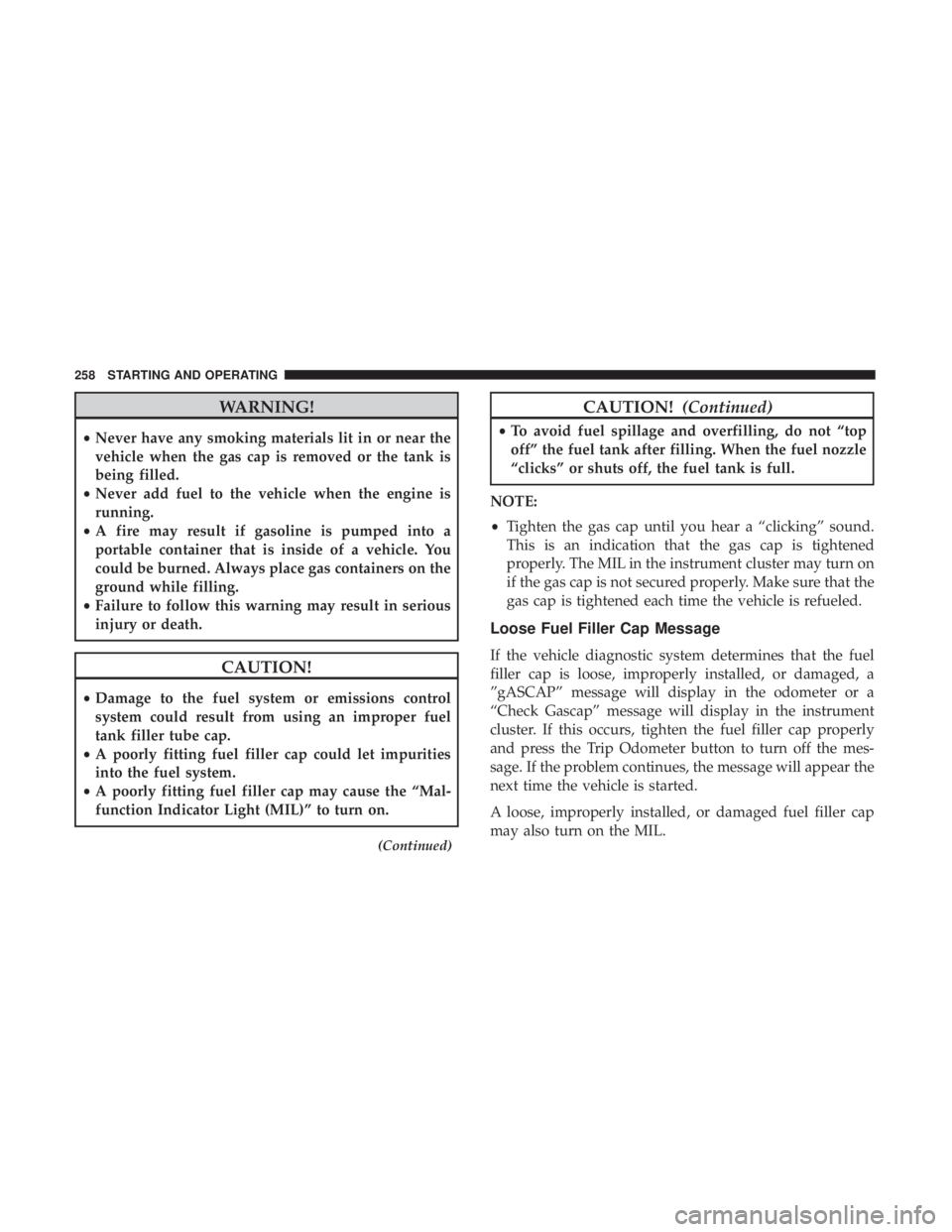

WARNING!
•Never have any smoking materials lit in or near the
vehicle when the gas cap is removed or the tank is
being filled.
• Never add fuel to the vehicle when the engine is
running.
• A fire may result if gasoline is pumped into a
portable container that is inside of a vehicle. You
could be burned. Always place gas containers on the
ground while filling.
• Failure to follow this warning may result in serious
injury or death.
CAUTION!
• Damage to the fuel system or emissions control
system could result from using an improper fuel
tank filler tube cap.
• A poorly fitting fuel filler cap could let impurities
into the fuel system.
• A poorly fitting fuel filler cap may cause the “Mal-
function Indicator Light (MIL)” to turn on.
(Continued)
CAUTION! (Continued)
•To avoid fuel spillage and overfilling, do not “top
off” the fuel tank after filling. When the fuel nozzle
“clicks” or shuts off, the fuel tank is full.
NOTE:
• Tighten the gas cap until you hear a “clicking” sound.
This is an indication that the gas cap is tightened
properly. The MIL in the instrument cluster may turn on
if the gas cap is not secured properly. Make sure that the
gas cap is tightened each time the vehicle is refueled.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
”gASCAP” message will display in the odometer or a
“Check Gascap” message will display in the instrument
cluster. If this occurs, tighten the fuel filler cap properly
and press the Trip Odometer button to turn off the mes-
sage. If the problem continues, the message will appear the
next time the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
258 STARTING AND OPERATING
