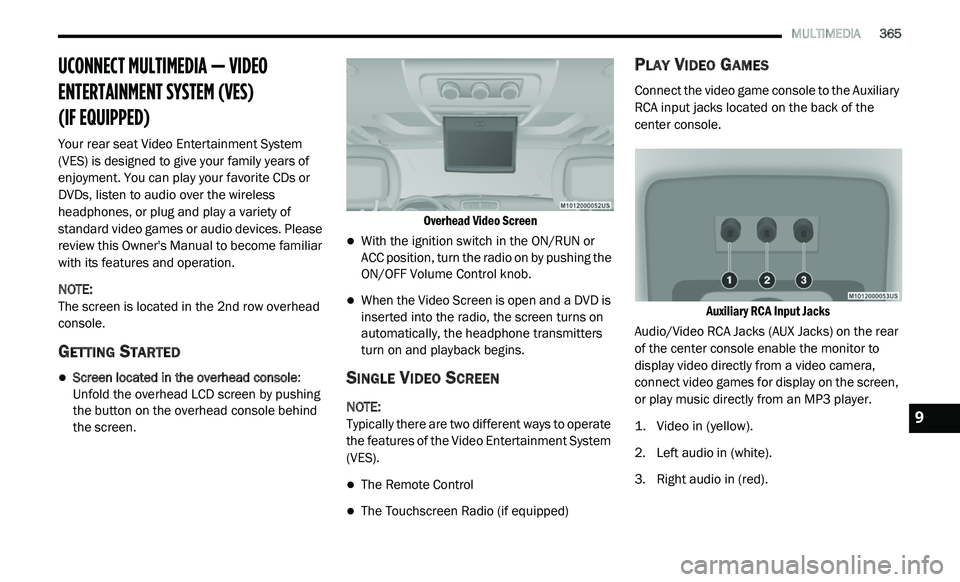

remote start DODGE JOURNEY 2020 Owner's Manual

MULTIMEDIA 365
UCONNECT MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES)
(IF EQUIPPED)
Your rear seat Video Entertainment System
(VES) is designed to give your family years of
enjoyment. You can play your favorite CDs or
DVDs, listen to audio over the wireless
headphones, or plug and play a variety of
standard video games or audio devices. Please
review this Owner's Manual to become familiar
with its features and operation.
NOTE:
The screen is located in the 2nd row overhead
c o

nsole.
GETTING STARTED
Screen located in the overhead console :
Unfold the overhead LCD screen by pushing
the button on the overhead console behind
the screen.
Overhead Video Screen

With the ignition switch in the ON/RUN or
ACC position, turn the radio on by pushing the
ON/OFF Volume Control knob.
When the Video Screen is open and a DVD is
inserted into the radio, the screen turns on
automatically, the headphone transmitters
turn on and playback begins.
SINGLE VIDEO SCREEN
NOTE:

Typically there are two different ways to operate
t h

e features of the Video Entertainment System
(VES).
The Remote Control
The Touchscreen Radio (if equipped)
PLAY VIDEO GAMES
Connect the video game console to the Auxiliary
RCA input jacks located on the back of the
center console.

Auxiliary RCA Input Jacks

Audio/Video RCA Jacks (AUX Jacks) on the rear
o f

the center console enable the monitor to
display video directly from a video camera,
connect video games for display on the screen,
or play music directly from an MP3 player.

1. V ideo in (yellow).

2
. Le ft audio in (white).
3
. R ight audio in (red).
9

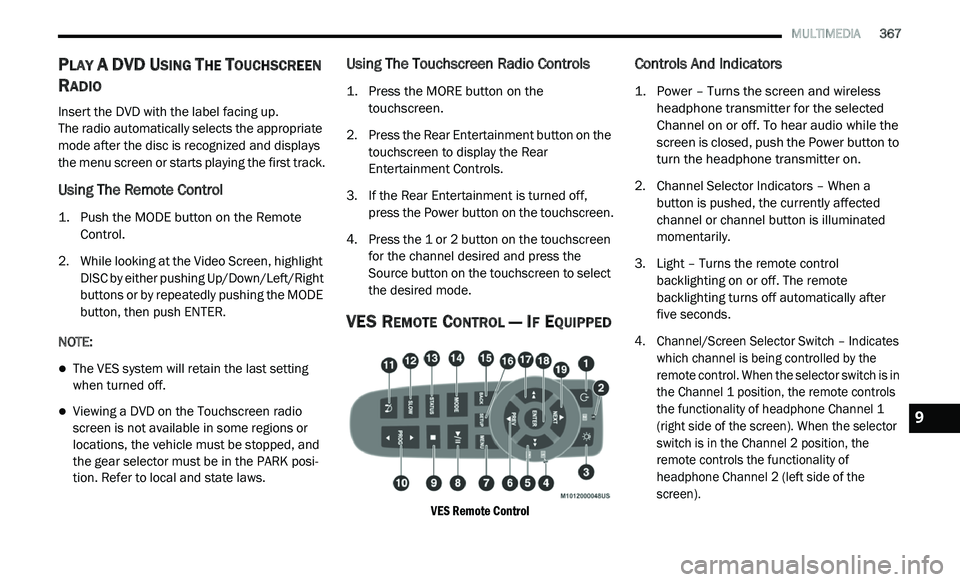

MULTIMEDIA 367
PLAY A DVD USING THE TOUCHSCREEN
R
ADIO
Insert the DVD with the label facing up.
The radio automatically selects the appropriate
m o

de after the disc is recognized and displays
the menu screen or starts playing the first track.
Using The Remote Control

1. Push the MODE button on the Remote Control.

2. W hile looking at the Video Screen, highlight
D
ISC by either pushing Up/Down/Left/Right
buttons or by repeatedly pushing the MODE
button, then push ENTER.
NOTE:
The VES system will retain the last setting
when turned off.
Viewing a DVD on the Touchscreen radio
screen is not available in some regions or
locations, the vehicle must be stopped, and
the gear selector must be in the PARK posi -
tion. Refer to local and state laws.
Using The Touchscreen Radio Controls

1. Press the MORE button on the
touchscreen.

2. P ress the Rear Entertainment button on the
t
ouchscreen to display the Rear
Entertainment Controls.
3. I f the Rear Entertainment is turned off,
p
ress the Power button on the touchscreen.
4. P ress the 1 or 2 button on the touchscreen
f
or the channel desired and press the
Source button on the touchscreen to select
the desired mode.
VES REMOTE CONTROL — IF EQUIPPED

VES Remote Control

Controls And Indicators

1. Power – Turns the screen and wireless headphone transmitter for the selected
Channel on or off. To hear audio while the
screen is closed, push the Power button to
turn the headphone transmitter on.

2. C hannel Selector Indicators – When a
b
utton is pushed, the currently affected
channel or channel button is illuminated
momentarily.
3. Light – Turns the remote control b
acklighting on or off. The remote
backlighting turns off automatically after
five seconds.

4. Channel/Screen Selector Switch – Indicates w
hich channel is being controlled by the
remote control. When the selector switch is in
the Channel 1 position, the remote controls
the functionality of headphone Channel 1
(right side of the screen). When the selector
switch is in the Channel 2 position, the
remote controls the functionality of
headphone Channel 2 (left side of the
screen).

9

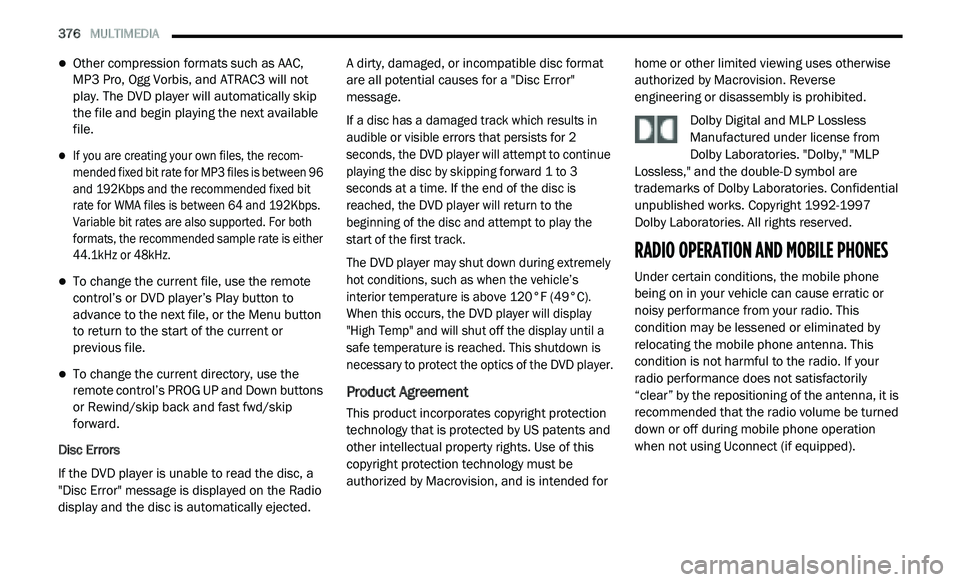

376 MULTIMEDIA
Other compression formats such as AAC,
MP3 Pro, Ogg Vorbis, and ATRAC3 will not
play. The DVD player will automatically skip
the file and begin playing the next available
file.

If you are creating your own files, the recom -
mended fixed bit rate for MP3 files is between 96
a n

d 192Kbps and the recommended fixed bit
rate for WMA files is between 64 and 192Kbps.
Variable bit rates are also supported. For both
formats, the recommended sample rate is either
44.1kHz or 48kHz.

To change the current file, use the remote
control’s or DVD player’s Play button to
advance to the next file, or the Menu button
to return to the start of the current or
previous file.
To change the current directory, use the
remote control’s PROG UP and Down buttons
or Rewind/skip back and fast fwd/skip
forward.
Disc Errors
If the DVD player is unable to read the disc, a
" D

isc Error" message is displayed on the Radio
display and the disc is automatically ejected. A dirty, damaged, or incompatible disc format
a
r

e all potential causes for a "Disc Error"
message.

If a disc has a damaged track which results in
a u

dible or visible errors that persists for 2
seconds, the DVD player will attempt to continue
playing the disc by skipping forward 1 to 3
seconds at a time. If the end of the disc is
reached, the DVD player will return to the
beginning of the disc and attempt to play the
start of the first track.
The DVD player may shut down during extremely
h o

t conditions, such as when the vehicle’s
interior temperature is above 120°F (49°C).
When this occurs, the DVD player will display
"High Temp" and will shut off the display until a
safe temperature is reached. This shutdown is
necessary to protect the optics of the DVD player.

Product Agreement
This product incorporates copyright protection
technology that is protected by US patents and
other intellectual property rights. Use of this
copyright protection technology must be
authorized by Macrovision, and is intended for home or other limited viewing uses otherwise
authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
Dolby Digital and MLP Lossless
Manufactured under license from
Do

lby Laboratories. "Dolby," "MLP
Lossless," and the double-D symbol are
trademarks of Dolby Laboratories. Confidential
unpublished works. Copyright 1992-1997
Dolby Laboratories. All rights reserved.
RADIO OPERATION AND MOBILE PHONES
Under certain conditions, the mobile phone
being on in your vehicle can cause erratic or
noisy performance from your radio. This
condition may be lessened or eliminated by
relocating the mobile phone antenna. This
condition is not harmful to the radio. If your
radio performance does not satisfactorily
“clear” by the repositioning of the antenna, it is
recommended that the radio volume be turned
down or off during mobile phone operation
when not using Uconnect (if equipped).

386
Dimmer Switch
Headlight..............................................40, 41DipsticksAutomatic Transmission............................233Oil (Engine)................................................221Power Steering..........................................168Disabled Vehicle Towing................................212DisposalAntifreeze (Engine Coolant).......................230Door Ajar........................................................103Door Ajar Light...............................................103Door LocksAutomatic....................................................20Doors...............................................................19Driver’s Seat Back Tilt.....................................25DrivingThrough Flowing, Rising, Or Shallow
Standing Water
.....................................187DVD Player (Video Entertainment System)....365
E
Electric Brake Control System Anti-Lock Brake System
.............................109Electronic Roll Mitigation...........................115Electric Remote Mirrors...................................38Electronic Brake Control System...................110Electronic Stability Control (ESC)...................111Electronic Throttle Control Warning Light......102
Emergency, In Case OfFreeing Vehicle When Stuck.....................211Hazard Warning Flasher...........................189Jacking............................................199, 234Jump Starting...........................................206Towing......................................................212Emission Control System Maintenance........108Engine...........................................................220Air Cleaner................................................224Block Heater.............................................159Break-In Recommendations.....................160Checking Oil Level....................................221Compartment...........................................220Coolant (Antifreeze).........................228, 262Cooling.....................................................228Exhaust Gas Caution.......................154, 260Fails To Start............................................159Flooded, Starting......................................159Fuel Requirements...................................257Jump Starting...........................................206Oil...........................................223, 261, 262Oil Filler Cap....................................220, 223Oil Filter....................................................224Oil Reset......................................................96Oil Selection....................................223, 261Oil Synthetic.............................................223Overheating..............................................209Starting............................................157, 158Engine Oil Viscosity.......................................223
Enhanced Accident Response
Feature................................................137, 215Ethanol..........................................................258Exhaust Gas Cautions..........................154, 260Exhaust System...................................154, 227Exterior Lights........................................40, 156
F
Filters Air Cleaner
................................................224Air Conditioning...........................................72Engine Oil........................................224, 262Engine Oil Disposal...................................224Flashers........................................................189Hazard Warning........................................189Turn Signals..............................42, 106, 156Flash-To-Pass...................................................41Flooded Engine Starting................................159Floor Console...................................................85Fluid Capacities............................................261Fluid Leaks....................................................156Fluid Level ChecksAutomatic Transmission...........................233Brake...............................................232, 264Cooling System.........................................228Engine Oil.................................................221Power Steering................................168, 264Fluid, Brake...................................................264Fluids And Lubricants....................................262
Fog Lights..............................................42, 192

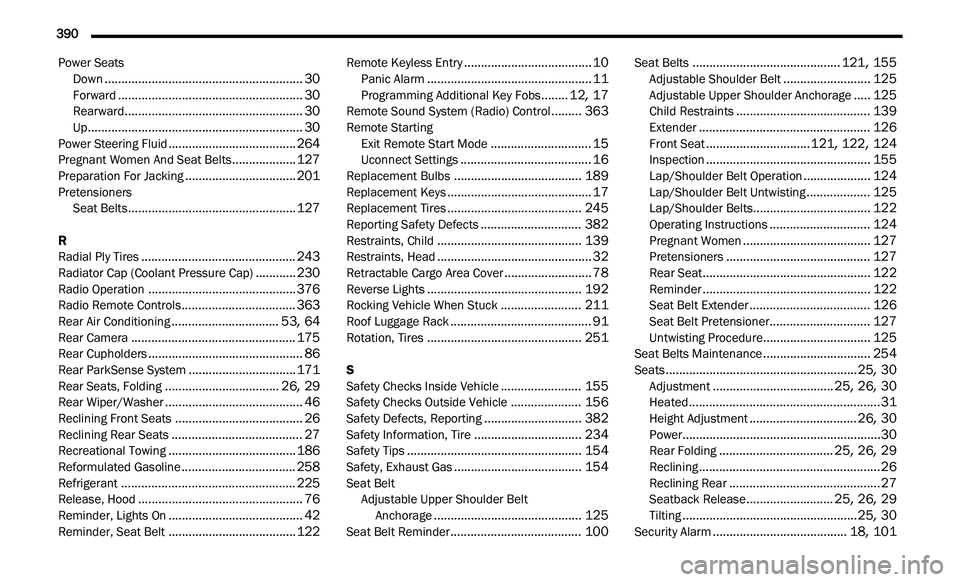

390
Power Seats
Down...........................................................30Forward.......................................................30Rearward.....................................................30Up................................................................30Power Steering Fluid......................................264Pregnant Women And Seat Belts...................127Preparation For Jacking.................................201PretensionersSeat Belts..................................................127
R
Radial Ply Tires..............................................243Radiator Cap (Coolant Pressure Cap)............230Radio Operation............................................376Radio Remote Controls..................................363Rear Air Conditioning................................53, 64Rear Camera.................................................175Rear Cupholders..............................................86Rear ParkSense System................................171Rear Seats, Folding..................................26, 29Rear Wiper/Washer.........................................46Reclining Front Seats......................................26Reclining Rear Seats.......................................27Recreational Towing......................................186Reformulated Gasoline..................................258Refrigerant....................................................225Release, Hood.................................................76Reminder, Lights On........................................42
Reminder, Seat Belt......................................122
Remote Keyless Entry......................................10Panic Alarm.................................................11Programming Additional Key Fobs........12, 17Remote Sound System (Radio) Control.........363Remote StartingExit Remote Start Mode..............................15Uconnect Settings.......................................16Replacement Bulbs......................................189Replacement Keys...........................................17Replacement Tires........................................245Reporting Safety Defects..............................382Restraints, Child...........................................139Restraints, Head..............................................32Retractable Cargo Area Cover..........................78Reverse Lights..............................................192Rocking Vehicle When Stuck........................211Roof Luggage Rack..........................................91Rotation, Tires..............................................251
S
Safety Checks Inside Vehicle........................155Safety Checks Outside Vehicle.....................156Safety Defects, Reporting.............................382Safety Information, Tire................................234Safety Tips....................................................154Safety, Exhaust Gas......................................154Seat BeltAdjustable Upper Shoulder Belt
Anchorage
............................................125
Seat Belt Reminder.......................................100
Seat Belts............................................121, 155Adjustable Shoulder Belt..........................125Adjustable Upper Shoulder Anchorage.....125Child Restraints........................................139Extender...................................................126Front Seat...............................121, 122, 124Inspection.................................................155Lap/Shoulder Belt Operation....................124Lap/Shoulder Belt Untwisting...................125Lap/Shoulder Belts...................................122Operating Instructions..............................124Pregnant Women......................................127Pretensioners...........................................127Rear Seat..................................................122Reminder..................................................122Seat Belt Extender....................................126Seat Belt Pretensioner..............................127Untwisting Procedure................................125Seat Belts Maintenance................................254Seats.........................................................25, 30Adjustment....................................25, 26, 30Heated.........................................................31Height Adjustment................................26, 30Power...........................................................30Rear Folding..................................25, 26, 29Reclining......................................................26Reclining Rear.............................................27Seatback Release..........................25, 26, 29Tilting....................................................25, 30
Security Alarm........................................18, 101
