Page 130 of 380

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
mInstrument Panel And Controls............133
mPremium Instrument Cluster..............134
mInstrument Cluster Descriptions...........135
mElectronic Vehicle Information Center
(EVIC)
..............................143
NElectronic Vehicle Information Center (EVIC)
Displays............................144
NTrip Functions.......................145
NCompass Display.....................147
NTelephone Ð If Equipped...............149
NNavigation Ð If Equipped...............151NSystem Warnings (Customer Information
Features)...........................151
NPersonal Settings (Customer Programmable
Features)...........................151mRadio General Information...............154
NRadio Broadcast Signals.................154
NTwo Types Of Signals..................154
NElectrical Disturbances..................154
NAM Reception.......................155
NFM Reception........................155
mSales Code REF Ð AM/FM/CD (Single Disc)
Radio With Optional Satellite Radio And
Hands Free Phone Capability
.............155
4
Page 132 of 380

NAudio Clock Display...................176
mVideo Entertainment System (Sales Code XRV) Ð
If Equipped
..........................177
NKicker Mobile Surround (Kms1)...........179
mSatellite Radio Ð If Equipped.............179
NSystem Activation.....................179
NElectronic Serial Number/Sirius Identification
Number (ESN/SID)....................180
NSelecting Satellite Mode In REF, RAQ, And
RAK Radios.........................180
NSelecting a Channel....................181
NStoring And Selecting Pre-Set Channels......181
NUsing The PTY (Program Type) Button (If
Equipped)..........................181
NPTY Button9Scan9.....................181
NPTY Button9Seek9.....................182
NSatellite Antenna......................182NReception Quality.....................182
mRemote Sound System Controls...........183
NRadio Operation......................184
NTape Player Operation..................184
NCD Player Operation...................184
NSatellite Radio Operation................185
mCassette Tape And Player Maintenance......185
mCD/DVD Disc Maintenance..............186
mRadio Operation And Cellular Phones.......186
mClimate Controls......................186
NManual Air Conditioning And Heating
System.............................187
NAutomatic Temperature Control Ð If
Equipped...........................189
NOperating Tips.......................194
mRear Window Features..................197
UNDERSTANDING YOUR INSTRUMENT PANEL 131
4

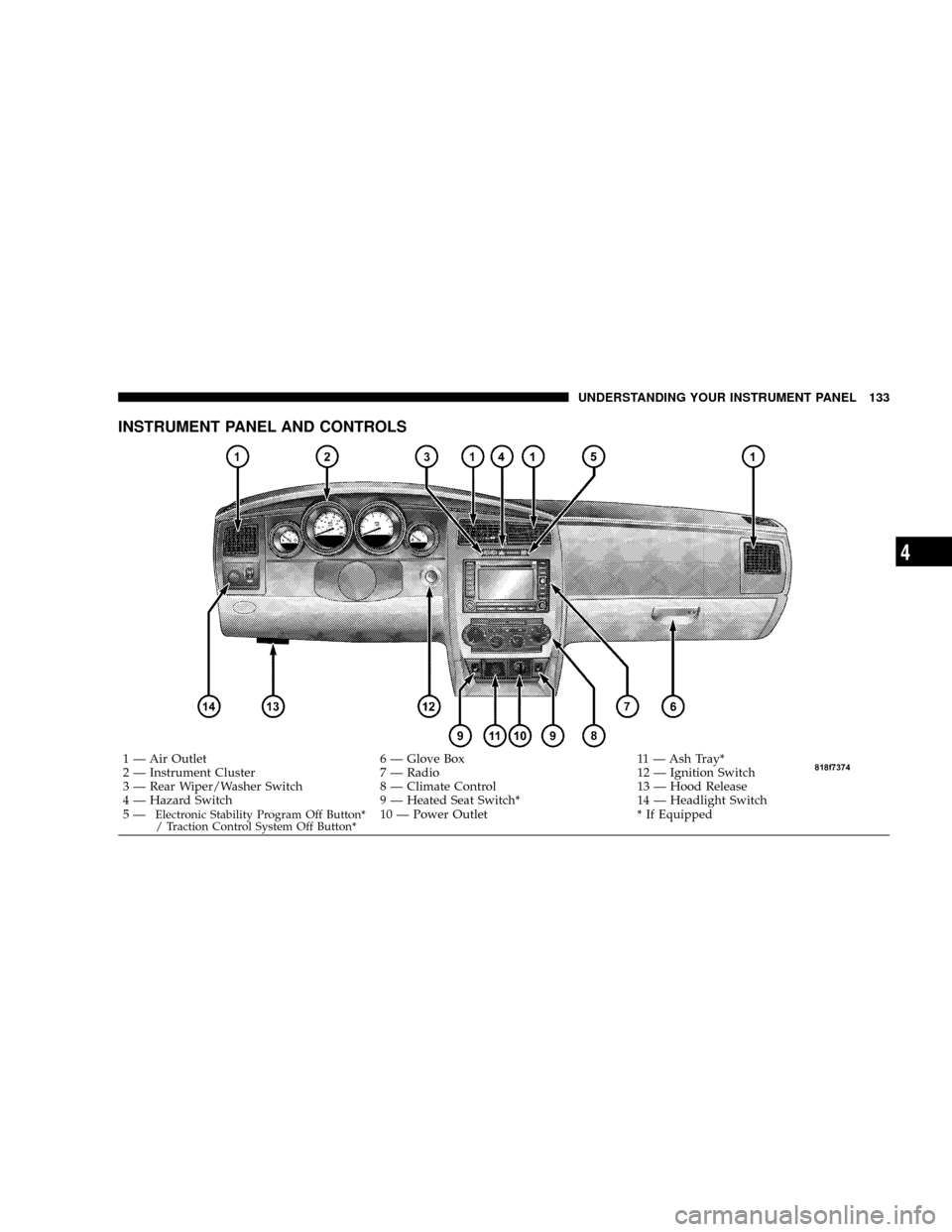

Page 134 of 380

INSTRUMENT PANEL AND CONTROLS
1 Ð Air Outlet 6 Ð Glove Box 11 Ð Ash Tray*
2 Ð Instrument Cluster 7 Ð Radio 12 Ð Ignition Switch
3 Ð Rear Wiper/Washer Switch 8 Ð Climate Control 13 Ð Hood Release
4 Ð Hazard Switch 9 Ð Heated Seat Switch* 14 Ð Headlight Switch
5Ð
Electronic Stability Program Off Button*
/ Traction Control System Off Button*10 Ð Power Outlet * If EquippedUNDERSTANDING YOUR INSTRUMENT PANEL 133
4

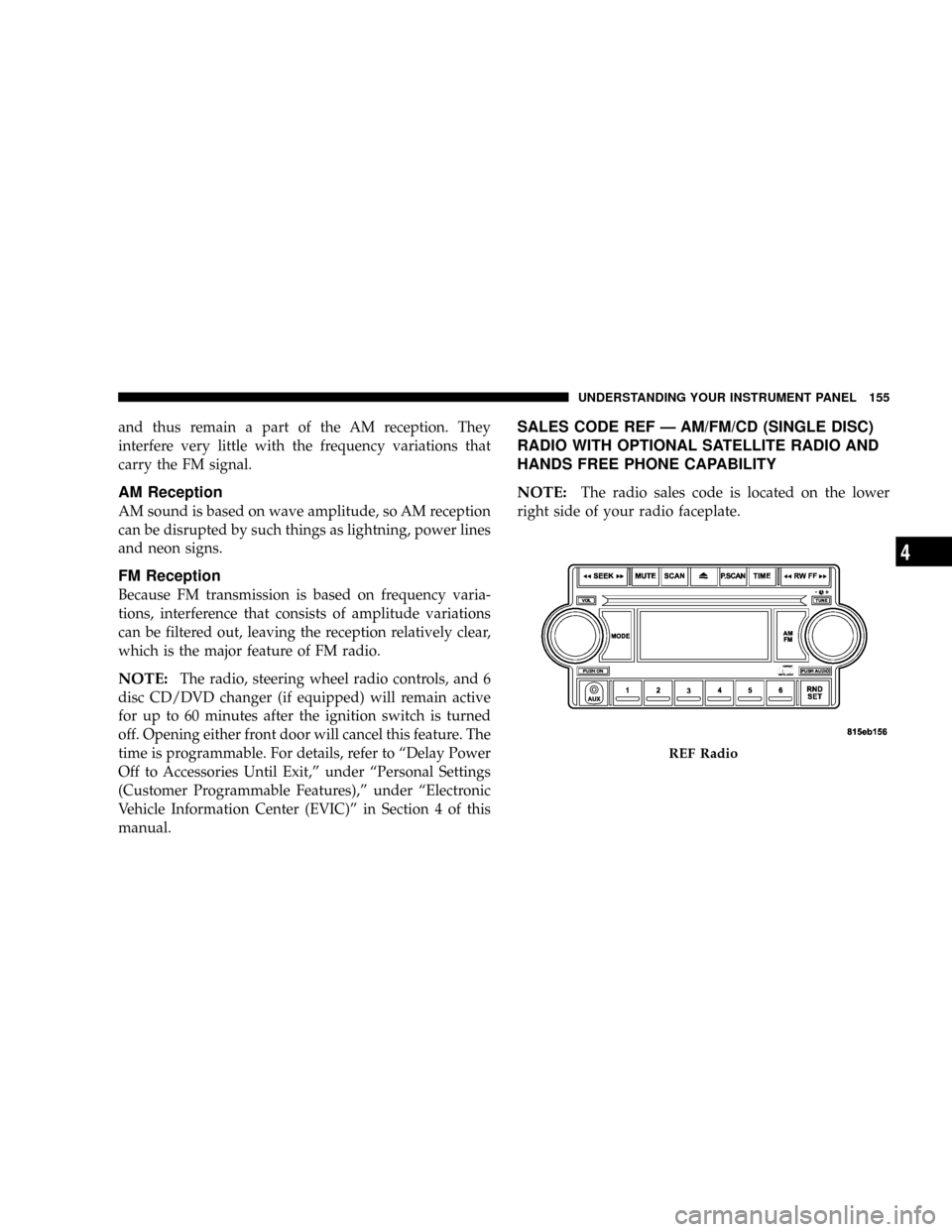

Page 156 of 380

and thus remain a part of the AM reception. They
interfere very little with the frequency variations that
carry the FM signal.
AM Reception
AM sound is based on wave amplitude, so AM reception
can be disrupted by such things as lightning, power lines
and neon signs.
FM Reception
Because FM transmission is based on frequency varia-
tions, interference that consists of amplitude variations
can be filtered out, leaving the reception relatively clear,
which is the major feature of FM radio.
NOTE:The radio, steering wheel radio controls, and 6
disc CD/DVD changer (if equipped) will remain active
for up to 60 minutes after the ignition switch is turned
off. Opening either front door will cancel this feature. The
time is programmable. For details, refer to ªDelay Power
Off to Accessories Until Exit,º under ªPersonal Settings
(Customer Programmable Features),º under ªElectronic
Vehicle Information Center (EVIC)º in Section 4 of this
manual.
SALES CODE REF Ð AM/FM/CD (SINGLE DISC)
RADIO WITH OPTIONAL SATELLITE RADIO AND
HANDS FREE PHONE CAPABILITY
NOTE:
The radio sales code is located on the lower
right side of your radio faceplate.
REF Radio
UNDERSTANDING YOUR INSTRUMENT PANEL 155
4
Page 184 of 380

REMOTE SOUND SYSTEM CONTROLS
The remote sound system controls are located on the
surface of the steering wheel at the 3 and 9 o'clock
positions.
Vehicles equipped with steering wheel mounted buttons
are also equipped with the Electronic Vehicle Information
Center (EVIC). The EVIC features a driver-interactive
display. This is located in the instrument cluster below
the speedometer.The VOLUME button controls the sound level
of the sound system. Press the top of the
VOLUME button to increase the sound level.
Press the bottom of the VOLUME button to
decrease the sound level.
Press the AUDIO MODE button to select the
Compass/Temp/Audio screen. This screen
displays radio station frequencies, any one of
twelve radio station preset frequencies, CD
disc number, CD track number, tape, or any
one of 200 Satellite radio channels depending
on which radio is in the vehicle.
If Compass/Temp/Audio is already displayed when the
AUDIO MODE button is pressed, then the radio mode
will change from AM to FM, to Tape, to CD, or to Satellite
(SAT) accordingly.
Electronic Vehicle Information Center
VOL-
UME
Button
AUDIO
MODE
Button
UNDERSTANDING YOUR INSTRUMENT PANEL 183
4

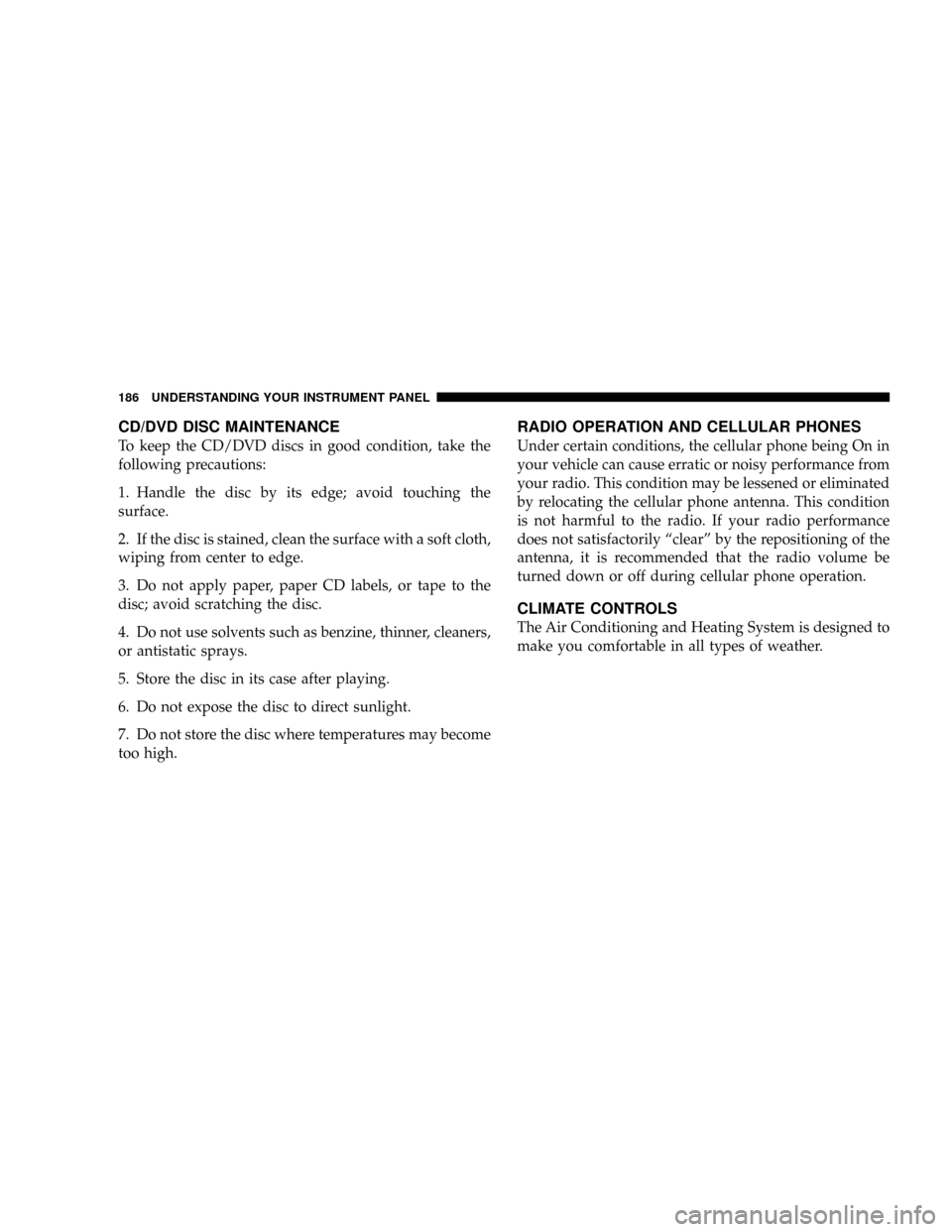

Page 187 of 380

CD/DVD DISC MAINTENANCE
To keep the CD/DVD discs in good condition, take the
following precautions:
1. Handle the disc by its edge; avoid touching the
surface.
2. If the disc is stained, clean the surface with a soft cloth,
wiping from center to edge.
3. Do not apply paper, paper CD labels, or tape to the
disc; avoid scratching the disc.
4. Do not use solvents such as benzine, thinner, cleaners,
or antistatic sprays.
5. Store the disc in its case after playing.
6. Do not expose the disc to direct sunlight.
7. Do not store the disc where temperatures may become
too high.
RADIO OPERATION AND CELLULAR PHONES
Under certain conditions, the cellular phone being On in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the cellular phone antenna. This condition
is not harmful to the radio. If your radio performance
does not satisfactorily ªclearº by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during cellular phone operation.
CLIMATE CONTROLS
The Air Conditioning and Heating System is designed to
make you comfortable in all types of weather.
186 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 365 of 380

ABS (Anti-Lock Brake System)............. 219
Adding Engine Coolant (Antifreeze)......... 309
Adding Fuel.......................... 257
Adding Rear Washer Fluid................ 198
Adding Washer Fluid..............100,198,305
Adjustable Pedals....................... 102
Air Cleaner, Engine (Engine Air Cleaner
Filter)............................... 299
Air Conditioner Maintenance.............. 302
Air Conditioning....................187,189
Air Conditioning Controls................ 187
Air Conditioning Filter................195,303
Air Conditioning, Operating Tips........... 196
Air Conditioning Refrigerant...........302,303
Air Conditioning System...........187,189,302
Air Pressure, Tires...................140,238
Airbag................................ 39
Airbag Deployment....................43,45
Airbag Light....................44,47,59,137
Airbag Maintenance...................... 46
Airbag, Side........................... 44
Airbag, Window (Side Curtain)...........40,44
Alarm (Security Alarm).................. 140Alarm System (Security Alarm)............. 15
Alignment and Balance.................. 243
Alterations/Modifications, Vehicle............ 7
Antenna, Satellite Radio.................. 182
Antifreeze (Engine Coolant).........308,309,331
Disposal............................ 310
Anti-Lock Brake System (ABS)..........219,222
Anti-Lock Warning Light..............142,221
Anti-Theft Security Alarm (Theft Alarm)...... 15
Anti-Theft System...................... 140
Appearance Care....................... 316
Auto Down Power Windows............... 26
Auto Up Power Windows................. 26
Automatic Dimming Mirror................ 64
Automatic Door Locks..................22,23
Automatic Headlights.................... 94
Automatic Temperature Control (ATC)....... 189
Automatic Transaxle
Special Additives..................... 315
Automatic Transmission............ 211,314,315
Adding Fluid.....................315,333
Autostick........................... 215
Fluid and Filter Changes................ 315
364 INDEX
Page 375 of 380

Radio, Navigation...................... 173
Radio Operation..................155,162,186
Radio Remote Controls.................. 183
Radio, Satellite......................174,179
Radio (Sound Systems)................155,162
Rear Liftgate........................... 28
Rear Seat, Folding....................... 91
Rear Washer Fluid...................... 198
Rear Window Defroster.................. 198
Rear Window Features................... 197
Rear Wiper/Washer..................... 197
Rearview Mirrors........................ 64
Reclining Front Seats..................... 88
Recorder, Event Data..................... 47
Recreational Towing..................... 273
Reformulated Gasoline................... 254
Refrigerant............................ 303
Reminder, Seat Belt...................... 36
Remote Keyless Entry (RKE)............... 17
Remote Sound System (Radio) Controls...... 183
Replacement Parts...................... 294
Replacement Tires...................... 242
Reporting Safety Defects................. 359Restraint, Head......................... 89
Restraints, Child........................ 48
Restraints, Occupant..................... 30
Rocking Vehicle When Stuck.............. 285
Roof Rack (Luggage Rack)................ 126
Rotation, Tires......................... 245
Safety Checks Inside Vehicle............... 58
Safety Checks Outside Vehicle.............. 59
Safety Defects, Reporting................. 359
Safety, Exhaust Gas...................... 30
Safety Information, Tire.................. 228
Safety Tips............................. 57
Satellite Radio......................174,179
Satellite Radio Antenna.................. 182
Schedule, Maintenance................... 336
Seat Belt Maintenance................... 319
Seat Belt Reminder...................... 36
Seat Belts............................30,31
Adjustable Upper Shoulder Anchorage...... 35
And Pregnant Women.................. 38
Child Restraint.................48,49,50,54
Extender............................ 38
374 INDEX
