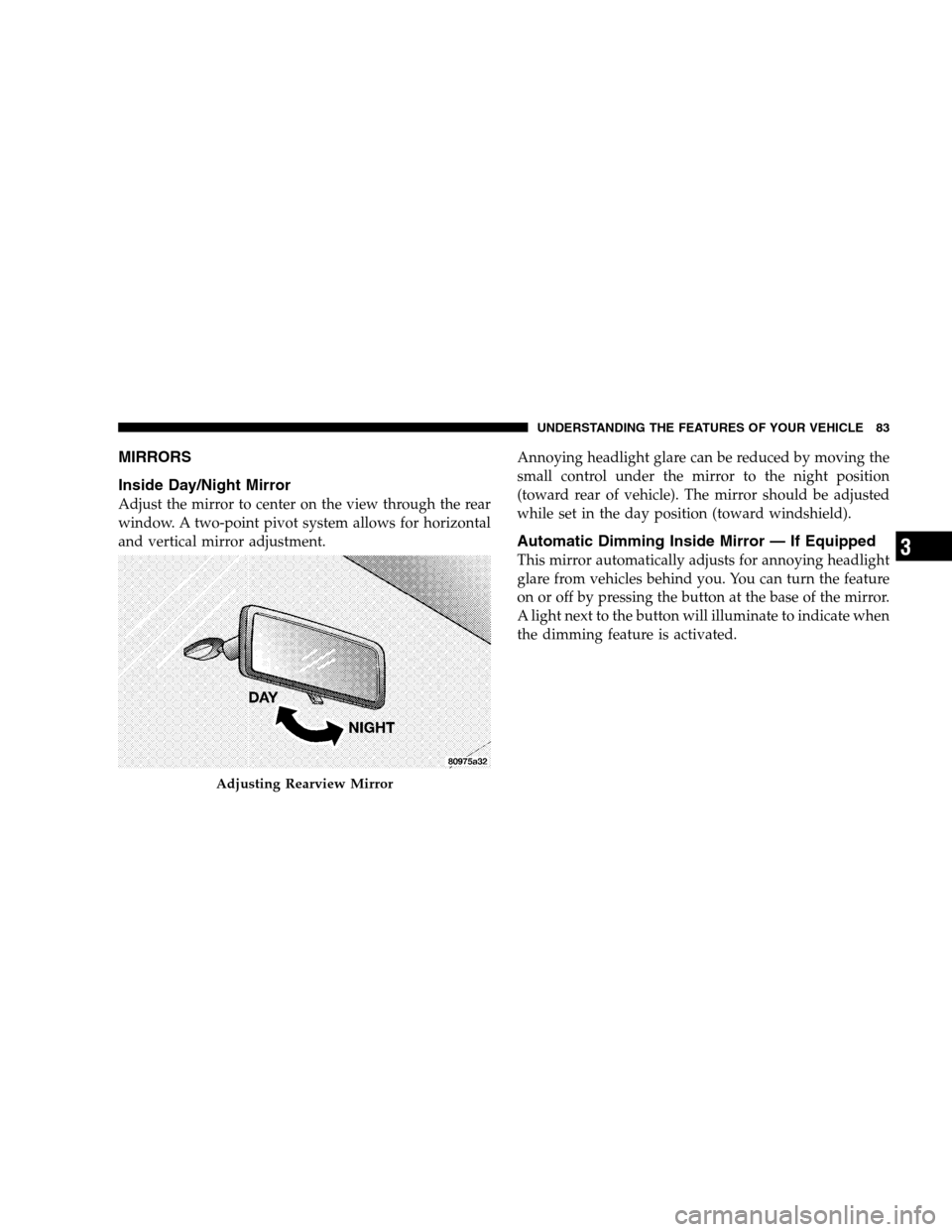

Page 85 of 476
MIRRORS
Inside Day/Night Mirror
Adjust the mirror to center on the view through the rear
window. A two-point pivot system allows for horizontal
and vertical mirror adjustment.Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward rear of vehicle). The mirror should be adjusted
while set in the day position (toward windshield).
Automatic Dimming Inside Mirror — If Equipped
This mirror automatically adjusts for annoying headlight
glare from vehicles behind you. You can turn the feature
on or off by pressing the button at the base of the mirror.
A light next to the button will illuminate to indicate when
the dimming feature is activated.
Adjusting Rearview Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3
Page 86 of 476
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger-side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger-side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger-side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger-side convex mirror.
Automatic Dimming Mirror
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

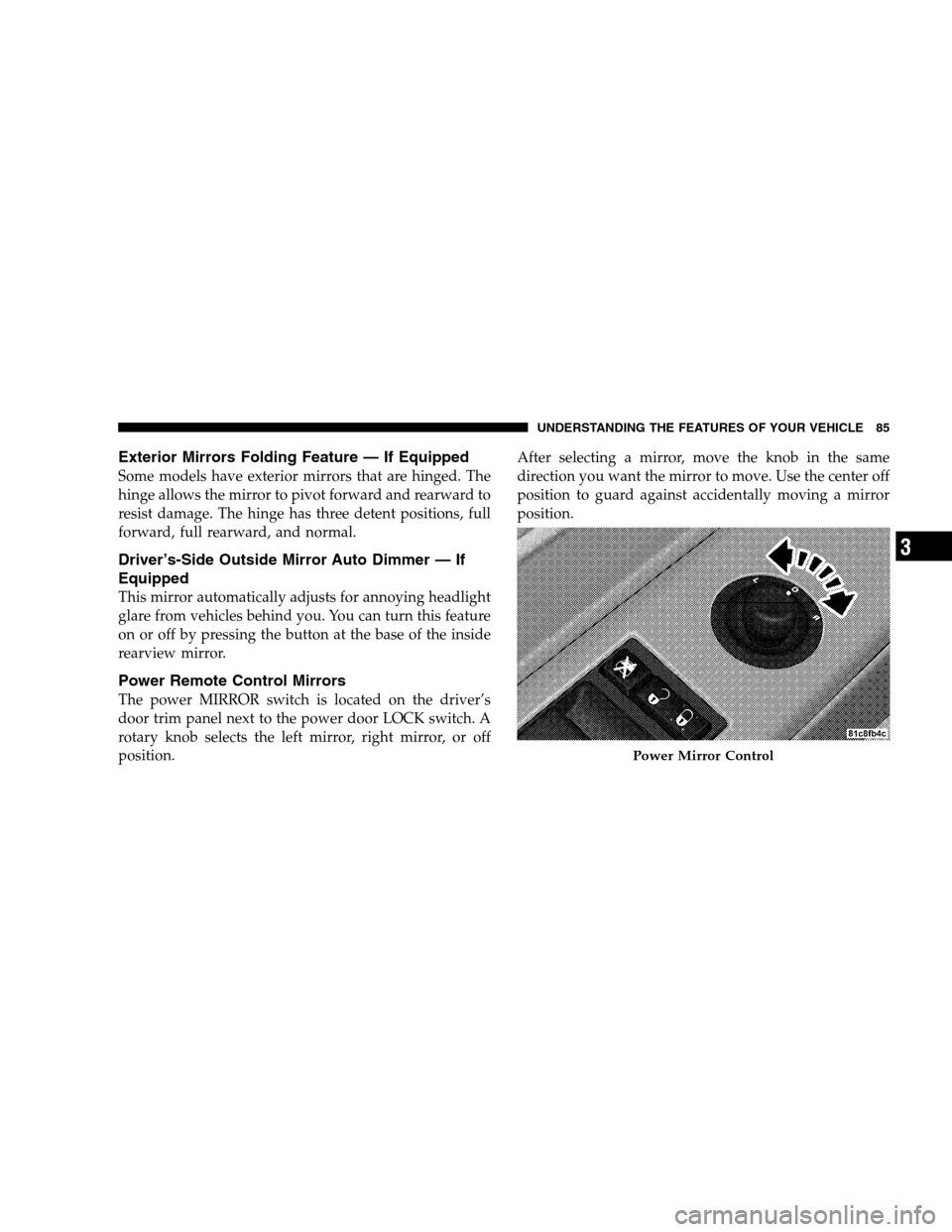

Page 87 of 476
Exterior Mirrors Folding Feature — If Equipped
Some models have exterior mirrors that are hinged. The
hinge allows the mirror to pivot forward and rearward to
resist damage. The hinge has three detent positions, full
forward, full rearward, and normal.
Driver’s-Side Outside Mirror Auto Dimmer — If
Equipped
This mirror automatically adjusts for annoying headlight
glare from vehicles behind you. You can turn this feature
on or off by pressing the button at the base of the inside
rearview mirror.
Power Remote Control Mirrors
The power MIRROR switch is located on the driver’s
door trim panel next to the power door LOCK switch. A
rotary knob selects the left mirror, right mirror, or off
position.After selecting a mirror, move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.
Power Mirror Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3

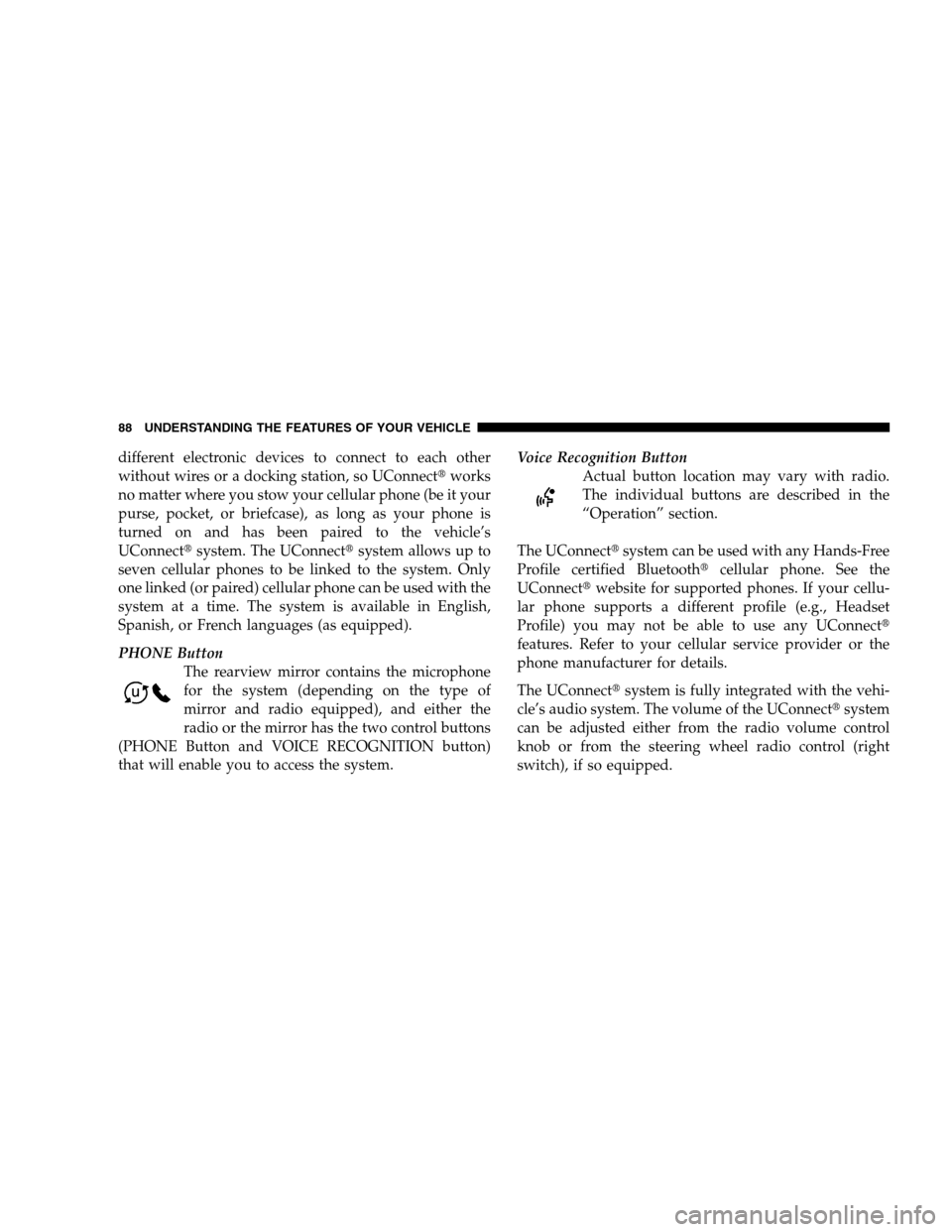

Page 90 of 476
different electronic devices to connect to each other
without wires or a docking station, so UConnectworks
no matter where you stow your cellular phone (be it your
purse, pocket, or briefcase), as long as your phone is
turned on and has been paired to the vehicle’s
UConnectsystem. The UConnectsystem allows up to
seven cellular phones to be linked to the system. Only
one linked (or paired) cellular phone can be used with the
system at a time. The system is available in English,
Spanish, or French languages (as equipped).
PHONE Button
The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.Voice Recognition Button
Actual button location may vary with radio.
The individual buttons are described in the
“Operation” section.
The UConnectsystem can be used with any Hands-Free
Profile certified Bluetoothcellular phone. See the
UConnectwebsite for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnect
features. Refer to your cellular service provider or the
phone manufacturer for details.
The UConnectsystem is fully integrated with the vehi-
cle’s audio system. The volume of the UConnectsystem
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

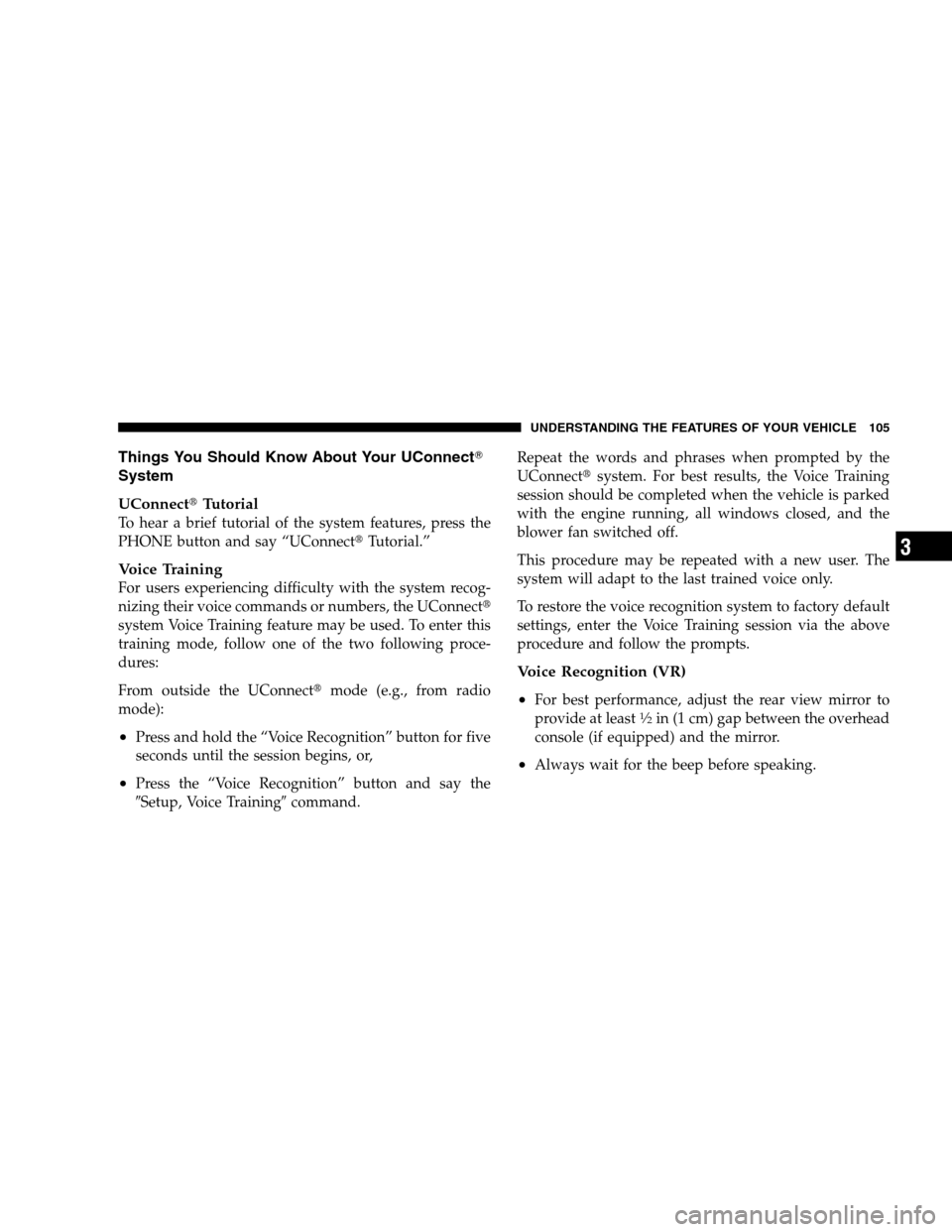

Page 107 of 476
Things You Should Know About Your UConnect
System
UConnectTutorial
To hear a brief tutorial of the system features, press the
PHONE button and say “UConnectTutorial.”
Voice Training
For users experiencing difficulty with the system recog-
nizing their voice commands or numbers, the UConnect
system Voice Training feature may be used. To enter this
training mode, follow one of the two following proce-
dures:
From outside the UConnectmode (e.g., from radio
mode):
•Press and hold the “Voice Recognition” button for five
seconds until the session begins, or,
•Press the “Voice Recognition” button and say the
Setup, Voice Trainingcommand.Repeat the words and phrases when prompted by the
UConnectsystem. For best results, the Voice Training
session should be completed when the vehicle is parked
with the engine running, all windows closed, and the
blower fan switched off.
This procedure may be repeated with a new user. The
system will adapt to the last trained voice only.
To restore the voice recognition system to factory default
settings, enter the Voice Training session via the above
procedure and follow the prompts.
Voice Recognition (VR)
•
For best performance, adjust the rear view mirror to
provide at least1 2in (1 cm) gap between the overhead
console (if equipped) and the mirror.
•Always wait for the beep before speaking.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105
3

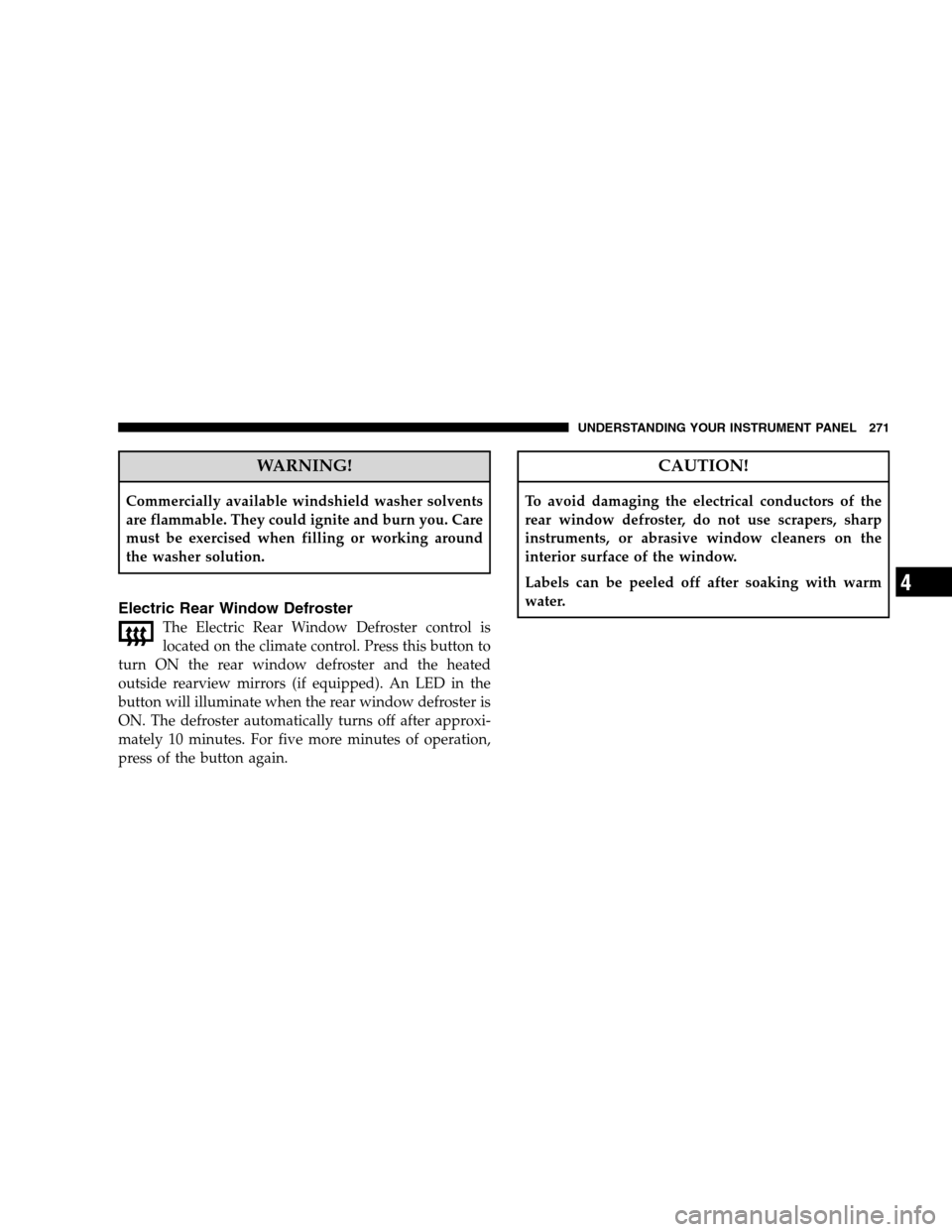

Page 273 of 476
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
Electric Rear Window Defroster
The Electric Rear Window Defroster control is
located on the climate control. Press this button to
turn ON the rear window defroster and the heated
outside rearview mirrors (if equipped). An LED in the
button will illuminate when the rear window defroster is
ON. The defroster automatically turns off after approxi-
mately 10 minutes. For five more minutes of operation,
press of the button again.
CAUTION!
To avoid damaging the electrical conductors of the
rear window defroster, do not use scrapers, sharp
instruments, or abrasive window cleaners on the
interior surface of the window.
Labels can be peeled off after soaking with warm
water.
UNDERSTANDING YOUR INSTRUMENT PANEL 271
4

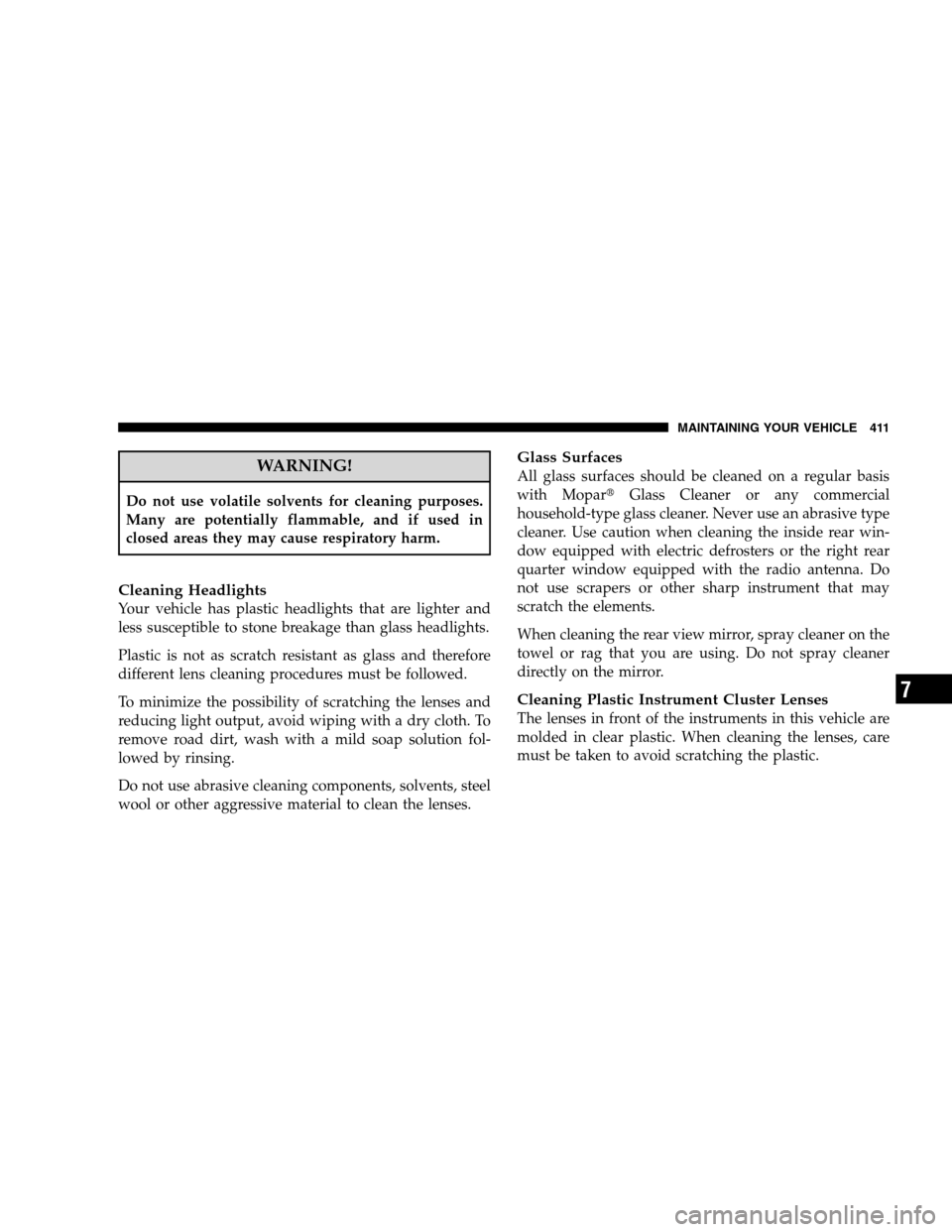

Page 413 of 476
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MoparGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instrument that may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
MAINTAINING YOUR VEHICLE 411
7

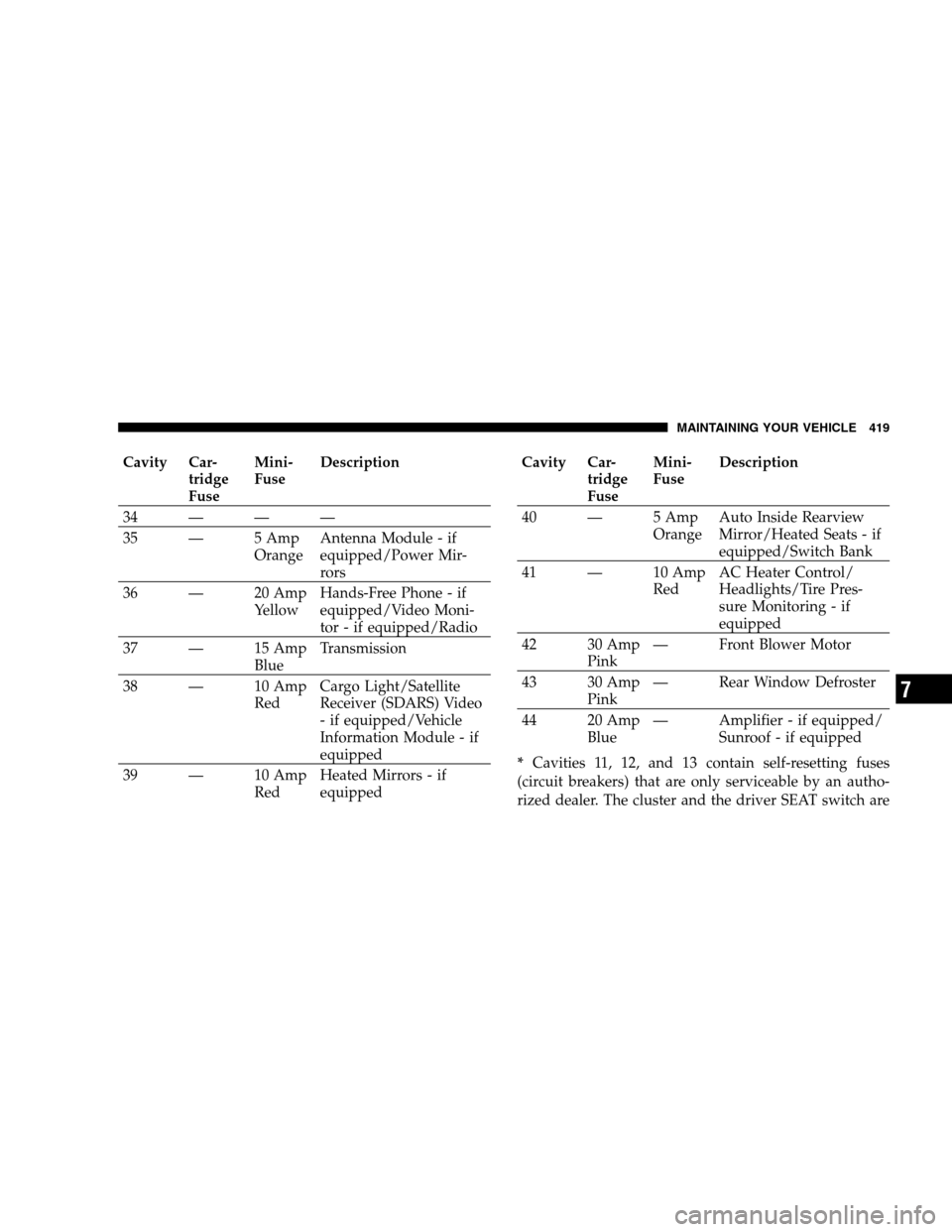

Page 421 of 476
Cavity Car-
tridge
FuseMini-
FuseDescription
34 — — —
35 — 5 Amp
OrangeAntenna Module - if
equipped/Power Mir-
rors
36 — 20 Amp
YellowHands-Free Phone - if
equipped/Video Moni-
tor - if equipped/Radio
37 — 15 Amp
BlueTransmission
38 — 10 Amp
RedCargo Light/Satellite
Receiver (SDARS) Video
- if equipped/Vehicle
Information Module - if
equipped
39 — 10 Amp
RedHeated Mirrors - if
equippedCavity Car-
tridge
FuseMini-
FuseDescription
40 — 5 Amp
OrangeAuto Inside Rearview
Mirror/Heated Seats - if
equipped/Switch Bank
41 — 10 Amp
RedAC Heater Control/
Headlights/Tire Pres-
sure Monitoring - if
equipped
42 30 Amp
Pink— Front Blower Motor
43 30 Amp
Pink— Rear Window Defroster
44 20 Amp
Blue— Amplifier - if equipped/
Sunroof - if equipped
*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The cluster and the driver SEAT switch are
MAINTAINING YOUR VEHICLE 419
7

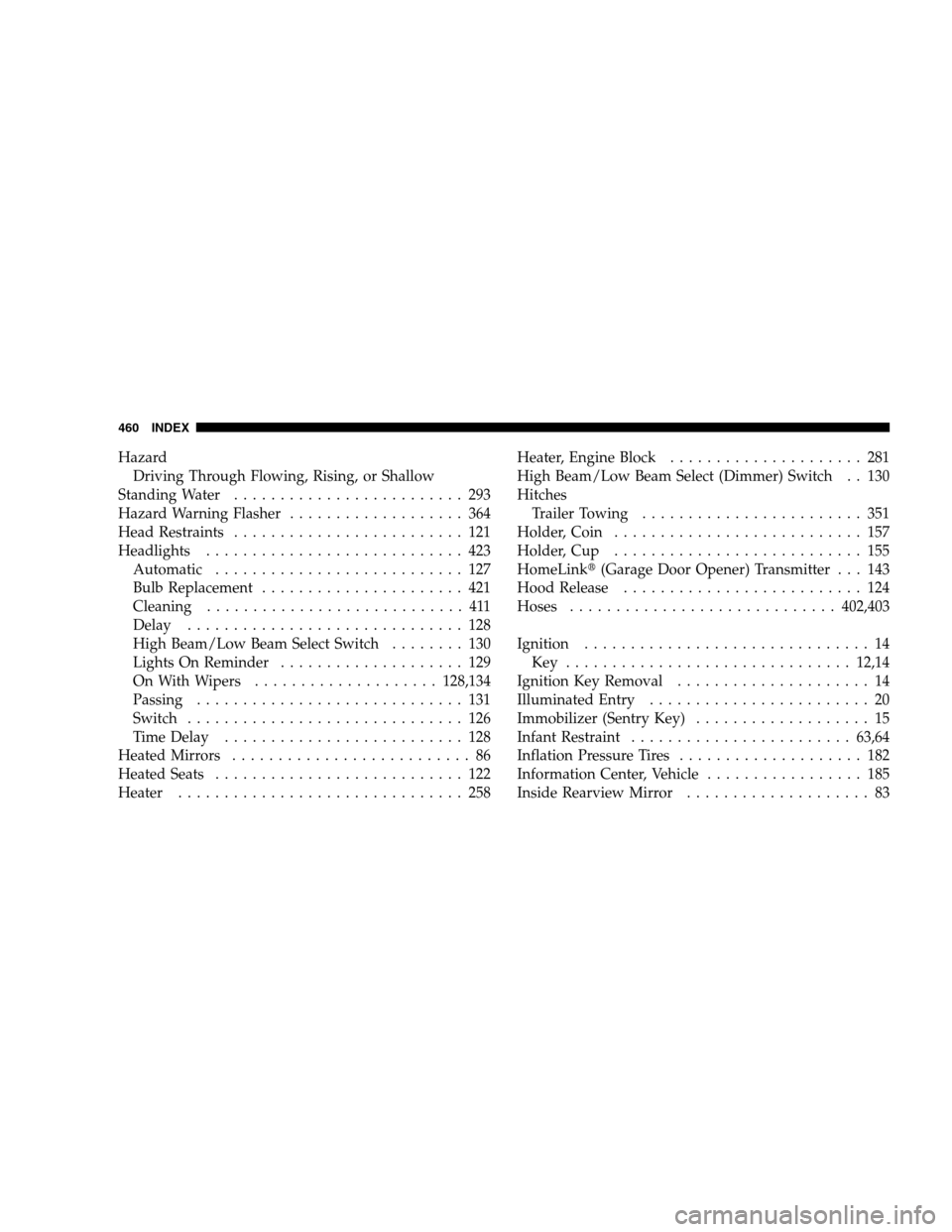

Page 462 of 476
Hazard
Driving Through Flowing, Rising, or Shallow
Standing Water......................... 293
Hazard Warning Flasher................... 364
Head Restraints......................... 121
Headlights............................ 423
Automatic........................... 127
Bulb Replacement...................... 421
Cleaning............................ 411
Delay .............................. 128
High Beam/Low Beam Select Switch........ 130
Lights On Reminder.................... 129
On With Wipers....................128,134
Passing............................. 131
Switch .............................. 126
TimeDelay .......................... 128
Heated Mirrors.......................... 86
Heated Seats........................... 122
Heater............................... 258Heater, Engine Block..................... 281
High Beam/Low Beam Select (Dimmer) Switch . . 130
Hitches
TrailerTowing ........................ 351
Holder,Coin ........................... 157
Holder,Cup ........................... 155
HomeLink(Garage Door Opener) Transmitter . . . 143
Hood Release.......................... 124
Hoses.............................402,403
Ignition............................... 14
Key ............................... 12,14
Ignition Key Removal..................... 14
Illuminated Entry........................ 20
Immobilizer (Sentry Key)................... 15
Infant Restraint........................ 63,64
Inflation Pressure Tires.................... 182
Information Center, Vehicle................. 185
Inside Rearview Mirror.................... 83
460 INDEX

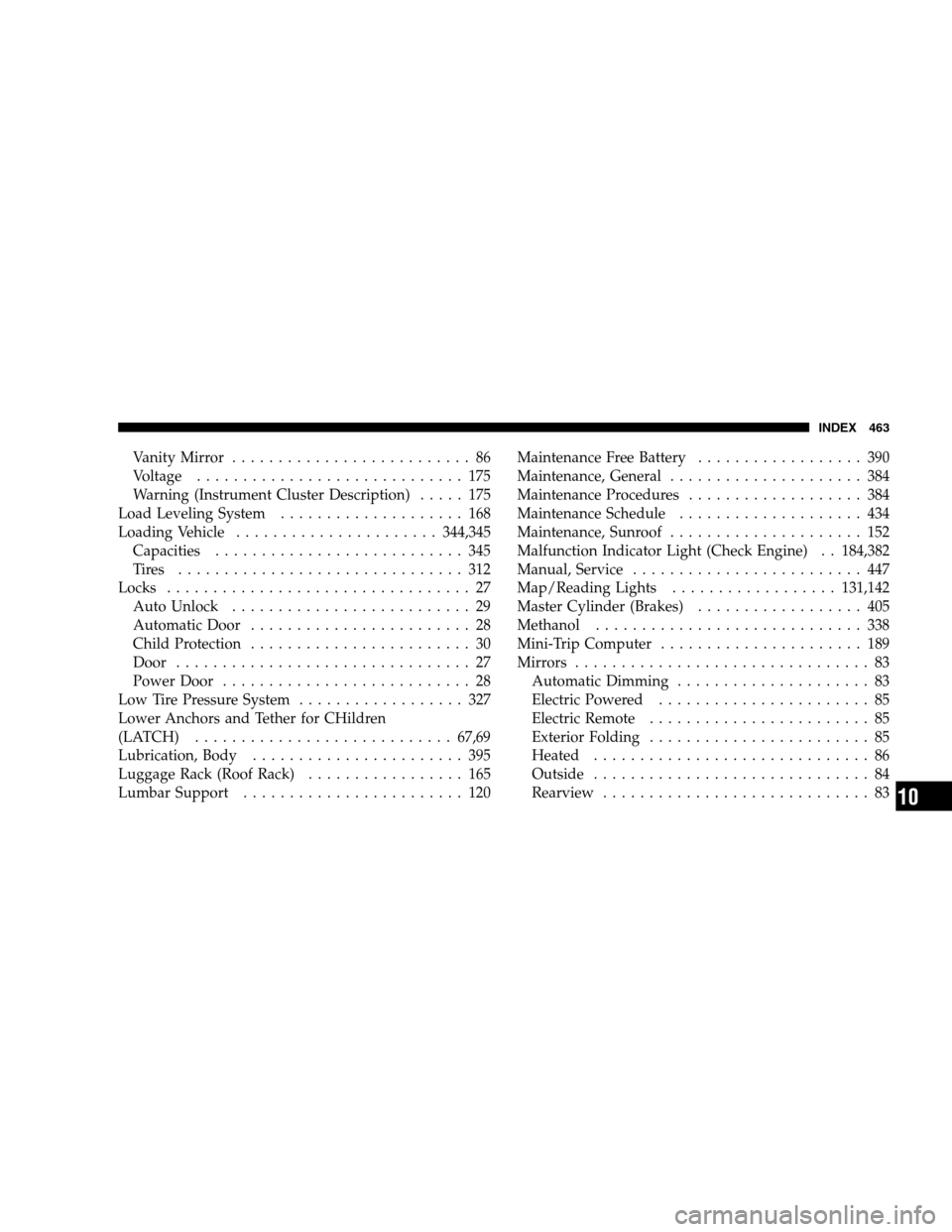

Page 465 of 476
VanityMirror .......................... 86
Voltage............................. 175
Warning (Instrument Cluster Description)..... 175
Load Leveling System.................... 168
Loading Vehicle......................344,345
Capacities........................... 345
Tires ............................... 312
Locks................................. 27
Auto Unlock.......................... 29
Automatic Door........................ 28
Child Protection........................ 30
Door................................ 27
Power Door........................... 28
Low Tire Pressure System.................. 327
Lower Anchors and Tether for CHildren
(LATCH)............................ 67,69
Lubrication, Body....................... 395
Luggage Rack (Roof Rack)................. 165
Lumbar Support........................ 120Maintenance Free Battery.................. 390
Maintenance, General..................... 384
Maintenance Procedures................... 384
Maintenance Schedule.................... 434
Maintenance, Sunroof..................... 152
Malfunction Indicator Light (Check Engine) . . 184,382
Manual, Service......................... 447
Map/Reading Lights..................131,142
Master Cylinder (Brakes).................. 405
Methanol............................. 338
Mini-Trip Computer...................... 189
Mirrors ................................ 83
Automatic Dimming..................... 83
Electric Powered....................... 85
Electric Remote........................ 85
Exterior Folding........................ 85
Heated.............................. 86
Outside.............................. 84
Rearview............................. 83
INDEX 463
10
