8W - 80 - 29 PL-RHD 8W-80 CONNECTOR PIN-OUTS
PLR08029

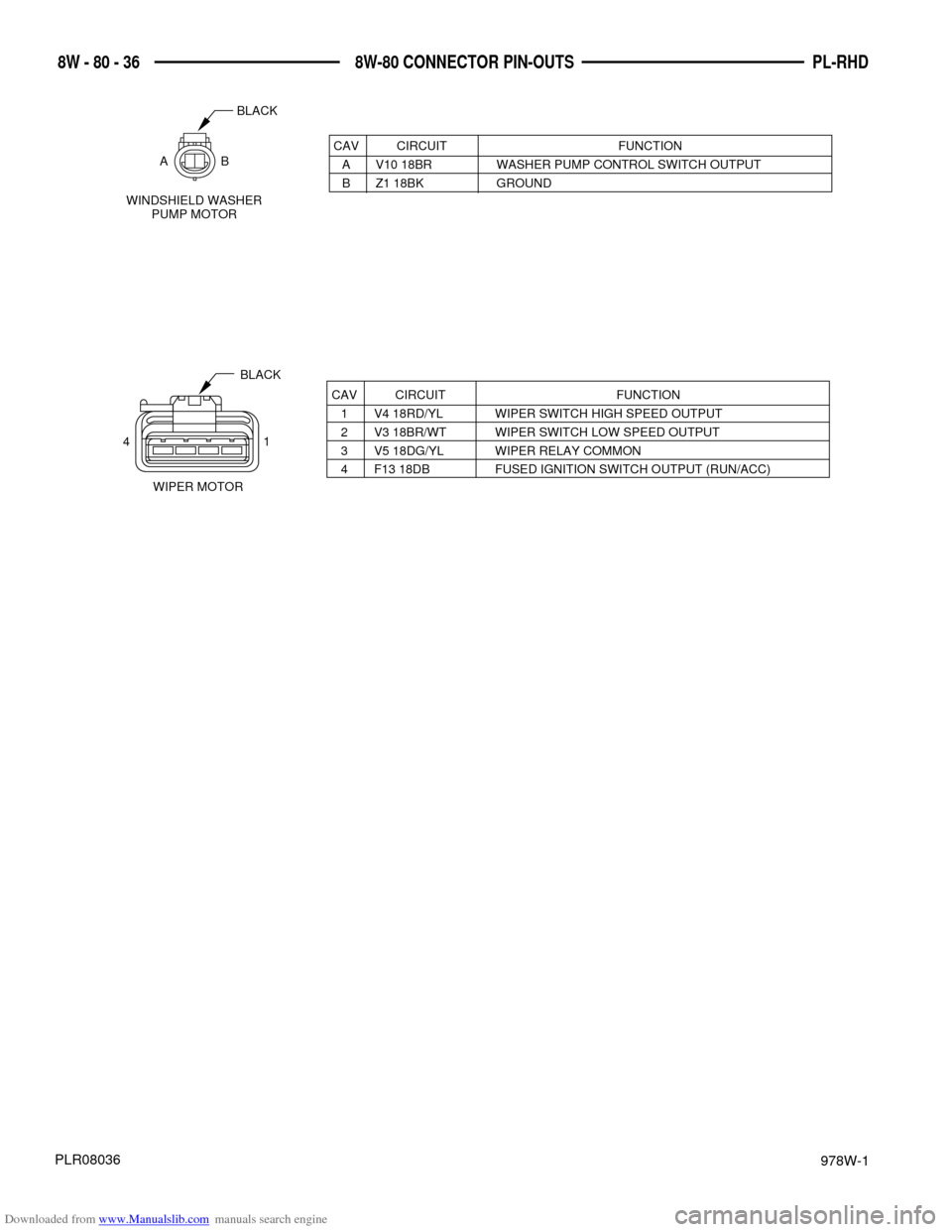

CAV CIRCUIT FUNCTION
1Ð Ð
2 X55 22BR/RD LEFT FRONT SPEAKER (Ð)
3 X56 22DB/RD RIGHT FRONT SPEAKER (Ð)
4 L7 20BK/YL PARK LAMP SWITCH OUTPUT
5 E2 22OR FUSED PANEL LAMPS DIMMER SWITCH SIGNAL
6 X12 20RD/WT FUSED IGNITION SWITCH OUTPUT (ACC/RUN)
7 M1 22 PK FUSED B(+)
CAV CIRCUIT FUNCTION
1 E2 220R FUSED PANEL LAMPS DIMMER SWITCH SIGNAL
2 Z2 22BK/LG GROUND
3 F20 22WT FUSED IGNITION SWITCH OUTPUT (RUN)
4 A4 14BK/RD FUSED B(+)
5 C15 14BK/WT REAR WINDOW DEFOGGER RELAY OUTPUT
BLACK
51
REAR WINDOW
DEFOGGER SWITCH
CAV CIRCUIT FUNCTION
1 R46 18BR/LB RIGHT IMPACT SENSOR LINE 1
2 R48 18TN RIGHT IMPACT SENSOR LINE 2
BLACK
21
RIGHT
AIRBAG IMPACT SENSOR
RIGHT BACK-UP
LAMP
CAV CIRCUIT FUNCTION
1 L1 18VT/BK BACK-UP LAMP SENSE
2 Z1 18BK GROUND
RADIO - C2
GRAY
71
CAV CIRCUIT FUNCTION
1– –
2 F61 18WT/OR FOG LAMP FEED
3 L38 18BR/WT REAR FOG LAMP FEED
4 L2 14LG HEADLAMP SWITCH FEED
5 Z3 22BK/OR GROUND
5 Z3 20BK/OR GROUND
6 E2 22OR FUSED ILLUMINATION FEED
7 L35 20BR/RD FRONT FOG LAMP FEED
8– –
REAR FOG
LAMP SWITCH
18
GREEN
2 1
GRAY

Downloaded from www.Manualslib.com manuals search engine 978W-1
8W - 80 - 33 PL-RHD 8W-80 CONNECTOR PIN-OUTS
PLR08033
STOP LAMP
SWITCH 61
CAV CIRCUIT FUNCTION
1 K29 20WT/PK STOP LAMP SWITCH SENSE
2 Z12 20BK/TN GROUND
3Ð Ð
4Ð Ð
5 L50 20WT/TN STOP LAMP SWITCH OUTPUT
6 F32 18PK/DB FUSED B(+)
GRAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 K173 20DG RADIATOR FAN RELAY CONTROL
3 C25 14LG ENGINE FAN FEED
4 A16 14GY RADIATOR FAN RELAY FEED
SOLID STATE FAN RELAY
CAV CIRCUIT FUNCTION
1 L60 18TN RIGHT TURN SIGNAL
2 Z1 18BK GROUND
RIGHT REPEATER
LAMP
CAV CIRCUIT FUNCTION
1 L50 18WT/TN TAIL/STOP
2 L7 18BK/YL TAIL/STOP
3 Z1 18BK GROUND
RIGHT TAIL/STOP LAMP
CAV CIRCUIT FUNCTION
1 L63 18DG/RD RIGHT TURN SIGNAL LAMP FEED
2 Z1 18BK GROUND
RIGHT TURN SIGNAL LAMP
2 1
NATURAL
3 1 2
BLACK
2 1
GRAY
BLACK
1 4

Downloaded from www.Manualslib.com manuals search engine 978W-1
8W - 80 - 35 PL-RHD 8W-80 CONNECTOR PIN-OUTS
PLR08035

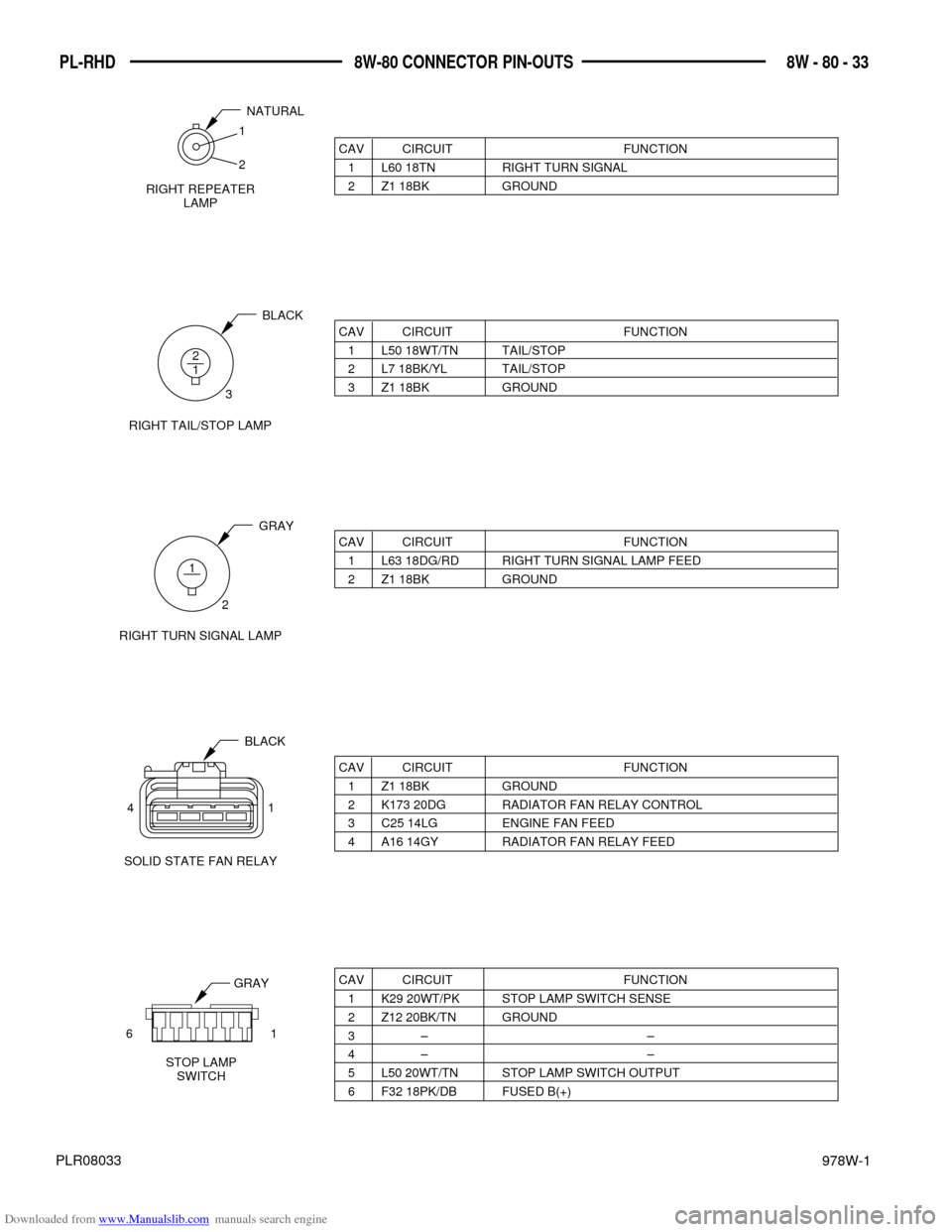

CAV CIRCUIT FUNCTION
1 L60 22TN RIGHT TURN SIGNAL
2Ð Ð
3 L62 20BR/RD RIGHT REAR STOP/TURN SIGNAL LAMP OUTPUT
4 L32 20PK COMBINATION FLASHER OUTPUT
5 L5 20BK FUSED IGNITION SWITCH OUTPUT (RUN)
6 L9 22BK/WT FUSED B(+)
7Ð Ð
8Ð Ð
9 L63 20DG/RD LEFT REAR STOP/TURN SIGNAL LAMP OUTPUT
10 L61 22LG LEFT TURN SIGNAL
11 L55 20BK/YL COMBINATION FLASHER INPUT
BLACK
TURN
SIGNAL/HAZARD
SWITCH 61
11 7
CAV CIRCUIT FUNCTION
1Ð Ð
2 F12 18DG/WT FUSED IGNITION SWITCH OUTPUT (RUN/START)
3 K106 18WT/LG VAPOR CANISTER SOLENOID DRIVER
4 K107 18OR VAPOR CANISTER PUMP SWITCH DRIVER
BLACK
VAPOR CANISTER
LEAK DETECTOR 4 1
CAV CIRCUIT FUNCTION
1 K7 18OR 8 VOLT SUPPLY
2 K4 18BK/LB SENSOR GROUND
3 G7 18WT/OR VEHICLE SPEED SENSOR SIGNAL
VEHICLE SPEED
SENSORBLACK
31
CAV CIRCUIT FUNCTION
1 A142 18DG/OR AUTOMATIC SHUTDOWN RELAY OUTPUT
2 Z1 18BK GROUND
3 K4 20BK/LB SENSOR GROUND
4 K41 20BK/DG UPSTREAM HEATED OXYGEN SENSOR SIGNAL
UPSTREAM HEATED
OXYGEN SENSOR
GRAY
2
4
1
3

Downloaded from www.Manualslib.com manuals search engine 978W-1
PL-RHD 8W - 80 - 36 8W-80 CONNECTOR PIN-OUTS
PLR08036
CAV CIRCUIT FUNCTION
1 V4 18RD/YL WIPER SWITCH HIGH SPEED OUTPUT
2 V3 18BR/WT WIPER SWITCH LOW SPEED OUTPUT
3 V5 18DG/YL WIPER RELAY COMMON
4 F13 18DB FUSED IGNITION SWITCH OUTPUT (RUN/ACC)
WIPER MOTOR
CAV CIRCUIT FUNCTION
A V10 18BR WASHER PUMP CONTROL SWITCH OUTPUT
B Z1 18BK GROUND
BLACK
WINDSHIELD WASHER
PUMP MOTOR
AB
BLACK
1 4

Downloaded from www.Manualslib.com manuals search engine 8W-90 CONNECTOR/GROUND LOCATIONS
DESCRIPTION AND OPERATION
INTRODUCTION
This section provides illustrations identifying the
general location of components, grounds, and connec-
tors in the vehicle. A index is provided. Use the wir-
ing diagrams in each section for connector/groundnumber identification. Refer to the index for the
proper figure number.CONNECTOR/GROUND LOCATIONS
For items not shown in this section a N/S is placed
in the Fig. column.
Connector
Name/NumberColor Location Fig.
A/C Compressor
ClutchBK Top of
Compressor8
A/C Cycling Switch BK Center of HVAC
HousingN/S
A/C-Heater Blower
MotorBK RT Side of
HVAC HousingN/S
A/C-Heater Control
SwitchBK Rear of Control 13
A/C High Pressure
SwitchGY Top of A/C
Compressor8
A/C Low Pressure
SwitchBK LT Side of Cowl
PanelN/S
ABS Hydraulic
ModulatorDK/
GYTop of Hydraulic
UnitN/S
ABS Relay Box BK Top of Hydraulic
UnitN/S
Airbag Control
ModuleYL Rear of
Gearshift11
Ash Receiver Lamp BK At Lamp 13
Back-Up Lamp
SwitchGY Top of
Transmission3
Battetry
Temperature
SensorBK Bottom of
Battery Tray6
Blower Motor
Resistor BlockNAT Left Side Cowl
To pN/S
Brake Warning
Lamp SwitchBK Right Frame
RailN/S
C101 BR Top of I.P. 13
C102 BK Top of I.P. 13
C103 BL Top of I.P. 13
C105 BL Right Kick Panel N/S
C108 BK Left Lower Cowl N/S
C160 LT/
GYLeft Fender Side
Shield5Connector
Name/NumberColor Location Fig.
C161 BK Left Fender Side
Shield5
C203 BK Left Side of I.P. N/S
C205 BL Left Kick Panel 13
C206 BL Top Left of I.P. N/S
C225 RD Left Kick Panel 9
C230 GY Right Kick Panel 14
C231 BL Right Kick Panel N/S
C241 BK Right Side of I.P. N/S
C301 GY Right B-Pillar 15
C303 GY Right B-Pillar 15
C309 BK Left Trunk Area 18
Camshaft Position
SensorBK Left Side of
Engine7
Clockspring NAT Rear of
Clockspring10
Clutch Pedal
Position SwitchBK Top of Clutch
Pedal2
Controller Anti-Lock
BrakeBK Left Side Kick
PanelN/S
Crankshaft Position
SensorBK Rear of Engine 7
Datalink Connector BK Left Side of
Steering ColumnN/S
Dome Lamp BK Left C- Pillar 16
Downstream
Heated Oxygen
SensorBK Rear of Catalytic
ConverterN/S
Driver Side Airbag YL Rear of
Clockspring10
Duty Cycle/EVAP
Purge SolenoidGY Right Frame
Rail4
Engine Coolant
Temp SensorBK Left Side of
Engine7
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 1

Downloaded from www.Manualslib.com manuals search engine Connector
Name/NumberColor Location Fig.
Power Folding
Mirror RelayBK Near Power
MirrorN/S
Power Mirror Fuse
HolderBK Near Power
MirrorN/S
Power Mirror Switch
C1BK At Switch 12
Power Mirror Switch
C2BK At Switch 12
Power Steering
Pressure SwitchGY Rear of Steering
Gear5
Power Sunroof
MotorRD At Motor 9
Powertrain Control
Module C1BK Left Fender Side
Shield5
Powertrain Control
Module C2BK Left Fender Side
Shield5
PRNDL Lamp BK Rear of
Gearshift11
Radiator Fan Motor BK Rear of Fan 6
Radio C1 BK Rear of Radio 13
Radio C2 GY Rear of Radio 13
Rear Fog Lamp
SwitchBK At Switch N/S
Rear Window
Defogger SwitchBK Rear of Switch 13
Right Airbag Impact
SensorGY Right Side
Radiator Closure
Panel1
Right Back-Up
LampGY At Lamp 20
Right Door Lock
SwitchWT At Switch 12
Right Door Window
MotorBK At Motor 12
Right Fog Lamp BK Rear of Fascia 4
Right Front Door
Lock MotorBK At Motor 12
Right Front Door
SpeakerBK At Speaker 12
Right Front Wheel
Speed SensorGY Right Fender
Side Shield4
Right Headlamp BK Rear of Lamp 4
Right Headlamp
Leveling MotorBK Rear of Right
Headlamp4
Right Instrument
Panel SpeakerBK At Speaker N/SConnector
Name/NumberColor Location Fig.
Right License Lamp NAT At Lamp 18
Right Park/Turn
Signal LampNAT At Lamp 4
RIght Power Mirror BK At Mirror 12
Right Rear Door
Lock MotorBK Rear of Door 15
Right Rear Fog
LampNAT At Lamp N/S
Right Rear Speaker BK At Speaker 16
Right Rear Wheel
Speed SensorBK Right Rear
Frame RailN/S
Right Repeater
LampBK At Lamp N/S
Right TaIl/Stop
LampBK At Lamp 4
Right Turn Signal
LampBK At Lamp 20
Solid State Fan
RelayBK Left Front Frame
Rail6
Stop Lamp Switch GY Top of Brake
Pedal2
Sunroof Slide
SwitchBL At Switch 9
Sunroof Vent
SwitchYL At Switch 9
Throttle Position
SensorBK On Throttle
Body8
Torque Converter
Clutch SolenoidBK Top of
Transmission3
Trunk Lamp BK At Lamp 17
Turn Signal/Hazard
SwitchBK Rear of Switch 10
Upstream Heated
Oxygen SensorGY Right Rear of
Engine4, 7
Vapor Canister
Leak DetectorBK Right Front
FenderN/S
Vehicle Speed
SensorBK Rear of
Transmission3
Windshield Washer
Pump MotorBK Bottom of
Reservior6
Wiper Motor BK Right Side of
Cowl PanelN/S
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 3
DESCRIPTION AND OPERATION (Continued)
