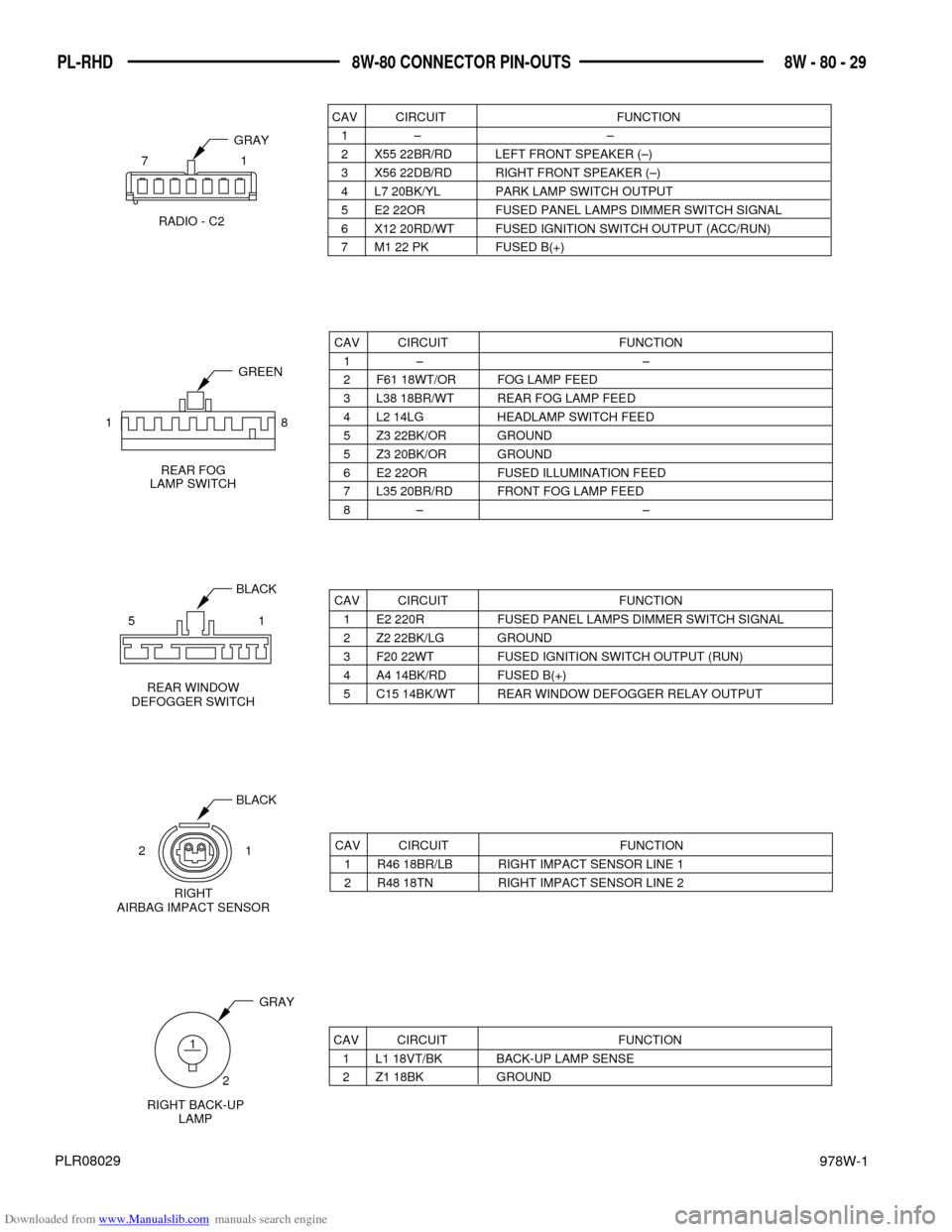

8W - 80 - 29 PL-RHD 8W-80 CONNECTOR PIN-OUTS
PLR08029
CAV CIRCUIT FUNCTION
1Ð Ð
2 X55 22BR/RD LEFT FRONT SPEAKER (Ð)
3 X56 22DB/RD RIGHT FRONT SPEAKER (Ð)
4 L7 20BK/YL PARK LAMP SWITCH OUTPUT
5 E2 22OR FUSED PANEL LAMPS DIMMER SWITCH SIGNAL
6 X12 20RD/WT FUSED IGNITION SWITCH OUTPUT (ACC/RUN)
7 M1 22 PK FUSED B(+)
CAV CIRCUIT FUNCTION
1 E2 220R FUSED PANEL LAMPS DIMMER SWITCH SIGNAL
2 Z2 22BK/LG GROUND
3 F20 22WT FUSED IGNITION SWITCH OUTPUT (RUN)
4 A4 14BK/RD FUSED B(+)
5 C15 14BK/WT REAR WINDOW DEFOGGER RELAY OUTPUT
BLACK
51
REAR WINDOW
DEFOGGER SWITCH
CAV CIRCUIT FUNCTION
1 R46 18BR/LB RIGHT IMPACT SENSOR LINE 1
2 R48 18TN RIGHT IMPACT SENSOR LINE 2
BLACK
21
RIGHT
AIRBAG IMPACT SENSOR
RIGHT BACK-UP
LAMP
CAV CIRCUIT FUNCTION
1 L1 18VT/BK BACK-UP LAMP SENSE
2 Z1 18BK GROUND
RADIO - C2
GRAY
71
CAV CIRCUIT FUNCTION
1– –
2 F61 18WT/OR FOG LAMP FEED
3 L38 18BR/WT REAR FOG LAMP FEED
4 L2 14LG HEADLAMP SWITCH FEED
5 Z3 22BK/OR GROUND
5 Z3 20BK/OR GROUND
6 E2 22OR FUSED ILLUMINATION FEED
7 L35 20BR/RD FRONT FOG LAMP FEED
8– –
REAR FOG
LAMP SWITCH
18
GREEN
2 1
GRAY

Downloaded from www.Manualslib.com manuals search engine 978W-1

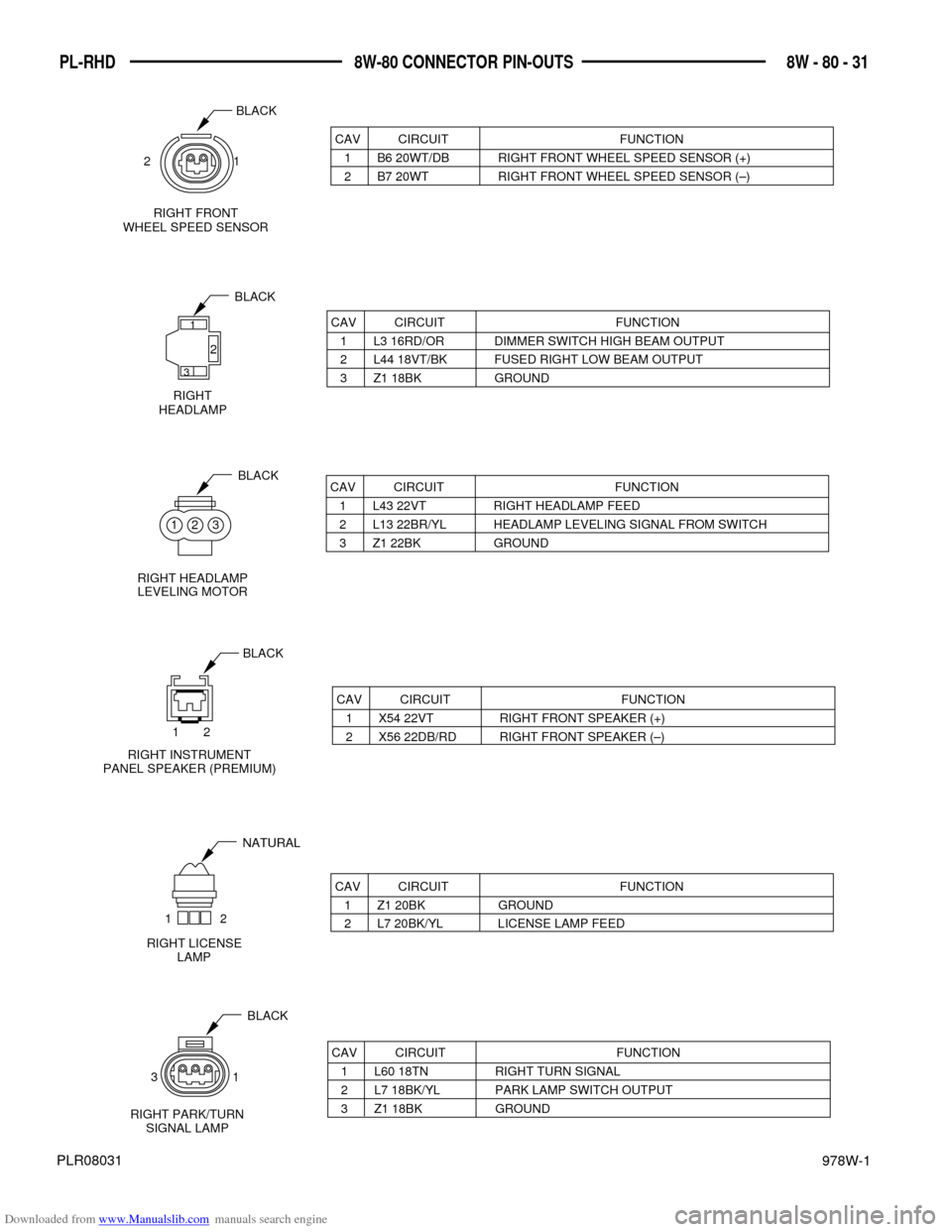

8W - 80 - 31 PL-RHD 8W-80 CONNECTOR PIN-OUTS
PLR08031
CAV CIRCUIT FUNCTION
1 B6 20WT/DB RIGHT FRONT WHEEL SPEED SENSOR (+)
2 B7 20WT RIGHT FRONT WHEEL SPEED SENSOR (Ð)2 1BLACK
RIGHT FRONT
WHEEL SPEED SENSOR
CAV CIRCUIT FUNCTION
1 L3 16RD/OR DIMMER SWITCH HIGH BEAM OUTPUT
2 L44 18VT/BK FUSED RIGHT LOW BEAM OUTPUT
3 Z1 18BK GROUND
RIGHT
HEADLAMP
CAV CIRCUIT FUNCTION
1 X54 22VT RIGHT FRONT SPEAKER (+)
2 X56 22DB/RD RIGHT FRONT SPEAKER (Ð)
RIGHT INSTRUMENT
PANEL SPEAKER (PREMIUM)
BLACK
1 2
CAV CIRCUIT FUNCTION
1 L60 18TN RIGHT TURN SIGNAL
2 L7 18BK/YL PARK LAMP SWITCH OUTPUT
3 Z1 18BK GROUND
RIGHT PARK/TURN
SIGNAL LAMP
CAV CIRCUIT FUNCTION
1 L43 22VT RIGHT HEADLAMP FEED
2 L13 22BR/YL HEADLAMP LEVELING SIGNAL FROM SWITCH
3 Z1 22BK GROUND
RIGHT HEADLAMP
LEVELING MOTOR
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 L7 20BK/YL LICENSE LAMP FEED
RIGHT LICENSE
LAMP
2
BLACK
123
BLACK
2 1
NATURAL
1 3
BLACK
1
3

Downloaded from www.Manualslib.com manuals search engine 978W-1

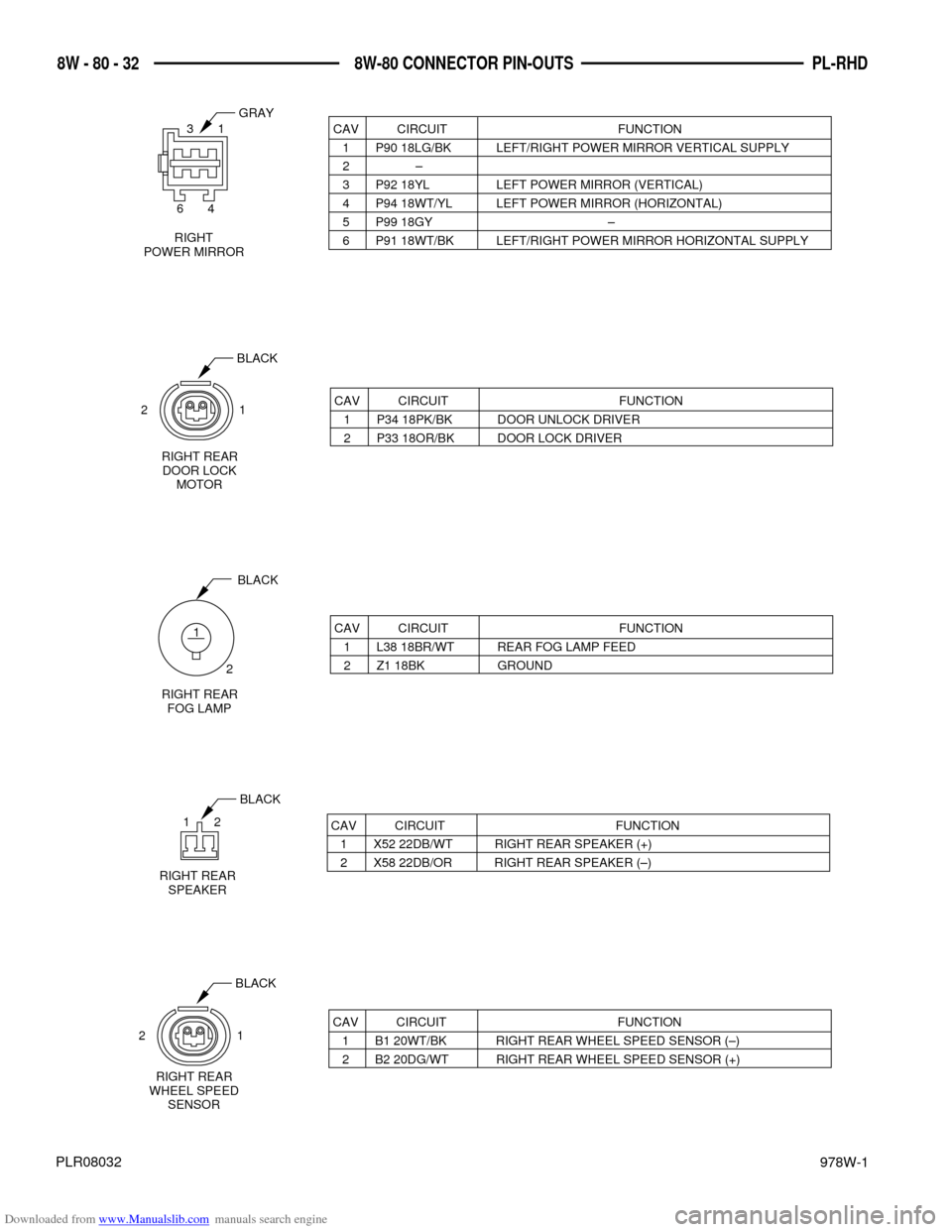

PL-RHD 8W - 80 - 32 8W-80 CONNECTOR PIN-OUTS
PLR08032
GRAY
RIGHT
POWER MIRROR6 43 1
CAV CIRCUIT FUNCTION
1 P90 18LG/BK LEFT/RIGHT POWER MIRROR VERTICAL SUPPLY
2Ð
3 P92 18YL LEFT POWER MIRROR (VERTICAL)
4 P94 18WT/YL LEFT POWER MIRROR (HORIZONTAL)
5 P99 18GY Ð
6 P91 18WT/BK LEFT/RIGHT POWER MIRROR HORIZONTAL SUPPLY
BLACK
RIGHT REAR
DOOR LOCK
MOTOR
CAV CIRCUIT FUNCTION
1 P34 18PK/BK DOOR UNLOCK DRIVER
2 P33 18OR/BK DOOR LOCK DRIVER 2 1
RIGHT REAR
FOG LAMP
CAV CIRCUIT FUNCTION
1 L38 18BR/WT REAR FOG LAMP FEED
2 Z1 18BK GROUND
CAV CIRCUIT FUNCTION
1 X52 22DB/WT RIGHT REAR SPEAKER (+)
2 X58 22DB/OR RIGHT REAR SPEAKER (Ð)
CAV CIRCUIT FUNCTION
1 B1 20WT/BK RIGHT REAR WHEEL SPEED SENSOR (Ð)
2 B2 20DG/WT RIGHT REAR WHEEL SPEED SENSOR (+)
BLACK
2 1
RIGHT REAR
WHEEL SPEED
SENSOR
BLACK
RIGHT REAR
SPEAKER
1 2
2 1
BLACK

Downloaded from www.Manualslib.com manuals search engine 978W-1

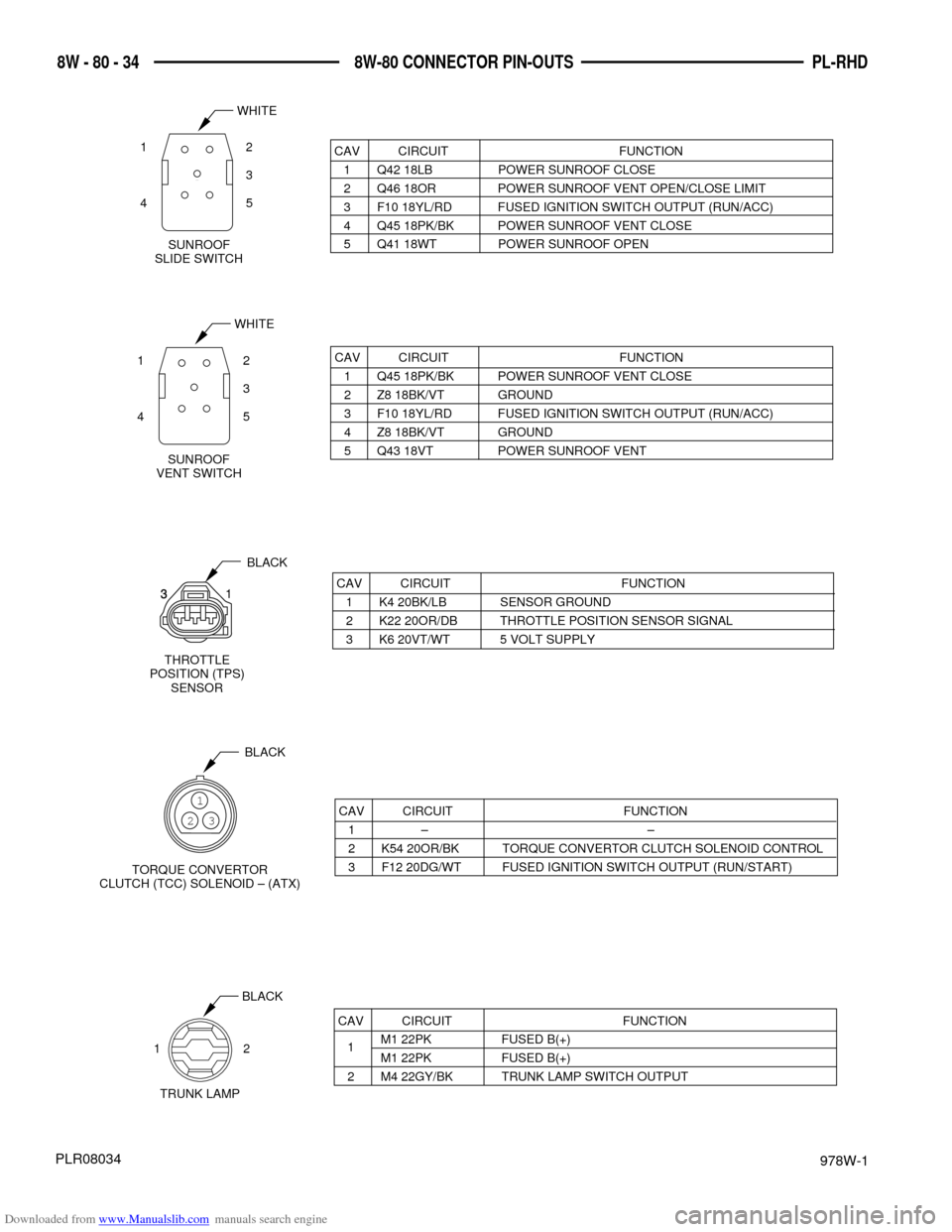

PL-RHD 8W - 80 - 34 8W-80 CONNECTOR PIN-OUTS
PLR08034
SUNROOF
VENT SWITCH
21
5
4312
3
45CAV CIRCUIT FUNCTION
1 Q45 18PK/BK POWER SUNROOF VENT CLOSE
2 Z8 18BK/VT GROUND
3 F10 18YL/RD FUSED IGNITION SWITCH OUTPUT (RUN/ACC)
4 Z8 18BK/VT GROUND
5 Q43 18VT POWER SUNROOF VENT
SUNROOF
SLIDE SWITCH
21
5
4312
3
45CAV CIRCUIT FUNCTION
1 Q42 18LB POWER SUNROOF CLOSE
2 Q46 18OR POWER SUNROOF VENT OPEN/CLOSE LIMIT
3 F10 18YL/RD FUSED IGNITION SWITCH OUTPUT (RUN/ACC)
4 Q45 18PK/BK POWER SUNROOF VENT CLOSE
5 Q41 18WT POWER SUNROOF OPEN
WHITE
WHITE
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 K22 20OR/DB THROTTLE POSITION SENSOR SIGNAL
3 K6 20VT/WT 5 VOLT SUPPLY
THROTTLE
POSITION (TPS)
SENSOR
BLACK
31
CAV CIRCUIT FUNCTION
1M1 22PK FUSED B(+)M1 22PK FUSED B(+)
2 M4 22GY/BK TRUNK LAMP SWITCH OUTPUT
BLACK
TRUNK LAMP 1 2
CAV CIRCUIT FUNCTION
1Ð Ð
2 K54 20OR/BK TORQUE CONVERTOR CLUTCH SOLENOID CONTROL
3 F12 20DG/WT FUSED IGNITION SWITCH OUTPUT (RUN/START)
BLACK
TORQUE CONVERTOR
CLUTCH (TCC) SOLENOID Ð (ATX)
1
23

Downloaded from www.Manualslib.com manuals search engine 978W-1

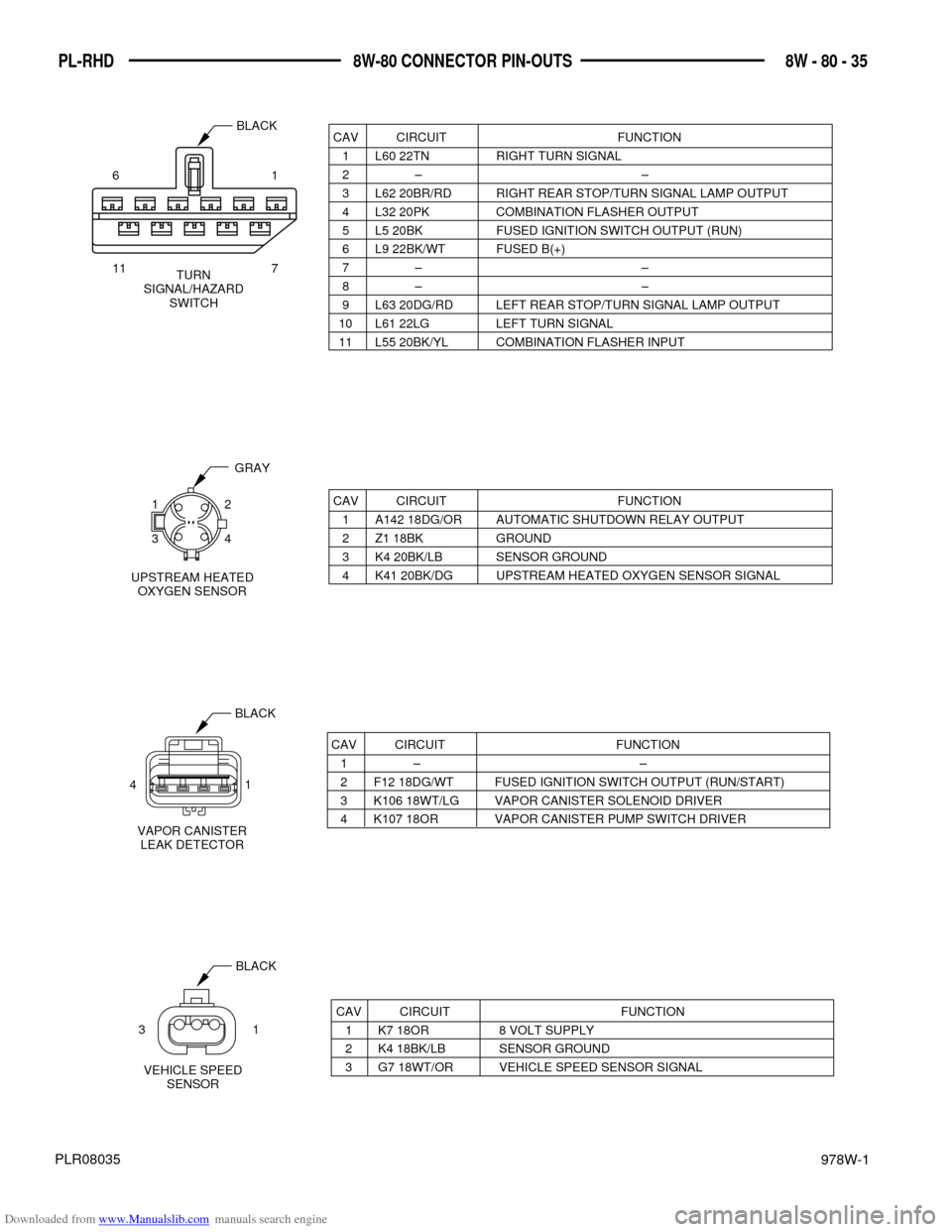

8W - 80 - 35 PL-RHD 8W-80 CONNECTOR PIN-OUTS
PLR08035
CAV CIRCUIT FUNCTION
1 L60 22TN RIGHT TURN SIGNAL
2Ð Ð
3 L62 20BR/RD RIGHT REAR STOP/TURN SIGNAL LAMP OUTPUT
4 L32 20PK COMBINATION FLASHER OUTPUT
5 L5 20BK FUSED IGNITION SWITCH OUTPUT (RUN)
6 L9 22BK/WT FUSED B(+)
7Ð Ð
8Ð Ð
9 L63 20DG/RD LEFT REAR STOP/TURN SIGNAL LAMP OUTPUT
10 L61 22LG LEFT TURN SIGNAL
11 L55 20BK/YL COMBINATION FLASHER INPUT
BLACK
TURN
SIGNAL/HAZARD
SWITCH 61
11 7
CAV CIRCUIT FUNCTION
1Ð Ð
2 F12 18DG/WT FUSED IGNITION SWITCH OUTPUT (RUN/START)
3 K106 18WT/LG VAPOR CANISTER SOLENOID DRIVER
4 K107 18OR VAPOR CANISTER PUMP SWITCH DRIVER
BLACK
VAPOR CANISTER
LEAK DETECTOR 4 1
CAV CIRCUIT FUNCTION
1 K7 18OR 8 VOLT SUPPLY
2 K4 18BK/LB SENSOR GROUND
3 G7 18WT/OR VEHICLE SPEED SENSOR SIGNAL
VEHICLE SPEED
SENSORBLACK
31
CAV CIRCUIT FUNCTION
1 A142 18DG/OR AUTOMATIC SHUTDOWN RELAY OUTPUT
2 Z1 18BK GROUND
3 K4 20BK/LB SENSOR GROUND
4 K41 20BK/DG UPSTREAM HEATED OXYGEN SENSOR SIGNAL
UPSTREAM HEATED
OXYGEN SENSOR
GRAY
2
4
1
3

Downloaded from www.Manualslib.com manuals search engine 8W-90 CONNECTOR/GROUND LOCATIONS
DESCRIPTION AND OPERATION
INTRODUCTION
This section provides illustrations identifying the
general location of components, grounds, and connec-
tors in the vehicle. A index is provided. Use the wir-
ing diagrams in each section for connector/groundnumber identification. Refer to the index for the
proper figure number.CONNECTOR/GROUND LOCATIONS
For items not shown in this section a N/S is placed
in the Fig. column.
Connector
Name/NumberColor Location Fig.
A/C Compressor
ClutchBK Top of
Compressor8
A/C Cycling Switch BK Center of HVAC
HousingN/S
A/C-Heater Blower
MotorBK RT Side of
HVAC HousingN/S
A/C-Heater Control
SwitchBK Rear of Control 13
A/C High Pressure
SwitchGY Top of A/C
Compressor8
A/C Low Pressure
SwitchBK LT Side of Cowl
PanelN/S
ABS Hydraulic
ModulatorDK/
GYTop of Hydraulic
UnitN/S
ABS Relay Box BK Top of Hydraulic
UnitN/S
Airbag Control
ModuleYL Rear of
Gearshift11
Ash Receiver Lamp BK At Lamp 13
Back-Up Lamp
SwitchGY Top of
Transmission3
Battetry
Temperature
SensorBK Bottom of
Battery Tray6
Blower Motor
Resistor BlockNAT Left Side Cowl
To pN/S
Brake Warning
Lamp SwitchBK Right Frame
RailN/S
C101 BR Top of I.P. 13
C102 BK Top of I.P. 13
C103 BL Top of I.P. 13
C105 BL Right Kick Panel N/S
C108 BK Left Lower Cowl N/S
C160 LT/
GYLeft Fender Side
Shield5Connector
Name/NumberColor Location Fig.
C161 BK Left Fender Side
Shield5
C203 BK Left Side of I.P. N/S
C205 BL Left Kick Panel 13
C206 BL Top Left of I.P. N/S
C225 RD Left Kick Panel 9
C230 GY Right Kick Panel 14
C231 BL Right Kick Panel N/S
C241 BK Right Side of I.P. N/S
C301 GY Right B-Pillar 15
C303 GY Right B-Pillar 15
C309 BK Left Trunk Area 18
Camshaft Position
SensorBK Left Side of
Engine7
Clockspring NAT Rear of
Clockspring10
Clutch Pedal
Position SwitchBK Top of Clutch
Pedal2
Controller Anti-Lock
BrakeBK Left Side Kick
PanelN/S
Crankshaft Position
SensorBK Rear of Engine 7
Datalink Connector BK Left Side of
Steering ColumnN/S
Dome Lamp BK Left C- Pillar 16
Downstream
Heated Oxygen
SensorBK Rear of Catalytic
ConverterN/S
Driver Side Airbag YL Rear of
Clockspring10
Duty Cycle/EVAP
Purge SolenoidGY Right Frame
Rail4
Engine Coolant
Temp SensorBK Left Side of
Engine7
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 1

Downloaded from www.Manualslib.com manuals search engine Connector
Name/NumberColor Location Fig.
Engine Oil Pressure
SwitchGN Rear of Engine 7
EGR Transducer
SolenoidGY Left Rear of
Engine7
Front Fog Lamp
SwitchGN Rear of Switch 14
Fuel Injector #1 BK At Injector 8
Fuel Injector #2 BK At Injector 8
Fuel Injector #3 BK At Injector 8
Fuel Injector #4 BK At Injector 8
Fuel Pump Module LT/
GYRight Rear
Frame Rail19
Generator BK Rear of
Generator7
Glove Box Lamp
and SwitchGY Rear of Switch 13
Headlamp Dimmer
and Optical Horn
SwitchBK Rear of Switch 10
Headlamp Leveling
SwitchBK Rear of Switch 10
Headlamp Switch BK Rear of Switch 14
Horn #1 BK Left Rear of
Fascia6
Horn #2 BK Left Rear of
Fascia6
Idle Air Control
MotorBK On Throttle
Body8
Ignition Coil Pack BK Top of Valve
Cover7
Ignition Switch BK Rear of Switch 10
Immobilizer Engine
SensorBK Right Fender
Side ShieldN/S
Immobilizer Sensor BK Top of I.P. N/S
Instrument Cluster
C1BK Rear of Cluster 14
Instrument Cluster
C2BK Rear of Cluster 14
Intake Air
Temp/MAP SensorBK Left Side of
Intake8
Intermittent
Wipe/Wash SwitchNAT Rear of Switch 10
Key-In Switch GN Rear of Switch 10
Knock Sensor GY Front of Engine 8Connector
Name/NumberColor Location Fig.
Left Airbag Impact
SensorGY Left Side of
Radiator Closure
Panel1
Left Back-Up Lamp GY At Lamp 20
Left Door Lock
SwitchWT At Switch 12
Left Door Window
MotorBK At Motor 12
Left Fog Lamp BK Rear of Lamp 4
Left Front Door
Lock MotorBK At Motor 12
Left Front Door
SpeakerBK At Speaker 12
Left Front Wheel
Speed SensorGY Left Fender Side
ShieldN/S
Left Headlamp BK At Lamp 6
Left Headlamp
Leveling MotorBK Rear of Left
HeadlampN/S
Left Instrument
Panel SpeakerBK At Speaker N/S
Left License Lamp NAT At Lamp 18
Left Park/Turn
Signal LampBK Rear of Lamp 6
Left Power Mirror BK At Mirror 12
Left Power Window
SwitchWT At Switch 12
Left Rear Door
Lock MotorBK Rear of Door 15
Left Rear Fog
LampNAT At Lamp N/S
Left Rear Speaker BK At Speaker 16
Left Rear Wheel
Speed SensorBK Left Rear Frame
RailN/S
Left Repeater Lamp BK At Lamp N/S
Left Tail/Stop Lamp BK At Lamp 20
Left Turn Signal
LampNAT At Lamp 6
Map/Reading
LampsBK At Lamp 9
Master Power
Window SwitchWT At Switch 12
Park/Neutral
Position SwitchBK Front of
Transmission3
Passenger Side
AirbagYL Left Side of I.P. 13
8W - 90 - 2 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Downloaded from www.Manualslib.com manuals search engine Connector
Name/NumberColor Location Fig.
Power Folding
Mirror RelayBK Near Power
MirrorN/S
Power Mirror Fuse
HolderBK Near Power
MirrorN/S
Power Mirror Switch
C1BK At Switch 12
Power Mirror Switch
C2BK At Switch 12
Power Steering
Pressure SwitchGY Rear of Steering
Gear5
Power Sunroof
MotorRD At Motor 9
Powertrain Control
Module C1BK Left Fender Side
Shield5
Powertrain Control
Module C2BK Left Fender Side
Shield5
PRNDL Lamp BK Rear of
Gearshift11
Radiator Fan Motor BK Rear of Fan 6
Radio C1 BK Rear of Radio 13
Radio C2 GY Rear of Radio 13
Rear Fog Lamp
SwitchBK At Switch N/S
Rear Window
Defogger SwitchBK Rear of Switch 13
Right Airbag Impact
SensorGY Right Side
Radiator Closure
Panel1
Right Back-Up
LampGY At Lamp 20
Right Door Lock
SwitchWT At Switch 12
Right Door Window
MotorBK At Motor 12
Right Fog Lamp BK Rear of Fascia 4
Right Front Door
Lock MotorBK At Motor 12
Right Front Door
SpeakerBK At Speaker 12
Right Front Wheel
Speed SensorGY Right Fender
Side Shield4
Right Headlamp BK Rear of Lamp 4
Right Headlamp
Leveling MotorBK Rear of Right
Headlamp4
Right Instrument
Panel SpeakerBK At Speaker N/SConnector
Name/NumberColor Location Fig.
Right License Lamp NAT At Lamp 18
Right Park/Turn
Signal LampNAT At Lamp 4
RIght Power Mirror BK At Mirror 12
Right Rear Door
Lock MotorBK Rear of Door 15
Right Rear Fog
LampNAT At Lamp N/S
Right Rear Speaker BK At Speaker 16
Right Rear Wheel
Speed SensorBK Right Rear
Frame RailN/S
Right Repeater
LampBK At Lamp N/S
Right TaIl/Stop
LampBK At Lamp 4
Right Turn Signal
LampBK At Lamp 20
Solid State Fan
RelayBK Left Front Frame
Rail6
Stop Lamp Switch GY Top of Brake
Pedal2
Sunroof Slide
SwitchBL At Switch 9
Sunroof Vent
SwitchYL At Switch 9
Throttle Position
SensorBK On Throttle
Body8
Torque Converter
Clutch SolenoidBK Top of
Transmission3
Trunk Lamp BK At Lamp 17
Turn Signal/Hazard
SwitchBK Rear of Switch 10
Upstream Heated
Oxygen SensorGY Right Rear of
Engine4, 7
Vapor Canister
Leak DetectorBK Right Front
FenderN/S
Vehicle Speed
SensorBK Rear of
Transmission3
Windshield Washer
Pump MotorBK Bottom of
Reservior6
Wiper Motor BK Right Side of
Cowl PanelN/S
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 3
DESCRIPTION AND OPERATION (Continued)

Downloaded from www.Manualslib.com manuals search engine Fig. 1 Airbag Impact Sensors
Fig. 2 Brake Support Bracket Connections
8W - 90 - 4 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Downloaded from www.Manualslib.com manuals search engine 8W-95 SPLICE LOCATIONS
DESCRIPTION AND OPERATION
INTRODUCTION
This section provides illustrations identifying the
general location of the splices in this vehicle. A splice
index is provided. Use the wiring diagrams in each
section for splice number identification. Refer to the
index for the proper splice number.
SPLICE LOCATIONS
The following index covers all splices shown in the
wiring diagrams. If a splice is not shown in this sec-
tion, a N/S will be in the Fig. column.
Spllice Location Fig.
S101 Near Dat Link T/O 1
S102 In CAB T/O 1
S103 Near CAB Connector 1
S104 Right Strut Tower 1
S105 Near Right Cowl Top Grommet N/S
S106 Near PCM T/O 1
S107 Before T/O for Left Headlamp 2
S108 Before T/O for Left Headlamp 2
S109 Before T/O for Left Headlamp 2
S110 In PCM T/O 1
S111 In PCM T/O 1
S112 Near T/O for Left Headlamp 2
S113 Near T/O for Left Headlamp 2
S114 Near T/O for Left Headlamp 2
S115 Neat T/O for Radiator Fan Motor 2
S116 Near T/O for Left Fog Lamp 2
S117 Near EVAP/Purge Sol T/O 2
S118 Between O2S and Crank Sensor
T/O3
S119 Between O2S and VSS T/O 3
S120 Between INJ #3 and #4 T/O 3
S121 Between INJ #1 and #2 T/O 3
S122 Near T/O for EGR Sol 3
S123 Near HD/LP and Dash Connector 3
S124 Between Cam Sensor and Coil
T/O's3
S125 Near Starter 3
S126 Near PCM T/O 1
S127 Near Ignition Coil 3
S128 Near A/C Compressor Clutch T/O N/S
S129 In PCM T/O 1
S201 Near T/O for Center Console N/S
S202 Near T/O for PAB 5
S203 Near T/O for HVAC 5Spllice Location Fig.
S204 Near HVAC Connector 5
S205 Near Center Stack T/O 5
S206 Near Center Stack T/O 5
S207 Top Center of I.P. 4
S208 Top Center of I.P. 4
S209 Top Center of I.P. 4
S210 Top Center of I.P. 4
S211 Between RT and LT Cluster T/O's 4
S212 Between RT and LT Cluster T/O's 4
S213 Near T/O for Fuseblock 4
S214 Near T/O for Fuseblock 4
S217 Near T/O for Fuseblock 4
S218 Between RT and LT Cluster T/O's 4
S220 Near Fuseblock T/O 4
S221 Top Right of I.P. 5
S301 Near LT B-Pillar T/O 6
S302 Near LT B-Pillar T/O 6
S303 Near LT B-Pillar T/O 6
S304 Near Fuel Tank T/O 6
S305 Near Right Rear Body Ground T/O 7
S306 Near Fuel Tank T/O 7
S307 Between LR Body Ground and LT
Tail Lamp T/O6
S308 Near LR Body Ground 6
S309 Near Top of A-Pillar, Left Side N/S
S310 Near DR/LK SW and PWR Mirro
T/O8
S311 Near LR Wheel House T/O 6
S312 On RR Wheel House 7
S313 Near T/O for Sunroof Slide SW N/S
S314 Near T/O for Sunroof Slide Switch N/S
S316 Near Fuel Tank T/O 6
S317 Near Fuel Tank T/O 7
S318 Near DR/LK Switch T/O 8
PL8W - 95 SPLICE LOCATIONS 8W - 95 - 1
