This vehicle is equipped with window bags to protect the
driver, front, and rear passengers sitting next to a win-
dow. They are located above the side windows. Their
covers are also labeled SRS/AIRBAG.NOTE:Airbag covers may not be obvious in the interior
trim, but they will open to allow airbag deployment.
WARNING!
•Do not put anything on or around the front airbag
covers or attempt to manually open them. You may
damage the airbags and you could be injured
because the airbags are no longer functional.
These protective covers for the airbag cushions are
designed to open only when the airbags are inflat-
ing.
•Do not stack luggage or other cargo up high
enough to block the location of the window bag.
The area where the window bag is located should
remain free from any obstructions.
(Continued)

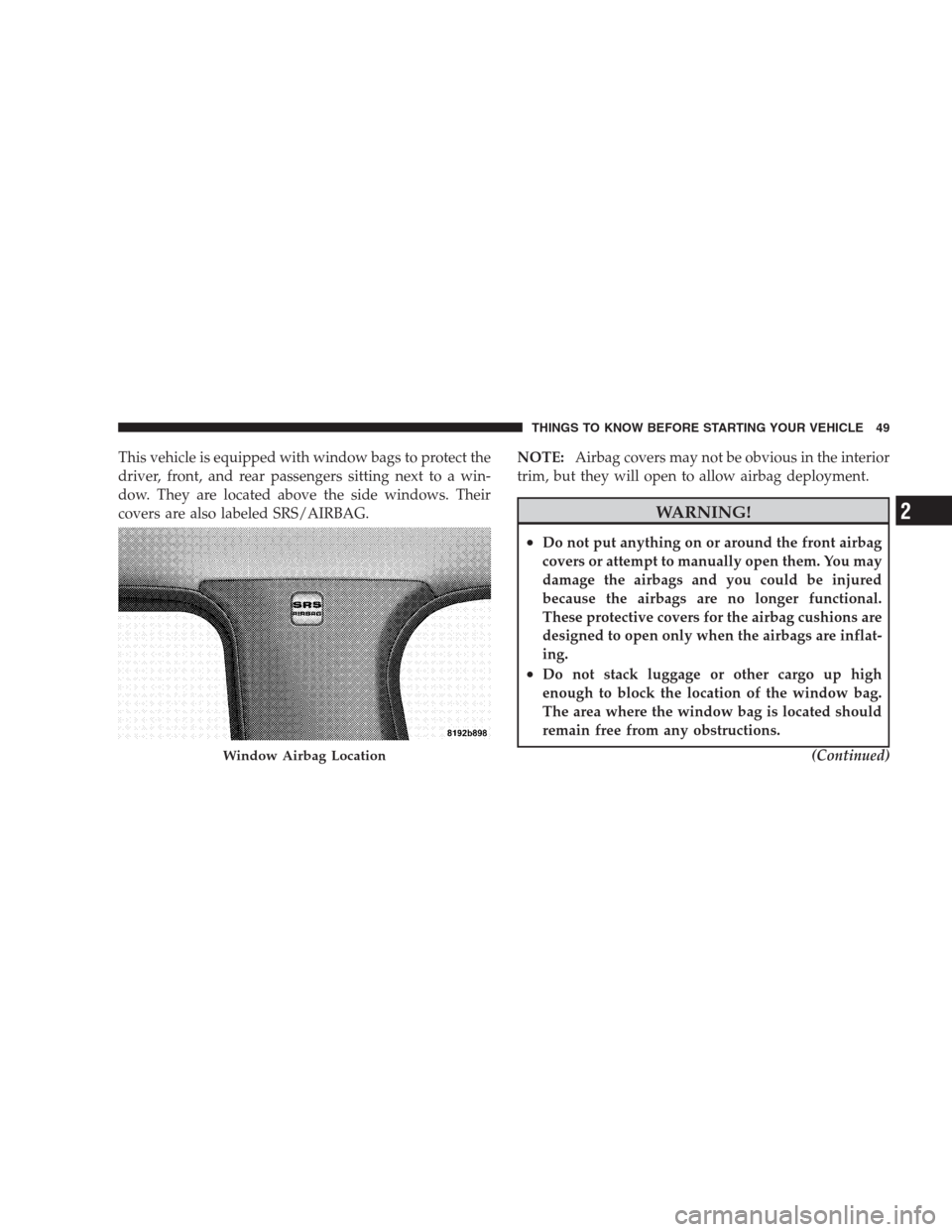

Window Airbag Location
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
2

WARNING! (Continued)
•Do not have any accessory items installed which
will alter the roof, including adding a sunroof to
your vehicle. Do not add roof racks that require
permanent attachments (bolts or screws) for instal-
lation on the vehicle roof. Do not drill into the roof
of the vehicle for any reason.
•Do not cover or place items on the airbag covers.
These items may cause serious injury during
inflation.
The front airbags have a multistage inflator design. This
allows the airbag to have different rates of inflation that
are based on collision severity. Along with the seat belts,
the front airbags provide improved protection for the
driver and front passenger. Window bags also work with
seat belts to improve occupant protection.The seat belts are designed to protect you in many types
of collisions. The front airbags deploy in moderate to
severe frontal collisions.
NOTE:The passenger front airbag may not deploy even
when the driver front airbag has if the Occupant Classi-
fication System (refer toOccupant Classification System
in this section) has determined the passenger seat is
empty or is occupied by someone that is classified in the
childsize category. This could be a child, teenager, or
even a adult.
The window bag on the crash side of the vehicle is
triggered in moderate to severe side and rollover colli-
sions. In certain types of collisions, both the front and
side airbags may be triggered. But even in collisions
where the airbags deploy, you need the seat belts to keep
you in the right position for the airbags to protect you
properly.
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Here are some simple steps you can take to minimize the
risk of harm from a deploying airbag.
1. Children 12 years and younger should always ride
buckled up in a rear seat.
Infants in rear facing child restraints shouldNEVERride
in the front seat of a vehicle with a passenger airbag. An
airbag deployment could cause severe injury or death to
infants in that position.
Children that are not big enough to properly wear the
vehicle seat belt should be secured in the rear seat, in a
child restraint or belt-positioning booster seat. Older
children who do not use child restraints or belt-
positioning booster seats should ride properly buckled
up in the rear seat. Never allow children to slide the
shoulder belt behind them or under their arm.
If a child from 1 to 12 years old must ride in the front
passenger seat because the vehicle is crowded, move theseat as far back as possible, and use the proper child
restraint. See “Child Restraint” in this section.
You should read the instructions provided with your
child restraint to make sure that you are using it properly.
2. All occupants should use their lap and shoulder belts
properly.
3. The driver and front passenger seats should be moved
back as far as practical to allow the front airbags room to
inflate.
4. Do not lean against the door or window, airbags will
inflate forcefully into the space between you and the
door.
5. If the airbag system in this vehicle needs to be
modified to accommodate a disabled person, contact the
customer center. Phone numbers are provided under “If
You Need Assistance” in Section 9.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
2

WARNING!
•Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won’t deploy at all.
Always wear your seat belts even though you have
airbags.
•Being too close to the steering wheel or instrument
panel during airbag deployment could cause seri-
ous injury. Airbags need room to inflate. Sit back,
comfortably extending your arms to reach the
steering wheel or instrument panel.
•The side curtain airbags need room to inflate. Do
not lean against the door or window. Sit upright in
the center of the seat.
Airbag System Components
The airbag system consists of the following:
•Occupant Restraint Control Module
•Airbag Warning Light
•Driver Airbag
•Passenger Airbag
•Side Curtain Airbags above Side Windows
•Side Remote Acceleration Sensors
•Steering Wheel and Column
•Instrument Panel
•Interconnecting Wiring
•Front Remote Acceleration Sensors
•Driver and Front Passenger Seat Belt Retractors
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•Occupant Classification System (OCS) — Front Pas-
senger Seat Only
Occupant Classification Module
Passenger Airbag Disable (PAD) Indicator Light
Weight Sensors
How The Airbag System Works
•
TheOccupant Restraint Control (ORC) modulede-
termines if a frontal, side, or rollover collision is severe
enough to require the airbags to inflate. The front
airbag inflators are designed to provide different rates
of airbag inflation from direction provided by the
ORC. The ORC may also modify the rate of inflation
based on the occupant size provided by the Occupant
Classification module. The ORC will detect roll over,
but not rear impacts.The ORC also monitors the readiness of the electronic
parts of the system whenever the ignition switch is in
the START or ON positions. These include all of the
items listed above except the instrument panel, and
the steering wheel and column. If the key is in the
LOCK position, in the ACC position, or not in the
ignition, the airbags are not on and will not inflate.
•Also, the ORC turns on the “Airbag Warn-
ing Light” and “PAD Indicator Light” for six
to eight seconds for a self-check when the
ignition is first turned ON. After the self-
check, the “Airbag Warning Light” will turn off. The
“PAD Indicator Light” will function normally (Refer to
Passenger Airbag Disable (PAD) Indicator Lightin
this section). If the ORC detects a malfunction in any
part of the system, it turns on the “Airbag Warning
Light” either momentarily or continuously. A single
chime will sound if the light comes on again after
initial start up.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53
2

WARNING!
Ignoring the “Airbag Warning Light” in your instru-
ment panel could mean you won’t have the airbags to
protect you in a collision. If the light does not come
on, stays on after you start the vehicle, or if it comes
on as you drive, have the airbag system checked right
away.
•TheOccupant Classification System (OCS)is part of
a Federally regulated safety system required for this
vehicle. It is designed to turn off the front passenger
airbag for an empty seat and for occupants classified
in a category other than an adult. This could be a child,
teenager, or even an adult.NOTE:Children 12 years and younger should always
ride buckled up in a rear seat in an appropriate child
restraint.
•ThePassenger Airbag Disable (PAD) Indicator Light
(an amber light located in the center of the instrument
panel) tells the driver and front passenger when the
front passenger airbag is turned off. The “PAD Indi-
cator Light” illuminates the wordsPASS AIR BAG
OFFto show that the passenger airbag will not inflate
during a collision requiring airbags. When the right
front passenger seat is empty or when very light
objects are placed on the seat, the passenger airbag
will not inflate even though the “PAD Indicator Light”
is not illuminated.
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The “PAD Indicator Light” should not be illuminated
when an adult passenger is properly seated in the front
passenger seat. In this case, the airbag is ready to be
inflated if a collision requiring an airbag occurs.
For occupants classified in the “child” size category, the
“PAD Indicator Light” will be illuminated, indicating
that the front passenger airbag is turned off and will not
inflate. If the “PAD Indicator Light” is not illuminated,
DO NOTassume the airbag is turned off. Move the child
restraint to the rear seat. A deploying passenger airbag
can cause death or serious injury to a child in a rear
facing infant seat.

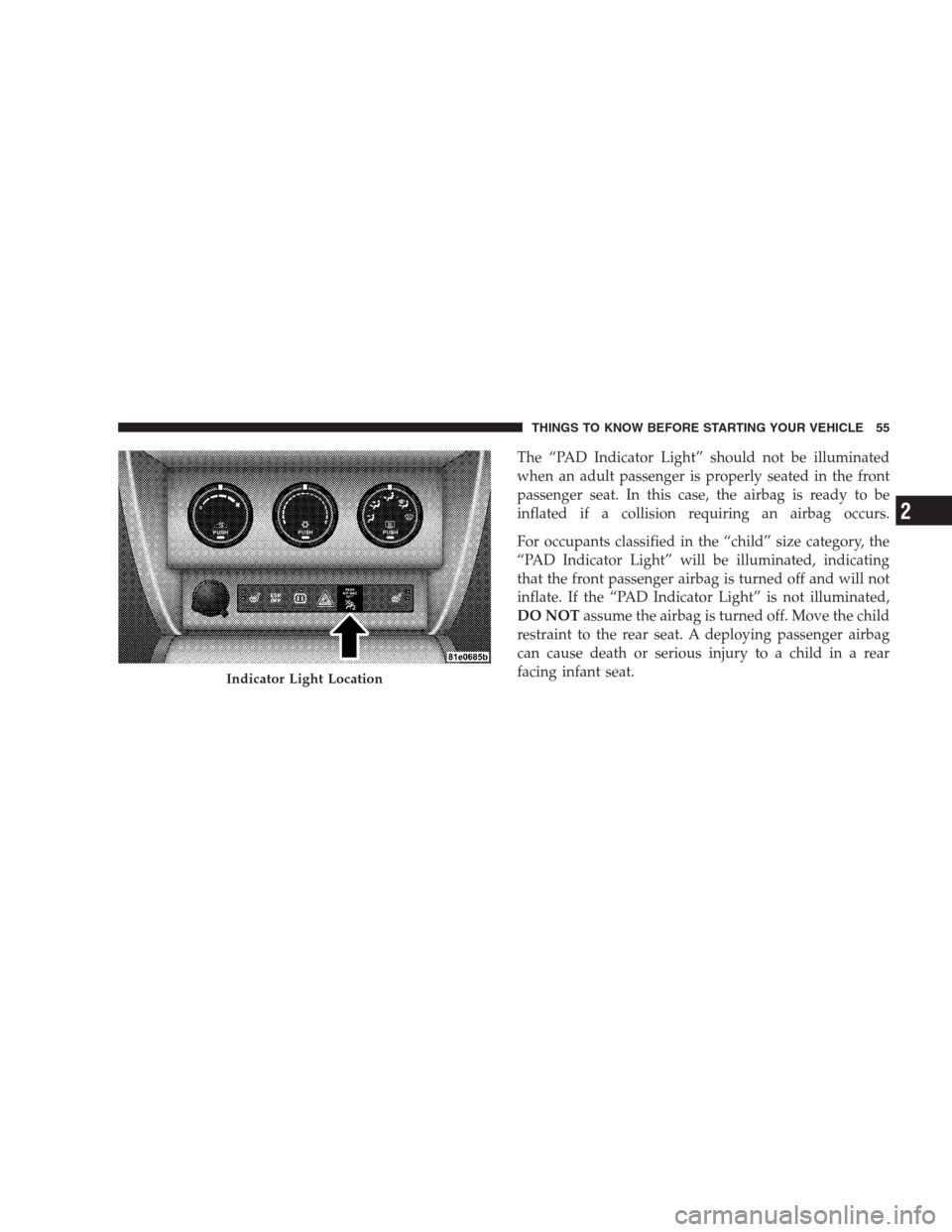

Indicator Light Location
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55
2

NOTE:Even though this vehicle is equipped with an
Occupant Classification System, children 12 years and
younger should always ride buckled up in a rear seat in
an appropriate child restraint.
Front Passenger
Seat OccupantPassenger Air-
bag Disable
(PAD) Indicator
LightAirbag Status
Adult OFF ON
Grocery Bags,
Heavy Briefcases
and Other Rela-
tively Light Ob-
jectsON OFF
Empty or Very
Small ObjectsOFF* OFF
* Since the system senses weight, some small objects
will turn the PAD Indicator Light on.
The OCS classifies an occupant using weight sensors
mounted in the base of the front passenger seat. Any
weight on the seat will be sensed by the system. Objects
hanging on the seat or other passengers pushing down on
the seat will also be sensed. The weight of an adult will
cause the system to turn the airbag on. In this case, the
OCS has classified the occupant of the seat as an adult. An
adult occupant needs to sit in a normal position (with their
feet on or near the floor) in order to be properly classified.
Reclining the seat back too far may change how an
occupant is classified by the OCS.
Drivers and adult passengers should verify that the
“PAD Indicator Light” is not illuminated when an adult
is riding in the front passenger seat. If an adult occu-
pant’s weight is transferred to another part of the vehicle
(like the door or instrument panel), the weight sensors in
the seat may not properly classify the occupant. Objects
lodged under the seat or between the seat and the center
console can prevent the occupant’s weight from being
measured properly and may result in the occupant being
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

improperly classified. Ensure that the front passenger
seatback does not touch anything placed on the back seat
because this can also affect occupant classification. Also,
if you fold down the rear seat, check to be sure it doesn’t
touch the front passenger seat.
If the front passenger seat is damaged in any way, it
should only be serviced by an authorized dealer. If the
seat is removed (or even if the seat attachment bolts are
loosened or tightened in any way), take the vehicle to an
authorized dealer.
If there is a fault present in the OCS, the “Airbag Warning
Light” (a red light located in the center of the instrument
cluster directly in front of the driver) will be turned on. This
indicates that you should take the vehicle to an authorized
dealer. The “Airbag Warning Light” is turned on whenever
there is a fault that can affect the operation of the airbag
system. If there is a fault present in the OCS, both the “PAD
Indicator Light” and the “Airbag Warning Light” are illumi-
nated to show that the passenger airbag is turned off untilthe fault is cleared. If an object is lodged under the seat and
interferes with operation of the weight sensors, a fault will
occur which turns on both the “PAD Indicator Light” and
the “Airbag Warning Light.” Once the lodged object is
removed, the fault will be automatically cleared after a short
period of time.
•TheDriver and Passenger Airbag/Inflator Unitsare
located in the center of the steering wheel and the right
side of the instrument panel. When the ORC detects a
collision requiring the airbags, it signals the inflator units.
A large quantity of nontoxic gas is generated to inflate the
front airbags. Different airbag inflation rates are possible
based on collision severity and occupant size. The steer-
ing wheel hub trim cover and the upper right side of the
instrument panel separate and fold out of the way as the
bags inflate to their full size. The bags fully inflate in
about 50 to 70 milliseconds. This is about half of the time
it takes to blink your eyes. The bags then quickly deflate
while helping to restrain the driver and front passenger.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57
2

The driver front airbag gas is vented through the vent
holes in the sides of the airbag. The passenger front
airbag gas is vented through the vent holes in the sides
of the airbag. In this way, the airbags do not interfere
with your control of the vehicle.
•TheOccupant Classification Module (OCM)is lo-
cated beneath the front passenger seat. The OCM
classifies the occupant into categories based on the
measurements made by the seat weight sensors. The
OCM communicates with the Occupant Restraint Con-
trol (ORC) module. The ORC uses the occupant cat-
egory to determine whether the front passenger airbag
should be turned off. It also determines the rate of
airbag inflation during a collision.
•Your vehicle has fourweight sensorslocated between
the seat and the floor pan. The weight sensors measure
applied weight and transfers that information to the
OCM.
•TheSide Impact SRS Side Curtain Airbagsare de-
signed to activate only in certain side collisions and
rollover events. When the ORC detects a collision
requiring the side curtain airbag to inflate, it signals
the inflators on the crash side of the vehicle. A quantity
of nontoxic gas is generated to inflate the side curtain
airbag. The inflating side curtain airbag pushes the
outside edge of the headliner out of the way and
covers the window. The airbag inflates in about 30
milliseconds (about one quarter of the time it takes to
blink your eyes) with enough force to injure you if you
are not belted and seated properly, or if items are
positioned in the area where the side curtain airbag
inflates. This especially applies to children. The side
curtain airbag is only about 3
12inches (9 cm) thick
when it is inflated.
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
