UNDERSTANDING THE FEATURES OF YOUR VEHICLE

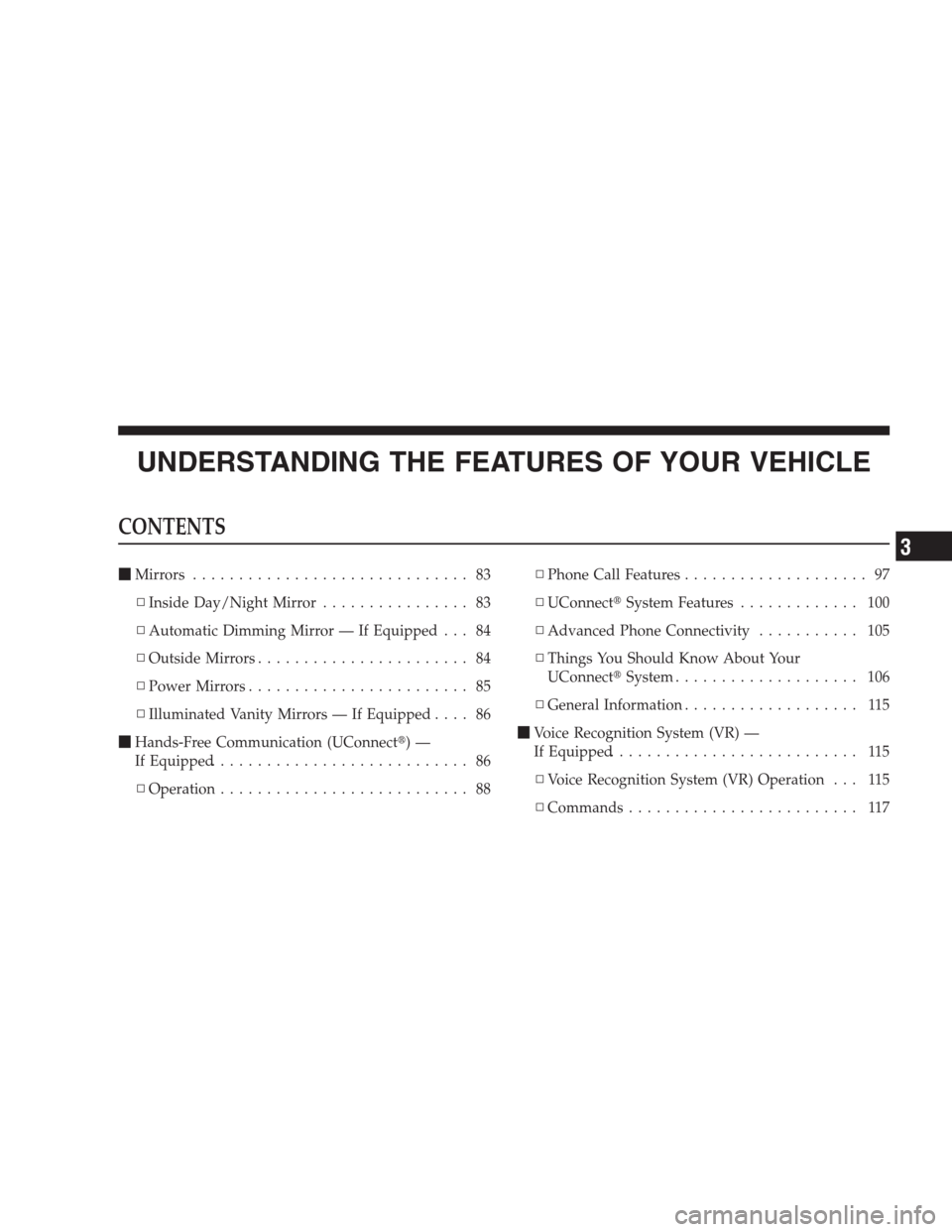

CONTENTS
Mirrors.............................. 83
▫Inside Day/Night Mirror................ 83
▫Automatic Dimming Mirror — If Equipped . . . 84
▫Outside Mirrors....................... 84
▫Power Mirrors........................ 85
▫Illuminated Vanity Mirrors — If Equipped.... 86
Hands-Free Communication (UConnect)—
If Equipped............................ 86
▫Operation........................... 88▫Phone Call Features.................... 97
▫UConnectSystem Features............. 100
▫Advanced Phone Connectivity........... 105
▫Things You Should Know About Your
UConnectSystem.................... 106
▫General Information................... 115
Voice Recognition System (VR) —
If Equipped........................... 115
▫Voice Recognition System (VR) Operation . . . 115
▫Commands......................... 117
3

▫Voice Training....................... 120
Seats............................... 120
▫Front Manual Seat Adjustment........... 120
▫Front Seat Adjustment — Recline......... 121
▫Six-Way Driver’s Power Seat With Manual
Recliner........................... 122
▫Fold Flat Front Passenger Seat........... 123
▫Head Restraints...................... 123
▫Heated Seats — If Equipped............. 124
▫60/40 Split Folding Rear Seat With Fold Flat
Feature............................ 125
To Open And Close The Hood............. 127
Lights.............................. 129
▫Multifunction Lever................... 129▫Parking Lights, Instrument Panel Lights And
Headlights......................... 130
▫Lights-On Reminder.................. 130
▫High Beam Headlights................. 130
▫Flash-To-Pass....................... 131
▫Front Fog Lights — If Equipped.......... 131
▫Turn Signals........................ 131
▫Daytime Running Lights — If Equipped.... 131
▫Interior Lights....................... 132
Windshield Wipers And Washers........... 132
▫Windshield Wiper Operation............ 132
▫Intermittent Wiper System.............. 133
▫Windshield Washers................... 133
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

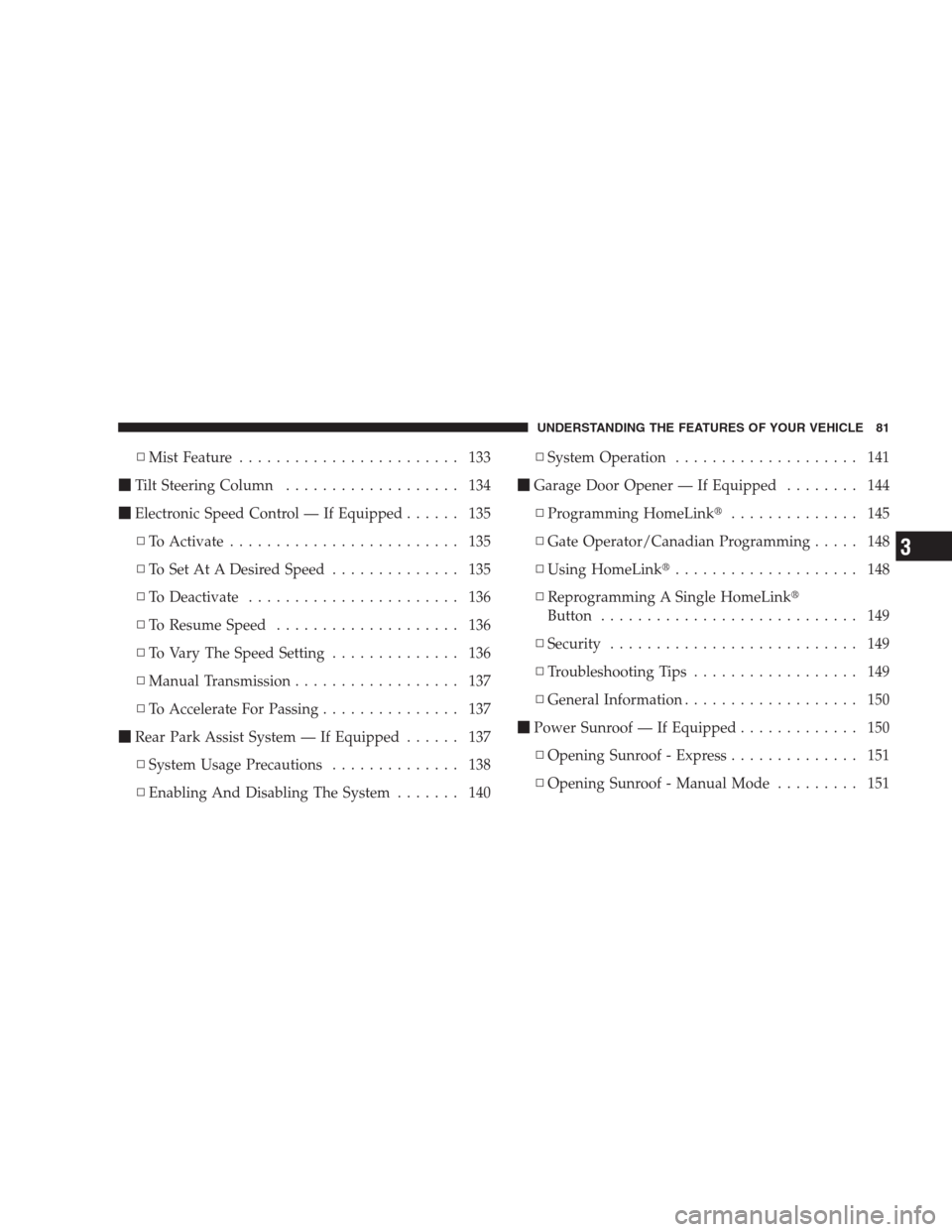

▫Mist Feature........................ 133
Tilt Steering Column................... 134
Electronic Speed Control — If Equipped...... 135
▫To Activate......................... 135
▫To Set At A Desired Speed.............. 135
▫To Deactivate....................... 136
▫To Resume Speed.................... 136
▫To Vary The Speed Setting.............. 136
▫Manual Transmission.................. 137
▫To Accelerate For Passing............... 137
Rear Park Assist System — If Equipped...... 137
▫System Usage Precautions.............. 138
▫Enabling And Disabling The System....... 140▫System Operation.................... 141
Garage Door Opener — If Equipped........ 144
▫Programming HomeLink.............. 145
▫Gate Operator/Canadian Programming..... 148
▫Using HomeLink.................... 148
▫Reprogramming A Single HomeLink
Button............................ 149
▫Security........................... 149
▫Troubleshooting Tips.................. 149
▫General Information................... 150
Power Sunroof — If Equipped............. 150
▫Opening Sunroof - Express.............. 151
▫Opening Sunroof - Manual Mode......... 151
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

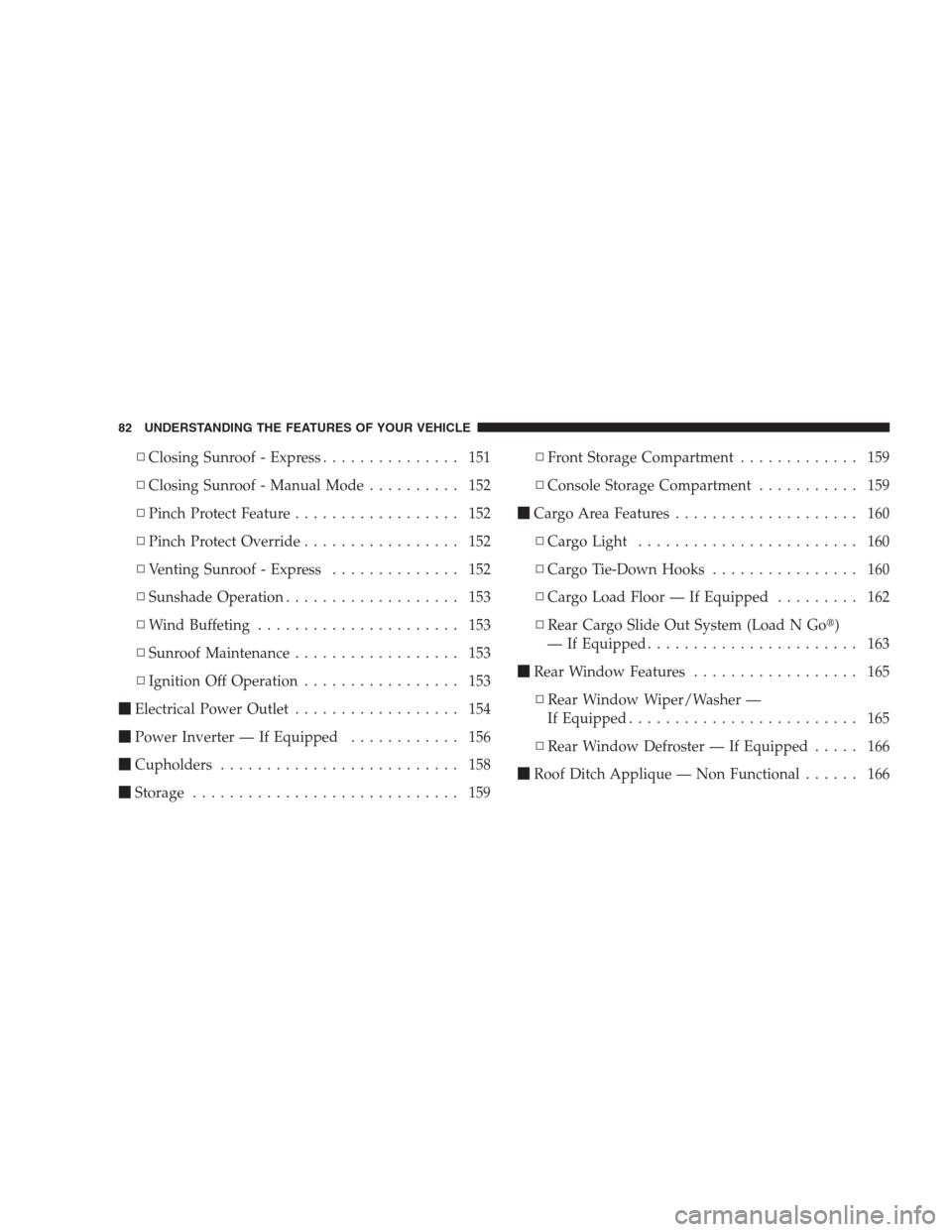

▫Closing Sunroof - Express............... 151
▫Closing Sunroof - Manual Mode.......... 152
▫Pinch Protect Feature.................. 152
▫Pinch Protect Override................. 152
▫Venting Sunroof - Express.............. 152
▫Sunshade Operation................... 153
▫Wind Buffeting...................... 153
▫Sunroof Maintenance.................. 153
▫Ignition Off Operation................. 153
Electrical Power Outlet.................. 154
Power Inverter — If Equipped............ 156
Cupholders.......................... 158
Storage............................. 159▫Front Storage Compartment............. 159
▫Console Storage Compartment........... 159
Cargo Area Features.................... 160
▫Cargo Light........................ 160
▫Cargo Tie-Down Hooks................ 160
▫Cargo Load Floor — If Equipped......... 162
▫Rear Cargo Slide Out System (Load N Go)
— If Equipped....................... 163
Rear Window Features.................. 165
▫Rear Window Wiper/Washer —
If Equipped......................... 165
▫Rear Window Defroster — If Equipped..... 166
Roof Ditch Applique — Non Functional...... 166
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

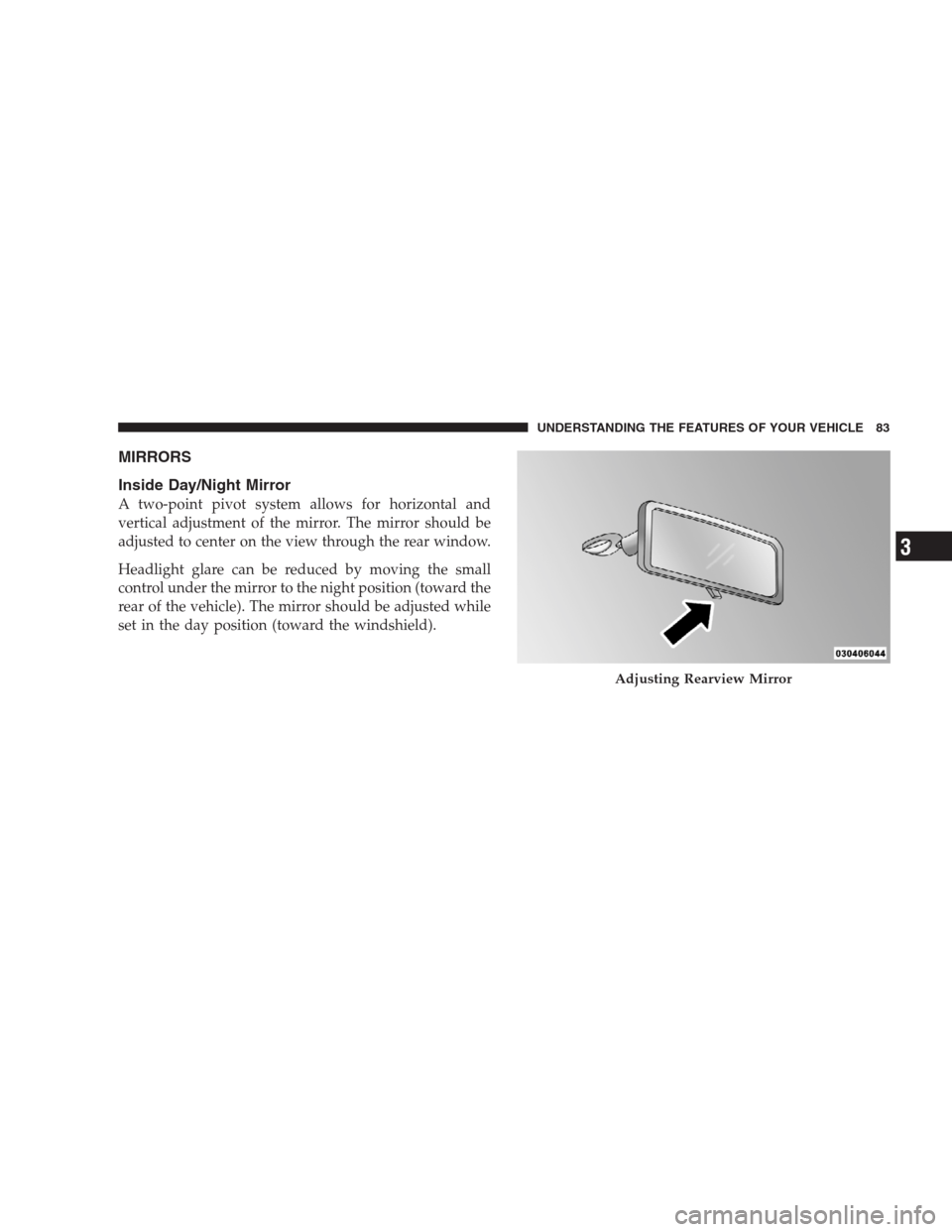

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. The mirror should be
adjusted to center on the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Adjusting Rearview Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3

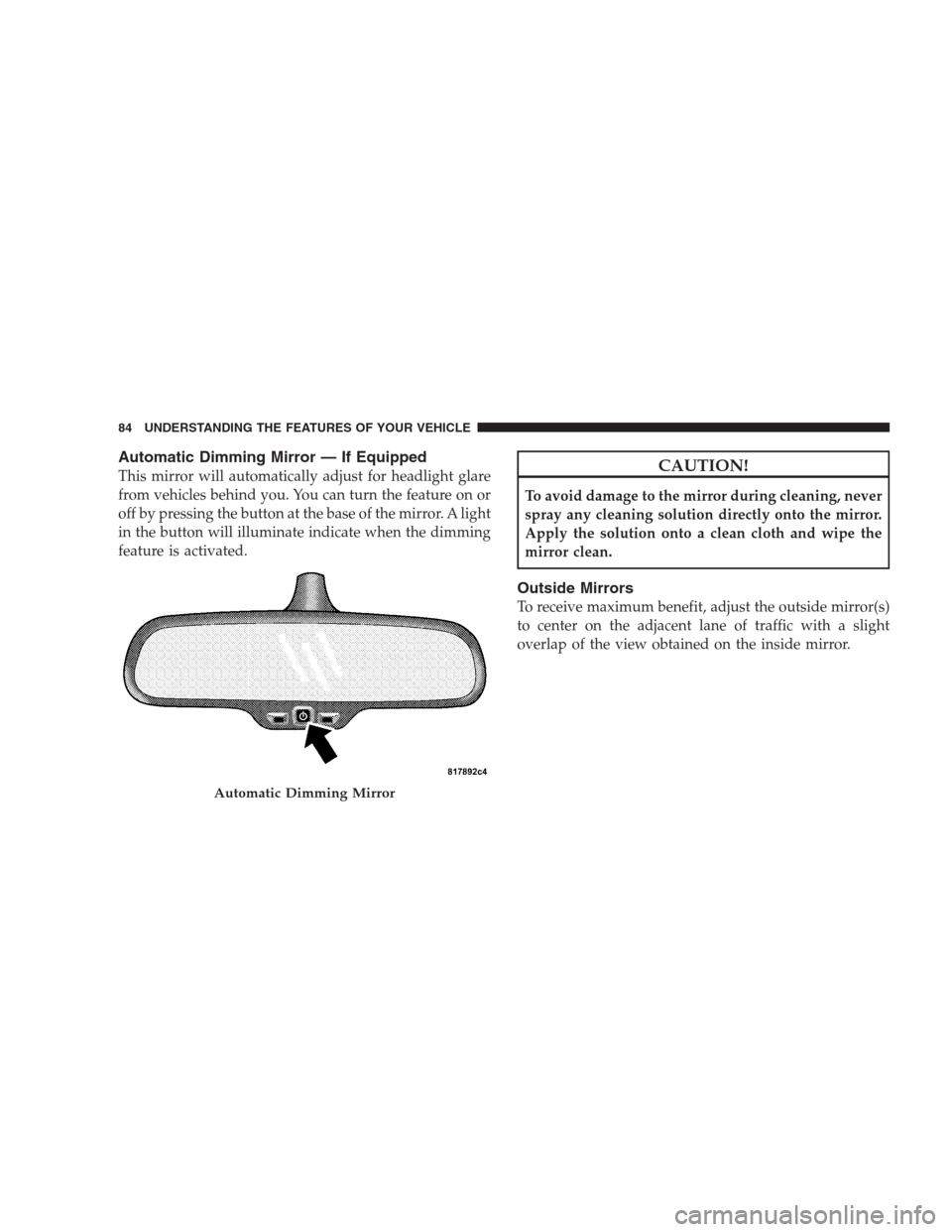

Automatic Dimming Mirror — If Equipped
This mirror will automatically adjust for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
in the button will illuminate indicate when the dimming
feature is activated.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
Automatic Dimming Mirror
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Vehicles and other objects seen in the right side
convex mirror will look smaller and farther away
than they really are. Relying too much on your right
side mirror could cause you to collide with another
vehicle or other object. Use your inside mirror when
judging the size or distance of a vehicle seen in the
right side mirror.

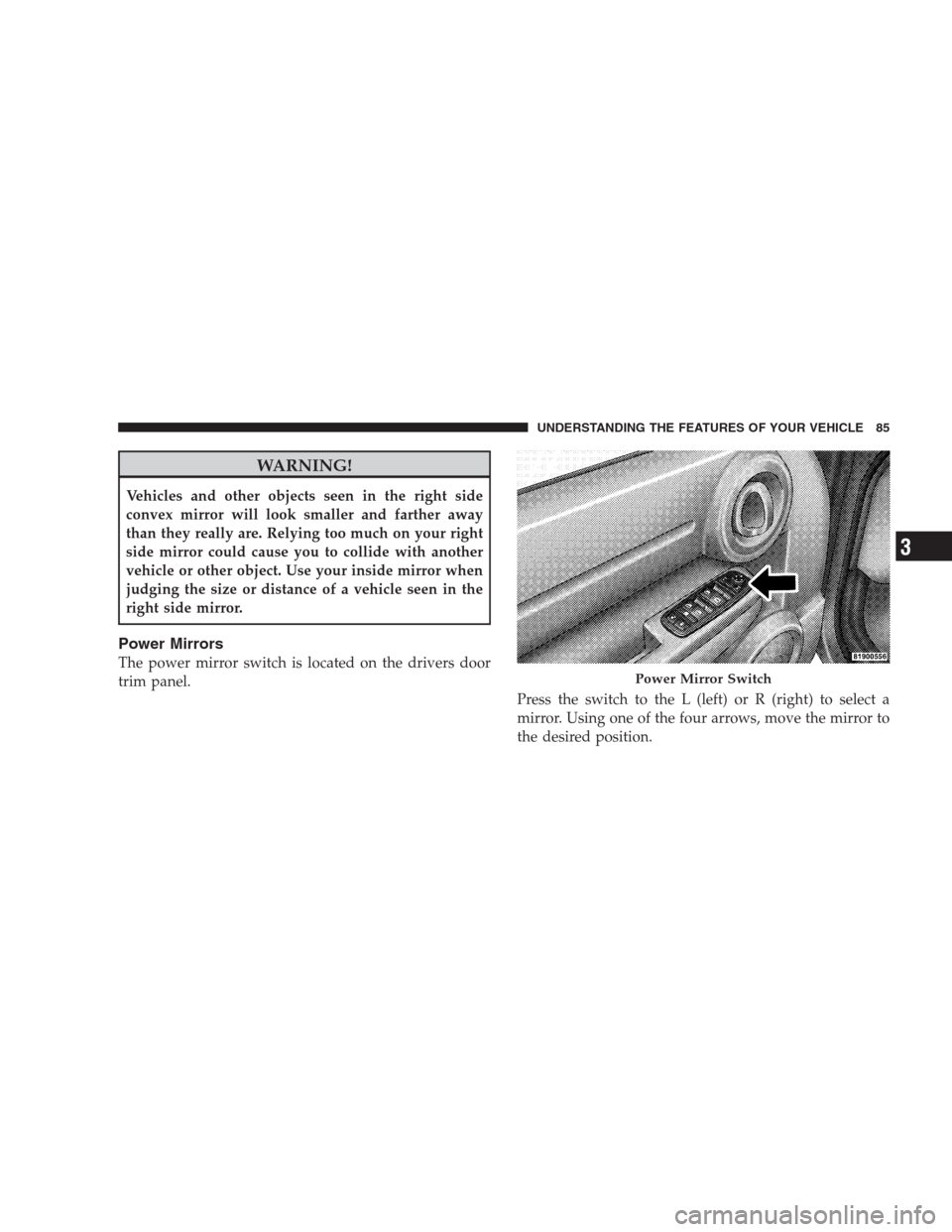

Power Mirrors
The power mirror switch is located on the drivers door
trim panel.
Press the switch to the L (left) or R (right) to select a
mirror. Using one of the four arrows, move the mirror to
the desired position.
Power Mirror Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3

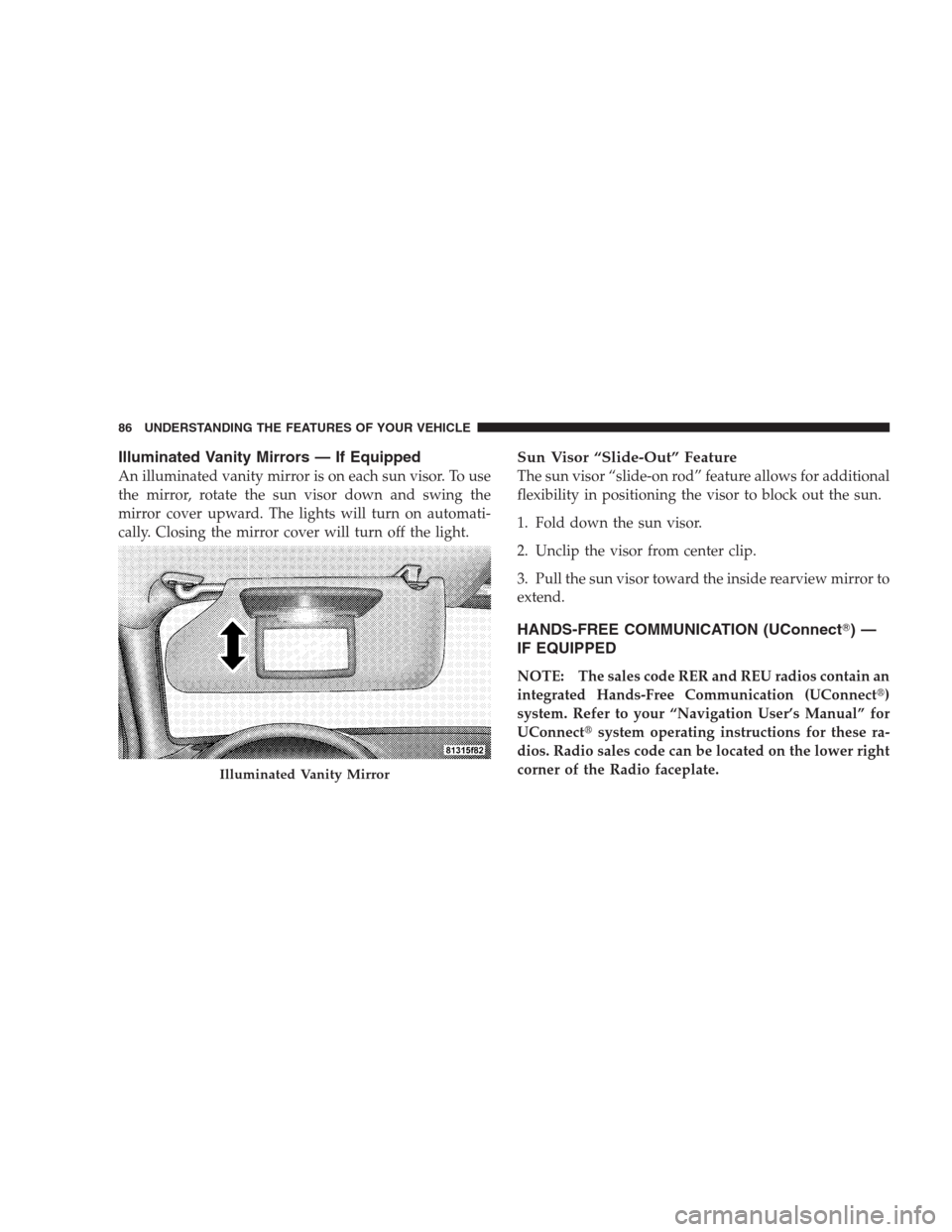

Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights will turn on automati-
cally. Closing the mirror cover will turn off the light.
Sun Visor “Slide-Out” Feature
The sun visor “slide-on rod” feature allows for additional
flexibility in positioning the visor to block out the sun.
1. Fold down the sun visor.
2. Unclip the visor from center clip.
3. Pull the sun visor toward the inside rearview mirror to
extend.
HANDS-FREE COMMUNICATION (UConnect)—
IF EQUIPPED
NOTE: The sales code RER and REU radios contain an
integrated Hands-Free Communication (UConnect)
system. Refer to your “Navigation User’s Manual” for
UConnectsystem operating instructions for these ra-
dios. Radio sales code can be located on the lower right
corner of the Radio faceplate.
Illuminated Vanity Mirror
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UConnectis a voice-activated, hands-free, in-vehicle
communications system. UConnectallows you to dial a
phone number with your cellular phone using simple
voice commands (e.g.,Call”“Mike””WorkorDial”
“248-555-1212). Your cellular phone’s audio is trans-
mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnectsystem.
NOTE:The UConnectsystem requires a cellular phone
equipped with the BluetoothHands-Free Profile,Ve r -
sion 0.96 or higher. See the UConnectwebsite for
supported phones.
NOTE:For UConnectcustomer support, visit the
following websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
UConnectallows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle and enables you to mute the system’s microphone
for private conversation.
The UConnectsystem is driven through your
Bluetooth“Hands-Free Profile” cellular phone.
UConnectfeatures Bluetoothtechnology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
UConnectworks no matter where you stow your cellu-
lar phone (be it your purse, pocket, or briefcase), as long
as your phone is turned on and has been paired to the
vehicle’s UConnectsystem. The UConnectsystem
allows up to seven cellular phones to be linked to the
system. Only one linked (or paired) cellular phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3

Phone Button
The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.
Voice Recognition Button
Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.
The UConnectsystem can be used with any Hands-Free
Profile certified Bluetoothcellular phone. See the
UConnectwebsite for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnect
features. Refer to your cellular service provider or the
phone manufacturer for details.The UConnectsystem is fully integrated with the vehi-
cle’s audio system. The volume of the UConnectsystem
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the UConnectsystem such asCELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the UConnect
system and to navigate through the UConnectmenu
structure. Voice commands are required after most
UConnectsystem prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows theReadyprompt or another
prompt.
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
