▫Voice Training....................... 120
Seats............................... 120
▫Front Manual Seat Adjustment........... 120
▫Front Seat Adjustment — Recline......... 121
▫Six-Way Driver’s Power Seat With Manual
Recliner........................... 122
▫Fold Flat Front Passenger Seat........... 123
▫Head Restraints...................... 123
▫Heated Seats — If Equipped............. 124
▫60/40 Split Folding Rear Seat With Fold Flat
Feature............................ 125
To Open And Close The Hood............. 127
Lights.............................. 129
▫Multifunction Lever................... 129▫Parking Lights, Instrument Panel Lights And
Headlights......................... 130
▫Lights-On Reminder.................. 130
▫High Beam Headlights................. 130
▫Flash-To-Pass....................... 131
▫Front Fog Lights — If Equipped.......... 131
▫Turn Signals........................ 131
▫Daytime Running Lights — If Equipped.... 131
▫Interior Lights....................... 132
Windshield Wipers And Washers........... 132
▫Windshield Wiper Operation............ 132
▫Intermittent Wiper System.............. 133
▫Windshield Washers................... 133
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

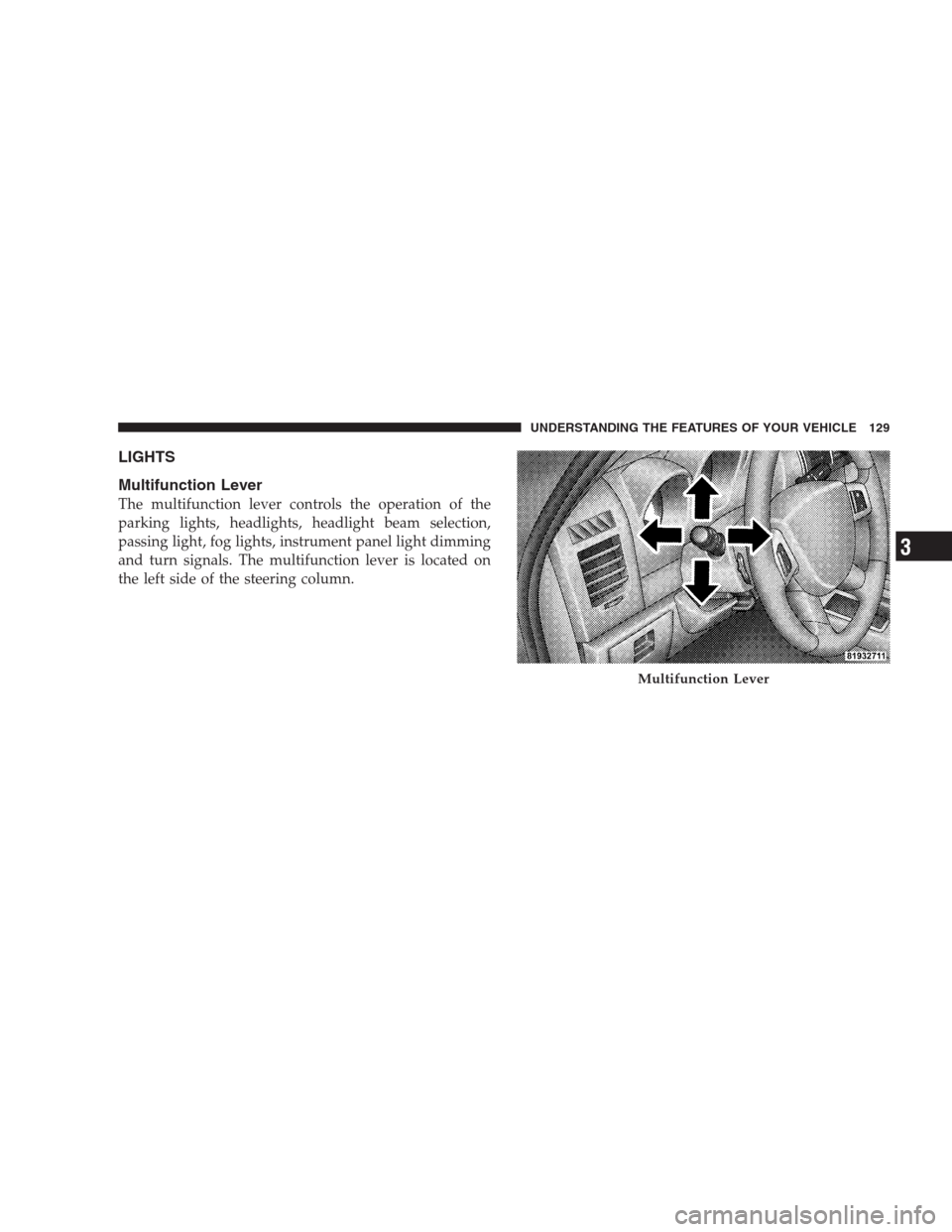

LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
parking lights, headlights, headlight beam selection,
passing light, fog lights, instrument panel light dimming
and turn signals. The multifunction lever is located on
the left side of the steering column.
Multifunction Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3

Flash-to-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward the steer-
ing wheel. This will cause the headlights to turn on at
high beam and remain on until the lever is released.
Front Fog Lights — If Equipped
The front fog light switch is in the multifunction
lever. To activate the front fog lights, turn on the
parking or Low beam headlights and pull out the
end of the lever.
NOTE:The fog lights will only operate with the parking
lights or the headlights on Low beam. Selecting High
beam headlights will turn off the fog lights.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.You can signal a lane change by moving the lever
partially up or down without moving beyond the detent.
If either light remains on and does not flash, or there is a
very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
NOTE:A tone will chime if the turn signals are left on
for more than 1 mile (2 km).
Daytime Running Lights — If Equipped
The headlights come on at a low intensity level after the
vehicle has been driven approximately 3 ft (1 m). They
will turn off when the vehicle is turned off or when the
headlights are switched on.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

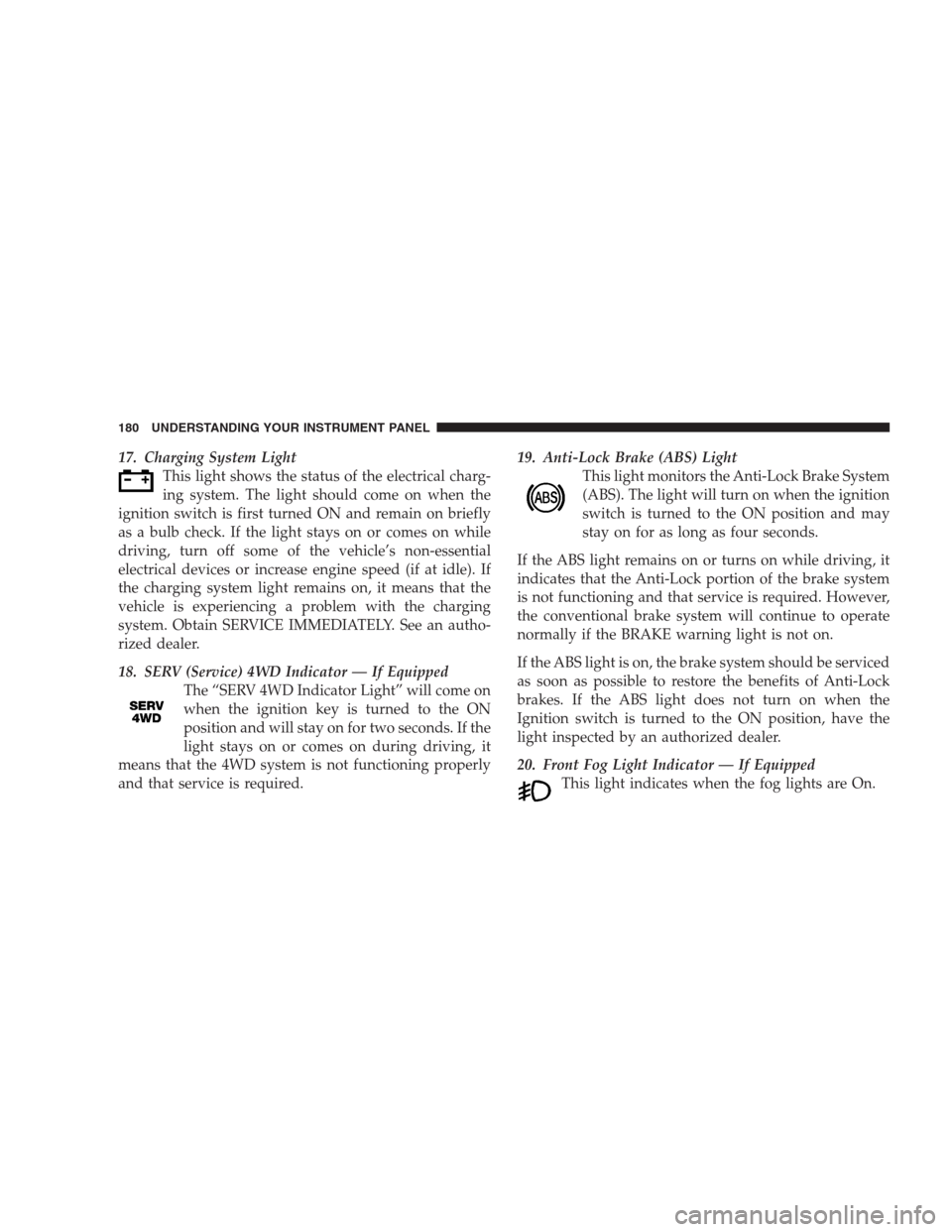

17. Charging System Light
This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned ON and remain on briefly
as a bulb check. If the light stays on or comes on while
driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.
18. SERV (Service) 4WD Indicator — If Equipped
The “SERV 4WD Indicator Light” will come on
when the ignition key is turned to the ON
position and will stay on for two seconds. If the
light stays on or comes on during driving, it
means that the 4WD system is not functioning properly
and that service is required.19. Anti-Lock Brake (ABS) Light
This light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON position and may
stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
brakes. If the ABS light does not turn on when the
Ignition switch is turned to the ON position, have the
light inspected by an authorized dealer.
20. Front Fog Light Indicator — If Equipped
This light indicates when the fog lights are On.
180 UNDERSTANDING YOUR INSTRUMENT PANEL

Operating Tips
Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases,
turning on the air conditioning (pressing the “Snow-
flake” button) will clear the fog. Adjust the temperature
control, air direction, and blower speed to maintain
comfort.
As the temperature gets colder, it may be necessary to
direct air onto the windshield. Adjust the temperature
control and blower speed to maintain comfort. Higher
blower speeds will reduce fogging. Interior fogging on
the windshield can be quickly removed by selecting the
DEFROST mode.
Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminants (cigarettesmoke, perfumes, etc.) from sticking to the windows.
Contaminants increase the rate of window fogging.Summer Operation
Air conditioned vehicles must be protected with a high
quality antifreeze coolant during summer to provide
proper corrosion protection and to raise the boiling point
of the coolant for protection against overheating. A 50%
concentration is recommended. Refer to Fluids and
Genuine Parts in Section 7 for the proper coolant type.
When using the air conditioner in extremely heavy traffic
in hot weather especially when towing a trailer, addi-
tional engine cooling may be required. If this situation is
encountered, operate the transmission in a lower gear to
increase engine RPM, coolant flow and fan speed. When
stopped in heavy traffic, it may be necessary to shift into
NEUTRAL and depress the accelerator slightly for fast
idle operation to increase coolant flow and fan speed.
252 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Brake System....................... 388
▫Automatic Transmission................ 389
▫Transfer Case....................... 390
▫Front/Rear Axle Fluid................. 391
▫Appearance Care And Protection From
Corrosion.......................... 392
Fuses.............................. 396
▫Totally Integrated Power Module......... 396
Replacement Light Bulbs................. 403
Bulb Replacement..................... 403
▫Headlight.......................... 403▫Left Front Turn Signal................. 404
▫Right Front Turn Signal................ 405
▫Front Side Marker.................... 405
▫Front Fog Light (Front Fascia Mounted)..... 405
▫Rear Tail, Stop, Turn Signal, And Backup
Lights............................. 406
▫Center High Mounted Stop Light (CHMSL) . . 407
Fluid Capacities....................... 408
Fluids, Lubricants And Genuine Parts....... 409
▫Engine............................ 409
▫Chassis............................ 410
366 MAINTAINING YOUR VEHICLE

Cavity Cartridge
FuseMini-
FuseDescription
J11 30 Amp
PinkSway Bar/
THATCHAM Lock-
Unlock/Power Sliding
Door Module
J13 60 Amp
YellowIgnition Off Draw
(IOD) — Main
J14 40 Amp
GreenEBL (Rear Window
Defogger)
J15 30 Amp
PinkRear Blower
J17 40 Amp
GreenStarter Solenoid
J18 20 Amp
YellowPowertrain Control
Module (PCM) Trans
Range
J19 60 Amp
YellowRadiator Fan
J20 30 Amp
PinkFront Wiper LO/HI
Cavity Cartridge
FuseMini-
FuseDescription
J21 20 Amp
YellowFront/Rear Washer
J22 25 Amp
NaturalSunroof Module
M1 15 Amp
BlueCenter High Mounted
Stop Light (CHMSL)/
Brake Switch
M2 20 Amp
YellowTrailer Lighting
M3 20 Amp
YellowFrt/Rear Axle Lockers
M4 10 Amp
RedTrailer Tow
M5 25 Amp
NaturalInverter
M6 20 Amp
YellowPower Outlet #1/Rain
Sensor
M7 20 Amp
YellowPower Outlet #2
(BATT/ACC SELECT)
398 MAINTAINING YOUR VEHICLE

REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb No.
Dome Light.........................TL212–2
Liftgate Lamp........................... 567
Overhead Console Lights............. PLW214–2A
Reading Light.......................WL212–2
LIGHT BULBS — Exterior Bulb No.
Headlight..........................9008 H13
Front Park/Turn......................3157AK
Front Sidemarker......................... 168
Back-Up.............................3057K
Center High Mounted Stoplight.............. 921
Fog Lamp.......................... H109145
License Plate Light....................... 168
Rear Tail, Stop, Turn Signal................3057K
BULB REPLACEMENT
Headlight
1. Open the hood.
2. Reach behind the headlight unit in the engine com-
partment to access the headlight bulb lock ring.
3. Firmly grasp the lock ring on the back of the headlight
unit housing.
4. Rotate the lock ring on the back of the headlight
housing counterclockwise to unlock it.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
MAINTAINING YOUR VEHICLE 403
7

Right Front Turn Signal
1. Open the hood.
2. Reach behind the headlight unit in the engine com-
partment to access the turn signal bulb.
3. Twist the bulb counterclockwise to remove.
4. Disconnect the electrical connector and replace the
bulb.
Front Side Marker
1. Open the hood.
2. Remove the grille assembly as follows:
a. Remove eight fasteners.
b. Remove two screws from each headlight.
c. Remove two rivets from the center of the grille.
d. Remove one push pin from the top of each fender.e. Pull the grille assembly toward you to disconnect
the grille clips to the fender and the headlight ballstuds
to the front end module.
3. Disconnect electrical connector.
4. Turn the bulb counterclockwise to remove.
Front Fog Light (Front Fascia Mounted)
1. Reach between the front fascia and wheel liner from
under the vehicle.
2. Turn the front fog light bulb one quarter turn counter-
clockwise to remove from housing.
3. Disconnect the electrical connector and replace bulb.
MAINTAINING YOUR VEHICLE 405
7

Flashers
Hazard Warning....................... 354
Turn Signal..................176,404,405,406
Flooded Engine Starting................... 260
Floor Console.......................... 159
Fluid, Brake........................... 410
Fluid Capacities......................... 408
Fluid Leaks............................. 77
Fluid Level Checks...................... 391
Automatic Transmission................. 389
Engine Oil........................... 373
Power Steering........................ 283
Fluids, Lubricants and Genuine Parts.......... 409
Fog Light Service........................ 405
Fog Lights..........................131,405
Folding Rear Seat........................ 125
Four Wheel Drive....................... 275
Operation........................... 275
Systems............................. 275Four Wheel Drive Operation................ 275
Four-Way Hazard Flasher.................. 354
Front Axle (Differential)................... 391
Fuel................................. 326
Filler Cap (Gas Cap).................... 331
Gasoline............................ 326
Gauge.............................. 174
Light............................... 175
Materials Added....................... 329
Octane Rating...................326,327,409
Requirements......................... 408
Tank Capacity........................ 408
Fuel System Caution..................... 330
Fuses................................ 396
Garage Door Opener (HomeLink) ........... 144
Gas Cap (Fuel Filler Cap)............331,333,370
Gas Gauge (Fuel Gauge)................... 174
Gasoline (Fuel)......................... 326
INDEX 443
10
