ILLUMINATED ENTRY
The interior lights come on when you open any door.
They will remain on for about 30 seconds after all doors
are closed then fade to off.
The lights also will fade to off if you turn on the ignition
after you close all the doors.
REMOTE KEYLESS ENTRY
This system allows you to lock or unlock the doors and
liftgate or activate the Panic Alarm from distances up to
23 ft (7 m) using your Remote Keyless Entry (RKE)
transmitter. The RKE transmitter does not need to be
pointed at the vehicle to activate the system.
NOTE:
•For the remote starting feature (if equipped), refer to
“Remote Starting System” in this section.
•Your vehicle’s RKE transmitter may have three or four
buttons depending on the optional features purchased
with your vehicle.
Three Button RKE transmitter
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

WARNING!
Deployed airbags cannot protect you in another col-
lision. Have the airbags, and seat belt retractor as-
sembly replaced by an authorized dealer as soon as
possible. Also, have the Occupant Classification Sys-
tem serviced as well.
Enhanced Accident Response System
In the event of an impact that causes airbag deployment
with the vehicle stopped, the vehicle communication
network intact, and the power intact, the Enhanced
Accident Response System performs the following func-
tions:
•Cuts off fuel to the engine.
•Flashes hazard lights.
•Turns on the interior lamps which remain on as long as
the battery has power or until the ignition key is
removed.
•Unlocks the doors automatically.
Maintaining Your Airbag System
WARNING!
•Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured if the airbag system is not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper right side of the instrument panel. Do not
modify the front bumper or vehicle body struc-
ture.
(Continued)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61
2

▫Voice Training....................... 120
Seats............................... 120
▫Front Manual Seat Adjustment........... 120
▫Front Seat Adjustment — Recline......... 121
▫Six-Way Driver’s Power Seat With Manual
Recliner........................... 122
▫Fold Flat Front Passenger Seat........... 123
▫Head Restraints...................... 123
▫Heated Seats — If Equipped............. 124
▫60/40 Split Folding Rear Seat With Fold Flat
Feature............................ 125
To Open And Close The Hood............. 127
Lights.............................. 129
▫Multifunction Lever................... 129▫Parking Lights, Instrument Panel Lights And
Headlights......................... 130
▫Lights-On Reminder.................. 130
▫High Beam Headlights................. 130
▫Flash-To-Pass....................... 131
▫Front Fog Lights — If Equipped.......... 131
▫Turn Signals........................ 131
▫Daytime Running Lights — If Equipped.... 131
▫Interior Lights....................... 132
Windshield Wipers And Washers........... 132
▫Windshield Wiper Operation............ 132
▫Intermittent Wiper System.............. 133
▫Windshield Washers................... 133
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

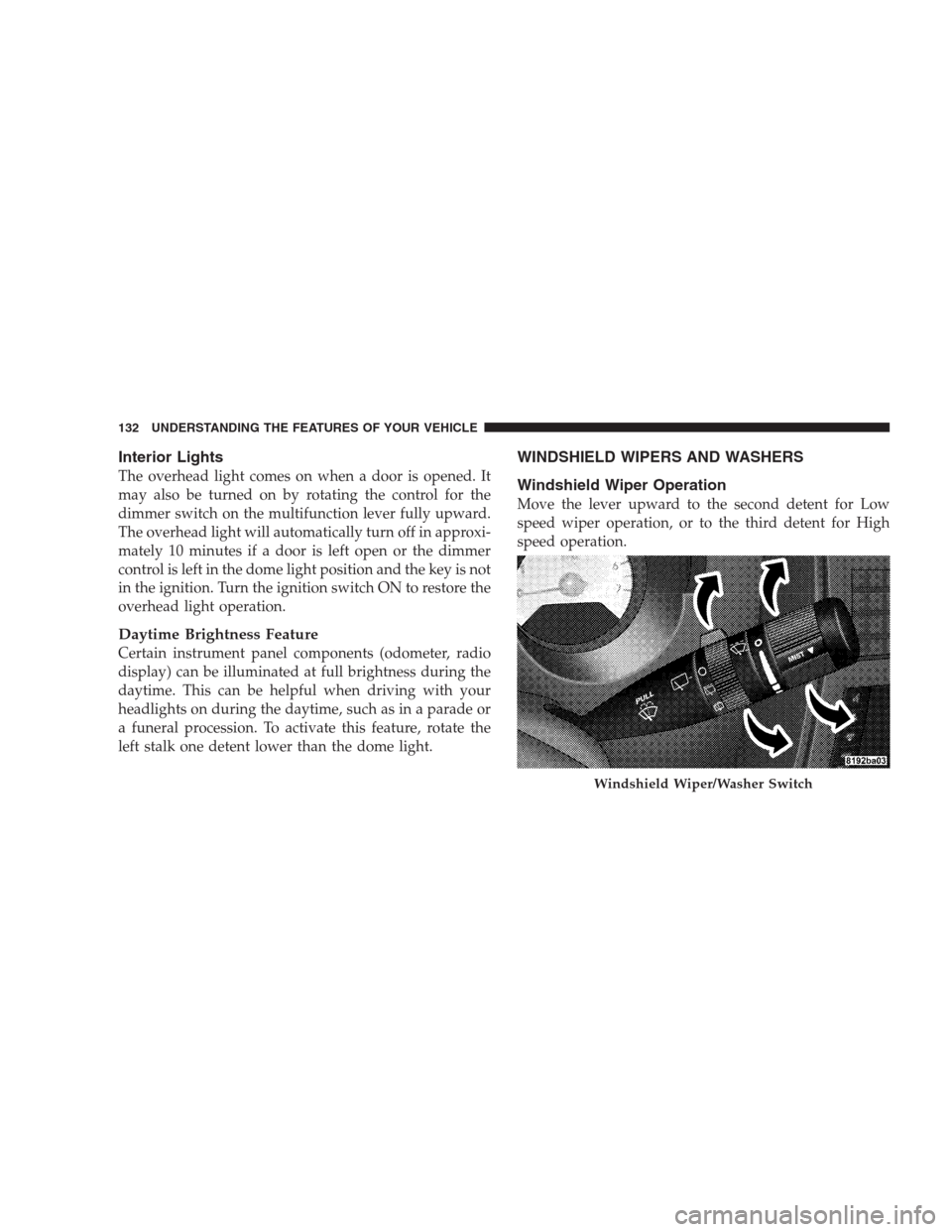

Interior Lights
The overhead light comes on when a door is opened. It
may also be turned on by rotating the control for the
dimmer switch on the multifunction lever fully upward.
The overhead light will automatically turn off in approxi-
mately 10 minutes if a door is left open or the dimmer
control is left in the dome light position and the key is not
in the ignition. Turn the ignition switch ON to restore the
overhead light operation.
Daytime Brightness Feature
Certain instrument panel components (odometer, radio
display) can be illuminated at full brightness during the
daytime. This can be helpful when driving with your
headlights on during the daytime, such as in a parade or
a funeral procession. To activate this feature, rotate the
left stalk one detent lower than the dome light.
WINDSHIELD WIPERS AND WASHERS
Windshield Wiper Operation
Move the lever upward to the second detent for Low
speed wiper operation, or to the third detent for High
speed operation.
Windshield Wiper/Washer Switch
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb No.
Dome Light.........................TL212–2
Liftgate Lamp........................... 567
Overhead Console Lights............. PLW214–2A
Reading Light.......................WL212–2
LIGHT BULBS — Exterior Bulb No.
Headlight..........................9008 H13
Front Park/Turn......................3157AK
Front Sidemarker......................... 168
Back-Up.............................3057K
Center High Mounted Stoplight.............. 921
Fog Lamp.......................... H109145
License Plate Light....................... 168
Rear Tail, Stop, Turn Signal................3057K
BULB REPLACEMENT
Headlight
1. Open the hood.
2. Reach behind the headlight unit in the engine com-
partment to access the headlight bulb lock ring.
3. Firmly grasp the lock ring on the back of the headlight
unit housing.
4. Rotate the lock ring on the back of the headlight
housing counterclockwise to unlock it.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
MAINTAINING YOUR VEHICLE 403
7

Infant Restraint........................65,66
Inflation Pressure Tires.................... 306
Information Center, Vehicle................. 191
Inside Rearview Mirror.................... 83
Instrument Cluster....................173,174
Instrument Panel and Controls.............. 172
Instrument Panel Lens Cleaning............. 396
Integrated Power Module (Fuses)............ 396
Interior Appearance Care.................. 395
Interior Lights.......................... 132
Intermittent Wipers (Delay Wipers)........... 133
Introduction............................. 4
Inverter, Power......................... 156
Jack Location........................... 356
Jack Operation.......................356,358
Jacking Instructions...................... 358
Key, Programming........................ 16Key, Replacement........................ 15
Key, Sentry (Immobilizer)................... 14
Key-In Reminder......................... 13
Keyless Entry System...................... 19
Keys................................. 12
Lap/Shoulder Belts....................... 38
LATCH (Lower Anchors and Tether
for CHildren).........................69,71
Lead Free Gasoline...................... 326
Leaks, Fluid............................ 77
Life of Tires............................ 311
Liftgate................................ 36
Lights..............................77,129
Airbag............................63,181
Alarm............................77,176
Anti-Lock........................... 180
Back-Up............................ 406
Brake Assist Warning................... 295
INDEX 445
10

Brake Warning........................ 177
Bulb Replacement...................... 403
Cargo .............................. 160
Center Mounted Stop................... 407
Cruise.............................. 186
Daytime Running...................... 131
Dimmer Switch, Headlight............... 130
Electronic Stability Program (ESP)
Indicator.........................176,292
Engine Temperature Warning.............. 175
Fog ..........................131,180,405
Hazard Warning Flasher................. 354
Headlight Switch...................... 130
Headlights........................... 403
High Beam Indicator.................... 176
Illuminated Entry....................... 19
Instrument Cluster..................130,174
Interior............................. 132
Lights On Reminder.................... 130Low Fuel.........................174,175
Malfunction Indicator (Check Engine)........ 186
Oil Pressure.......................... 181
Passing............................. 131
Rear Servicing........................ 406
Rear Tail............................ 406
Seat Belt Reminder..................... 175
Security Alarm (Theft Alarm).............. 176
Service............................. 403
Service Engine Soon (Malfunction Indicator) . . . 186
Side Marker.......................... 406
Theft Alarm (Security Alarm).............. 176
Tire Pressure Monitoring (TPMS)........182,316
Traction Control....................... 292
Turn Signal..................131,404,405,406
Voltage............................. 180
Warning (Instrument Cluster Description)..... 174
Load Floor, Cargo....................... 162
