WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer-
ship for service if your vehicle overheats. If you
decide to look under the hood yourself, see Section 7
of this manual. Follow the warnings under the Cool-
ing System Pressure Cap paragraph.
4. Low Fuel Light
When the fuel level reaches approximately 2.0 gal
(7.8 L) this light will turn on, and remain on until
fuel is added.
5. Seat Belt Reminder Light
When the ignition switch is first turned ON, this
light will turn on for five to eight seconds as a bulb
check. During the bulb check, if the driver’s seat
belt is unbuckled, a chime will sound. After the bulbcheck or when driving, if the driver’s seat belt remains
unbuckled, the Seat Belt Reminder Light will illuminate
and the chime will sound. Refer to “Occupant Restraints”
in Section 2 for more information.
6. Engine Temperature Warning Light
This light warns of an overheated engine condition.
As temperatures rise and the gauge approachesH
,
this indicator will illuminate and a single chime
will sound after reaching a set threshold. Further over-
heating will cause the temperature gauge to passH, the
indicator will continuously flash and a continuous chime
will occur until the engine is allowed to cool.
If the light turns on while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL and idle the ve-
hicle. If the temperature reading does not return to
normal, turn the engine off immediately and call for
service. Refer to “If Your Engine Overheats” in Section 6
for more information.
UNDERSTANDING YOUR INSTRUMENT PANEL 175
4

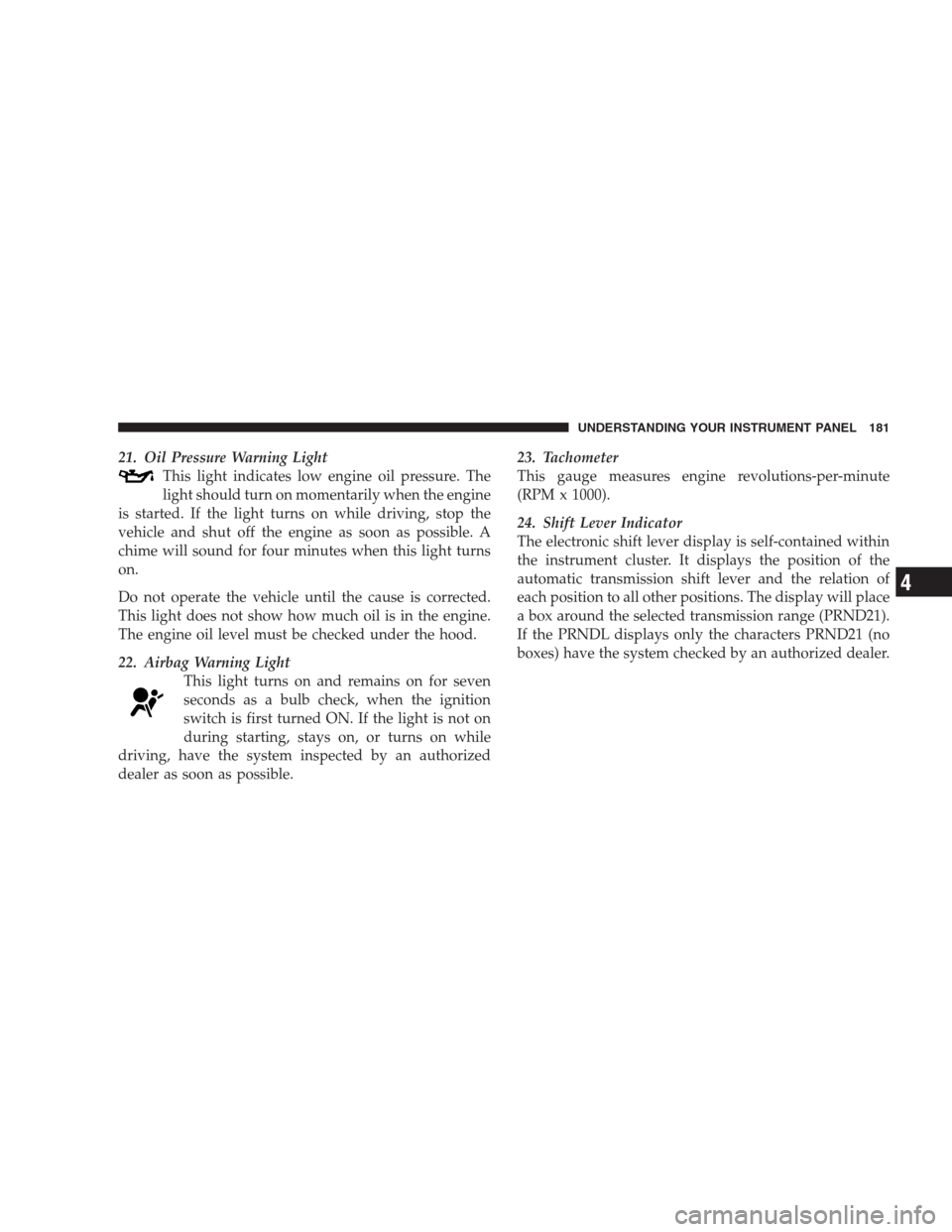

21. Oil Pressure Warning Light
This light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible. A
chime will sound for four minutes when this light turns
on.
Do not operate the vehicle until the cause is corrected.
This light does not show how much oil is in the engine.
The engine oil level must be checked under the hood.
22. Airbag Warning Light
This light turns on and remains on for seven
seconds as a bulb check, when the ignition
switch is first turned ON. If the light is not on
during starting, stays on, or turns on while
driving, have the system inspected by an authorized
dealer as soon as possible.23. Tachometer
This gauge measures engine revolutions-per-minute
(RPM x 1000).
24. Shift Lever Indicator
The electronic shift lever display is self-contained within
the instrument cluster. It displays the position of the
automatic transmission shift lever and the relation of
each position to all other positions. The display will place
a box around the selected transmission range (PRND21).
If the PRNDL displays only the characters PRND21 (no
boxes) have the system checked by an authorized dealer.
UNDERSTANDING YOUR INSTRUMENT PANEL 181
4

Operating Tips
Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases,
turning on the air conditioning (pressing the “Snow-
flake” button) will clear the fog. Adjust the temperature
control, air direction, and blower speed to maintain
comfort.
As the temperature gets colder, it may be necessary to
direct air onto the windshield. Adjust the temperature
control and blower speed to maintain comfort. Higher
blower speeds will reduce fogging. Interior fogging on
the windshield can be quickly removed by selecting the
DEFROST mode.
Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminants (cigarettesmoke, perfumes, etc.) from sticking to the windows.
Contaminants increase the rate of window fogging.Summer Operation
Air conditioned vehicles must be protected with a high
quality antifreeze coolant during summer to provide
proper corrosion protection and to raise the boiling point
of the coolant for protection against overheating. A 50%
concentration is recommended. Refer to Fluids and
Genuine Parts in Section 7 for the proper coolant type.
When using the air conditioner in extremely heavy traffic
in hot weather especially when towing a trailer, addi-
tional engine cooling may be required. If this situation is
encountered, operate the transmission in a lower gear to
increase engine RPM, coolant flow and fan speed. When
stopped in heavy traffic, it may be necessary to shift into
NEUTRAL and depress the accelerator slightly for fast
idle operation to increase coolant flow and fan speed.
252 UNDERSTANDING YOUR INSTRUMENT PANEL

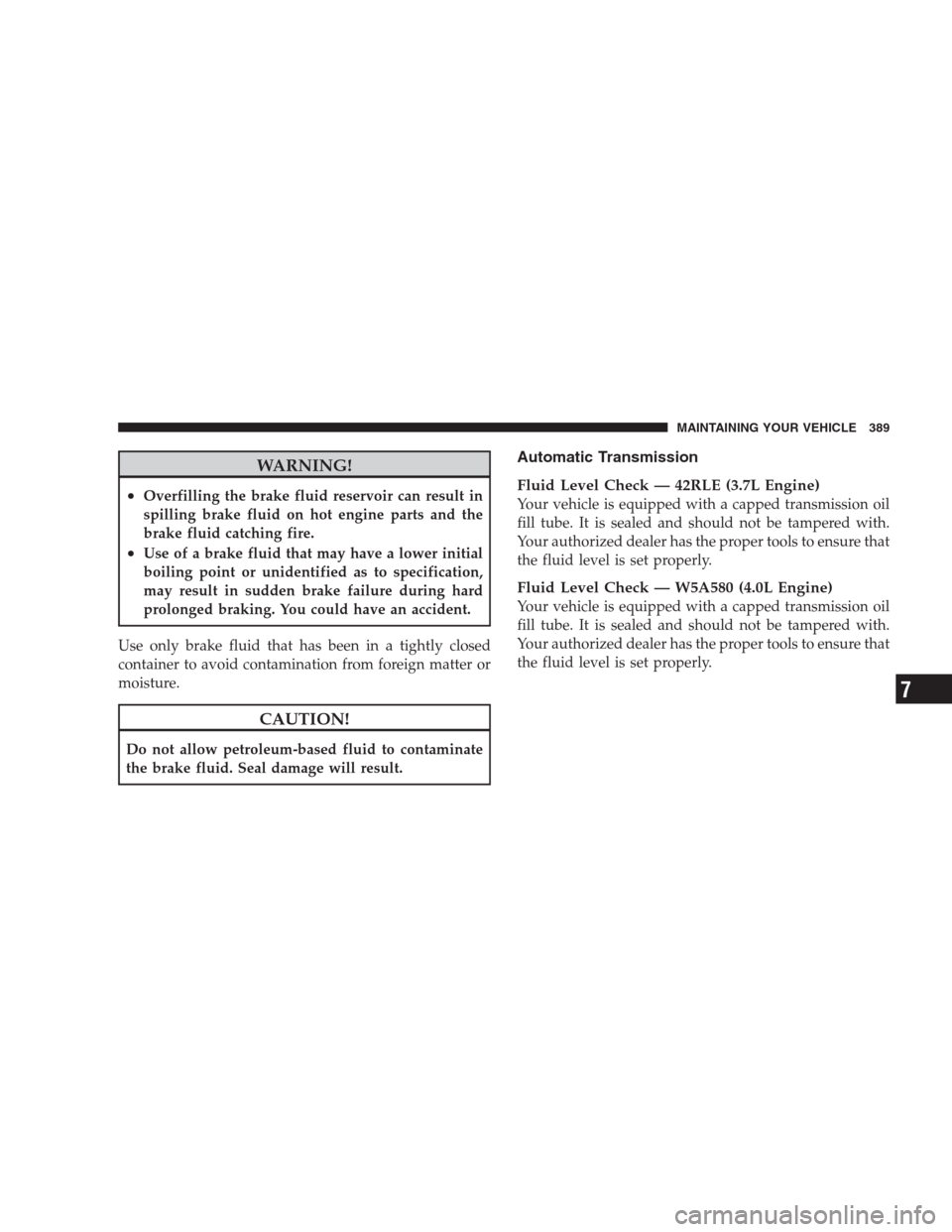

WARNING!
•Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts and the
brake fluid catching fire.
•Use of a brake fluid that may have a lower initial
boiling point or unidentified as to specification,
may result in sudden brake failure during hard
prolonged braking. You could have an accident.
Use only brake fluid that has been in a tightly closed
container to avoid contamination from foreign matter or
moisture.
CAUTION!
Do not allow petroleum-based fluid to contaminate
the brake fluid. Seal damage will result.
Automatic Transmission
Fluid Level Check — 42RLE (3.7L Engine)
Your vehicle is equipped with a capped transmission oil
fill tube. It is sealed and should not be tampered with.
Your authorized dealer has the proper tools to ensure that
the fluid level is set properly.
Fluid Level Check — W5A580 (4.0L Engine)
Your vehicle is equipped with a capped transmission oil
fill tube. It is sealed and should not be tampered with.
Your authorized dealer has the proper tools to ensure that
the fluid level is set properly.
MAINTAINING YOUR VEHICLE 389
7

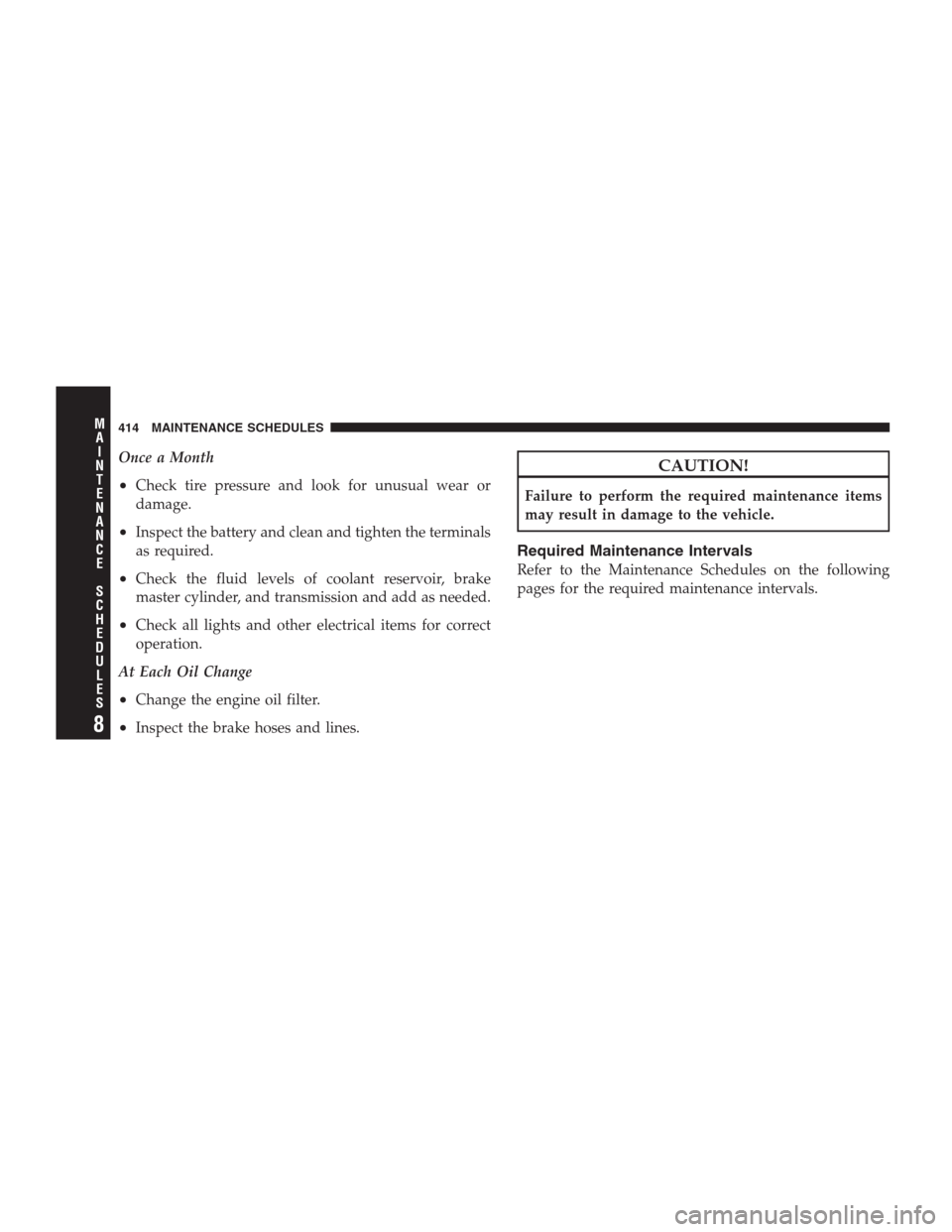

Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, and transmission and add as needed.
•Check all lights and other electrical items for correct
operation.
At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
414 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

54,000 Miles (90,000 km) or
54 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate tires.
❏Inspect the front and rear axle fluid;
change if using your vehicle for police,
taxi, fleet, off-road or frequent trailer
towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
60,000 Miles (100,000 km) or 60 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏Replace the engine air cleaner filter.
❏Replace the ignition cables (3.7L Engine).
❏Replace the spark plugs (3.7L Engine).
❏Inspect the brake linings; replace if necessary.
❏Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏Change the automatic transmission fluid and filter if using your vehicle for any of the
following: police, taxi, fleet or frequent trailer towing.
❏Change the transfer case fluid if using your vehicle for any of the following: police, taxi,
fleet, off-road or frequent trailer towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
418 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

120,000 Miles (200,000 km) or 120 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏Rotate tires.
❏Replace the engine air cleaner filter.
❏Replace the ignition cables (3.7L Engine).
❏Replace the spark plugs (3.7L Engine).
❏Inspect the brake linings; replace if necessary.
❏Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏Inspect the CV joints.
❏Inspect exhaust system.
❏Inspect the front suspension, tie rod ends and boot seals; replace if necessary.
❏Change the transfer case fluid if using your vehicle for any of the following: police, taxi,
fleet, off-road or frequent trailer towing.
❏Change the automatic transmission fluid and filter.
❏Replace accessory drive belt(s).
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
126,000 Miles (210,000 km) or
126 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏Rotate tires.
❏Inspect the front and rear axle fluid;
change if using your vehicle for police,
taxi, fleet, off-road or frequent trailer
towing.
Odometer Reading Date
Repair Order # Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 423
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Flashers
Hazard Warning....................... 354
Turn Signal..................176,404,405,406
Flooded Engine Starting................... 260
Floor Console.......................... 159
Fluid, Brake........................... 410
Fluid Capacities......................... 408
Fluid Leaks............................. 77
Fluid Level Checks...................... 391
Automatic Transmission................. 389
Engine Oil........................... 373
Power Steering........................ 283
Fluids, Lubricants and Genuine Parts.......... 409
Fog Light Service........................ 405
Fog Lights..........................131,405
Folding Rear Seat........................ 125
Four Wheel Drive....................... 275
Operation........................... 275
Systems............................. 275Four Wheel Drive Operation................ 275
Four-Way Hazard Flasher.................. 354
Front Axle (Differential)................... 391
Fuel................................. 326
Filler Cap (Gas Cap).................... 331
Gasoline............................ 326
Gauge.............................. 174
Light............................... 175
Materials Added....................... 329
Octane Rating...................326,327,409
Requirements......................... 408
Tank Capacity........................ 408
Fuel System Caution..................... 330
Fuses................................ 396
Garage Door Opener (HomeLink) ........... 144
Gas Cap (Fuel Filler Cap)............331,333,370
Gas Gauge (Fuel Gauge)................... 174
Gasoline (Fuel)......................... 326
INDEX 443
10

Service Contract......................... 431
Service Engine Soon Light
(Malfunction Indicator).................... 186
Service Manuals........................ 433
Setting the Clock................202,216,220,229
Settings, Personal........................ 198
Shift Lock Manual Override................ 264
Shifting
Automatic Transmission..............265,270
Shoulder Belts........................... 38
Signals, Turn................131,176,404,405,406
Sliding Cargo Floor
LoadNGo .......................... 163
Snow Chains (Tire Chains)................. 314
Spare Tire.......................308,309,356
Specifications
Fuel (Gasoline)........................ 326
Oil ................................ 374
Speed Control (Cruise Control).............. 135Speedometer........................... 176
Starting............................... 259
Cold Weather......................... 259
Emergency (Jump Starting)............... 362
Engine Block Heater.................... 262
Engine Fails to Start.................... 260
Remote.............................. 25
Steering
Power...........................282,283
Tilt Column.......................... 134
Wheel, Tilt........................... 134
Steering Wheel Mounted Sound System
Controls.............................. 246
Storage............................... 159
Storage Bin............................ 159
Storage, Vehicle......................... 253
Sun Roof.............................. 150
Sun Visor Extension....................... 86
Sunroof Maintenance..................... 153
INDEX 451
10
