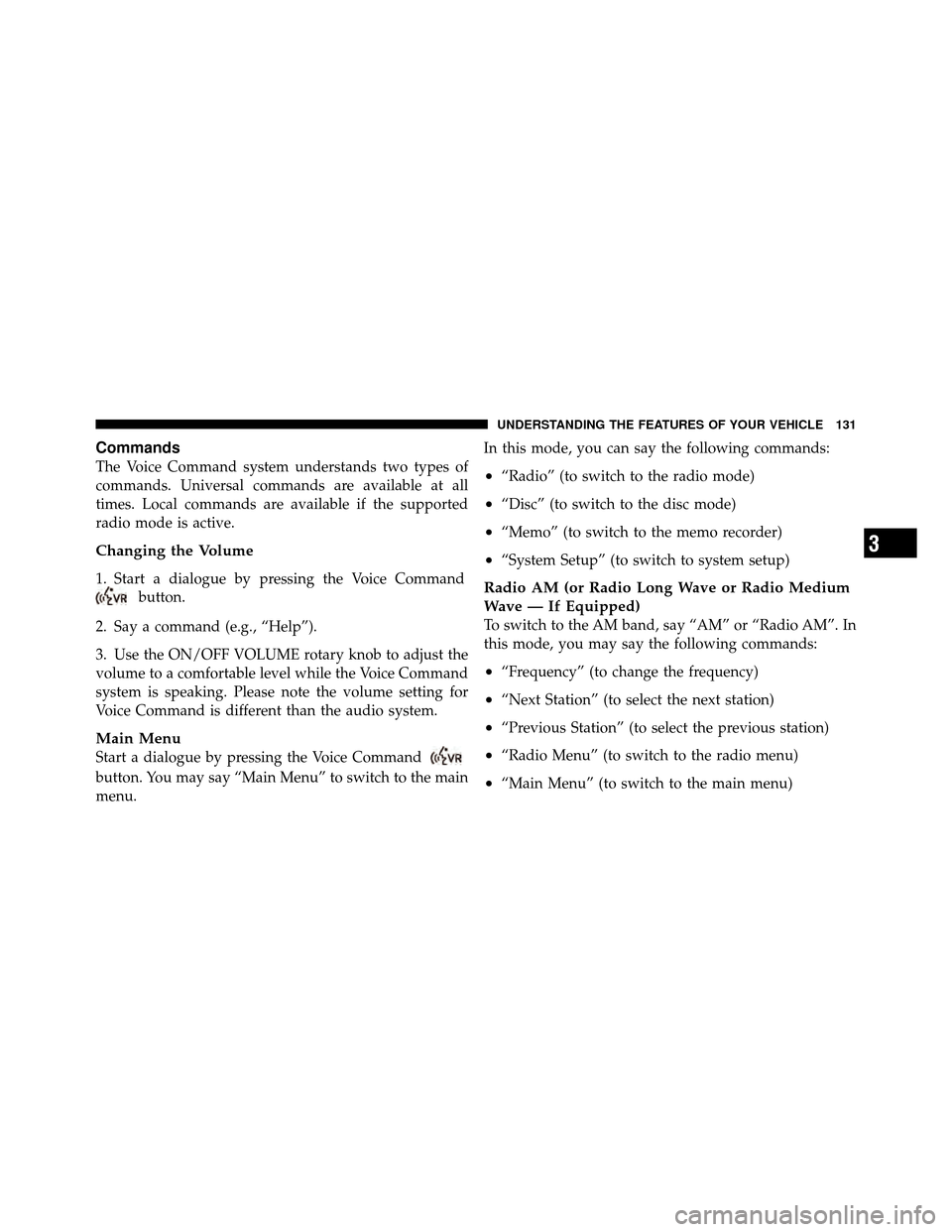

Commands
The Voice Command system understands two types of
commands. Universal commands are available at all
times. Local commands are available if the supported
radio mode is active.
Changing the Volume
1. Start a dialogue by pressing the Voice Command
button.
2. Say a command (e.g., “Help”).
3. Use the ON/OFF VOLUME rotary knob to adjust the
volume to a comfortable level while the Voice Command
system is speaking. Please note the volume setting for
Voice Command is different than the audio system.
Main Menu
Start a dialogue by pressing the Voice Command
button. You may say “Main Menu” to switch to the main
menu. In this mode, you can say the following commands:
•“Radio” (to switch to the radio mode)
•“Disc” (to switch to the disc mode)
•“Memo” (to switch to the memo recorder)
•“System Setup” (to switch to system setup)
Radio AM (or Radio Long Wave or Radio Medium
Wave — If Equipped)
To switch to the AM band, say “AM” or “Radio AM”. In
this mode, you may say the following commands:
•“Frequency” (to change the frequency)
•“Next Station” (to select the next station)
•“Previous Station” (to select the previous station)
•“Radio Menu” (to switch to the radio menu)
•“Main Menu” (to switch to the main menu)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131

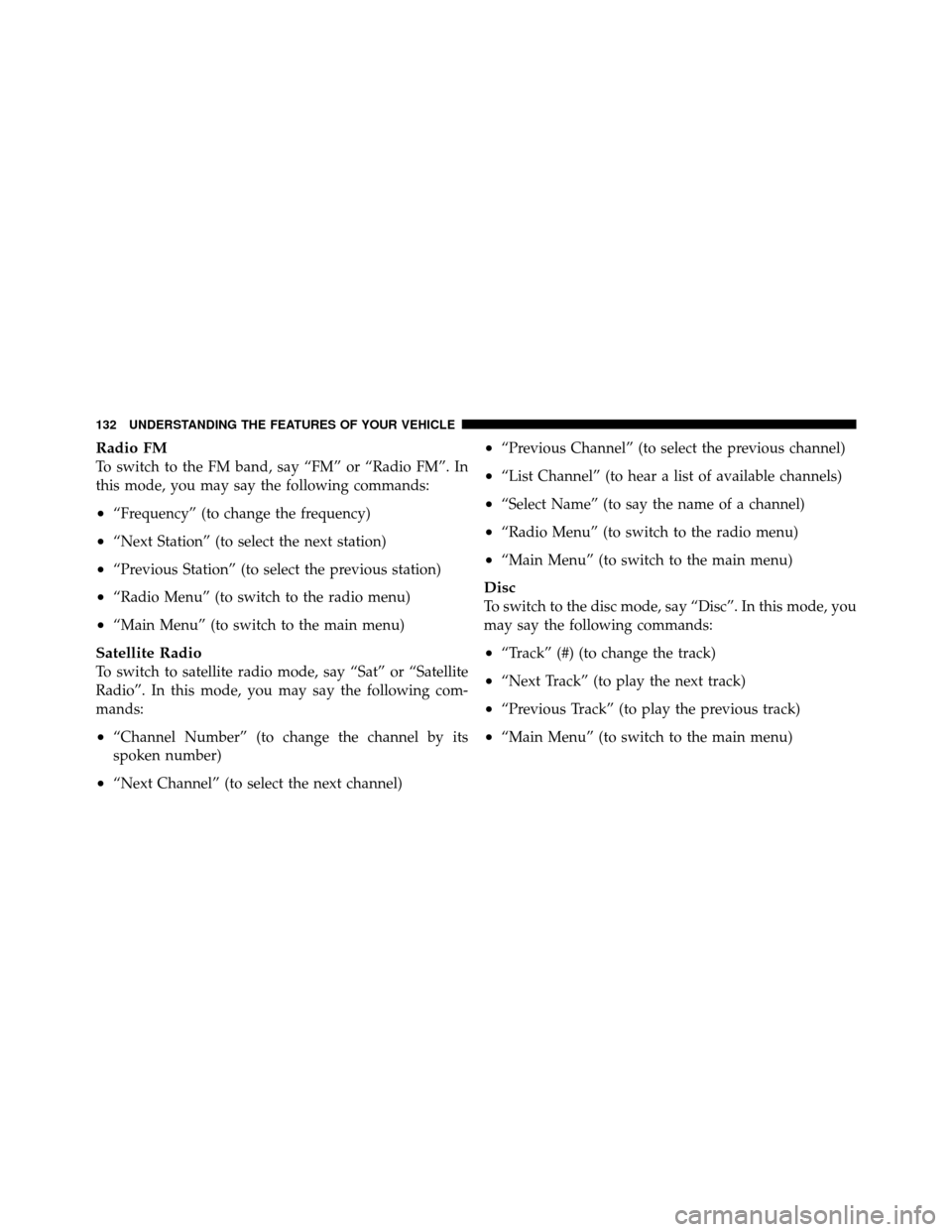

Radio FM
To switch to the FM band, say “FM” or “Radio FM”. In
this mode, you may say the following commands:
•“Frequency” (to change the frequency)
•“Next Station” (to select the next station)
•“Previous Station” (to select the previous station)
•“Radio Menu” (to switch to the radio menu)
•“Main Menu” (to switch to the main menu)
Satellite Radio
To switch to satellite radio mode, say “Sat” or “Satellite
Radio”. In this mode, you may say the following com-
mands:
•“Channel Number” (to change the channel by its
spoken number)
•“Next Channel” (to select the next channel)
•“Previous Channel” (to select the previous channel)
•“List Channel” (to hear a list of available channels)
•“Select Name” (to say the name of a channel)
•“Radio Menu” (to switch to the radio menu)
•“Main Menu” (to switch to the main menu)
Disc
To switch to the disc mode, say “Disc”. In this mode, you
may say the following commands:
•“Track” (#) (to change the track)
•“Next Track” (to play the next track)
•“Previous Track” (to play the previous track)
•“Main Menu” (to switch to the main menu)
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

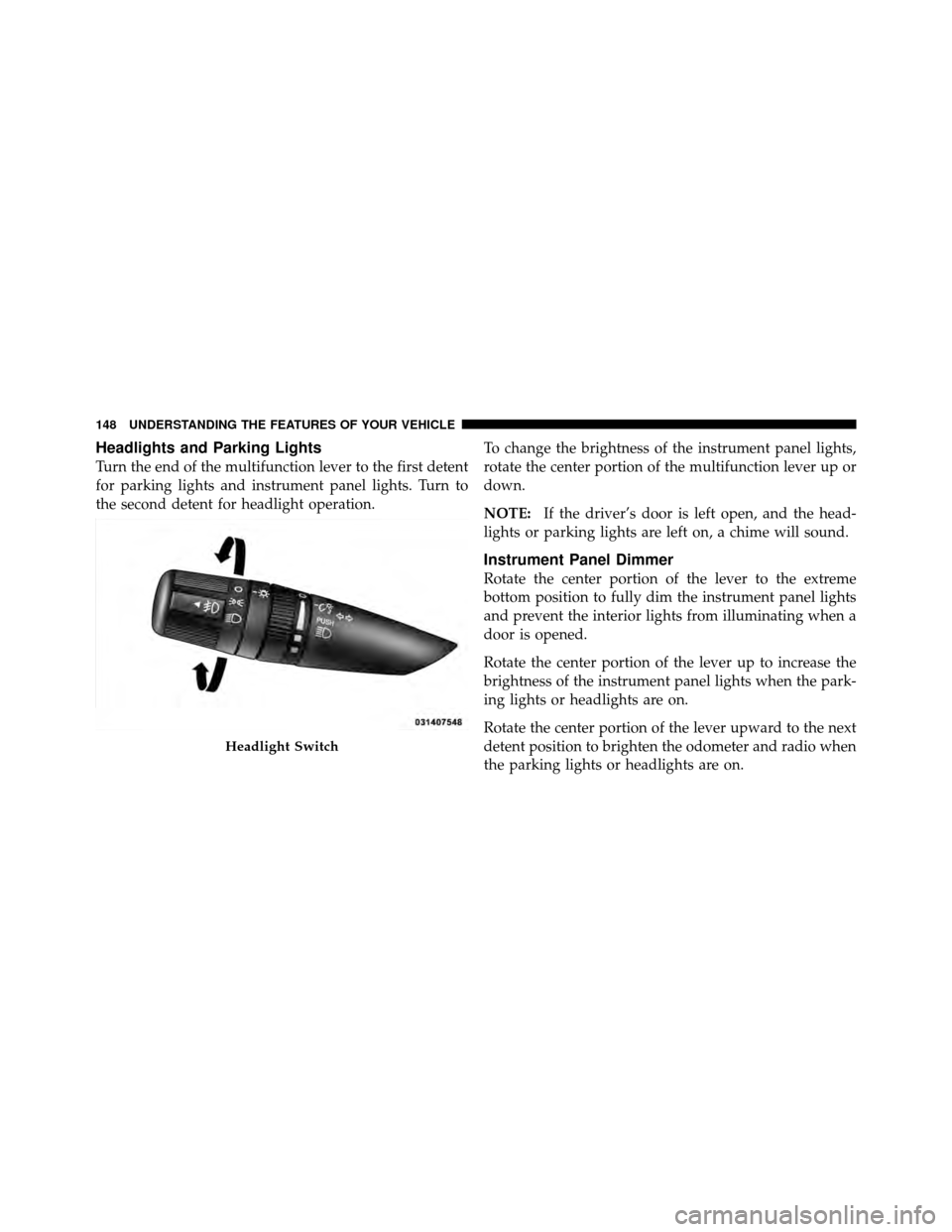

Headlights and Parking Lights
Turn the end of the multifunction lever to the first detent
for parking lights and instrument panel lights. Turn to
the second detent for headlight operation.To change the brightness of the instrument panel lights,
rotate the center portion of the multifunction lever up or
down.
NOTE:
If the driver’s door is left open, and the head-
lights or parking lights are left on, a chime will sound.
Instrument Panel Dimmer
Rotate the center portion of the lever to the extreme
bottom position to fully dim the instrument panel lights
and prevent the interior lights from illuminating when a
door is opened.
Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the park-
ing lights or headlights are on.
Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on.
Headlight Switch
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:
•If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
•A tone will chime if the turn signals are left on for
more than 1 mile (2 km).
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
Daytime Running Lights — If Equipped
The high beam headlights will turn on as Daytime
Running Lights (DRL) and operate at lower intensity
whenever the ignition is ON, the engine is running, the
headlight switch is off, the parking brake is released and
the shift lever is in any position except PARK.NOTE:
The Daytime Running Lights will turn off
automatically when a turn signal is in operation and turn
on again when the turn signal is not operating.
Interior Lights
The overhead light comes on when a door is opened. It
may also be turned on by rotating the control for the
dimmer switch on the multifunction lever fully upward.
The overhead light will automatically turn off in approxi-
mately 10 minutes if a door is left open or the dimmer
control is left in the dome light position and the key is not
in the ignition. Turn the ignition switch ON to restore the
overhead light operation.
Daytime Brightness Feature
Certain instrument panel components (odometer, radio
display) can be illuminated at full brightness during the
daytime. This can be helpful when driving with your
headlights on during the daytime, such as in a parade or
a funeral procession. To activate this feature, rotate the
left stalk one detent lower than the dome light.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151

System Usage Precautions
NOTE:
•Ensure that the rear bumper is free of snow, ice, mud,
dirt and debris to keep ParkSenseoperating properly.
•Jackhammers, large trucks, and other vibrations could
affect the performance of ParkSense.
•When you turn ParkSenseoff, the instrument cluster
will display “PARK ASSIST DISABLED.” Further-
more, once you turn ParkSense off, it remains off
until you turn it on again, even if you cycle the ignition
key.
•When you move the shift lever to the REVERSE
position and ParkSense is turned off, a single chime
will sound once per ignition cycle and the instrument
cluster will display “PARK ASSIST DISABLED.”
•ParkSense, when on, will MUTE the radio when it is
sounding a tone.
•If a ParkSense system malfunction occurs, a single
chime will sound once per ignition cycle. In addition,
the Electronic Vehicle Information Center (EVIC) will
display “SERVICE PARK ASSIST SYSTEM” and the
LED in the ParkSense Rear Park Assist switch will
illuminate. If this occurs after making sure the rear
bumper is free of snow, ice, mud, dirt and debris, see
your authorized dealer for service.
CAUTION!
•ParkSense is only a parking aid and it is unable
to recognize every obstacle, including small ob-
stacles. Parking curbs might be temporarily de-
tected or not detected at all. Obstacles located
above or below the sensors will not be detected
when they are in close proximity.
(Continued)
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

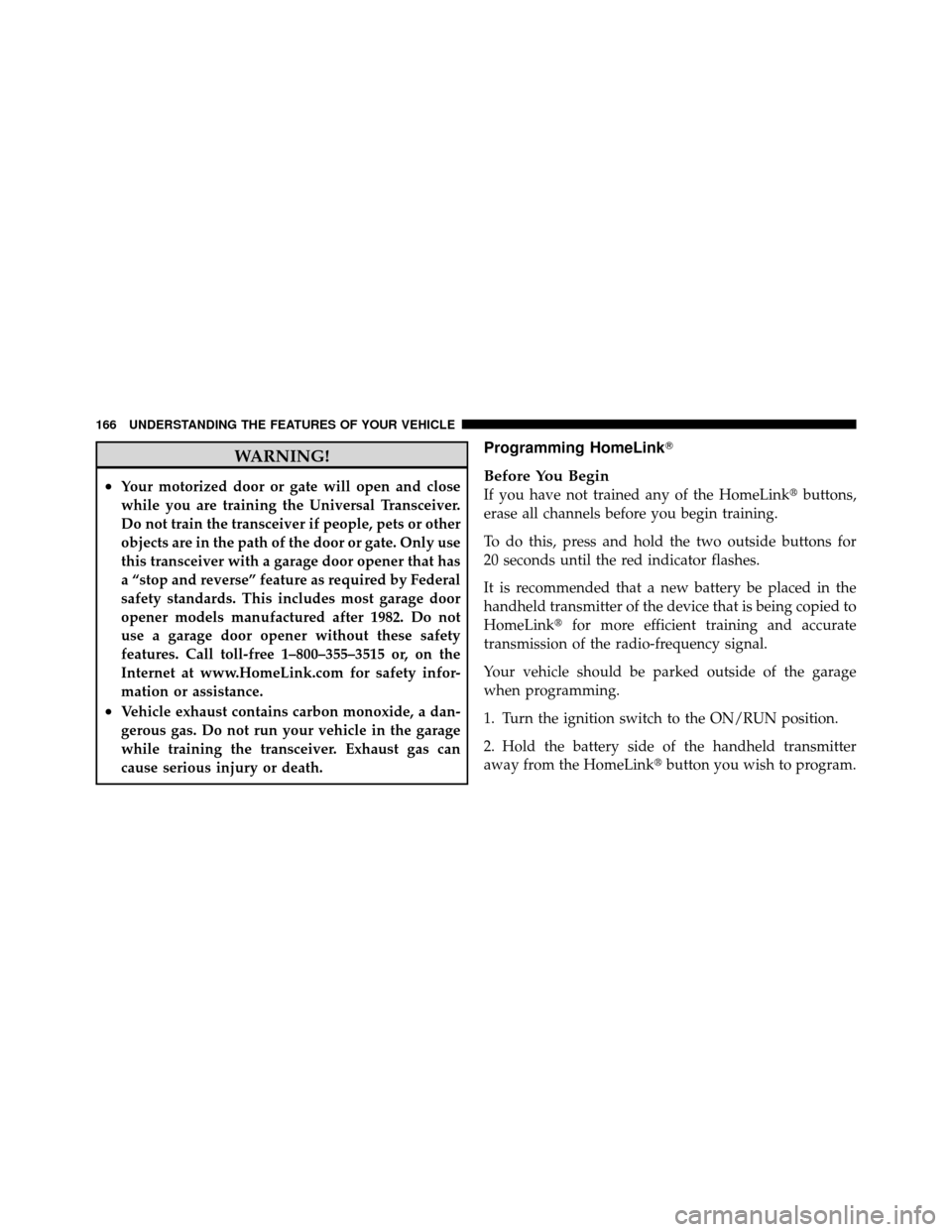

WARNING!
•Your motorized door or gate will open and close
while you are training the Universal Transceiver.
Do not train the transceiver if people, pets or other
objects are in the path of the door or gate. Only use
this transceiver with a garage door opener that has
a “stop and reverse” feature as required by Federal
safety standards. This includes most garage door
opener models manufactured after 1982. Do not
use a garage door opener without these safety
features. Call toll-free 1–800–355–3515 or, on the
Internet at www.HomeLink.com for safety infor-
mation or assistance.
•Vehicle exhaust contains carbon monoxide, a dan-
gerous gas. Do not run your vehicle in the garage
while training the transceiver. Exhaust gas can
cause serious injury or death.
Programming HomeLink
Before You Begin
If you have not trained any of the HomeLinkbuttons,
erase all channels before you begin training.
To do this, press and hold the two outside buttons for
20 seconds until the red indicator flashes.
It is recommended that a new battery be placed in the
handheld transmitter of the device that is being copied to
HomeLink for more efficient training and accurate
transmission of the radio-frequency signal.
Your vehicle should be parked outside of the garage
when programming.
1. Turn the ignition switch to the ON/RUN position.
2. Hold the battery side of the handheld transmitter
away from the HomeLink button you wish to program.
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

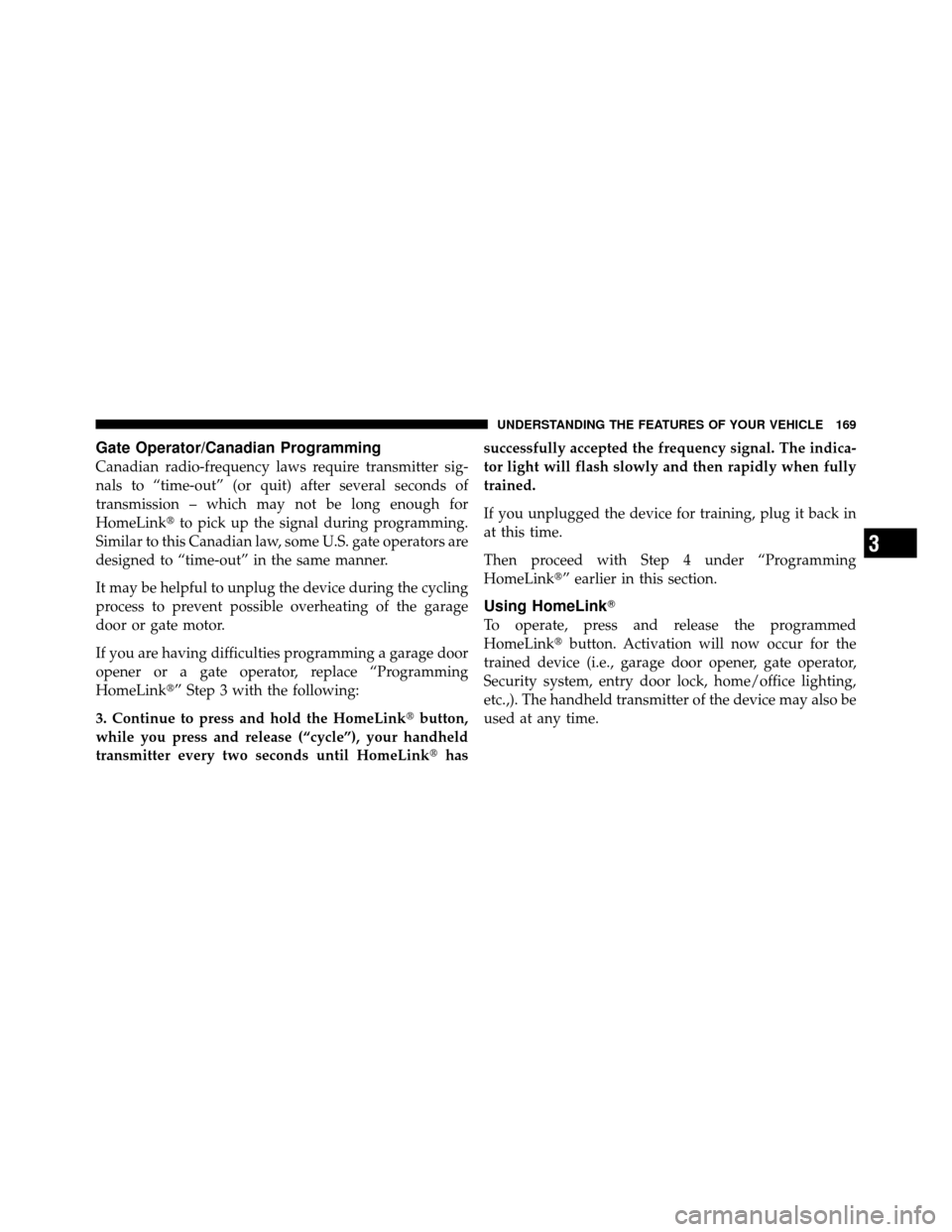

Gate Operator/Canadian Programming
Canadian radio-frequency laws require transmitter sig-
nals to “time-out” (or quit) after several seconds of
transmission – which may not be long enough for
HomeLinkto pick up the signal during programming.
Similar to this Canadian law, some U.S. gate operators are
designed to “time-out” in the same manner.
It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage
door or gate motor.
If you are having difficulties programming a garage door
opener or a gate operator, replace “Programming
HomeLink” Step 3 with the following:
3. Continue to press and hold the HomeLink button,
while you press and release (“cycle”), your handheld
transmitter every two seconds until HomeLink hassuccessfully accepted the frequency signal. The indica-
tor light will flash slowly and then rapidly when fully
trained.
If you unplugged the device for training, plug it back in
at this time.
Then proceed with Step 4 under “Programming
HomeLink” earlier in this section.
Using HomeLink
To operate, press and release the programmed
HomeLink
button. Activation will now occur for the
trained device (i.e., garage door opener, gate operator,
Security system, entry door lock, home/office lighting,
etc.,). The handheld transmitter of the device may also be
used at any time.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169

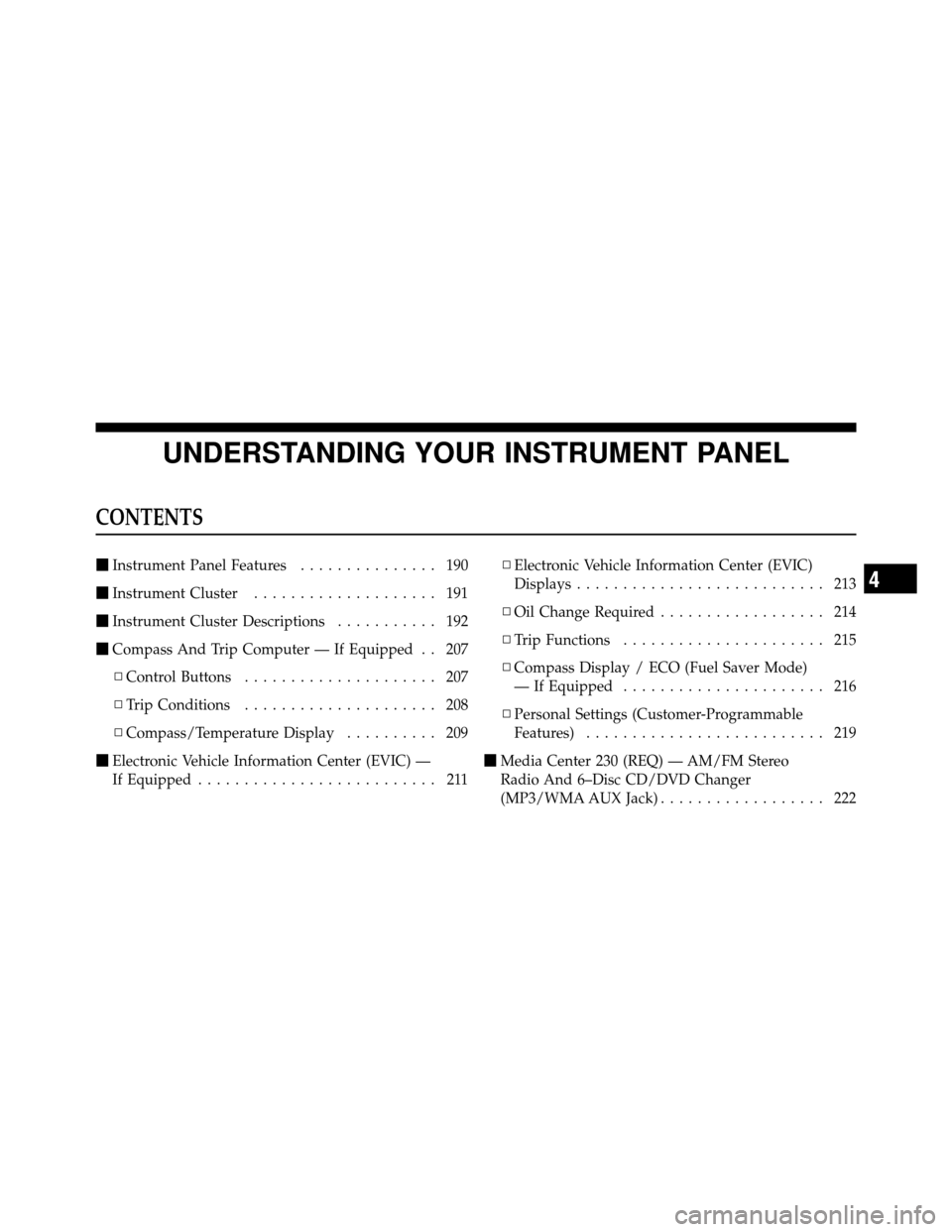

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 190
 Instrument Cluster .................... 191
 Instrument Cluster Descriptions ........... 192
 Compass And Trip Computer — If Equipped . . 207
▫ Control Buttons ..................... 207
▫ Trip Conditions ..................... 208
▫ Compass/Temperature Display .......... 209
 Electronic Vehicle Information Center (EVIC) —
If Equipped .......................... 211 ▫
Electronic Vehicle Information Center (EVIC)
Displays ........................... 213
▫ Oil Change Required .................. 214
▫ Trip Functions ...................... 215
▫ Compass Display / ECO (Fuel Saver Mode)
— If Equipped ...................... 216
▫ Personal Settings (Customer-Programmable
Features) .......................... 219
 Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 222
4

▫Operating Instructions - Radio Mode ...... 222
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 230
▫ Notes On Playing MP3/WMA Files ....... 232
▫ List Button
(Disc Mode For MP3/WMA Play) ......... 235
▫ Info Button (Disc Mode For MP3/WMA
Play) ............................. 235
 Media Center 730N/430 (RER/REN/RBZ) —
AM/FM Stereo Radio And CD/DVD/HDD/
NAV — If Equipped .................... 237
▫ Operating Instructions — Voice Command
System — If Equipped ................. 238
▫ Operating Instructions — Uconnect™ Phone
— If Equipped ...................... 238
▫ Clock Setting Procedure — RBZ Radio ..... 238▫Clock Setting Procedure — RER/REN Radio. . 240
 Media Center 130 (RES) — AM/FM Stereo
Radio With CD Player (MP3 AUX Jack) ....... 242
▫ Operating Instructions — Radio Mode ..... 242
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 245
▫ Notes On Playing MP3 Files ............ 248
▫ Operation Instructions - Auxiliary Mode .... 251
 Media Center 130 (RES/RSC) — AM/FM
Stereo Radio With CD Player (MP3 AUX Jack)
And Sirius Radio ...................... 252
▫ Operating Instructions — Radio Mode ..... 252
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 258
▫ Notes On Playing MP3 Files ............ 260
188 UNDERSTANDING YOUR INSTRUMENT PANEL

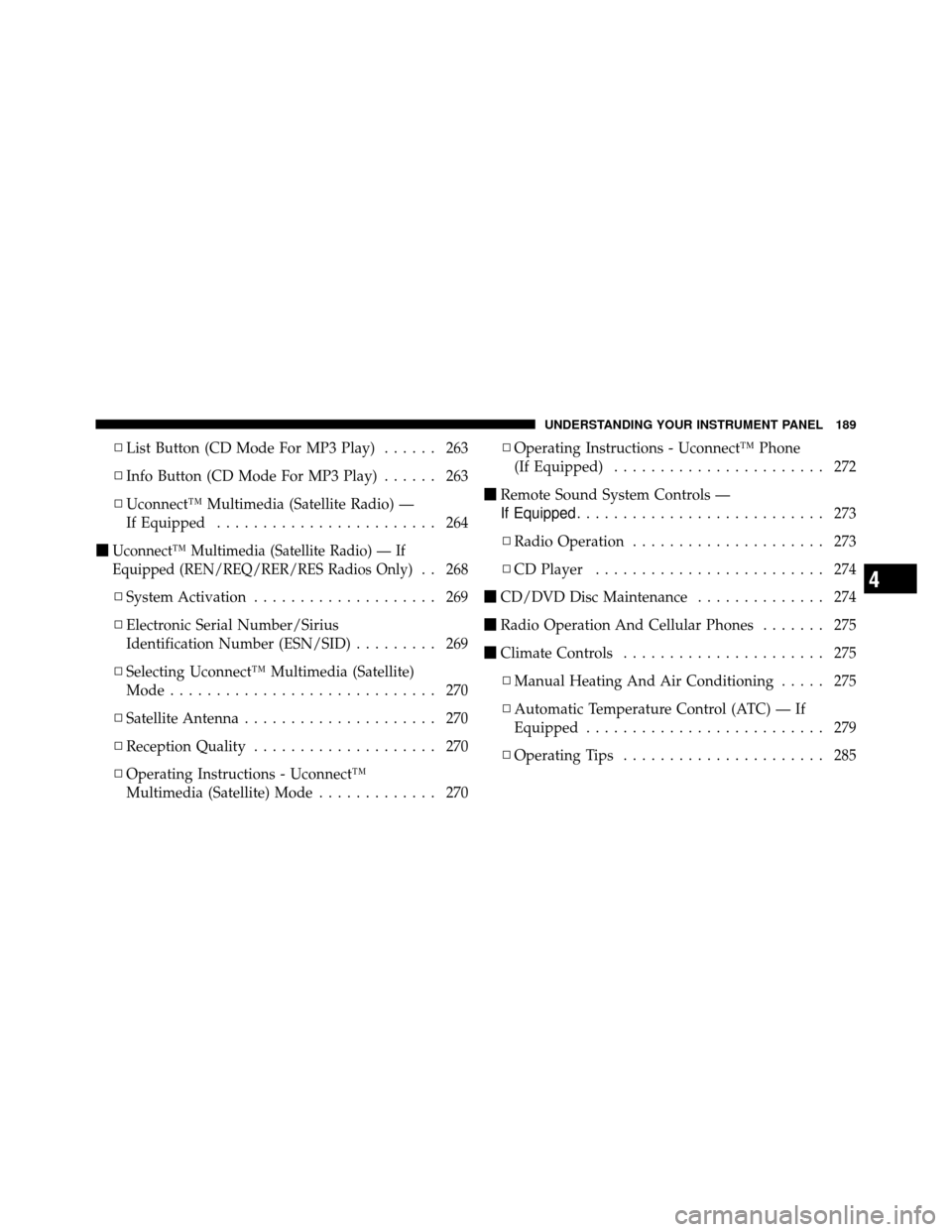

▫List Button (CD Mode For MP3 Play) ...... 263
▫ Info Button (CD Mode For MP3 Play) ...... 263
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 264

Uconnect™ Multimedia (Satellite Radio) — If
Equipped (REN/REQ/RER/RES Radios Only)
. . 268
▫ System Activation .................... 269
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 269
▫ Selecting Uconnect™ Multimedia (Satellite)
Mode ............................. 270
▫ Satellite Antenna ..................... 270
▫ Reception Quality .................... 270
▫ Operating Instructions - Uconnect™
Multimedia (Satellite) Mode ............. 270▫
Operating Instructions - Uconnect™ Phone
(If Equipped) ....................... 272
 Remote Sound System Controls —
If Equipped ........................... 273
▫ Radio Operation ..................... 273
▫ CD Player ......................... 274
 CD/DVD Disc Maintenance .............. 274
 Radio Operation And Cellular Phones ....... 275
 Climate Controls ...................... 275
▫ Manual Heating And Air Conditioning ..... 275
▫ Automatic Temperature Control (ATC) — If
Equipped .......................... 279
▫ Operating Tips ...................... 2854
UNDERSTANDING YOUR INSTRUMENT PANEL 189
