•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.
Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
•The transmission is moved out of PARK
•The brake pedal is pressed
To Exit Remote Start Mode without Driving the
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.
NOTE: To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
insert the key into the ignition switch and turn the switch
to the ON position.
NOTE: The ignition switch must be in the ON position
in order to drive the vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

6. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE)
transmitter.
Automatic Door Locks Programming
The automatic door locks feature can be enabled or
disabled as follows:
For vehicles equipped with an Electronic Vehicle Infor-
mation Center (EVIC), refer to “Electronic Vehicle Infor-
mation Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your
Instrument Panel” for further information.
For vehicles not equipped with the EVIC, perform the
following procedure:
1. Close all doors and place the key in the ignition.
2. Cycle the ignition switch between LOCK and ON and
then back to LOCK four times, ending up in the LOCK
position.3. Press the power door LOCK switch to lock the doors.
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Use the automatic door locks feature in accor-
dance with local laws.
Automatic Unlock Doors on Exit
The doors will unlock automatically on vehicles with
power door locks if:
1. The automatic unlock doors on exit feature is enabled.
2. The transmission was in gear and the vehicle speed
returned to 0 mph (0 km/h).
3. The transmission is in NEUTRAL or PARK.
4. The driver door is opened.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•VES™ Lock -Locks out rear VES™ remote controls (if
equipped).
•VES™ CH1/CH2 - Allows the user to change the
mode of either the IR1 or IR2 wireless headphones by
pressing the AUDIO/SELECT button (if equipped).
•Set Home Clock - Pressing the SELECT button allows
you to set the clock. Turn the TUNE/SCROLL control
knob to adjust the hours and then press and turn the
TUNE/SCROLL control knob to adjust the minutes.
Press the TUNE/SCROLL control knob again to save
changes.
•Player Defaults - Selecting this item will allow the
user to scroll through the following items and set
defaults according to customer preference.
Menu Language — If Equipped
Selecting this item will allow the user to choose the
default startup DVD menu language (effective only if language supported by disc). If you want to select a
language not listed, then scroll down and select
other.
Enter the four-digit country code using the TUNE/
SCROLL control knob to scroll up and down to select the
number and then push to select.
Audio Language — If Equipped
Selecting this item allows you to choose a default audio
language (effective only if the language is supported by
the disc). You can select a language not listed by scrolling
down and selecting other.Enter the country code using
the TUNE/SCROLL control knob to scroll up and down
to select the number and then push to select.
Subtitle Language — If Equipped
Selecting this item allows you to choose a default subtitle
language (effective only if the language is supported by
the disc). You can select a language not listed by scrolling
down and selecting other.Enter the country code using
228 UNDERSTANDING YOUR INSTRUMENT PANEL

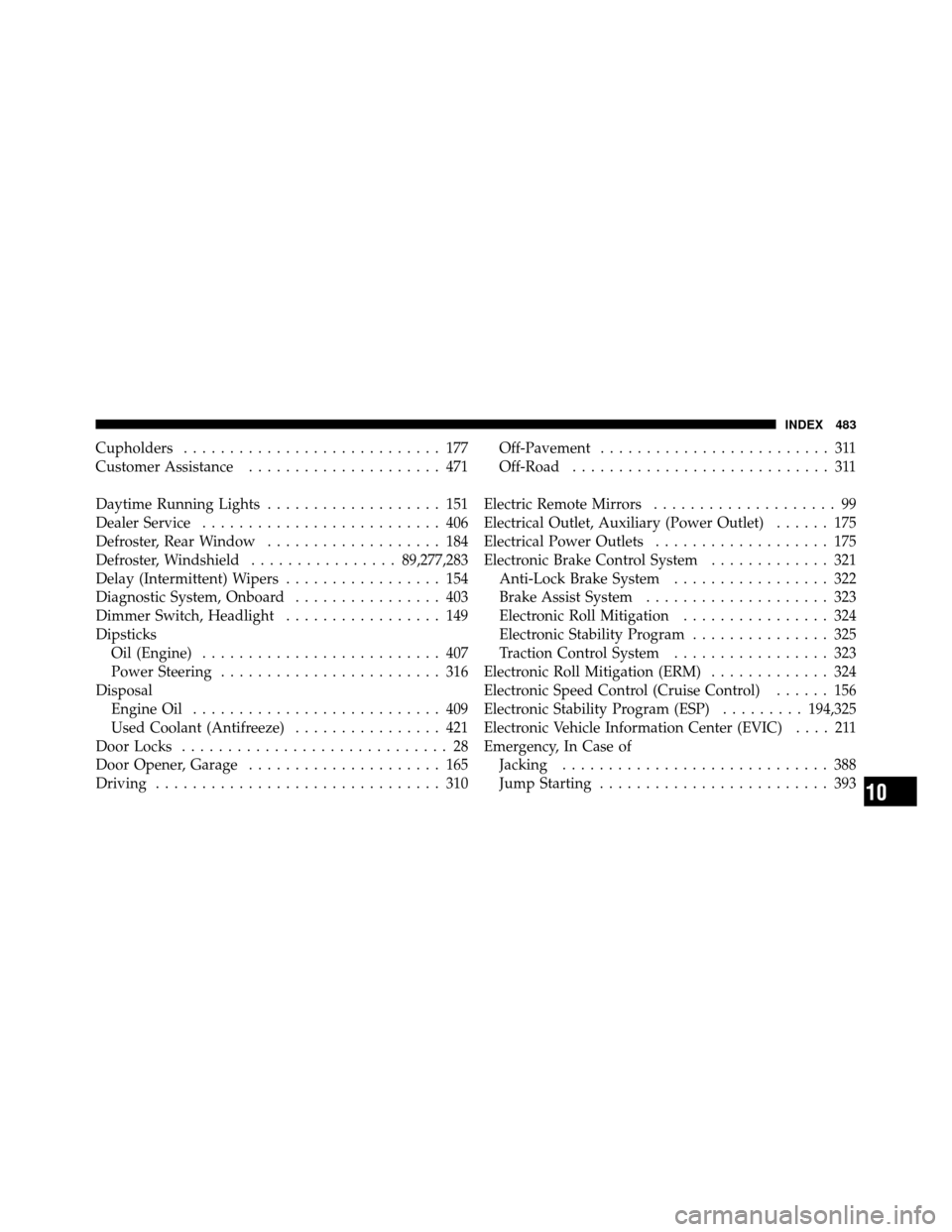

Cupholders............................ 177
Customer Assistance ..................... 471
Daytime Running Lights ................... 151
Dealer Service .......................... 406
Defroster, Rear Window ................... 184
Defroster, Windshield ................89,277,283
Delay (Intermittent) Wipers ................. 154
Diagnostic System, Onboard ................ 403
Dimmer Switch, Headlight ................. 149
Dipsticks Oil (Engine) .......................... 407
Power Steering ........................ 316
Disposal Engine Oil ........................... 409
Used Coolant (Antifreeze) ................ 421
Door Locks ............................. 28
Door Opener, Garage ..................... 165
Driving ............................... 310 Off-Pavement
......................... 311
Off-Road ............................ 311
Electric Remote Mirrors .................... 99
Electrical Outlet, Auxiliary (Power Outlet) ...... 175
Electrical Power Outlets ................... 175
Electronic Brake Control System ............. 321
Anti-Lock Brake System ................. 322
Brake Assist System .................... 323
Electronic Roll Mitigation ................ 324
Electronic Stability Program ............... 325
Traction Control System ................. 323
Electronic Roll Mitigation (ERM) ............. 324
Electronic Speed Control (Cruise Control) ...... 156
Electronic Stability Program (ESP) .........194,325
Electronic Vehicle Information Center (EVIC) .... 211
Emergency, In Case of Jacking ............................. 388
Jump Starting ......................... 393
10
INDEX 483

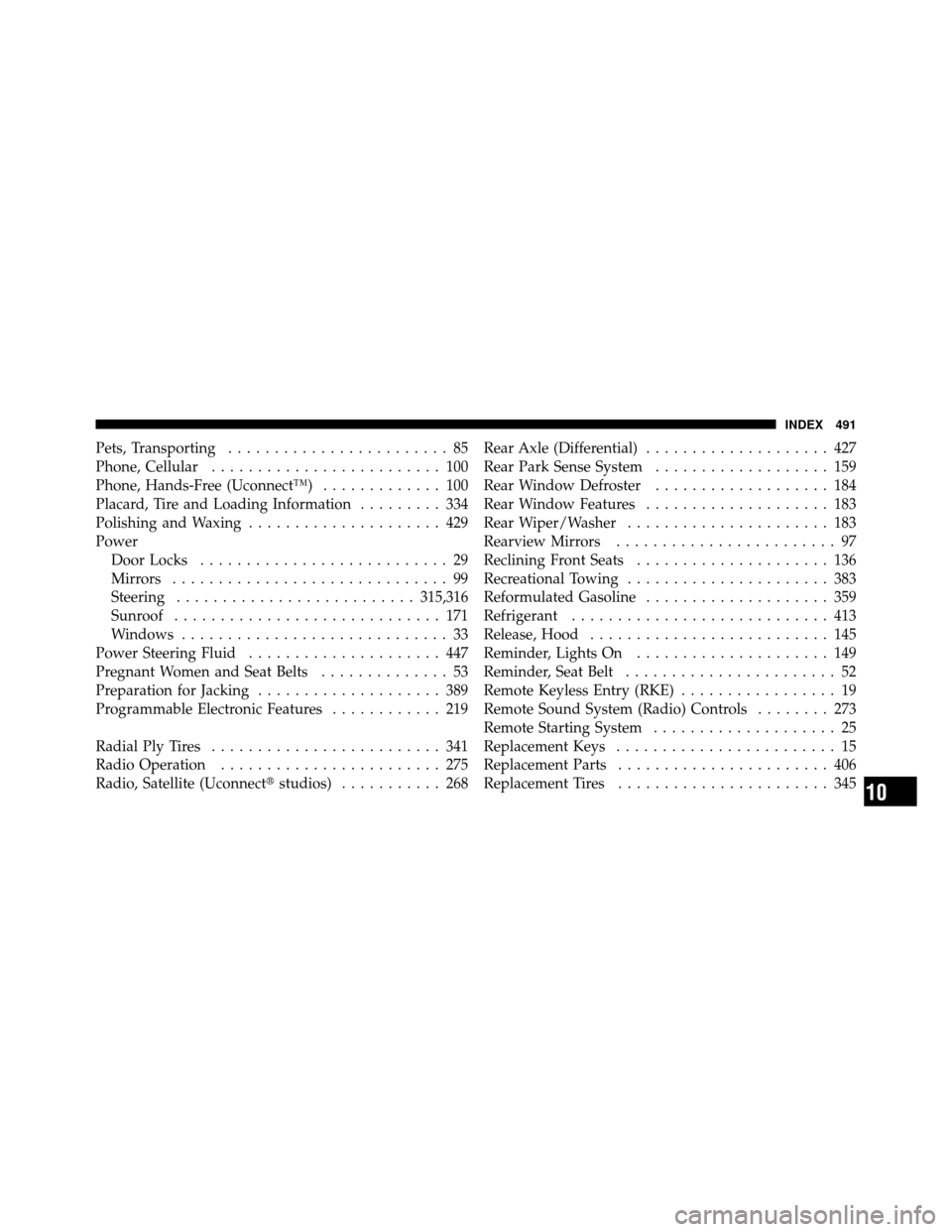

Pets, Transporting........................ 85
Phone, Cellular ......................... 100
Phone, Hands-Free (Uconnect™) ............. 100
Placard, Tire and Loading Information ......... 334
Polishing and Waxing ..................... 429
Power Door Locks ........................... 29
Mirrors .............................. 99
Steering .......................... 315,316
Sunroof ............................. 171
Windows ............................. 33
Power Steering Fluid ..................... 447
Pregnant Women and Seat Belts .............. 53
Preparation for Jacking .................... 389
Programmable Electronic Features ............ 219
Radial Ply Tires ......................... 341
Radio Operation ........................ 275
Radio, Satellite (Uconnect studios)........... 268 Rear Axle (Differential)
.................... 427
Rear Park Sense System ................... 159
Rear Window Defroster ................... 184
Rear Window Features .................... 183
Rear Wiper/Washer ...................... 183
Rearview Mirrors ........................ 97
Reclining Front Seats ..................... 136
Recreational Towing ...................... 383
Reformulated Gasoline .................... 359
Refrigerant ............................ 413
Release, Hood .......................... 145
Reminder, Lights On ..................... 149
Reminder, Seat Belt ....................... 52
Remote Keyless Entry (RKE) ................. 19
Remote Sound System (Radio) Controls ........ 273
Remote Starting System .................... 25
Replacement Keys ........................ 15
Replacement Parts ....................... 406
Replacement Tires ....................... 345
10
INDEX 491

Sentry Key Replacement................... 15
Service Assistance ....................... 471
Service Contract ......................... 473
Service Engine Soon Light
(Malfunction Indicator) .................... 205
Service Manuals ........................ 475
Setting the Clock .............223,238,240,243,253
Settings, Personal ........................ 219
Shift Lock Manual Override ................ 298
Shifting Automatic Transmission ..............299,303
Shoulder Belts ........................... 39
Side Window Demisters (Defrosters) .......... 286
Signals, Turn .............. 90,150,195,441,442,443
Snow Chains (Tire Chains) ................. 346
Spare Tire .......................... 341,388
Specifications Fuel (Gasoline) ........................ 358
Oil ................................ 408 Speed Control (Cruise Control)
.............. 156
Speedometer ........................... 194
Starting ............................... 293
Cold Weather ......................... 294
Engine Block Heater .................... 296
Engine Fails to Start .................... 294
Remote .............................. 25
Steering Power ........................... 315,316
Tilt Column .......................... 155
Wheel, Tilt ........................... 155
Steering Wheel Mounted Sound
System Controls ......................... 273
Storage ............................... 178
Storage Bin ............................ 178
Storage, Vehicle ......................... 285
Sun Roof .............................. 171
Sun Visor Extension ...................... 100
Sunroof Maintenance ..................... 174
10
INDEX 493

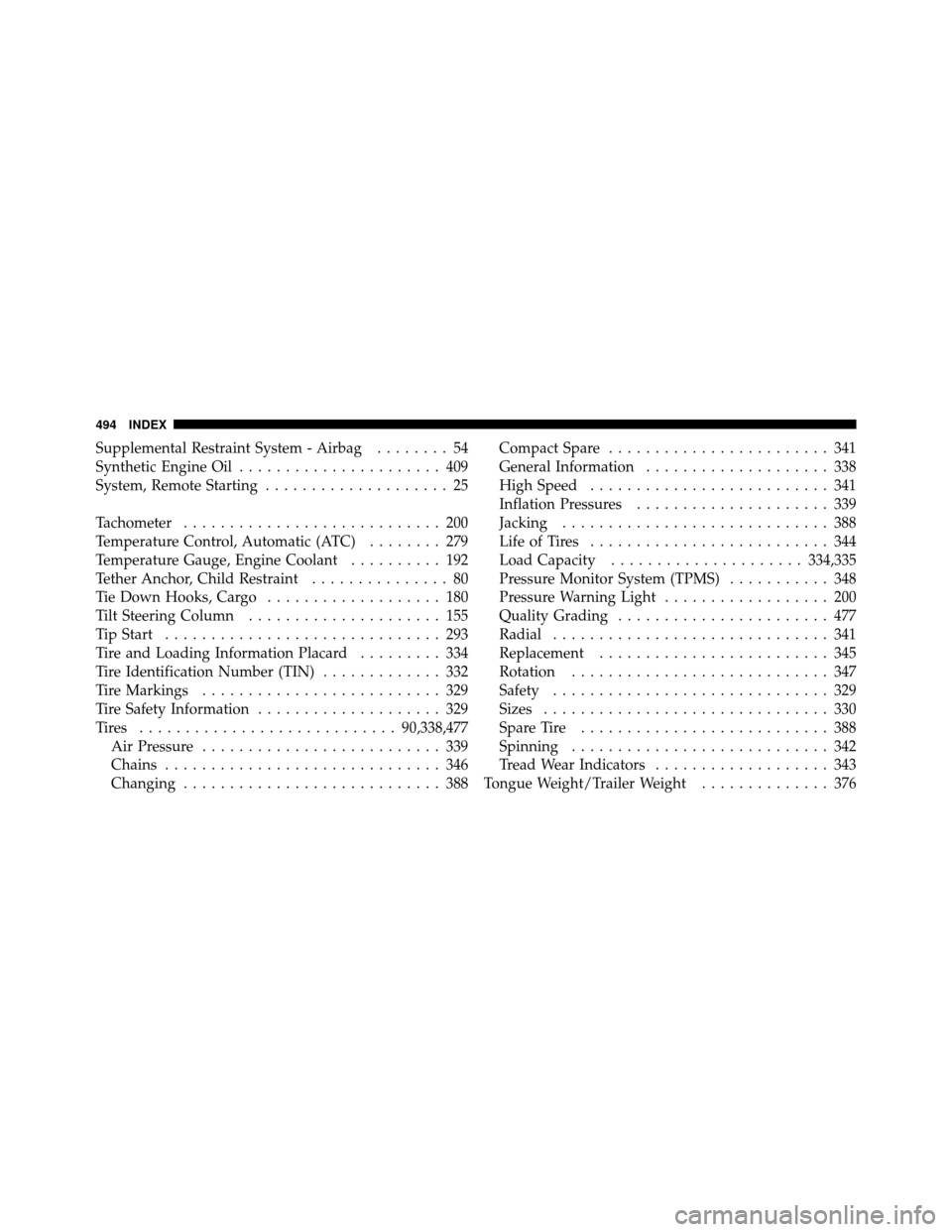

Supplemental Restraint System - Airbag........ 54
Synthetic Engine Oil ...................... 409
System, Remote Starting .................... 25
Tachometer ............................ 200
Temperature Control, Automatic (ATC) ........ 279
Temperature Gauge, Engine Coolant .......... 192
Tether Anchor, Child Restraint ............... 80
Tie Down Hooks, Cargo ................... 180
Tilt Steering Column ..................... 155
Tip Start .............................. 293
Tire and Loading Information Placard ......... 334
Tire Identification Number (TIN) ............. 332
Tire Markings .......................... 329
Tire Safety Information .................... 329
Tires ............................ 90,338,477
Air Pressure .......................... 339
Chains .............................. 346
Changing ............................ 388 Compact Spare
........................ 341
General Information .................... 338
High Speed .......................... 341
Inflation Pressures ..................... 339
Jacking ............................. 388
Life of Tires .......................... 344
Load Capacity ..................... 334,335
Pressure Monitor System (TPMS) ........... 348
Pressure Warning Light .................. 200
Quality Grading ....................... 477
Radial .............................. 341
Replacement ......................... 345
Rotation ............................ 347
Safety .............................. 329
Sizes ............................... 330
Spare Tire ........................... 388
Spinning ............................ 342
Tread Wear Indicators ................... 343
Tongue Weight/Trailer Weight .............. 376
