fog light DODGE POWER WAGON 2007 2.G Owners Manual

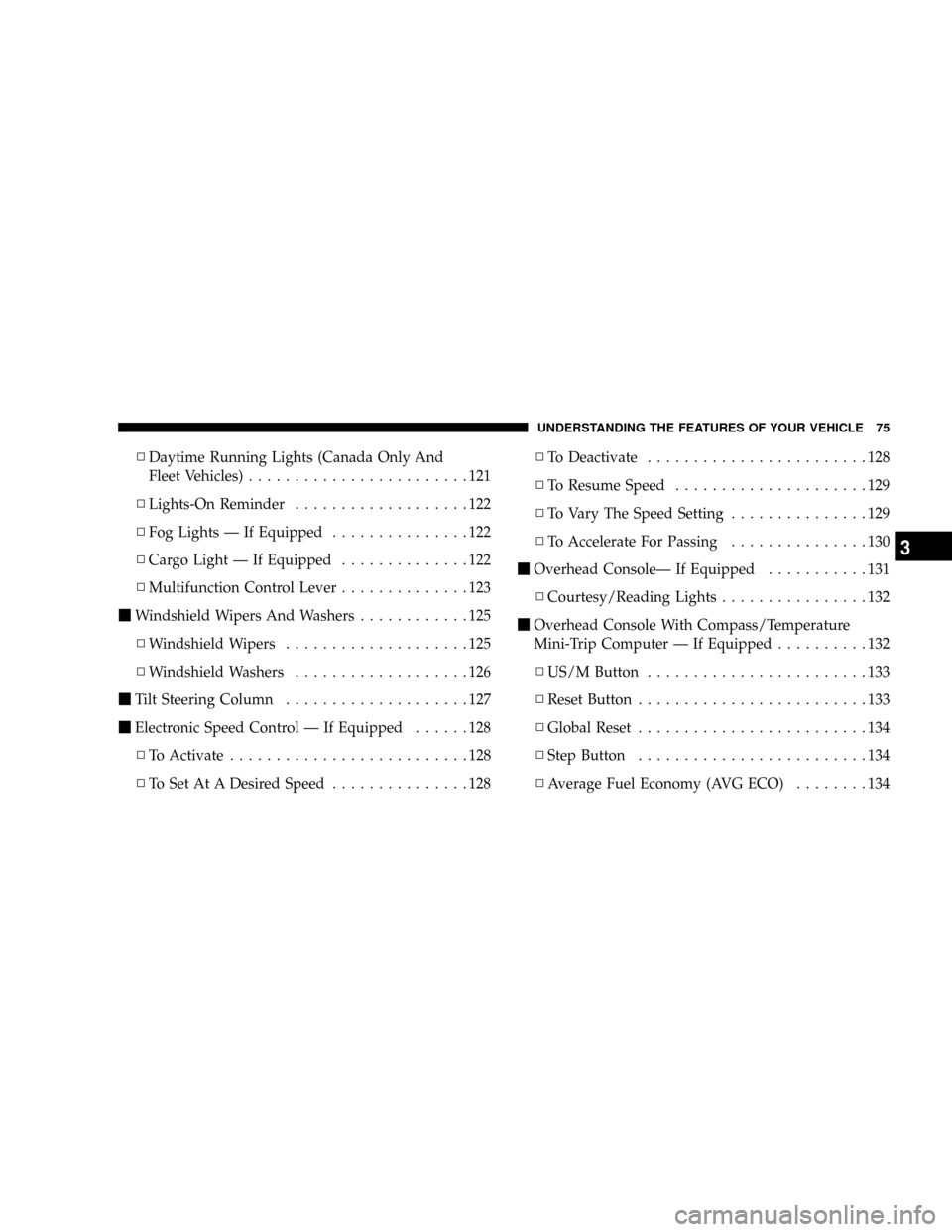

NDaytime Running Lights (Canada Only And
Fleet Vehicles)........................121
NLights-On Reminder...................122
NFog Lights Ð If Equipped...............122
NCargo Light Ð If Equipped..............122
NMultifunction Control Lever..............123
mWindshield Wipers And Washers............125
NWindshield Wipers....................125
NWindshield Washers...................126
mTilt Steering Column....................127
mElectronic Speed Control Ð If Equipped......128
NTo Activate..........................128
NTo Set At A Desired Speed...............128NTo Deactivate........................128
NTo Resume Speed.....................129
NTo Vary The Speed Setting...............129
NTo Accelerate For Passing...............130
mOverhead ConsoleÐ If Equipped...........131
NCourtesy/Reading Lights................132
mOverhead Console With Compass/Temperature
Mini-Trip Computer Ð If Equipped..........132
NUS/M Button........................133
NReset Button.........................133
NGlobal Reset.........................134
NStep Button.........................134
NAverage Fuel Economy (AVG ECO)........134
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
3

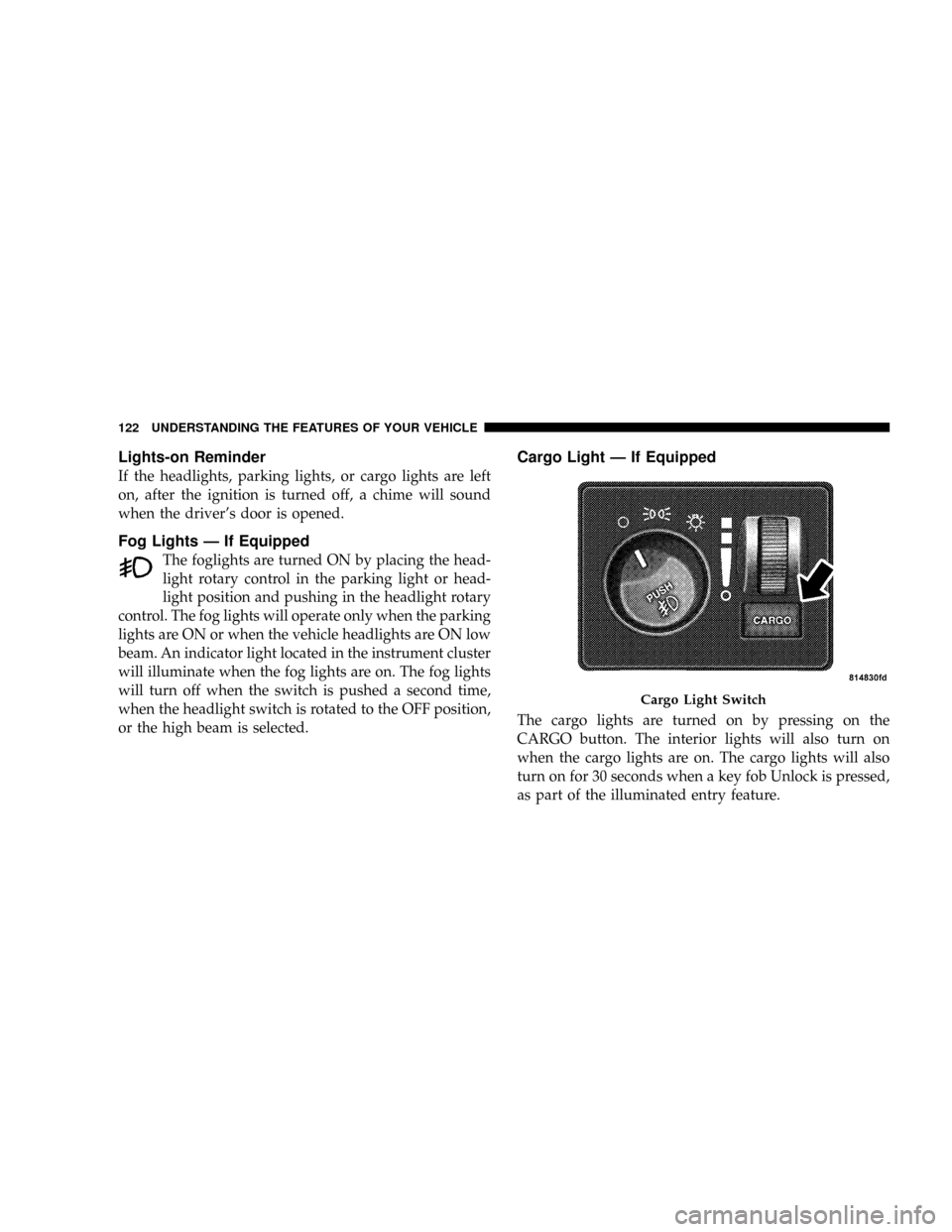

Lights-on Reminder
If the headlights, parking lights, or cargo lights are left
on, after the ignition is turned off, a chime will sound
when the driver's door is opened.
Fog Lights Ð If Equipped
The foglights are turned ON by placing the head-
light rotary control in the parking light or head-
light position and pushing in the headlight rotary
control. The fog lights will operate only when the parking
lights are ON or when the vehicle headlights are ON low
beam. An indicator light located in the instrument cluster
will illuminate when the fog lights are on. The fog lights
will turn off when the switch is pushed a second time,
when the headlight switch is rotated to the OFF position,
or the high beam is selected.
Cargo Light Ð If Equipped
The cargo lights are turned on by pressing on the
CARGO button. The interior lights will also turn on
when the cargo lights are on. The cargo lights will also
turn on for 30 seconds when a key fob Unlock is pressed,
as part of the illuminated entry feature.
Cargo Light Switch
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

that the anti-lock portion of the brake system is not
functioning and that service is required. See your autho-
rized dealer immediately. The ABS light could also
illuminate during loss of traction and remain illuminated
until the brake pedal is pressed.
20. Cargo Light
The Cargo Lamp light will illuminate when the Cargo
Lamp is activated by pressing the Cargo Light Button on
the headlight switch.
21. Electronic Throttle Control (ETC)
This light informs you of a problem with the
Electronic Throttle Control system. If a prob-
lem is detected the light will come on while the
engine is running. If the light remains lit with
the engine running your vehicle will usually be drivable,
however, see your dealer for service as soon as possible.
If the light is flashing when the engine is running,
immediate service is required and you may experiencereduced performance, an elevated/rough idle or engine
stall and your vehicle may require towing. The light will
come on when the ignition is first turned on and remain
on for 15 seconds as a bulb check. If the light does not
come on during starting, have the system checked by an
authorized dealer.
22. SERV 4WD Indicator
The 4WD indicator will be illuminated whenever the
4WD mode is engaged for either the manual or electric
shift 4WD systems. The SERV 4WD indicator monitors
the electric shift 4WD system. If the SERV 4WD light
stays on or comes on during driving, it means that the
4WD system is not functioning properly and that service
is required.
23. Front Fog Light Indicator Ð If Equipped
This light shows when the front fog lights are ON.
UNDERSTANDING YOUR INSTRUMENT PANEL 179
4

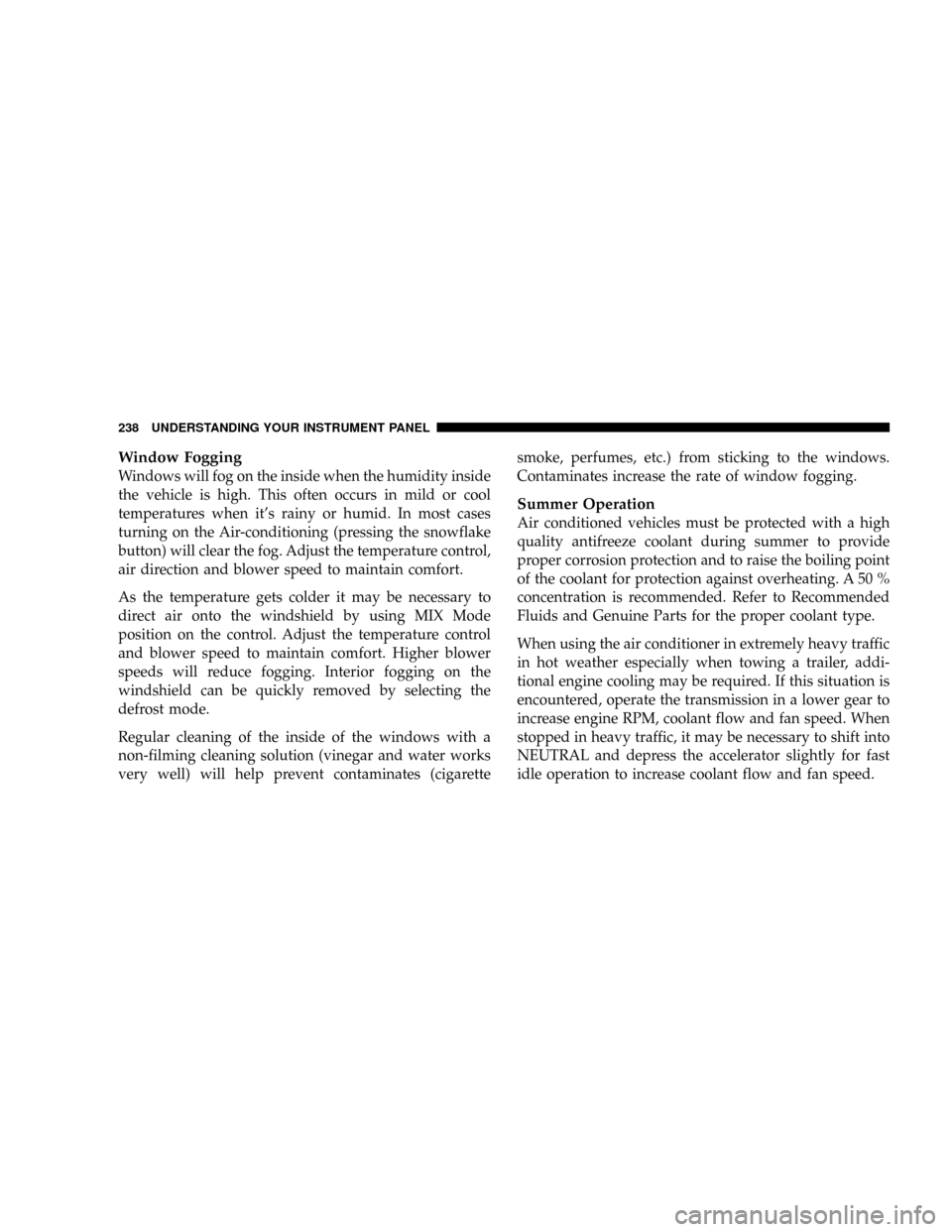

Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it's rainy or humid. In most cases
turning on the Air-conditioning (pressing the snowflake
button) will clear the fog. Adjust the temperature control,
air direction and blower speed to maintain comfort.
As the temperature gets colder it may be necessary to
direct air onto the windshield by using MIX Mode
position on the control. Adjust the temperature control
and blower speed to maintain comfort. Higher blower
speeds will reduce fogging. Interior fogging on the
windshield can be quickly removed by selecting the
defrost mode.
Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarettesmoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.
Summer Operation
Air conditioned vehicles must be protected with a high
quality antifreeze coolant during summer to provide
proper corrosion protection and to raise the boiling point
of the coolant for protection against overheating. A 50 %
concentration is recommended. Refer to Recommended
Fluids and Genuine Parts for the proper coolant type.
When using the air conditioner in extremely heavy traffic
in hot weather especially when towing a trailer, addi-
tional engine cooling may be required. If this situation is
encountered, operate the transmission in a lower gear to
increase engine RPM, coolant flow and fan speed. When
stopped in heavy traffic, it may be necessary to shift into
NEUTRAL and depress the accelerator slightly for fast
idle operation to increase coolant flow and fan speed.
238 UNDERSTANDING YOUR INSTRUMENT PANEL

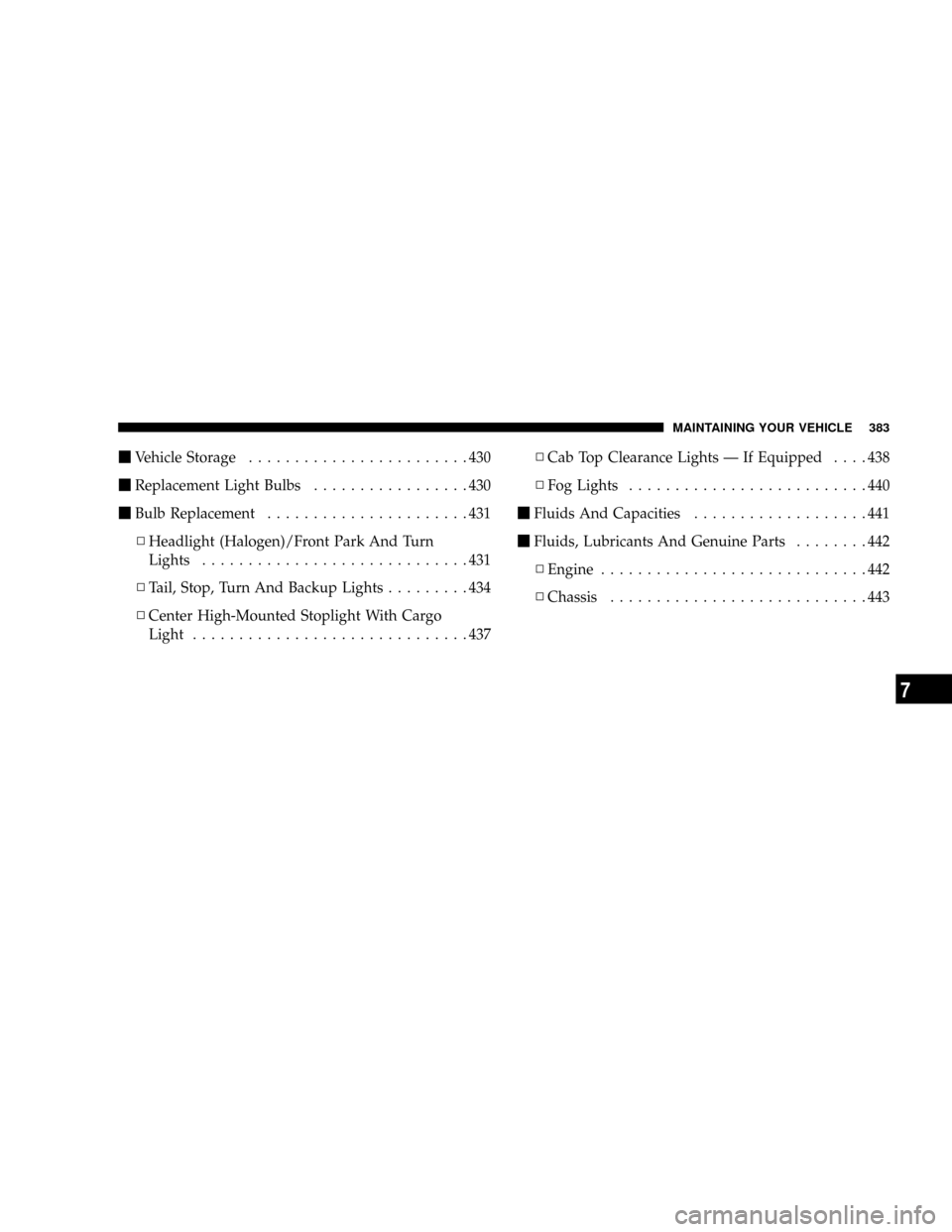

mVehicle Storage........................430
mReplacement Light Bulbs.................430
mBulb Replacement......................431
NHeadlight (Halogen)/Front Park And Turn
Lights.............................431
NTail, Stop, Turn And Backup Lights.........434
NCenter High-Mounted Stoplight With Cargo
Light..............................437NCab Top Clearance Lights Ð If Equipped....438
NFog Lights..........................440
mFluids And Capacities...................441
mFluids, Lubricants And Genuine Parts........442
NEngine.............................442
NChassis............................443
MAINTAINING YOUR VEHICLE 383
7

LIGHT BULBS Ð Outside Bulb No.
Back-Up..............................3057
Center High Mounted Stop Lamp............. 912
Fog Lamp...........................9006LL
Headlamp (Halogen)..................... H13
Side Marker, Park & Turn Signal.........3157NAK
Rear License Plate Lamp................... 168
Rear Cargo Light......................... 912
Tail & Stop............................3057
BULB REPLACEMENT
Headlight (Halogen)/Front Park and Turn Lights
CAUTION!
This is a halogen bulb. Avoid touching the glass
with your fingers. Reduced bulb life will result.
1. Open the hood
2. Remove the two (2) bolts from the front of the head-
light housing.
Front Headlight Housing Bolts
MAINTAINING YOUR VEHICLE 431
7

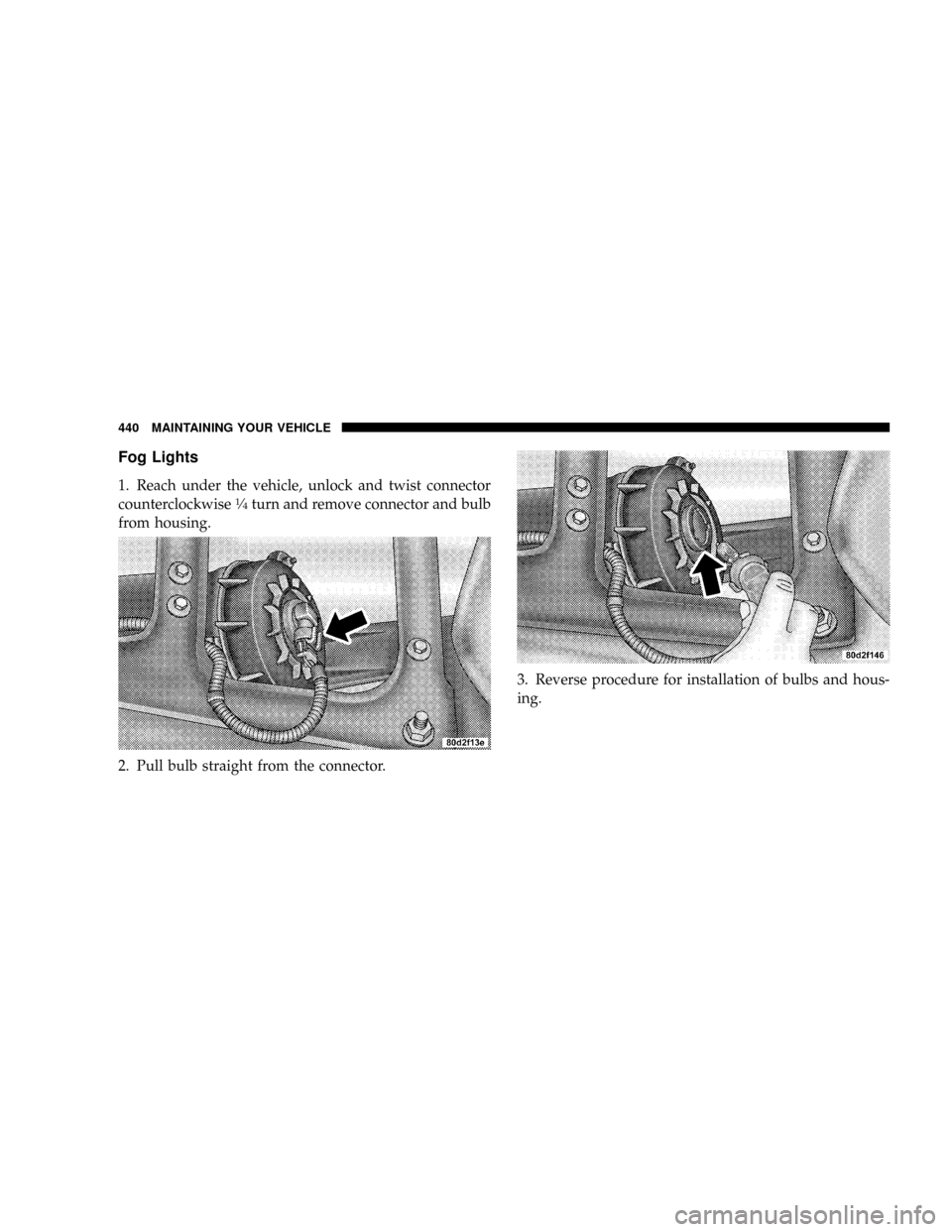

Fog Lights
1. Reach under the vehicle, unlock and twist connector
counterclockwise1¤4turn and remove connector and bulb
from housing.
2. Pull bulb straight from the connector.3. Reverse procedure for installation of bulbs and hous-
ing.
440 MAINTAINING YOUR VEHICLE

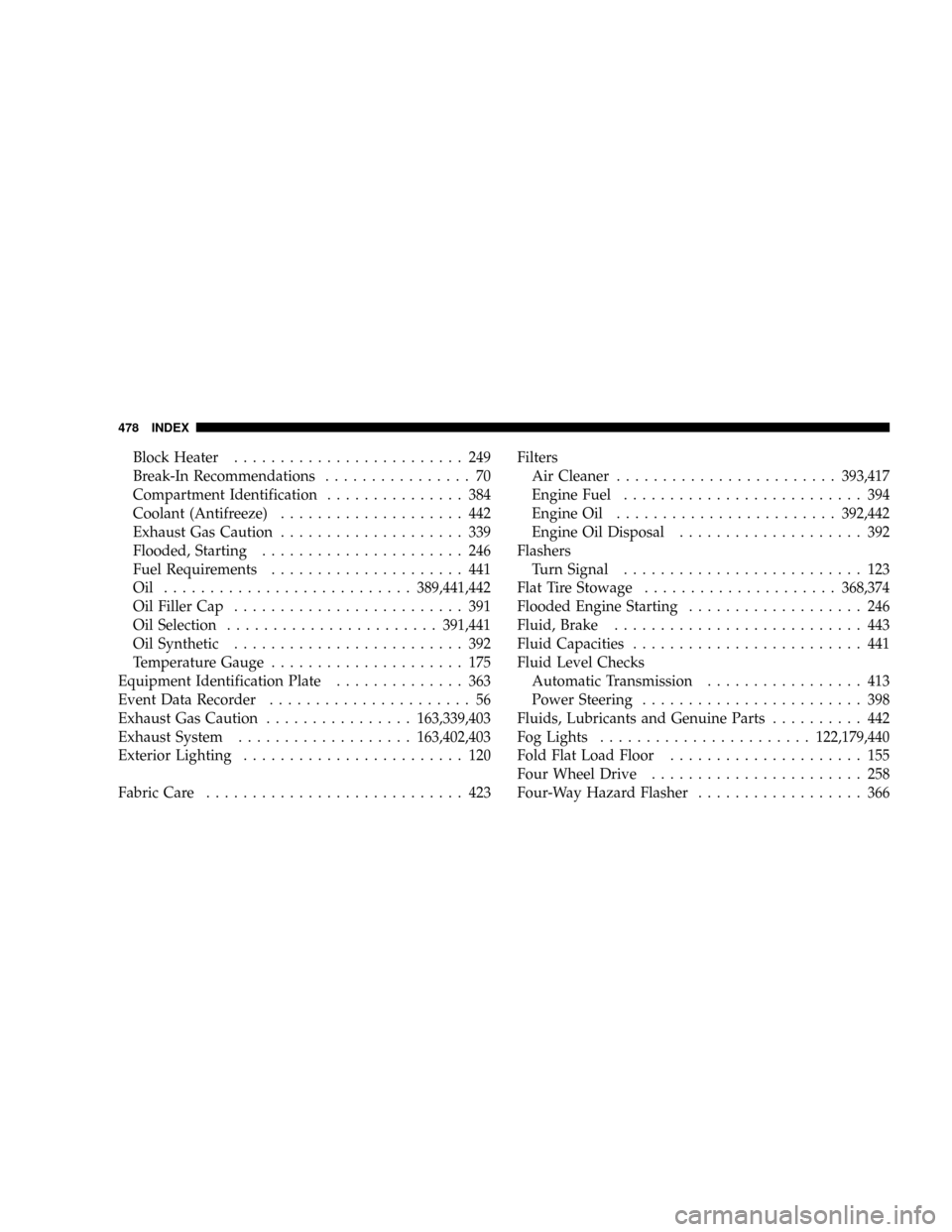

Block Heater......................... 249
Break-In Recommendations................ 70
Compartment Identification............... 384
Coolant (Antifreeze).................... 442
Exhaust Gas Caution.................... 339
Flooded, Starting...................... 246
Fuel Requirements..................... 441
Oil ...........................389,441,442
Oil Filler Cap......................... 391
Oil Selection.......................391,441
Oil Synthetic......................... 392
Temperature Gauge..................... 175
Equipment Identification Plate.............. 363
Event Data Recorder...................... 56
Exhaust Gas Caution................163,339,403
Exhaust System...................163,402,403
Exterior Lighting........................ 120
Fabric Care............................ 423Filters
Air Cleaner........................393,417
Engine Fuel.......................... 394
Engine Oil........................392,442
Engine Oil Disposal.................... 392
Flashers
Turn Signal.......................... 123
Flat Tire Stowage.....................368,374
Flooded Engine Starting................... 246
Fluid, Brake........................... 443
Fluid Capacities......................... 441
Fluid Level Checks
Automatic Transmission................. 413
Power Steering........................ 398
Fluids, Lubricants and Genuine Parts.......... 442
Fog Lights.......................122,179,440
Fold Flat Load Floor..................... 155
Four Wheel Drive....................... 258
Four-Way Hazard Flasher.................. 366
478 INDEX

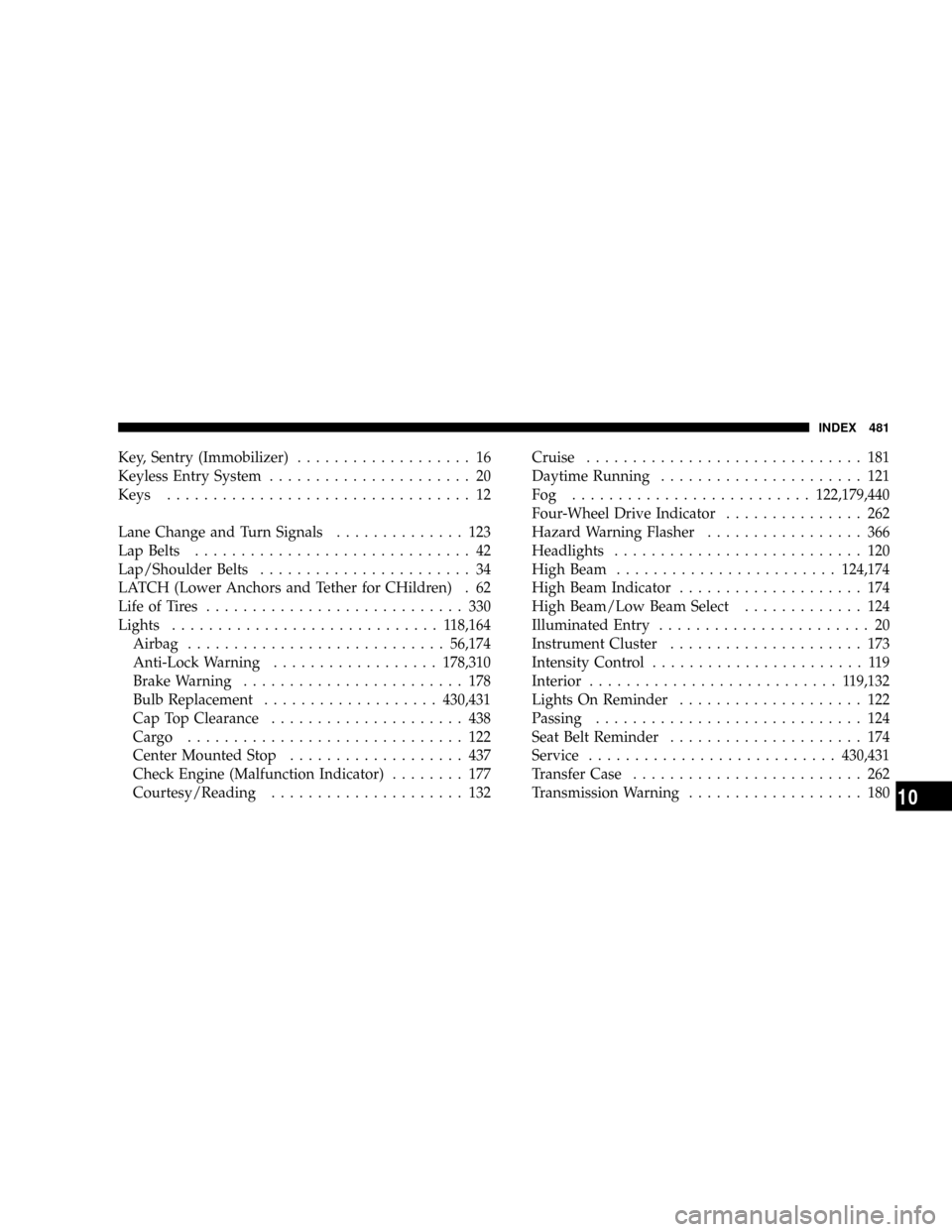

Key, Sentry (Immobilizer)................... 16
Keyless Entry System...................... 20
Keys................................. 12
Lane Change and Turn Signals.............. 123
Lap Belts.............................. 42
Lap/Shoulder Belts....................... 34
LATCH (Lower Anchors and Tether for CHildren) . 62
Life of Tires............................ 330
Lights............................. 118,164
Airbag............................56,174
Anti-Lock Warning..................178,310
Brake Warning........................ 178
Bulb Replacement...................430,431
Cap Top Clearance..................... 438
Cargo .............................. 122
Center Mounted Stop................... 437
Check Engine (Malfunction Indicator)........ 177
Courtesy/Reading..................... 132Cruise.............................. 181
Daytime Running...................... 121
Fog ..........................122,179,440
Four-Wheel Drive Indicator............... 262
Hazard Warning Flasher................. 366
Headlights........................... 120
High Beam........................124,174
High Beam Indicator.................... 174
High Beam/Low Beam Select............. 124
Illuminated Entry....................... 20
Instrument Cluster..................... 173
Intensity Control....................... 119
Interior........................... 119,132
Lights On Reminder.................... 122
Passing............................. 124
Seat Belt Reminder..................... 174
Service...........................430,431
Transfer Case......................... 262
Transmission Warning................... 180
INDEX 481
10
