rear view mirror DODGE POWER WAGON 2007 2.G Owners Manual

NExterior Mirrors Folding Feature...........85
NElectronic Power Mirrors ±If Equipped.......85
NElectric Rear Window Defroster And Heated
Sideview Mirrors ± If Equipped............86
NTrailer Towing Mirrors ± If Equipped........86
mHands±Free Communication (UConnectŸ) Ð
If Equipped............................87
NOperations...........................89
NPhone Call Features....................96
NUConnectŸ System Features..............98
NAdvanced Phone Connectivity............103
NThings You Should Know About Your
UConnectŸ System....................104
mSeats................................110N40-20-40 Front Seat....................111
NReclining Seats.......................112
NAdjustable Head Restraints..............112
NManual Rotary Lumbar Support Adjustment Ð
If Equipped.........................113
NPower Seats Ð If Equipped..............114
NHeated Seats Ð If Equipped.............115
mTo Open And Close The Hood.............117
mLights...............................118
NInterior Lights.......................119
NBattery Saver........................120
NHeadlamp Delay......................120
NHeadlights, Parking Lights, Panel Lights.....120
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

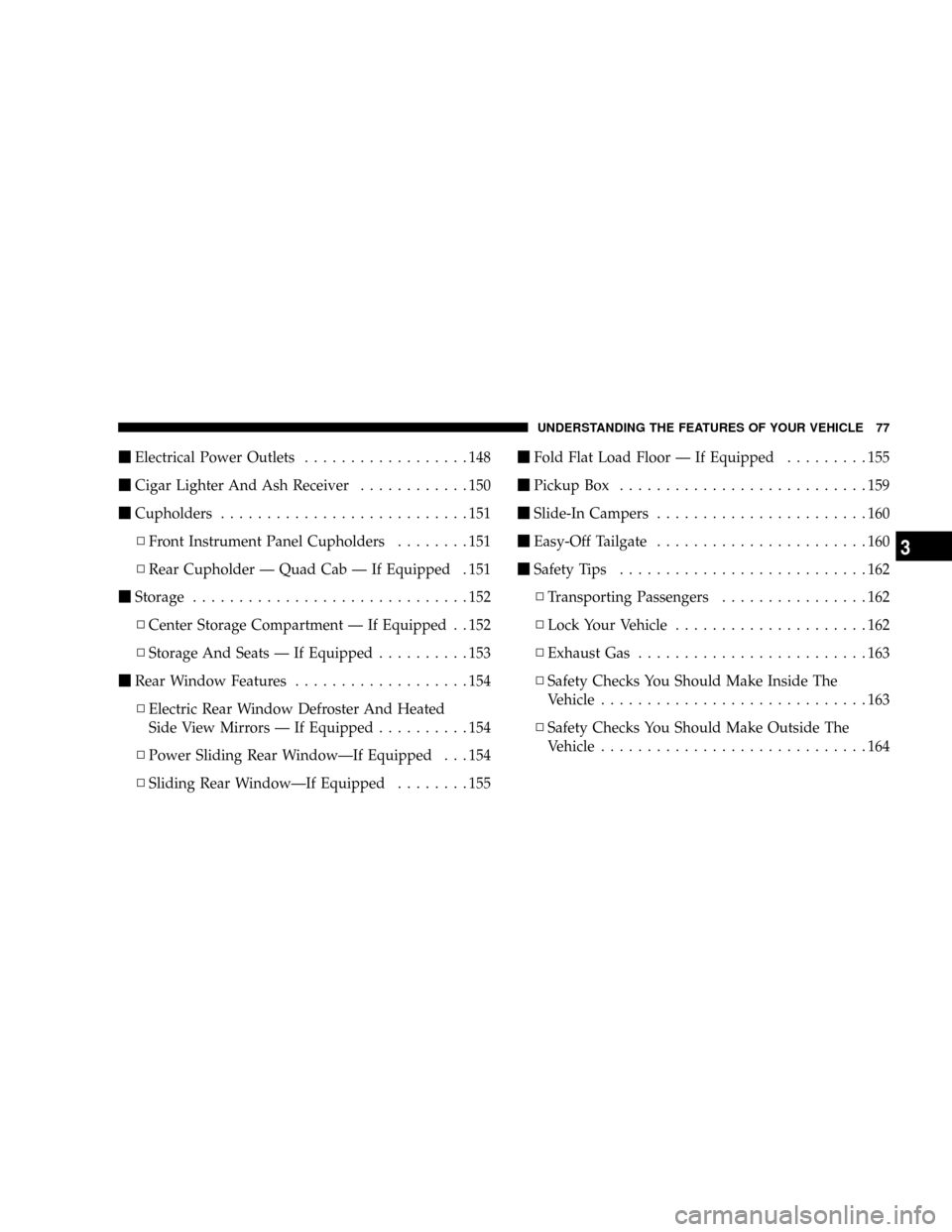

mElectrical Power Outlets..................148
mCigar Lighter And Ash Receiver............150
mCupholders...........................151
NFront Instrument Panel Cupholders........151
NRear Cupholder Ð Quad Cab Ð If Equipped . 151
mStorage..............................152
NCenter Storage Compartment Ð If Equipped . . 152
NStorage And Seats Ð If Equipped..........153
mRear Window Features...................154
NElectric Rear Window Defroster And Heated
Side View Mirrors Ð If Equipped..........154
NPower Sliding Rear WindowÐIf Equipped . . . 154
NSliding Rear WindowÐIf Equipped........155mFold Flat Load Floor Ð If Equipped.........155
mPickup Box...........................159
mSlide-In Campers.......................160
mEasy-Off Tailgate.......................160
mSafety Tips...........................162
NTransporting Passengers................162
NLock Your Vehicle.....................162
NExhaust Gas.........................163
NSafety Checks You Should Make Inside The
Vehicle.............................163
NSafety Checks You Should Make Outside The
Vehicle.............................164
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
3

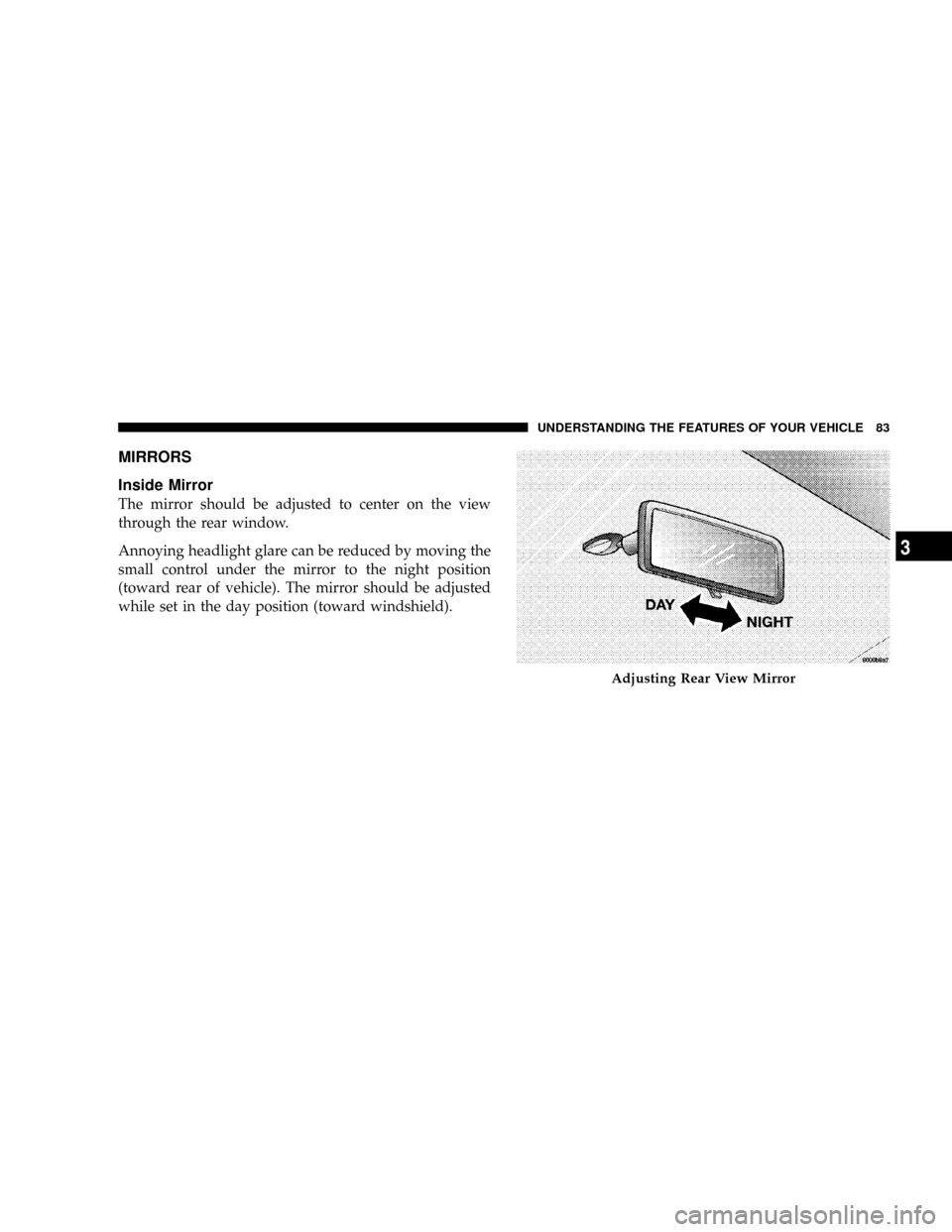

MIRRORS
Inside Mirror
The mirror should be adjusted to center on the view
through the rear window.
Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward rear of vehicle). The mirror should be adjusted
while set in the day position (toward windshield).
Adjusting Rear View Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3

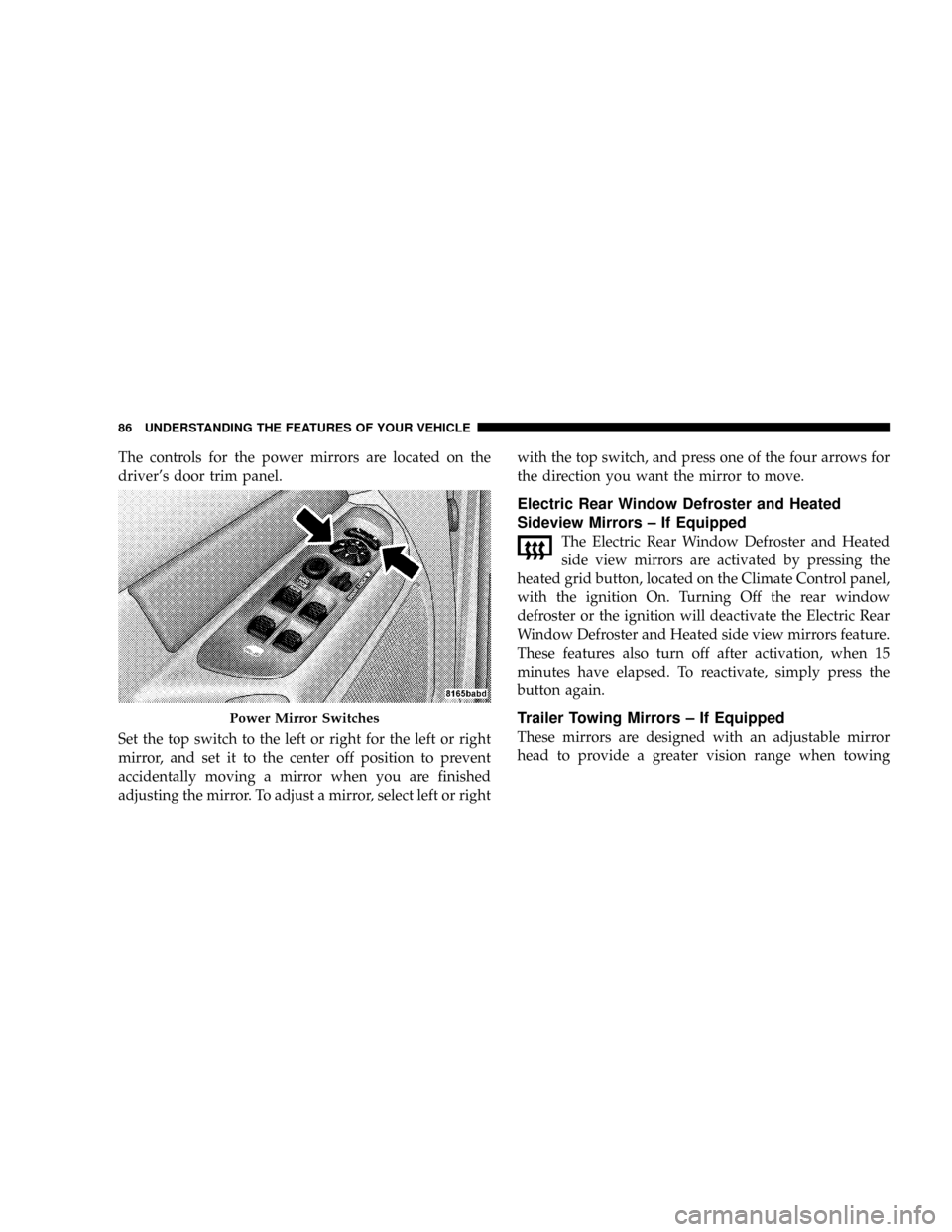

The controls for the power mirrors are located on the
driver's door trim panel.
Set the top switch to the left or right for the left or right
mirror, and set it to the center off position to prevent
accidentally moving a mirror when you are finished
adjusting the mirror. To adjust a mirror, select left or rightwith the top switch, and press one of the four arrows for
the direction you want the mirror to move.
Electric Rear Window Defroster and Heated
Sideview Mirrors ± If Equipped
The Electric Rear Window Defroster and Heated
side view mirrors are activated by pressing the
heated grid button, located on the Climate Control panel,
with the ignition On. Turning Off the rear window
defroster or the ignition will deactivate the Electric Rear
Window Defroster and Heated side view mirrors feature.
These features also turn off after activation, when 15
minutes have elapsed. To reactivate, simply press the
button again.
Trailer Towing Mirrors ± If Equipped
These mirrors are designed with an adjustable mirror
head to provide a greater vision range when towing
Power Mirror Switches
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

{ª248-555-12129). Your cellular phone's audio is trans-
mitted through your vehicle's audio system; the system
will automatically mute your radio when using the
UConnectŸ system.
NOTE:The UConnectŸ system use requires a cellular
phone equipped with the Bluetooth9Hands-Free Profile,9
version 0.96 or higher. See www.chrysler.com/uconnect
for supported phones.
UConnectŸ allows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle, and enables you to mute the system's micro-
phone for private conversation.
The UConnectŸ phonebook enables you to store up to 32
names and four numbers per name. Each language has a
separate 32-name phonebook accessible only in that
language. This system is driven through your Blue-
toothŸ Hands-Free profile cellular phone. UConnectŸ
features BluetoothŸ technology - the global standardthat enables different electronic devices to connect to
each other without wires or a docking station, so UCon-
nect works no matter where you stow your cellular
phone (be it your purse, pocket, or briefcase), as long as
your phone is turned on and has been paired to the
vehicle's UConnectŸ system. The UConnectŸ system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used
with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).
The rearview mirror contains the microphone for the
system and the control buttons that will enable you to
access the system.
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

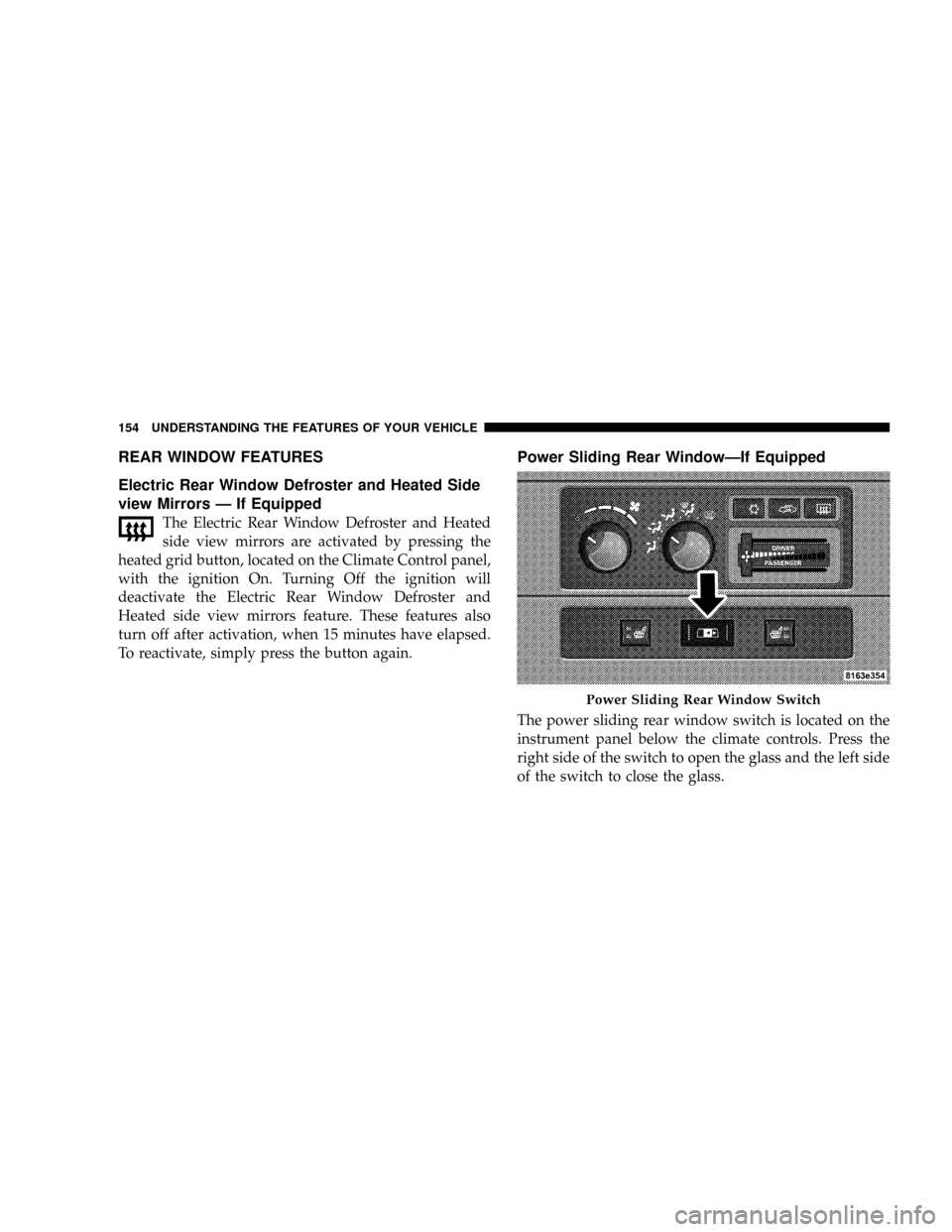

REAR WINDOW FEATURES
Electric Rear Window Defroster and Heated Side
view Mirrors Ð If Equipped
The Electric Rear Window Defroster and Heated
side view mirrors are activated by pressing the
heated grid button, located on the Climate Control panel,
with the ignition On. Turning Off the ignition will
deactivate the Electric Rear Window Defroster and
Heated side view mirrors feature. These features also
turn off after activation, when 15 minutes have elapsed.
To reactivate, simply press the button again.
Power Sliding Rear WindowÐIf Equipped
The power sliding rear window switch is located on the
instrument panel below the climate controls. Press the
right side of the switch to open the glass and the left side
of the switch to close the glass.
Power Sliding Rear Window Switch
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

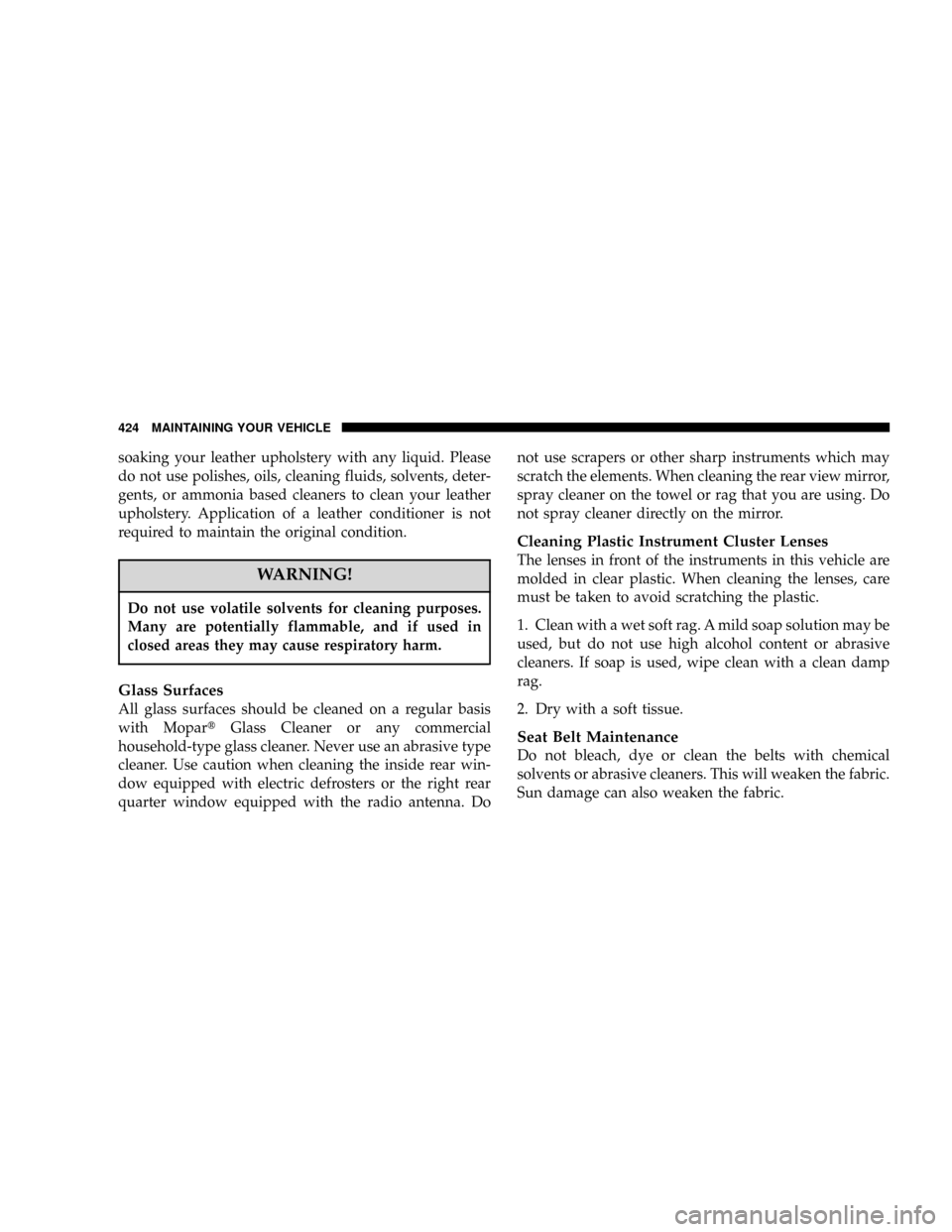

soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia based cleaners to clean your leather
upholstery. Application of a leather conditioner is not
required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MopartGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Donot use scrapers or other sharp instruments which may
scratch the elements. When cleaning the rear view mirror,
spray cleaner on the towel or rag that you are using. Do
not spray cleaner directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
424 MAINTAINING YOUR VEHICLE

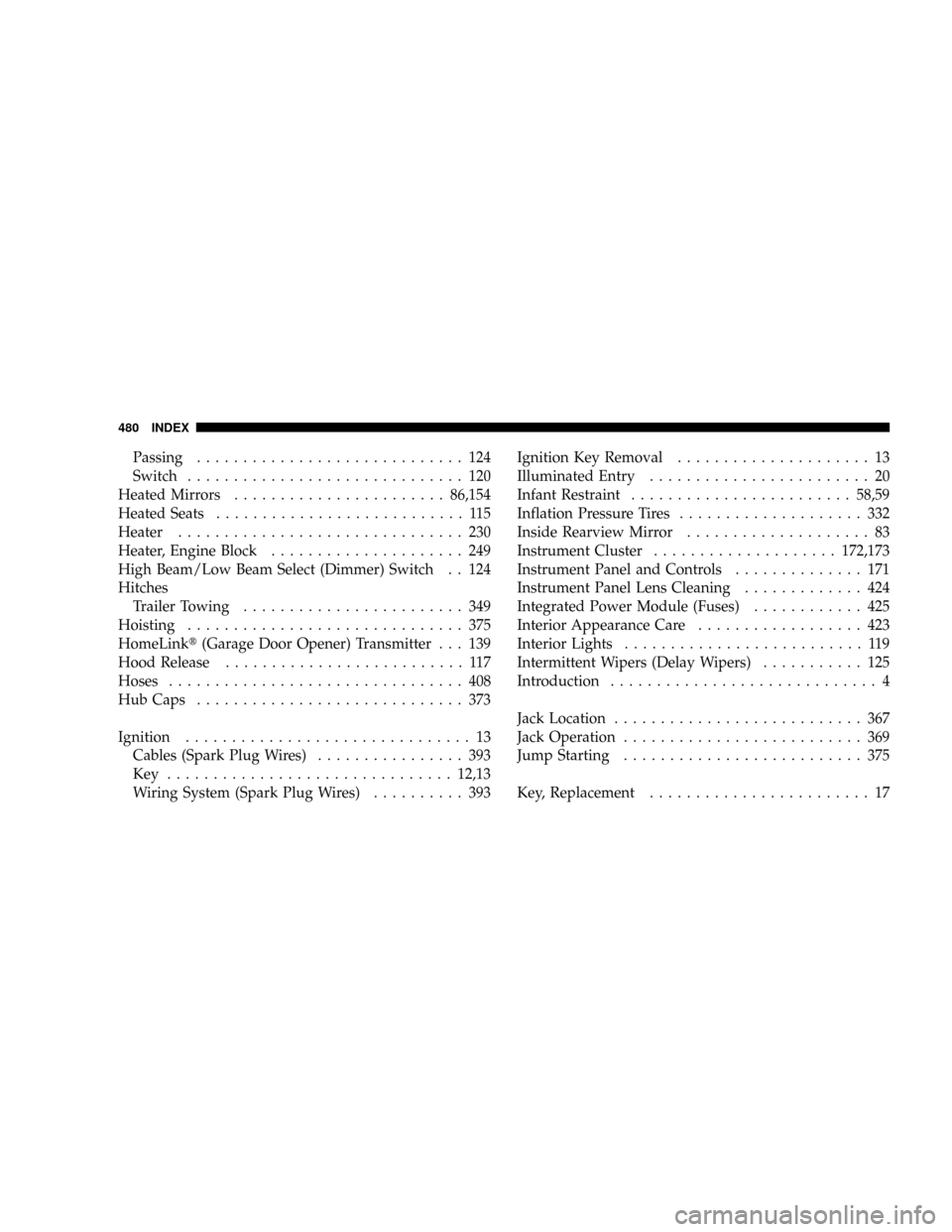

Passing............................. 124
Switch.............................. 120
Heated Mirrors.......................86,154
Heated Seats........................... 115
Heater............................... 230
Heater, Engine Block..................... 249
High Beam/Low Beam Select (Dimmer) Switch . . 124
Hitches
Trailer Towing........................ 349
Hoisting.............................. 375
HomeLinkt(Garage Door Opener) Transmitter . . . 139
Hood Release.......................... 117
Hoses................................ 408
Hub Caps............................. 373
Ignition............................... 13
Cables (Spark Plug Wires)................ 393
Key ...............................12,13
Wiring System (Spark Plug Wires).......... 393Ignition Key Removal..................... 13
Illuminated Entry........................ 20
Infant Restraint........................58,59
Inflation Pressure Tires.................... 332
Inside Rearview Mirror.................... 83
Instrument Cluster....................172,173
Instrument Panel and Controls.............. 171
Instrument Panel Lens Cleaning............. 424
Integrated Power Module (Fuses)............ 425
Interior Appearance Care.................. 423
Interior Lights.......................... 119
Intermittent Wipers (Delay Wipers)........... 125
Introduction............................. 4
Jack Location........................... 367
Jack Operation.......................... 369
Jump Starting.......................... 375
Key, Replacement........................ 17
480 INDEX

Turn Signal..................123,173,431,434
Warning (Instrument Cluster Description)..... 173
Limited-Slip Differential................262,411
Loading Vehicle......................... 341
Tires ............................... 318
Locks................................. 26
Child Protection........................ 29
Door................................ 26
Keys................................ 12
Power Door........................... 26
Steering Wheel......................... 15
Lower Anchors and Tether for CHildren (LATCH) . 62
Lubricants............................. 416
Lubrication, Body....................... 401
Lug Nuts............................. 372
Lumbar Support........................ 113
Maintenance........................... 388
Maintenance Free Battery.................. 396Maintenance Procedures................... 388
Maintenance Schedule.................... 446
Schedule ªAº......................... 460
Schedule ªBº......................... 449
Malfunction Indicator Light (Check Engine)..... 386
Manual, Service......................... 470
Manual Transmission..................255,412
Fluid Level Check...................... 412
Lubricant Selection..................412,443
Shift Speeds.......................... 257
Mirrors................................ 83
Automatic Dimming..................... 84
Electric Powered....................... 85
Outside.............................. 84
Rearview............................. 83
Trailer Towing......................86,358
Modifications/Alterations, Vehicle............. 7
Mopar Parts.........................387,469
Multi-Displacement Engine System........... 313
482 INDEX

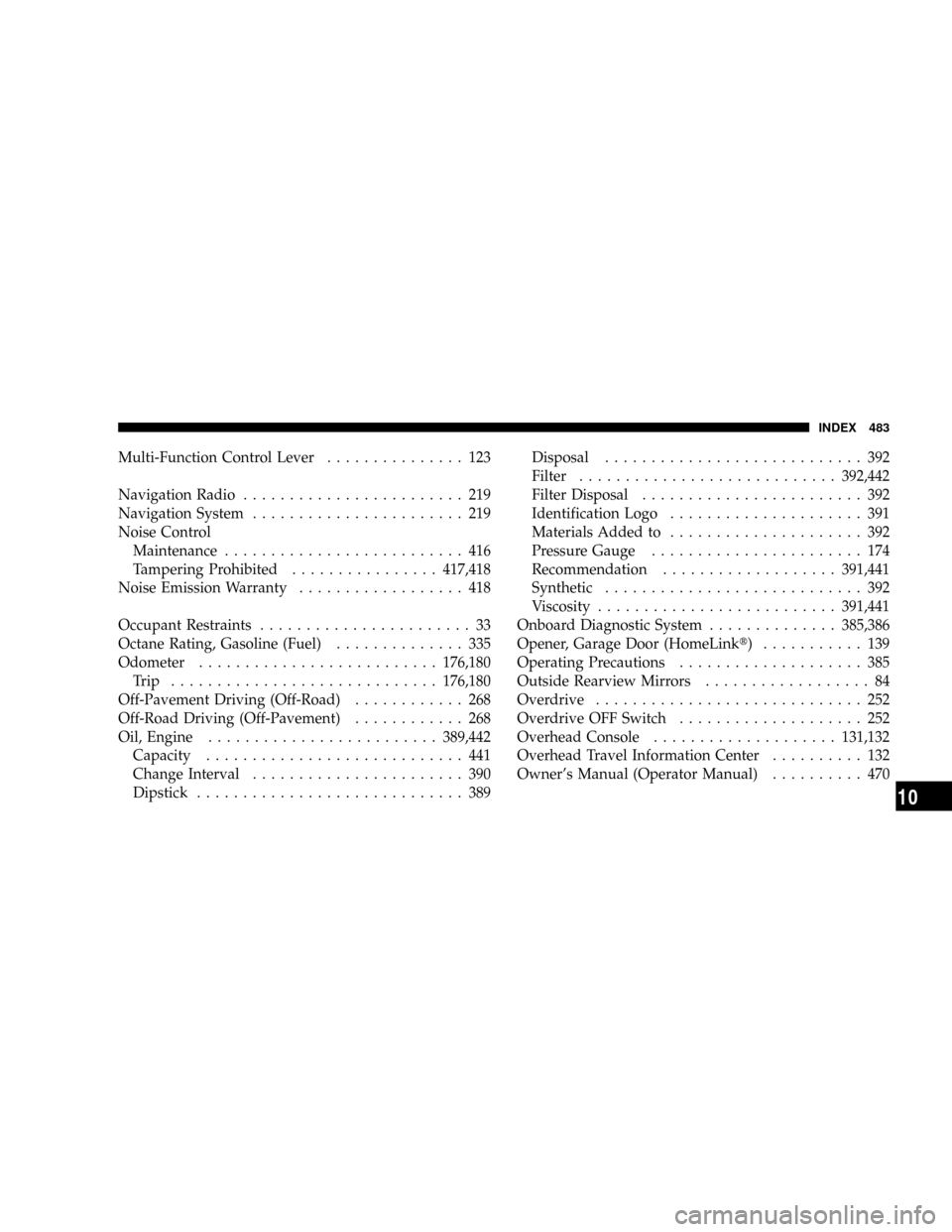

Multi-Function Control Lever............... 123
Navigation Radio........................ 219
Navigation System....................... 219
Noise Control
Maintenance.......................... 416
Tampering Prohibited................417,418
Noise Emission Warranty.................. 418
Occupant Restraints....................... 33
Octane Rating, Gasoline (Fuel).............. 335
Odometer..........................176,180
Trip .............................176,180
Off-Pavement Driving (Off-Road)............ 268
Off-Road Driving (Off-Pavement)............ 268
Oil, Engine.........................389,442
Capacity............................ 441
Change Interval....................... 390
Dipstick............................. 389Disposal............................ 392
Filter............................392,442
Filter Disposal........................ 392
Identification Logo..................... 391
Materials Added to..................... 392
Pressure Gauge....................... 174
Recommendation...................391,441
Synthetic............................ 392
Viscosity..........................391,441
Onboard Diagnostic System..............385,386
Opener, Garage Door (HomeLinkt) ........... 139
Operating Precautions.................... 385
Outside Rearview Mirrors.................. 84
Overdrive............................. 252
Overdrive OFF Switch.................... 252
Overhead Console....................131,132
Overhead Travel Information Center.......... 132
Owner's Manual (Operator Manual).......... 470
INDEX 483
10
