TRUCKS & RWD VANS article.
Transmission Governor Pressure Sensor (A/T Models)
Transmission governor pressure sensor is located on
transmission valve body. If problem exists in transmission governor
pressure sensor or wiring circuit, a Diagnostic Trouble Code (DTC)
will be stored in Powertrain Control Module (PCM). See appropriate
governor pressure sensor test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD
VANS article.
Transmission Overdrive Solenoid (A/T Models)
Transmission overdrive solenoid may also be referred to as
overdrive solenoid or 3-4 solenoid. Transmission overdrive solenoid is
located transmission valve body. If problem exists in transmission
overdrive solenoid or wiring circuit, a Diagnostic Trouble Code (DTC)
will be stored in Powertrain Control Module (PCM). See DTC P1740: TCC
OR O/D SOLENOID PERFORMANCE test in SELF-DIAGNOSTICS - JEEP, TRUCKS &
RWD VANS article.
Transmission Relay (A/T Models)
See RELAYS under RELAYS & SOLENOIDS.
Transmission Speed Sensor (A/T Models)
Transmission speed sensor may also be referred to as
transmission output shaft speed sensor. Transmission speed sensor is
located on overdrive case at rear of transmission. Transmission speed
sensor contains a 2-pin connector with a Dark Blue/Black wire and a
Light Green/Black wire. If problem exists in transmission speed sensor
or wiring circuit, a Diagnostic Trouble Code (DTC) will be stored in
Powertrain Control Module (PCM). See DTC P0720: LOW OUTPUT SPEED
SENSOR RPM, ABOVE 15 MPH test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD
VANS article.
Transmission Temperature Sensor (A/T Models)
Transmission temperature sensor is incorporated into governor
pressure sensor on transmission valve body. If problem exists in
transmission temperature sensor or wiring circuit, a Diagnostic
Trouble Code (DTC) will be stored in Powertrain Control Module (PCM)\
.
See appropriate transmission temperature sensor test in SELF-
DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Transmission Torque Converter Clutch Solenoid (A/T Models)
The transmission Torque Converter Clutch (TCC) solenoid is
located on transmission valve body. If problem exists in TCC solenoid
or wiring circuit, a Diagnostic Trouble Code (DTC) will be stored in
Powertrain Control Module (PCM). See DTC P0743: TORQUE CONVERTER
CLUTCH SOLENOID/TRANSMISSION RELAY CIRCUIT test in SELF-DIAGNOSTICS -
JEEP, TRUCKS & RWD VANS article.
Page 1392 of 1691
I - S YSTE M /C O M PO NEN T T E STS - R W D - G ASO LIN E
1999 D odge P ic ku p R 1500
1999 ENGINE PERFORMANCE
CHRY - System & Component Testing - Trucks & RWD Vans - Gas
Dodge: Dakota, Durango, Ram Pickup, Ram Van, Ram Wagon
Jeep Cherokee, Grand Cherokee, Wrangler
INTRODUCTION
Before testing individual components or systems, perform
procedures in BASIC DIAGNOSTIC PROCEDURES - TRUCKS & RWD VANS -
GASOLINE article. Since many computer controlled and monitored
components set a fault message if they malfunction, also perform
procedures in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
NOTE: Testing of individual components does not isolate possible
shorts or opens in wiring harness of electronically
controlled systems. Perform all voltage tests using a Digital
Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance\
unless otherwise instructed in procedure. Use an ohmmeter to
isolate wiring harness shorts or opens.
COMPUTERIZED ENGINE CONTROLS
POWERTRAIN CONTROL MODULE (PCM)
PCM power and ground circuits may be checked by performing
TEST NS-1 in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article. For
PCM location, see PCM LOCATION table.
PCM LOCATION
\
\
\
\
\
\
\
Application Location
Dakota & Durango ................. Right Front Fender, Near Firewall
Ram Pickup, Ram Van & Ram Wagon ...... On Firewall, Near Wiper Motor
\
\
\
\
\
\
\
ENGINE SENSORS, SOLENOIDS & SWITCHES
SENSORS
Camshaft Position (CMP) Sensor
See appropriate DTC P0340: NO CAM SIGNAL AT PCM test in SELF-
DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Crankshaft Position (CKP) Sensor
See appropriate DTC P0320: NO CRANK REFERENCE SIGNAL AT PCM
test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Engine Coolant Temperature (ECT) Sensor
See appropriate DTC P0117: ECT SENSOR VOLTAGE TOO LOW and DTC
P0118: ECT SENSOR VOLTAGE TOO HIGH tests in SELF-DIAGNOSTICS - JEEP,
TRUCKS & RWD VANS article.
Heated Oxygen Sensor (HO2S)
See appropriate DTC for oxygen sensor in SELF-DIAGNOSTICS -
JEEP, TRUCKS & RWD VANS article.
Page 1393 of 1691
Intake Air Temperature (IAT) Sensor
See appropriate DTC P0112: IAT SENSOR VOLTAGE LOW and DTC
P0113: IAT SENSOR VOLTAGE HIGH tests in SELF-DIAGNOSTICS - JEEP,
TRUCKS & RWD VANS article.
Manifold Absolute Pressure (MAP) Sensor
See appropriate DTC P0107: MAP SENSOR VOLTAGE TOO LOW and DTC
P0108: MAP SENSOR VOLTAGE TOO HIGH tests in SELF-DIAGNOSTICS - JEEP,
TRUCKS & RWD VANS article.
Transmission Temperature (TRANS Temp) Sensor
See appropriate DTC P0711: TRANSMISSION TEMPERATURE SENSOR,
NO TEMPERATURE RISE AFTER START, DTC P0712: TRANSMISSION TEMPERATURE
SENSOR VOLTAGE TOO LOW, and DTC P0713: TRANSMISSION TEMPERATURE SENSOR
VOLTAGE TOO HIGH tests in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS
article.
Throttle Position (TP) Sensor
See appropriate DTC P0122: THROTTLE POSITION SENSOR VOLTAGE
LOW and DTC P0123: THROTTLE POSITION SENSOR VOLTAGE HIGH tests in
SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Vehicle Speed Sensor (VSS)
See appropriate DTC P0500: NO VEHICLE SPEED SENSOR SIGNAL
test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
SOLENOIDS
Evaporative (EVAP) Purge Solenoid
See appropriate DTC P0443: EVAP PURGE SOLENOID CIRCUIT test
in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Leak Detection Pump (LDP) Solenoid
See appropriate DTC P1495: LEAK DETECTION PUMP SOLENOID
CIRCUIT test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Speed Control (S/C) Solenoid
See appropriate DTC P1595: SPEED CONTROL SOLENOID CIRCUITS
test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Transmission Governor Pressure Solenoid
See appropriate DTC P0748: GOVERNOR PRESSURE
SOLENOID/TRANSMISSION RELAY CIRCUITS test in SELF-DIAGNOSTICS - JEEP,
TRUCKS & RWD VANS article.
Transmission 3-4 Solenoid
See appropriate DTC P0783: TRANSMISSION 3-4 SHIFT SOLENOID,
NO RPM DROP AT 3-4 SHIFT test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD
VANS article.
SWITCHES
Leak Detection Pump (LDP) Switch
See appropriate DTC P1494: LEAK DETECTION PUMP SWITCH OR
MECHANICAL FAULT test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS
article.
Park/Neutral (P/N) Switch
See appropriate DTC P1899: PARK/NEUTRAL SWITCH STUCK IN PARK
OR IN GEAR test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Power Steering (PS) Switch
See appropriate DTC P0551: POWER STEERING SWITCH FAILURE test
Page 1394 of 1691
in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Speed Control Switch
See appropriate DTC P1596: SPEED CONTROL SWITCH ALWAYS HIGH
and DTC P1597: SPEED CONTROL SWITCH ALWAYS LOW tests in SELF-
DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
RELAYS
A/C Clutch Relay
See appropriate DTC P0645: A/C CLUTCH RELAY CIRCUIT test in
SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Auto Shutdown (ASD) Relay
See appropriate DTC P1388: AUTO SHUTDOWN RELAY CONTROL
CIRCUIT test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Fuel Pump Relay
See appropriate DTC P1282: FUEL PUMP RELAY CONTROL CIRCUIT
test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Radiator Fan Control Relay
See appropriate DTC P1491: RADIATOR FAN CONTROL RELAY CIRCUIT
test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
Torque Converter Clutch (TCC) Relay
See appropriate DTC P0743: TORQUE CONVERTER CLUTCH
SOLENOID/TRANSMISSION RELAY CIRCUIT test in SELF-DIAGNOSTICS - JEEP,
TRUCKS & RWD VANS article.
Transmission Governor Pressure Solenoid Relay
See appropriate DTC P0748: GOVERNOR PRESSURE
SOLENOID/TRANSMISSION RELAY CIRCUIT test in SELF-DIAGNOSTICS - JEEP,
TRUCKS & RWD VANS article.
Transmission 12-Volt Supply Relay
See appropriate DTC P1765: TRANSMISSION 12-VOLT SUPPLY RELAY
CONTROL CIRCUIT test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS
article.
Vehicle Speed Control Relay
See appropriate DTC P1683: SPEED CONTROL POWER RELAY CIRCUIT
test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
FUEL SYSTEM
FUEL DELIVERY
NOTE: For fuel system pressure testing, see BASIC DIAGNOSTIC
PROCEDURES - TRUCKS & RWD VANS - GASOLINE article.
FUEL CONTROL
Fuel Injector
See appropriate injector control circuit test in SELF-
DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
IDLE CONTROL SYSTEM
IDLE AIR CONTROL (IAC) MOTOR
Page 1395 of 1691
See appropriate DTC P0505: IAC MOTOR CIRCUIT in SELF-
DIAGNOSTICS - JEEP, TRUCKS & RWD VANS article.
IGNITION SYSTEM
NOTE: For basic ignition checks, see TEST NS-SEL: NO START TEST
SELECTION in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS
article.
EMISSION SYSTEMS & SUB-SYSTEMS
NOTE: To locate emission components, refer to emission control
information label in engine compartment.
AIR INJECTION
No Air Supply (Ram Pickup 5.9L & 8.0L)
1) Start engine, and increase engine speed to 1500 RPM. Check
air supply at rubber hoses. If air supply increases with RPM, air pump
operation is okay.
2) If air pump is okay, check for leakage at hoses and
fittings. Repair or replace hoses as necessary.
3) If hoses are okay, check pressure relief valve for
leakage. If air is expelled through pressure relief valve at idle,
replace relief valve.
4) If relief valve is okay on 5.9L, test is complete. On 8.
0L, check inlet air filter. Repair air filter if plugged. If air
filter is okay, test is complete.
CRANKCASE VENTILATION (CCV)
8.0L
1) CCV system does NOT use a PCV valve. System consists of a
fixed orifice (Gray color) that is calibrated to a specific flow rate.\
The fixed orifice (located on intake manifold) is connected by a tube
to right valve cover.
2) A similar orifice is used on left cylinder head, but is
Black in color and cannot be interchanged with Gray orifice. Ensure
orifice, tubes and fittings are clean and in good condition. No
further information is available from manufacturer.
EXHAUST GAS RECIRCULATION (EGR)
EGR Valve
See TEST NTC-2: CHECKING EGR SYSTEM in SELF-DIAGNOSTICS -
JEEP, TRUCKS & RWD VANS article.
FUEL EVAPORATION
EVAP Canister
EVAP canister is located in engine compartment. Canister has
no moving parts. Check for loose, missing, cracked or broken
connections and parts. Repair or replace as necessary. No liquid
should be in canister.
LEAK DETECTION PUMP (LDP)
LDP
See appropriate DTC P1494: LEAK DETECTION PUMP SWITCH OR
MECHANICAL FAULT test in SELF-DIAGNOSTICS - JEEP, TRUCKS & RWD VANS
Page 1396 of 1691
article.
POSITIVE CRANKCASE VENTILATION (PCV)
PCV Valve
1) With engine running at curb idle, remove PCV valve from
grommet. If valve is functioning properly, a hissing sound will be
heard as air passes through valve.
2) With engine running, place finger over valve inlet. Strong
vacuum should be felt at valve inlet. Stop engine. Remove and shake
PCV valve to ensure a metallic clicking noise can be heard, indicating
valve is free. Reinstall PCV valve.
3) Remove crankcase ventilation filter or oil filler cap from
valve cover. Hold a piece of stiff paper over opening. After allowing
about one minute for crankcase pressure stabilization, paper should be
drawn against opening.
4) If paper is held against opening, performance is okay. If
paper is not held against opening, replace PCV valve and retest. If
performance does not improve, inspect system for restrictions and
clean as necessary.
MISCELLANEOUS CONTROLS
NOTE: Although the controlled devices listed here are not
technically engine performance components, they can affect
driveability if they malfunction.
RELAYS
A/C Clutch Relay
See A/C CLUTCH RELAY under RELAYS.
Radiator Fan Control Relay
See RADIATOR FAN CONTROL RELAY under RELAYS.
Torque Converter Clutch (TCC) Relay
See TORQUE CONVERTER CLUTCH (TCC) RELAY under RELAYS
Transmission Governor Pressure Solenoid Relay
See TRANSMISSION GOVERNOR PRESSURE SOLENOID RELAY under
RELAYS.
Transmission 12-Volt Supply Relay
See TRANSMISSION 12-VOLT SUPPLY RELAY under RELAYS.
Vehicle Speed Control Relay
See VEHICLE SPEED CONTROL RELAY under RELAYS.
Page 1397 of 1691
SYSTE M W IR IN G D IA G RAM S
1999 D odge P ic ku p R 1500
1999 System Wiring Diagrams
Dodge - Pickup R1500
AIR CONDITIONING

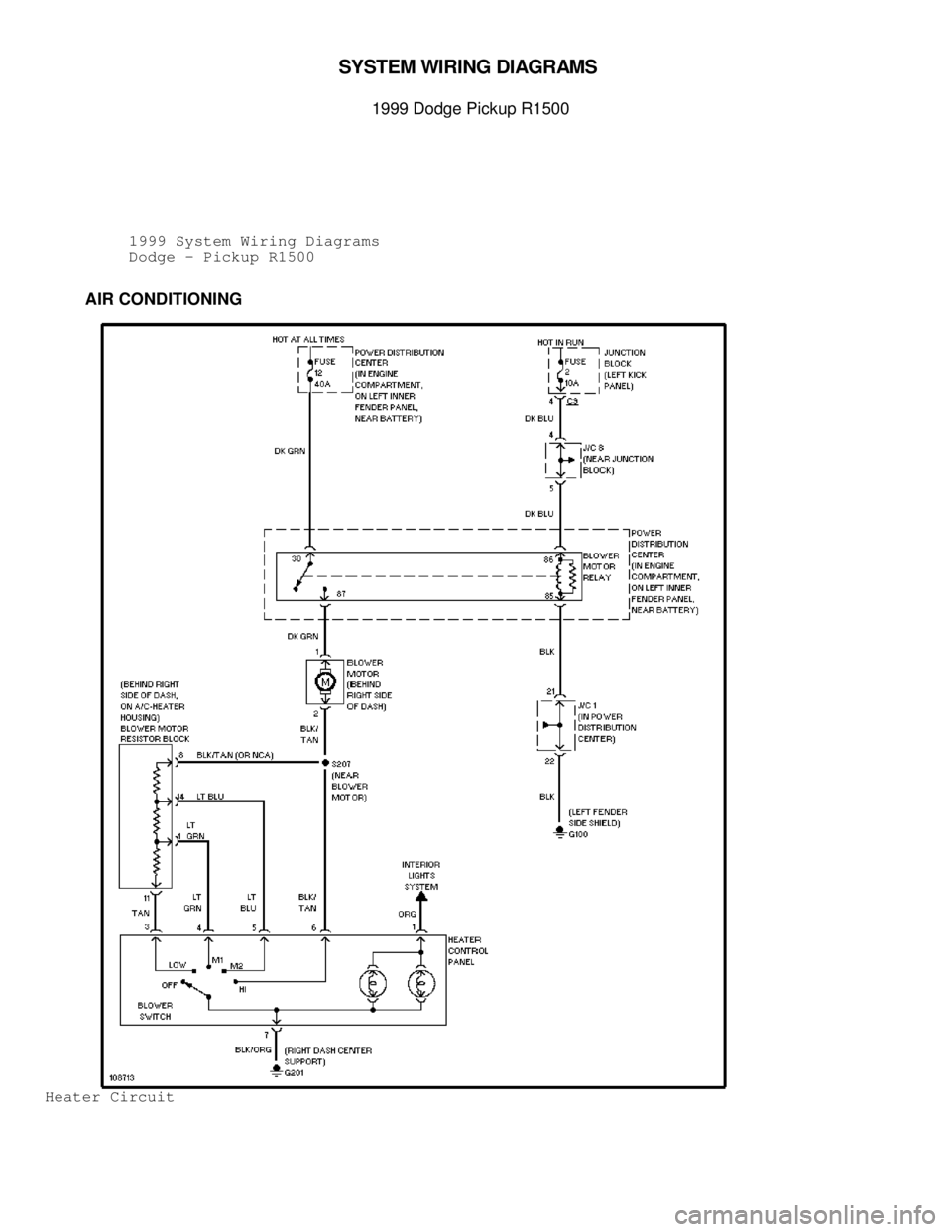

Heater Circuit
Page 1398 of 1691

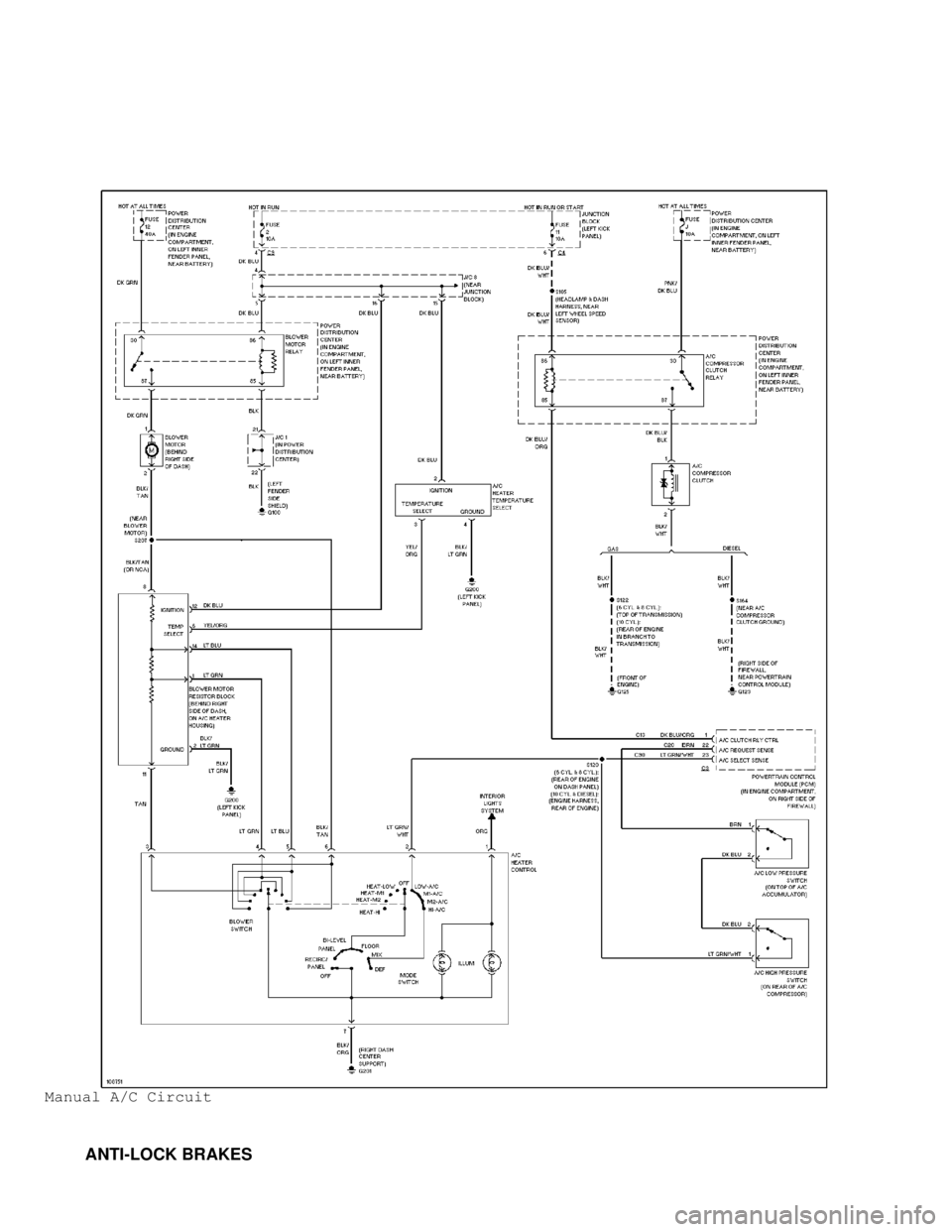

Manual A/C Circuit
ANTI-LOCK BRAKES
Page 1399 of 1691

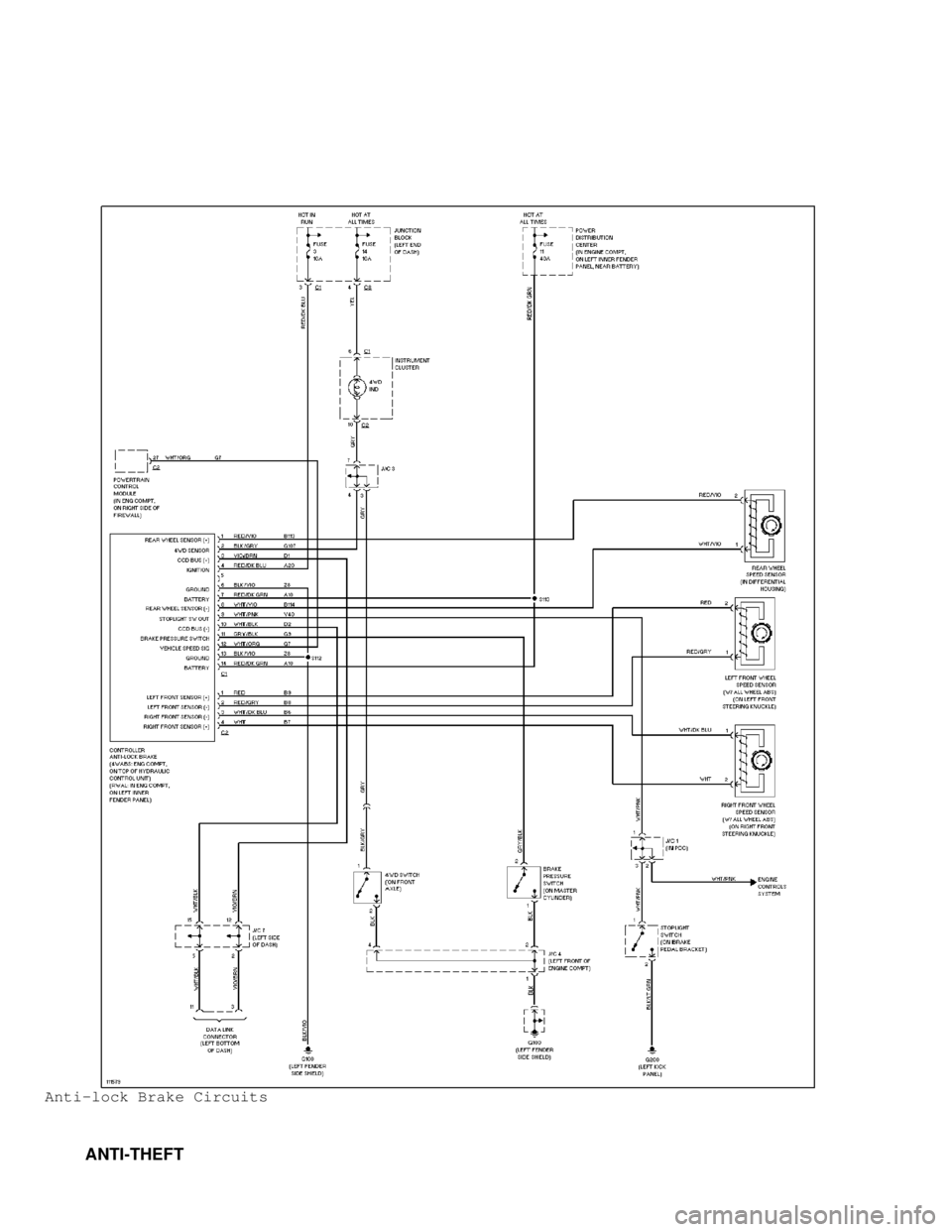

Anti-lock Brake Circuits
ANTI-THEFT
Page 1400 of 1691
Anti-theft Circuit
BODY COMPUTER
