![DODGE RAM 1999 Service Repair Manual refer to the 5.9L V8 TURBO DIESEL - VIN [D] article.
in the ENGINE MECHANICAL section.
Drain fuel/water separator by pushing up on the valve
located on the bottom](/img/12/56915/w960_56915-880.png "DODGE RAM 1999 Service Repair Manual refer to the 5.9L V8 TURBO DIESEL - VIN [D] article.
in the ENGINE MECHANICAL section.
Drain fuel/water separator by pushing up on the valve
located on the bottom")
refer to the 5.9L V8 TURBO DIESEL - VIN [D] article.
in the ENGINE MECHANICAL section.
Drain fuel/water separator by pushing up on the valve
located on the bottom of the fuel filter until clear fuel
is visible. Drain fuel into a container and follow proper
disposal procedures.
CAUTION: DO NOT drain fuel/water separator when engine is running or
hot. Allow engine to cool before draining. Verify that the
WATER IN FUEL light on instrument panel is OFF.
ADDITIONAL SERVICE INFORMATION - CNG MODELS

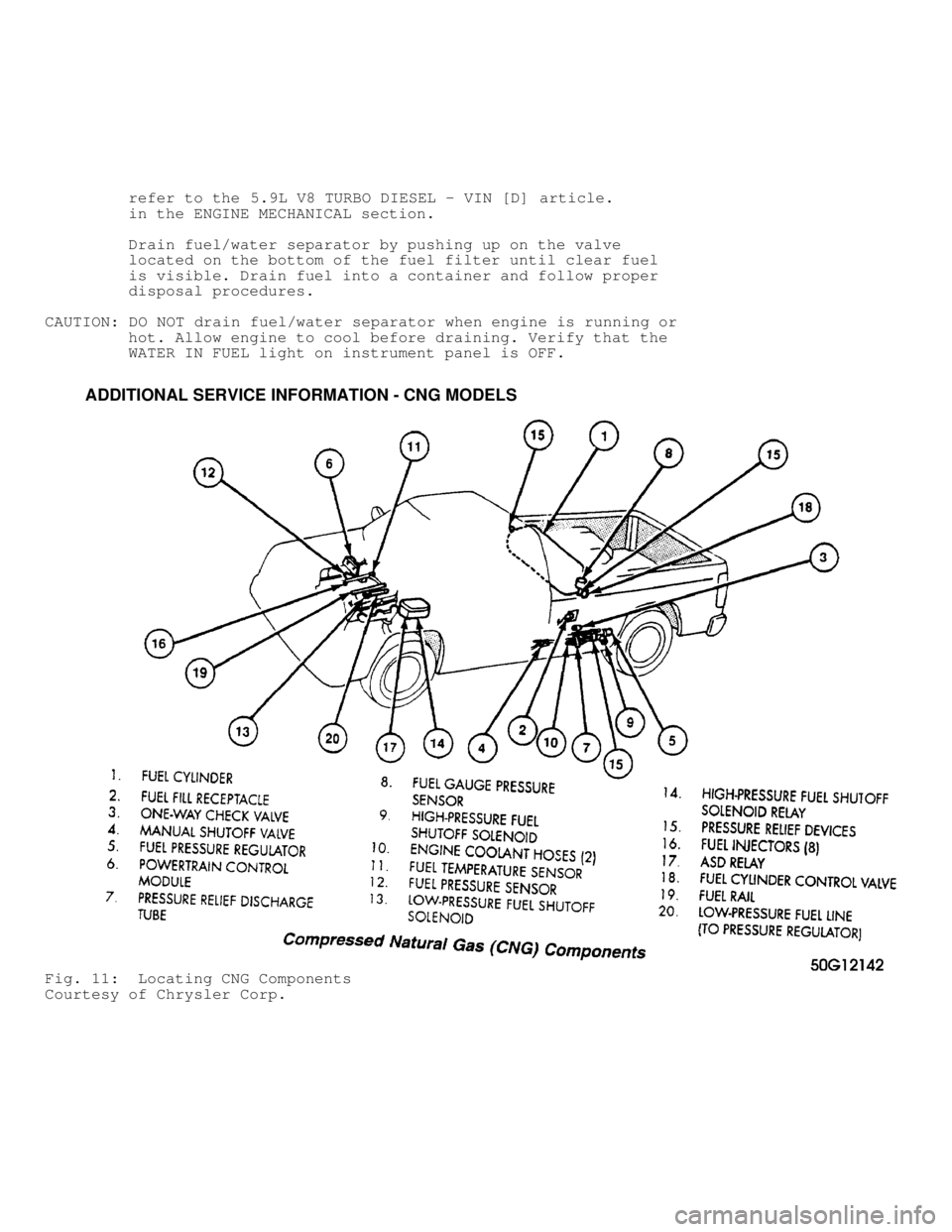

Fig. 11: Locating CNG Components
Courtesy of Chrysler Corp.
Page 882 of 1691

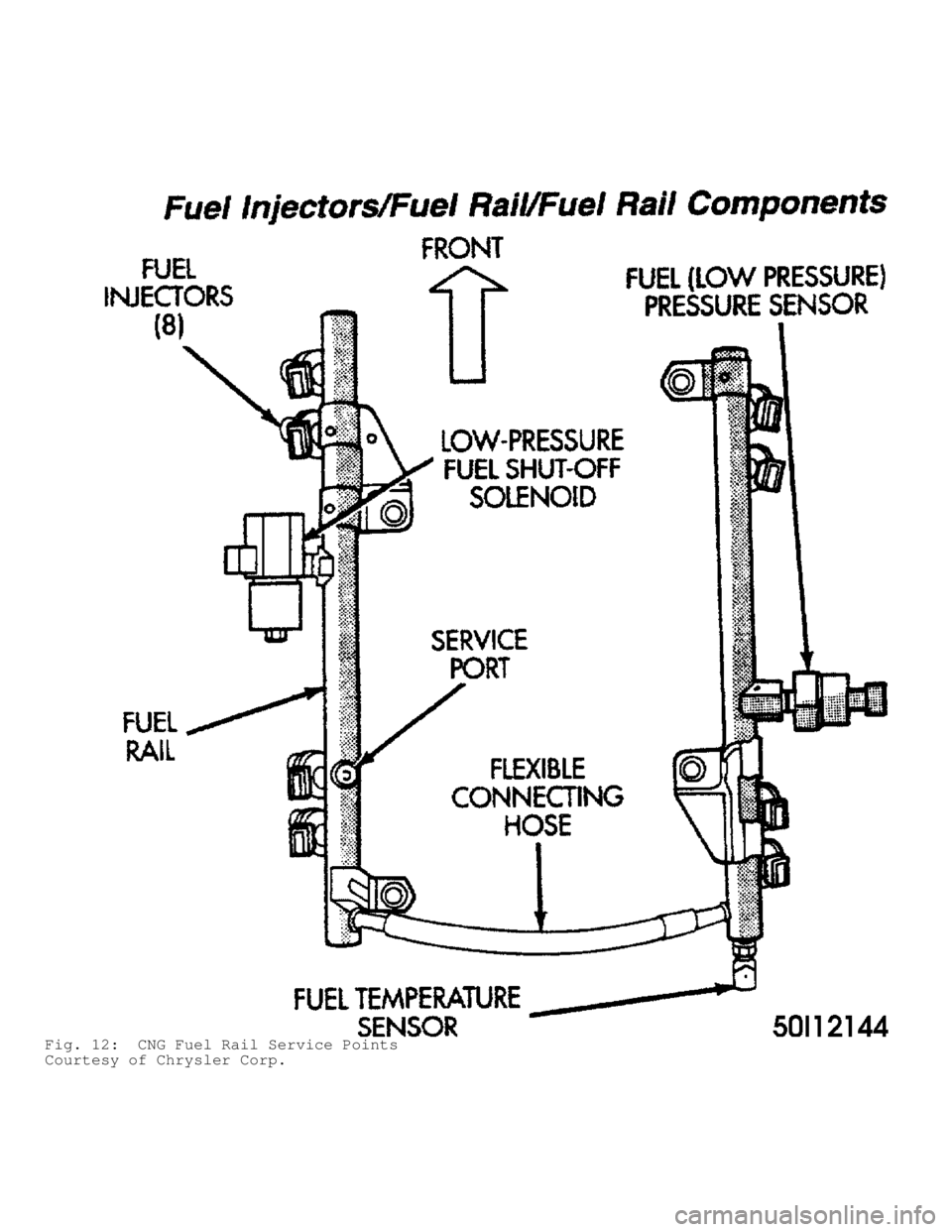

Fig. 12: CNG Fuel Rail Service Points
Courtesy of Chrysler Corp.
Page 883 of 1691

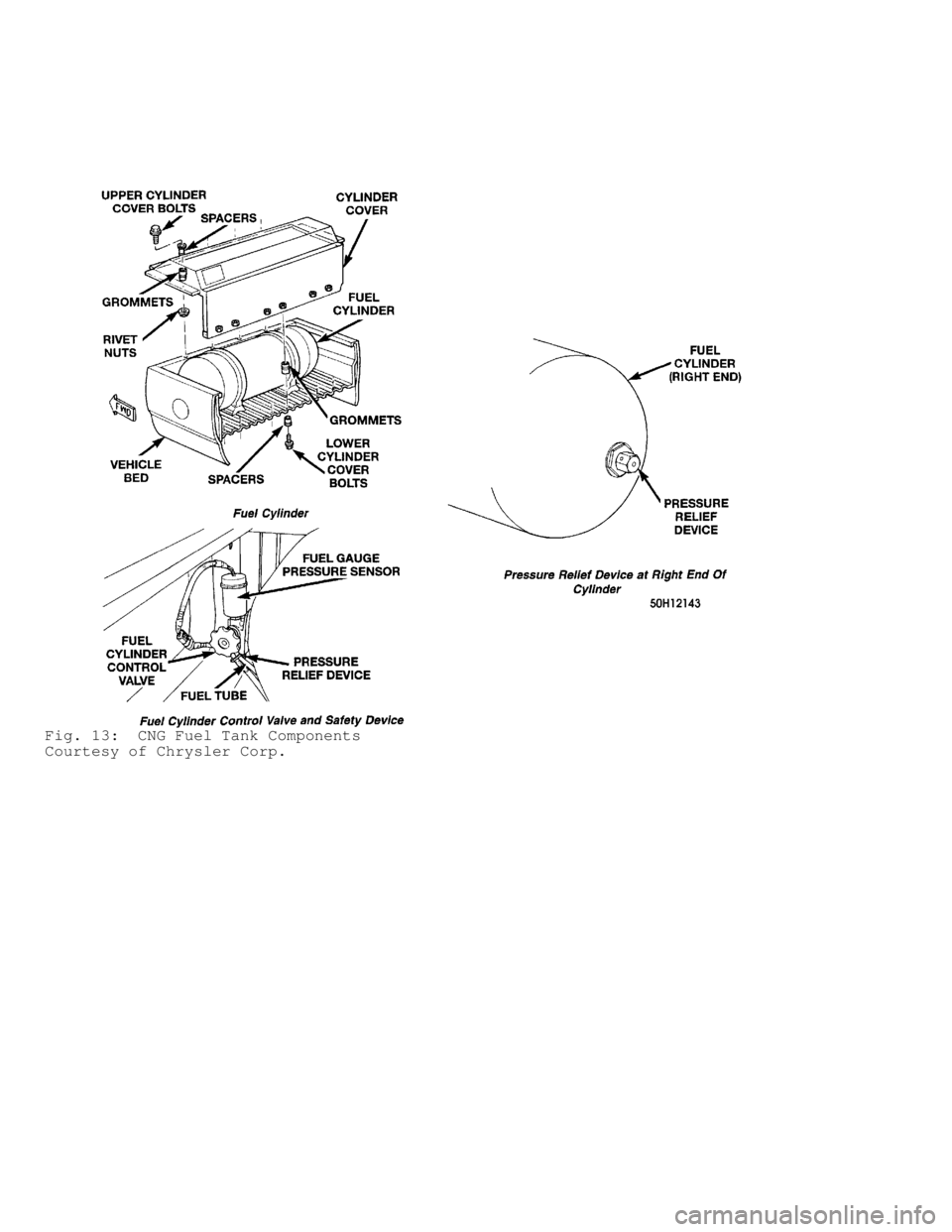

Fig. 13: CNG Fuel Tank Components
Courtesy of Chrysler Corp.
Page 884 of 1691

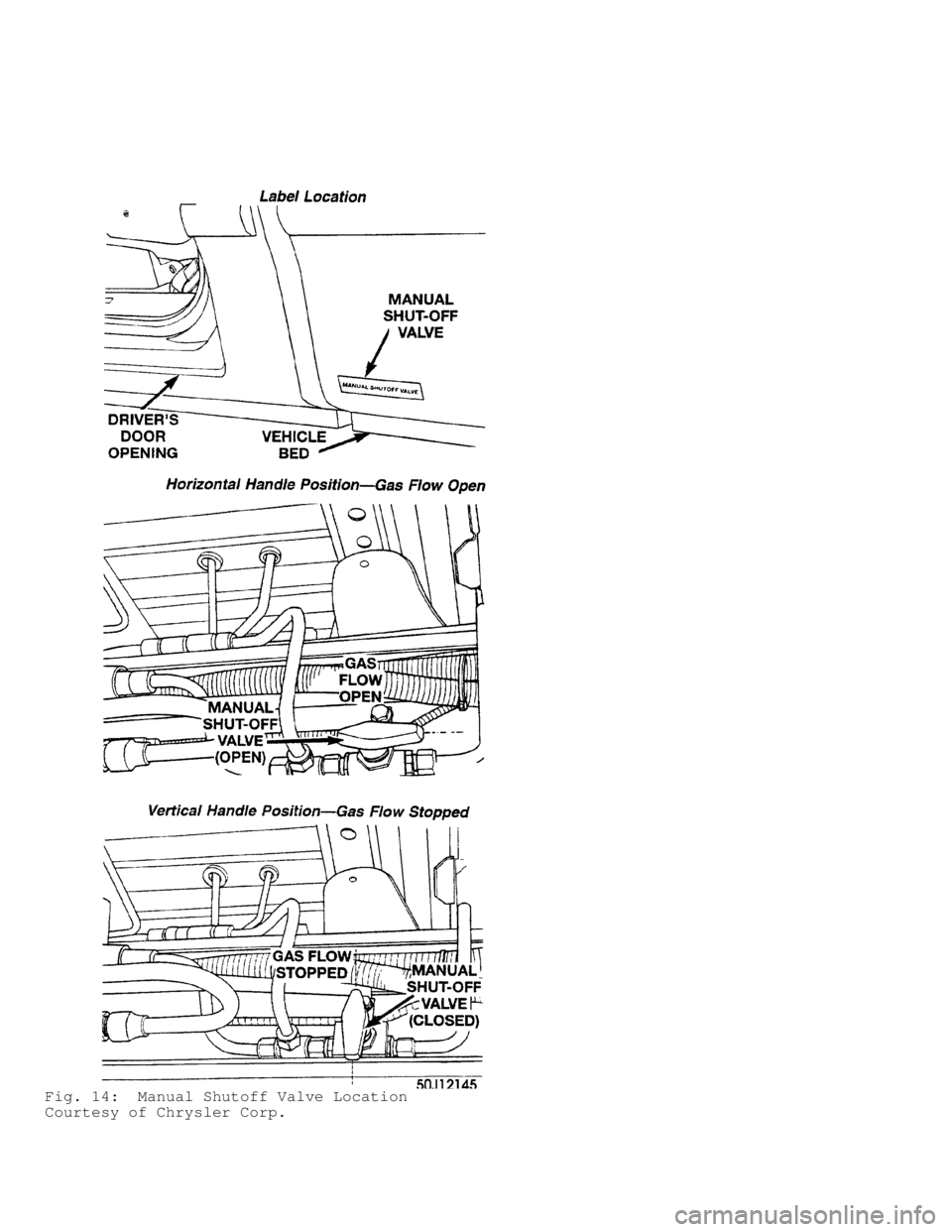

Fig. 14: Manual Shutoff Valve Location
Courtesy of Chrysler Corp.
Page 885 of 1691

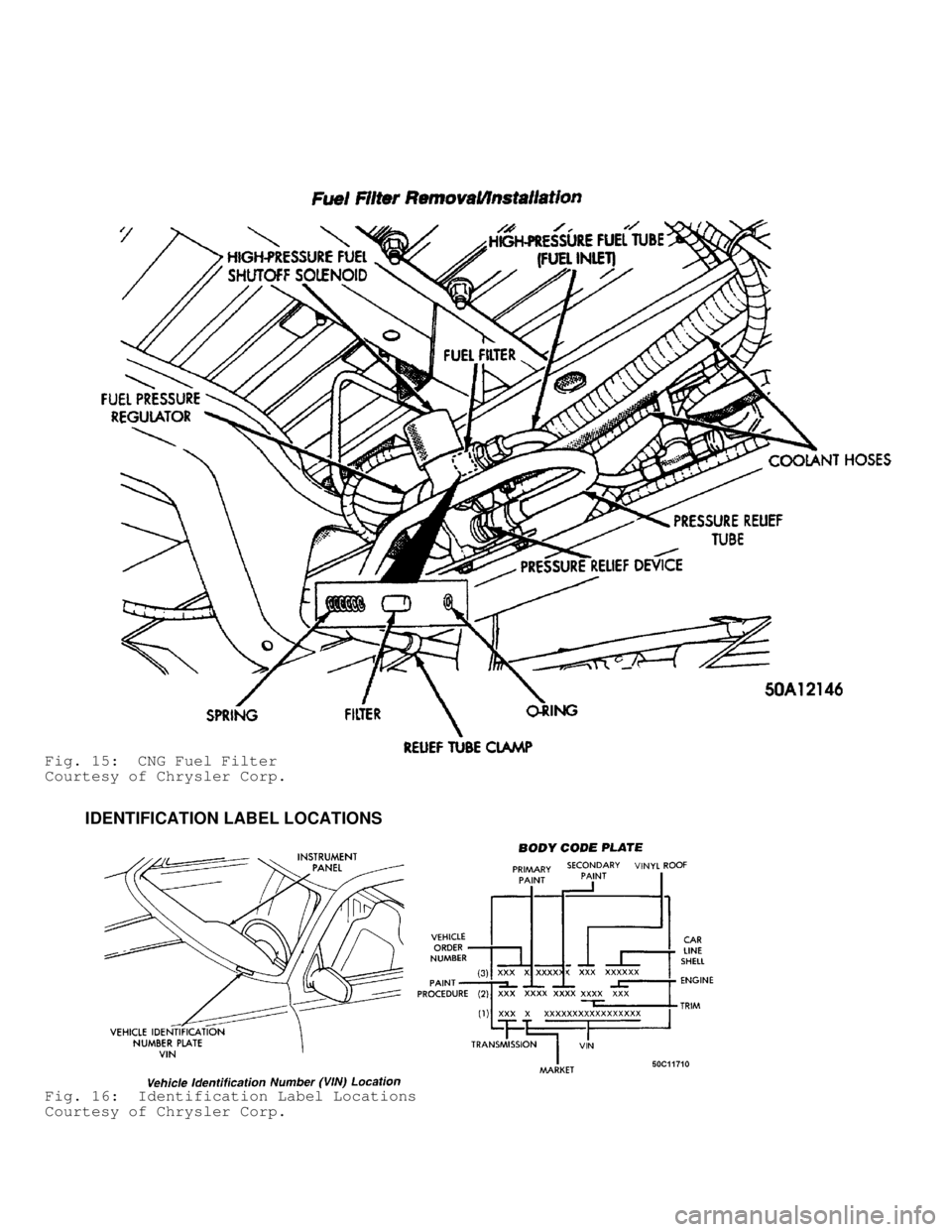

Fig. 15: CNG Fuel Filter
Courtesy of Chrysler Corp.
IDENTIFICATION LABEL LOCATIONS
Fig. 16: Identification Label Locations
Courtesy of Chrysler Corp.
Page 886 of 1691
Fig. 17: CNG Identification Label Locations
Courtesy of Chrysler Corp.
Fig. 18: Tank Test Date Label Location
Courtesy of Chrysler Corp.
LUBRICATION SPECIFICATIONS - DIESEL
Page 887 of 1691
![DODGE RAM 1999 Service Repair Manual LUBRICATION SPECIFICATIONS TABLE - DIESEL \
\
\
\
\
\
\
M](/img/12/56915/w960_56915-886.png "DODGE RAM 1999 Service Repair Manual LUBRICATION SPECIFICATIONS TABLE - DIESEL \
\
\
\
\
\
\
M")
LUBRICATION SPECIFICATIONS TABLE - DIESEL \
\
\
\
\
\
\
Material Condition Specification
\
\
\
\
\
\
\
\f
Engine Oil Ambient Temperature Above 10\bF SAE 15W-40
(
1) (-12\bC) To Over 30\bF (-1\bC)
\
\
\
\
\
\
\f
Ambient Temperature Less Than SAE 10W-30
0\bF (-18\bC) To Over 30\bF(-1\bC)
\
\
\
\
\
\
\f
Ambient Temperature Less Than With Block Heater:
-10\bF(-23\bC) Up To 0\bF (-18\bC) SAE 10W-30
Without Block Heater:
SAE 5W-30
\
\
\
\
\
\
\
\f
Engine All 50/50 Mixture Of
Coolant Distilled Water &
Ethylene Glycol
\
\
\
\
\
\
\
\f
Brake Fluid All DOT 3
\
\
\
\
\
\
\
\f
Automatic All ATF+2 Type 7176
Transmission
Fluid
\
\
\
\
\
\
\
\f
Transfer Case All ATF+2 Type 7176
Fluid Or DEXRON III ATF
\
\
\
\
\
\
\
\f
Manual All 75W-90 Synthc. API GL4
Transmission
Fluid
\
\
\
\
\
\
\
\f
Steering All Mopar Multi-Mileage
Linkage Lubricant
Lubricant
\
\
\
\
\
\
\
\f
Wheel Bearing All High Temperature Multi-
Grease -Purporse EP Grease
\
\
\
\
\
\
\
\f
Rear Axle All Mopar Hypoid Lubricant
Lubricant SAE 80W-90
(
2) GL-5 Gear Lube
\
\
\
\
\
\
\
\f
4x4 Front All Mopar Hypoid Lubricant
Axle SAE 80W-90
Lubricant GL-5 Gear Lube
\
\
\
\
\
\
\
\f
Power All Mopar Power Steering
Steering Fluid Or Equivalant
Fluid (
3) Petroleum Based
\
\
\
\
\
\
\
\f
Clutch All Multipurpose Grease
Linkage NLGI Grade 2 E.P.
Lubricant
\
\
\
\
\
\
\
\f
A/C All R-134a
Refrigerant
\
\
\
\
\
\
\
\f
A/C All Polyalkalene Glycol
Refrigerant SP10 PAG
Oil Refrigerant Oil
\
\
\
\
\
\
\
\f
Page 888 of 1691
(
1) - SAE 10W-30 engine oil is preferred for use in all Dodge
trucks. Use only API approved oil with Starburst Symbol.
(
2) - Axles with Limited-Slip Differentials require the use of
a 5% Friction Modifier, such as Mopar Gear Oil Additive
Friction Modifier.
(
3) - Never add gear oil, automatic transmission fluid or
hydroboost power steering fluid.
\
\
\
\
\
\
\
FLUID CAPACITIES - DIESEL
FLUID CAPACITIES TABLE - DIESEL \
\
\
\
\
\
\
Item Condition Specification (1)
\
\
\
\
\
\
\
\f
Engine Oil Capacity, Upper Safe Mark 10 Qts. (9.5L)
\
\
\
\
\
\
\f
Capacity, Lower Safe Mark 8 Qts. (7.5L)
\
\
\
\
\
\
\
\f
Engine Drained 26 Qts. (24.5L)
Coolant
\
\
\
\
\
\
\
\f
Automatic 46RE: Dry Fill 17 Qts. (16L)
Transmission
\
\
\
\
\
\
\f
Fluid 47RE: Dry Fill 17 Qts. (16L)
\
\
\
\
\
\
\
\f
Manual NV4500 4 Qts. (3.8L)
Transmission
Fluid
\
\
\
\
\
\
\
\f
Rear Axle DANA 70 Model 267 (2WD) 7 Pts. (3.3L)
Lubricant
\
\
\
\
\
\
\f
DANA 70 Model 267 (4WD) 7.8 Pts. (3.6L)
\
\
\
\
\
\
\f
DANA 80 Model 286 (2WD) 6.8.Pts. (3.2L)
\
\
\
\
\
\
\f
DANA 80 Model 286 (4WD) 10.1 Pts. (4.8L)
\
\
\
\
\
\
\
\f
Rear Axle Model 267 (2WD) 7 Pts. (3.3L)
Limited Slip
\
\
\
\
\
\
\f
Differential Model 267 (4WD) 7.8 Pts. (3.6L)
\
\
\
\
\
\
\f
Model 286 (2WD) 6.8 Pts. (3.2L)
\
\
\
\
\
\
\f
Model 286 (4WD) 10.1 Pts. (4.8L)
\
\
\
\
\
\
\
\f
Front Axle Model 248 7.6 Pts. (3.6L)
Lubricant
\
\
\
\
\
\
\
\f
Transfer Case NV241 HD 6.5 Pts. (3.1L)
Fluid
\
\
\
\
\
\
\
\f
Power Take NV021 4.6 Pts. (2.1L)
Off Adapter
\
\
\
\
\
\
\
\f
Power Drained 2.7 Pts. (1.3L)
Steering
Fluid
\
\
\
\
\
\
\
\f
A/C Charge Capacity 32 Oz. (.9Kg)
Refrigerant
Page 889 of 1691
![DODGE RAM 1999 Service Repair Manual
\
\
\
\
\
\](/img/12/56915/w960_56915-888.png "DODGE RAM 1999 Service Repair Manual
\
\
\
\
\
\")
\
\
\
\
\
\
\
\f
Refrigerant A/C System Capacity 7.75 Oz. (230ML)
Oil
\
\
\
\
\
\
\
\f
Fuel Tank Capacity 35 Gal. (132L)
\
\
\
\
\
\
\
\f
(
1) - Capacities are recommended or calculated levels. Always use
dipstick (if available) to measure level.
\
\
\
\
\
\
\
LUBRICATION SPECIFICATIONS - GAS
LUBRICATION SPECIFICATIONS TABLE - GAS \
\
\
\
\
\
\
Material Condition Specification
\
\
\
\
\
\
\
\f
Engine Oil Ambient Temperature Above 0 \bF SAE 10W-30
(
1) (-18\bC) To Over 100\bF (38\bC)
\
\
\
\
\
\
\f
Ambient Temperature Less Than SAE 5W-30
-20\bF (-29\bC) Up To 32\bF (0\bC)
\
\
\
\
\
\
\
\f
Engine All 50/50 Mixture Of
Coolant Distilled Water &
Ethylene Glycol
\
\
\
\
\
\
\
\f
Brake Fluid All DOT 3
\
\
\
\
\
\
\
\f
Automatic All ATF+2 Type 7176
Transmission
Fluid
\
\
\
\
\
\
\
\f
Transfer Case All ATF+2 Type 7176
Fluid Or DEXRON III ATF
\
\
\
\
\
\
\
\f
Manual NV-4500 75W-90 Synthc. API GL4
Transmission
\
\
\
\
\
\
\f
Fluid NV-3500 Mopar Manual
Transmission Fluid
\
\
\
\
\
\
\
\f
Steering All Mopar Multi-Mileage
Linkage Lubricant
Lubricant
\
\
\
\
\
\
\
\f
Wheel Bearing All High Temperature Multi-
Grease -Purporse EP Grease
\
\
\
\
\
\
\
\f
Rear Axle & All Mopar Hypoid Lubricant
4x4 Frt. Axle SAE 80W-90
Lubricant (
2) GL-5 Gear Lube
\
\
\
\
\
\
\
\f
Power All Mopar Power Steering
Steering Fluid Or Equivalant
Fluid (
3) Petroleum Based
\
\
\
\
\
\
\
\f
Clutch All Multipurpose Grease
Linkage NLGI Grade 2 E.P.
Lubricant
\
\
\
\
\
\
\
\f
A/C All R-134a
Page 890 of 1691
![DODGE RAM 1999 Service Repair Manual Refrigerant
\
\
\
\
\
\](/img/12/56915/w960_56915-889.png "DODGE RAM 1999 Service Repair Manual Refrigerant
\
\
\
\
\
\")
Refrigerant
\
\
\
\
\
\
\
\f
A/C All Polyalkalene Glycol
Refrigerant SP10 PAG
Oil Refrigerant Oil
\
\
\
\
\
\
\
\f
(
1) - SAE 10W-30 engine oil is preferred for use in all Dodge
trucks. Use only API approved oil with Starburst Symbol.
(
2) - Limited-Slip Differentials require the use of a 5% Friction
Modifier. Mopar Gear Oil Additive Friction Modifier
(
3) - Never add gear oil, automatic transmission fluid or
hydroboost power steering fluid.
\
\
\
\
\
\
\
FLUID CAPACITIES - GAS
FLUID CAPACITIES TABLE - GAS \
\
\
\
\
\
\
Item Condition Specification (1)
\
\
\
\
\
\
\
\f
Engine Oil 3.9L: Drained, W/New Filter 4 Qts. (3.8L)
\
\
\
\
\
\
\f
5.2L: Drained, W/New Filter 5 Qts. (4.7L)
\
\
\
\
\
\
\f
5.9L: Drained, W/New Filter 5 Qts. (4.7L)
\
\
\
\
\
\
\f
3.9L: Drained 3.5 Qts. (3.3L)
\
\
\
\
\
\
\f
5.2L: Drained 4.5 Qts. (4.2L)
\
\
\
\
\
\
\f
5.9L: Drained 4.5 Qts. (4.2L)
\
\
\
\
\
\
\
\f
Engine 3.9L: Drained 20 Qts. (19L)
Coolant
\
\
\
\
\
\
\f
5.2L: Drained 20 Qts. (19L)
\
\
\
\
\
\
\f
5.9L: Drained 20 Qts. (19L)
\
\
\
\
\
\
\
\f
Automatic 42RE: Dry Fill 17-22 Pts. (8-10.4L)
Transmission
\
\
\
\
\
\
\f
Fluid 46RE: Dry Fill 1726 Pts. (812.3L)
\
\
\
\
\
\
\
\f
Manual NV3500: Drained 4.2 Pts. (2L)
Transmission
\
\
\
\
\
\
\f
Fluid NV3500: Drained 8 Pts. (3.8L)
\
\
\
\
\
\
\
\f
Rear Axle 9-1/4: Drained 4.8 Pts. (2.3L)
Fluid
\
\
\
\
\
\
\f
Model 248 (2WD) 6.3 Pts. (3L)
\
\
\
\
\
\
\f
Model 248 (4WD) 7.3 Pts. (3.4L)
\
\
\
\
\
\
\f
Model 267 (2WD) 7 Pts. (3.3L)
\
\
\
\
\
\
\f
Model 267 (4WD) 7.8 Pts. (3.6L)
\
\
\
\
\
\
\f
Model 286 (2WD) 6.8.Pts. (3.2L)
\
\
\
\
\
\
\f
Model 286 (4WD) 10.1 Pts. (4.8L)
\
\
\
\
\
\
\
\f
Rear Axle Model 248 (2WD) 6.3 Pts. (3L)
