C105 - (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
1 L34 20RD/OR
2 L39 20LB
C106 - BLACK (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
1 G107 20GY
2 Z1 20BK
C106 - BLACK (4X4 INDICATOR SIDE)
CAV CIRCUIT
1 G107 18BK/GY
2 Z1 18BK
C114 - BLACK (AMBIENT TEMPERATURE SEN-
SOR SIDE)
CAV CIRCUIT
1 G31 20VT/LG
2 G32 20BK/VT
C114 - BLACK (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
1 G31 20VT/LG
2 G32 20BK/VT

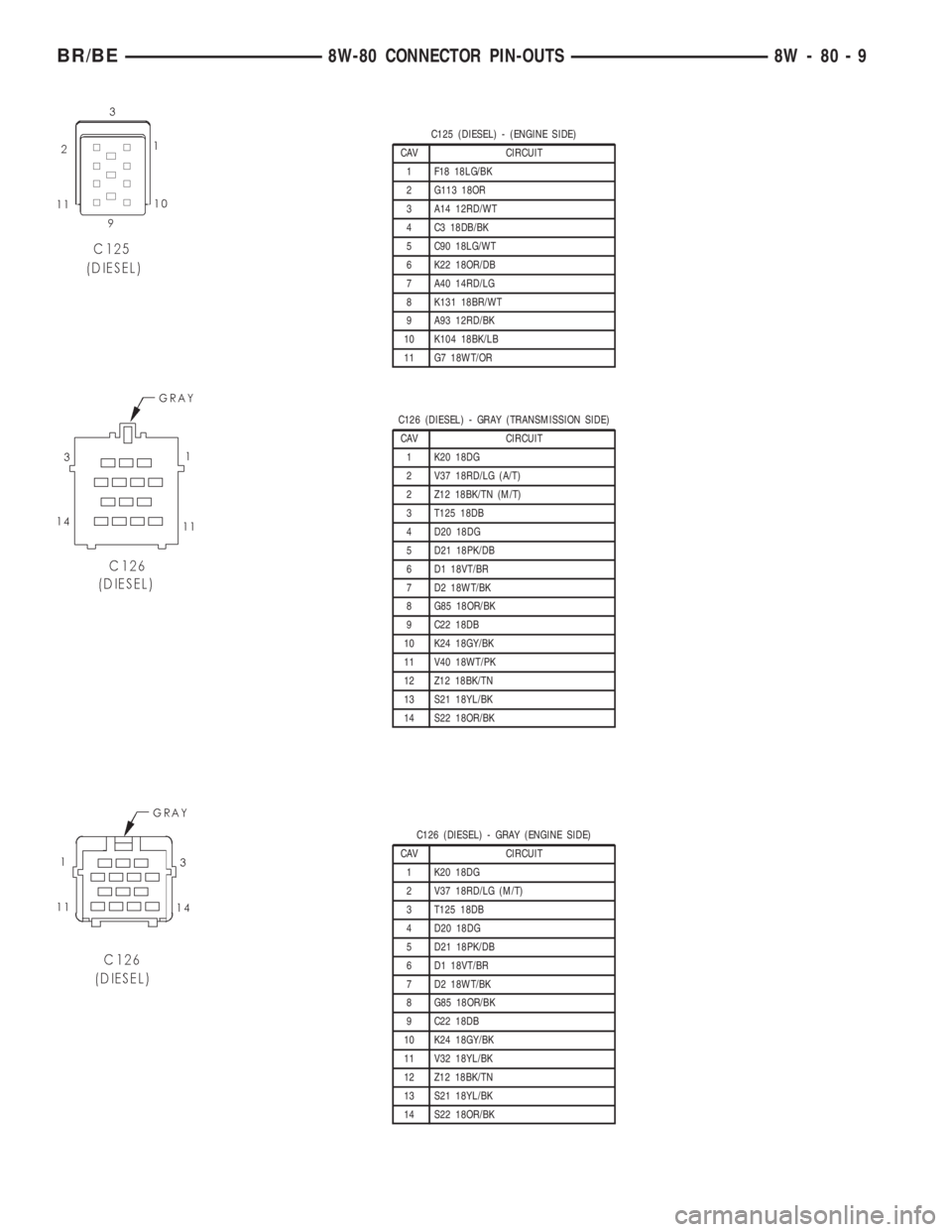

C125 (DIESEL) - (TRANSMISSION SIDE)
CAV CIRCUIT
1 F18 18LG/BK
2 G113 18OR
3 A14 14RD/WT
4 C3 18DB/BK
5 C90 18LG/WT
6 K22 18OR/DB
7 A40 14RD/LG
8 K131 18BR/WT
9 A93 12RD/BK
10 K104 18BK/LB
11 G7 18WT/OR
8W - 80 - 8 8W-80 CONNECTOR PIN-OUTSBR/BE
Page 1022 of 2889
C125 (DIESEL) - (ENGINE SIDE)
CAV CIRCUIT
1 F18 18LG/BK
2 G113 18OR
3 A14 12RD/WT
4 C3 18DB/BK
5 C90 18LG/WT
6 K22 18OR/DB
7 A40 14RD/LG
8 K131 18BR/WT
9 A93 12RD/BK
10 K104 18BK/LB
11 G7 18WT/OR
C126 (DIESEL) - GRAY (TRANSMISSION SIDE)
CAV CIRCUIT
1 K20 18DG
2 V37 18RD/LG (A/T)
2 Z12 18BK/TN (M/T)
3 T125 18DB
4 D20 18DG
5 D21 18PK/DB
6 D1 18VT/BR
7 D2 18WT/BK
8 G85 18OR/BK
9 C22 18DB
10 K24 18GY/BK
11 V40 18WT/PK
12 Z12 18BK/TN
13 S21 18YL/BK
14 S22 18OR/BK
C126 (DIESEL) - GRAY (ENGINE SIDE)
CAV CIRCUIT
1 K20 18DG
2 V37 18RD/LG (M/T)
3 T125 18DB
4 D20 18DG
5 D21 18PK/DB
6 D1 18VT/BR
7 D2 18WT/BK
8 G85 18OR/BK
9 C22 18DB
10 K24 18GY/BK
11 V32 18YL/BK
12 Z12 18BK/TN
13 S21 18YL/BK
14 S22 18OR/BK
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 9
Page 1023 of 2889

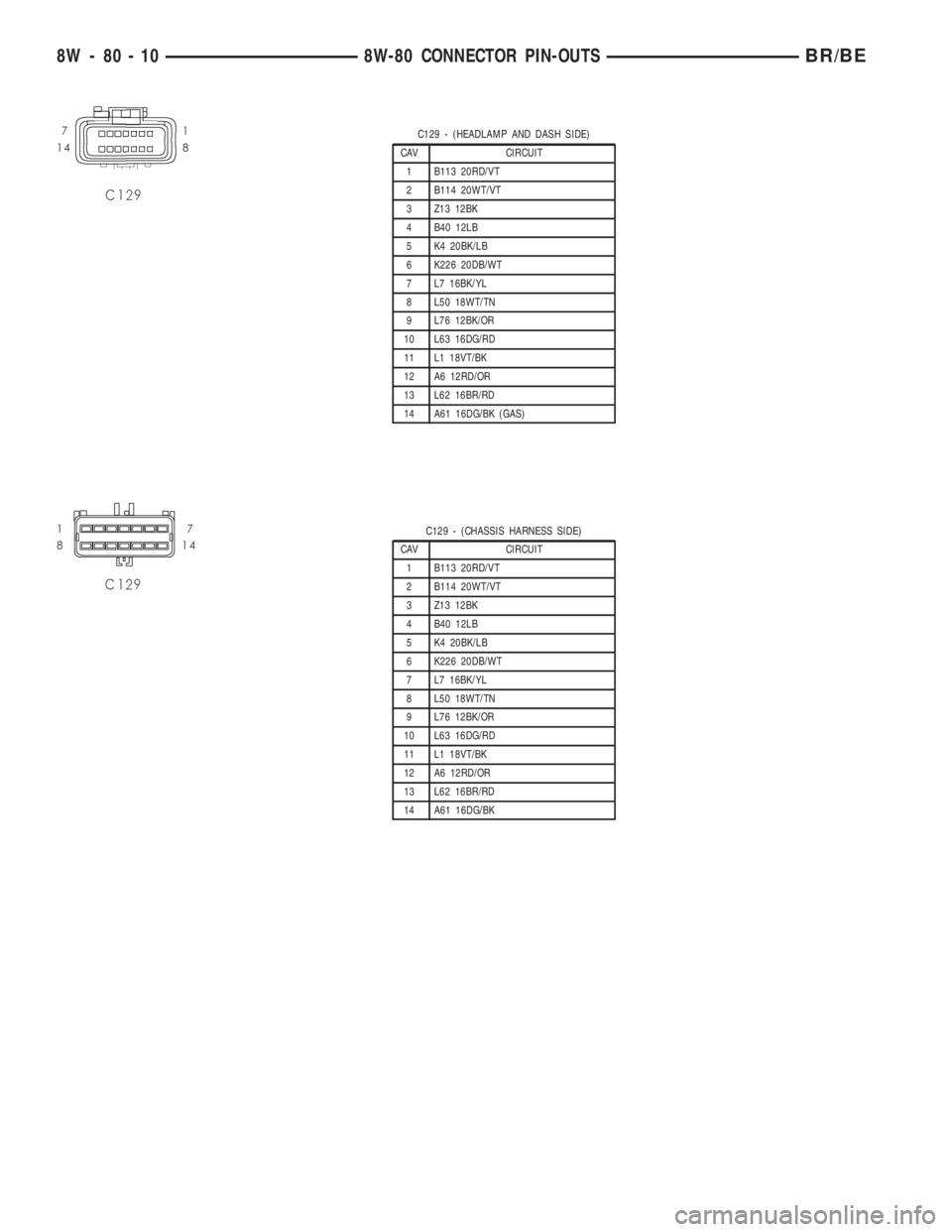

C129 - (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
1 B113 20RD/VT
2 B114 20WT/VT
3 Z13 12BK
4 B40 12LB
5 K4 20BK/LB
6 K226 20DB/WT
7 L7 16BK/YL
8 L50 18WT/TN
9 L76 12BK/OR
10 L63 16DG/RD
11 L1 18VT/BK
12 A6 12RD/OR
13 L62 16BR/RD
14 A61 16DG/BK (GAS)
C129 - (CHASSIS HARNESS SIDE)
CAV CIRCUIT
1 B113 20RD/VT
2 B114 20WT/VT
3 Z13 12BK
4 B40 12LB
5 K4 20BK/LB
6 K226 20DB/WT
7 L7 16BK/YL
8 L50 18WT/TN
9 L76 12BK/OR
10 L63 16DG/RD
11 L1 18VT/BK
12 A6 12RD/OR
13 L62 16BR/RD
14 A61 16DG/BK
8W - 80 - 10 8W-80 CONNECTOR PIN-OUTSBR/BE
Page 1024 of 2889

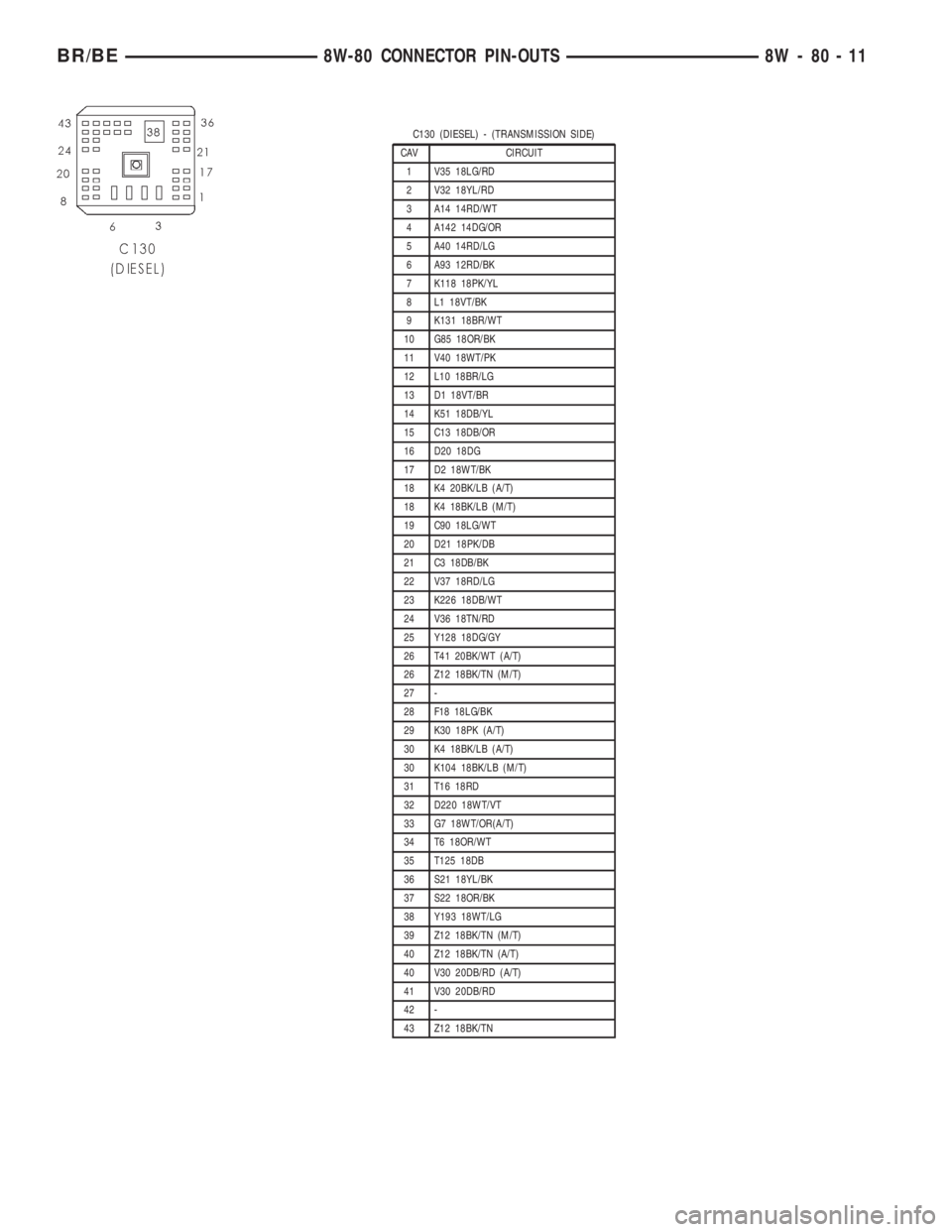

C130 (DIESEL) - (TRANSMISSION SIDE)
CAV CIRCUIT
1 V35 18LG/RD
2 V32 18YL/RD
3 A14 14RD/WT
4 A142 14DG/OR
5 A40 14RD/LG
6 A93 12RD/BK
7 K118 18PK/YL
8 L1 18VT/BK
9 K131 18BR/WT
10 G85 18OR/BK
11 V40 18WT/PK
12 L10 18BR/LG
13 D1 18VT/BR
14 K51 18DB/YL
15 C13 18DB/OR
16 D20 18DG
17 D2 18WT/BK
18 K4 20BK/LB (A/T)
18 K4 18BK/LB (M/T)
19 C90 18LG/WT
20 D21 18PK/DB
21 C3 18DB/BK
22 V37 18RD/LG
23 K226 18DB/WT
24 V36 18TN/RD
25 Y128 18DG/GY
26 T41 20BK/WT (A/T)
26 Z12 18BK/TN (M/T)
27 -
28 F18 18LG/BK
29 K30 18PK (A/T)
30 K4 18BK/LB (A/T)
30 K104 18BK/LB (M/T)
31 T16 18RD
32 D220 18WT/VT
33 G7 18WT/OR(A/T)
34 T6 18OR/WT
35 T125 18DB
36 S21 18YL/BK
37 S22 18OR/BK
38 Y193 18WT/LG
39 Z12 18BK/TN (M/T)
40 Z12 18BK/TN (A/T)
40 V30 20DB/RD (A/T)
41 V30 20DB/RD
42 -
43 Z12 18BK/TN
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 11
Page 1025 of 2889
C130 (DIESEL) (IN PDC) - (HEADLAMP AND
DASH SIDE)
CAV CIRCUIT
1 V35 20LG/RD
2 V32 20YL/RD
3 A14 16RD/WT
4 A142 14DG/OR
5 A40 14RD/LG
6 A93 12RD/BK
7 K118 20PK/YL
8 L1 18VT/BK
9 K131 20BR/WT
10 G85 22OR/BK
11 V40 22WT/PK
12 L10 18BR/LG
13 D1 20VT/BR
14 K51 20DB/YL
15 C13 22DB/OR
16 D20 20DG
17 D2 20WT/BK
18 K4 22BK/LB
19 C90 22LG/WT
20 D21 20PK/DB
21 C3 22DB/BK
22 V37 22RD/LG
23 K226 20DB/WT
24 V36 20TN/RD
25 Y128 18DG/GY
26 T41 22BK/WT
27 K31 20BR/WT
28 F18 20LG/BK
29 K30 22PK
30 A341 20DG/YL
31 T16 18RD
32 D220 20WT/VT
33 G7 20WT/OR
34 T6 22OR/WT
35 T125 18DB
36 S21 18YL/BK
37 S22 18OR/BK
38 Y193 18WT/LG
39 Z12 18BK/TN
40 V30 20DB/RD
41 V30 20DB/RD
42 K52 18PK/WT
43 Z12 18BK/TN
8W - 80 - 12 8W-80 CONNECTOR PIN-OUTSBR/BE
Page 1026 of 2889

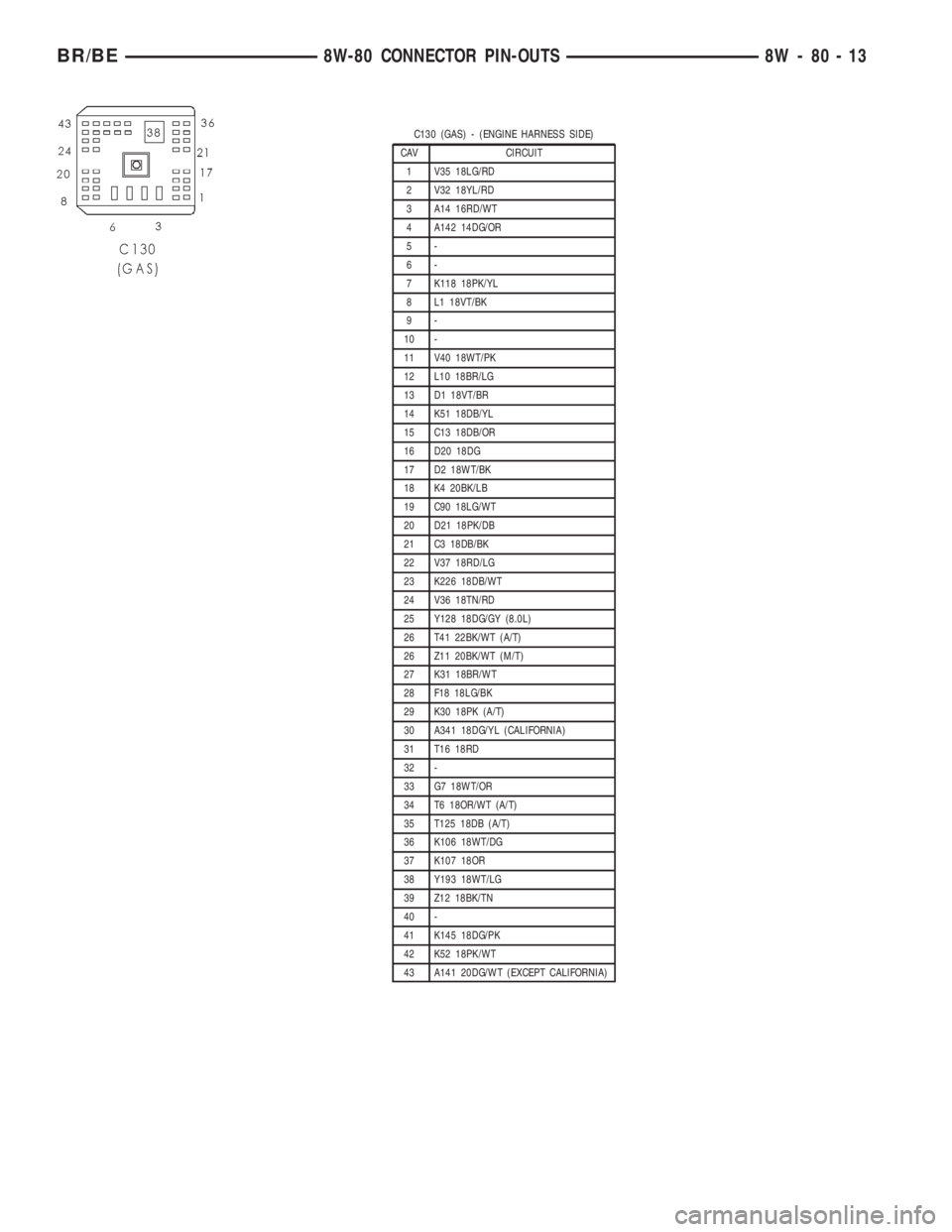

C130 (GAS) - (ENGINE HARNESS SIDE)
CAV CIRCUIT
1 V35 18LG/RD
2 V32 18YL/RD
3 A14 16RD/WT
4 A142 14DG/OR
5-
6-
7 K118 18PK/YL
8 L1 18VT/BK
9-
10 -
11 V40 18WT/PK
12 L10 18BR/LG
13 D1 18VT/BR
14 K51 18DB/YL
15 C13 18DB/OR
16 D20 18DG
17 D2 18WT/BK
18 K4 20BK/LB
19 C90 18LG/WT
20 D21 18PK/DB
21 C3 18DB/BK
22 V37 18RD/LG
23 K226 18DB/WT
24 V36 18TN/RD
25 Y128 18DG/GY (8.0L)
26 T41 22BK/WT (A/T)
26 Z11 20BK/WT (M/T)
27 K31 18BR/WT
28 F18 18LG/BK
29 K30 18PK (A/T)
30 A341 18DG/YL (CALIFORNIA)
31 T16 18RD
32 -
33 G7 18WT/OR
34 T6 18OR/WT (A/T)
35 T125 18DB (A/T)
36 K106 18WT/DG
37 K107 18OR
38 Y193 18WT/LG
39 Z12 18BK/TN
40 -
41 K145 18DG/PK
42 K52 18PK/WT
43 A141 20DG/WT (EXCEPT CALIFORNIA)
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 13
Page 1027 of 2889
C130 (GAS) (IN PDC) - (HEADLAMP AND DASH
SIDE)
CAV CIRCUIT
1 V35 20LG/RD
2 V32 20YL/RD
3 A14 16RD/WT
4 A142 14DG/OR
5-
6 A93 12RD/BK
7 K118 20PK/YL
8 L1 18VT/BK
9-
10 -
11 V40 22WT/PK
12 L10 18BR/LG
13 D1 20VT/BR
14 K51 20DB/YL
15 C13 22DB/OR
16 D20 20DG
17 D2 20WT/BK
18 K4 22BK/LB
19 C90 22LG/WT
20 D21 20PK/DB
21 C3 22DB/BK
22 V37 22RD/LG
23 K226 20DB/WT
24 V36 18TN/RD
25 Y128 18DG/GY (8.0L)
26 T41 22BK/WT
27 K31 20BR/WT
28 F18 20LG/BK
29 K30 22PK (A/T)
30 A341 20DG/YL (CALIFORNIA)
31 T16 18RD
32 -
33 G7 20WT/OR
34 T6 22OR/WT (A/T)
35 T125 18DB (A/T)
36 K106 18WT/DG
37 K107 18OR
38 Y193 18WT/LG
39 Z12 18BK/TN
40 -
41 K145 20DG/PK
42 K52 18PK/WT
43 A141 20DG/WT (EXCEPT CALIFORNIA)
8W - 80 - 14 8W-80 CONNECTOR PIN-OUTSBR/BE
Page 1028 of 2889

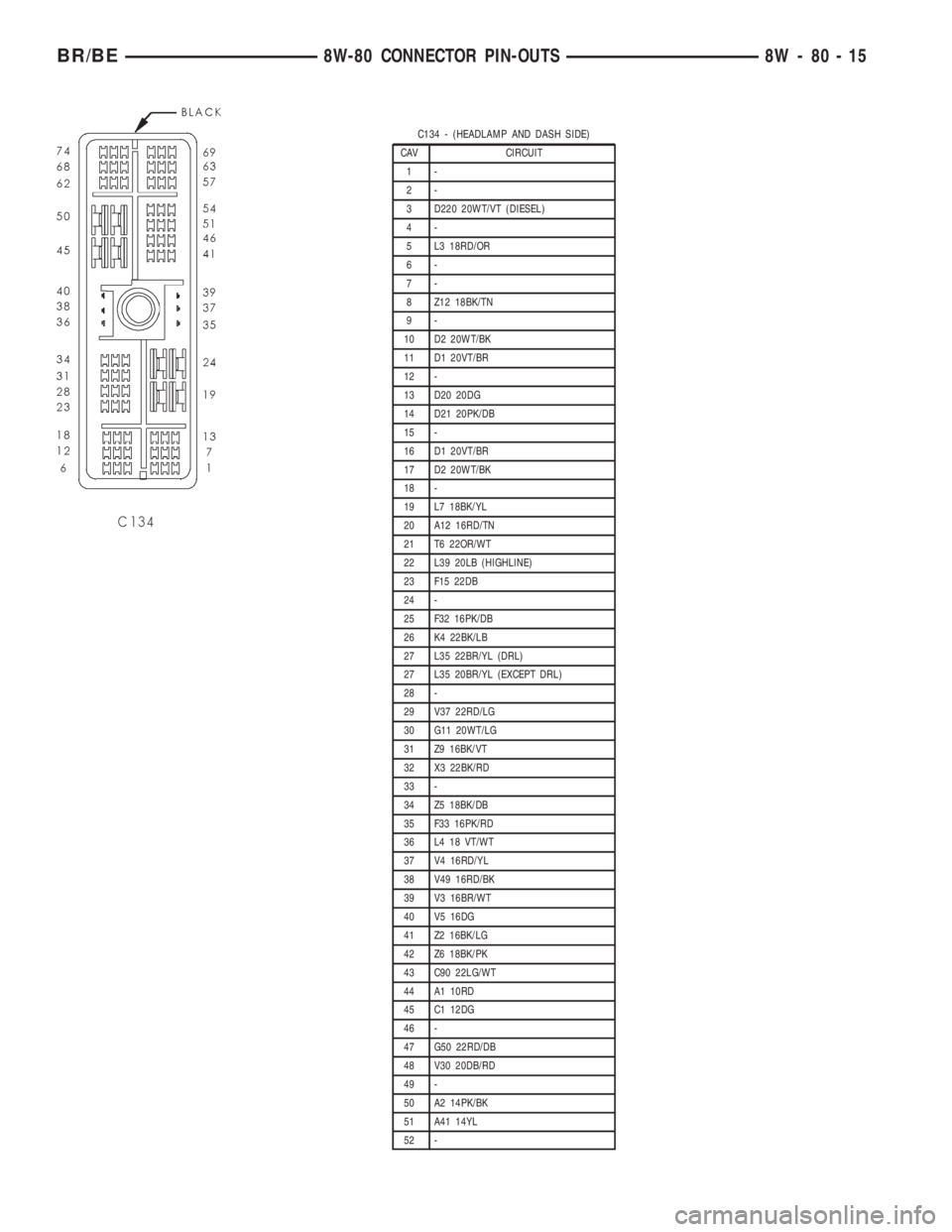

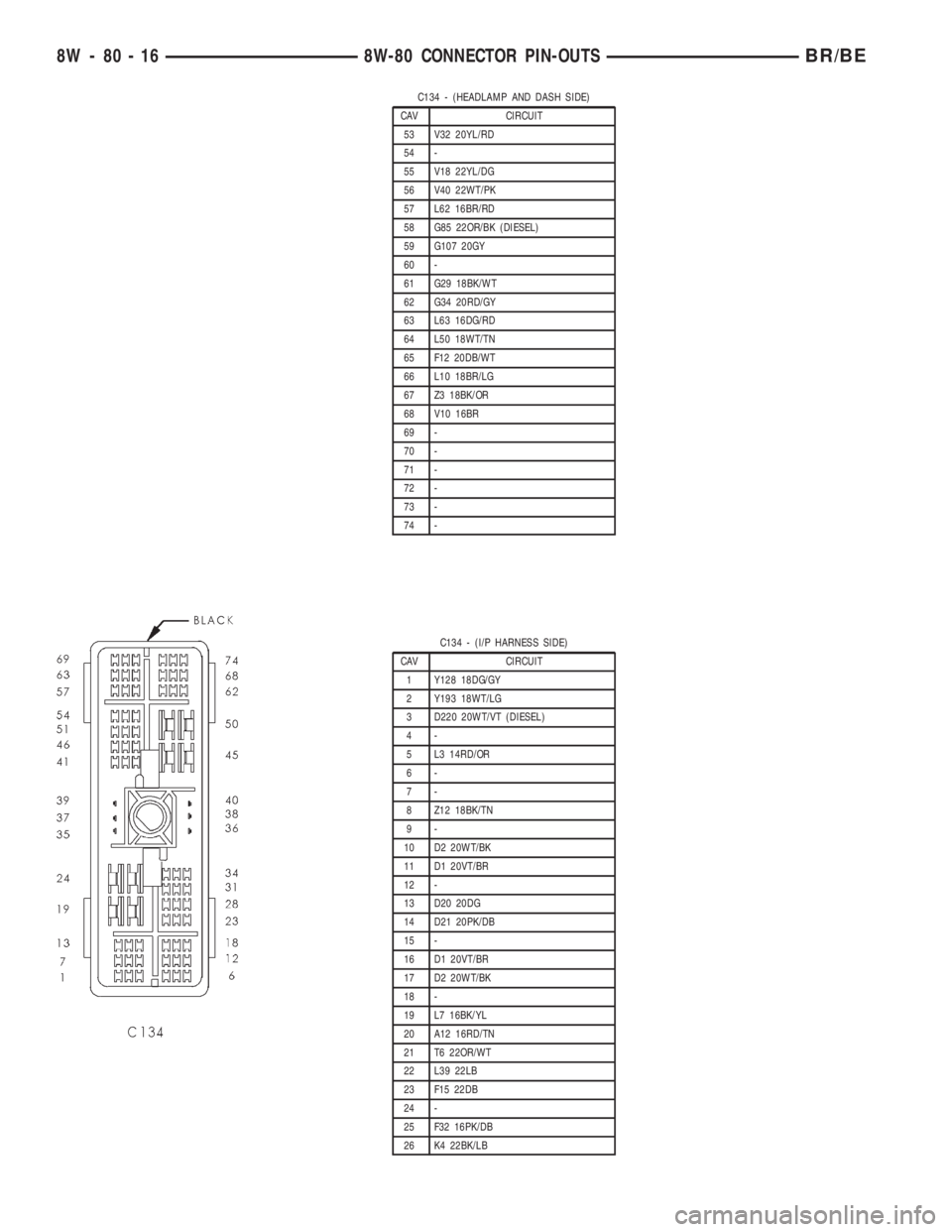

C134 - (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
1-
2-
3 D220 20WT/VT (DIESEL)
4-
5 L3 18RD/OR
6-
7-
8 Z12 18BK/TN
9-
10 D2 20WT/BK
11 D1 20VT/BR
12 -
13 D20 20DG
14 D21 20PK/DB
15 -
16 D1 20VT/BR
17 D2 20WT/BK
18 -
19 L7 18BK/YL
20 A12 16RD/TN
21 T6 22OR/WT
22 L39 20LB (HIGHLINE)
23 F15 22DB
24 -
25 F32 16PK/DB
26 K4 22BK/LB
27 L35 22BR/YL (DRL)
27 L35 20BR/YL (EXCEPT DRL)
28 -
29 V37 22RD/LG
30 G11 20WT/LG
31 Z9 16BK/VT
32 X3 22BK/RD
33 -
34 Z5 18BK/DB
35 F33 16PK/RD
36 L4 18 VT/WT
37 V4 16RD/YL
38 V49 16RD/BK
39 V3 16BR/WT
40 V5 16DG
41 Z2 16BK/LG
42 Z6 18BK/PK
43 C90 22LG/WT
44 A1 10RD
45 C1 12DG
46 -
47 G50 22RD/DB
48 V30 20DB/RD
49 -
50 A2 14PK/BK
51 A41 14YL
52 -
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 15
Page 1029 of 2889
C134 - (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
53 V32 20YL/RD
54 -
55 V18 22YL/DG
56 V40 22WT/PK
57 L62 16BR/RD
58 G85 22OR/BK (DIESEL)
59 G107 20GY
60 -
61 G29 18BK/WT
62 G34 20RD/GY
63 L63 16DG/RD
64 L50 18WT/TN
65 F12 20DB/WT
66 L10 18BR/LG
67 Z3 18BK/OR
68 V10 16BR
69 -
70 -
71 -
72 -
73 -
74 -

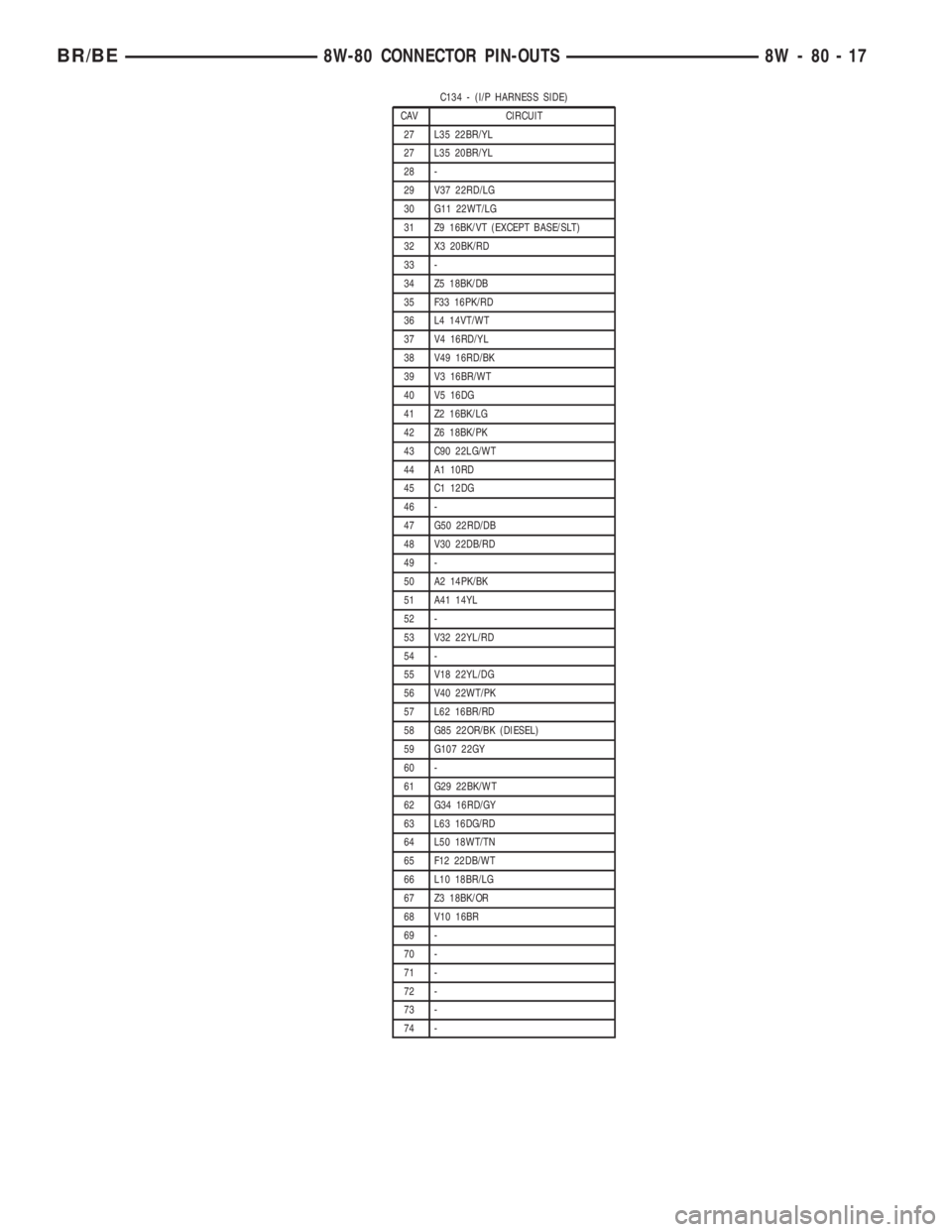

C134 - (I/P HARNESS SIDE)
CAV CIRCUIT
1 Y128 18DG/GY
2 Y193 18WT/LG
3 D220 20WT/VT (DIESEL)
4-
5 L3 14RD/OR
6-
7-
8 Z12 18BK/TN
9-
10 D2 20WT/BK
11 D1 20VT/BR
12 -
13 D20 20DG
14 D21 20PK/DB
15 -
16 D1 20VT/BR
17 D2 20WT/BK
18 -
19 L7 16BK/YL
20 A12 16RD/TN
21 T6 22OR/WT
22 L39 22LB
23 F15 22DB
24 -
25 F32 16PK/DB
26 K4 22BK/LB
8W - 80 - 16 8W-80 CONNECTOR PIN-OUTSBR/BE
Page 1030 of 2889
C134 - (I/P HARNESS SIDE)
CAV CIRCUIT
27 L35 22BR/YL
27 L35 20BR/YL
28 -
29 V37 22RD/LG
30 G11 22WT/LG
31 Z9 16BK/VT (EXCEPT BASE/SLT)
32 X3 20BK/RD
33 -
34 Z5 18BK/DB
35 F33 16PK/RD
36 L4 14VT/WT
37 V4 16RD/YL
38 V49 16RD/BK
39 V3 16BR/WT
40 V5 16DG
41 Z2 16BK/LG
42 Z6 18BK/PK
43 C90 22LG/WT
44 A1 10RD
45 C1 12DG
46 -
47 G50 22RD/DB
48 V30 22DB/RD
49 -
50 A2 14PK/BK
51 A41 14YL
52 -
53 V32 22YL/RD
54 -
55 V18 22YL/DG
56 V40 22WT/PK
57 L62 16BR/RD
58 G85 22OR/BK (DIESEL)
59 G107 22GY
60 -
61 G29 22BK/WT
62 G34 16RD/GY
63 L63 16DG/RD
64 L50 18WT/TN
65 F12 22DB/WT
66 L10 18BR/LG
67 Z3 18BK/OR
68 V10 16BR
69 -
70 -
71 -
72 -
73 -
74 -
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 17
