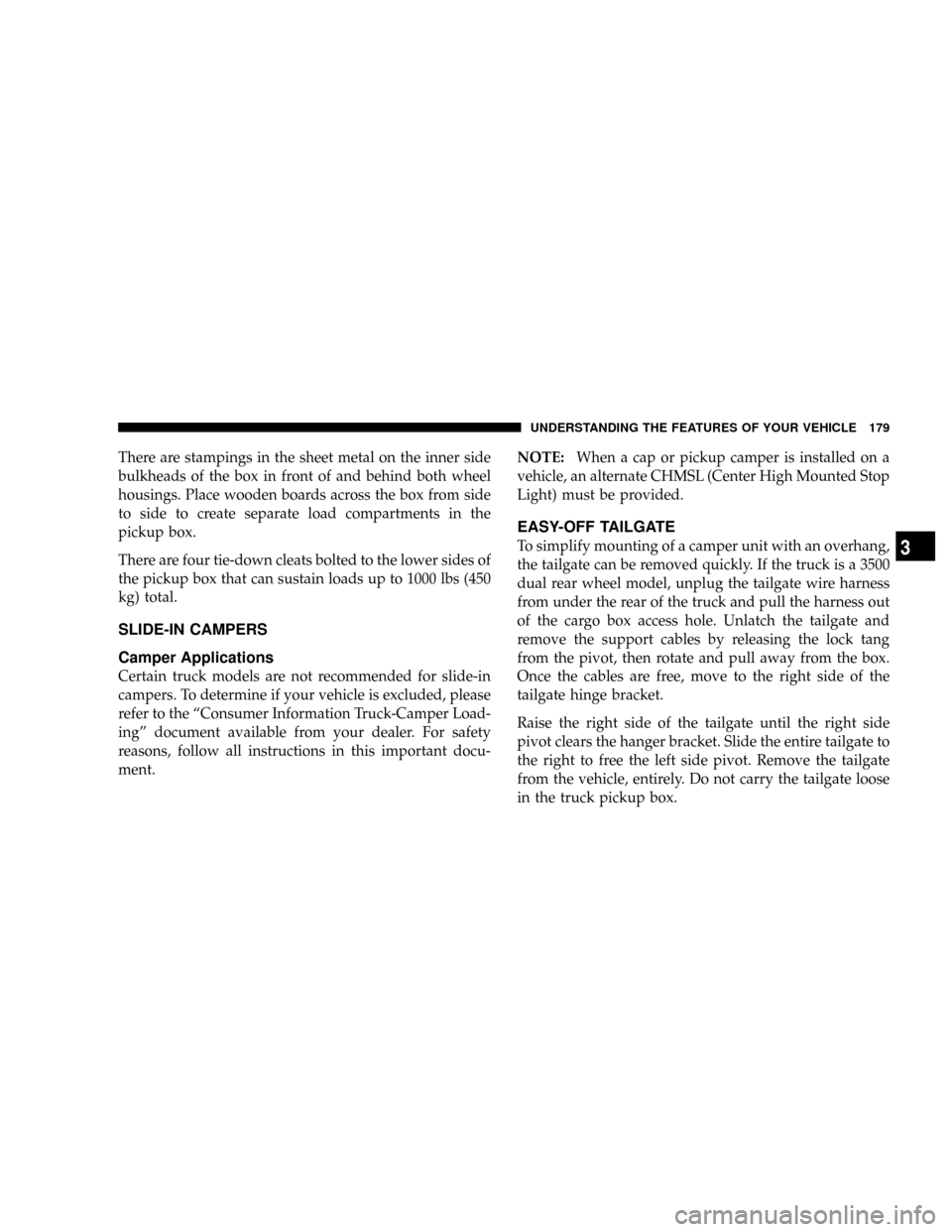

There are stampings in the sheet metal on the inner side
bulkheads of the box in front of and behind both wheel
housings. Place wooden boards across the box from side
to side to create separate load compartments in the
pickup box.
There are four tie-down cleats bolted to the lower sides of
the pickup box that can sustain loads up to 1000 lbs (450
kg) total.
SLIDE-IN CAMPERS
Camper Applications
Certain truck models are not recommended for slide-in
campers. To determine if your vehicle is excluded, please
refer to the ªConsumer Information Truck-Camper Load-
ingº document available from your dealer. For safety
reasons, follow all instructions in this important docu-
ment.NOTE:When a cap or pickup camper is installed on a
vehicle, an alternate CHMSL (Center High Mounted Stop
Light) must be provided.
EASY-OFF TAILGATE
To simplify mounting of a camper unit with an overhang,
the tailgate can be removed quickly. If the truck is a 3500
dual rear wheel model, unplug the tailgate wire harness
from under the rear of the truck and pull the harness out
of the cargo box access hole. Unlatch the tailgate and
remove the support cables by releasing the lock tang
from the pivot, then rotate and pull away from the box.
Once the cables are free, move to the right side of the
tailgate hinge bracket.
Raise the right side of the tailgate until the right side
pivot clears the hanger bracket. Slide the entire tailgate to
the right to free the left side pivot. Remove the tailgate
from the vehicle, entirely. Do not carry the tailgate loose
in the truck pickup box.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179
3

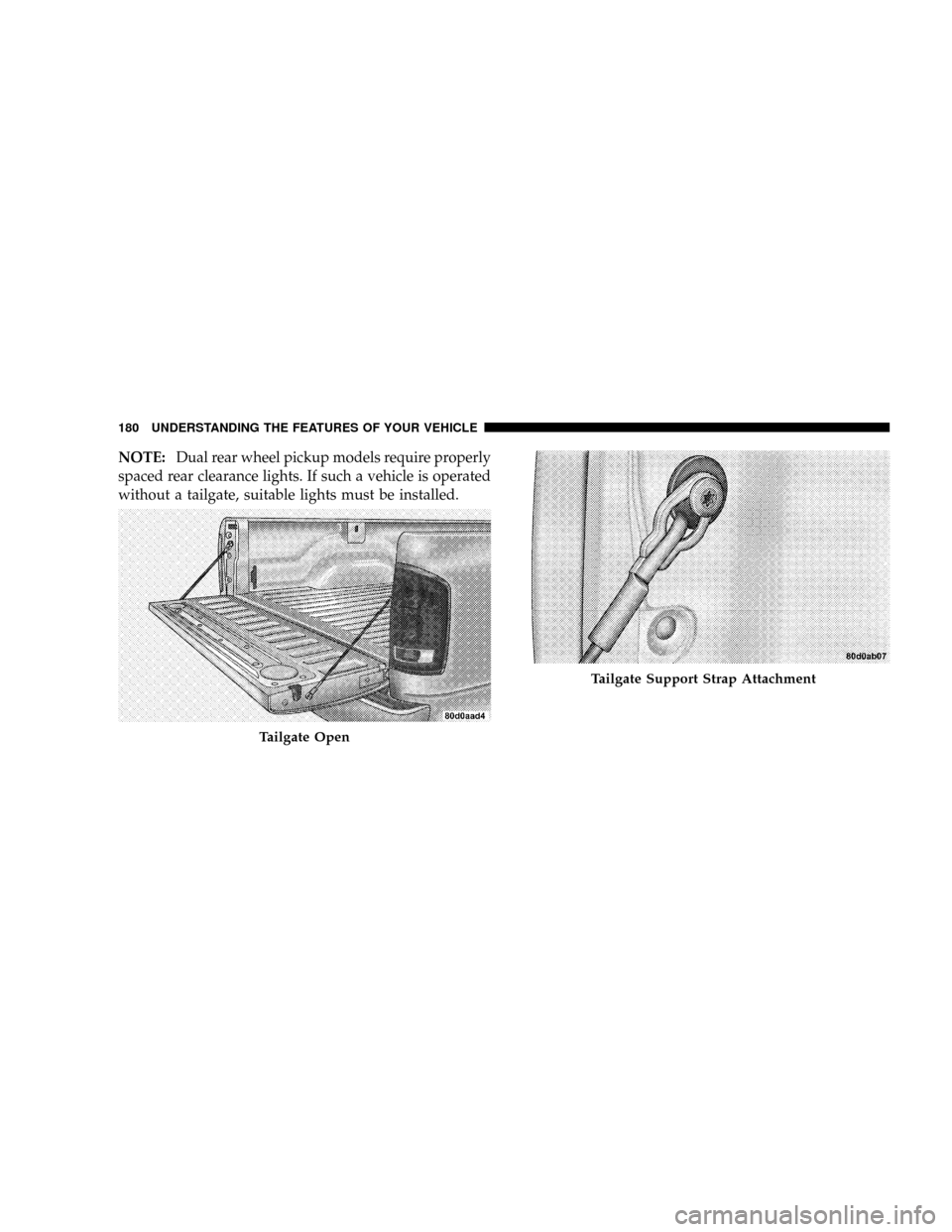

NOTE:Dual rear wheel pickup models require properly
spaced rear clearance lights. If such a vehicle is operated
without a tailgate, suitable lights must be installed.
Tailgate Open
Tailgate Support Strap Attachment
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

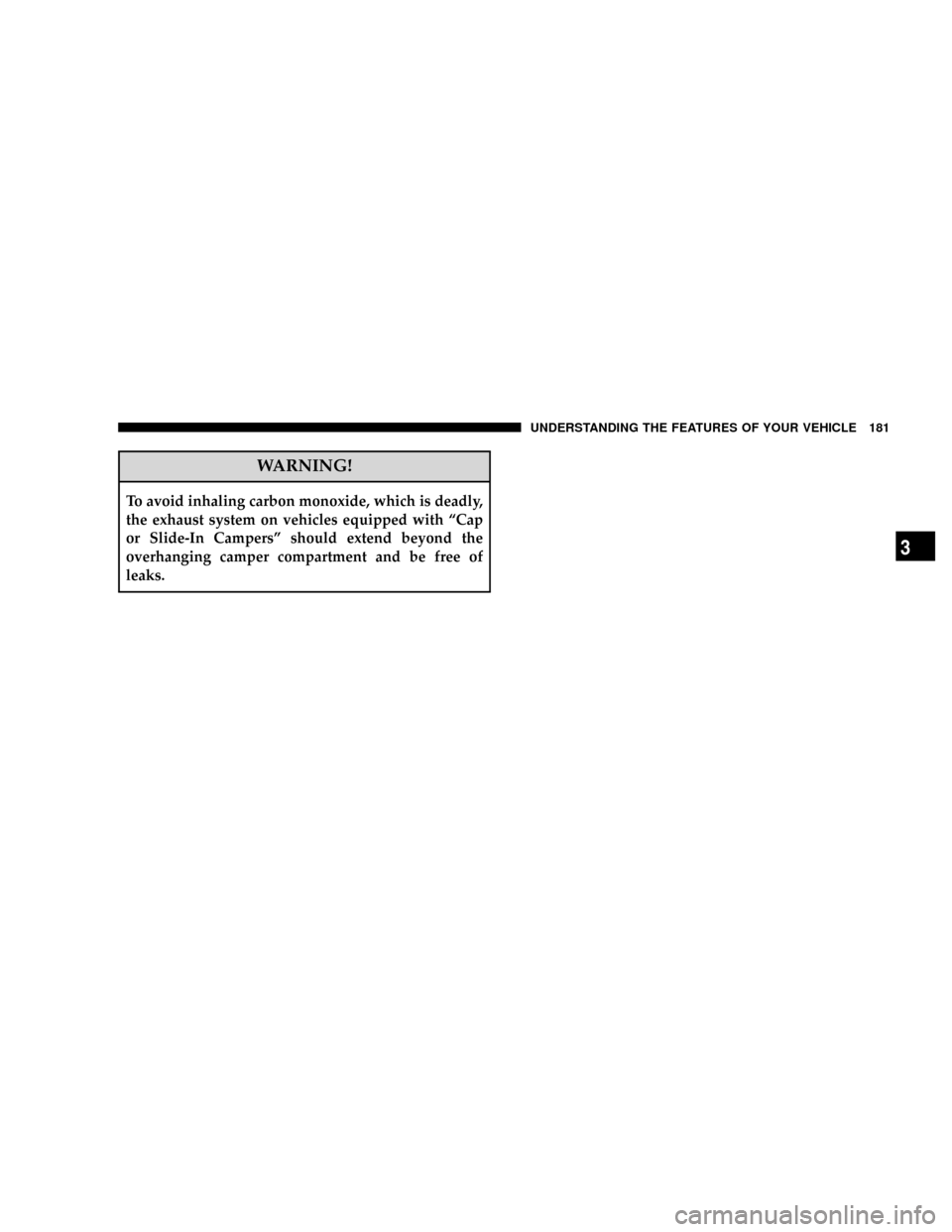

WARNING!
To avoid inhaling carbon monoxide, which is deadly,
the exhaust system on vehicles equipped with ªCap
or Slide-In Campersº should extend beyond the
overhanging camper compartment and be free of
leaks.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181
3

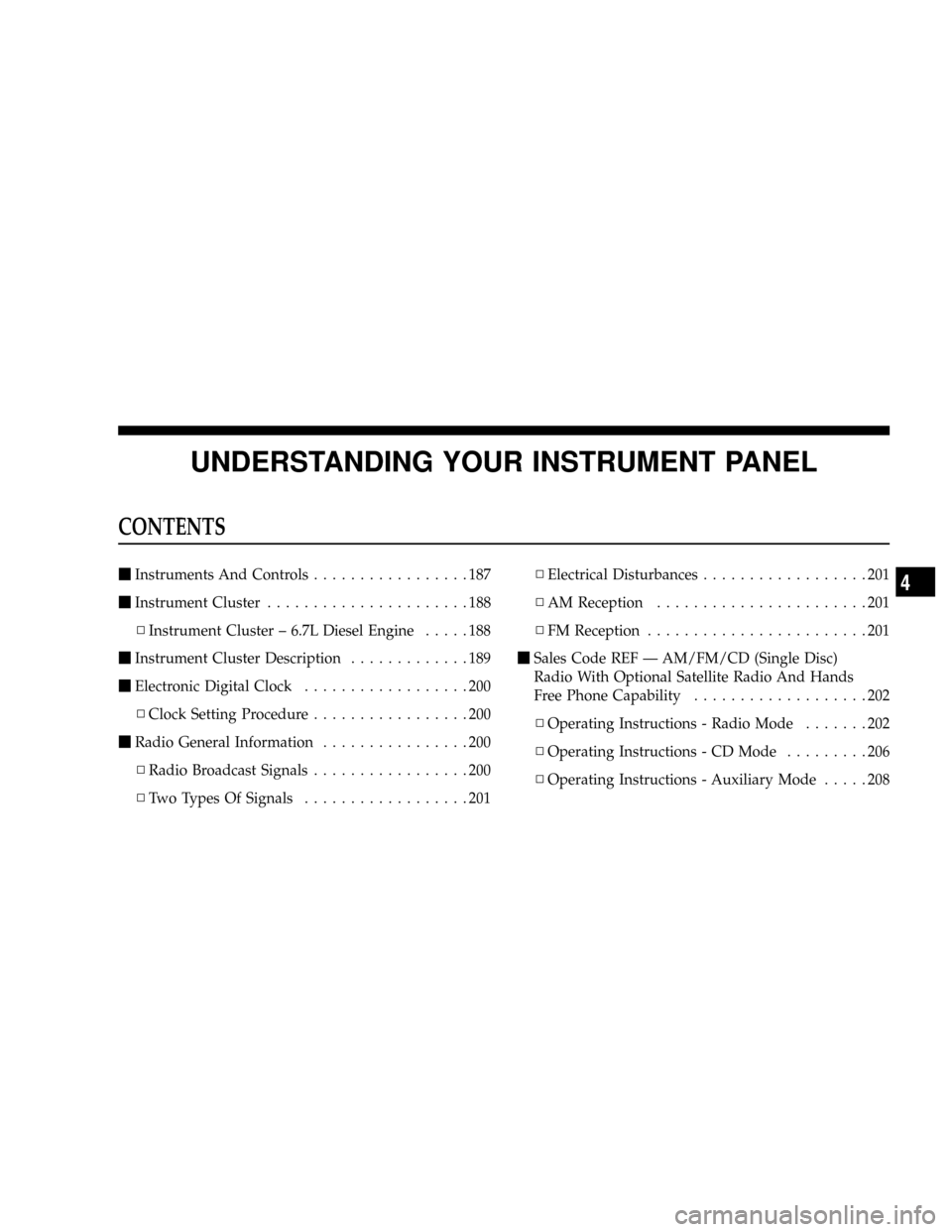

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
mInstruments And Controls.................187
mInstrument Cluster......................188
NInstrument Cluster ± 6.7L Diesel Engine.....188
mInstrument Cluster Description.............189
mElectronic Digital Clock..................200
NClock Setting Procedure.................200
mRadio General Information................200
NRadio Broadcast Signals.................200
NTwo Types Of Signals..................201NElectrical Disturbances..................201
NAM Reception.......................201
NFM Reception........................201
mSales Code REF Ð AM/FM/CD (Single Disc)
Radio With Optional Satellite Radio And Hands
Free Phone Capability...................202
NOperating Instructions - Radio Mode.......202
NOperating Instructions - CD Mode.........206
NOperating Instructions - Auxiliary Mode.....2084

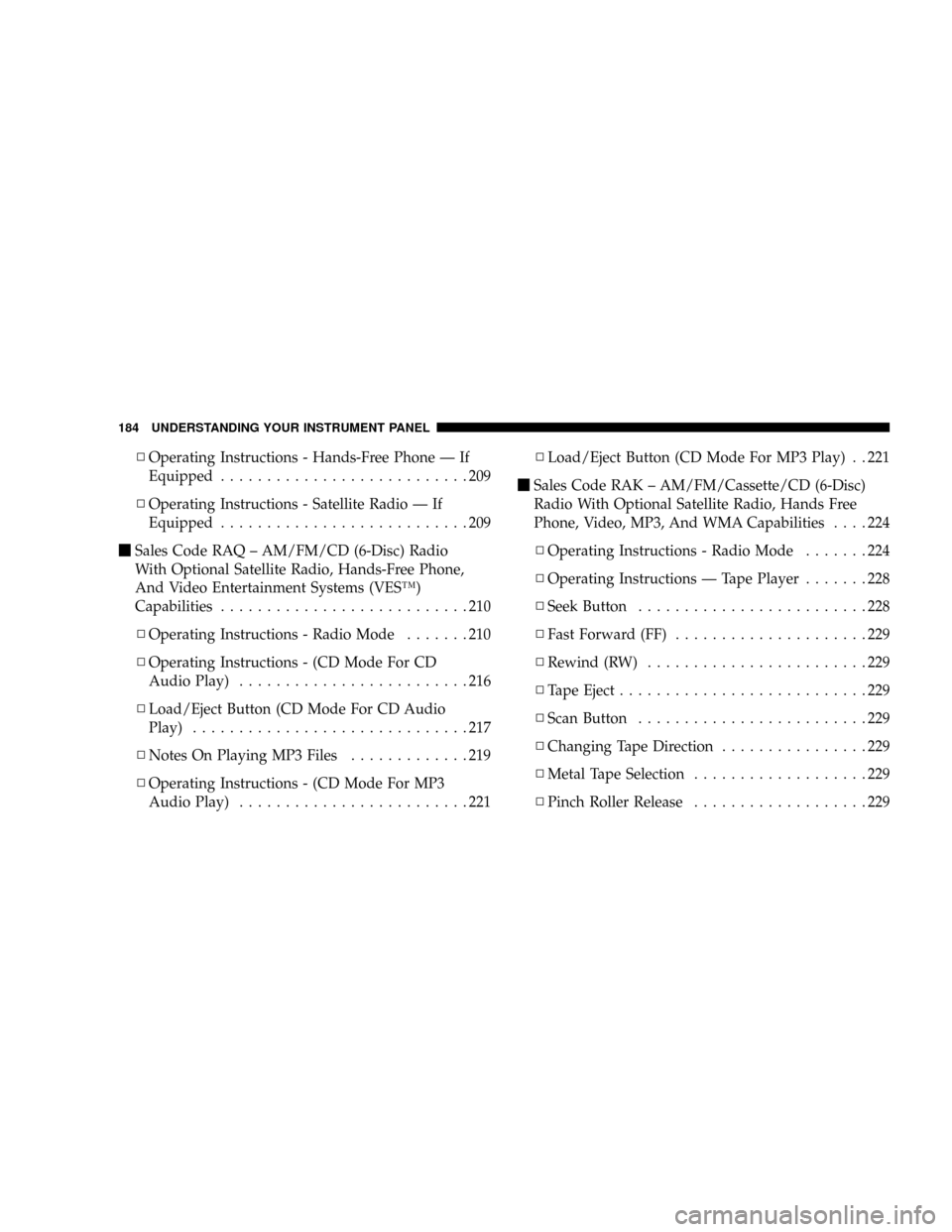

NOperating Instructions - Hands-Free Phone Ð If
Equipped...........................209
NOperating Instructions - Satellite Radio Ð If
Equipped...........................209
mSales Code RAQ ± AM/FM/CD (6-Disc) Radio
With Optional Satellite Radio, Hands-Free Phone,
And Video Entertainment Systems (VESŸ)
Capabilities...........................210
NOperating Instructions - Radio Mode.......210
NOperating Instructions - (CD Mode For CD
Audio Play).........................216
NLoad/Eject Button (CD Mode For CD Audio
Play)..............................217
NNotes On Playing MP3 Files.............219
NOperating Instructions - (CD Mode For MP3
Audio Play).........................221NLoad/Eject Button (CD Mode For MP3 Play) . . 221
mSales Code RAK ± AM/FM/Cassette/CD (6-Disc)
Radio With Optional Satellite Radio, Hands Free
Phone, Video, MP3, And WMA Capabilities....224
NOperating Instructions - Radio Mode.......224
NOperating Instructions Ð Tape Player.......228
NSeek Button.........................228
NFast Forward (FF).....................229
NRewind (RW)........................229
NTape Eject...........................229
NScan Button.........................229
NChanging Tape Direction................229
NMetal Tape Selection...................229
NPinch Roller Release...................229
184 UNDERSTANDING YOUR INSTRUMENT PANEL

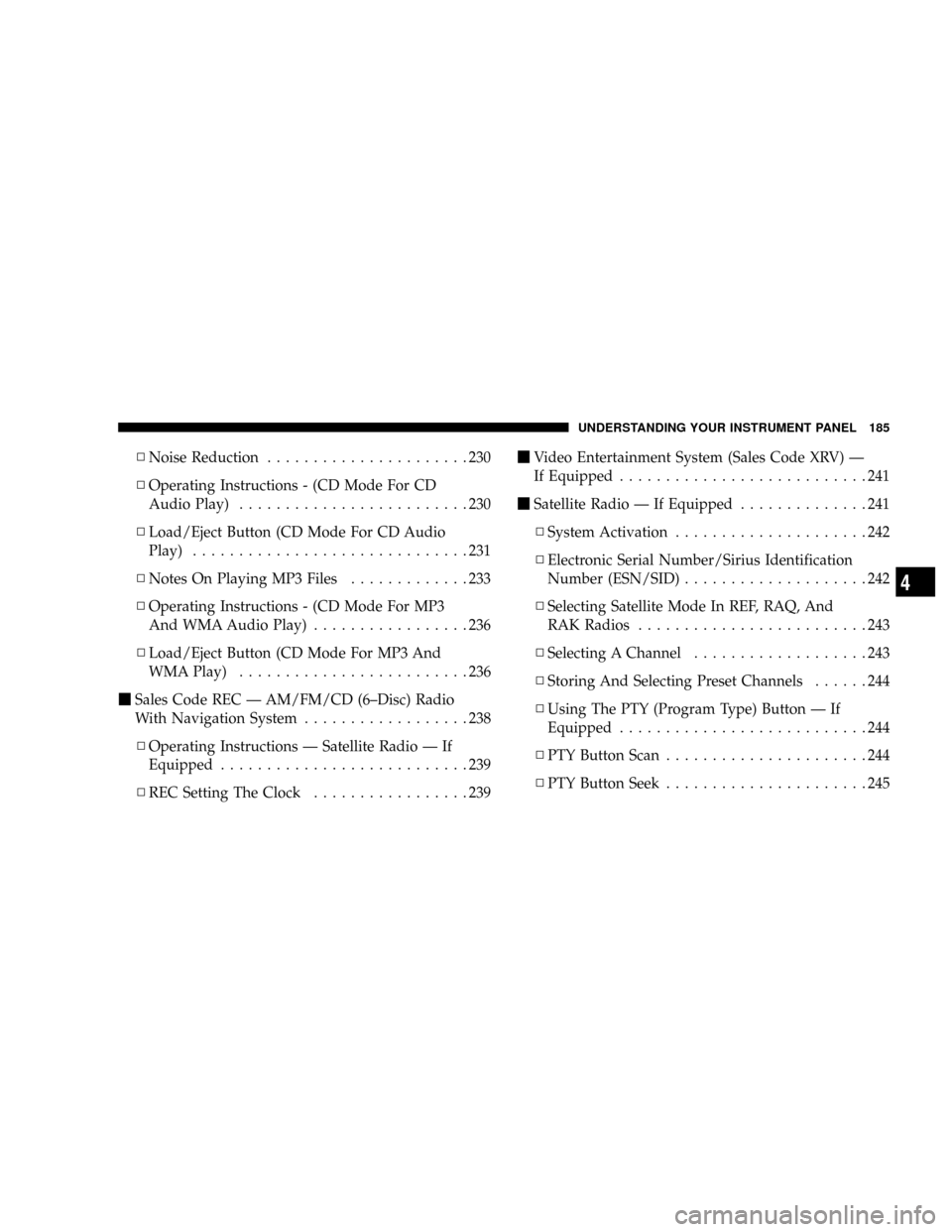

NNoise Reduction......................230
NOperating Instructions - (CD Mode For CD
Audio Play).........................230
NLoad/Eject Button (CD Mode For CD Audio
Play)..............................231
NNotes On Playing MP3 Files.............233
NOperating Instructions - (CD Mode For MP3
And WMA Audio Play).................236
NLoad/Eject Button (CD Mode For MP3 And
WMA Play).........................236
mSales Code REC Ð AM/FM/CD (6±Disc) Radio
With Navigation System..................238
NOperating Instructions Ð Satellite Radio Ð If
Equipped...........................239
NREC Setting The Clock.................239mVideo Entertainment System (Sales Code XRV) Ð
If Equipped...........................241
mSatellite Radio Ð If Equipped..............241
NSystem Activation.....................242
NElectronic Serial Number/Sirius Identification
Number (ESN/SID)....................242
NSelecting Satellite Mode In REF, RAQ, And
RAK Radios.........................243
NSelecting A Channel...................243
NStoring And Selecting Preset Channels......244
NUsing The PTY (Program Type) Button Ð If
Equipped...........................244
NPTY Button Scan......................244
NPTY Button Seek......................245
UNDERSTANDING YOUR INSTRUMENT PANEL 185
4

NSatellite Antenna......................245
NReception Quality.....................245
mRemote Sound System Controls Ð If Equipped . . 246
NRadio Operation......................246
NTape Player.........................247
NCD Player..........................247
mCassette Tape And Player Maintenance.......247
mCompact Disc Maintenance................248
mRadio Operation And Cellular Phones........249mClimate Controls.......................249
NHeater Only Ð If Equipped..............250
NAir Conditioning And Heating Ð
If Equipped.........................252
NAir Conditioning With Dual Zone Temperature
Control Ð If Equipped.................255
NOperating Tips.......................260
NOperating Tips Chart...................262
186 UNDERSTANDING YOUR INSTRUMENT PANEL

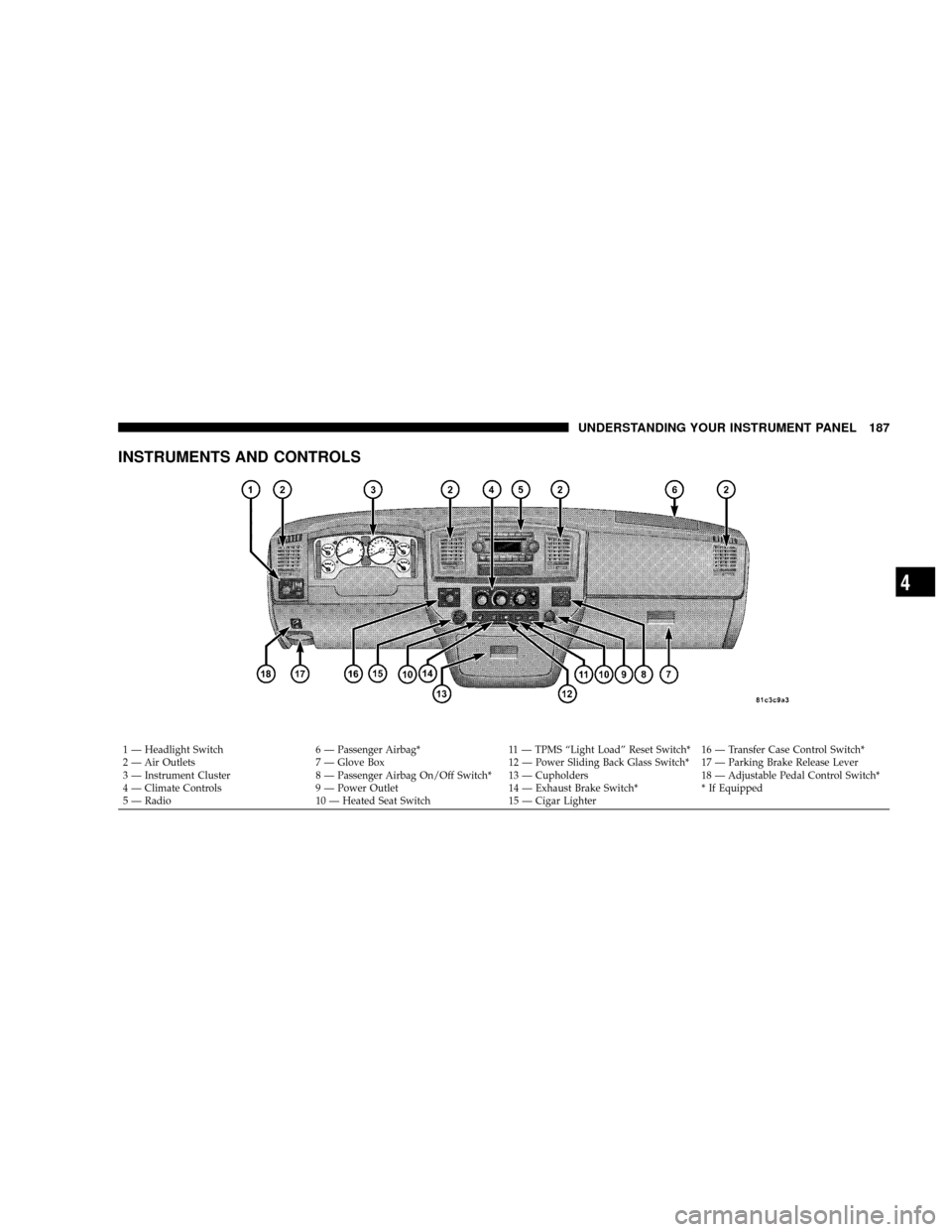

INSTRUMENTS AND CONTROLS
1 Ð Headlight Switch 6 Ð Passenger Airbag* 11 Ð TPMS ªLight Loadº Reset Switch* 16 Ð Transfer Case Control Switch*
2 Ð Air Outlets 7 Ð Glove Box 12 Ð Power Sliding Back Glass Switch* 17 Ð Parking Brake Release Lever
3 Ð Instrument Cluster 8 Ð Passenger Airbag On/Off Switch* 13 Ð Cupholders 18 Ð Adjustable Pedal Control Switch*
4 Ð Climate Controls 9 Ð Power Outlet 14 Ð Exhaust Brake Switch* * If Equipped
5 Ð Radio 10 Ð Heated Seat Switch 15 Ð Cigar Lighter
UNDERSTANDING YOUR INSTRUMENT PANEL 187
4

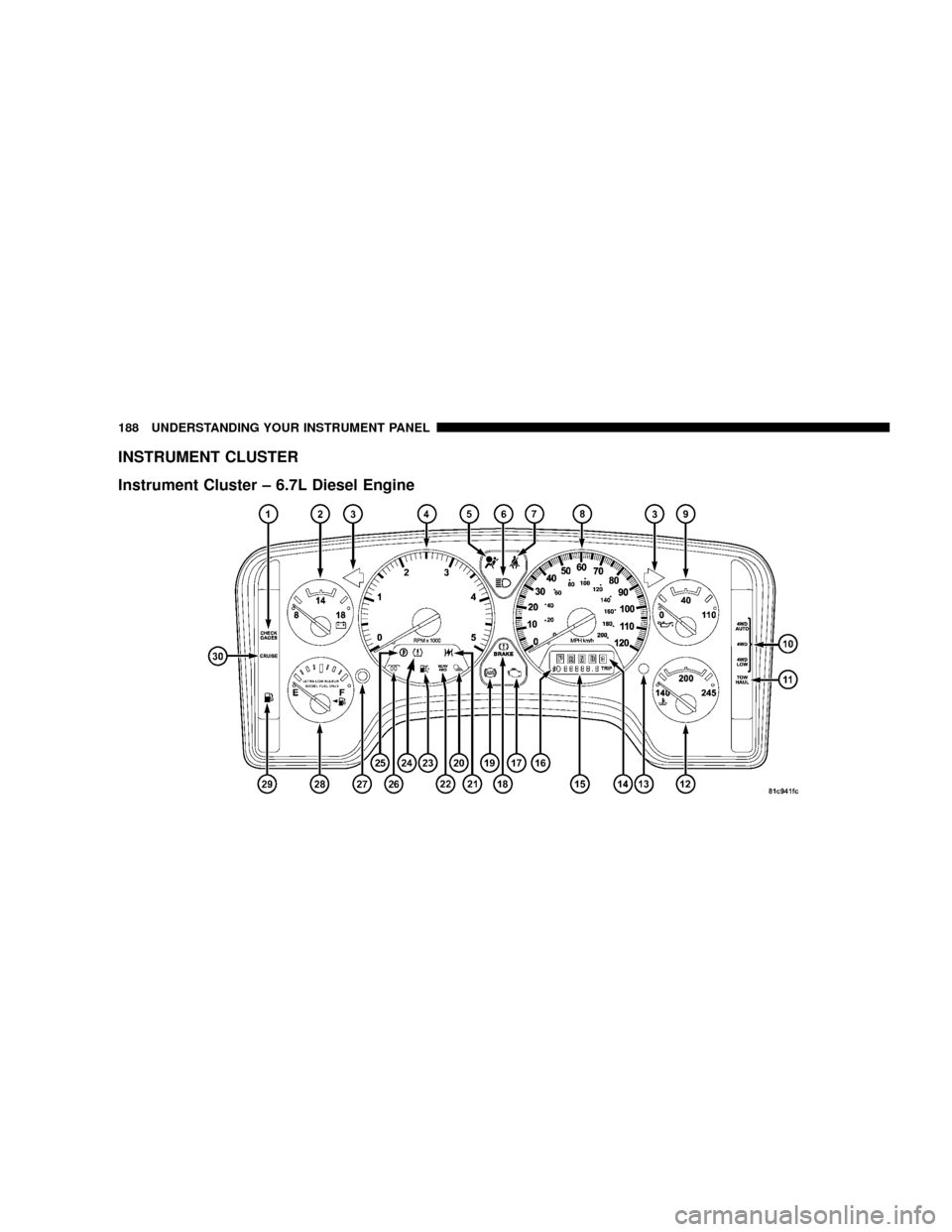

INSTRUMENT CLUSTER
Instrument Cluster ± 6.7L Diesel Engine
188 UNDERSTANDING YOUR INSTRUMENT PANEL
