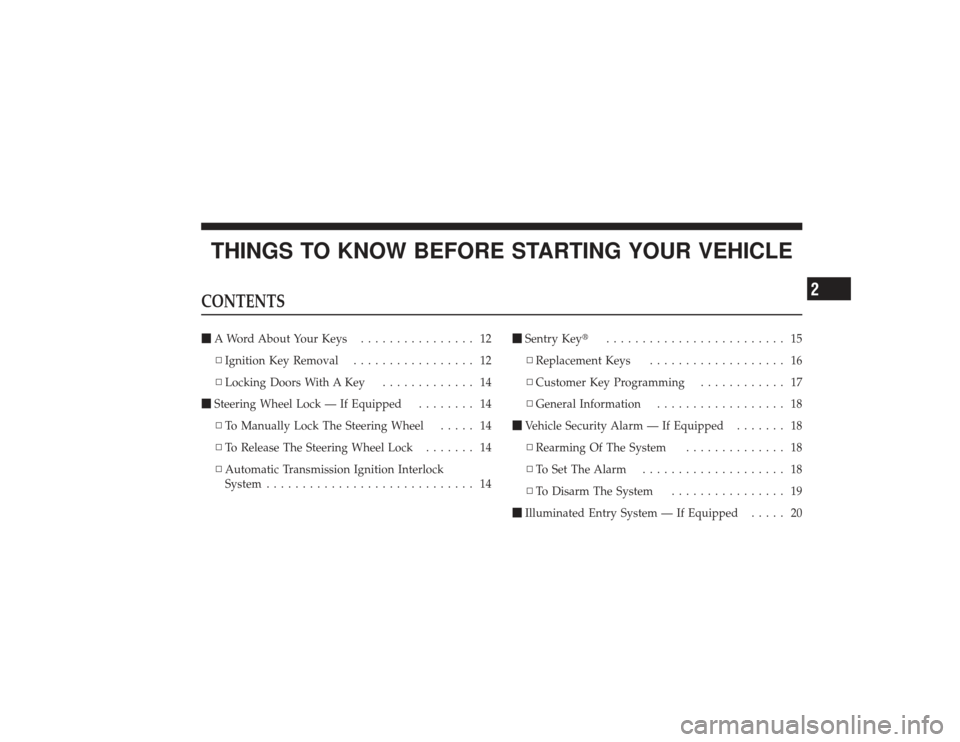

THINGS TO KNOW BEFORE STARTING YOUR VEHICLECONTENTSA Word About Your Keys ................ 12
▫ Ignition Key Removal ................. 12
▫ Locking Doors With A Key ............. 14
 Steering Wheel Lock — If Equipped ........ 14
▫ To Manually Lock The Steering Wheel ..... 14
▫ To Release The Steering Wheel Lock ....... 14
▫ Automatic Transmission Ignition Interlock
System ............................. 14
Sentry Key ......................... 15
▫ Replacement Keys ................... 16
▫ Customer Key Programming ............ 17
▫ General Information .................. 18
 Vehicle Security Alarm — If Equipped ....... 18
▫ Rearming Of The System .............. 18
▫ To Set The Alarm .................... 18
▫ To Disarm The System ................ 19
 Illuminated Entry System — If Equipped ..... 20
2

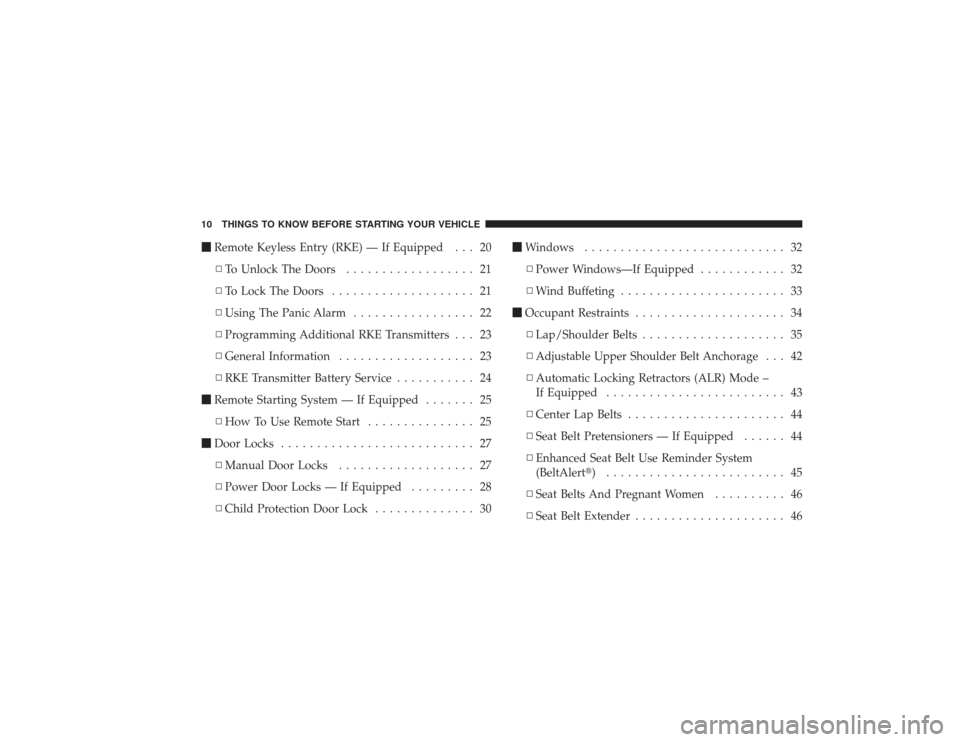

Remote Keyless Entry (RKE) — If Equipped . . . 20
▫ To Unlock The Doors .................. 21
▫ To Lock The Doors .................... 21
▫ Using The Panic Alarm ................. 22
▫ Programming Additional RKE Transmitters . . . 23
▫ General Information ................... 23
▫ RKE Transmitter Battery Service ........... 24
 Remote Starting System — If Equipped ....... 25
▫ How To Use Remote Start ............... 25
 Door Locks ........................... 27
▫ Manual Door Locks ................... 27
▫ Power Door Locks — If Equipped ......... 28
▫ Child Protection Door Lock .............. 30
Windows ............................ 32
▫ Power Windows—If Equipped ............ 32
▫ Wind Buffeting ....................... 33
 Occupant Restraints ..................... 34
▫ Lap/Shoulder Belts .................... 35
▫
Adjustable Upper Shoulder Belt Anchorage
... 42
▫ Automatic Locking Retractors (ALR) Mode –
If Equipped ......................... 43
▫ Center Lap Belts ...................... 44
▫ Seat Belt Pretensioners — If Equipped ...... 44
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 45
▫ Seat Belts And Pregnant Women .......... 46
▫ Seat Belt Extender ..................... 46
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

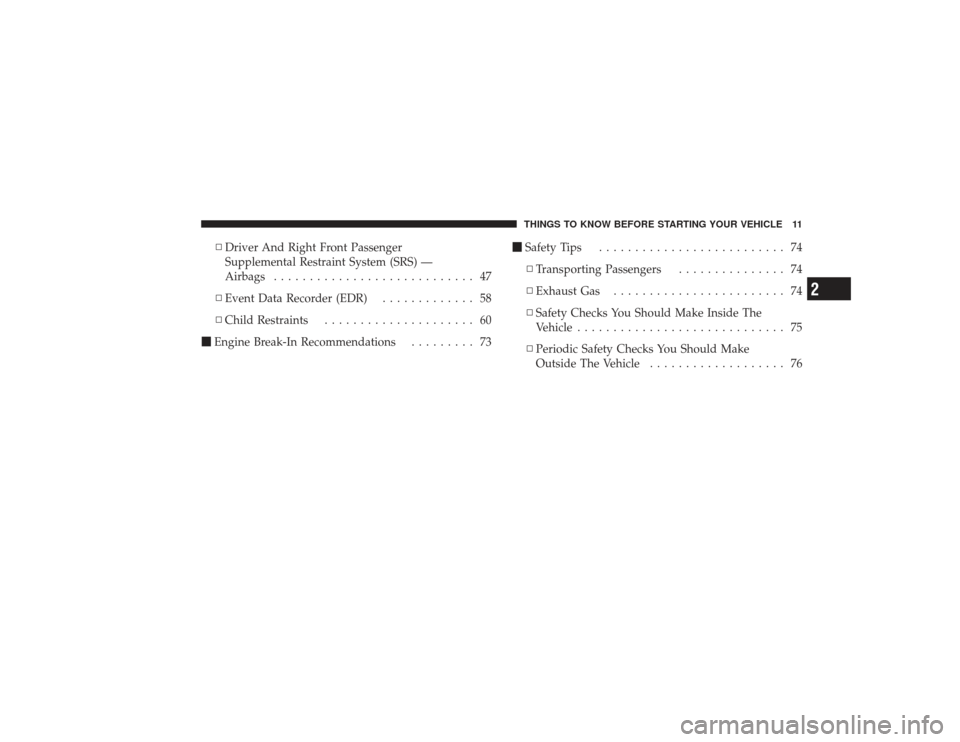

▫Driver And Right Front Passenger
Supplemental Restraint System (SRS) —
Airbags ............................ 47
▫ Event Data Recorder (EDR) ............. 58
▫ Child Restraints ..................... 60
 Engine Break-In Recommendations ......... 73
Safety Tips .......................... 74
▫ Transporting Passengers ............... 74
▫ Exhaust Gas ........................ 74
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 75
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ................... 76
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

A WORD ABOUT YOUR KEYSThe authorized dealer that sold you your vehicle has the
key code numbers for your vehicle locks. These numbers
can be used to order duplicate keys from your authorized
dealer. Ask your authorized dealer for these numbers
and keep them in a safe place.
Ignition Key Removal
Automatic TransmissionPlace the shift lever in PARK. Turn the ignition switch to
the LOCK position, and remove the key.
Ignition Key
Ignition Switch Positions
1 — ACC (ACCESSORY) 4 — ON/RUN
2 — LOCK 5 — START
3 — OFF
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

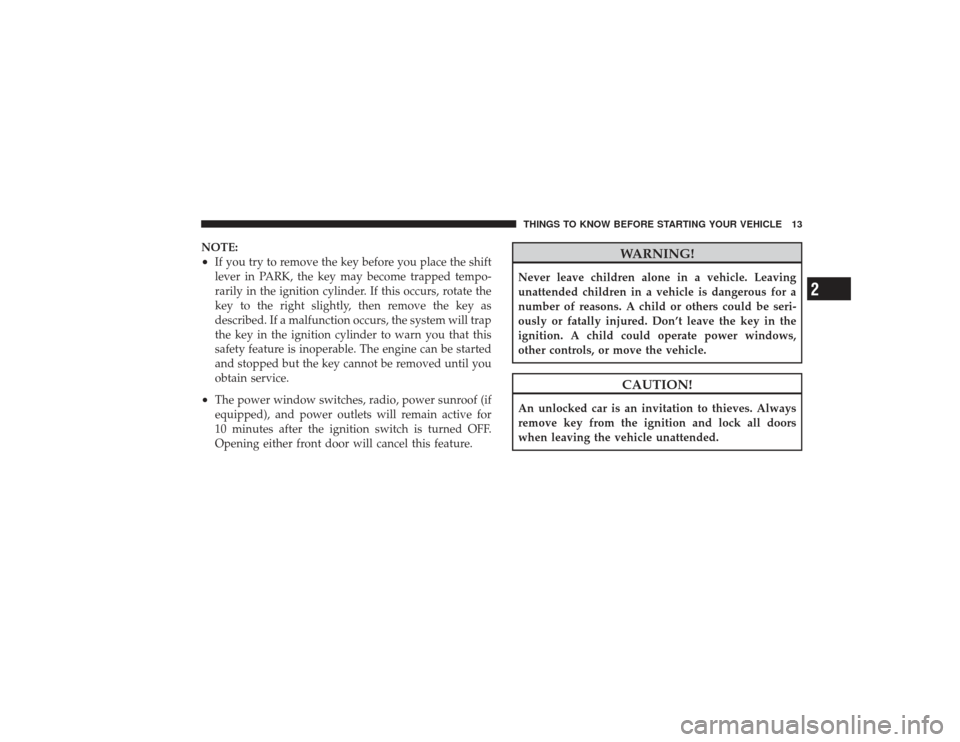

NOTE:•
If you try to remove the key before you place the shift
lever in PARK, the key may become trapped tempo-
rarily in the ignition cylinder. If this occurs, rotate the
key to the right slightly, then remove the key as
described. If a malfunction occurs, the system will trap
the key in the ignition cylinder to warn you that this
safety feature is inoperable. The engine can be started
and stopped but the key cannot be removed until you
obtain service.
•
The power window switches, radio, power sunroof (if
equipped), and power outlets will remain active for
10 minutes after the ignition switch is turned OFF.
Opening either front door will cancel this feature.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

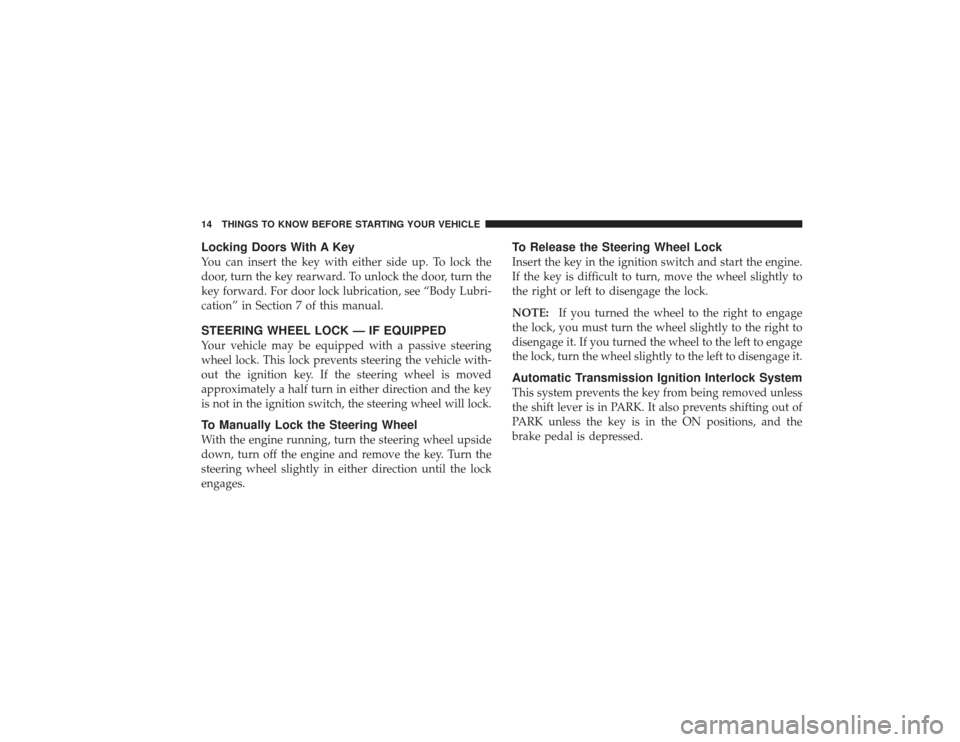

Locking Doors With A KeyYou can insert the key with either side up. To lock the
door, turn the key rearward. To unlock the door, turn the
key forward. For door lock lubrication, see “Body Lubri-
cation” in Section 7 of this manual.STEERING WHEEL LOCK — IF EQUIPPEDYour vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with-
out the ignition key. If the steering wheel is moved
approximately a half turn in either direction and the key
is not in the ignition switch, the steering wheel will lock.To Manually Lock the Steering WheelWith the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.
To Release the Steering Wheel LockInsert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.
NOTE:If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.Automatic Transmission Ignition Interlock SystemThis system prevents the key from being removed unless
the shift lever is in PARK. It also prevents shifting out of
PARK unless the key is in the ON positions, and the
brake pedal is depressed.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

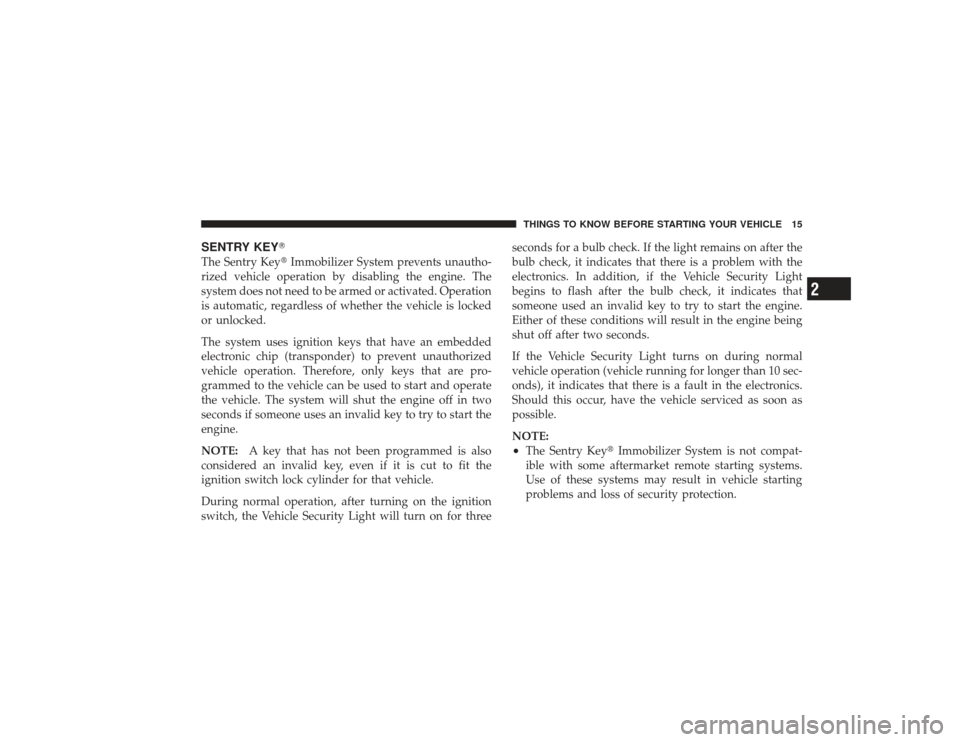

SENTRY KEYThe Sentry KeyImmobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
NOTE: A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.
NOTE:
•
The Sentry Key
Immobilizer System is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

•

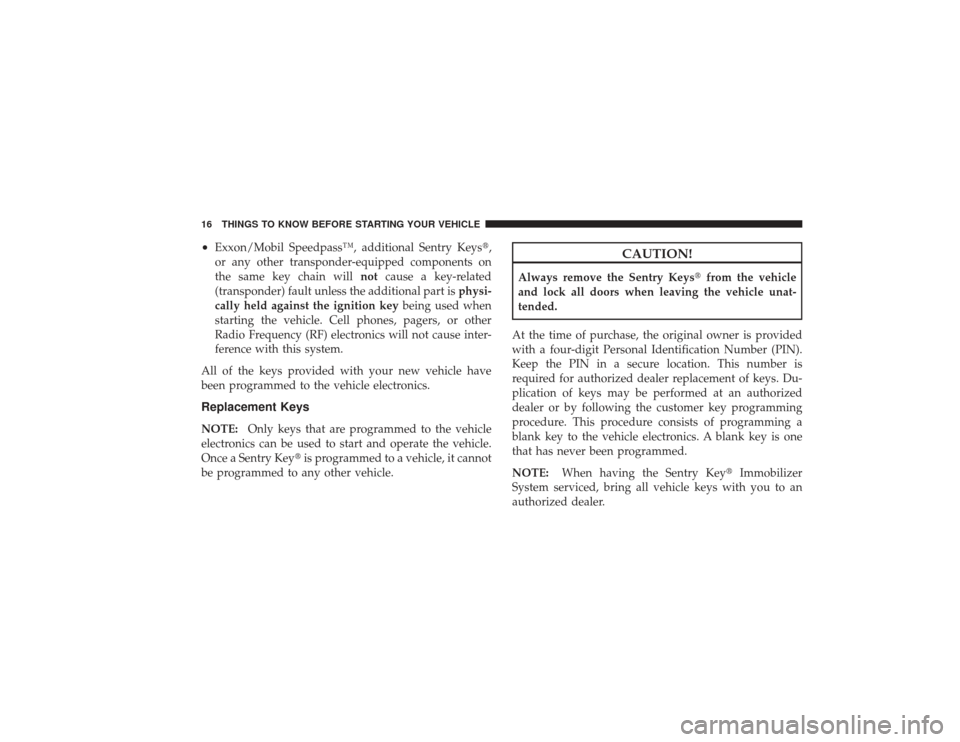

Exxon/Mobil Speedpass™, additional Sentry Keys,
or any other transponder-equipped components on
the same key chain will notcause a key-related
(transponder) fault unless the additional part is physi-
cally held against the ignition key being used when
starting the vehicle. Cell phones, pagers, or other
Radio Frequency (RF) electronics will not cause inter-
ference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement KeysNOTE: Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key is programmed to a vehicle, it cannot
be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keys from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.
NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

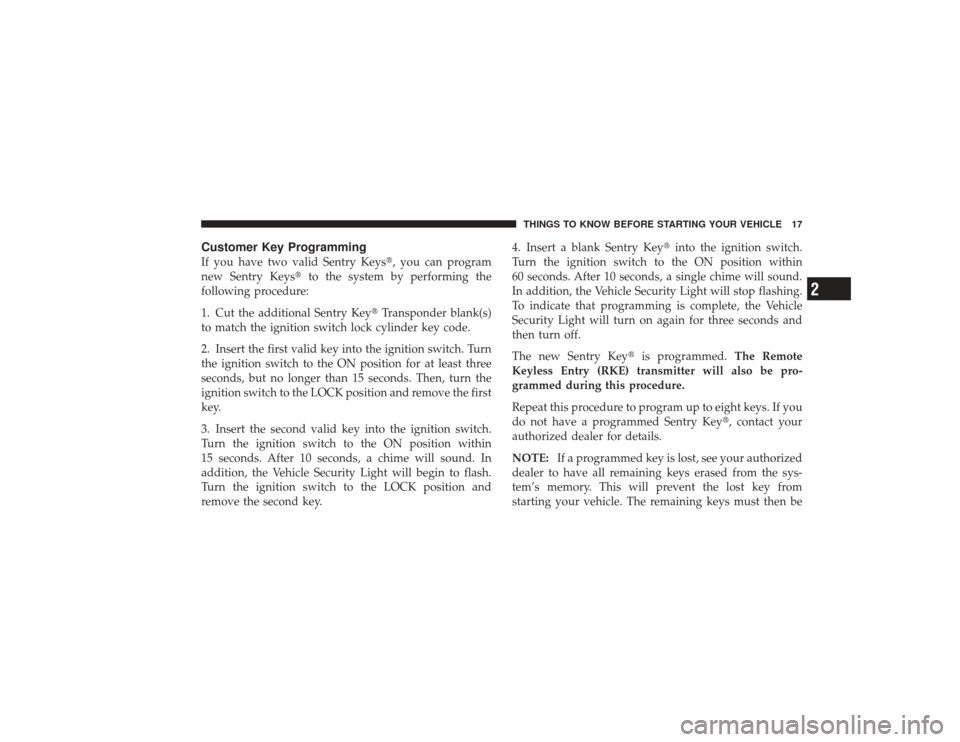

Customer Key ProgrammingIf you have two valid Sentry Keys, you can program
new Sentry Keys to the system by performing the
following procedure:
1. Cut the additional Sentry Key Transponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON position for at least three
seconds, but no longer than 15 seconds. Then, turn the
ignition switch to the LOCK position and remove the first
key.
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key. 4. Insert a blank Sentry Key
into the ignition switch.
Turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.
The new Sentry Key is programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE: If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

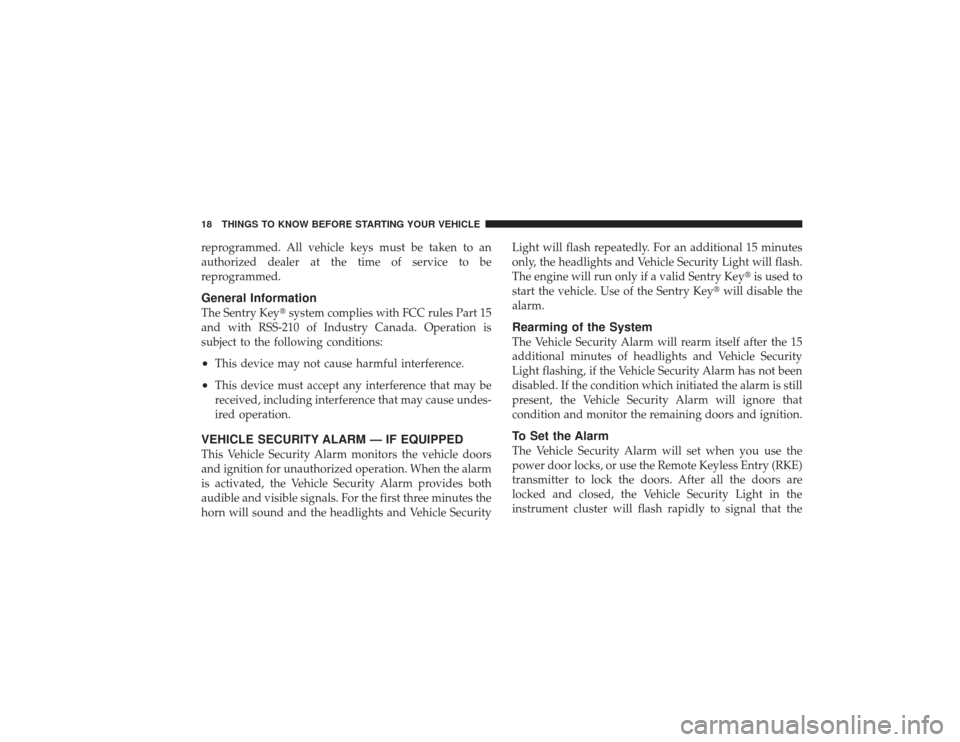

reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.General InformationThe Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:•
This device may not cause harmful interference.
•
This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPEDThis Vehicle Security Alarm monitors the vehicle doors
and ignition for unauthorized operation. When the alarm
is activated, the Vehicle Security Alarm provides both
audible and visible signals. For the first three minutes the
horn will sound and the headlights and Vehicle Security Light will flash repeatedly. For an additional 15 minutes
only, the headlights and Vehicle Security Light will flash.
The engine will run only if a valid Sentry Key
is used to
start the vehicle. Use of the Sentry Key will disable the
alarm.
Rearming of the SystemThe Vehicle Security Alarm will rearm itself after the 15
additional minutes of headlights and Vehicle Security
Light flashing, if the Vehicle Security Alarm has not been
disabled. If the condition which initiated the alarm is still
present, the Vehicle Security Alarm will ignore that
condition and monitor the remaining doors and ignition.To Set the AlarmThe Vehicle Security Alarm will set when you use the
power door locks, or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
locked and closed, the Vehicle Security Light in the
instrument cluster will flash rapidly to signal that the
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
