key DODGE SPRINTER 2005 1.G User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2
Replacing Batteries Rated voltage: 6 V
DC (2x 3V)
Rated current:10 mA1. Release themechanical key
by pressing the
release button.
2. Remove the battery cover.
3. Remove the battery and install new one (note correct polarity;
positive terminal up).
4. Press on the battery cover until it snaps into place.
SECURITY SYSTEM WITH TOWING AND
PASSENGER COMPARTMENT PROTECTION
(OPTIONAL)The security system is ready for operation, if the
vehicle is locked with the remote keyless entry
transmitter.
If a doo r is open , th e security sy stem is no t s witch ed on
during the locking process.
Security system activation is indicated by the turn
signal lamps flashing three times in succession.
For a function check, when the security system is
switched on, the indicator lamps in the towing
protection/passenger compartment protection switch
flash.
The security system will switch off if the vehicle is
unlocked using the remote keyless entry transmitter.
The turn signal lamps flash once.

24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLEThe alarm is triggered if the security system has been
activated and
 A door is opened,
 a door is unlocked from inside,
 the engine cover is opened,
 the key is used to unlock the vehicle at any door,
 the key is turned to position 2 in the ignition lock.Audible AlarmThe horn sounds for about 25 seconds.Visual AlarmThe turn signal lamps flash for about 4 minutes.Switching off the AlarmThe alarm will switch off immediately if the vehicle is
unlocked using the remote keyless entry transmitter.
NOTE: Do not manually unlock the doors as this will
trigger the alarm.
TOWING PROTECTION AND PASSENGER
COMPARTMENT PROTECTION SWITCH
(OPTIONAL)See Section 4, Understanding Your Instrument Panel,
for switch locations.
Switch off the towing protection
Indicator lamp
As a function check, (1) the indicator
lamp (2) flashes when the security
system is switched on.
Switch off the passenger compartment protection.Towing ProtectionThe towing protection is ready for operation after
30 seconds as the security system has been activated.
The alarm is triggered if the vehicle is lifted while the
security system is activated.Switching off the Towing ProtectionIf the vehicle is to be transported or loaded, the towing
protection must be switched off in order to avoid a
false alarm.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2
1. Place the key in position 0 or 1 in the ignition lock.
2. Press the switch up (1) to switch off the towing protection.
The indicator lamp (2) is briefly illuminated.
If passenger compartment protection will be switched
off as well, wait until the indicator lamp (2) goes out,
and
3. Press switch (3) downward. The indicator lamp (2) flashes about 10 times.
To activate the setting (towing protection/passenger
compartment protection switched off):
4. Keep the key in locking position in the driver’s door lock for more than 2 seconds or
5. lock the vehicle using the remote keyless entry transmitter.
The towing protection will remain switched off until
the vehicle is locked again with the remote keyless
entry transmitter.
NOTE: The alarm will switch off immediately if the
vehicle is centrally unlocked using the remote keyless
entry transmitter.
Passenger Compartment ProtectionThe passenger compartment protection is ready for
operation 30 seconds after the security system has been
activated. The alarm is tr iggered if movement inside
the vehicle is registered while the security system is
activated.
NOTE: Close the side windows and the glass tilting
roof.
Do not leave any objects (mascots, hangers) on the
interior mirror or on the roof grab handles, as these
could trigger a false alarm.Switching off the Passenger Compartment
ProtectionIf persons or animals remain in the locked vehicle,
switch off the passenger compartment protection to
prevent a false alarm.
1. Place the key in position 0 or 1 in the ignition lock.
2. Press the switch downward (3) to switch off the passenger compartment protection. The indicator
lamp (2) flashes about 10 times.
If towing protection is to be switched off as well, wait
until the indicator lamp (2) goes out, and

26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE3. Press switch up (1).
The indicator lamp (2) is briefly illuminated.
To activate the setting (passenger compartment/
towing protection switched off):
4. Lock the vehicle using the remote keyless entry transmitter.
The passenger compartment protection will remain
switched off until the vehicle is locked again with the
remote keyless entry transmitter.
NOTE: The alarm will switch off immediately if the
vehicle is centrally unlocked using the remote keyless
entry transmitter.
Alarm Pushbutton (Vehicles with Security Systems
only)See Section 4, Understanding Your Instrument Panel,
for switch locations.
Trigger the alarm manually/lock the
vehicle.
The audible and visual alarm can be
triggered manually by using the
alarm pushbutton.
Audible Alarm
The horn sounds until the alarm is switched off.
Visual Alarm
The turn signal lamps flash until the alarm is switched
off.
Trigger the alarm manually and lock the vehicle.
Press the alarm pushbutton upward once.
The indicator lamp flashes in the towing/passenger
compartment protection switch.

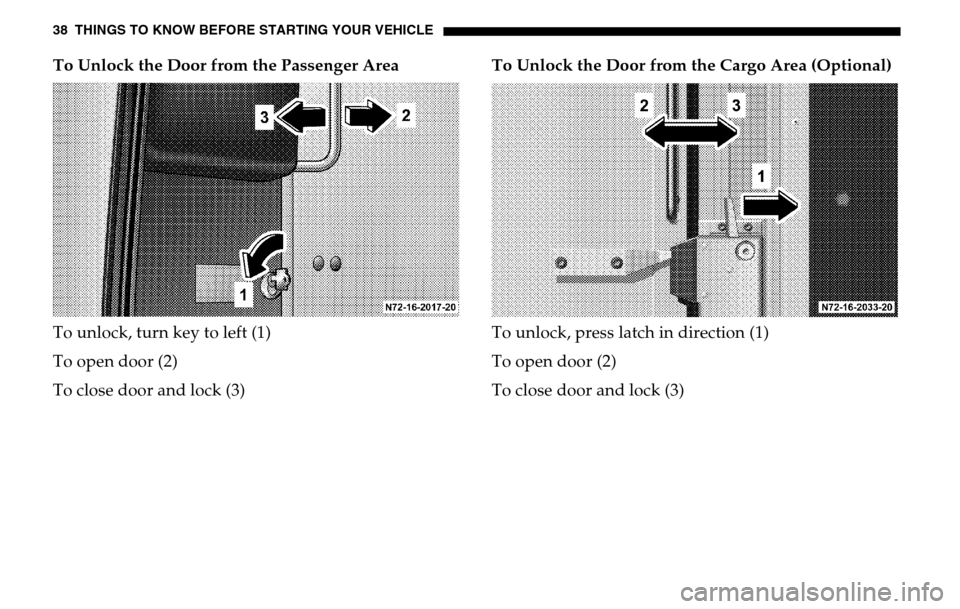

38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLETo Unlock the Door from the Passenger Area
To unlock, turn key to left (1)
To open door (2)
To close door and lock (3) To Unlock the Door from the Cargo Area (Optional)
To unlock, press latch in direction (1)
To open door (2)
To close door and lock (3)

44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLESeat Belt Warning Lamp and Airbag MalfunctionWhen the key is in position 2 in the ignition lock, the
warning lamp < lights up for about 6 seconds; this
takes place whether or not the driver’s seat belt is
fastened.
The warning lamp < must go out after about
6 seconds if the driver’s safety belt is fastened, or the
vehicle is standing still and the driver’s door is opened.
If after about 6 seconds, the driver’s safety belt is not
fastened with all doors closed,
– and the vehicle speed does not exceed 15 mph (25 km/h), the warning lamp < remains on for as
long as the driver ’s safety belt is not fastened.
– and the vehicle speed exceeds 15 mph (25 km/h), the warning lamp < flashes and a warning
signal sounds, which is repeated increasingly
frequently until the driver ’s safety belt is fastened,
or for a maximum of 153 seconds from the time the
vehicle speed exceeded 15 mph (25 km/h) if the
driver ’s safety belt remains unfastened. If the driver’s safety belt remains unfastened after 153
seconds, the warning lamp
< stops flashing and the
warning signal stops sounding. The warning lamp
< lights up for as long as the driver’s safety belt is
not fastened.
If the warning lamp < flashes after the first 6
seconds and no warning signal is audible, the
malfunction indicator lamp 1 is defective.
Have the malfunction indicator lamp 1checked and
repaired by an authorized Sprinter Dealer as soon as
possible.
Malfunction indicator lamp 1, refer to “SRS
Malfunction Indicator Lamp”.

46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLERemoving Seat Belts
1. Press the release button in the belt buckle.
2. Guide the seat belt back to its rest position.
Seat Belt Warning System
When the key is turned to position 2 in the ignition
lock, a warning buzzer sounds for about 6 seconds if
the driver’s safety belt is not pressed into the belt
buckle. The buzzer stops as soon as the safety belt is
fastened. Press the safety belt into the belt buckle.
Belt Height AdjustmentBelt height adjustment button 4
Do not adjust the belt height while the vehicle is
moving.
To lower:
Press the button and move the belt sash guide down.
To raise:
Move the belt sash guide up.
The shoulder strap must pass between the neck and the
shoulder.
WARNING!
A frayed or torn belt could rip apart in a collision
and leave you with no protection. Inspect the belt
system periodically, checking for cuts, frays, or
loose parts. Damaged parts must be replaced im-
mediately. Do not disassemble or modify the sys-
tem. Seat belt assemblies must be replaced after a
collision if they have been damaged (bent retrac-
tor, torn webbing, etc.).

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
2
AIRBAG AND BELT TENSIONERSThe vehicle is equipped with an airbag for the driver
and the front seat passenger as well as belt tensioners
for the driver and the front passenger. The system is
known as a Supplemental Restraint System (SRS). It
has been designed to work together with the seat belt
and to supplement.SRS Malfunction Indicator LampWhen the key is in position 2 in the ignition lock, the
malfunction indicator lamp 1 will light up in the
instrument cluster for about 4 seconds as a function
check.
Belt TensionersThe belt tensioners are located on the three-point seat
belts of the driver’s and front passenger seats.
The belt tensioners will not operate unless the key has
been turned to position 1 or 2 in the ignition lock.
The airbag and / or belt tensioners are designed to only
trigger in certain frontal impacts as not all accidents
call for airbag and / or belt tensioner deployment.
WARNING!
Do not put anything on or around the front airbag
covers or attempt to manually open them. You
may damage the airbags and you could be injured
because the airbags are not there to protect you.
These protective covers for the airbag cushions are
designed to open only when the airbags are inflat-
ing.
WARNING!
If the malfunction indicator lamp 1 does not
light up when the key is in position 2 in the igni-
tion lock, if it flickers or lights up while the vehi-
cle is moving, there might be a problem in the
airbag system. There is then a danger that the air-
bag will not deploy in the event of an accident or
will deploy when it should not do so. Have the ve-
hicle inspected and repaired by an authorized
Sprinter Dealer without delay.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 59
3

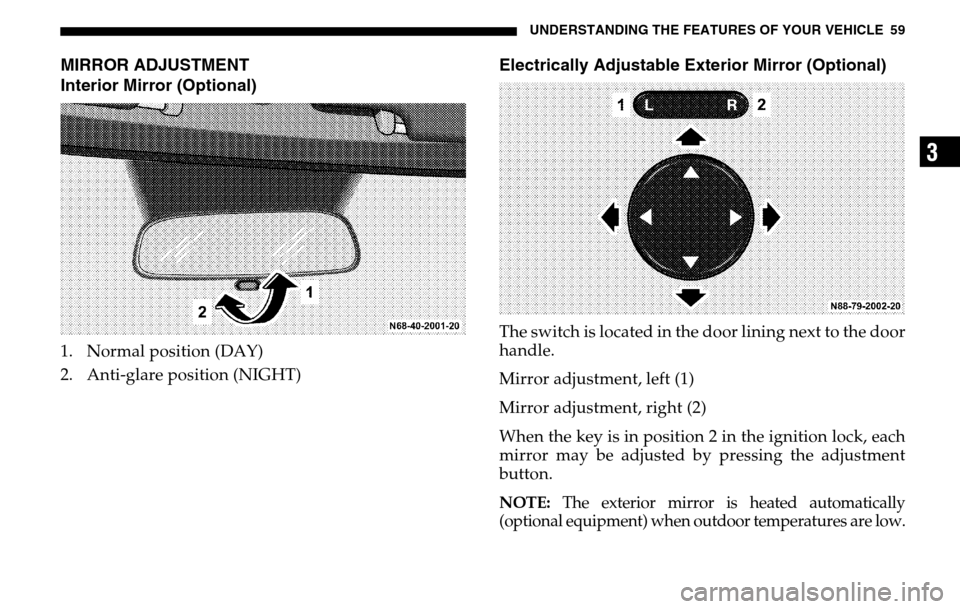

MIRROR ADJUSTMENT
Interior Mirror (Optional)1. Normal position (DAY)
2. Anti-glare position (NIGHT)
Electrically Adjustable Exterior Mirror (Optional)The switch is located in the door lining next to the door
handle.
Mirror adjustment, left (1)
Mirror adjustment, right (2)
When the key is in position 2 in the ignition lock, each
mirror may be adjusted by pressing the adjustment
button.NOTE:
The exterior mirror is heated automatically
(optional equipment) when outdoor temperatures are low.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 63
3
Folding Seat at Partition (Optional)Key (1)
Seat cushion (2)
Fold down the seat cushion of the folding seat.
SEAT HEATER (OPTIONAL)The seat heater switch is located on
the center section of the dashboard.
The seat heater only works when the
key is in position 2 in the ignition
lock .
Low heating output, press top of the seat heater switch.
The left indicator lamp in the switch illuminates.
High heating output, press bottom of seat heater
switch. The right indicator lamp in the switch
illuminates.WARNING!
When folding down the seat cushion, make sure
that nobody can become trapped.
The risk of injury to the front-passenger is
increased in the event of sharp steering
movements or an accident if a key is inserted in
the passenger/cargo area sliding door lock.
Remove the key from the load compartment
sliding door before using the folding seat.
