UNDERSTANDING YOUR INSTRUMENT PANEL 103
4
Fuel Gauge with Reserve Fuel Indicator LampThe fuel level is displayed when the key is in position
2 in the ignition lock. The reserve fuel indicator lamp (1) lights up for
about 2 seconds.
If the reserve fuel indicator lamp remains on or lights
up again when the engine is running, the fuel in the
tank hasreached reserve level.
Reserve level: about 2.8 US gal (10.5 liters).
NOTE:
If the fuel gauge sensor is damaged, the reserve
fuel indictor lamp (1) will light up and the needle will
vary its position between the maximum and minimum
marks. Have the malfunction traced and rectified by an
authorized Sprinter Dealer.

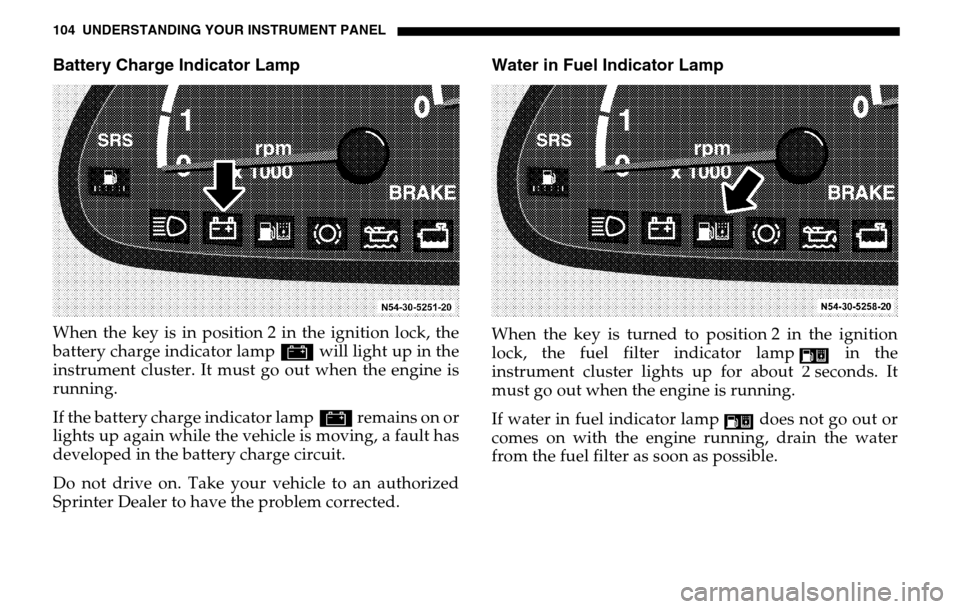

104 UNDERSTANDING YOUR INSTRUMENT PANELBattery Charge Indicator LampWhen the key is in position 2 in the ignition lock, the
battery charge indicator lamp # will light up in the
instrument cluster. It must go out when the engine is
running.
If the battery charge indicator lamp # remains on or
lights up again while the vehicle is moving, a fault has
developed in the battery charge circuit.
Do not drive on. Take your vehicle to an authorized
Sprinter Dealer to have the problem corrected.
Water in Fuel Indicator LampWhen the key is turned to position 2 in the ignition
lock, the fuel filter indicator lamp in the
instrument cluster lights up for about 2 seconds. It
must go out when the engine is running.
If water in fuel indicator lamp does not go out or
comes on with the engine running, drain the water
from the fuel filter as soon as possible.

UNDERSTANDING YOUR INSTRUMENT PANEL 105
4
NOTE: Should the water in fuel indicator lamp
still not go out after the fuel filter has been drained, the
cause should be examined by an authorized Sprinter
Dealer.
If the indicator lamp does not light up for about
2 seconds with the key in the ignition lock in position 2,
there is a malfunction in the water separator system.
Have the cause rectified by an authorized Sprinter
Dealer.

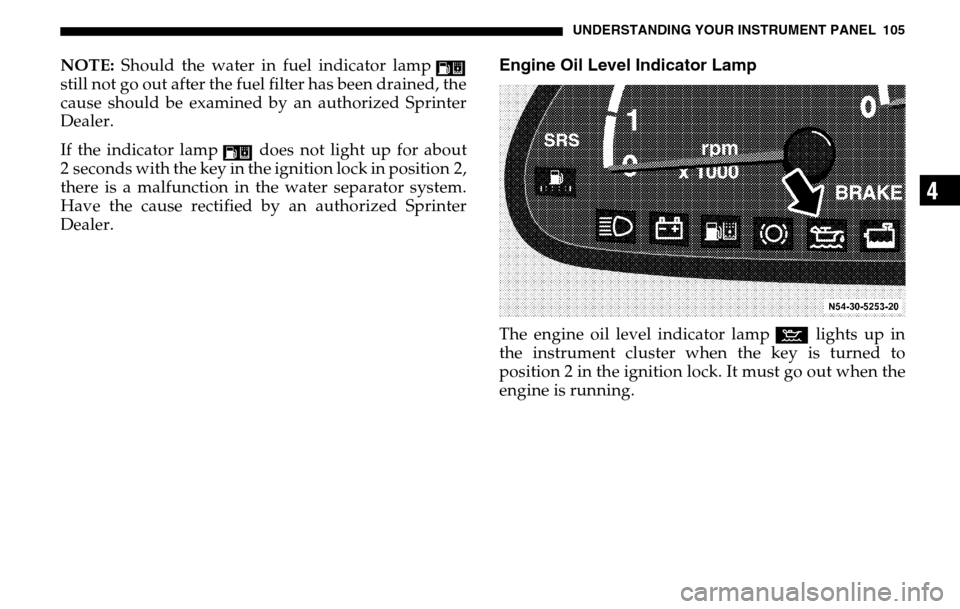

Engine Oil Level Indicator LampThe engine oil level indicator lamp : lights up in
the instrument cluster when the key is turned to
position 2 in the ignition lock. It must go out when the
engine is running.

106 UNDERSTANDING YOUR INSTRUMENT PANELIf the engine oil level indicator lamp: does not go
out, or if it lights up again while the vehicle is moving,
the engine oil level has dropped to a point close to the
minimum level mark on the dipstick.
The indicator lamp : lights up only briefly at first,
becoming permanent as the oil level drops further.
Stop the engine immediately and check the engine oil
level. If no obvious leak is visible, correct the oil level.
If the engine oil level indicator lamp : lights up,
even if the engine oil level is sufficient, have the cause
traced and rectified by an authorized Sprinter Dealer.
For approved engine oils, please contact your
authorized Sprinter Dealer.
Coolant Level Indicator LampWhen the key is turned to position 2 in the ignition
lock, the coolant level indicator lamp / in the
instrument cluster lights up for about 2 seconds. It
must go out when the engine is running.
If the coolant level indicator lamp / remains on or
lights up again when the engine is running, the coolant
level is too low.
Do not drive on. Switch the engine off and add coolant.

UNDERSTANDING YOUR INSTRUMENT PANEL 107
4
If a large quantity of coolant is being lost, or if smaller
amounts are lost at regular intervals, have the engine
cooling system examined by an authorized Sprinter
Dealer.

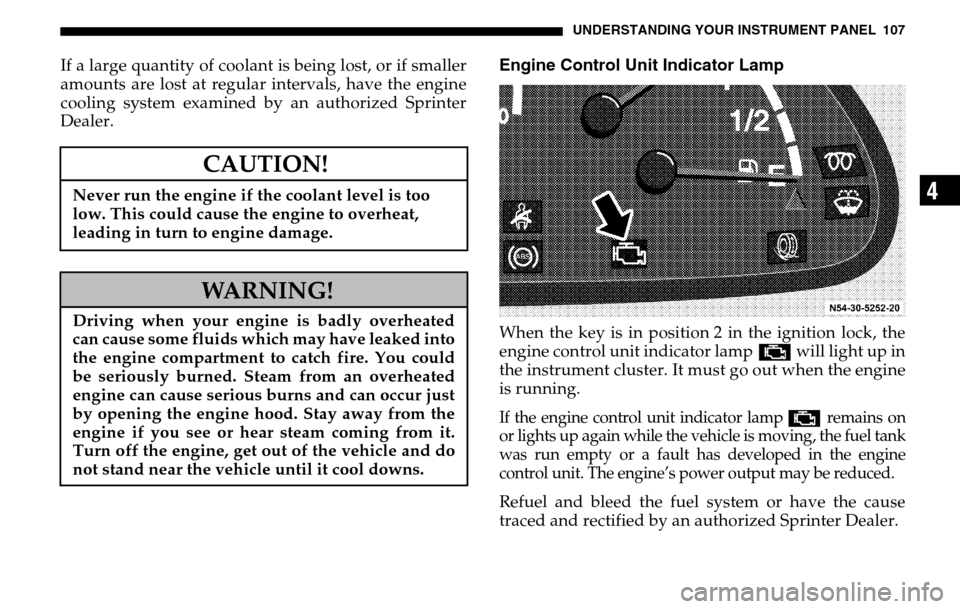

Engine Control Unit Indicator LampWhen the key is in position 2 in the ignition lock, the
engine control unit indicator lamp ± will light up in
the instrument cluster. It must go out when the engine
is running.If the engine control unit indicator lamp
±
remains on
or lights up again while the vehicle is moving, the fuel tank
was run empty or a fault has developed in the engine
control unit. The engine’s power output may be reduced.
Refuel and bleed the fuel system or have the cause
traced and rectified by an authorized Sprinter Dealer.
CAUTION!
Never run the engine if the coolant level is too
low. This could cause the engine to overheat,
leading in turn to engine damage.
WARNING!
Driving when your engine is badly overheated
can cause some fluids which may have leaked into
the engine compartment to catch fire. You could
be seriously burned. Steam from an overheated
engine can cause serious burns and can occur just
by opening the engine hood. Stay away from the
engine if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle and do
not stand near the vehicle until it cool downs.

110 UNDERSTANDING YOUR INSTRUMENT PANELASSYST MAINTENANCE COMPUTER (OPTIONAL)Function button (‘) (1)
Approximately one month or 2,000 miles (3,000 km)
before a service is due, the maintenance symbol or
lights up when the key is turned to position 2 in the
ignition lock.If the remaining time (in days) is shown, the additional
symbol
È
also appears in the multi-function indicator.
If additional maintenance operations are due, the
maintenance indicator or
lights up when the key is turned to position 2 in the
ignition lock.
For additional maintenance operations, see Sprinter
Service Booklet.
If a service deadline is exceeded, the display will flash
with a minus sign in front when the key is turned to
position 2 in the ignition lock.
The display will be cancelled when the
button ( ‘) is pressed, or automatically after
10 seconds.
The remaining time or remaining distance can also be
called up manually.
To manually call up the remaining time/distance:
Activate the multi-function indicator, refer to "Multi-
Function Indicator".
Briefly press the button ( ‘) twice.
Symb
N00.00-2387-00
Symb
N00.00-2156-00
Symb
N00.00-2388-00
Symb
N00.00-2157-00

UNDERSTANDING YOUR INSTRUMENT PANEL 111
4
Depending on the driving style, the mileage covered
and the operating conditions, the next service due is
displayed either as a remaining distance in "mi"
(in km) or as a remaining time in "days". The length of
time between services should not exceed 2 years.
The display will be cancelled when the
button ( ‘) is pressed, or automatically after
10 seconds.
When a service has been performed, have the ASSYST
maintenance computer reset by an authorized Sprinter
Dealer.
Should your Sprinter for any reason not be serviced by
an authorized Sprinter Dealer, the ASSYST
maintenance computer can, in exceptional
circumstances, be reset as follows:
Turn the key to position 2 in the ignition lock and
immediately press the button ( ‘) twice.
Within 10 seconds, return the key to position 0 in the
ignition lock.
Press and hold the button ( ‘). Turn the key to
position 2 in the ignition lock. Keep the
button ( ‘) pressed. The maintenance indicator with the current remaining
time/distance is shown.
After about 10 seconds, an acoustic signal will sound
and the maintenance indicator is displayed with the
new remaining time/distance.
Release the button (
‘).
NOTE:
The ASSYST maintenance computer provides
information on the optimum maintenance requirements.
If maintenance intervals are not observed, resulting
damage will not be covered by Warranty.
The ASSYST maintenance computer is not an engine
oil gauge.
Engine oil level – for display in instrument cluster, see
next page.
If the engine oil level indicator lamp lights up, refer to
"Engine Oil Level Indicator Lamp".
If the battery is disconnected, the time is not recorded
by the ASSYST maintenance computer. Such periods
must be considered if maintenance intervals are
measured by time.

UNDERSTANDING YOUR INSTRUMENT PANEL 113
4
If the warning
is displayed in the multi-function indicator while the
engine is running, the engine oil level is above
maximum.
Siphon or drain off engine oil until the engine oil level
is between the lower and up per marks on the dipstick.
Check the engine oil level again.
must be displayed.
NOTE: If the oil level is correct and a fault warning is
still given, have the fault traced and rectified by an
authorized Sprinter Dealer.
Displaying Engine Oil Level with Engine OffIf the engine has reached normal operating
temperature, the engine oil level can be displayed on
the multi-function indicator for about 5 minutes after
the engine has been switched off.
The vehicle must be standing on a level surface when
the engine oil is being checked.
Turn the key to position 2 in the ignition lock and wait
about 10 seconds until the multi-function indicator
shows the : symbol.
CAUTION!
Do not operate the engine if the oil level is above
maximum. There is a danger of damage to the
engine or catalytic converter.
Symb
N00.00-2150-00Symb
N00.00-2151-00

UNDERSTANDING YOUR INSTRUMENT PANEL 115
4
ENGINE OIL LEVEL INDICATOR IN INSTRUMENT
CLUSTER
(VEHICLES WITHOUT ASSYST MAINTENANCE
COMPUTER)If the : indicator lamp lights up when the engine is
running, the engine oil level has dropped to the
minimum mark. Check the engine oil level without
delay and add engine oil up to the upper mark on the
dipstick.
If there is no engine oil in the oil sump, a warning
buzzer will sound if the key is turned to position 2 in
the ignition lock or if the vehicle is being driven, and
the warning
will appear in the multi-function indicator. About 2
quarts (1.9 liters) of oil must be added.
Check the engine oil level without delay and add
engine oil to the upper mark on the dipstick.
NOTE: Engine oil level display– "qt" in USA only.
– "l" in Canada only.
Symb
N00.00-2384-00
qt
CAUTION!
If the : indicator lamp lights up, the warning
symbol in the multi-function indicator appears
and the warning buzzer sounds, the operating
safety of the engine is endangered (possibility of
engine damage).
Safely pull off the road and turn off the engine (do
not restart the engine). Determine the cause of the
problem. If there are no obvious signs of leakage,
add engine oil. The engine oil level must be
between the lower and upper marks on the
dipstick. Only add engine oil up to the upper
mark – do not overfill.
If the engine oil level is above maximum, there is
a danger of damage to the engine or catalytic
converter.

122 UNDERSTANDING YOUR INSTRUMENT PANELResidual Engine Heat Utilization (REST)
The REST switch (1) is located on the
center section of the dashboard.
The residual engine heat utilization
system can be used to keep the
vehicle interior warm for some time
after the engine is switched off.
Turn the key to position 0 in the ignition lock or
remove it altogether.
To switch on:
1. Press the residual engine heat utilization switch (1), the indicator lamp (2) lights up.
The blower will run at speed 1 regardless of the
setting of the airflow control.
2. Set the temperature control as required, refer to "Heating, Ventilation".
To switch off:
Press the residual engine heat utilization switch (1)
again, the indicator lamp (2) goes out. The residual engine heat utilization is automatically
switched off if:
1. the key is turned to position 2 in the ignition lock,
2. after about 30 minutes,
3. if the battery voltage is too low.
AIR CONDITIONING, REGULATED (OPTIONAL)
The air conditioning switch (1) is
located on the center section of the
dashboard.
The air conditioning can be used to
cool or dehumidify the air in the
vehicle. The selected temperature is
reached as quickly as possible and
then held constant.
The air conditioning is only operational when the
engine is running.
