DODGE SPRINTER 2006 1.G Owners Manual

UNDERSTANDING YOUR INSTRUMENT PANEL 91
4
INSTRUMENTS AND CONTROLS

92 UNDERSTANDING YOUR INSTRUMENT PANEL
Legend For Instruments And Controls
1. Left-hand air vent.
2. Multifunction switch.
3. Speed control.
4. Hood release lever.
5. Instrument cluster, refer to "Instrument Cluster
and Indicator Lamps".
6. Hazard warning flasher switch.
7. Steering wheel with horn, front driver airbag.
8. Fuse box.
9. Windshield wiper switch, refer to "Windshield
Wiper Switch".
10. Ignition lock/starter switch.
11. Center air vents.
12. Upper air vents.
13. Radio, see individual manual.14. Temperature control switch.
15. Airflow control switch.
16. Air distribution switch.
17. Temperature sensor, automatic heating
control / air conditioning, regulated.
18. Air conditioning switch.
19. Heater booster switch.
20. Residual engine heat utilization switch.
21. Gear selector lever (automatic transmission)
22. Timer for auxiliary heater.
23. Electrical outlet.
24. Ashtray.
25. Cup holder.
26. Front passenger airbag.
27. Right-hand air vent.
28. Glove compartment.
NOTE: For layout of switches, see previous page.

UNDERSTANDING YOUR INSTRUMENT PANEL 93
4
INSTRUMENT CLUSTER AND INDICATOR LAMPS

94 UNDERSTANDING YOUR INSTRUMENT PANEL
Legend For Instrument Cluster And Indicator Lamps
1. Tachometer (Engine rpm), refer to "Tachometer
(Engine rpm)".
2. Turn signal indicator lamp (left), refer to
"Multifunction Switch".
3. Turn signal indicator lamp (right), refer to
"Multifunction switch".
4. ASR warning lamp or ESP
®* warning lamp.
5. Speedometer.
6. Multi-function indicator, refer to "Multi-Function
Indicator".
7. Gear selector lever position.
8. Coolant temperature gauge, refer to "Coolant
Temperature Gauge".
* 2500 Type vehicles only9. Fuel gauge with reserve fuel indicator lamp
(yellow), refer to "Fuel Gauge with Reserve Fuel
Indicator Lamp".
10. Warning and indicator lamps.
11. Odometer/trip meter selector, refer to "Odometer
and Trip Meter".
Clock/outside temperature display selector, refer
to "Clock and Outside Temperature Display".
12. Instrument lighting brighter/dimmer, refer to
"Instrument Lighting".

UNDERSTANDING YOUR INSTRUMENT PANEL 95
4
Indicator Lamp Symbols
vAcceleration skid control (ASR)
or electronic stability program (
ESP®)*
or slippery surface warning.
1Airbag Malfunction (USA only).
Parking brake applied.
AHigh beam on, refer to "Multifunction Switch".
#Battery not being charged,
refer to "Battery Charge Indicator Lamp".
Water in fuel filter, refer to "Water in Fuel
Indicator Lamp".
2Brake pads worn.
:Engine oil level too low,
refer to "Engine Oil Level Indicator Lamp".
/Coolant level too low,
refer to "Coolant Level Indicator Lamp".
;Brake fluid level too low and electronic brake force
distribution (EBD) malfunction (USA only).
*2500 Type Vehicles only.
3Brake fluid level too low and electronic brake force
distribution (EBD) malfunction (Canada only).
-Anti-lock brake system (ABS) malfunction.
#Electronic stability program (ESP®)* malfunction.
±Engine control unit malfunction.
kAcceleration skid control (ASR) malfunction
and brake assist system (BAS)1 malfunction.
™Constant RPMs on.
WFluid level in windshield washer low.
qPreheating.

96 UNDERSTANDING YOUR INSTRUMENT PANEL

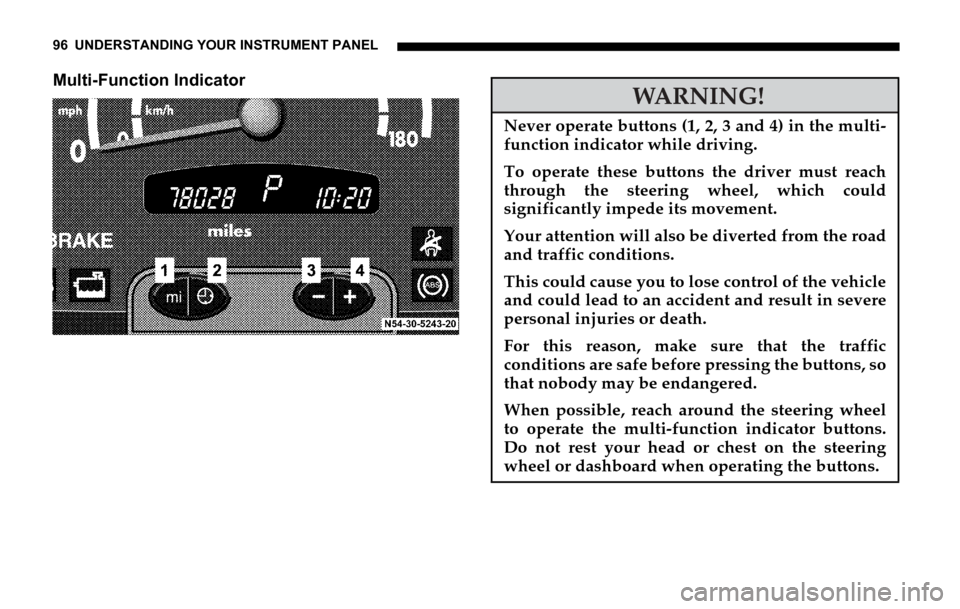

Multi-Function Indicator
WARNING!
Never operate buttons (1, 2, 3 and 4) in the multi-
function indicator while driving.
To operate these buttons the driver must reach
through the steering wheel, which could
significantly impede its movement.
Your attention will also be diverted from the road
and traffic conditions.
This could cause you to lose control of the vehicle
and could lead to an accident and result in severe
personal injuries or death.
For this reason, make sure that the traffic
conditions are safe before pressing the buttons, so
that nobody may be endangered.
When possible, reach around the steering wheel
to operate the multi-function indicator buttons.
Do not rest your head or chest on the steering
wheel or dashboard when operating the buttons.

UNDERSTANDING YOUR INSTRUMENT PANEL 97
4
The multi-function indicator can be used to call up the
odometer, trip meter, clock and outside temperature,
or information such as remaining time/distance until
the next service is due, or the engine oil level.
If your vehicle is equipped with reversing aid, the
multi-function indicator also displays the distance
between your vehicle and a detected obstacle.
The multi-function indicator is activated by:
Turning the key to position 2 in the ignition lock,
opening the driver’s door,
pressing one of the buttons (‘), I, ç or
æ,
switching the side lights on, refer to "Combination
Switch".1. Press the button (‘) to switch between the
odometer and the trip meter, and to reset the trip
meter.
Press the button (‘) to activate the ASSYST
maintenance computer.
2. Press the I button to switch between the time
and outside temperature and to activate the time
adjustment.
3. Press the ç to adjust (dim) the display and
instrument lighting and to adjust the clock.
4. Press the æ to adjust (brighten) the display and
instrument lighting and to adjust the clock.

98 UNDERSTANDING YOUR INSTRUMENT PANEL
Clock
Activate the multi-function indicator, refer to "Multi-
Function Indicator".
Button I – to reverse the time adjustment/
switch between hours and minutes (1)
Button ç – to turn the time back (2)
Button æ – to advance the time (3)To switch between Time and Outside Temperature
Display (Optional)
Press the I button briefly.
If button I is pressed twice within one second, the
display will revert to the original mode after
20 seconds.
To Adjust the Time
Call up time display:
1. Press button I and hold – the hours display will
flash.
To change the time by one hour = briefly press
button æ or ç.
To change the time by several hours = press and
hold button æ or ç.
2. Briefly press button I – the minutes display will
flash.
To change the time by one minute = briefly press
button æ or ç.
To change the time by several minutes = press and
hold button æ or ç.
3. Briefly press button I – the set time is accepted.

UNDERSTANDING YOUR INSTRUMENT PANEL 99
4
Odometer and Trip Meter
Activate the multi-function indicator. The total
distance covered by the vehicle will be shown.
1. To switch between the odometer and the trip meter,
press button (1) briefly.
2. To reset the trip meter, call up trip meter. Press
button (1) and hold until the trip meter shows 0000.
NOTE: Odometer and trip meter display
– "mi" in USA only.
– "km" in Canada only.
Instrument and Display Lighting
Display lighting:
3. Press button ç, to display lighting dimmer
4. Press button æ, to display lighting brighter

100 UNDERSTANDING YOUR INSTRUMENT PANEL
Instrument and display lighting:
1. Switch on the marker lamps, refer to "Combination
Switch"
2. Press button ç, to make instrument and display
lighting dimmer
3. Press button æ, to make instrument display
lighting brighterOutside Temperature Display
Clock/outside temperature display selector (1)
Press buttonI briefly. The display will switch to
the required mode.
If buttonI is pressed twice within one second, the
display will revert to the original mode after
20 seconds.
