DODGE SPRINTER 2006 1.G Owners Manual

STARTING AND OPERATING
5
CONTENTS
Q Power Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Q Starting the Engine . . . . . . . . . . . . . . . . . . . . . . . . . 144
…Maximum Engine Speed . . . . . . . . . . . . . . . . . . 145…Constant RPMs (Optional) . . . . . . . . . . . . . . . . 146
Q Stopping the Engine . . . . . . . . . . . . . . . . . . . . . . . . 147
Q Automatic Transmission . . . . . . . . . . . . . . . . . . . . 148
…Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
…Accelerator Position . . . . . . . . . . . . . . . . . . . . . . 149
…Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149…Maneuvering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
…Gear Selector Lever Position . . . . . . . . . . . . . . . 150
…Gear Selection for Special Circumstances . . . . 151
Q Transmission Selector Lever, Manually
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
…Reversing Aid (Optional) . . . . . . . . . . . . . . . . . 153
Q Loading the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 156
…Loading Guidelines . . . . . . . . . . . . . . . . . . . . . . 157
Q Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
…Service Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
…Brake Pad Wear Indicator . . . . . . . . . . . . . . . . . 159
…Brake Indicator and Electronic Brake
Force Distribution (EBD) Indicator Lamp . . . 160
…Parking Brake Indicator Lamp . . . . . . . . . . . . . 161
…Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
…Driving Safety Systems . . . . . . . . . . . . . . . . . . . 163…Anti-Lock Brake System (ABS)
Indicator Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 164
…Anti-Lock Brake System (ABS) . . . . . . . . . . . . . 165
…Electronic Brake Force Distribution (EBD) . . . 167
…Acceleration Skid Control Indicator
Lamp (ASR) and Brake Assist System (BAS)1
if equipped . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
…Acceleration Skid Control (ASR) Warning
Lamp and Electronic Stability Program
(ESP®)* – if equipped . . . . . . . . . . . . . . . . . . . . 169
…Acceleration Skid Control (ASR) . . . . . . . . . . . 170

142 STARTING AND OPERATING
…Deactivating the Acceleration Skid
Control (ASR) . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
…Brake Assist System (BAS)
(vehicle type 2500 only) . . . . . . . . . . . . . . . . . . . 172
…Indicator Lamp Electronic Stability Program
(ESP®) (vehicle type 2500 only) . . . . . . . . . . . . 173
…Electronic Stability Program (ESP®)
(vehicle type 2500 only) . . . . . . . . . . . . . . . . . . . 174
Q Auxiliary Drive (Optional) . . . . . . . . . . . . . . . . . . 175
Q Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Q Wheels and Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 176
…Radial-Ply Tires . . . . . . . . . . . . . . . . . . . . . . . . . 179
…Important Guidelines . . . . . . . . . . . . . . . . . . . . 179…Tire Care and Maintenance . . . . . . . . . . . . . . . . 180
…Tire Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . 180
…Life of Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181…Tread Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
…Storing Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
…Cleaning Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 182…Direction of Rotation . . . . . . . . . . . . . . . . . . . . . 182
…Vehicles type 2500 C/HC/SHC . . . . . . . . . . . . 185
…Vehicles type 3500 C/HC/SHC . . . . . . . . . . . . 185
…Tire Grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185…Hydroplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
…Recommended Tire Inflation Pressure . . . . . . 186
…Important Notes on Tire Inflation Pressure . . 187
…Checking Tire Inflation Pressure . . . . . . . . . . . 188
…Potential Problems associated with
Underinflated and Overinflated Tires . . . . . . . 190
…Tire Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
…Tire Size Designation, Load and
Speed Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
…Tire Sizes for Sprinter Vehicles . . . . . . . . . . . . . 193
…Design Standard . . . . . . . . . . . . . . . . . . . . . . . . . 193…Tire Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
…Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
…Tire Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193…Rim Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
…Tire Load Rating . . . . . . . . . . . . . . . . . . . . . . . . . 193
…Tire Speed Rating . . . . . . . . . . . . . . . . . . . . . . . . 195…DOT, Tire Identification Number (TIN) . . . . . 196
…DOT (Department Of Transportation) . . . . . . 197
…Manufacturer’s Identification Mark . . . . . . . . 197…Tire Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
…Tire Type Code . . . . . . . . . . . . . . . . . . . . . . . . . . 197
…Date of Manufacture . . . . . . . . . . . . . . . . . . . . . 197…Maximum Tire Load . . . . . . . . . . . . . . . . . . . . . 198
…Maximum Tire Inflation Pressure . . . . . . . . . . 199
…Tire Ply Material . . . . . . . . . . . . . . . . . . . . . . . . . 200
…Tire and Loading Terminology . . . . . . . . . . . . 200…Rotating Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
…Alignment and Balance . . . . . . . . . . . . . . . . . . . 206

STARTING AND OPERATING 143
5
…Winter tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Q Snow Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Q Fuel Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 209
…Fuel Filter with Water Separator . . . . . . . . . . . 210…Diesel Fuels for Use at Very
Low Temperatures . . . . . . . . . . . . . . . . . . . . . . . 211
Q Refueling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
…Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Q Programmed Top Speed (Optional) . . . . . . . . . . 213
Q Bleeding Diesel Fuel System . . . . . . . . . . . . . . . . . 214
Q Draining Fuel Filter with Water Separator . . . . 214
…Bleeding the Diesel Fuel System . . . . . . . . . . . 216
Q Permissible Roof Load . . . . . . . . . . . . . . . . . . . . . . 216
Q Loading the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 216
…Tire and Loading Information . . . . . . . . . . . . . 217
Q Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
…Trailer Hitches (Optional) . . . . . . . . . . . . . . . . . 222
…Electrical Connections (Optional) . . . . . . . . . . 222
…Vehicle and Trailer Weights and Ratings . . . . 222
…Trailer Tongue Load . . . . . . . . . . . . . . . . . . . . . 223
…Loading a Trailer . . . . . . . . . . . . . . . . . . . . . . . . 223…Checking Weights of Vehicle and Trailer . . . . 224
…Attaching a Trailer . . . . . . . . . . . . . . . . . . . . . . . 224…Towing a Trailer . . . . . . . . . . . . . . . . . . . . . . . . . 225
…Parking a Trailer . . . . . . . . . . . . . . . . . . . . . . . . . 227
Q Emissions Control System
(Catalytic Converter) . . . . . . . . . . . . . . . . . . . . . . . 228
Q Inhalation of Exhaust Gas . . . . . . . . . . . . . . . . . . . 228
Q Fording (Wading Capability) . . . . . . . . . . . . . . . . 228
Q Body Builder Guideline . . . . . . . . . . . . . . . . . . . . . 229
…A Special Note Concerning
Vehicle Alteration . . . . . . . . . . . . . . . . . . . . . . . . 230

144 STARTING AND OPERATING
POWER ASSISTANCE STARTING THE ENGINE
Battery charge warning lamp (1)
Engine oil level indicator lamp (2)
WARNING!
When the engine is not running, there is no power
assistance for the brake and steering system. In
this case, it is important to keep in mind that a
considerably higher degree of effort is necessary
to brake and steer the vehicle.

STARTING AND OPERATING 145
5
Preheater indicator lamp (3)
1. Apply the parking brake.
2. Automatic transmission, shift selector lever to "P"
or "N" position, refer to "Automatic Transmission".
3. Do not depress the accelerator pedal.
4. Turn the key to position 2 in the ignition lock.
The preheater indicator lampq lights up.
5. Turn the key clockwise to the stop as soon as the
preheater indicator lamp
q goes out.
If the engine is at its normal operating temperature,
the preheater indicator lamp will only light up briefly.
Release the key as soon as the engine is running.
NOTE: The key must be returned to position 0 in the
ignition lock before repeating the starting procedure.
If the displayÁ lights up alternately withî in
the multi-function display, there is an immobilizer
malfunction or the key used has not been
programmed.
The: engine oil level warning lamp and the#
battery charge warning lamp must go out after the
engine is started.
If either lamp remains on, stop the engine at once and
have the cause traced and repaired by an authorized
Sprinter Dealer.
During the trip, check the displays and the warning/
indicator lamps in the instrument cluster at regular
intervals.
Maximum Engine Speed
The maximum engine speed for all vehicles is
4,200 rpm.

146 STARTING AND OPERATING
Constant RPMs (Optional)
The switch for the Constant RPMs
is located on the center section of
the dashboard.
Constant RPMs increases the
engine-idling RPMs to a set
working-RPM level and maintains
this level regardless of work load.
It can only be used when the vehicle is stationary, the
parking brake is engaged and the gear selector lever is
in position "P".
Constant RPMs indicator lamp
To switch it on:
 Press the top of the switch; the indicator lamp in the
switch and the constant RPMs indicator lamp
will light up.
To switch off
 Press bottom of switch.

STARTING AND OPERATING 147
5
NOTE: The Constant RPMs will automatically switch
off when the parking brake is released, the vehicle is in
motion or the control unit detects a malfunction.
The Constant RPMs will also automatically switch off
when you depress the brake pedal. In this case it will
automatically switch on again as soon as you release
the brake pedal.STOPPING THE ENGINE
After having brought the vehicle to a stop:
1. Do not depress the accelerator pedal.
2. Apply the parking brake.
3. Turn the key back to position 0 in the ignition lock.
NOTE: When the engine is very hot, such as after
climbing a long steep slope, allow the engine to idle for
1 to 2 minutes so that it can return to its normal
operating temperature.

148 STARTING AND OPERATING

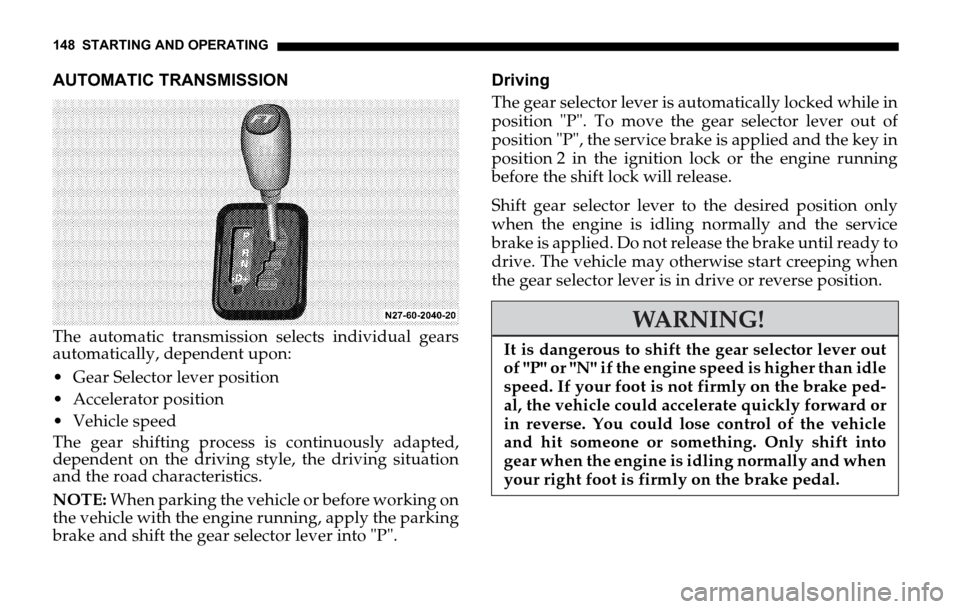

AUTOMATIC TRANSMISSION
The automatic transmission selects individual gears
automatically, dependent upon:
 Gear Selector lever position
 Accelerator position
 Vehicle speed
The gear shifting process is continuously adapted,
dependent on the driving style, the driving situation
and the road characteristics.
NOTE: When parking the vehicle or before working on
the vehicle with the engine running, apply the parking
brake and shift the gear selector lever into "P".Driving
The gear selector lever is automatically locked while in
position "P". To move the gear selector lever out of
position "P", the service brake is applied and the key in
position 2 in the ignition lock or the engine running
before the shift lock will release.
Shift gear selector lever to the desired position only
when the engine is idling normally and the service
brake is applied. Do not release the brake until ready to
drive. The vehicle may otherwise start creeping when
the gear selector lever is in drive or reverse position.
WARNING!
It is dangerous to shift the gear selector lever out
of "P" or "N" if the engine speed is higher than idle
speed. If your foot is not firmly on the brake ped-
al, the vehicle could accelerate quickly forward or
in reverse. You could lose control of the vehicle
and hit someone or something. Only shift into
gear when the engine is idling normally and when
your right foot is firmly on the brake pedal.

STARTING AND OPERATING 149
5
NOTE: After selecting any driving position from "N"
or "P", wait a moment to allow the gear to fully engage
before accelerating, especially when the engine is cold.
Accelerator Position
Partial throttle, for early upshifting and normal
acceleration
Full throttle, for later upshifting and rapid acceleration
Kickdown, (depressing the accelerator beyond full
throttle) for downshifting to a lower gear and
maximum acceleration. Once the desired speed is
attained, ease up on the accelerator, the transmission
shifts up again.
Stopping
For brief stops, such as at traffic lights, leave the
transmission in gear and hold vehicle with the service
brake.
For longer stops with the engine idling, shift into "N"
or "P" and hold the vehicle with the service brake.
When stopping the vehicle on an uphill grade, do not
hold it with the accelerator, use the brake. This avoids
unnecessary transmission heat build up.Maneuvering
To maneuver in tight areas, such as when pulling into
a parking space, control the vehicle speed by gradually
releasing the brakes. Accelerate gently and never
abruptly step on the accelerator.
To rock a vehicle out of soft ground (mud or snow),
alternately shift from forward to reverse, while
applying slight partial throttle.
WARNING!
Getting out of your vehicle with the gear selector le-
ver not fully engaged in position "P" is dangerous.
Also, when parked on an incline, position "P" alone
may not prevent your vehicle from moving, possibly
hitting people or objects.
Always set the parking brake in addition to
shifting to position "P".
When parked on an incline, also turn front wheel
against curb.

150 STARTING AND OPERATING
Gear Selector Lever Position
The current gear selector lever position (1) is indicated
in the gear range indicator display. The automatic gear
shifting process can be adapted to specific operating
conditions using the gear selector lever.vPark Position
The park position is to be used when parking the
vehicle. Engage only with the vehicle stopped.
The park position is not intended to serve as a
brake when the vehicle is parked. Rather, the
driver should always use the parking brake in
addition to placing the gear selector lever in
park position to secure the vehicle.
NOTE: With a malfunction in the vehicle’s electrical
system the gear selector lever could remain locked in
position "P". To unlock the gear selector lever
manually, refer to "Transmission Gear Selector Lever,
Manually Unlocking".
t Reverse Gear
Shift to reverse gear only with the vehicle
stopped.
s Neutral
No power is transmitted from the engine to the
drive axle. When the brakes are released, the
vehicle can be moved freely (pushed or towed).
Do not engage "N" while driving as you may
otherwise lose control of the vehicle.
